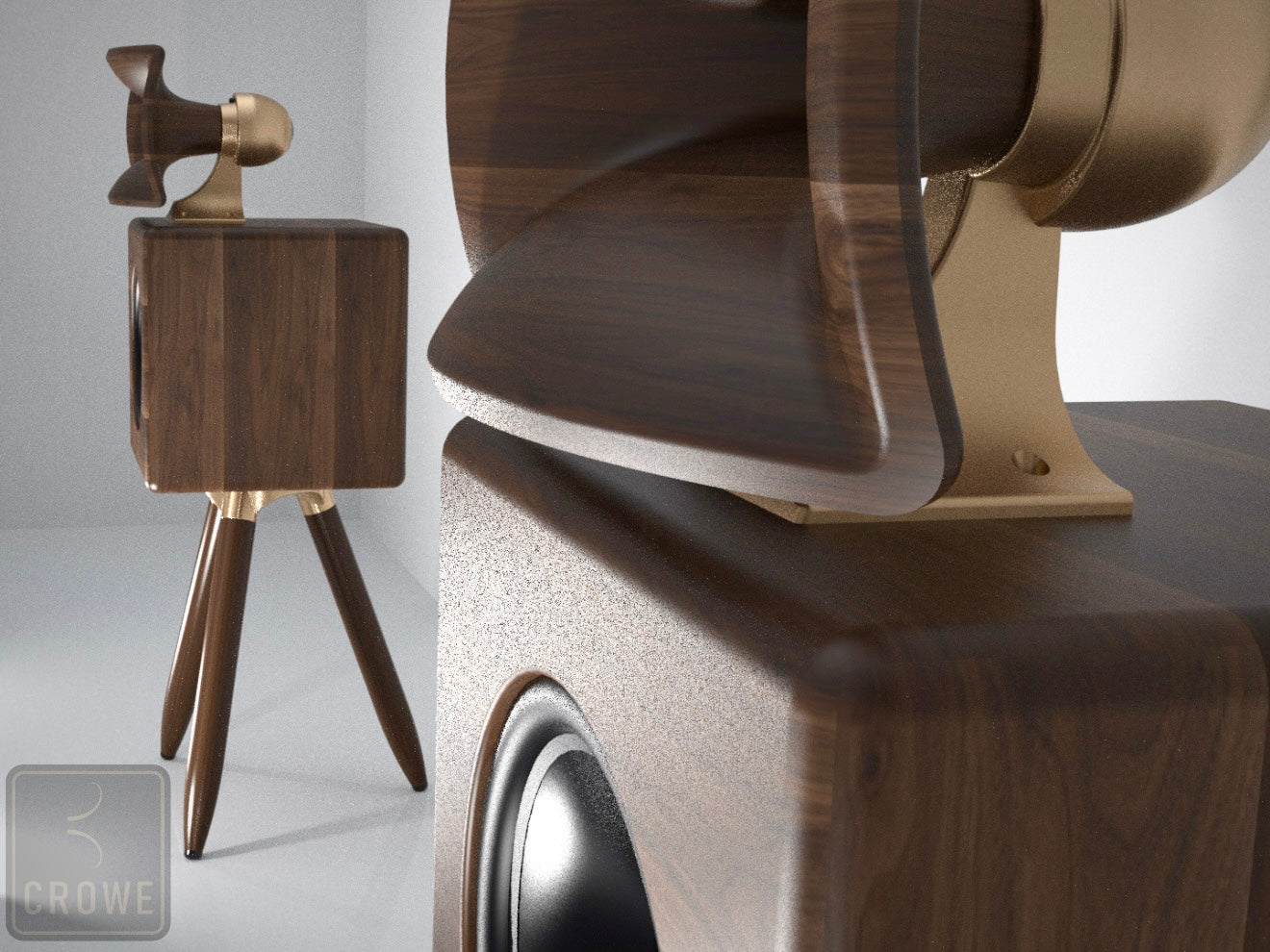

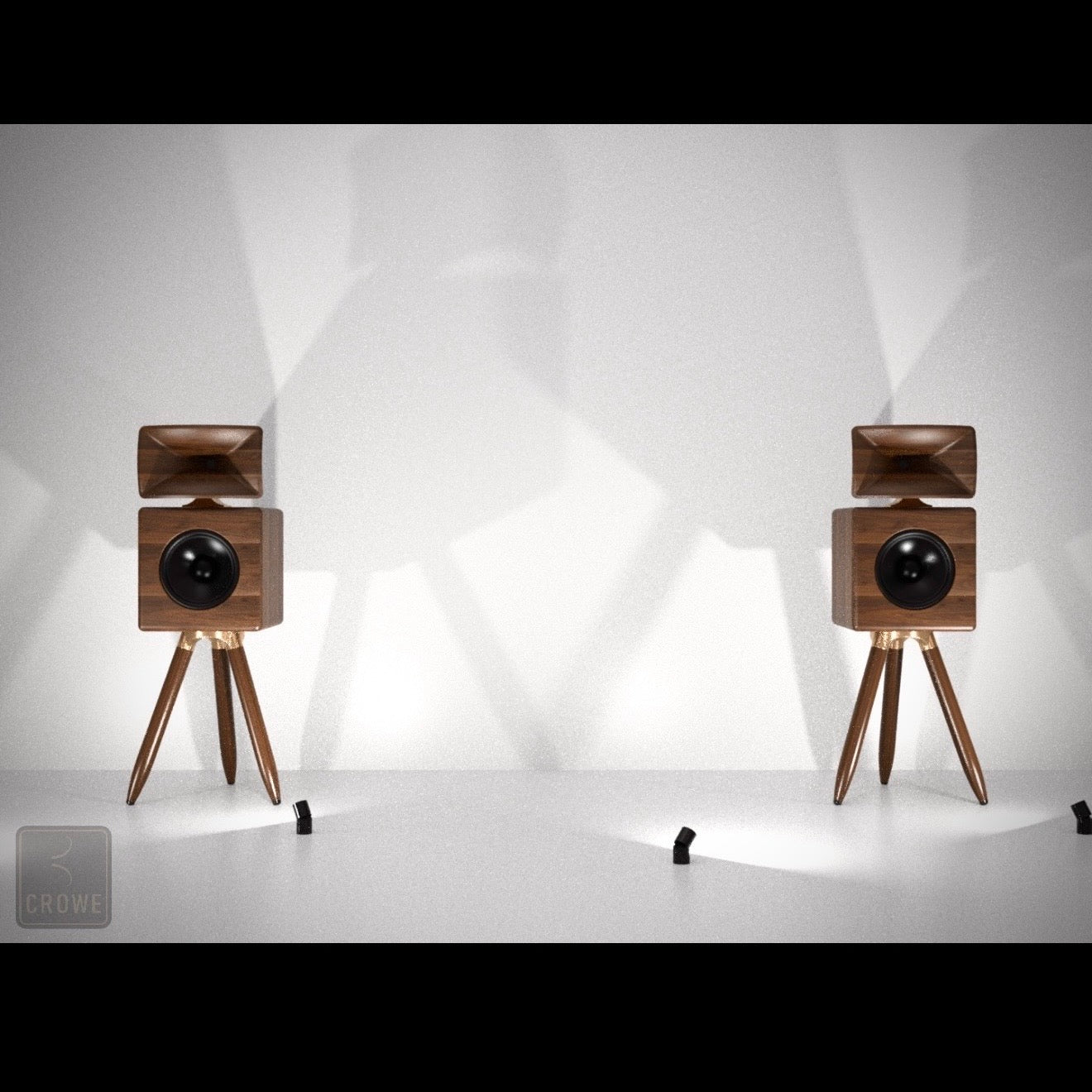

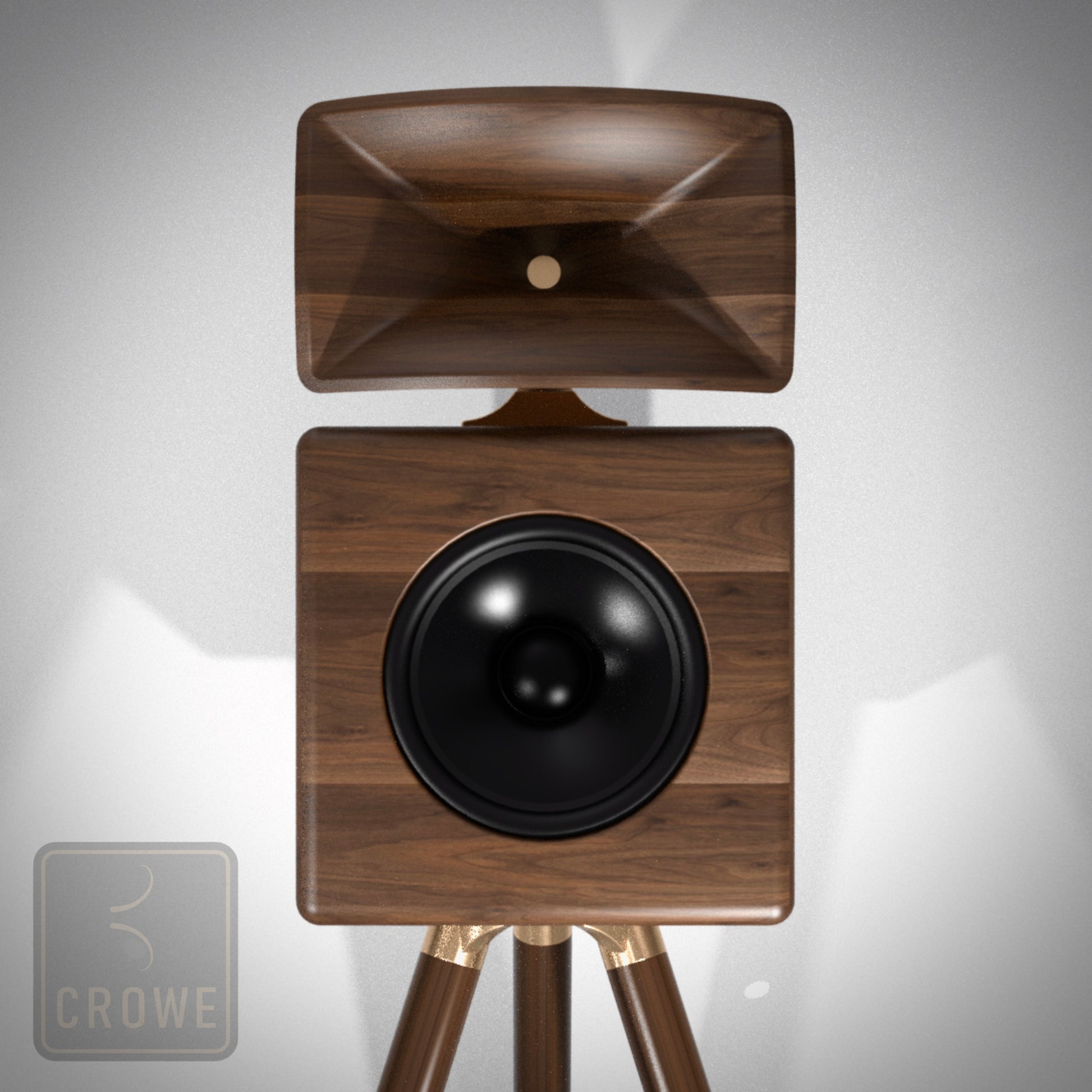

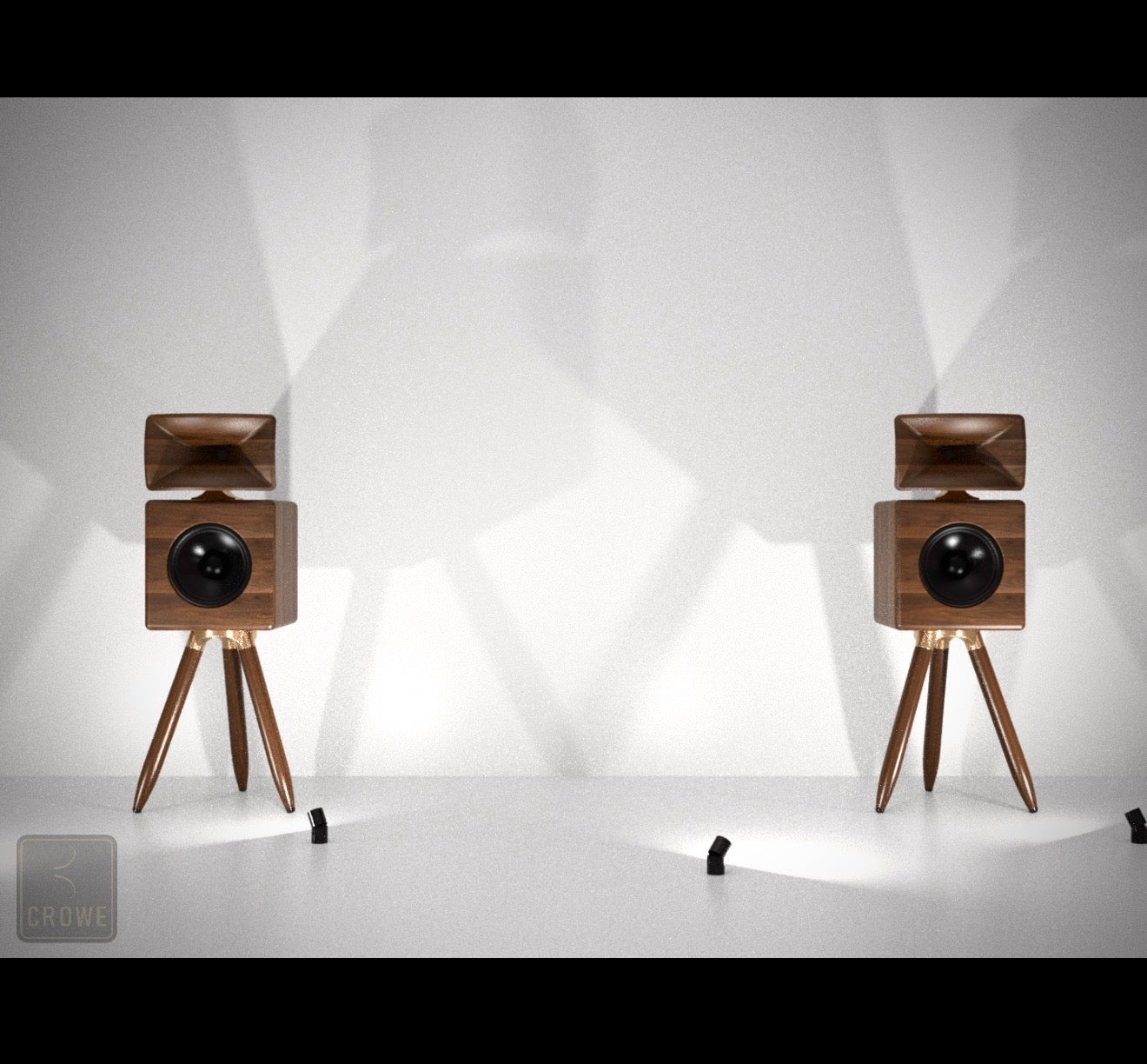

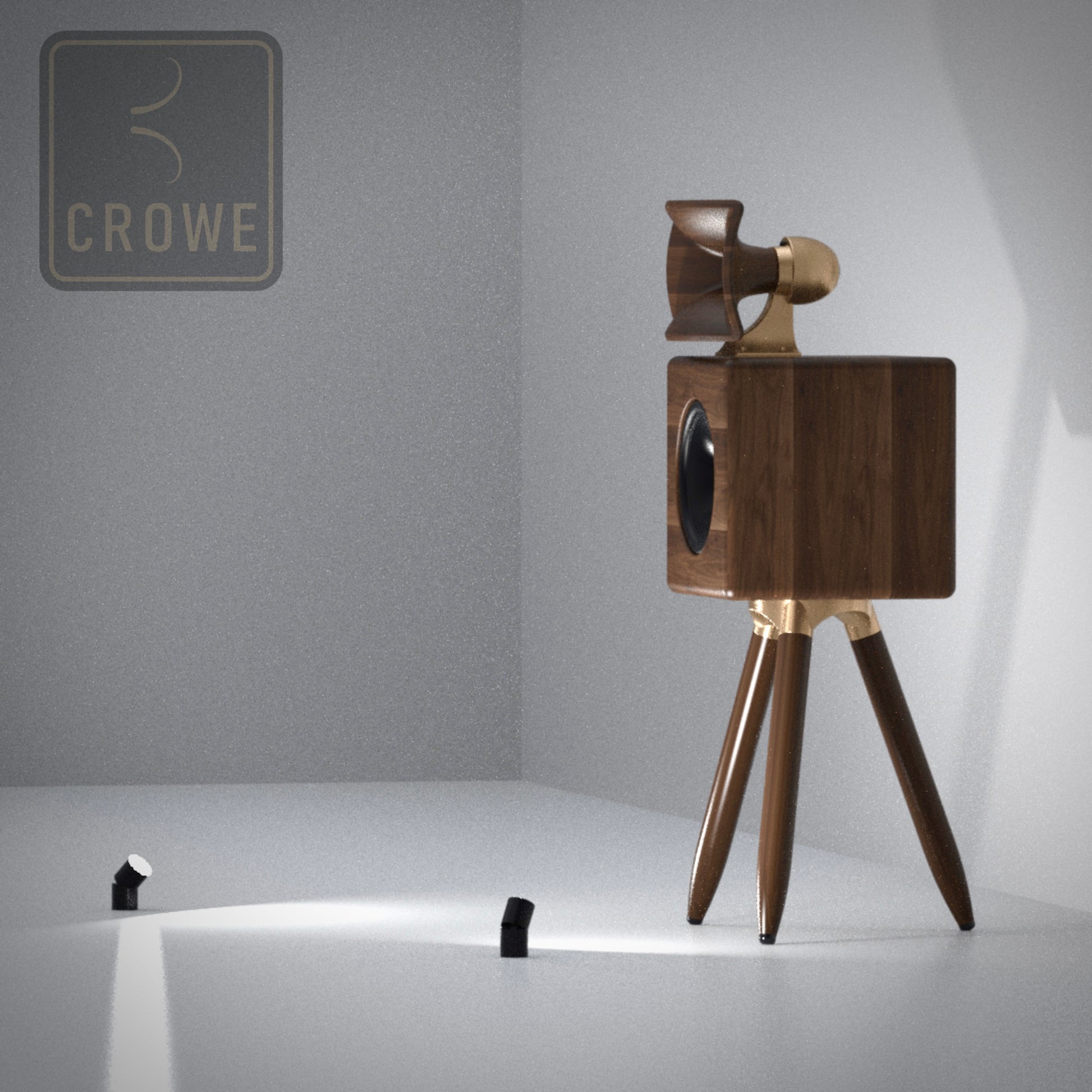

Speaker System No.3516

Speaker System No.3516 is custom made to order. Please contact for lead time.

$30,000.00 USD/pair plus shipping

• Solid walnut horn (350mm wide)
• Solid walnut cabinet (22mm thick walls)
• Cast bronze horn support and rear cover
• Rear firing high frequency driver
• High grade 10” woofer with custom 1” compression driver
• 800Hz crossover point, time aligned drivers
• Cast bronze leg bracket
• Solid walnut 50mm diameter legs
• Hard rubber feet

Dimensions: 350mm wide x 350mm deep, 1095mm tall (13.77” x 13.77” x 43.11” tall)

Weight: per speaker: 86Kg (186 lbs)

Speaker system No.3516 is designed to provide a rich and warm sound character in medium to large listening rooms. The 10" woofer provides plenty of clean output partnered with our custom made 1" compression driver. The sound is lush and engaging while still maintaining proper dynamics.

Features a rear facing 25mm dome tweeter for improved soundstage spaciousness.

Configured as a 2-way floorstanding speaker utilizing a 10"  woofer and 1" compression driver mounted to our 700Hz  Biradial horn. The enclosure is CNC machined from 22mm thick solid hardwood.

The following is our standard crossover components and internal wiring which we've been using for a decade. We continue to try various other brands and components for potential upgrades however these components listed below have stood the test of time for excellent sound quality, particularly with compression drivers.

• Silver plated OFC multistrand wiring with PTFE (teflon) jacketing (16Ga)
• Mundorf EVO oil capacitors
• Solen air core inductors (16Ga.)
• Dayton Audio Precision Grade 1% tolerance resistors, non-inductive, shielded
• Point to point wiring
• WBT binding posts

Specification:

• 90dB Sensitivity (Anechoic) or 97dB (in-room)
• 10” 2-way
• 8ohm nominal impedance
• Rear facing 25mm dome tweeter
• Bass extension 40Hz (F3)
• Rear ported bass reflex
