Joseph Crowe

Prince Edward Horn No.3000

Regular price $50.00 USD
Regular price Sale price $50.00 USD
Sale Sold out

By purchasing these plans you will automatically receive the 3D CAD Files automatically via email.

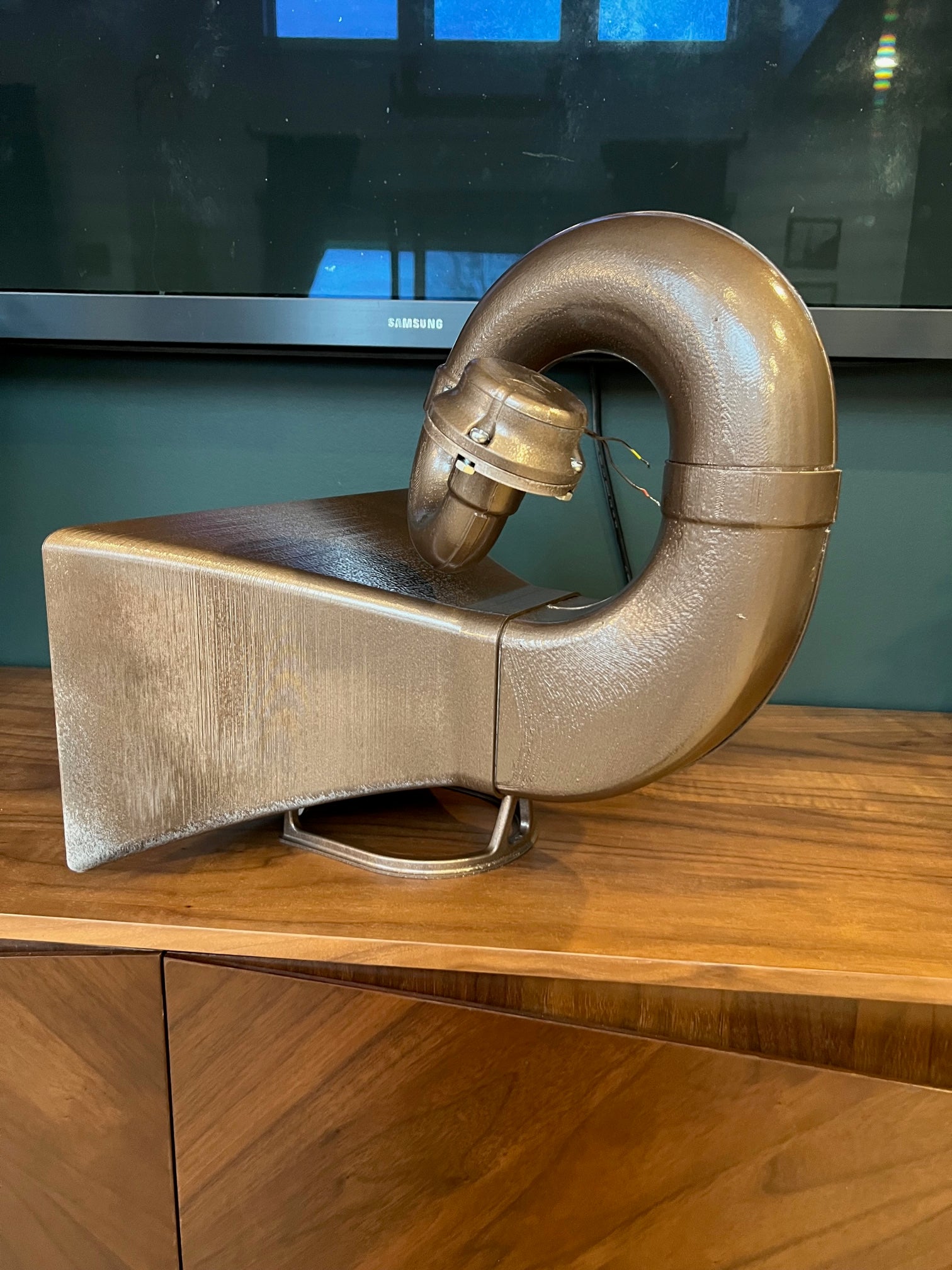

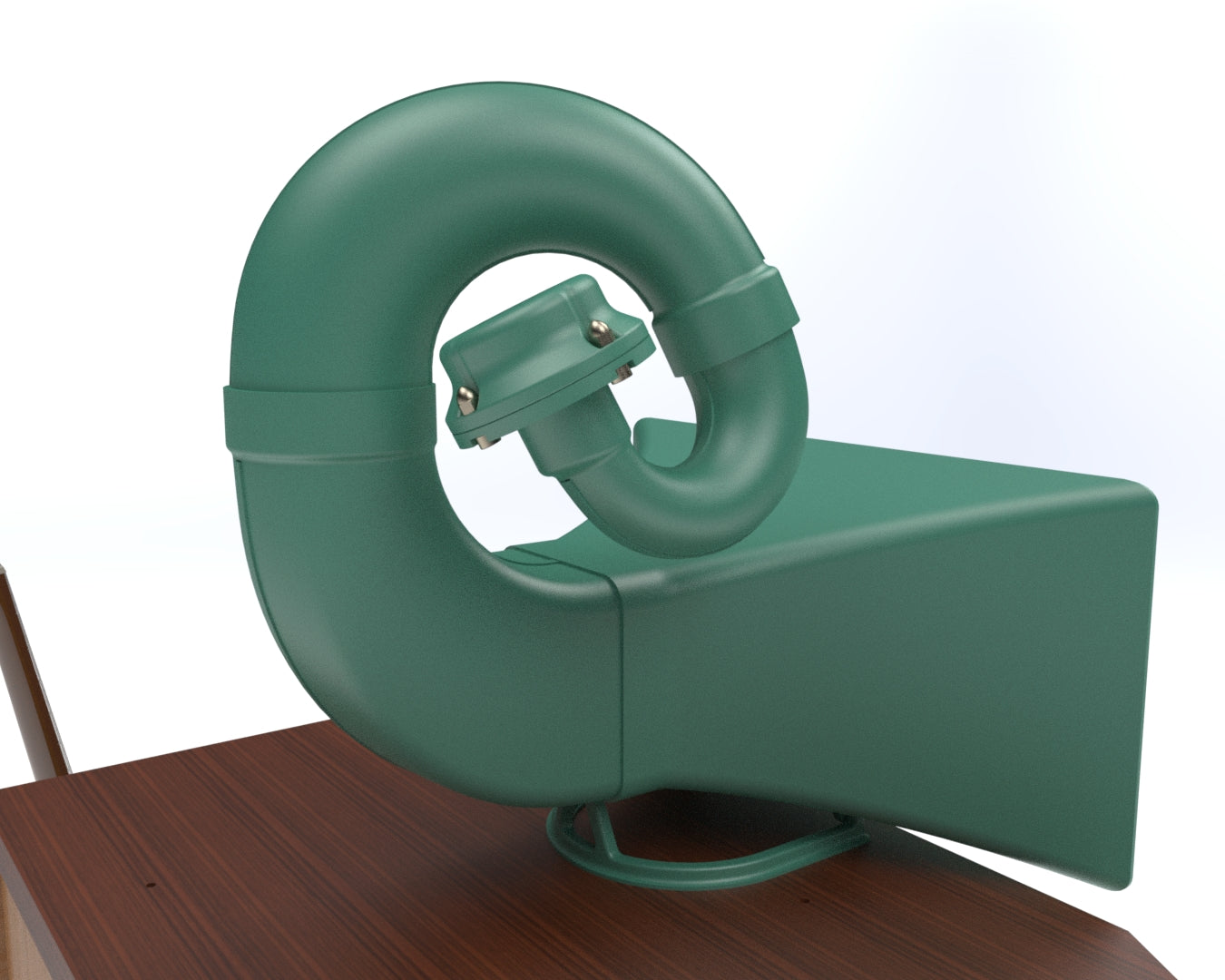

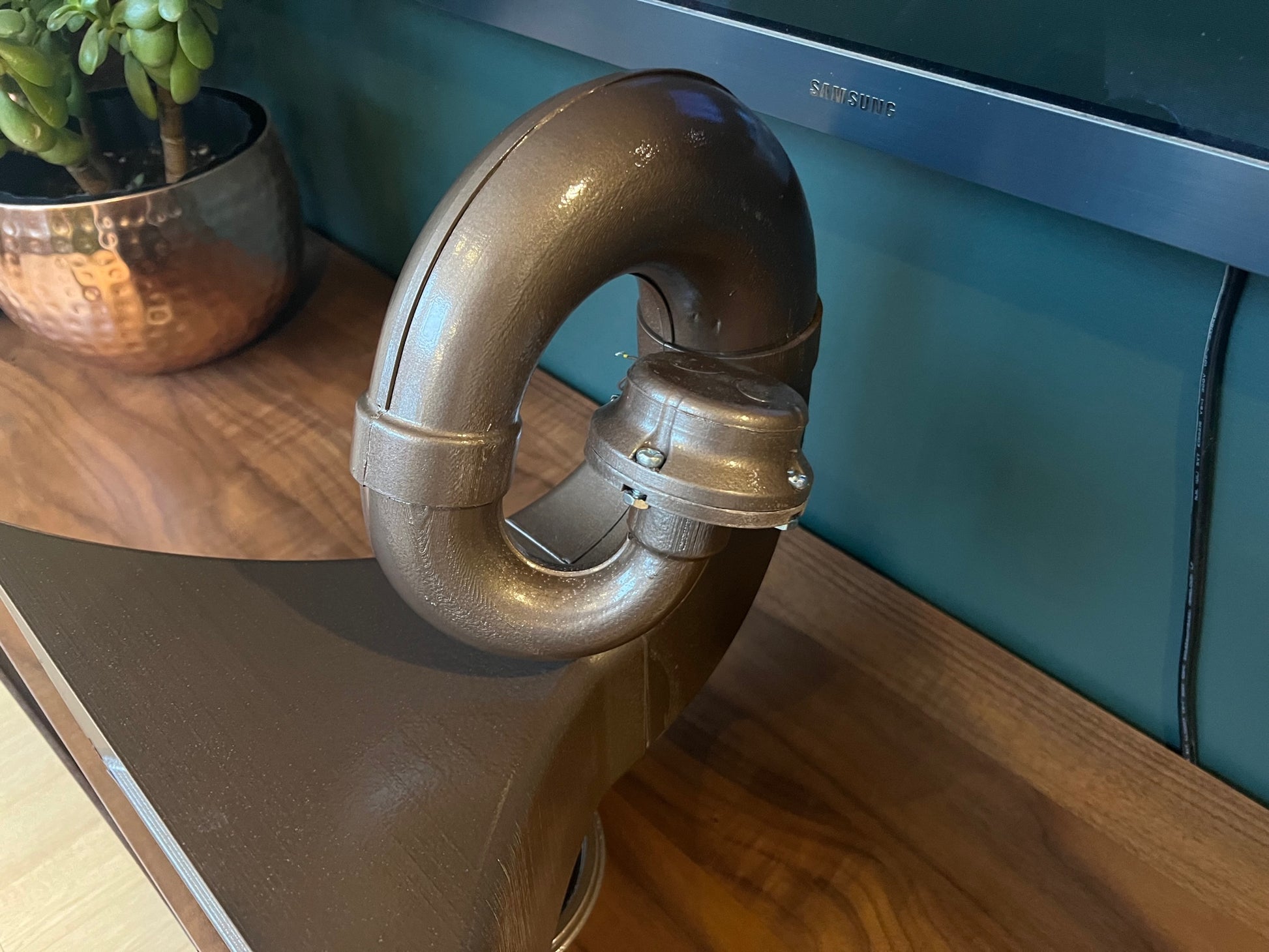

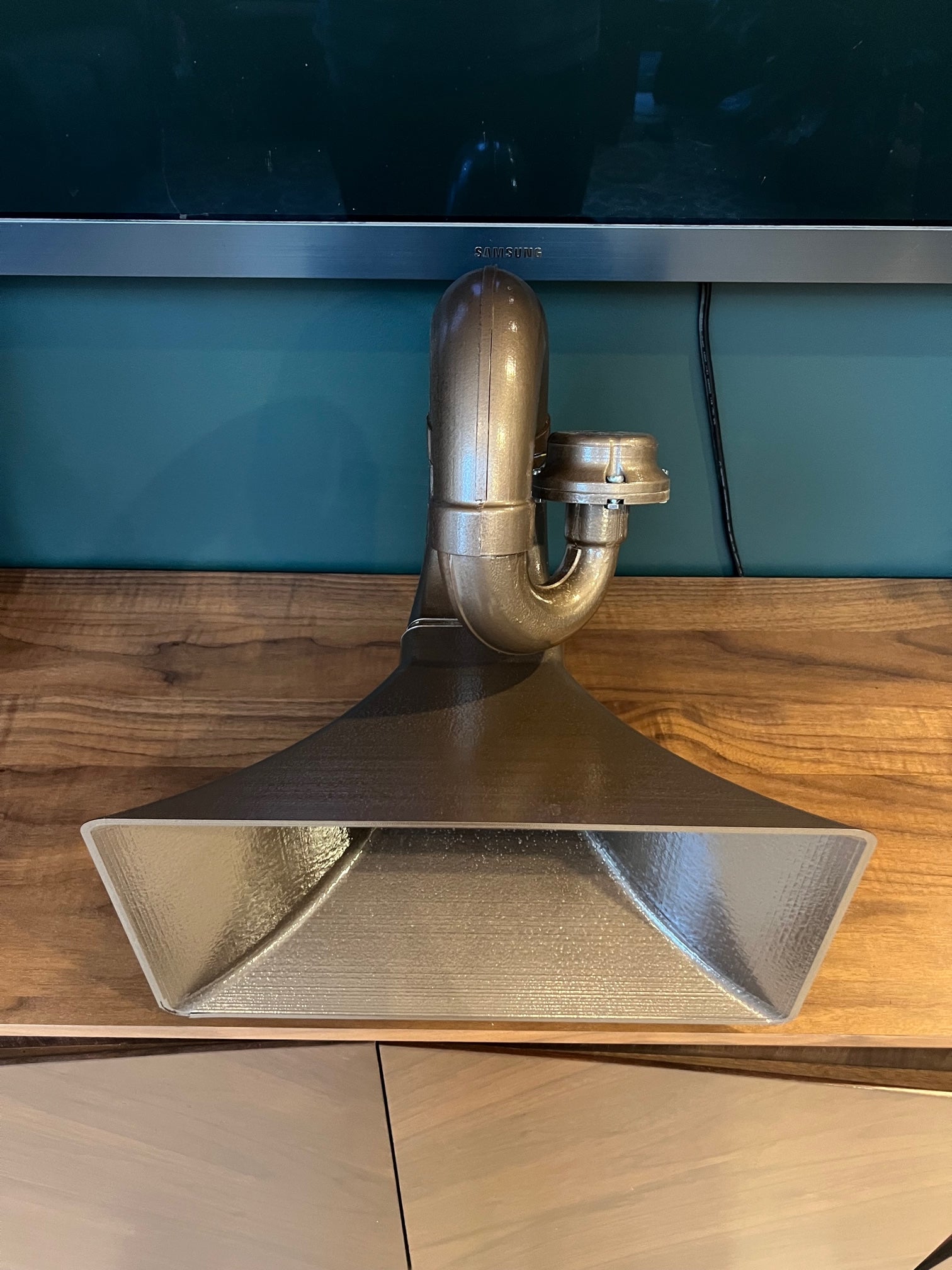

The Prince Edward Horn No.3000 is part of the vintage sound collection, providing a particular sound character which emphasizes the vocal range. The horn can be used on its own or as part of a multiway system. (see demo video below)

Includes

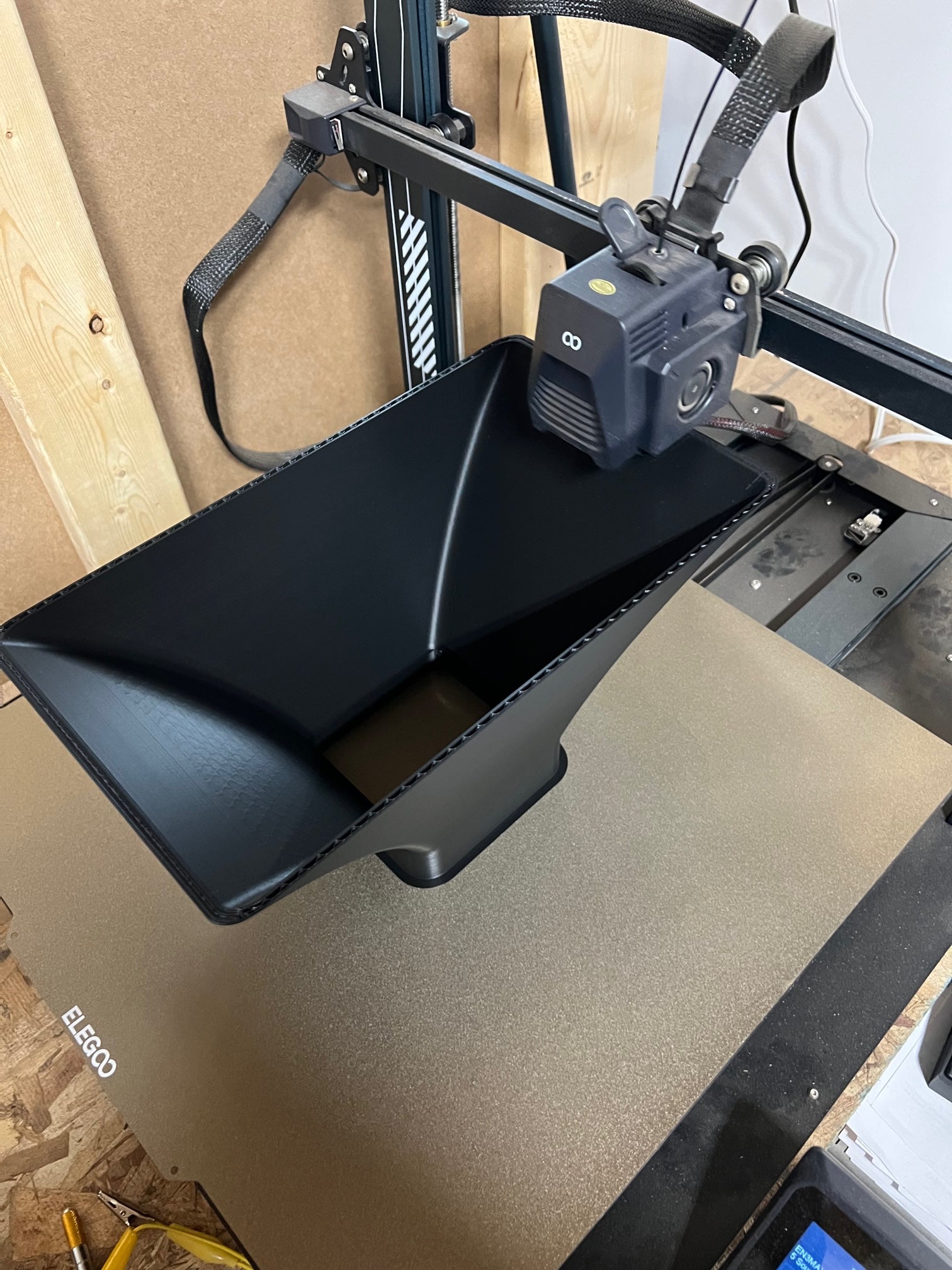

All files are in STL format for use in 3D printing. Please see our printer guidance page for support.

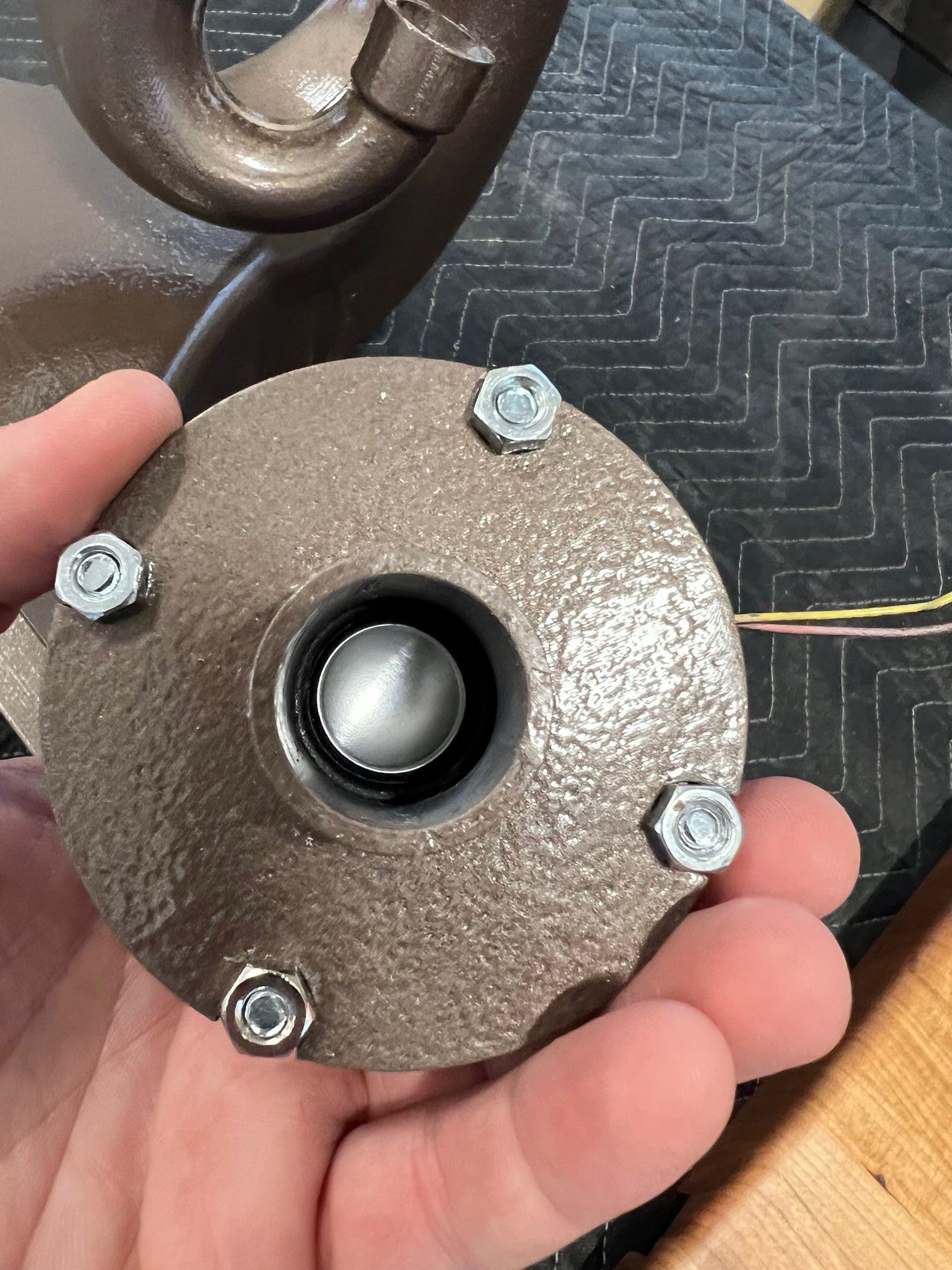

  • Custom compression driver
    • Uses 19mm Peerless Fullrange driver (Aprox $15 USD)
    • Mounted in sealed 0.05L back chamber
    • Direct radiating into throat with no phase plug
    • Provides outward vintage appearance

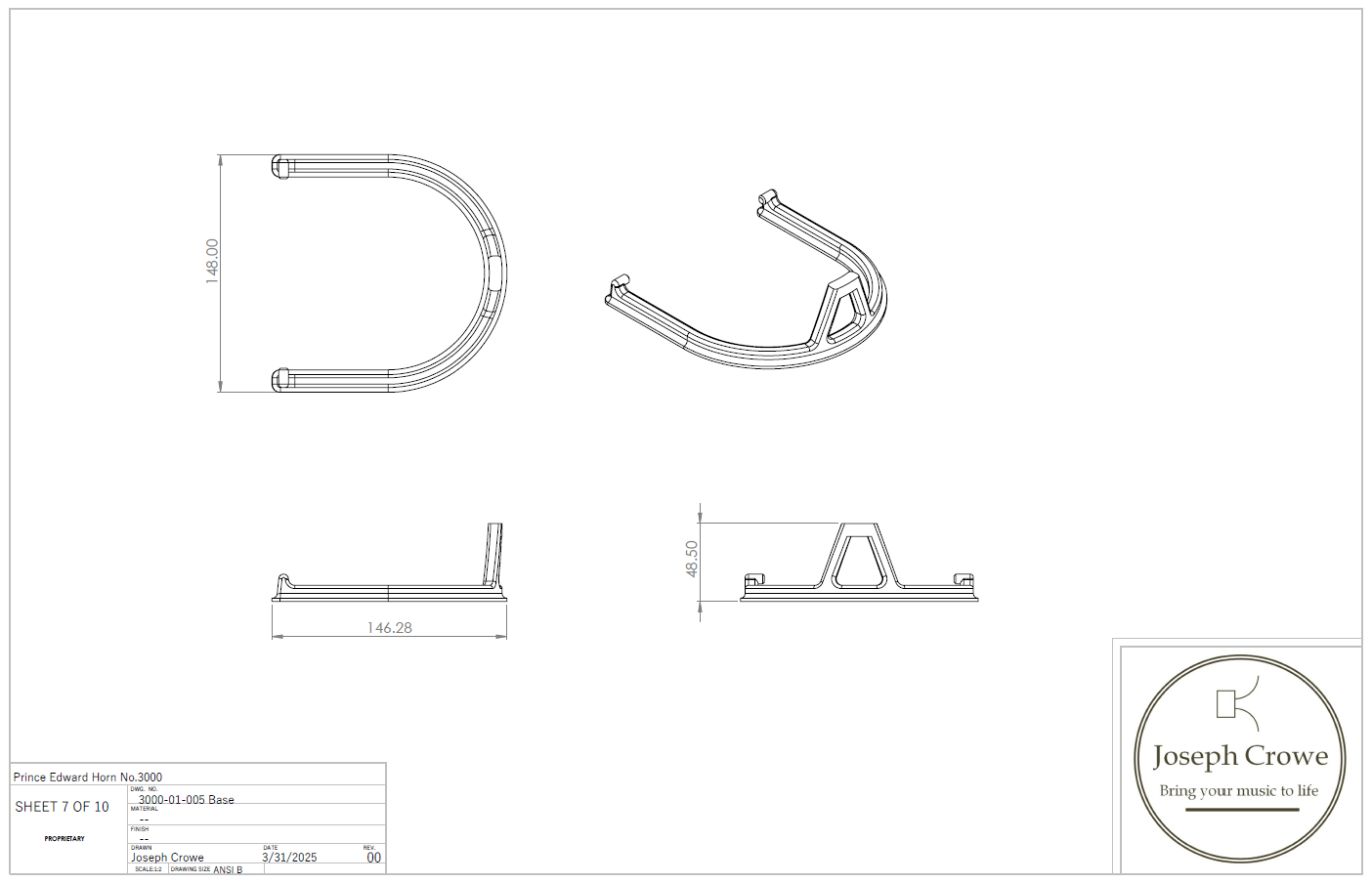

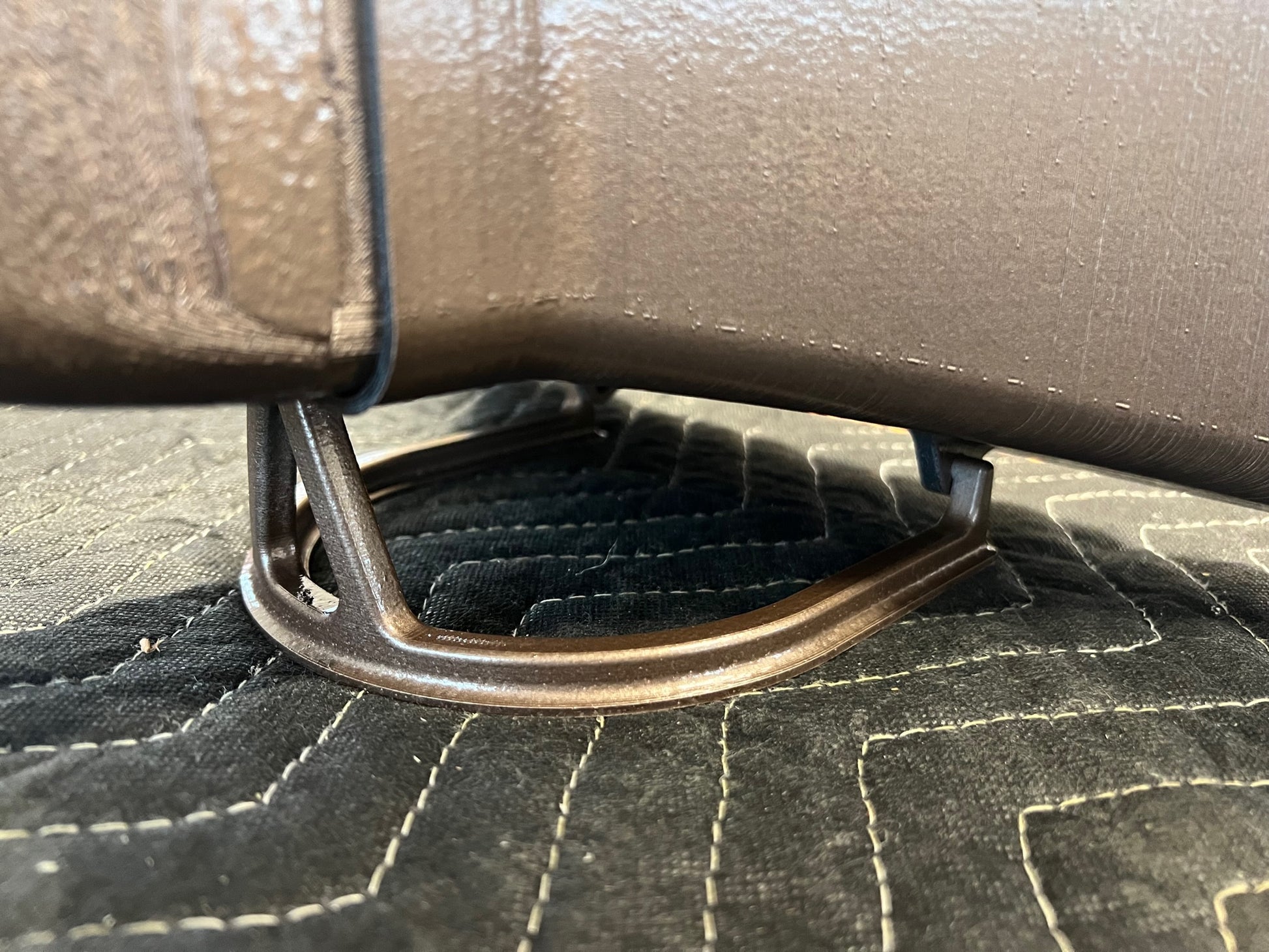

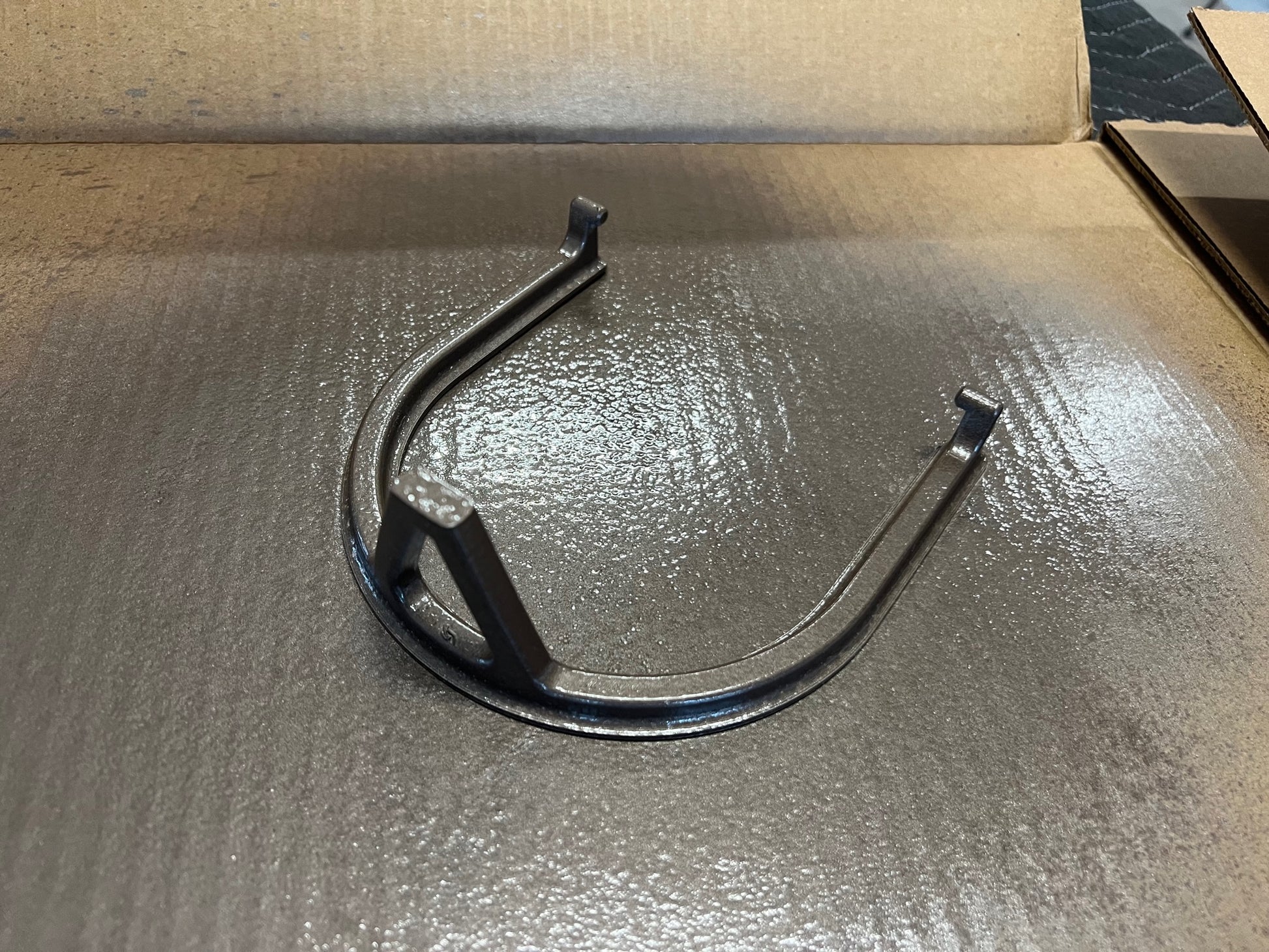

  • Support stand
    • Clips onto existing horn mouth features
    • Vintage appearance

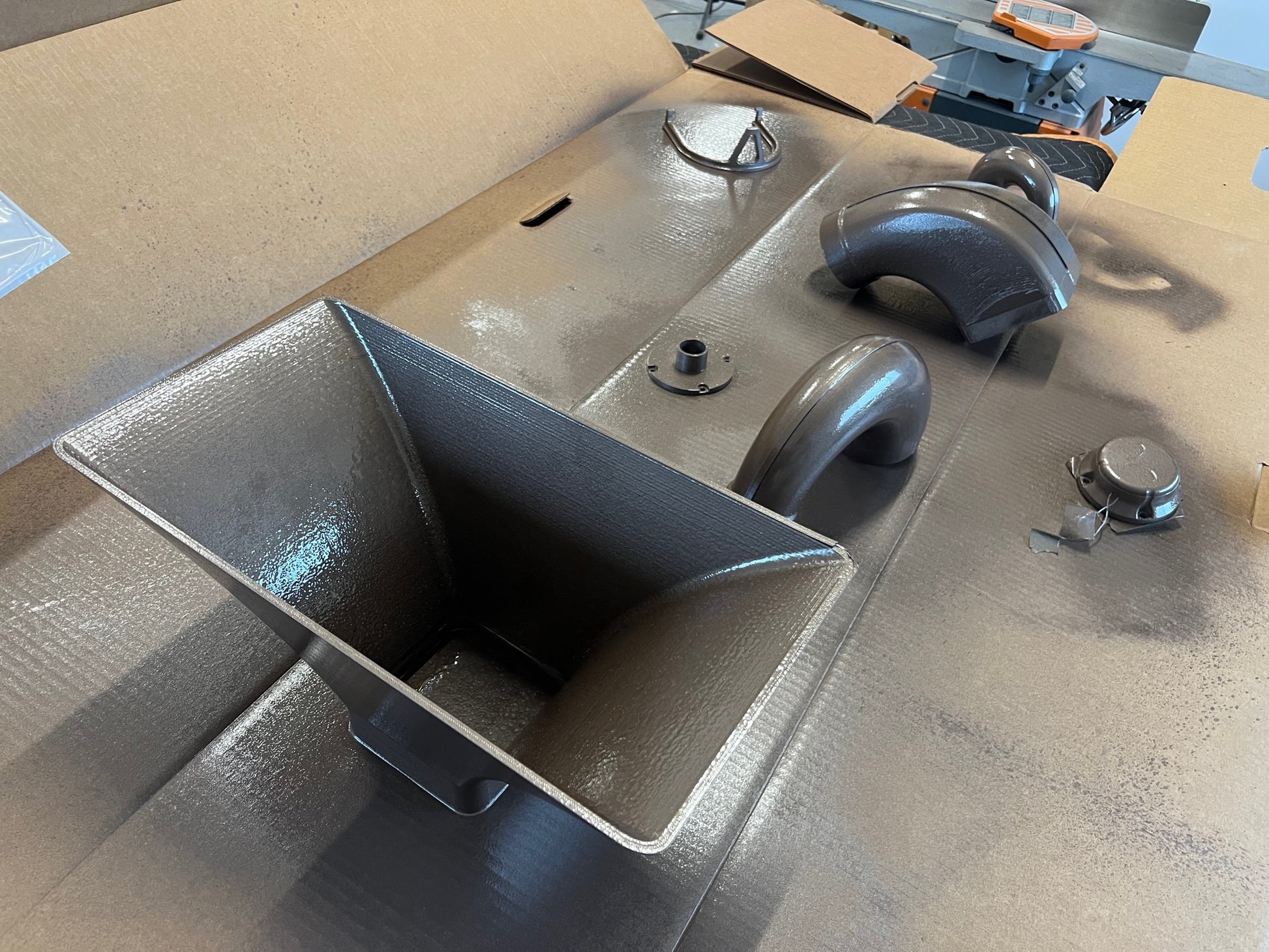

  • Modular pieces
    • Can be reconfigured for low profile height
    • Pieces can be replaced with different designs (coming soon!)
    • Can accommodate standard 1" compression driver
      • We don't have a recommended 1" compression driver model yet, but have fun experimenting!
      • Please refer to file "3000-01-Driver Adapter for 1 inch compression driver.STL"

Applications

  • Experimenters and curious minds!
  • Classic 45 Albums
  • Mono recordings (if using a single horn)

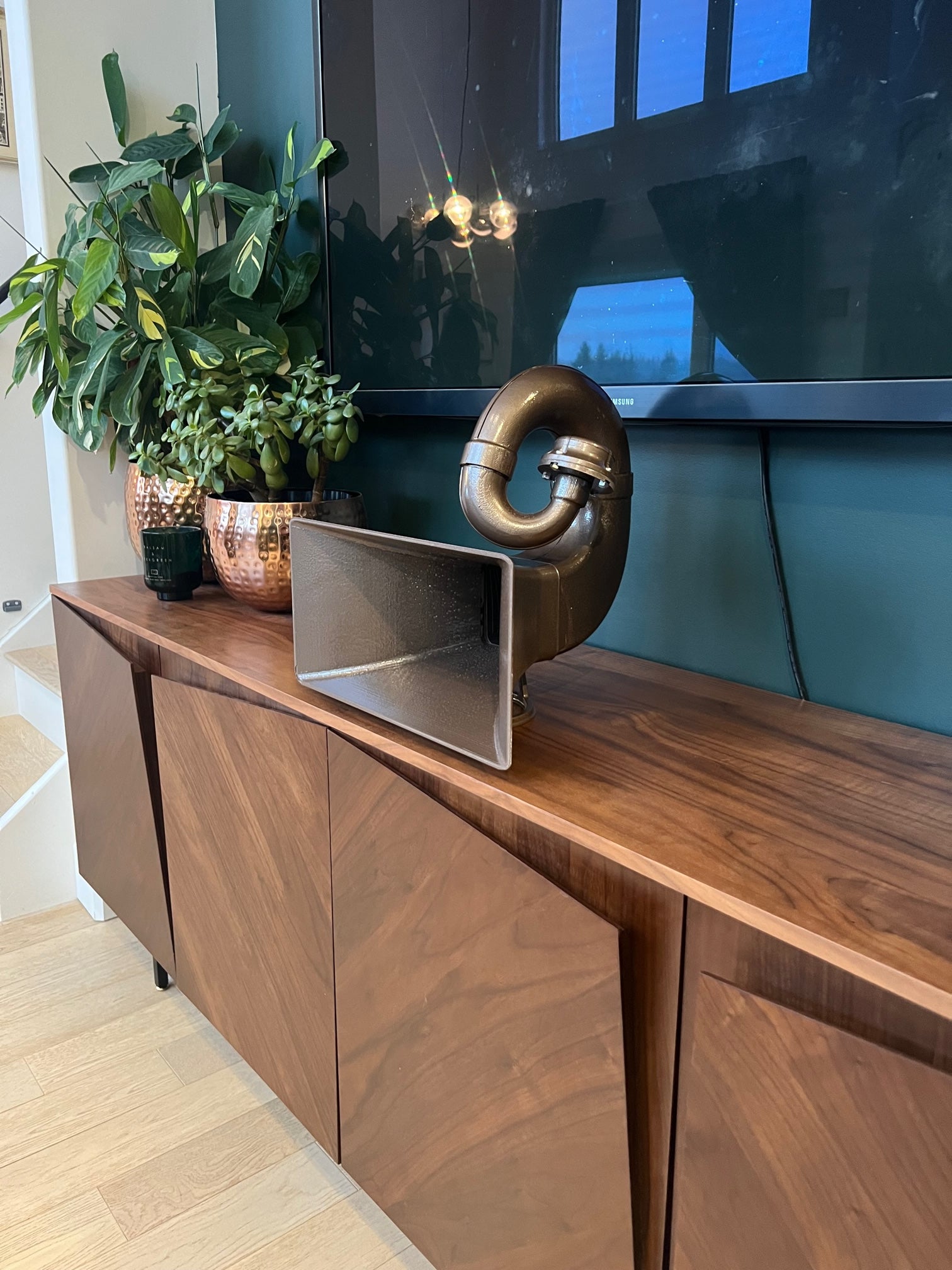

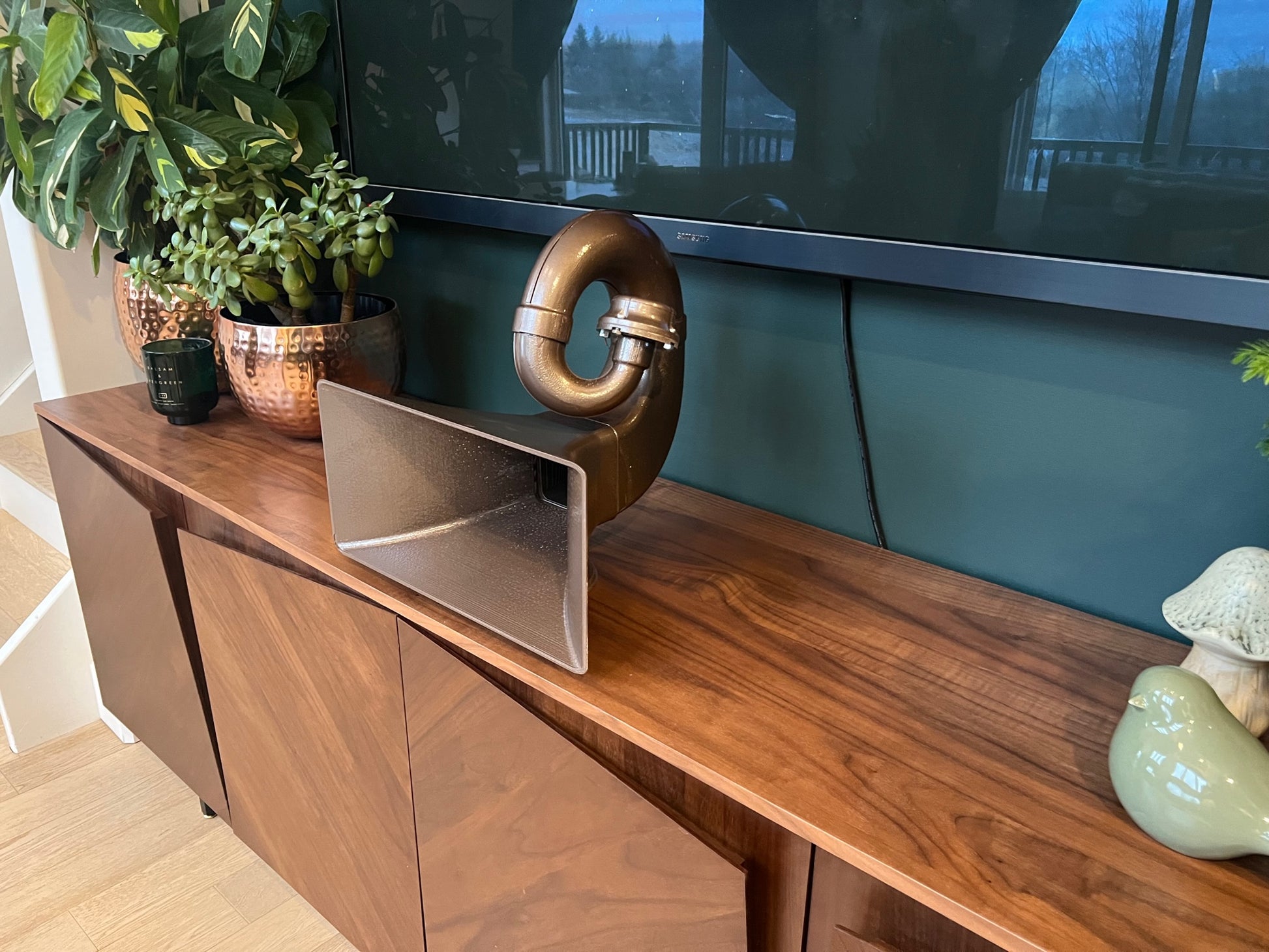

  • Center Channel or Soundbar for Movies or Television

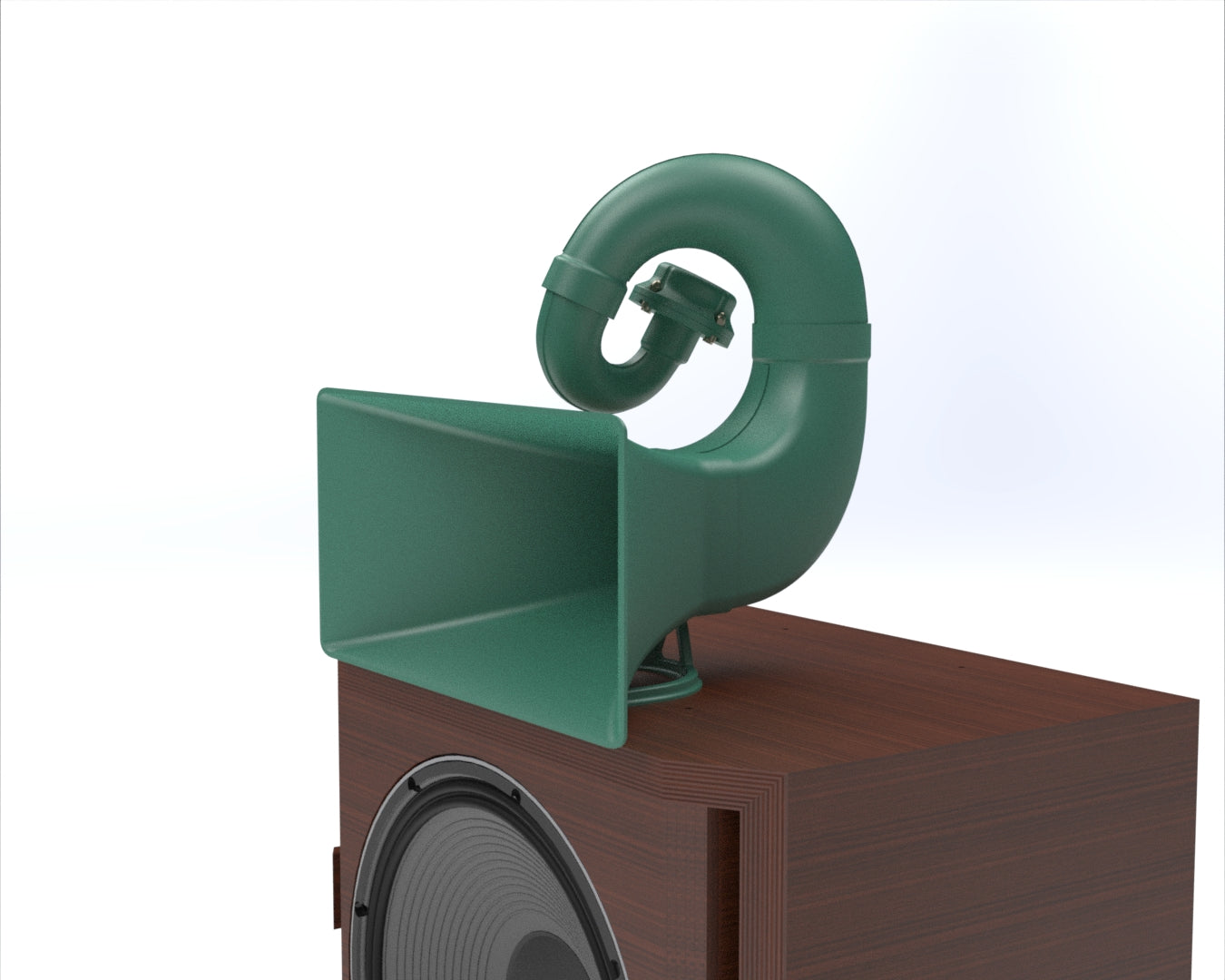

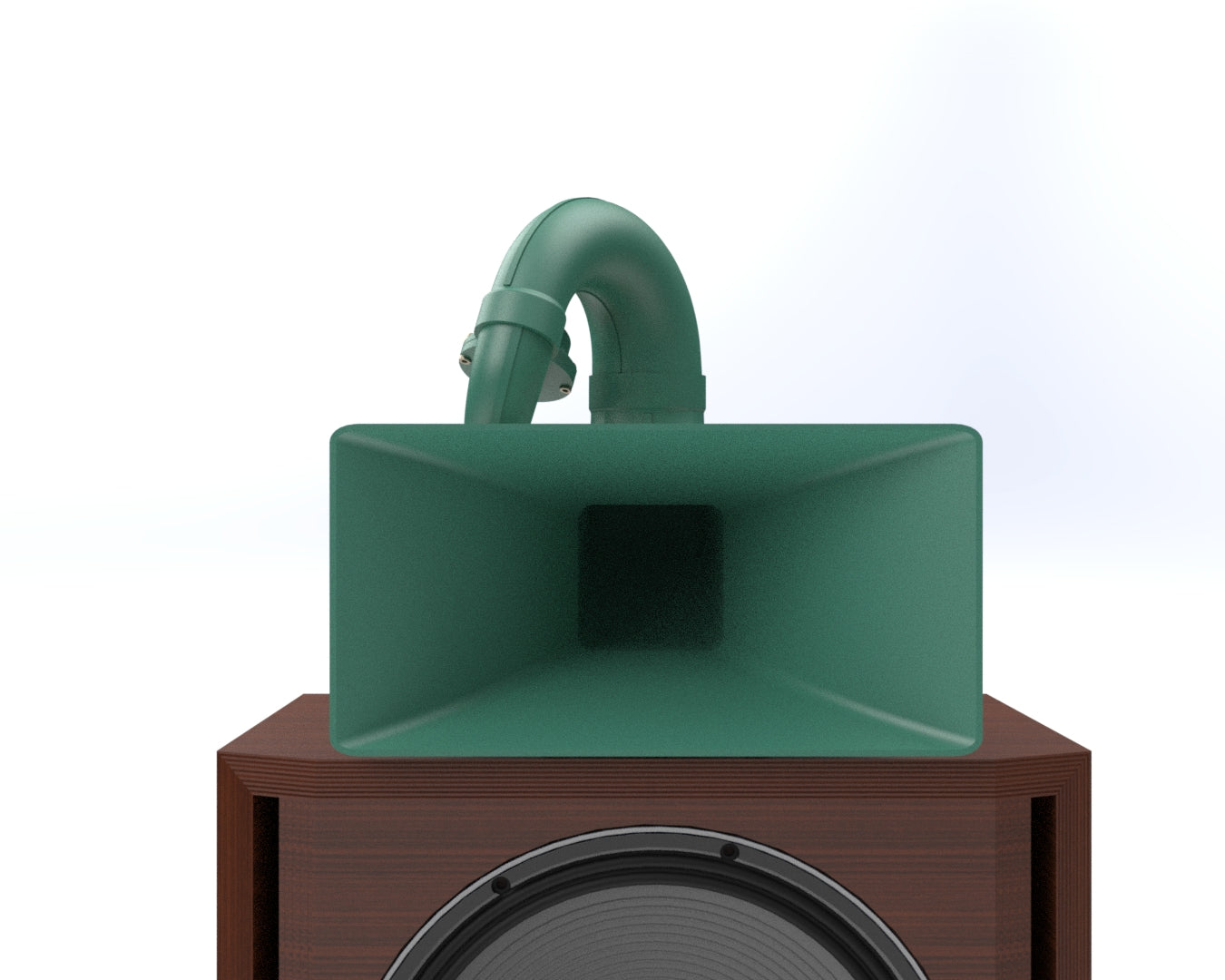

  • Part of a multi-way speaker augmented by bass and treble (More designs coming soon!)

Features

  • Exclusively designed by Troy Joseph Crowe of Joseph Crowe Audio
  • Inspired by the Western Electric 22A Horn (Circa 1920's)
  • Can easily be adapted to various drivers
  • Flexible design can be altered and changed, encouraging experimentation.
  • More accessories and designs coming soon as part of an overall 'Prince Edward Collection" ecosystem.

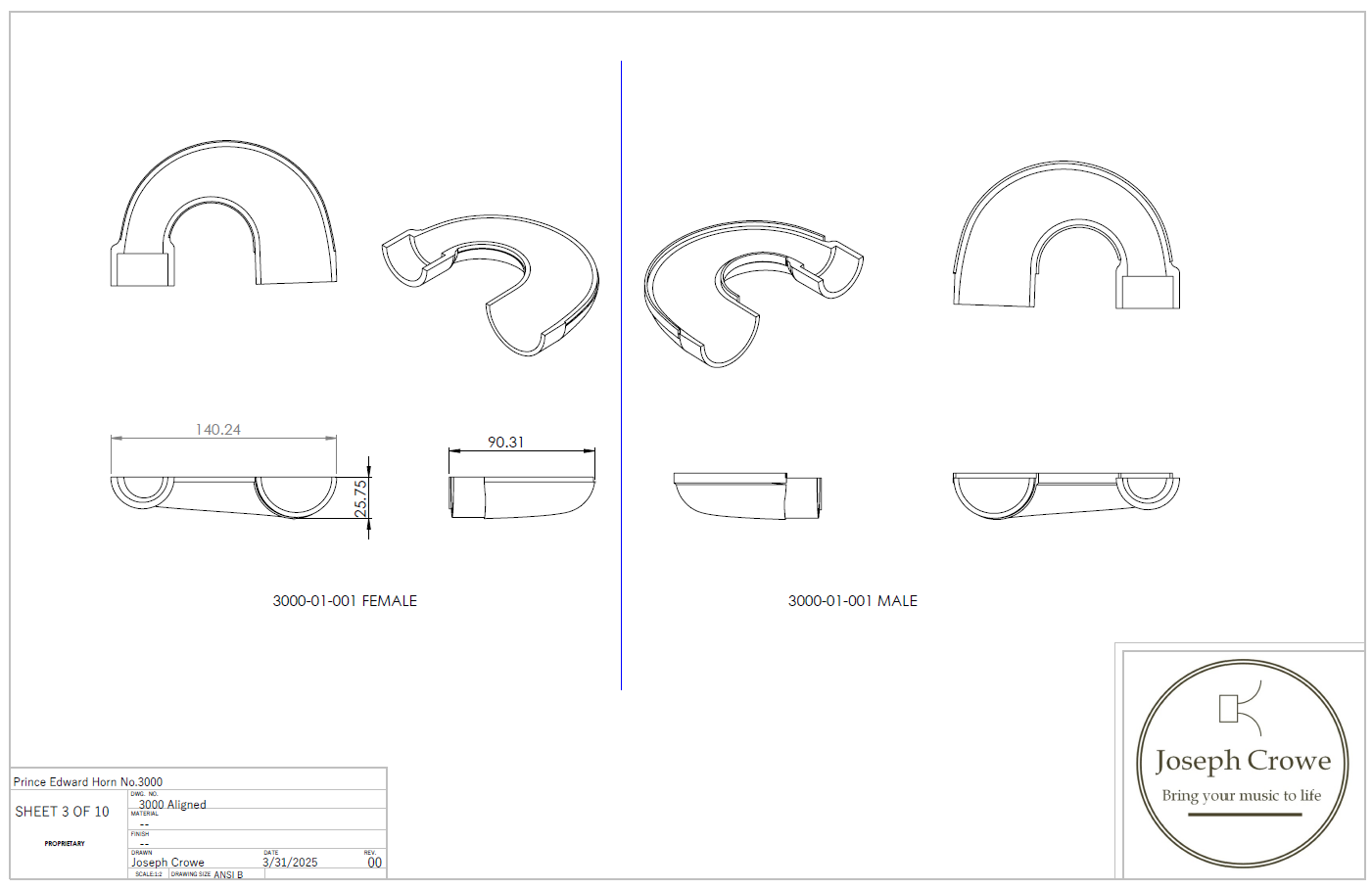

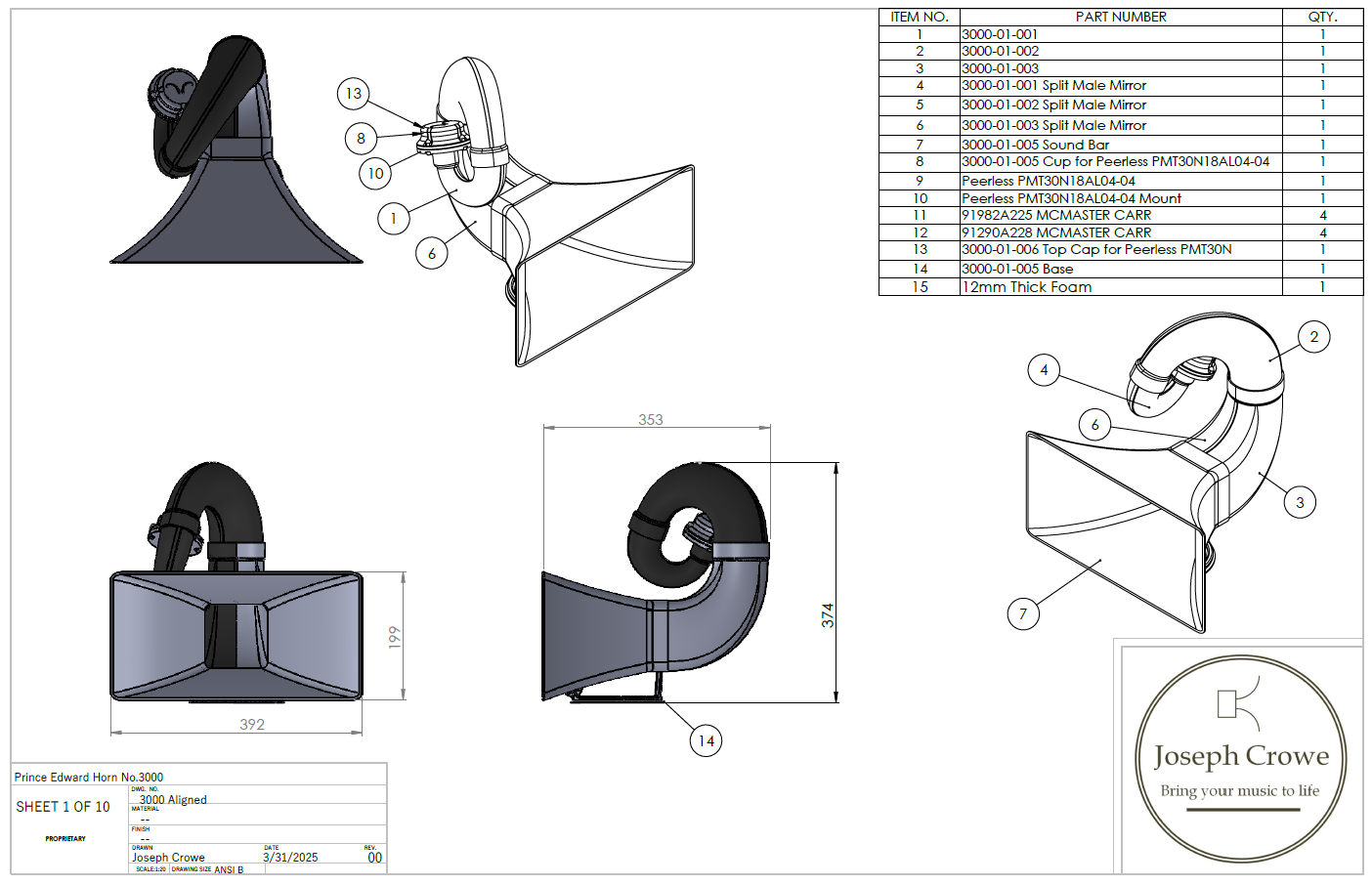

Dimensions

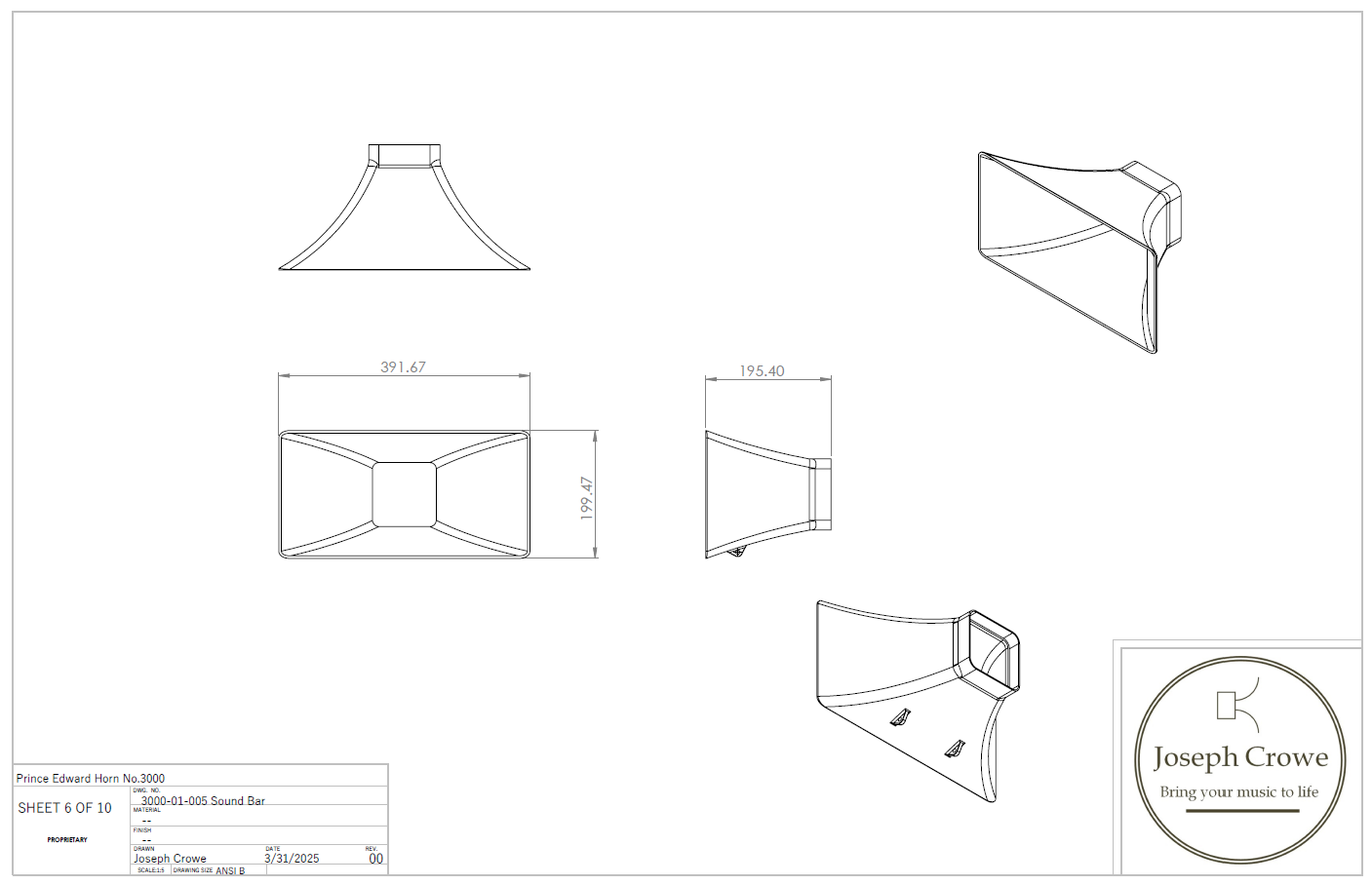

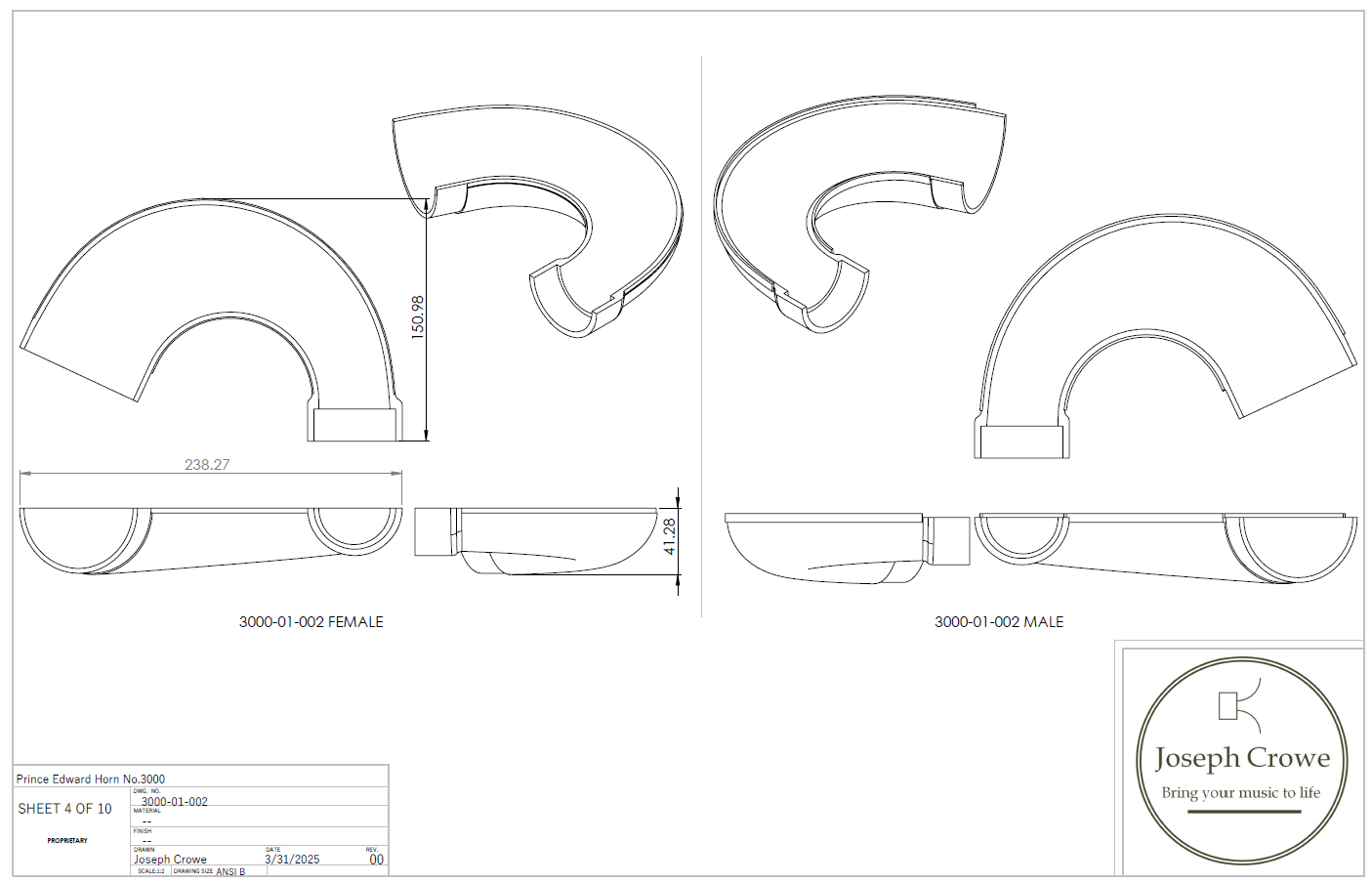

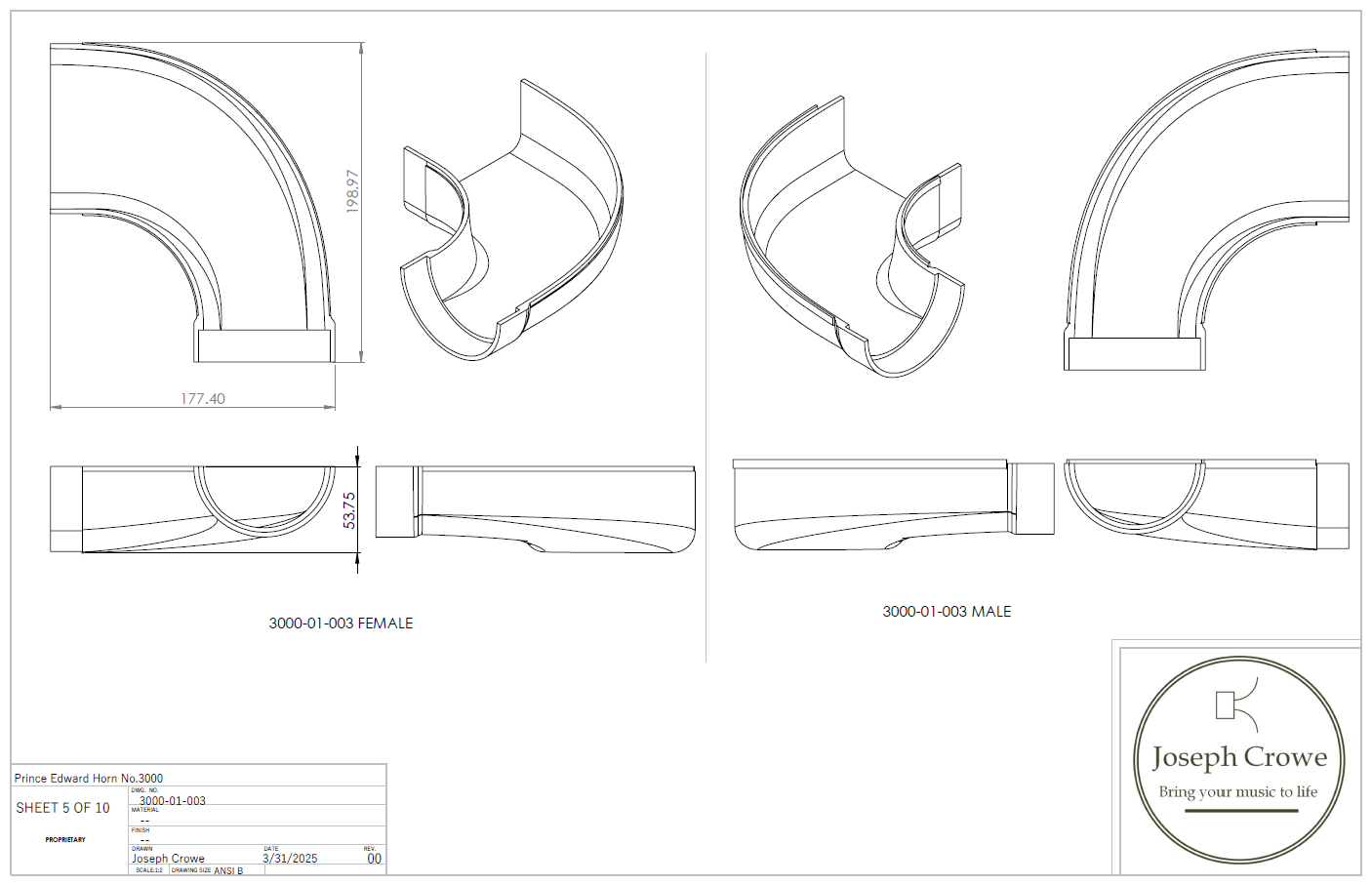

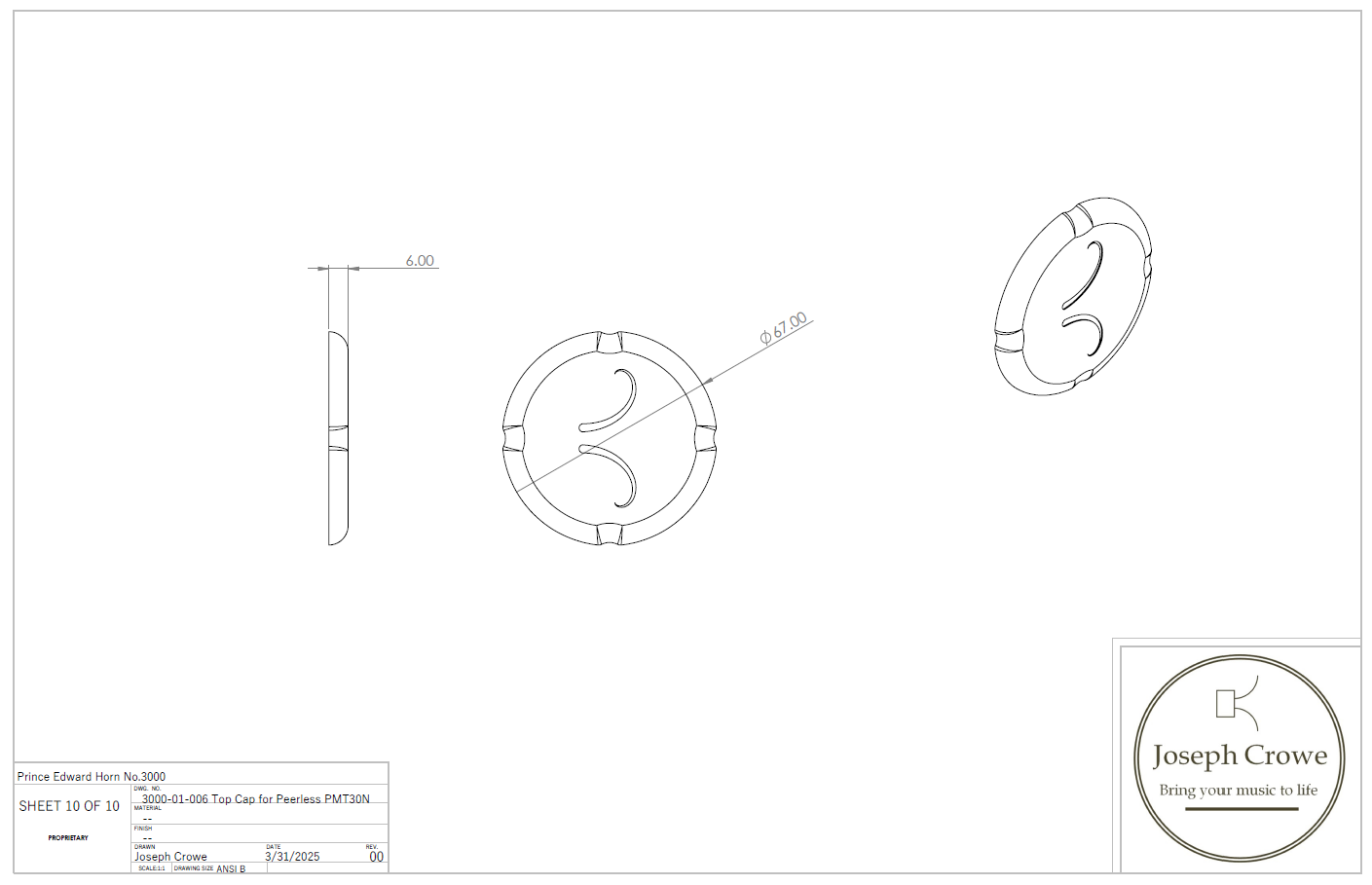

Click on the image below for the PDF drawing set.

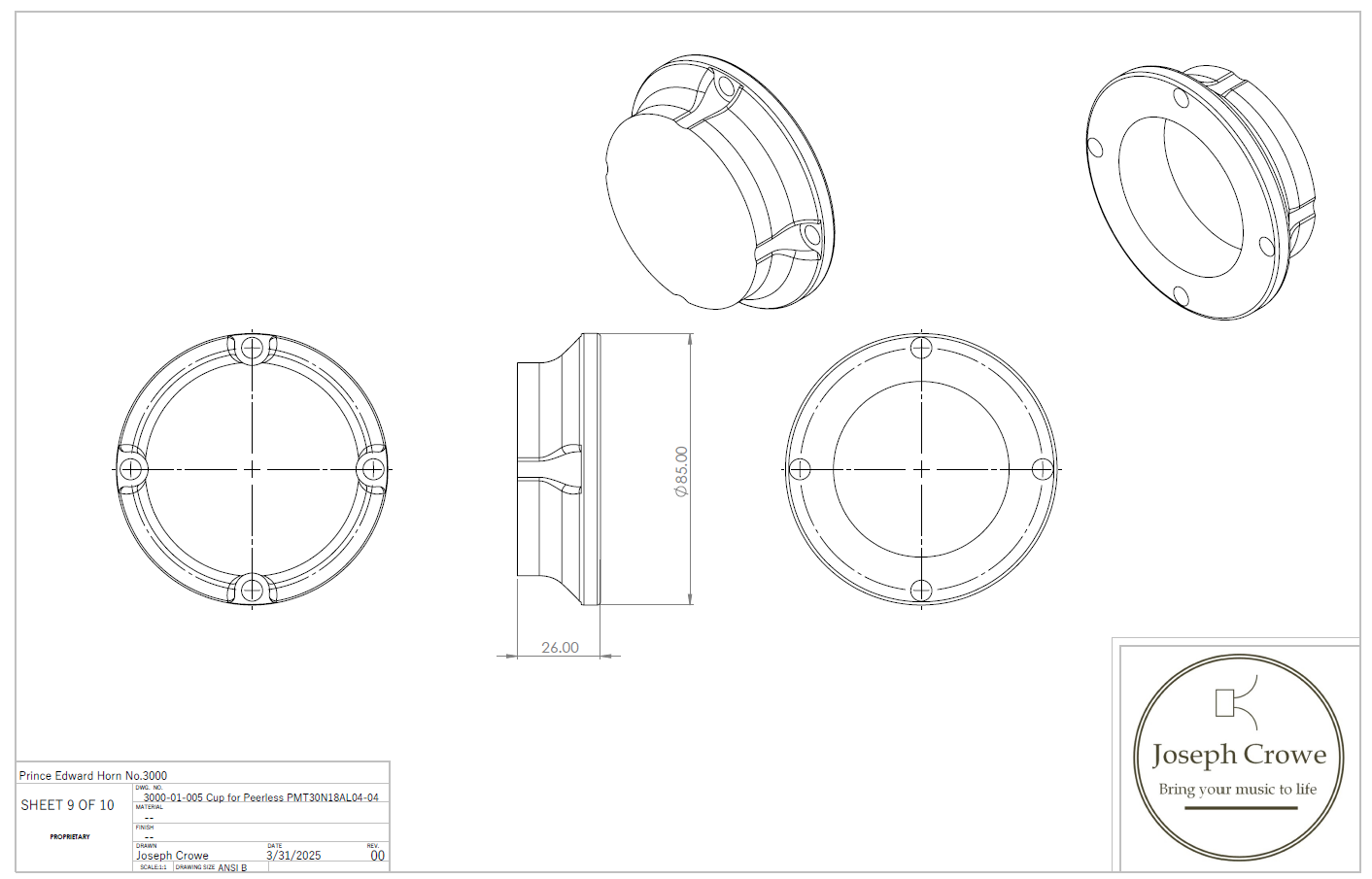

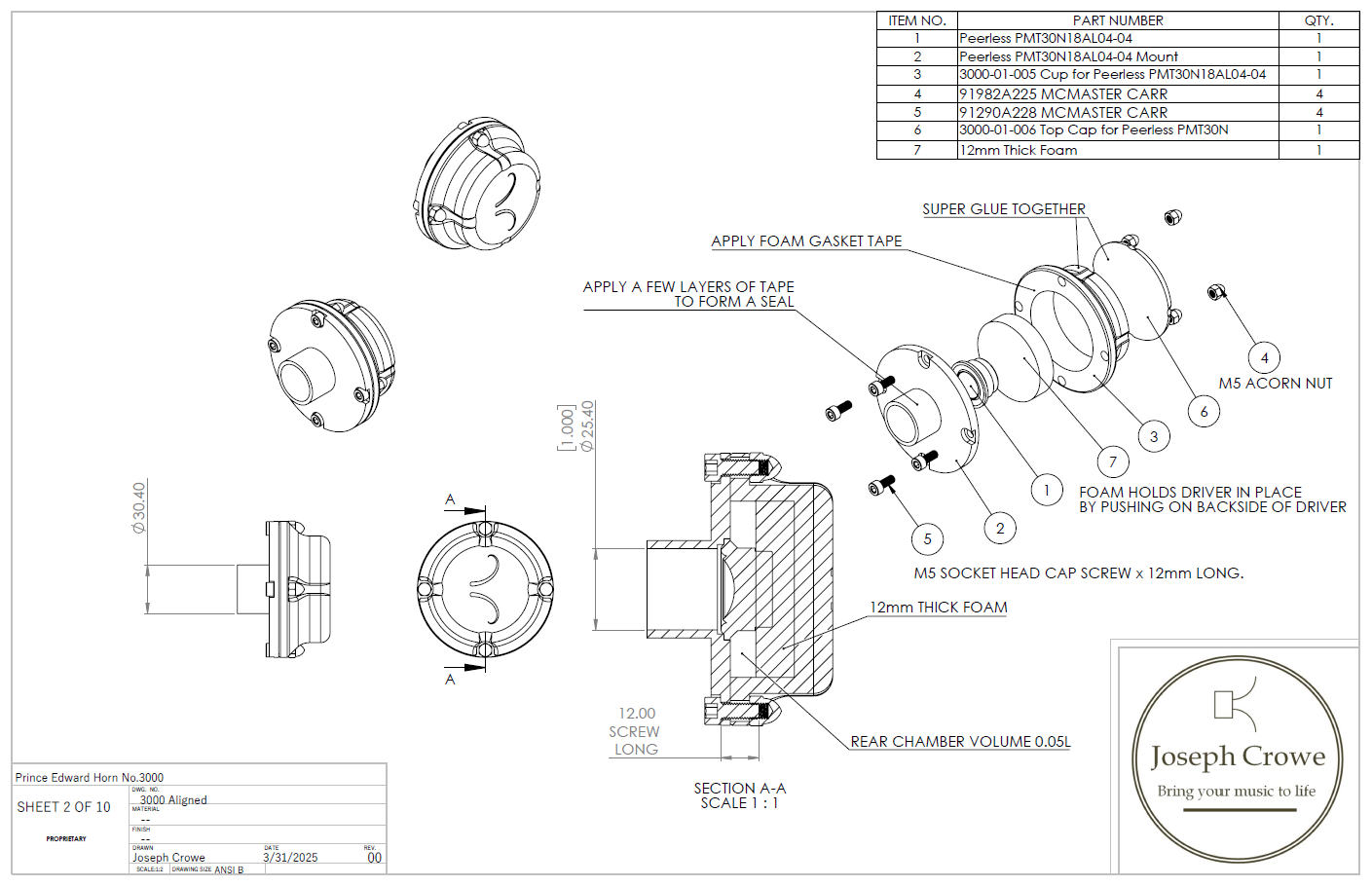

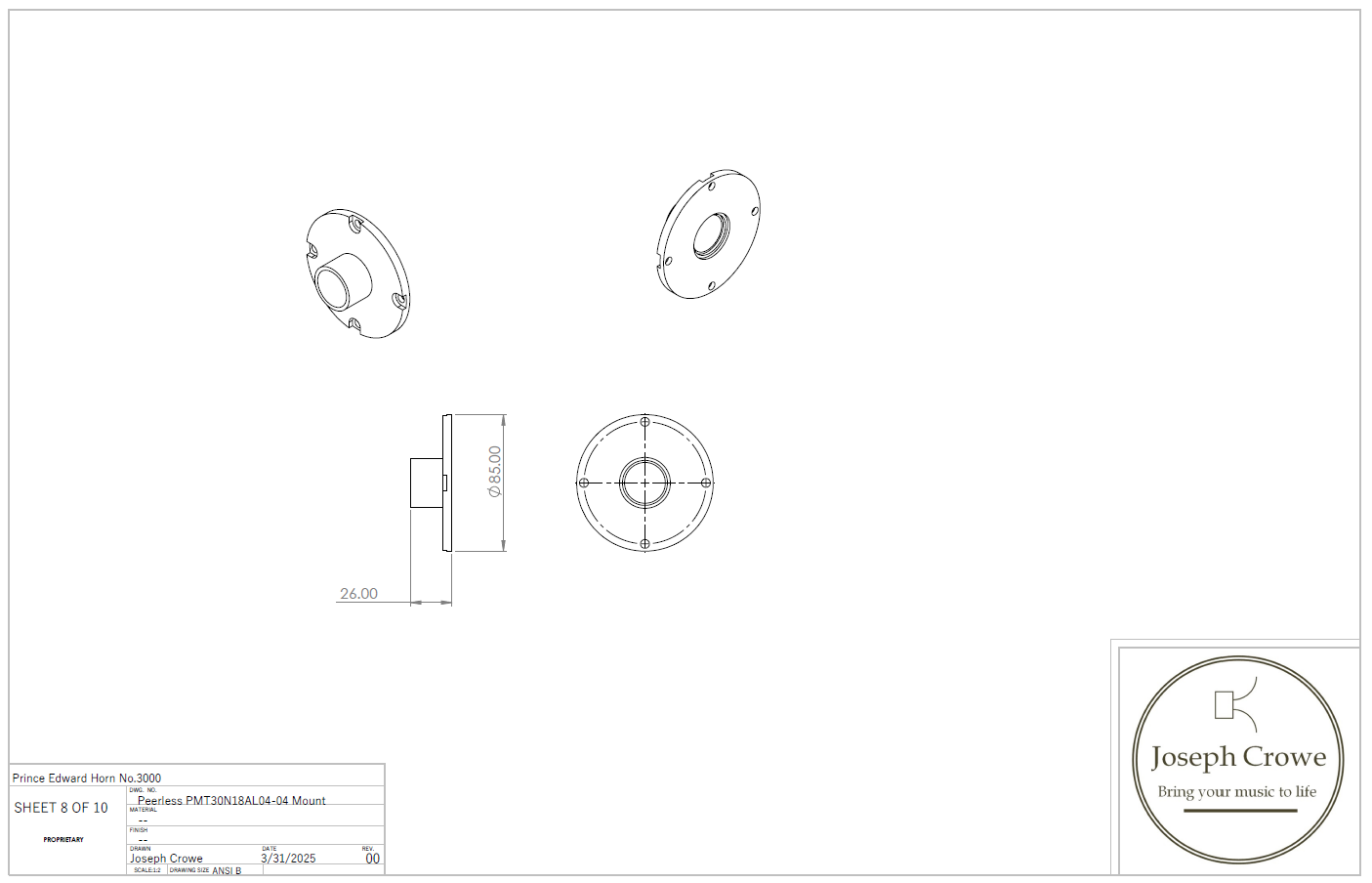

Driver Assembly Details

Technical Information for Geeks

Harmonic distortion is 0.03% for H3, tested at 85dB SPL at 1m distance, for the 1kHz region.
