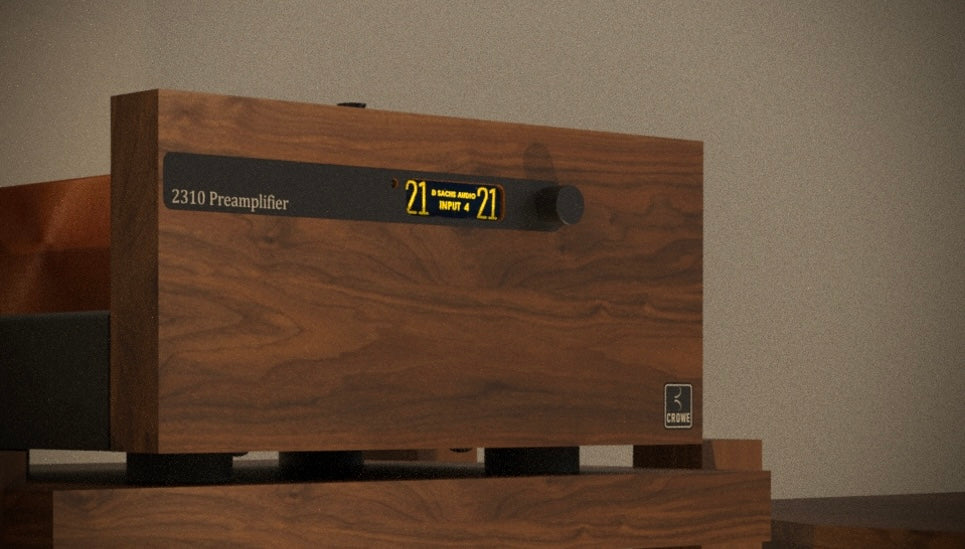

Joseph Crowe

Preamplifier No.2310

$9,400.00 USD
$9,400.00 USD
Sale Sold out

Preamplifier No.2310 is a fully balanced directly heated triode designed in collaboration with Don Sachs and Lynn Olson (under license).

Ordering

  • Made-to-order
  • 90 Day construction lead time
  • $9,400.00 USD plus shipping

Sound Characteristics

  • Lifelike presentation of instruments and vocals (Sound signature of the NOS 2P29L Russian Radio Tubes)
  • Extremely low noise floor (achieved with fully balanced architecture)
  • Expressive dynamics especially in the vocal region (all stages are discretely powered and directly heated)

Features

  • Zero feedback design
  • Directly heated regulated filement supply
  • Custom Cinemag power supply and output transformers

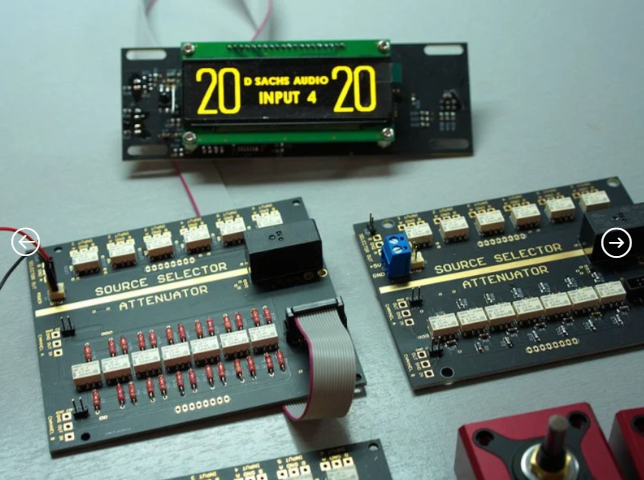

  • Khozmo Dual-Mono  64-step with Remote Control 4-Source Sequential Selector
    • Ladder type
    • Vishay resistors
    • Intelligent start-up
    • Detent rotary knob (1dB increments)
  • Anodized aluminum remote with left/right channel volume
    • Input selection
    • Mute
    • Left/right independent volume control

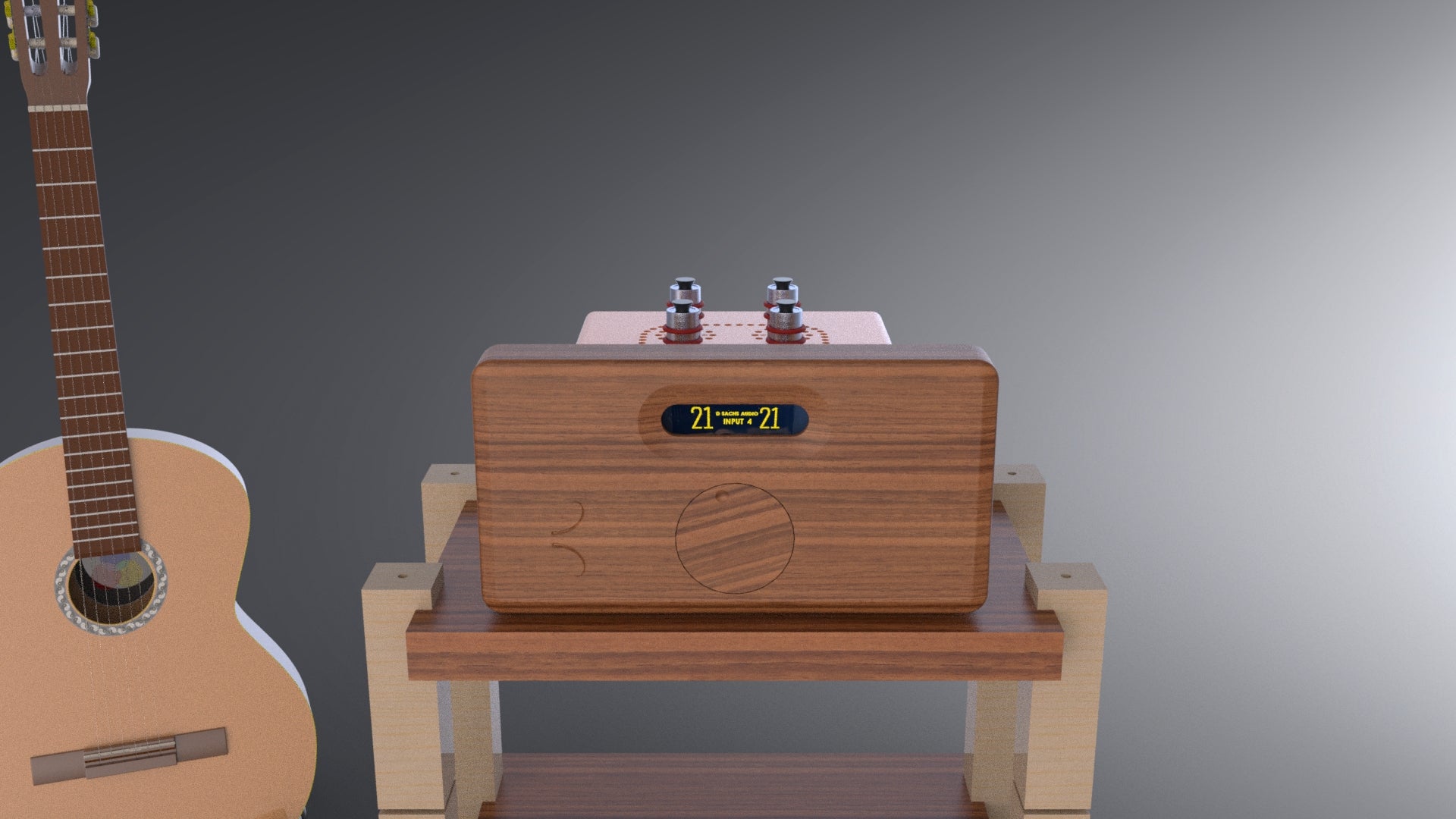

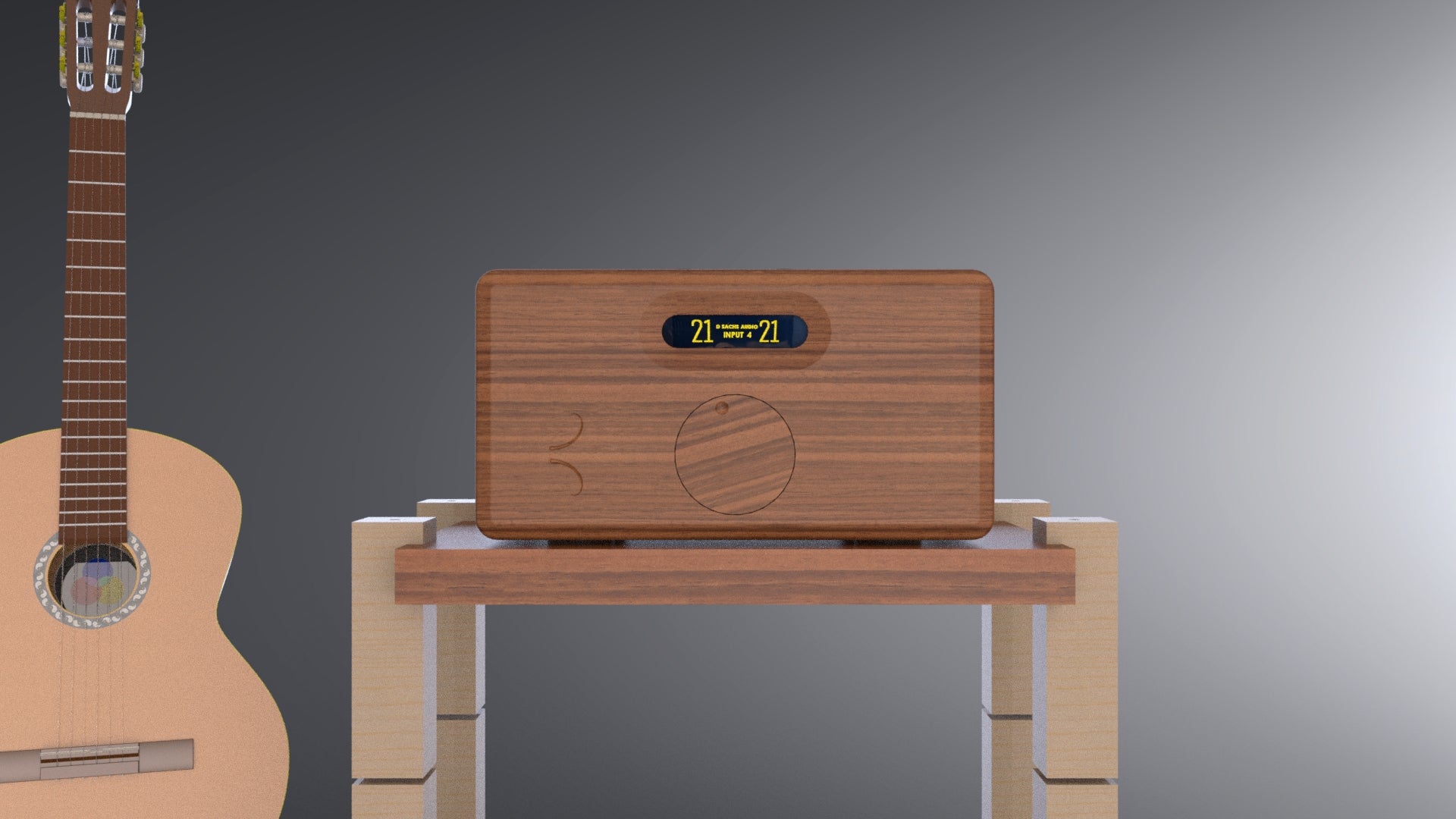

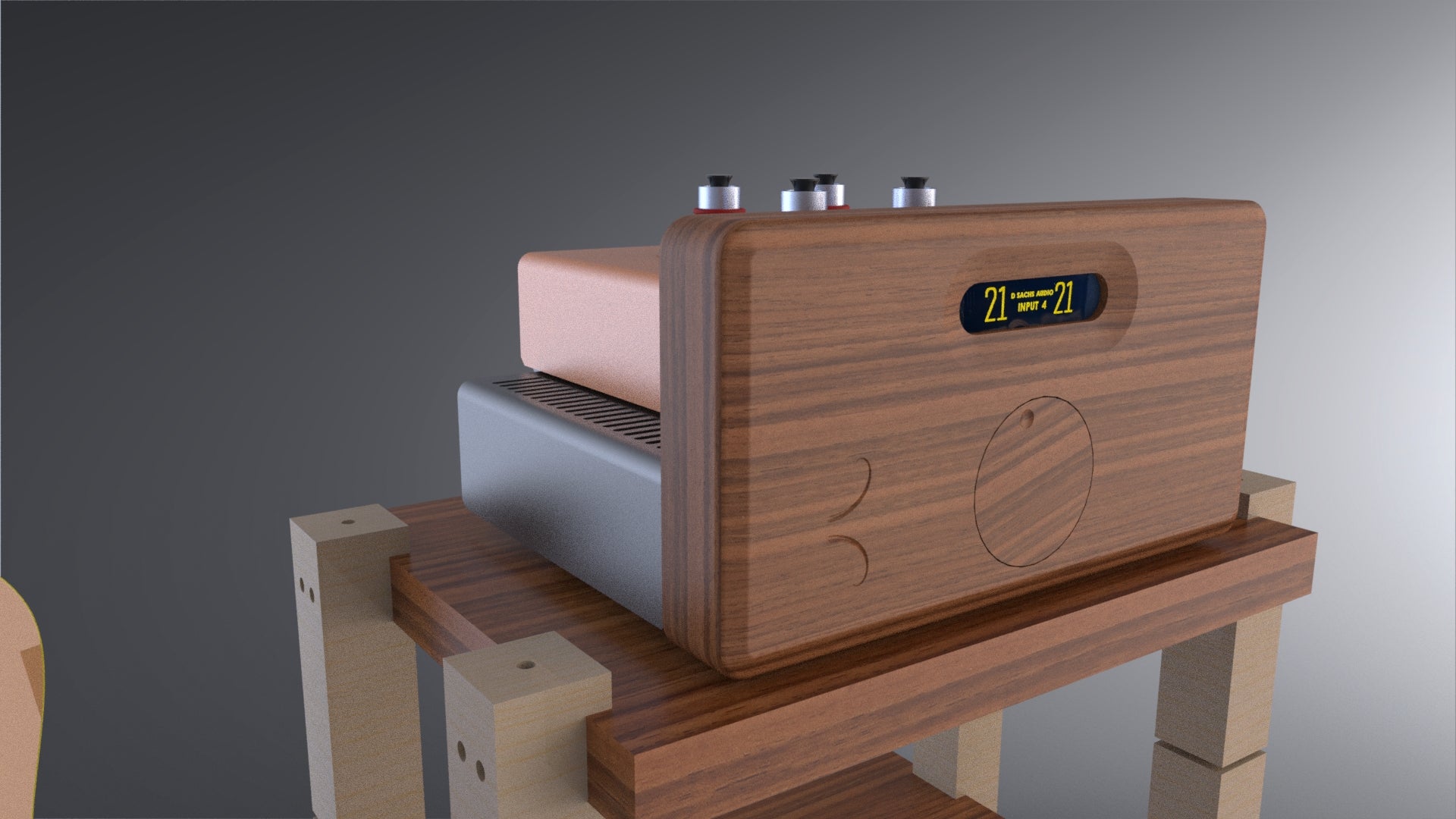

    • Optional hardwood body (please contact)
  • Low Noise Chassis
    • Seperate enclosures for power supply, attenuation board, and output tubes
      • 6mm thick mild steel enclosure for power supply
      • 6mm thick mild steel enclosure for Khozmo Attenuation Board
        • Mechanically isolated using suspension system (see photo)
      • 6mm thick copper for output tubes mounting plate
        • Mechanically isolated using suspension system (upper section in photo)
        • Mechanical and EMF isolation for extremely low microphonics

  • High mass low friction rotary volume knob
    • Detent operation with 1dB increments
    • Push selection for toggling inputs
    • Dual ball bearings for quality feel
  • Backlit LCD screen
    • Amber text

Specifications

  • Frequency Response: 18Hz - 30kHz +/- 0.5dB
  • Power Draw: 45W
  • Output impedance: 293 ohm
  • 13dB gain @ full power
  • XLR: 2 Input (pair) / 1 output (pair)
  • RCA: 2input (pair) / 1 output (pair)

Physical

  • 460mm wide x 285mm tall x 373mm deep
  • (18.11" x 11.22" x 14.68")
  • 25Kg (55 lbs)

Click image below for PDF drawing
