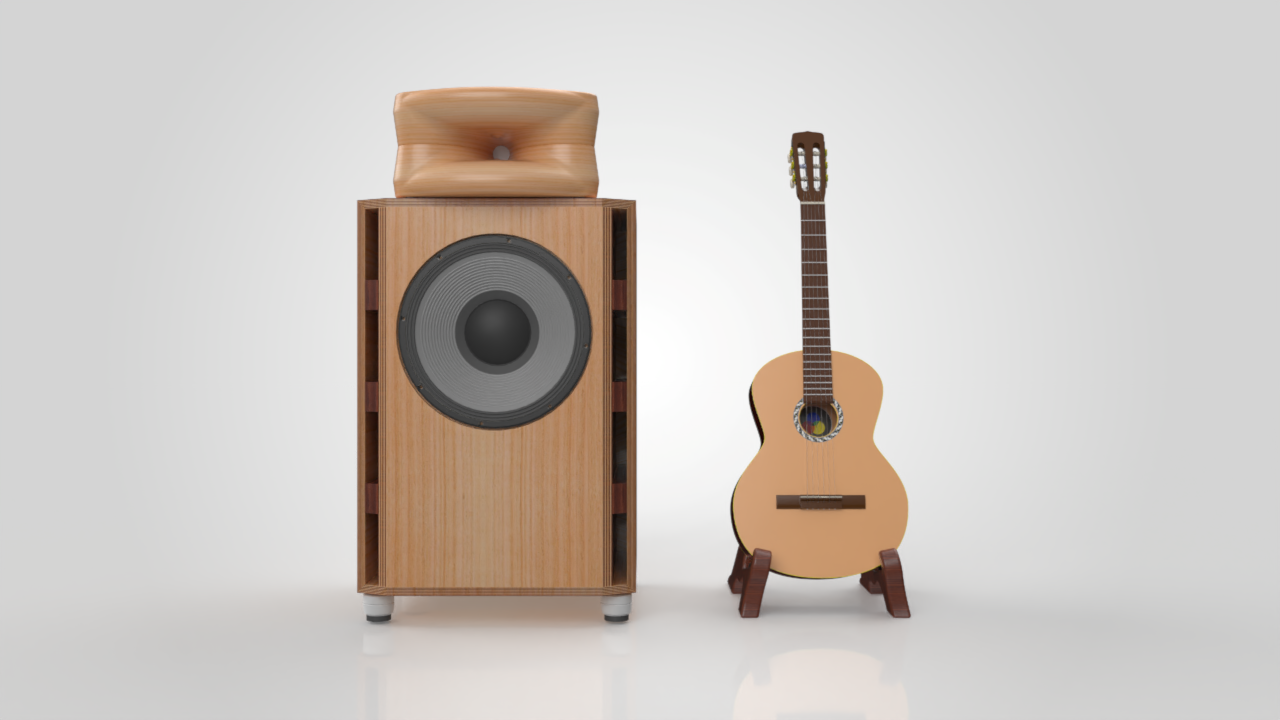

Onken Bass Cabinet Plans No. 3560 -- 15" Beyma 15LX60V2

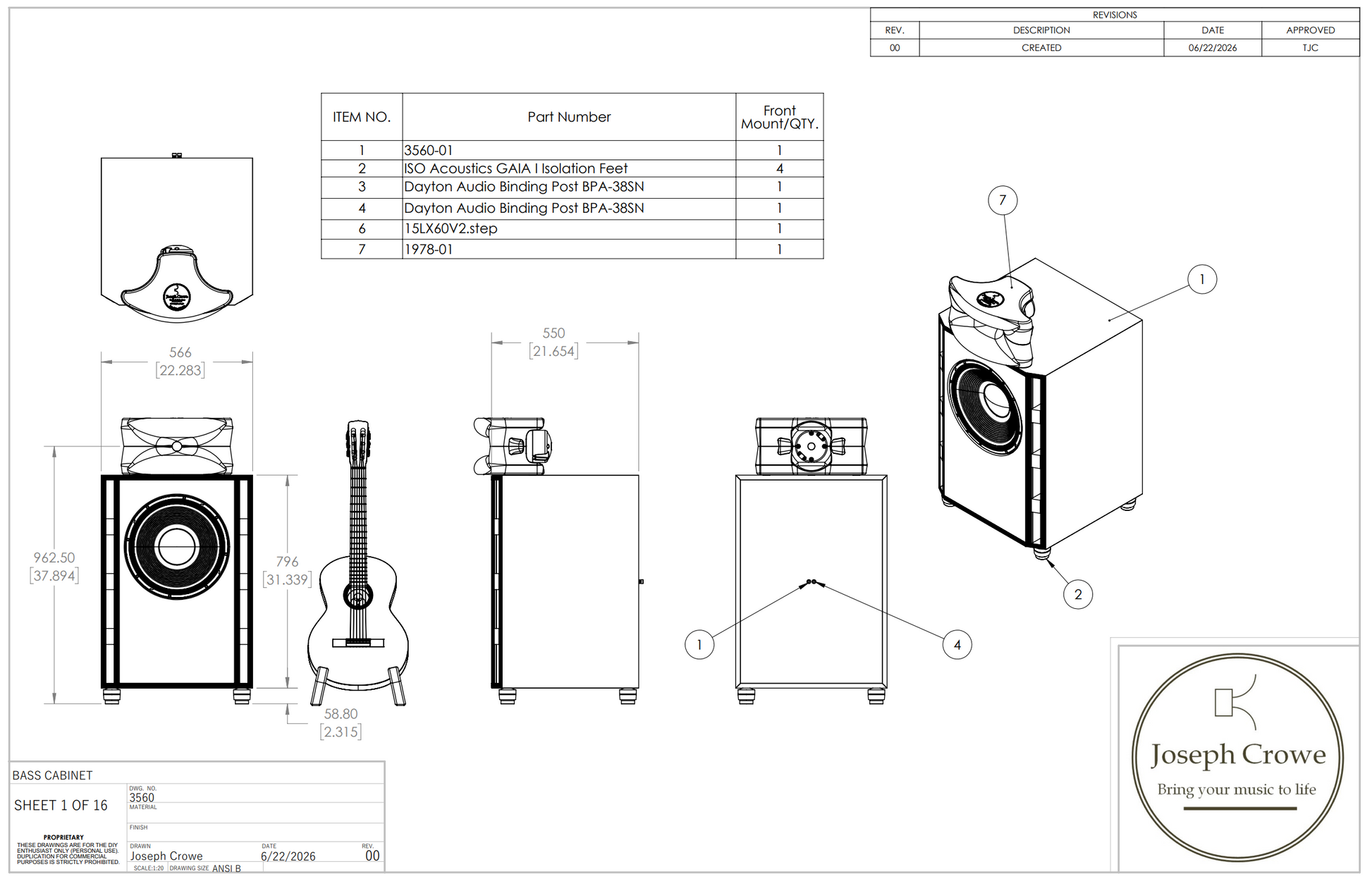

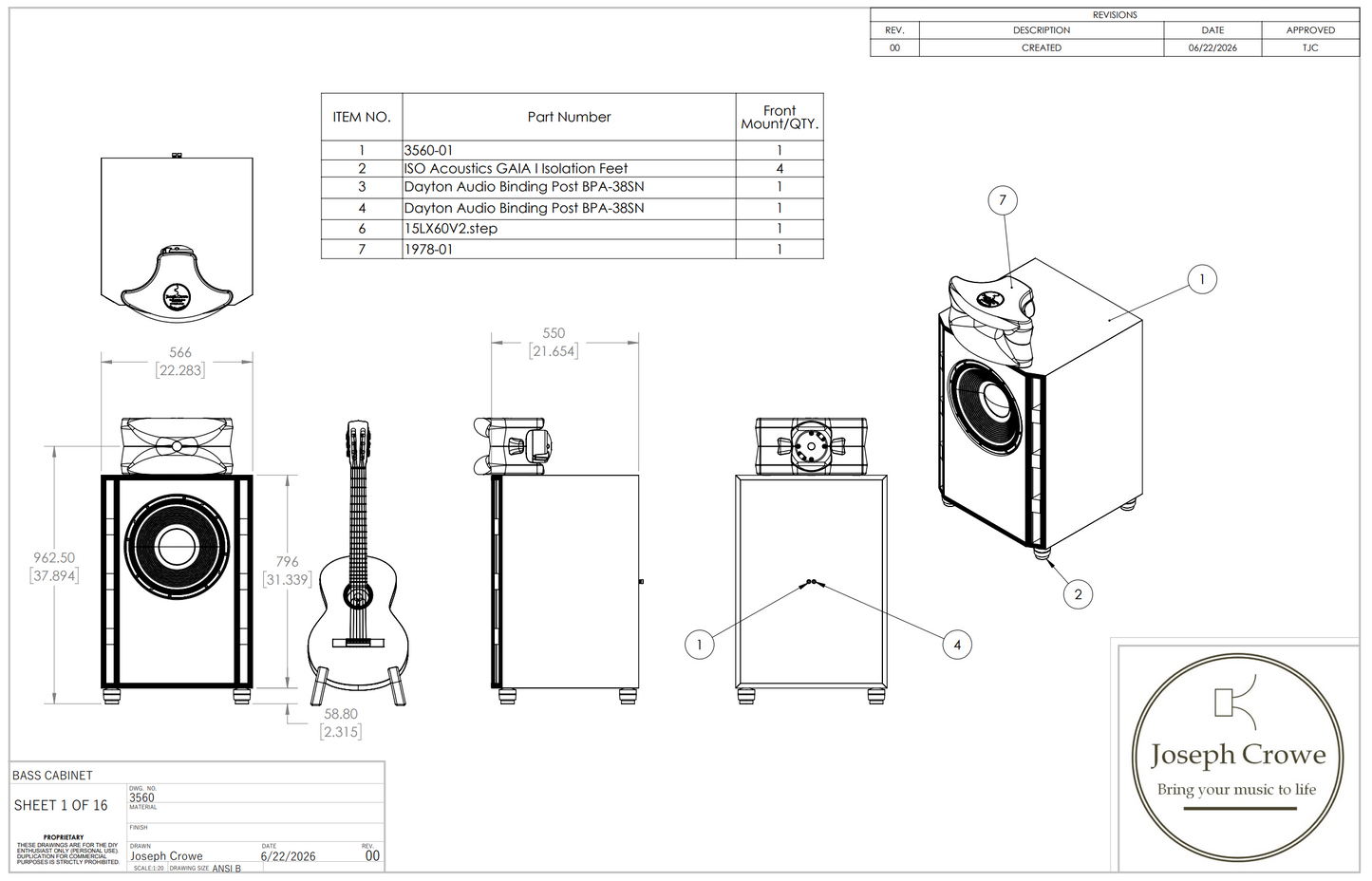

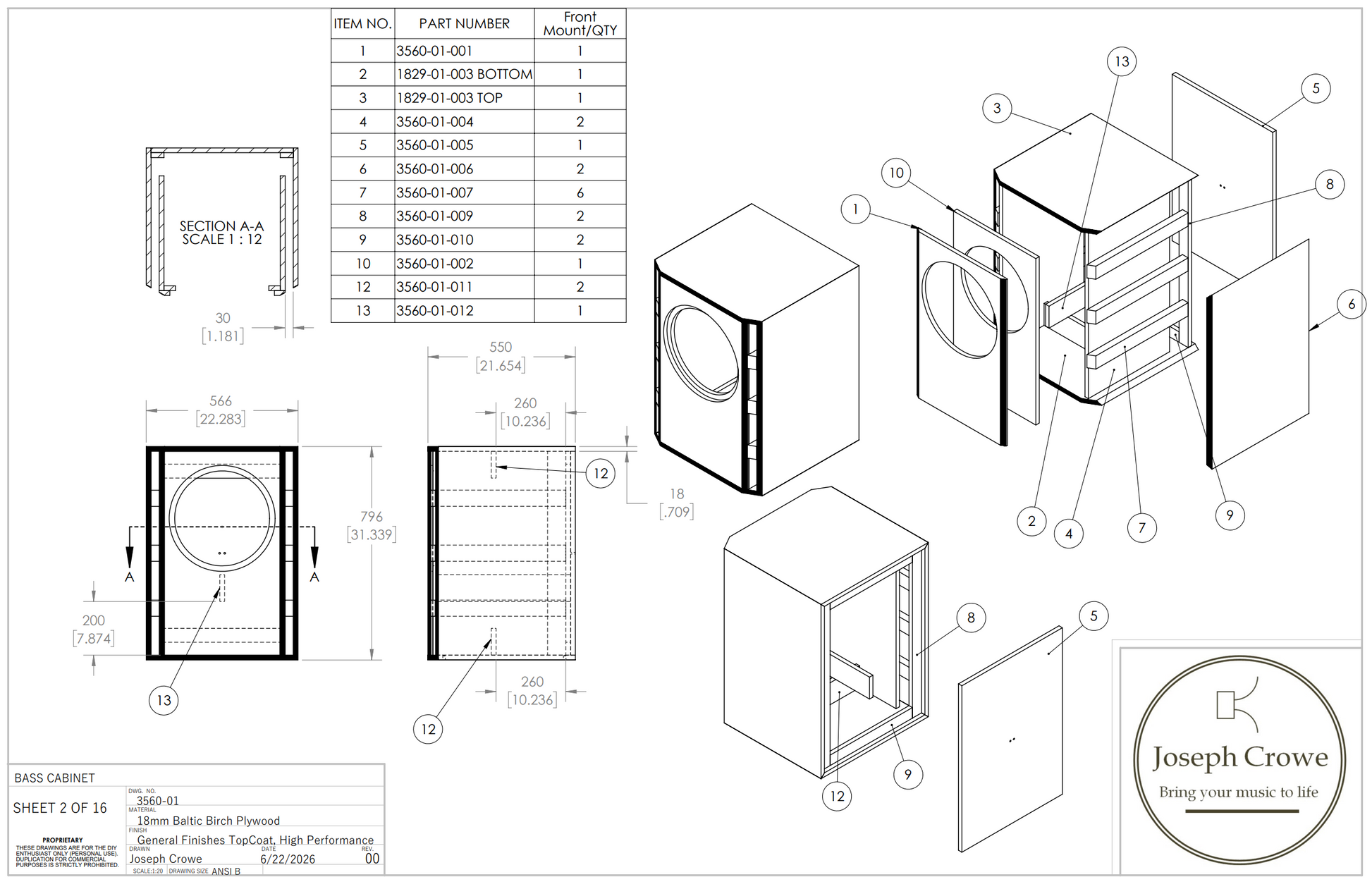

These plans include the assembly and detail drawings to construct bass cabinet No. 3560.

Details

• Automatically emailed after transaction on this product page
• Assembly and details drawings (.PDF format)

• 160 Liter internal volume

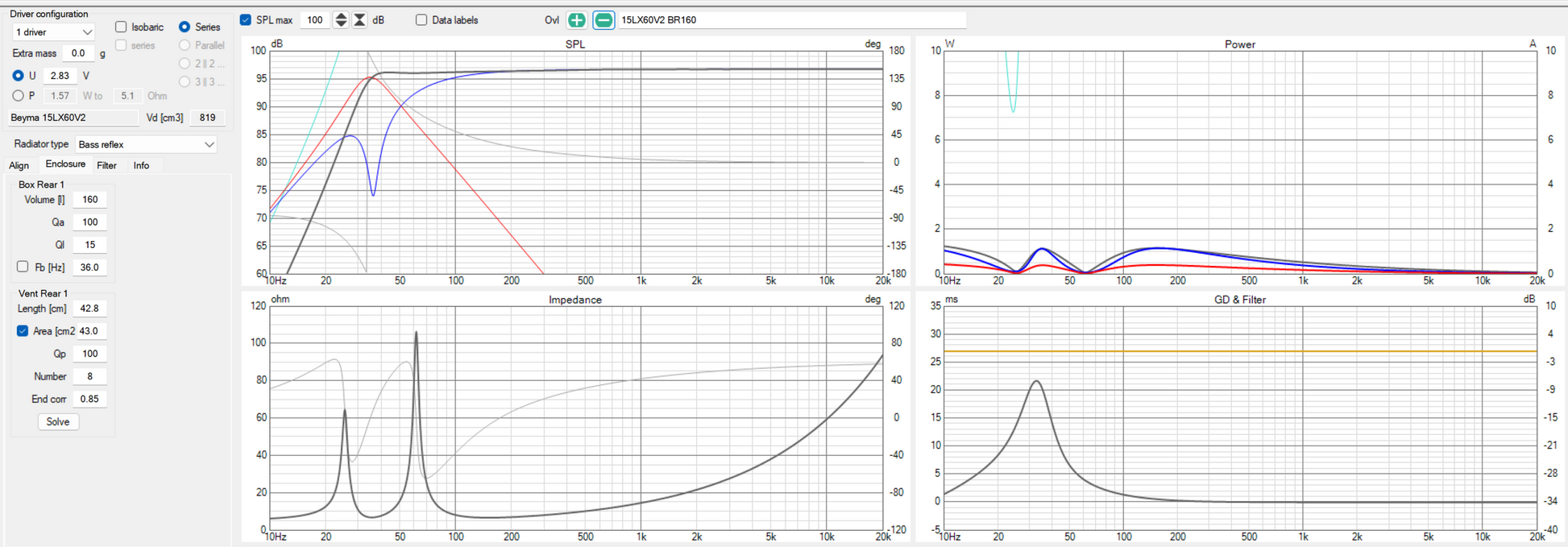

• 36Hz tuning frequency
  • Tuning frequency can be lowered by blocking off some of the ports. The tuning frequency is lowered to 34Hz by blocking one of the eight ports. The tuning can be lowered further by blocking additional ports. Below is a summary of available tuning frequencies
    • x8 Ports = 36Hz
    • x7 Ports = 34Hz
    • x6 Ports = 32Hz
• 96.72 dB sensitivity (2.83V (1.57w))(Anechoic)
  • Typical "in-room" sensitivity around 103dB (Klipsch, Audio Note, Devore method of specifying)

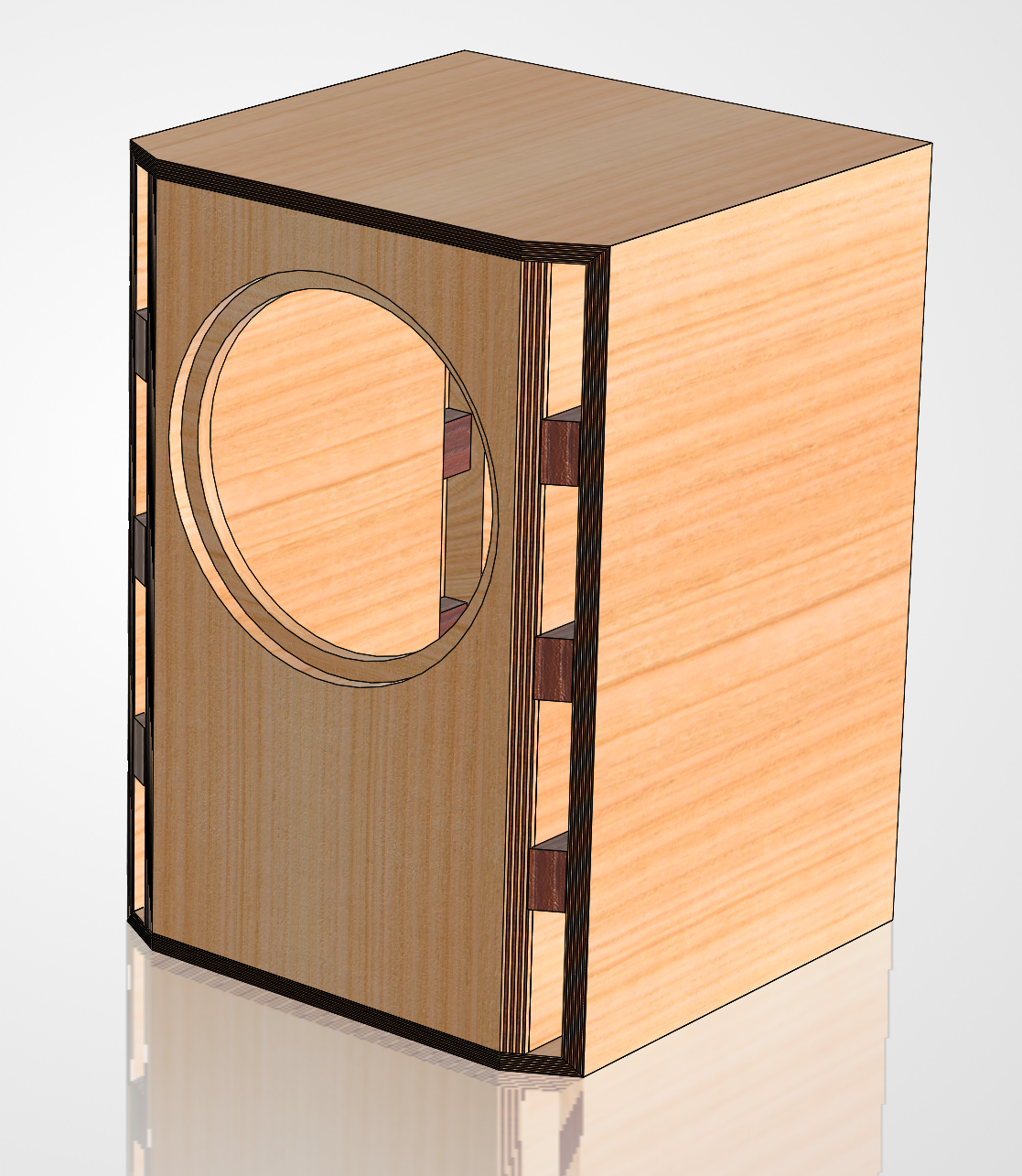

• 18mm plywood construction with solid hardwood on vents (see photo)

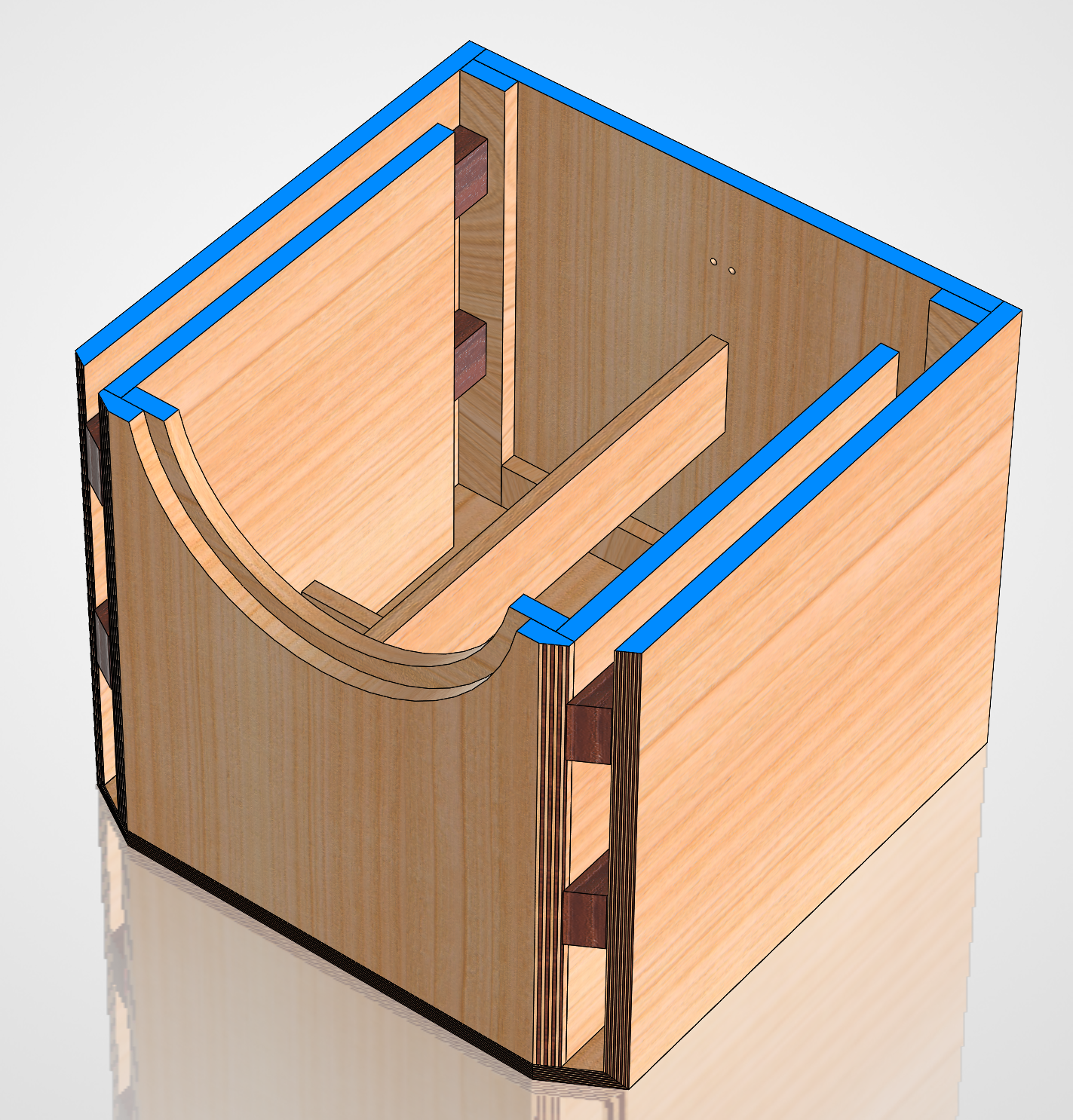

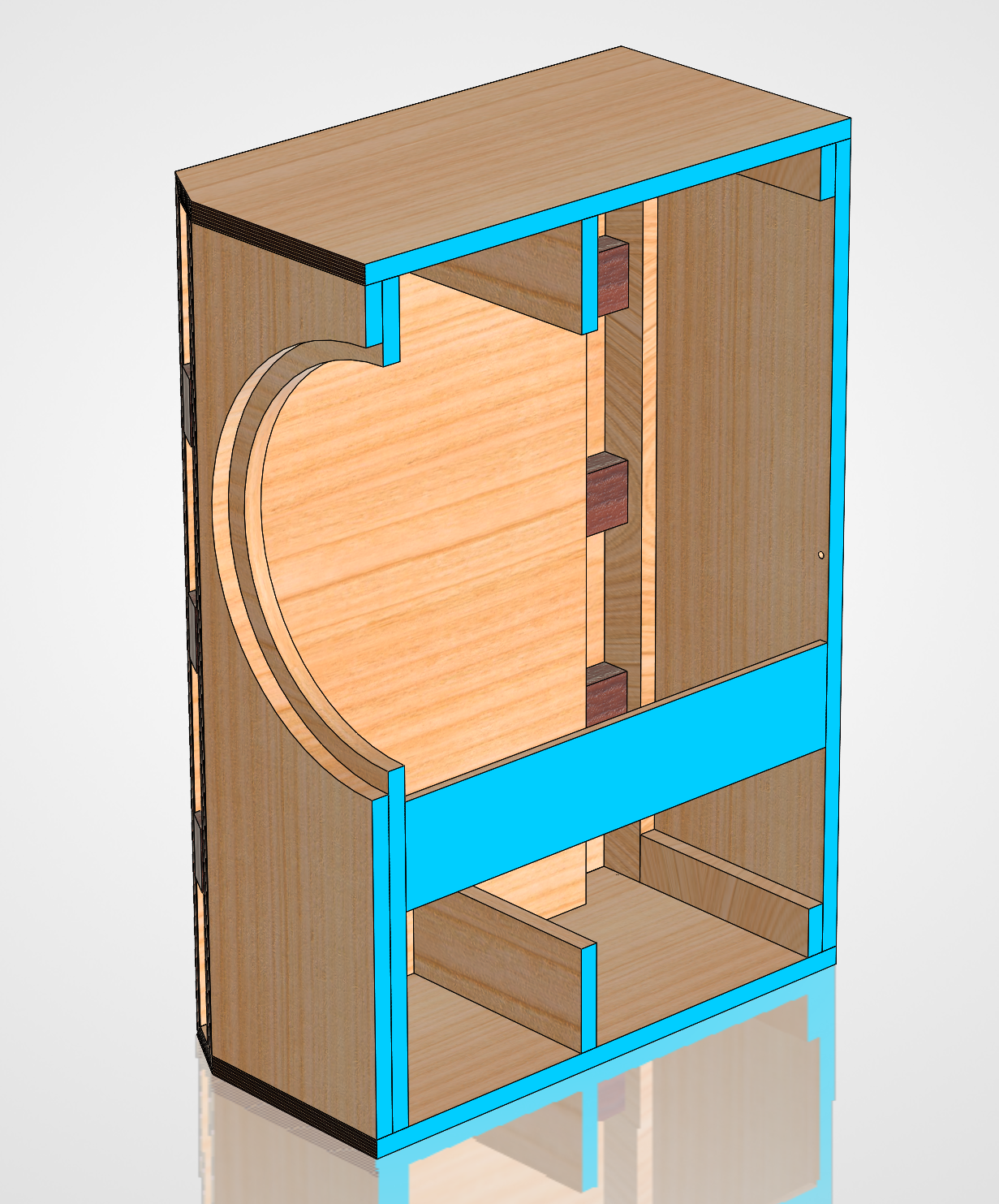

• Internal bracing
• Physical Dimensions 56.6cm wide x 55cm deep x 79.6cm high
• Includes nested layout on standard sheet of 4' x 8' plywood
• Uses Beyma 15LX60V2 15" woofer (please contact for custom designs using other woofers)
