Fostex FF165WK Cabinet Plan and Contour Network
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Unit price
per
Couldn't load pickup availability
By purchasing these plans you will automatically receive the following via email:

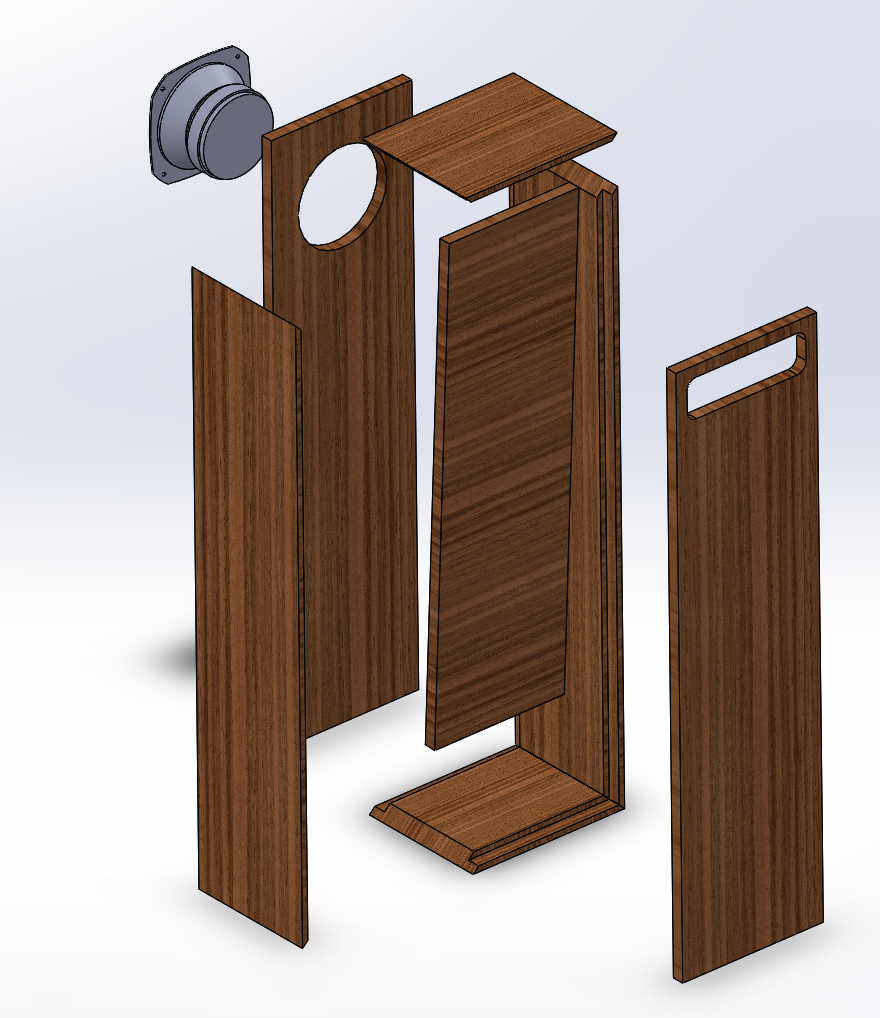

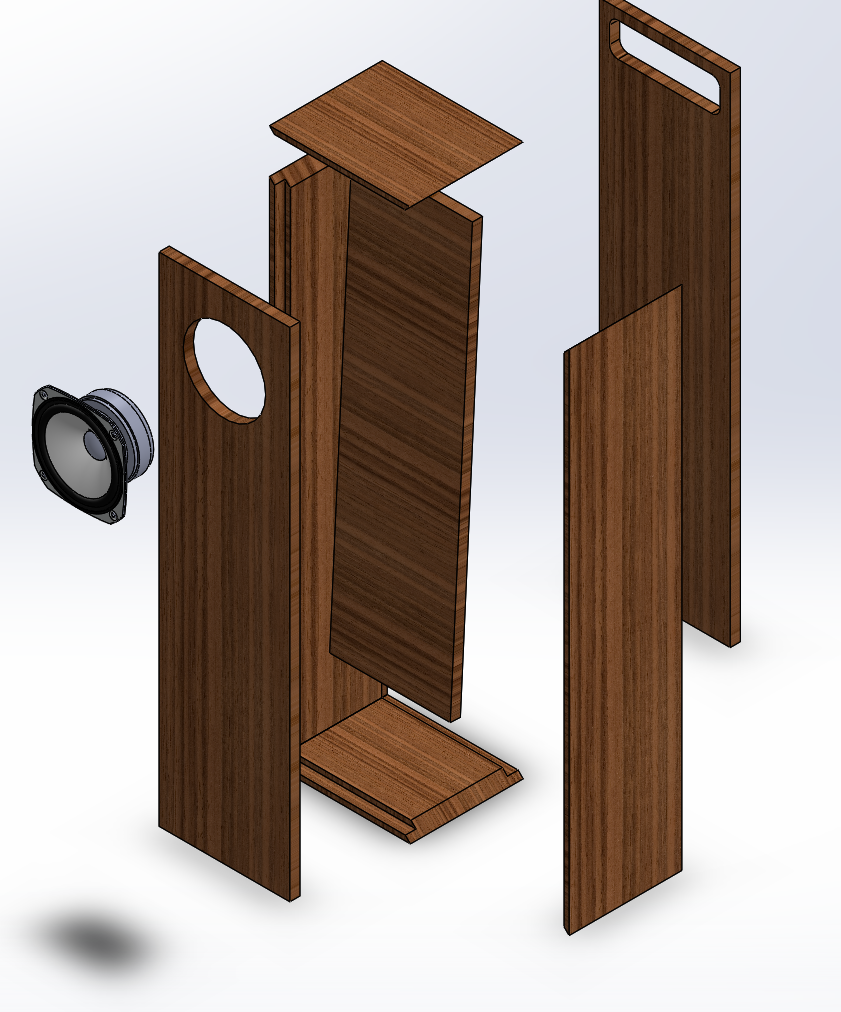

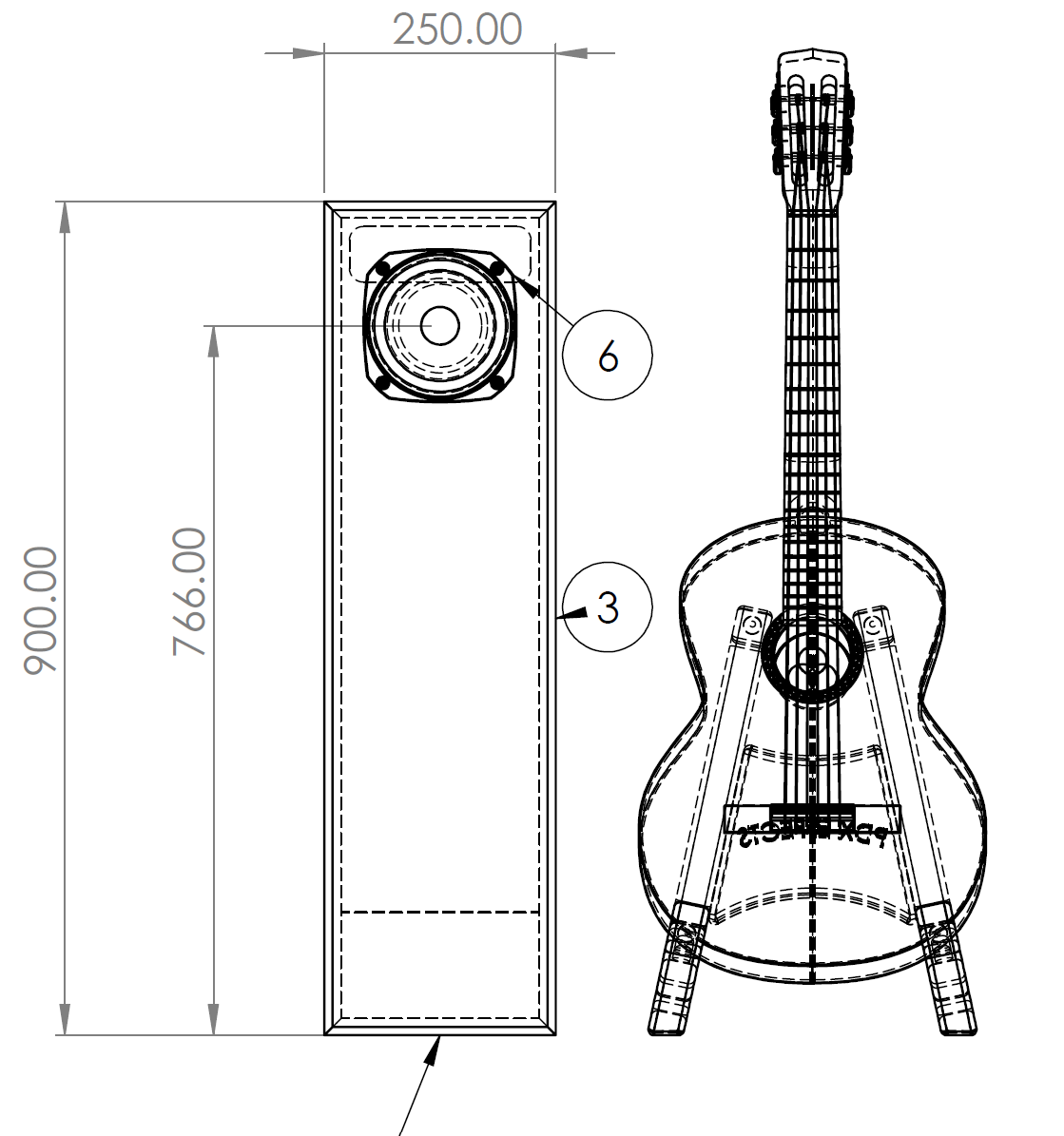

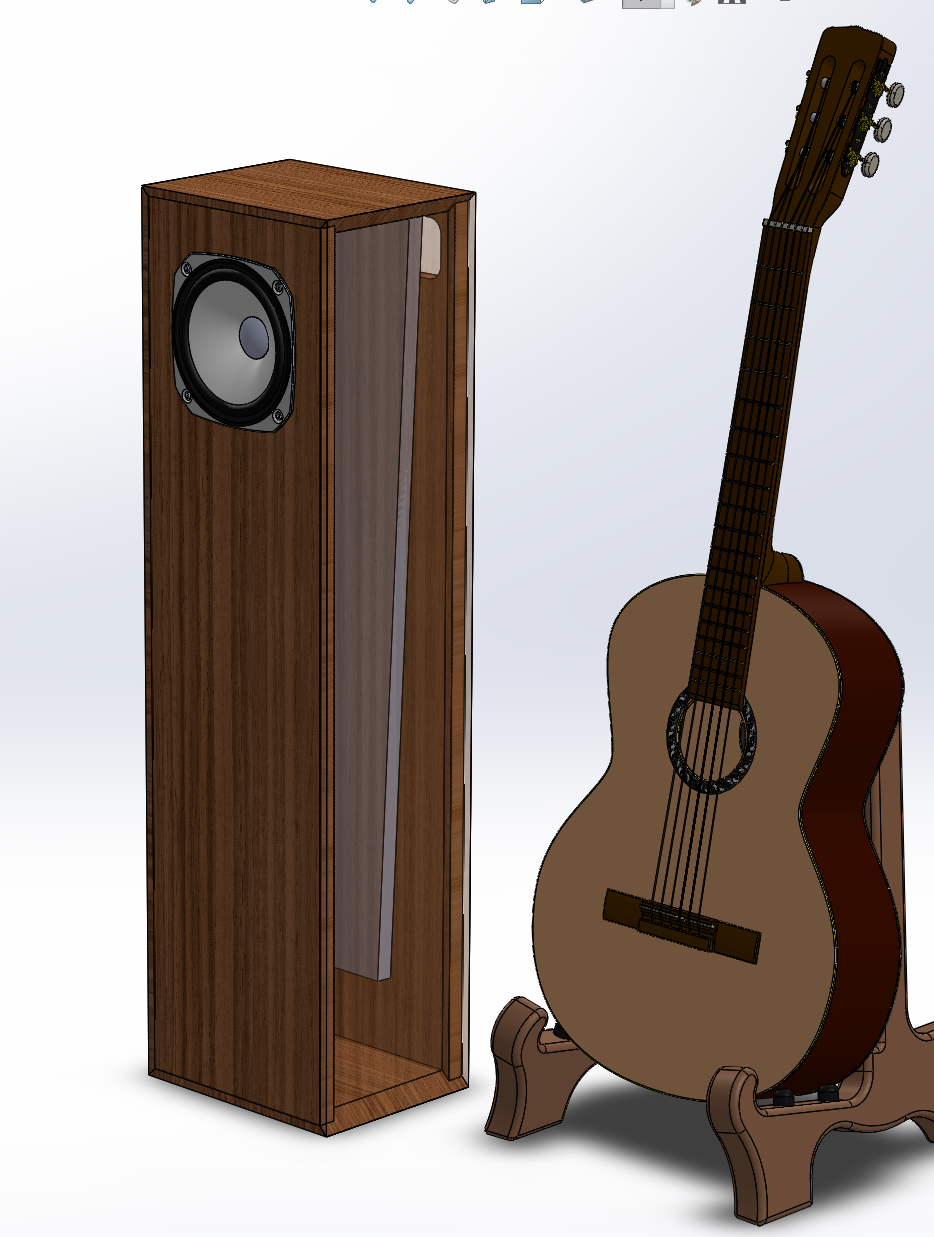

- Assembly and detail drawings for bass cabinet

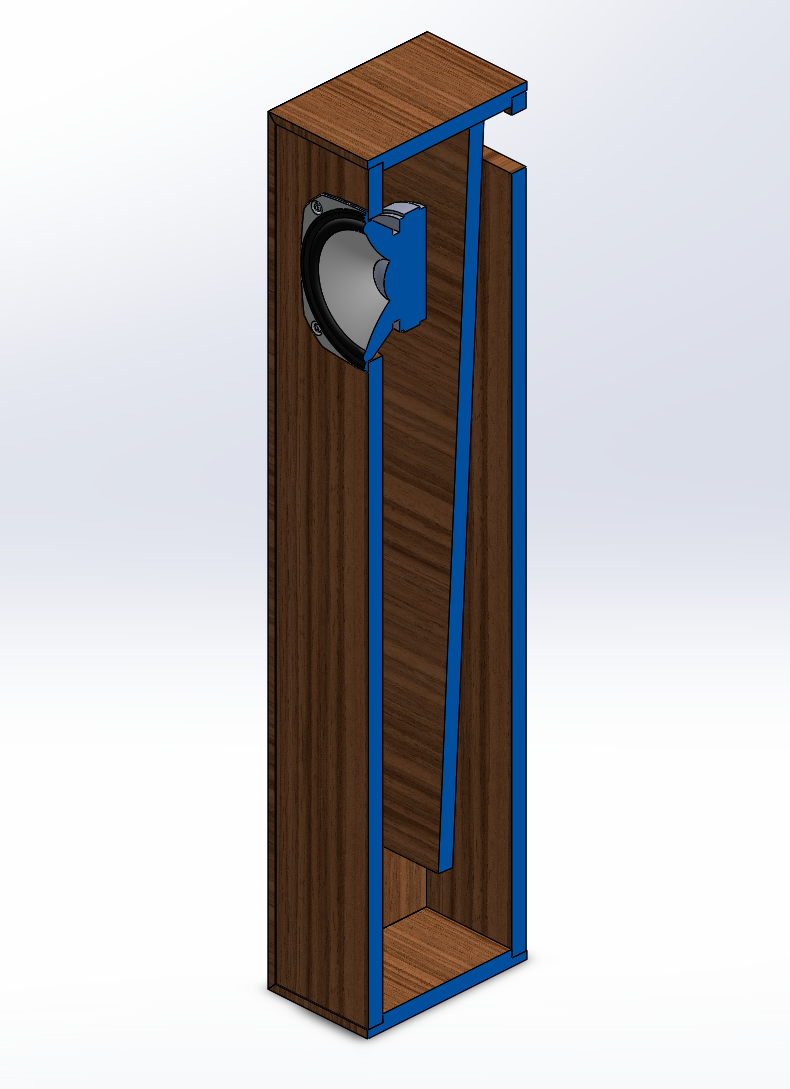

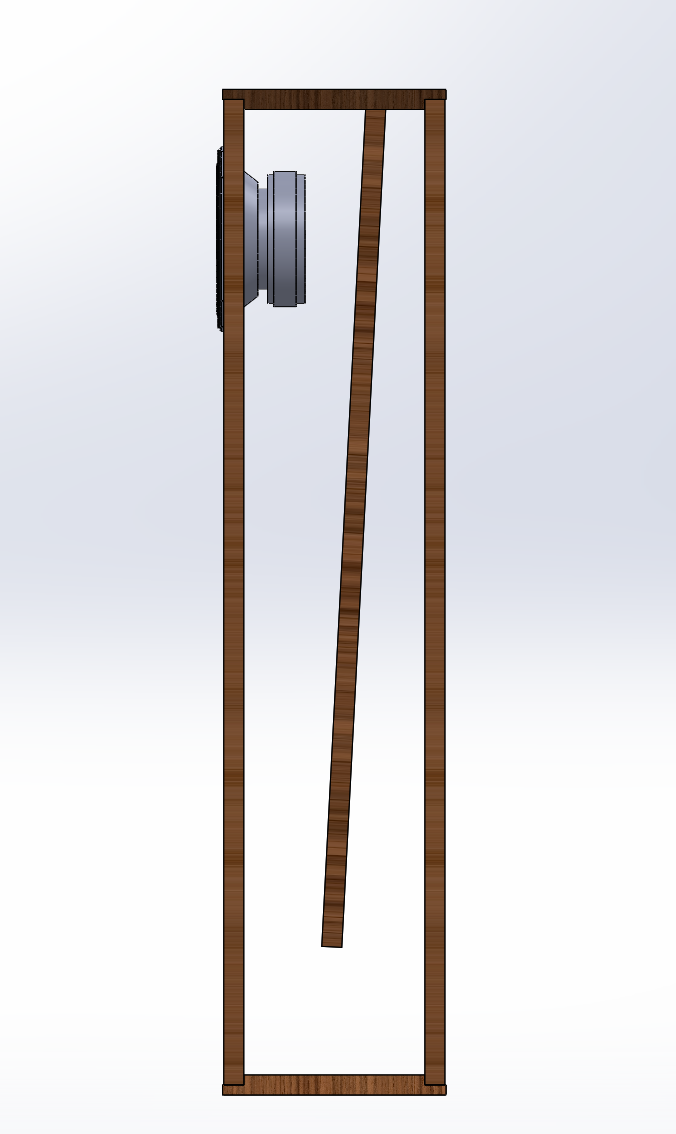

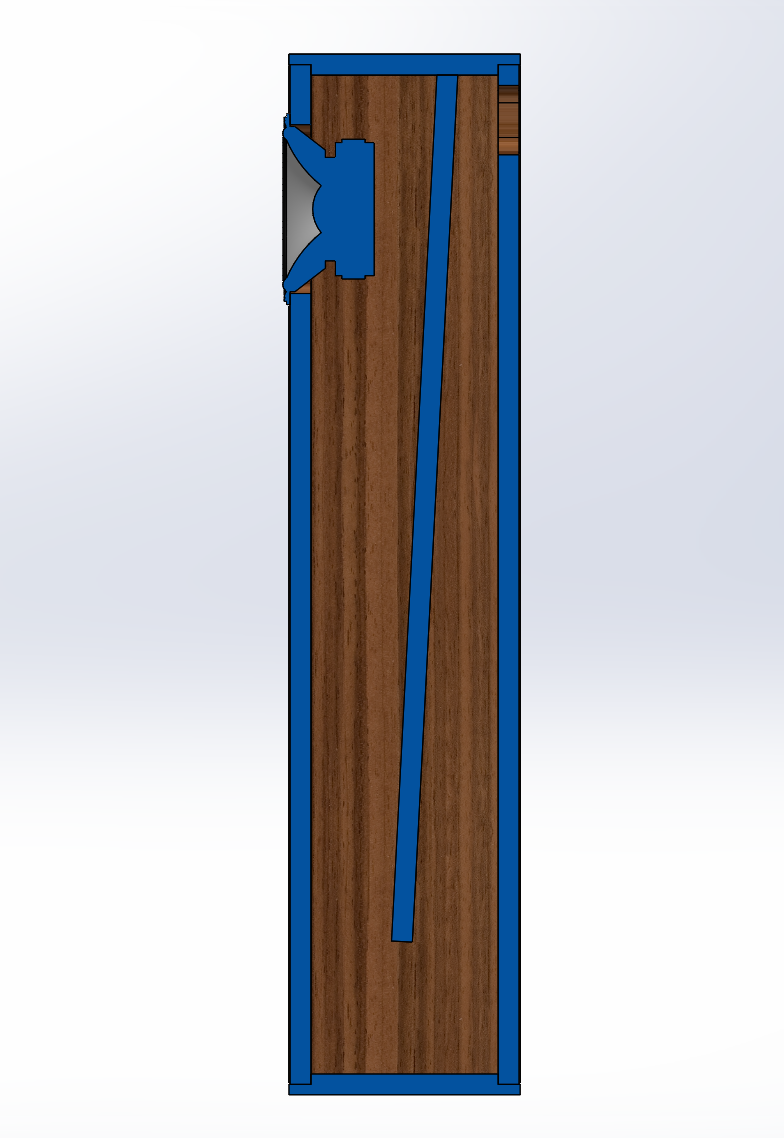

- Tapered transmission line
- Rear vent
- No internal stuffing required

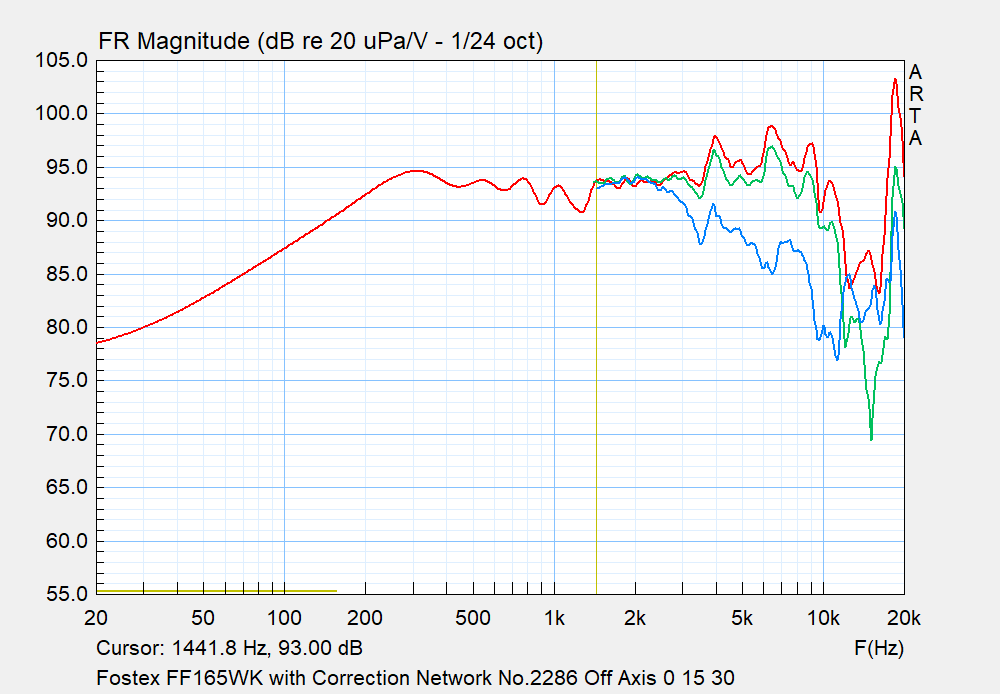

- Passive contour network

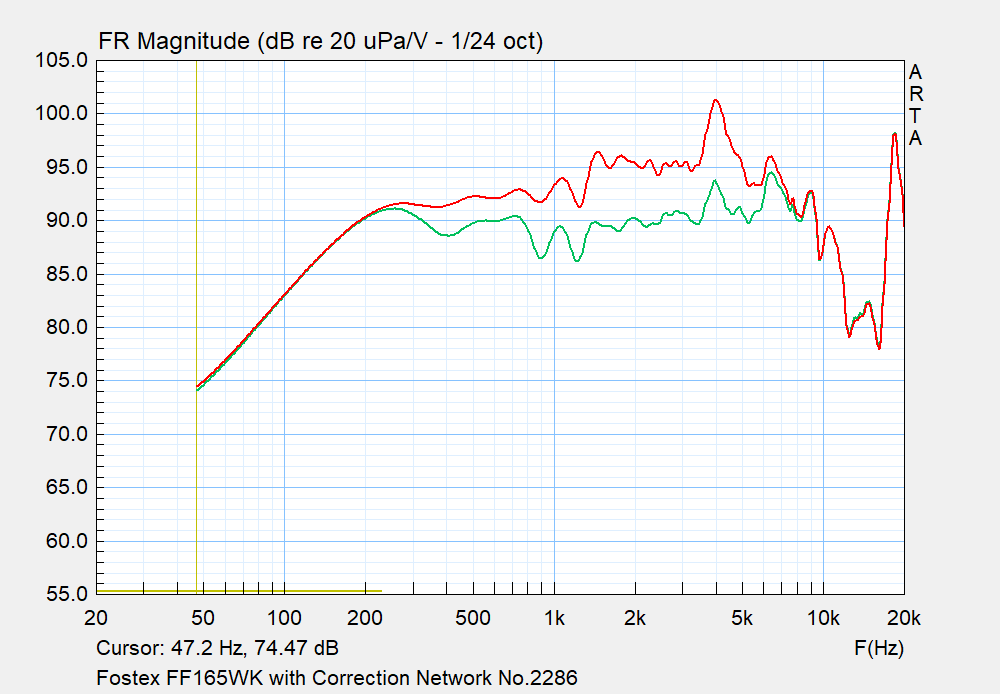

- Corrects (flattens) frequency response
- Notches out peak at 1.5kHz and 5kHz
For an in-depth review of this project please check out my blog post here.
Features
- 92dB sensitivity (anechoic), expect 96dB in-room
- Easy 8ohm load
- Tube amplifier friendly
- Simple elegant design
- Compact size for smaller spaces
- 45Hz-11kHz frequency response
- Easy to construct
- 18mm thick plywood construction
