ES-600 Biradial Horn No.3150 Baffle Mount Version

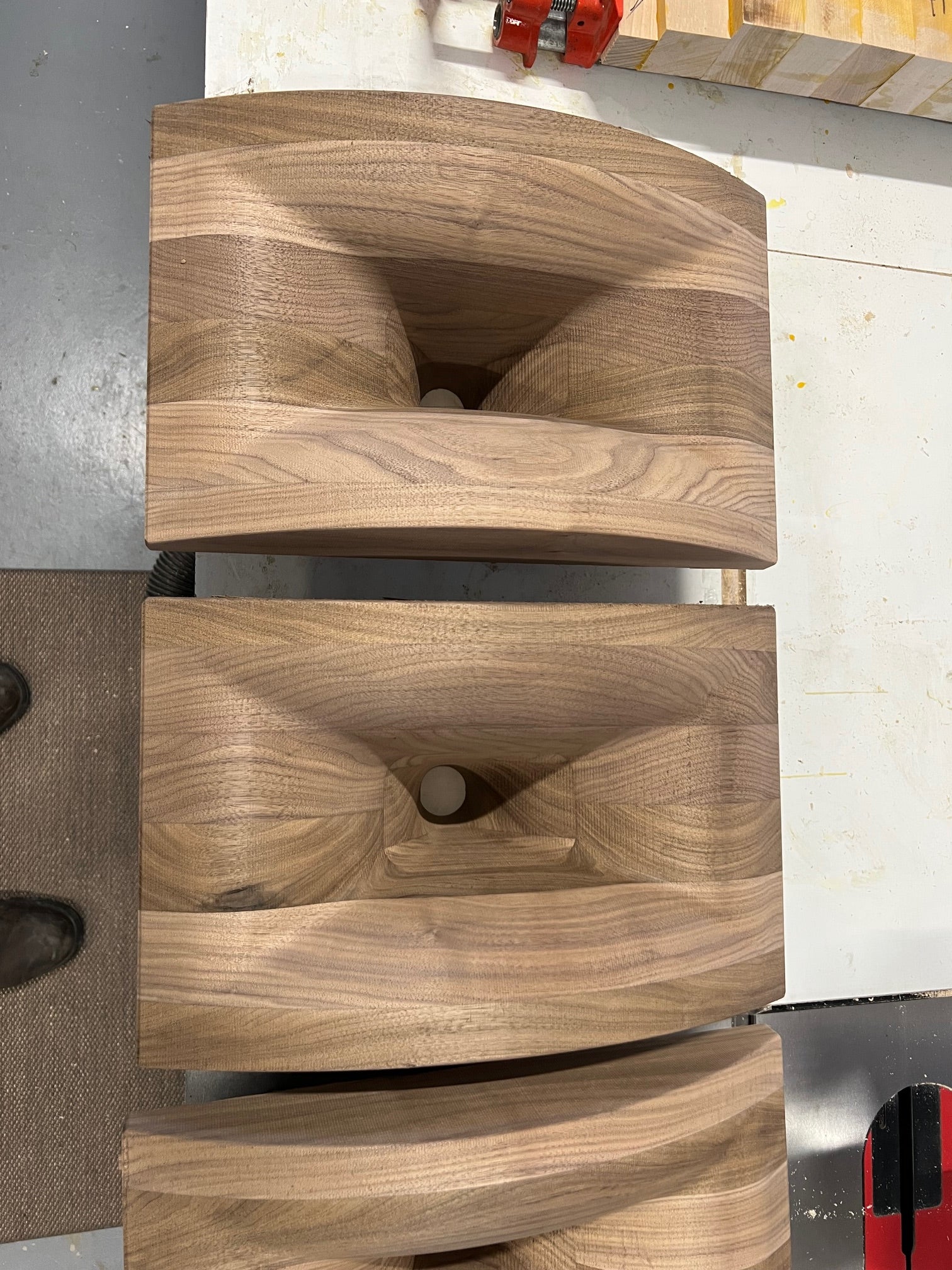

The ES-600 Biradial Horn No.3150 is a baffle mount version of the popular cabinet top version. This version is also slightly taller providing a wider vertical coverage compared to Horn No.1978.

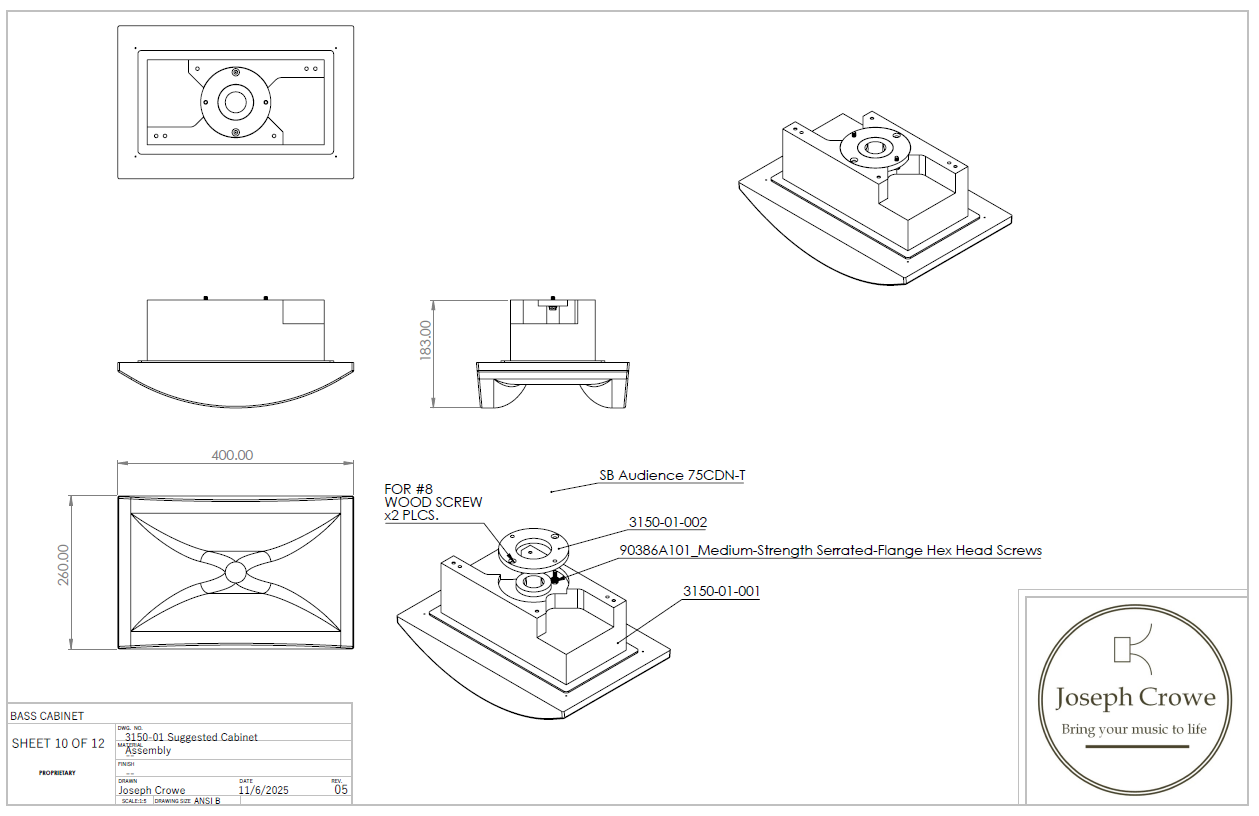

A rectangular hole needs to be cut in the speaker cabinet's baffle panel. The horn is screwed to the baffle from inside the cabinet. Dimensional drawings are provided for the baffle.

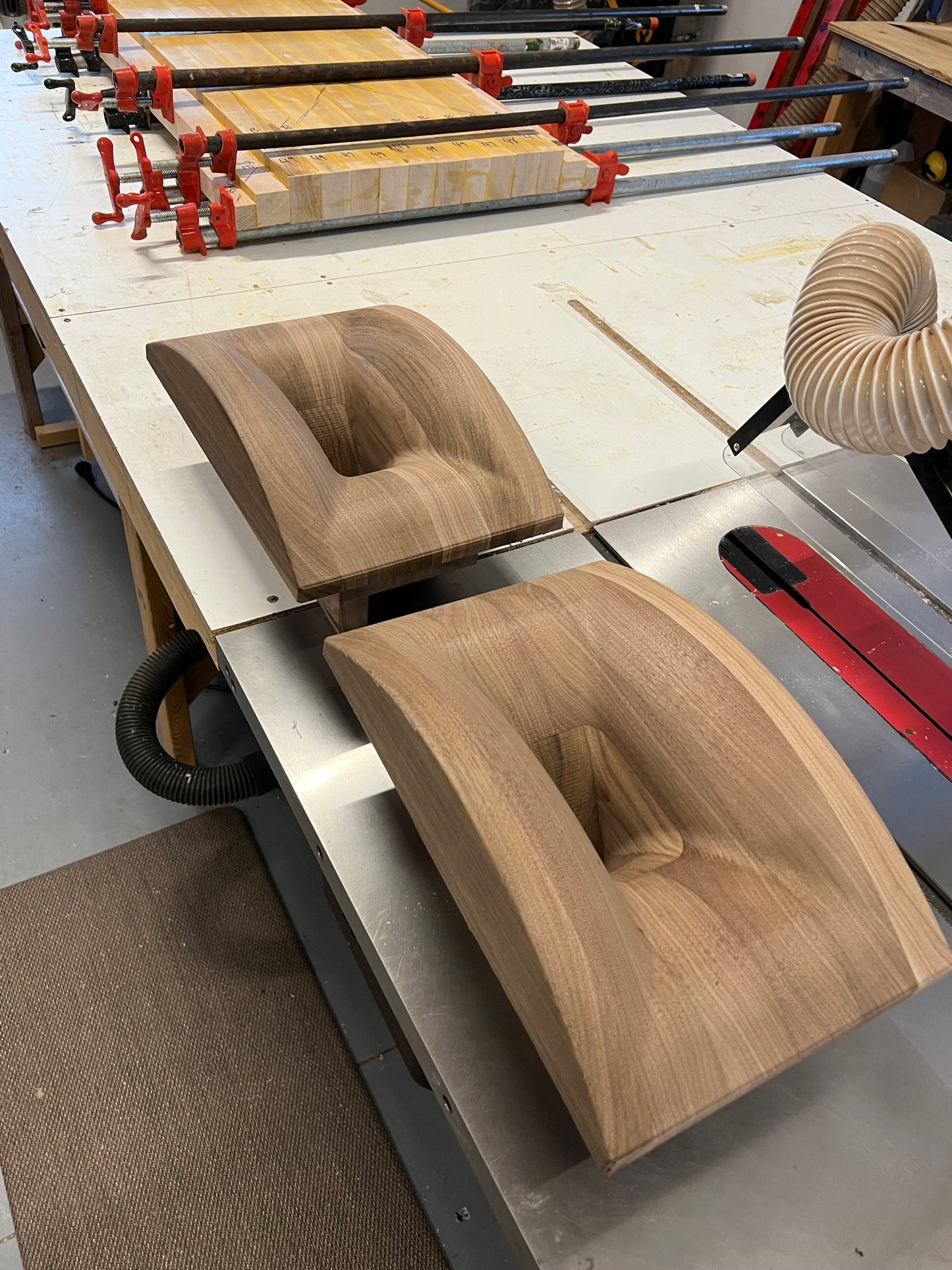

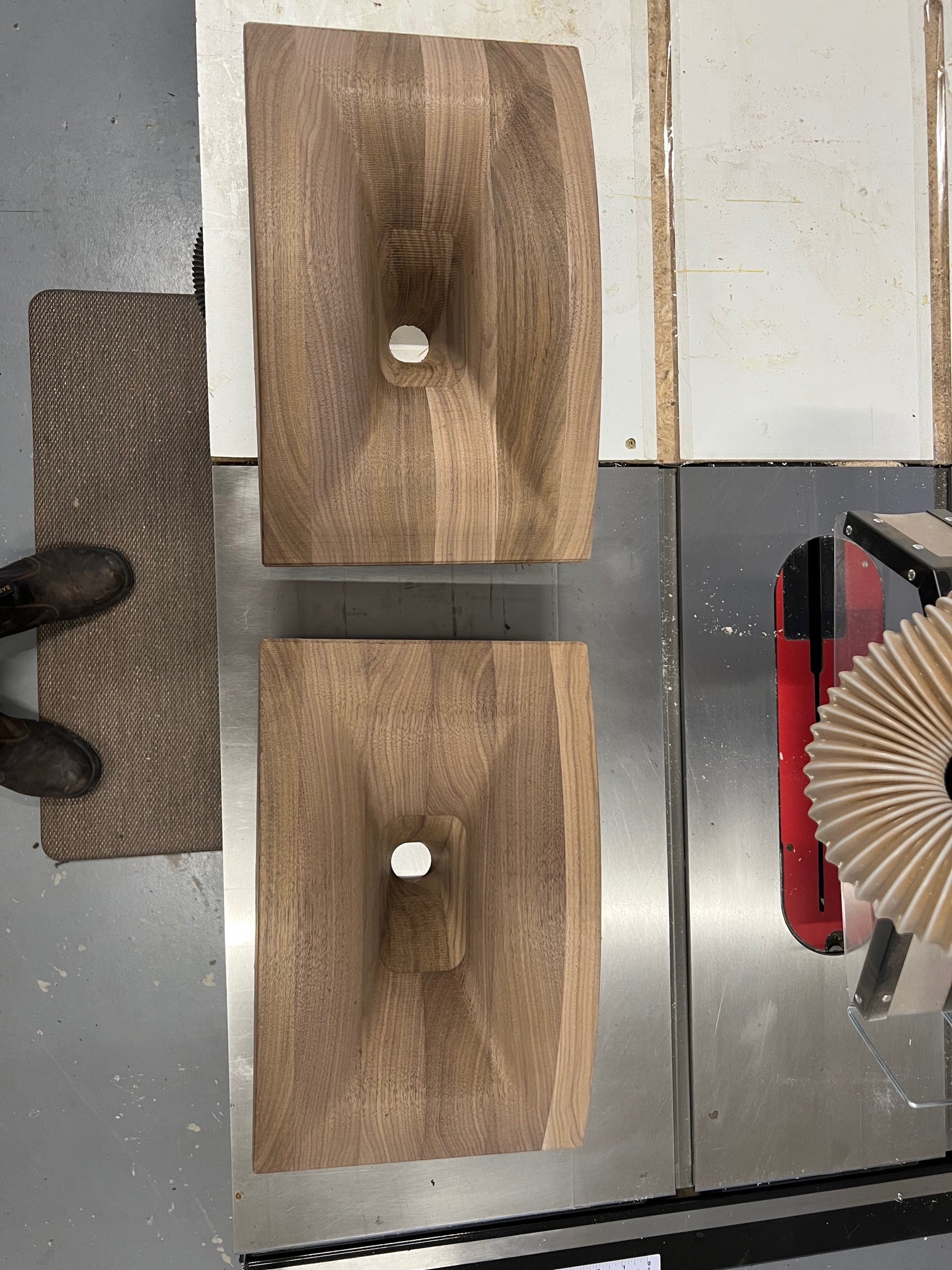

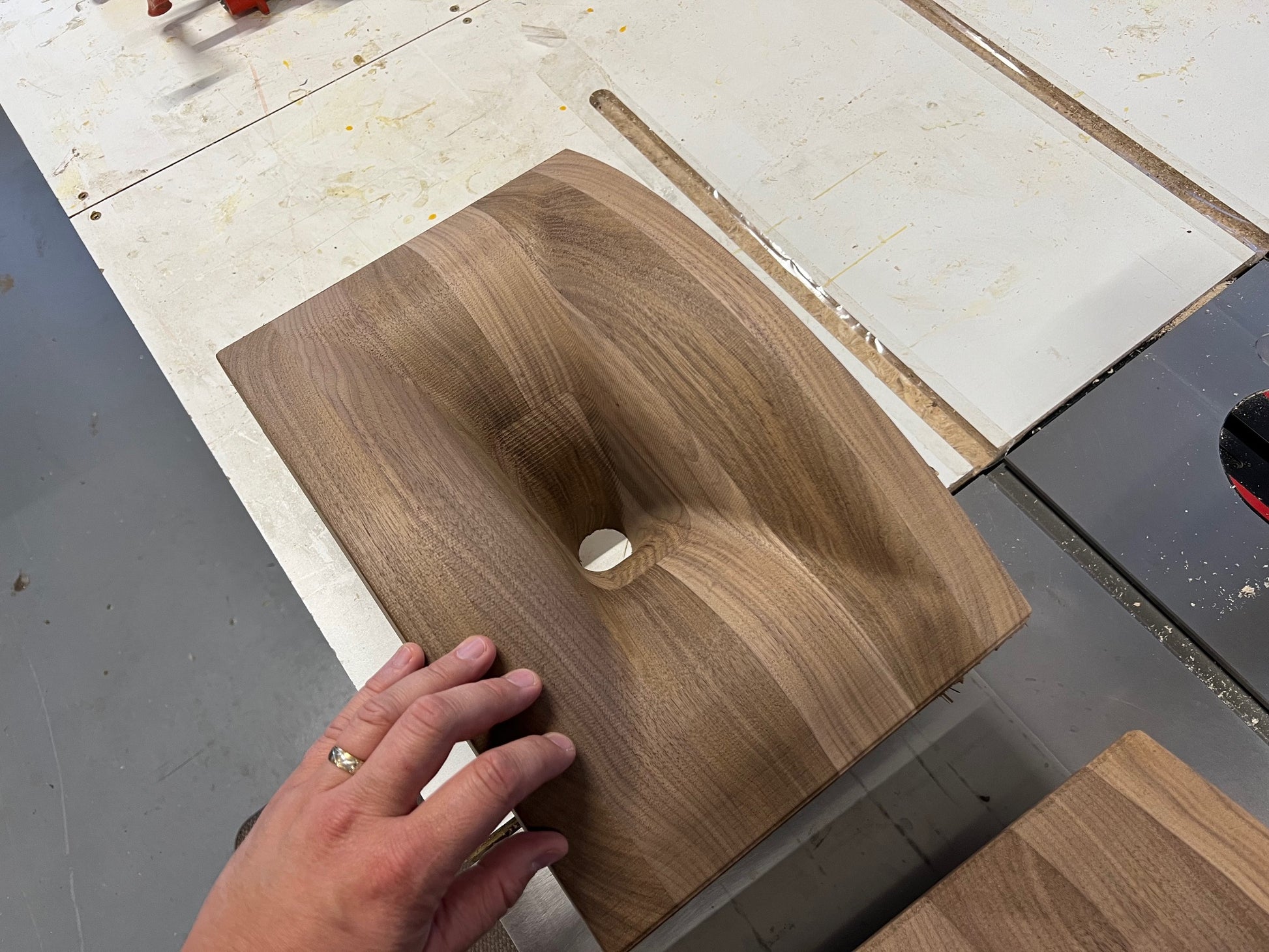

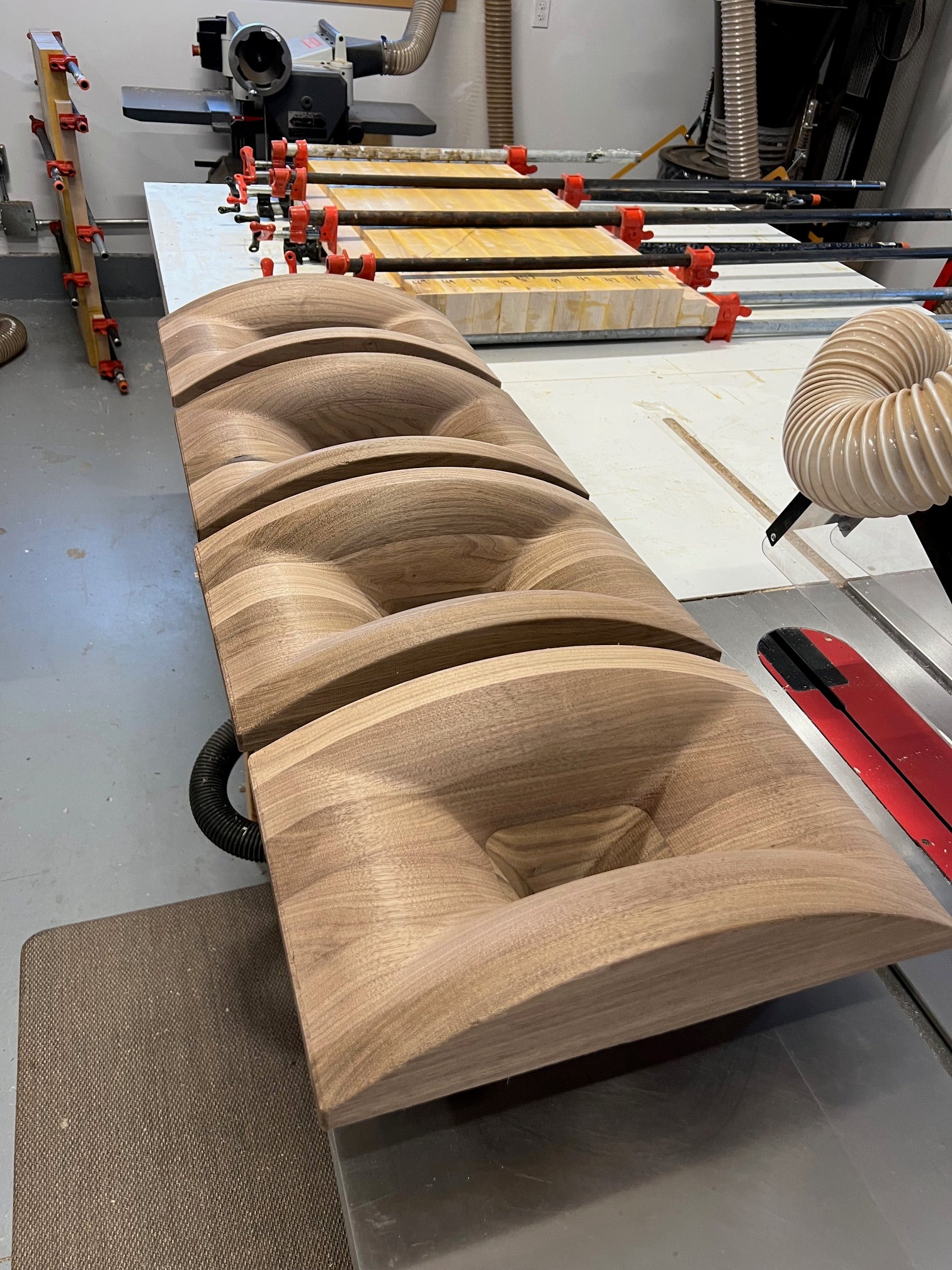

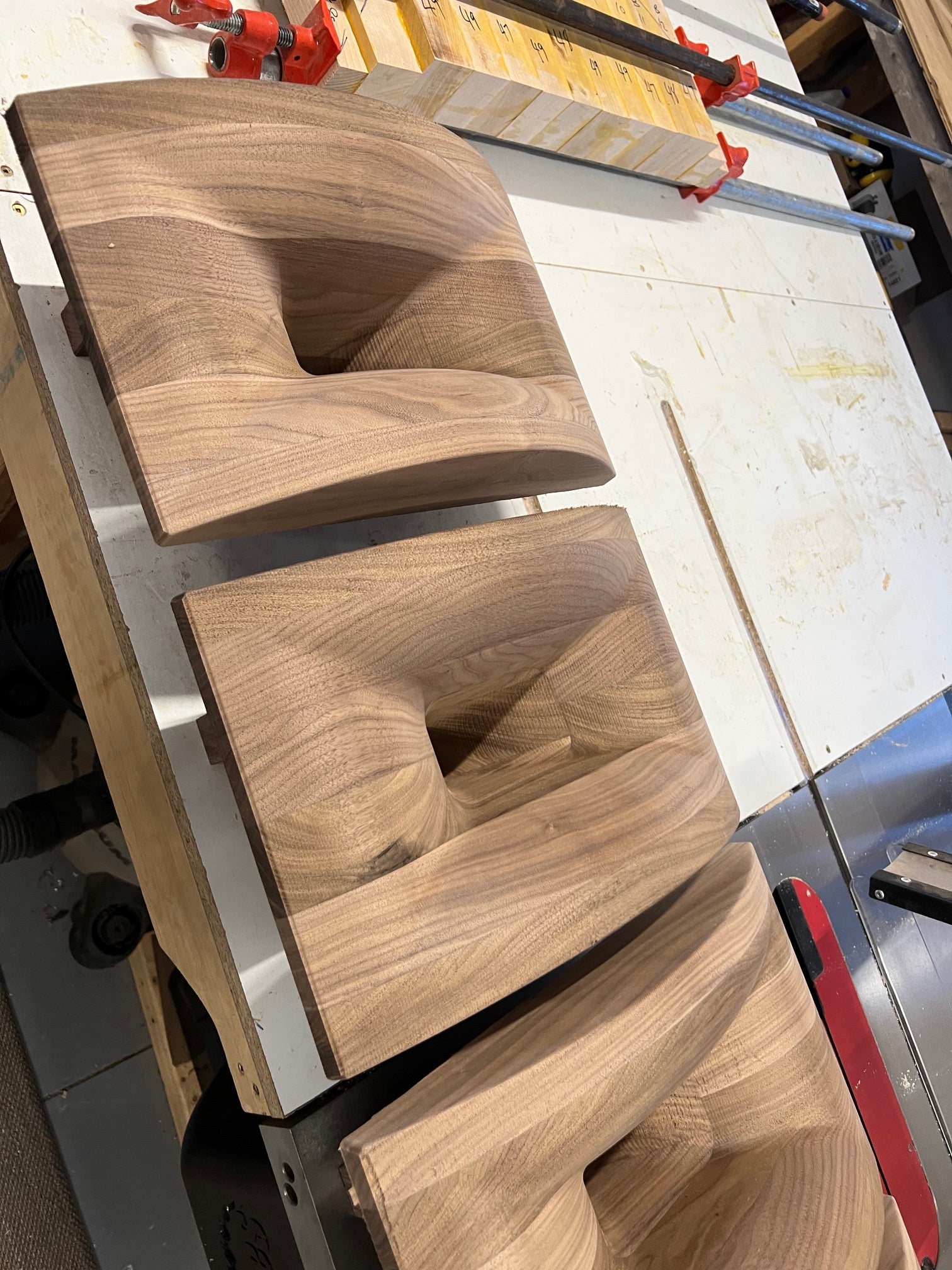

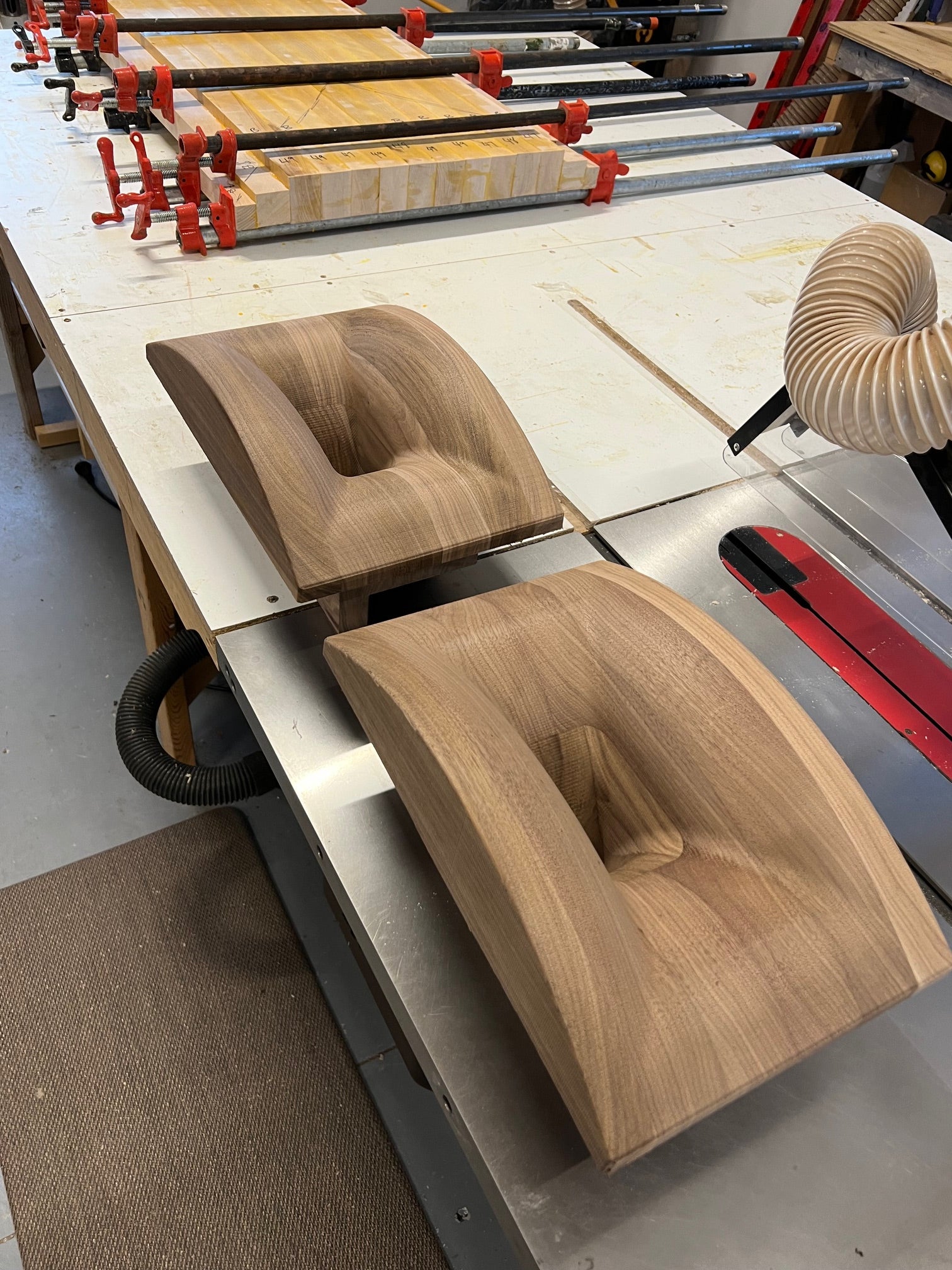

The horn is only sold as raw CNC machined so that final sanding can be done with the bass cabinet to perfectly match the physical size of both the horn and the cabinet in terms of width and height.

Physical

• 400mm wide x 260mm tall x 183mm deep (15.74" x 10.23" x 7.20")
• Solid kiln dried walnut
• Requires sanding starting with 180 grit working progressively up to 400 grit
• Suggest finishing with Rubio 2C, x2 coats with 3 days wait between coats, sand with ultra fine 3M sanding sponge before second coat.

Click here for suggest cabinet plan (10" 2-way).

Details

• Sold as a pair
• 600Hz Cutoff Frequency (Fc)
• Accommodates standard 1.40" compression driver
• Suitable for 2-way or 3-way applications
• Suitable for crossover points from 600Hz and up
• Low diffraction design for high levels of clarity
• 9 degree half angle on throat (18 degree included) for horizontal axis
• 7 degree half angle on throat (14 degree included) for vertical axis

Includes

• Detail drawings on suggested cabinet (10" 2-way)
• Dimensions on rectangular cut-out
• Mounting ring for compression driver (3D printed with heavy print settings)
• Dimensions for wood bezel for woofer (see drawings)
