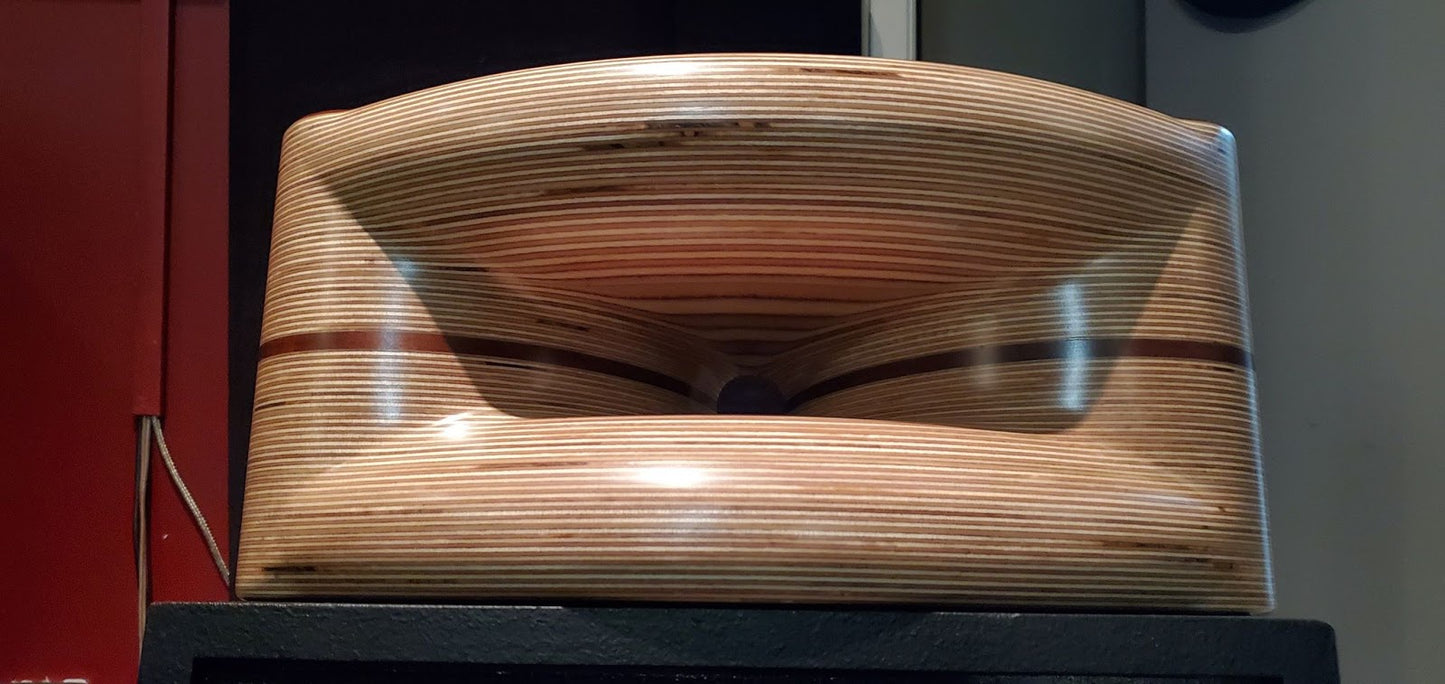

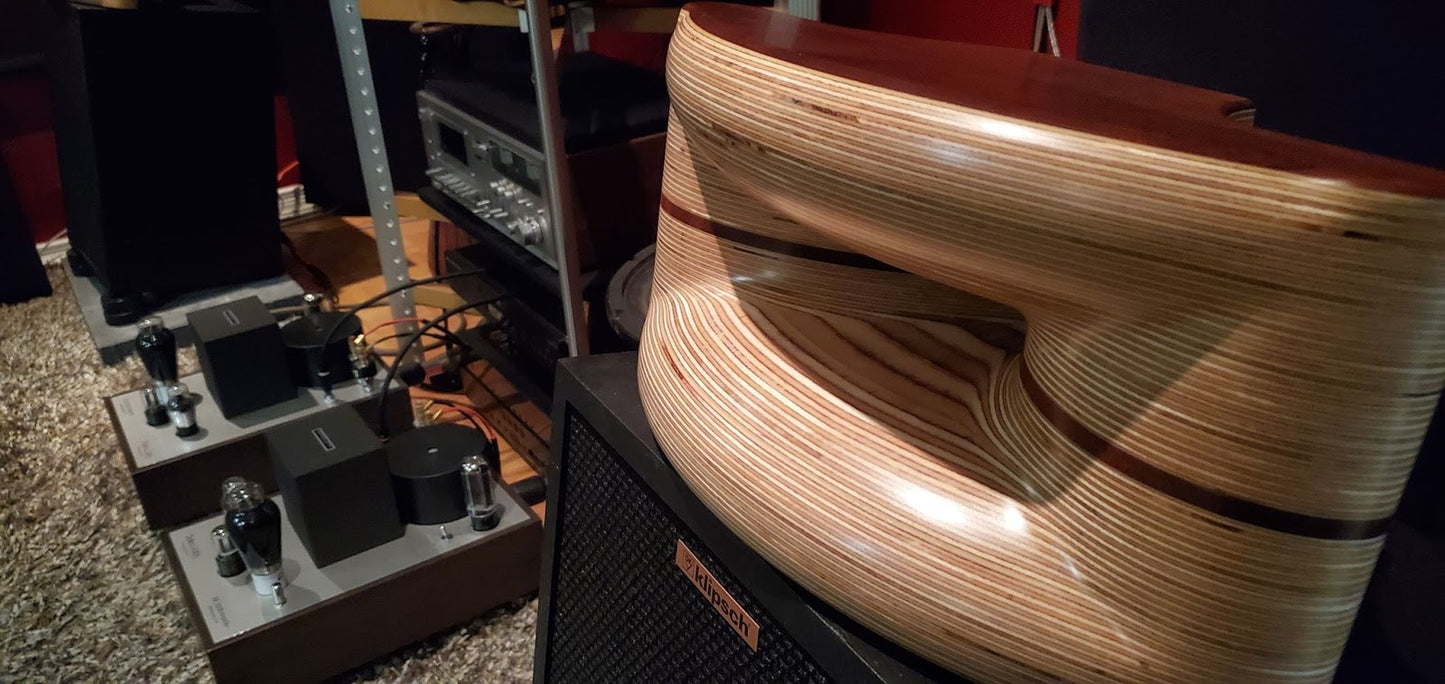

ES-600 Bi-Radial Horn 3D CAD Files

Sale price Price $30.00 Regular price

3D CAD Files

  • ES (Exponential Spiral) flare geometry
  • Price is 'Per Pair' in Canadian Funds
  • Wrap-around horn mouth
  • Allows Precision CNC cut or 3D Printing
  • Includes full horn model and horn model split in half
  • Bass cabinet and/or crossover design service available (Please contact)
  • Bass Cabinet and Mannequin not included in files/plans

Included Files (Automatically Emailed after purchase)

  • Iges and STL files for horn (full and half model)
  • PDF Drawings (not fully dimensioned)

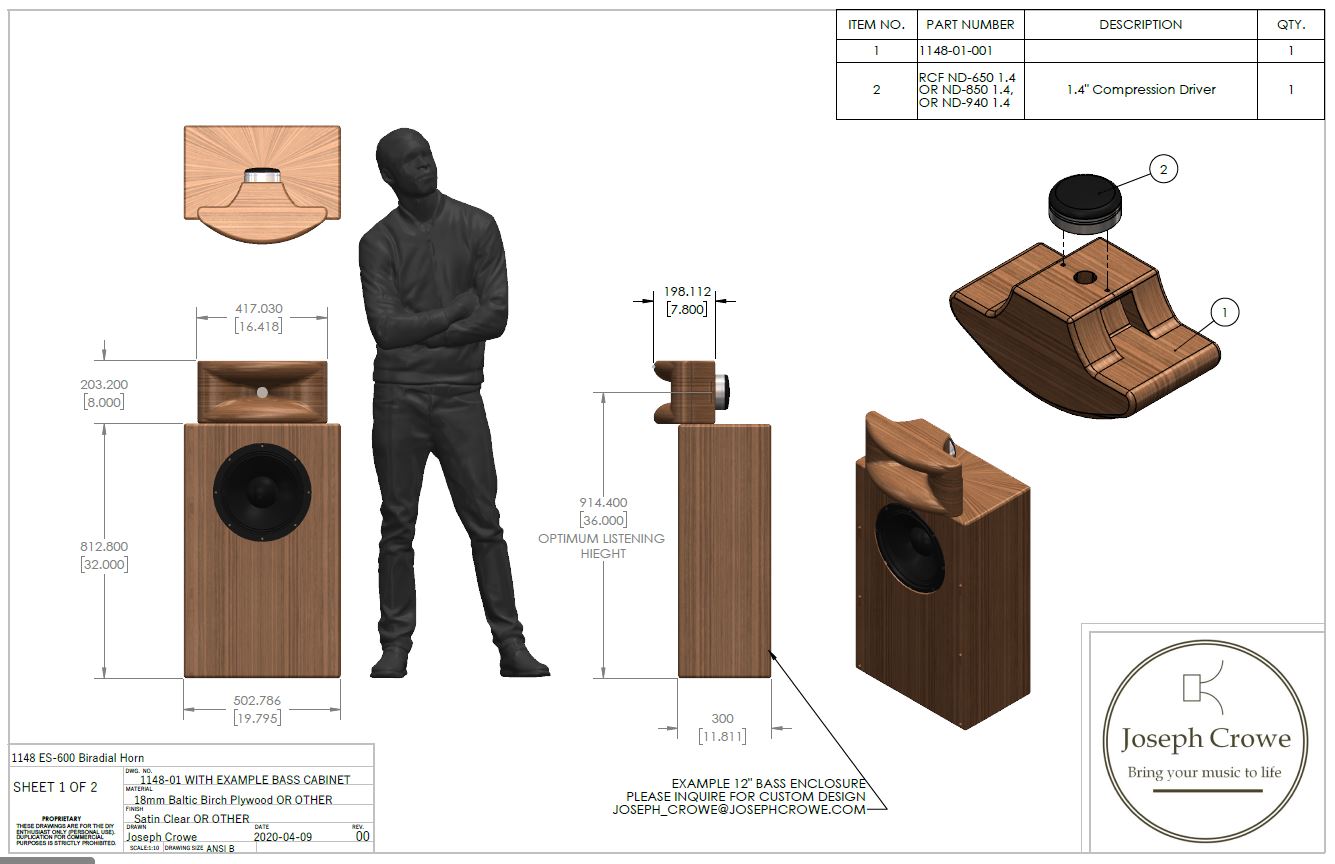

Full Model Shown Below

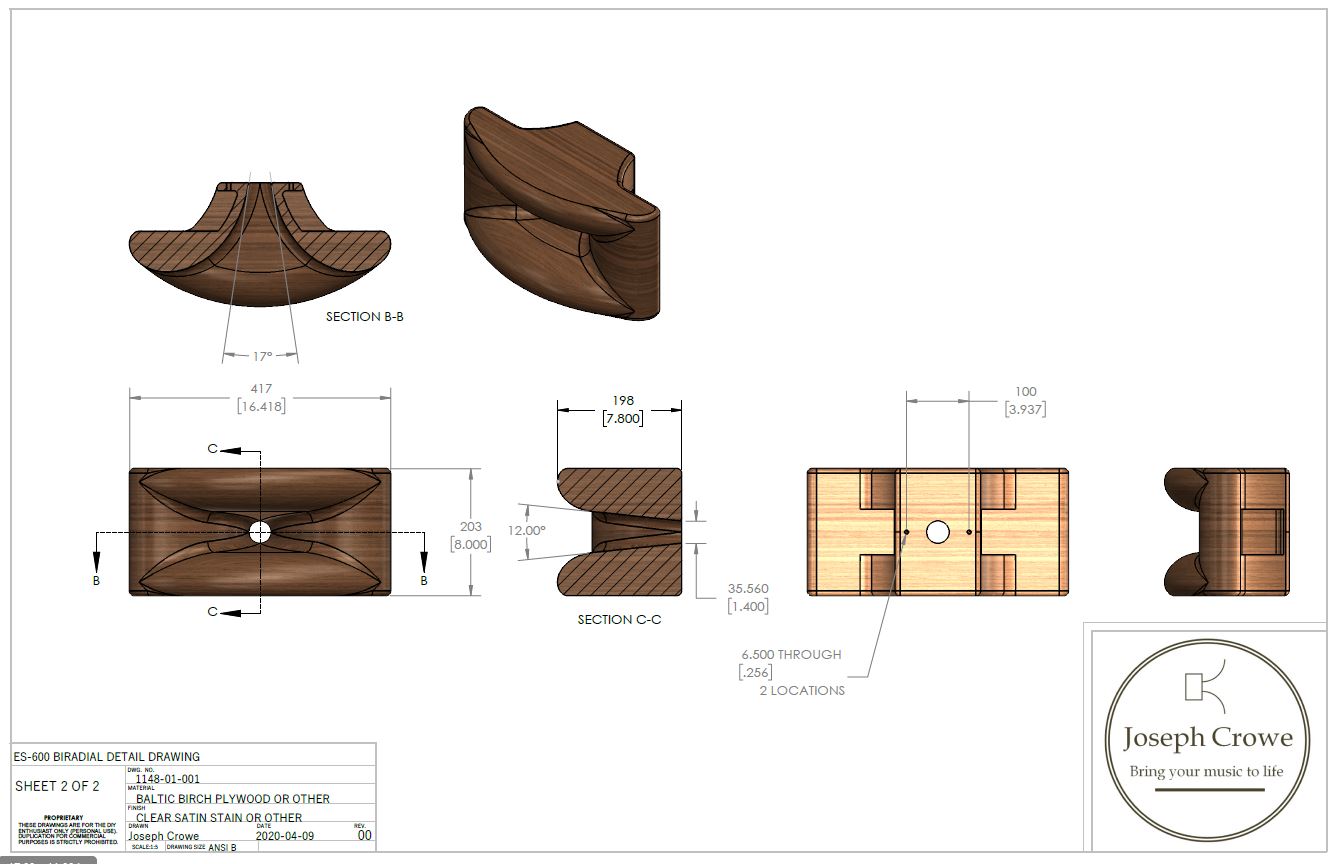

Half Model Shown Below



Specification

  • Frequency Response 600Hz - 20kHz
  • 417mm Wide x 203mm High x 198mm Deep
  • 1.4” Throat

Frequency Response

RCF ND-850 1.4


Horizontal Off-Axis Colored Polar Map

Burst Decay with RCF ND-850 1.4 (30ppi open cell foam in rear chamber)



  • Suitable drivers
  1.  RCF ND-650, ND-850 1.4,  ND-940 1.4
  2. Radian 745DPB, 745PB, or 745Neo
  3. TAD TD-4003
  4. B£C DE780TN
