Joseph Crowe

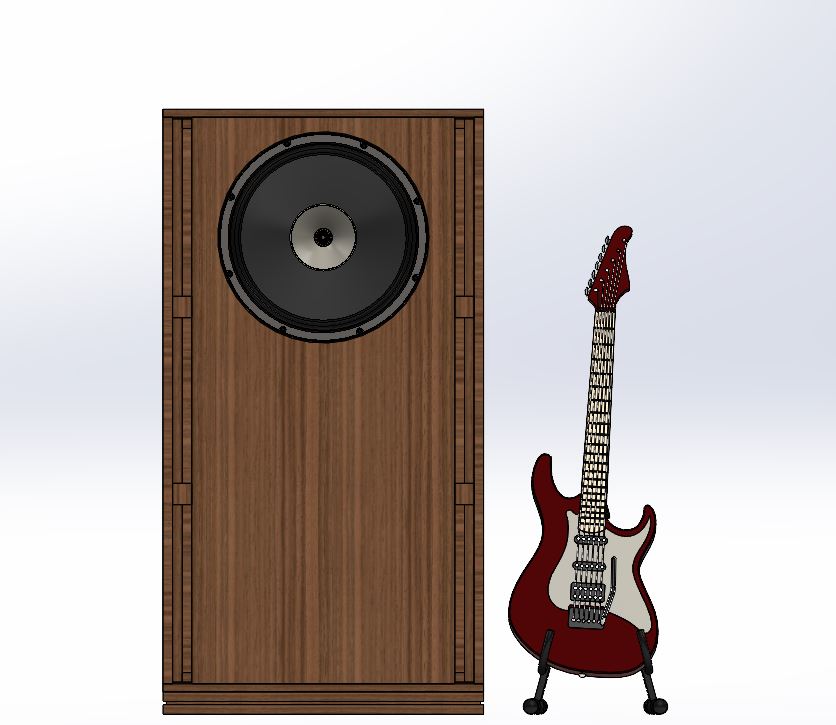

Cabinet Plans No.1528 for Lii Audio F15

Regular price $30.00 USD
Regular price Sale price $30.00 USD
Sale Sold out

By purchasing these plans you will automatically receive the plans via email to construct cabinet No.1528.  These plans are based on the existing Lii Audio cabinet plans in terms of internal volume and port tuning, however in an onken style cabinet (side vents).  These vents serve to stiffen the cabinet.  Additionally, internal diffraction panels diffuse and breakup internal standing waves.   The cabinet width of 600mm is optimized for best use of a sheet of plywood, with a standard sheet being 1219mm wide x 2438mm long.

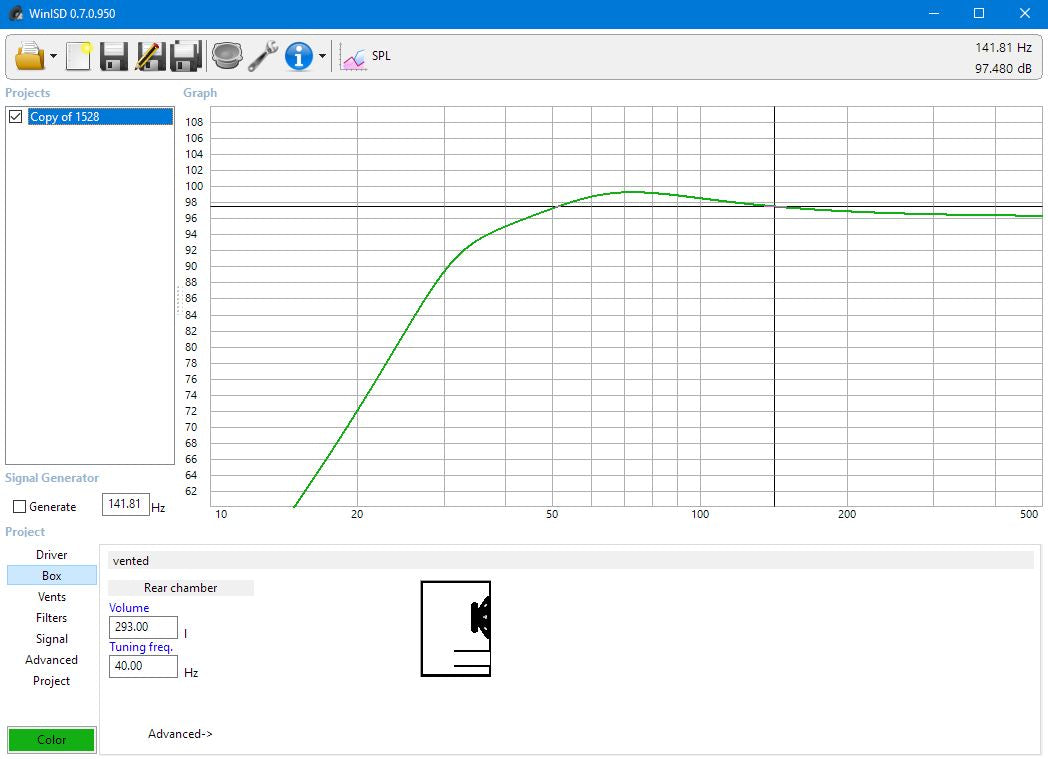

  • 293 liter internal volume
  • 40Hz tuning frequency

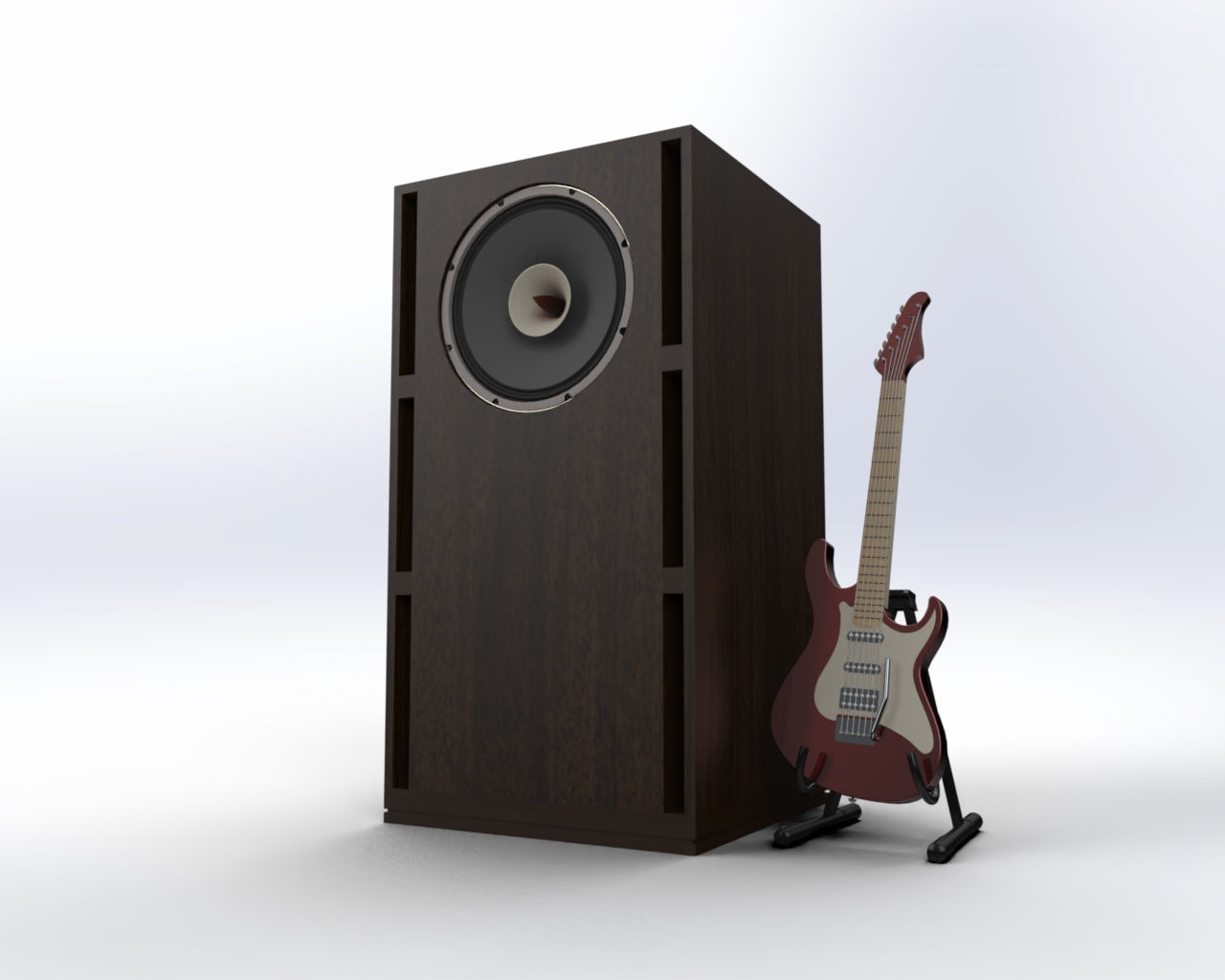

  • Onken style side vents for increase cabinet rigidity
  • 18mm baltic birch plywood

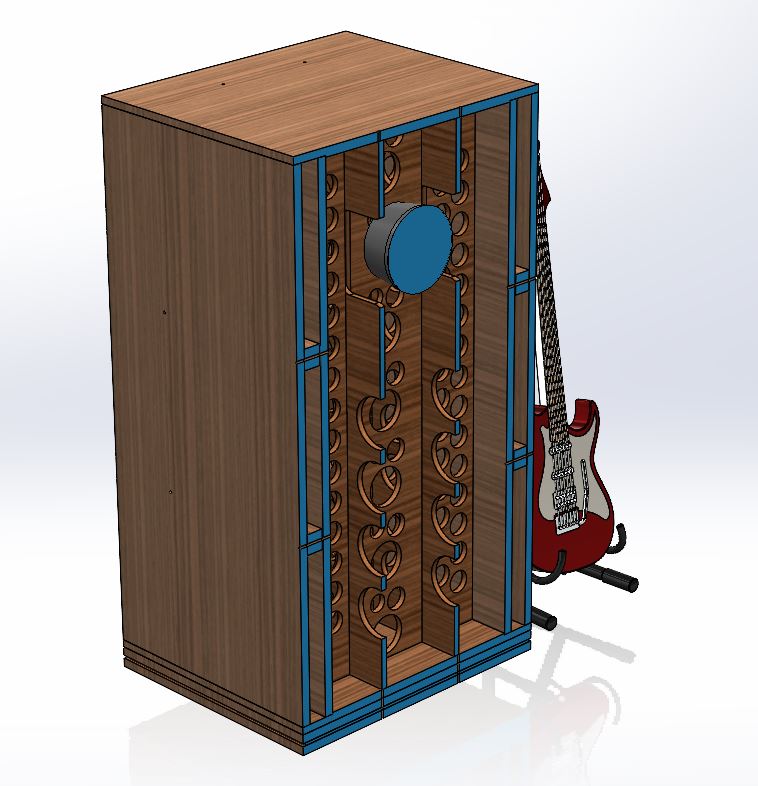

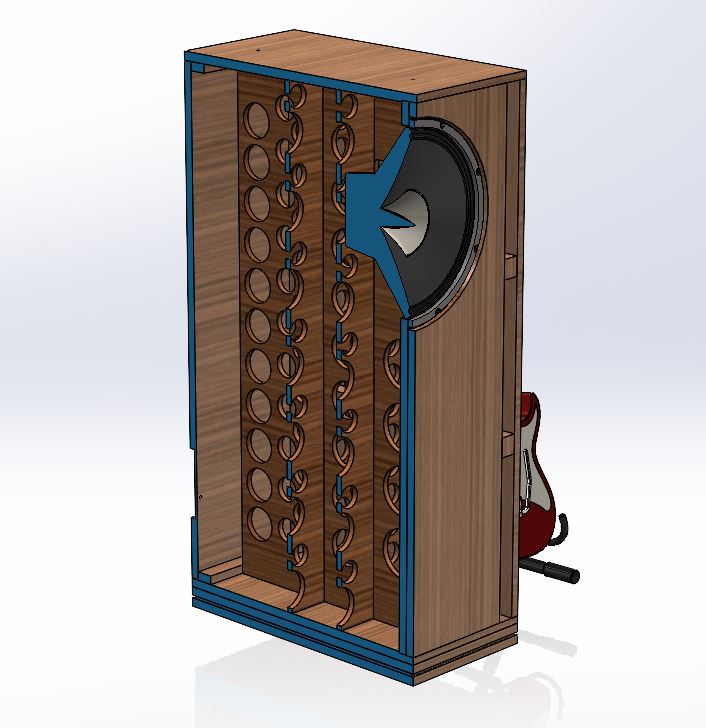

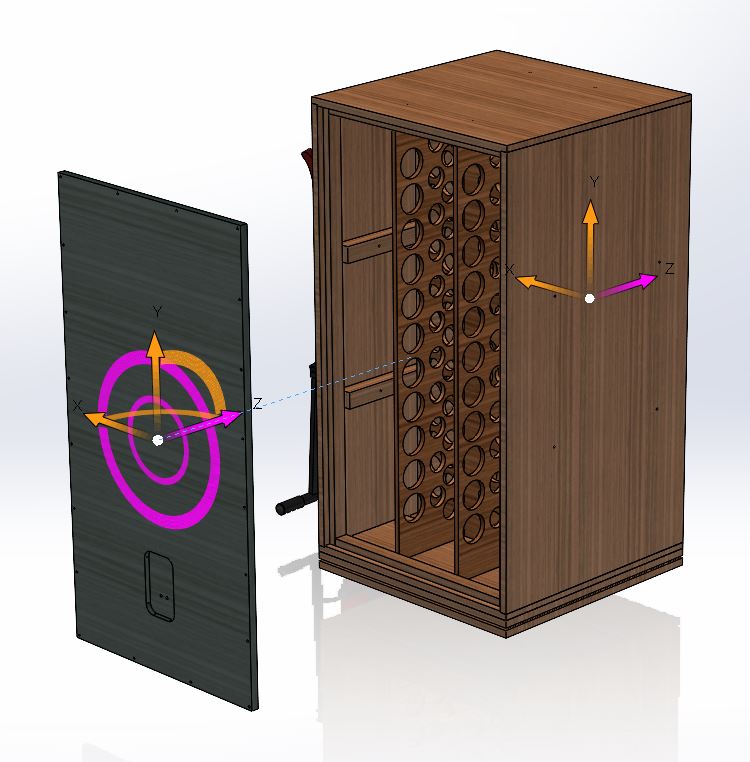

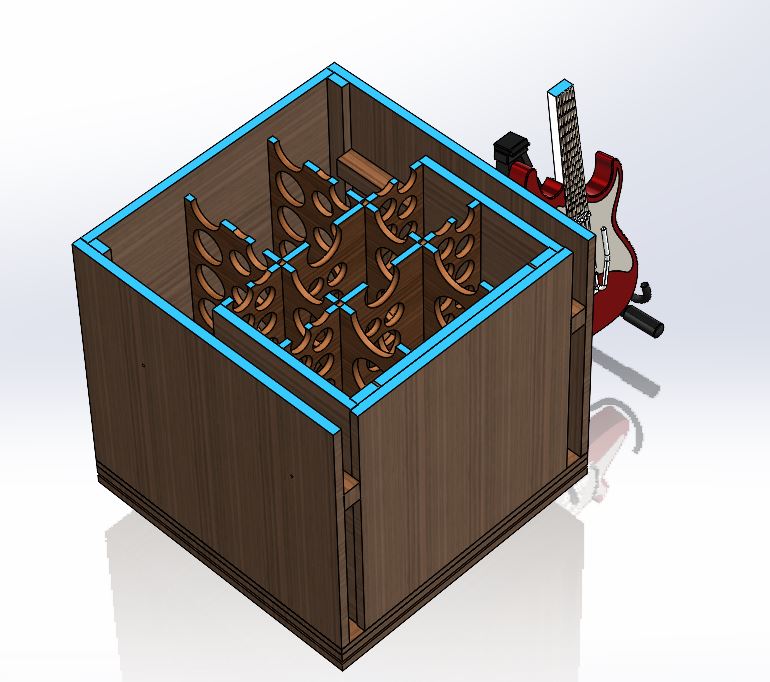

  • Internal diffraction panels reduces unwanted reflections through the driver and ports
  • Internal diffraction panels serve to further stiffen cabinet walls

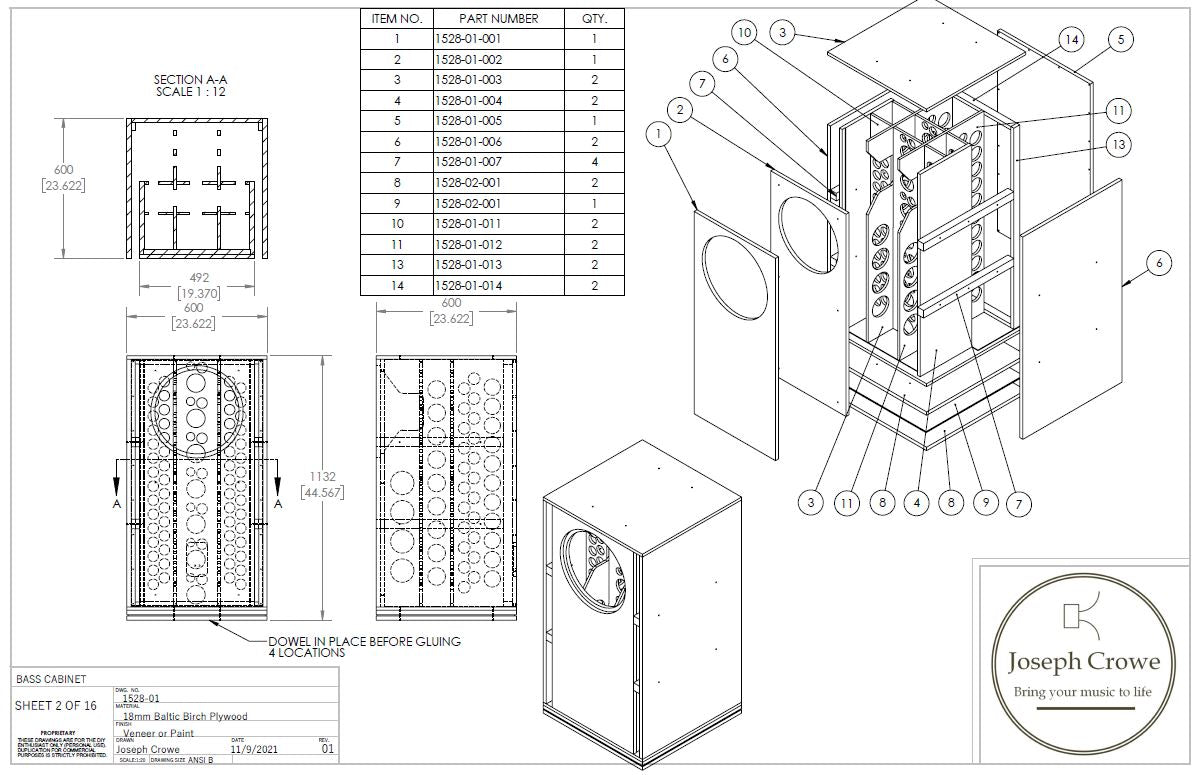

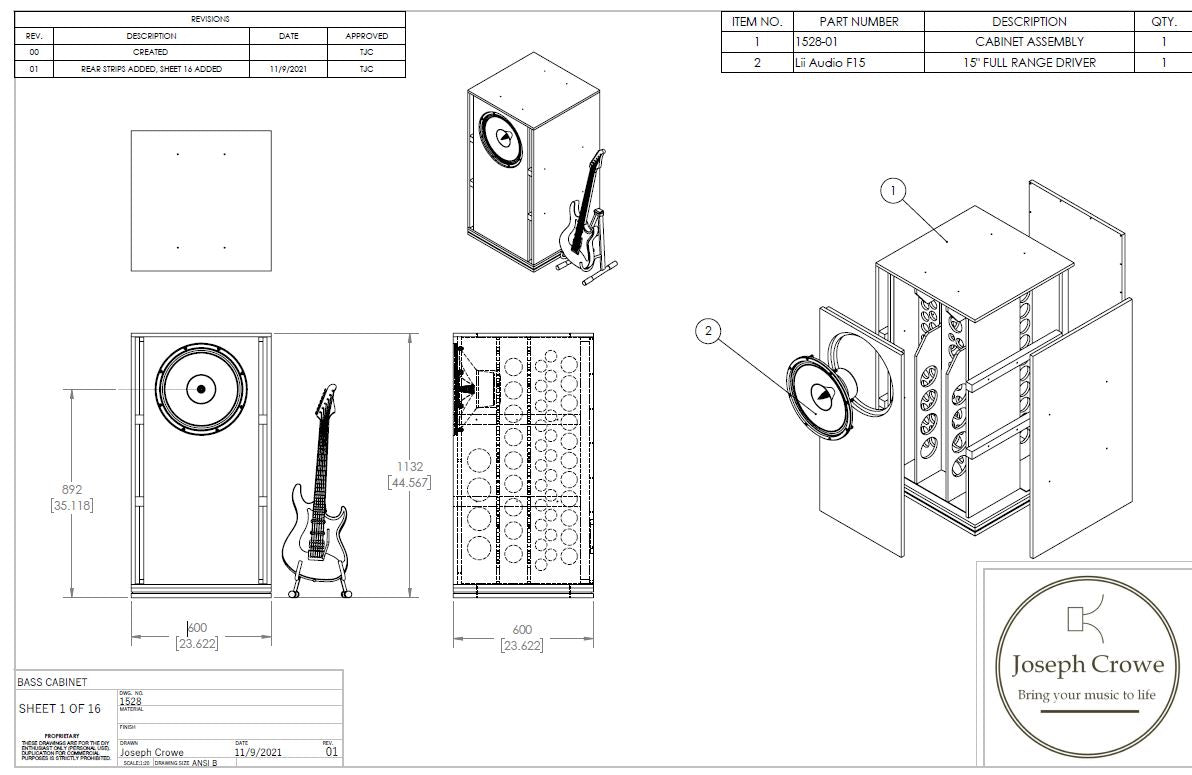

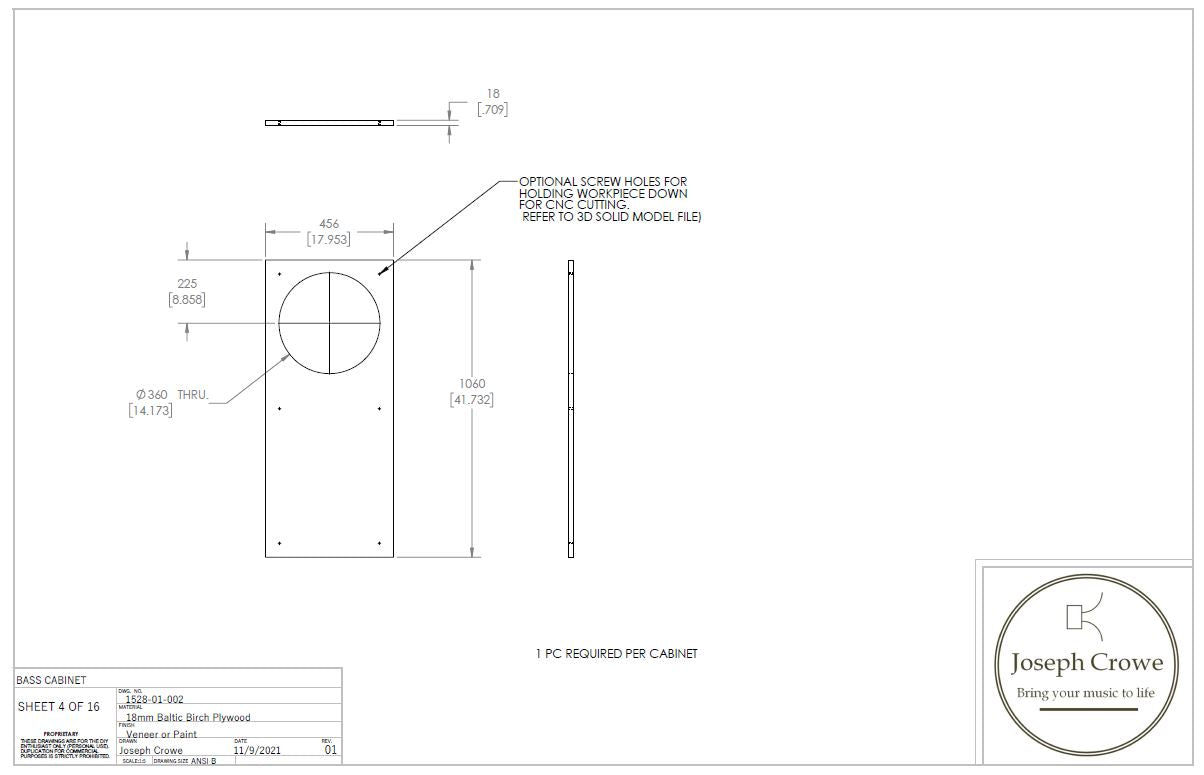

  • Assembly and detail drawings (.PDF format)
  • 3D CAD file (.Step format)
