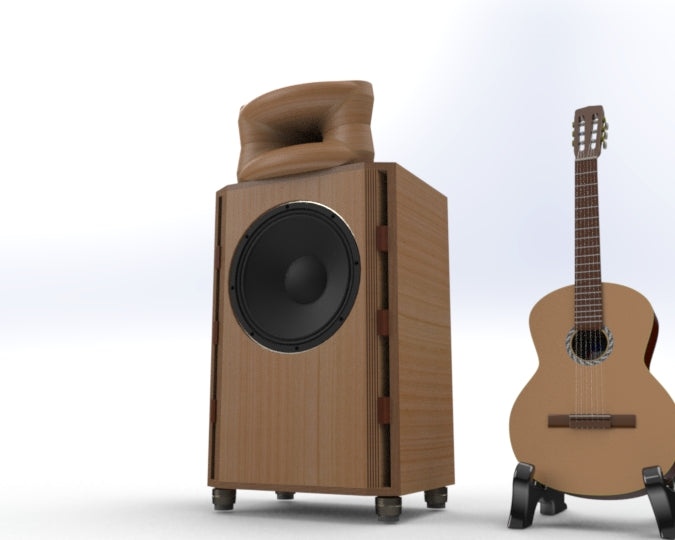

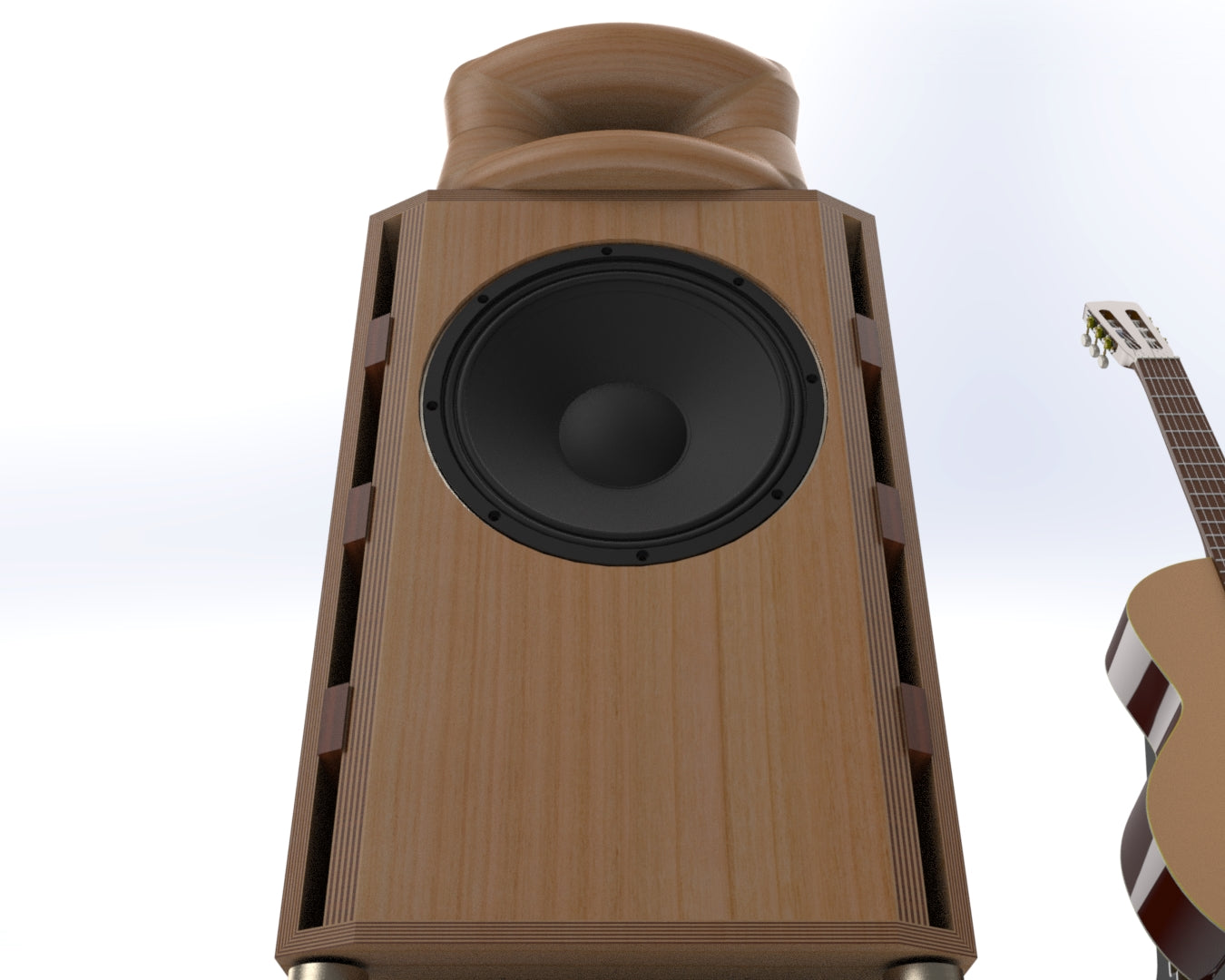

Bass Cabinet Plans No. 1964 -- 15" Faital 15PR400 Woofer

These plans include the assembly and detail drawings to construct bass cabinet No. 1964.

Details

• Automatically emailed after transaction on this product page

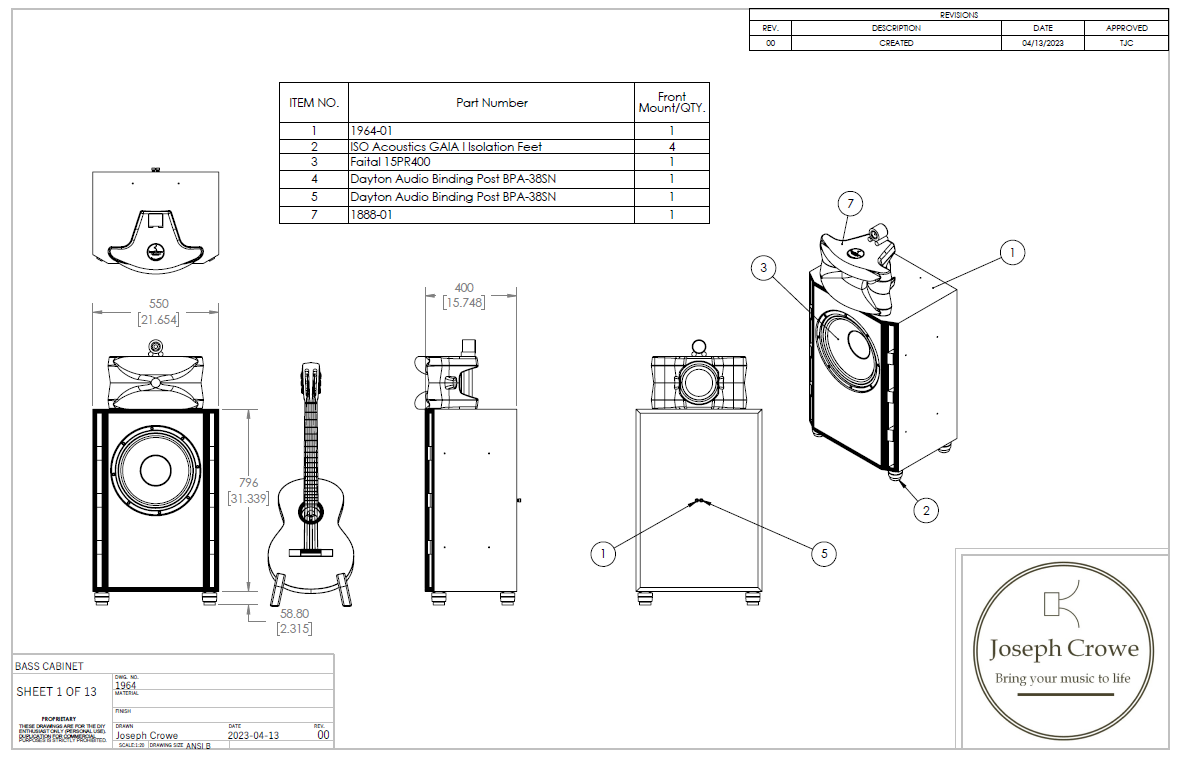

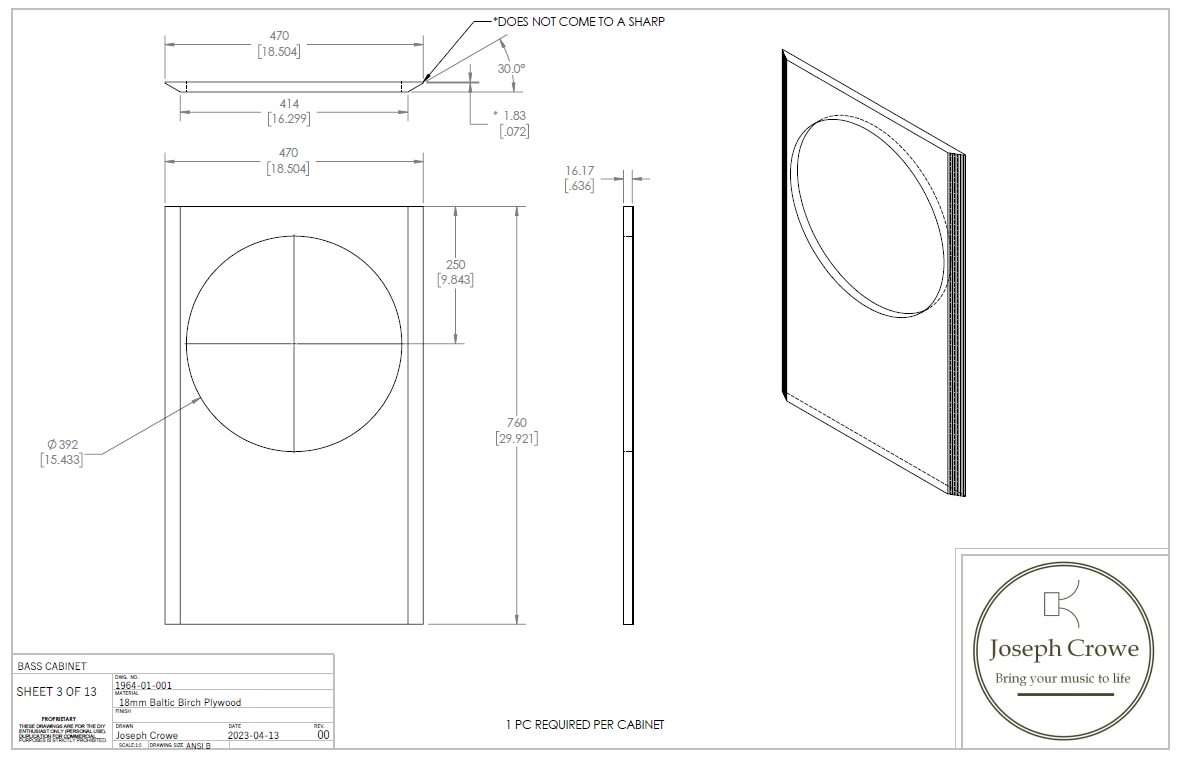

• Assembly and details drawings (.PDF format)
• AutoCAD DXF Files
• 100 Liter internal volume

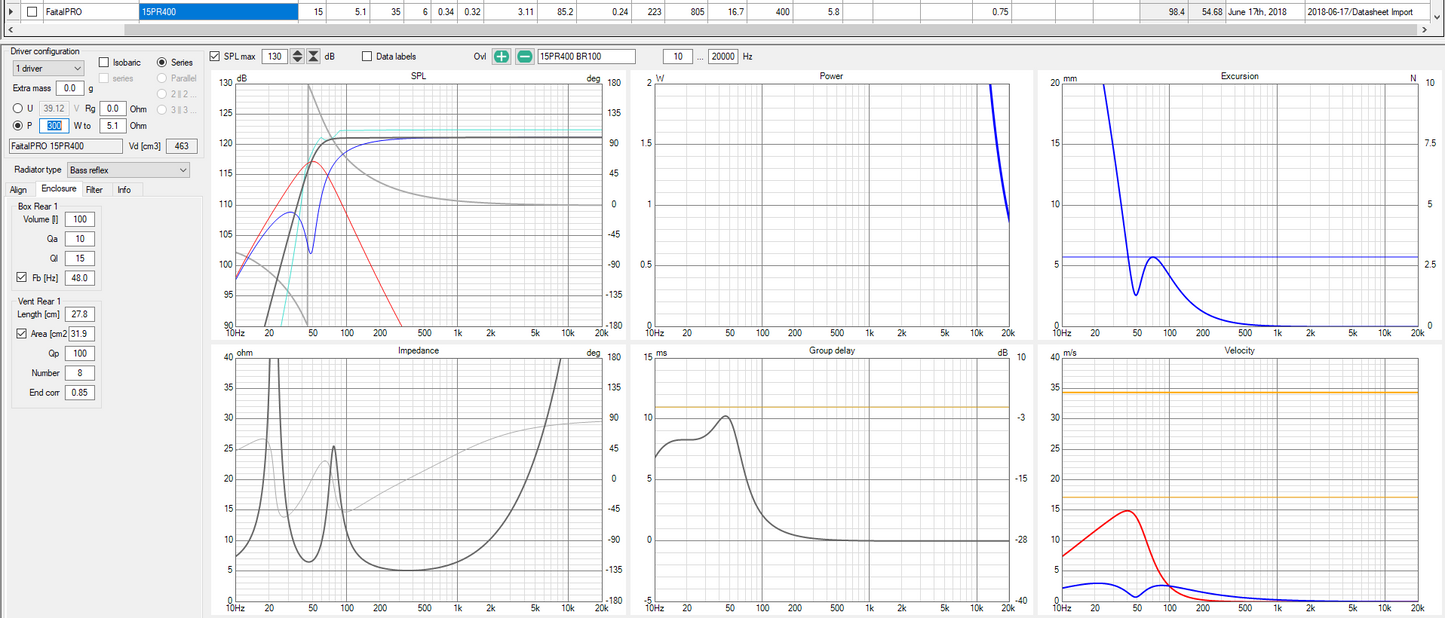

• 48Hz tuning frequency

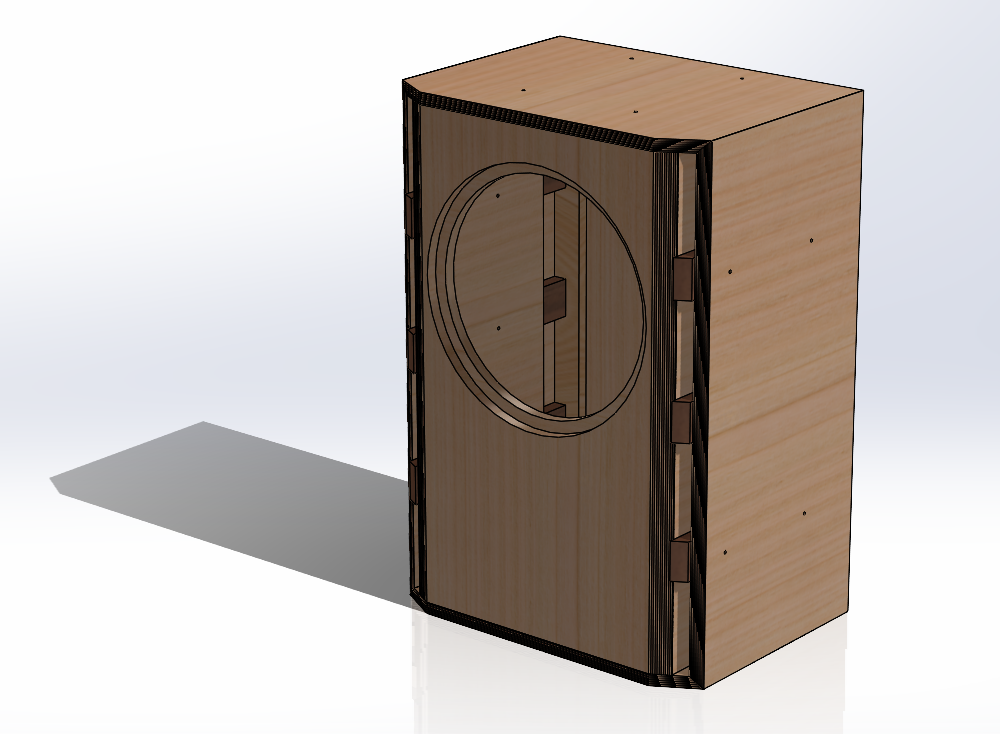

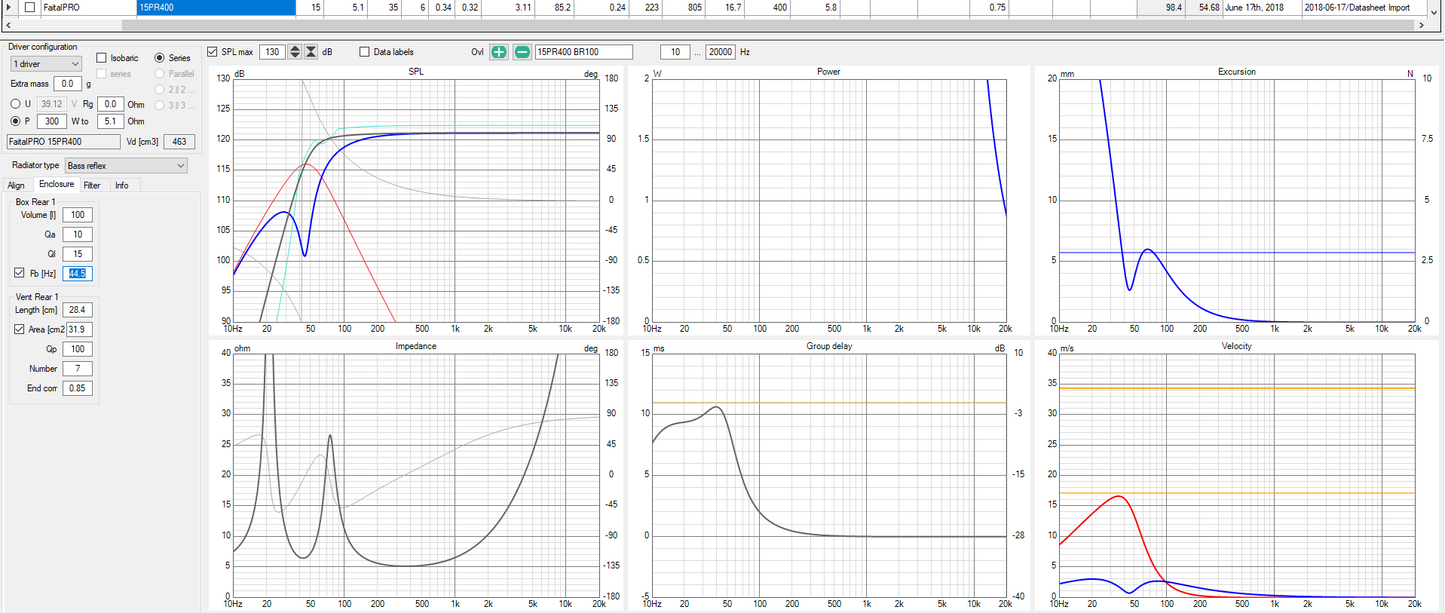

• Tuning frequency can be lowered by blocking off some of the ports. The tuning frequency is lowered to 44Hz by blocking one of the eight ports. The tuning can be lowered further by blocking additional ports. Below is a summary of available tuning frequencies
• x8 Ports = 48Hz
• x7 Ports = 44Hz
• x6 Ports = 42Hz
• 96dB sensitivity

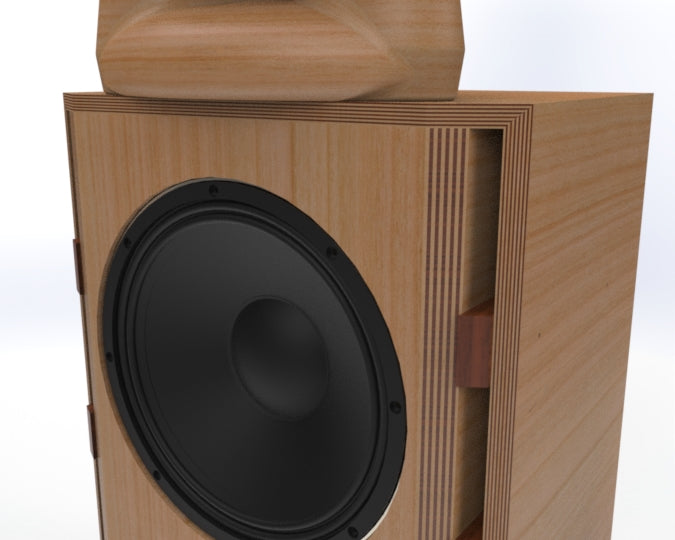

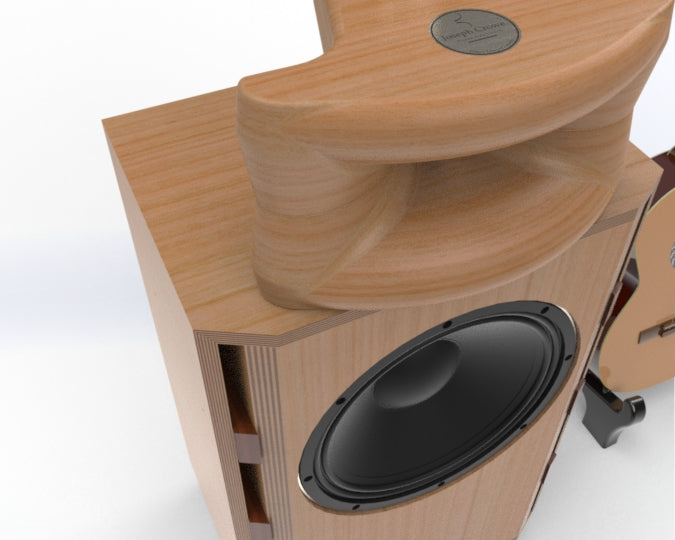

• 18mm plywood construction with solid hardwood on vents (see photo)

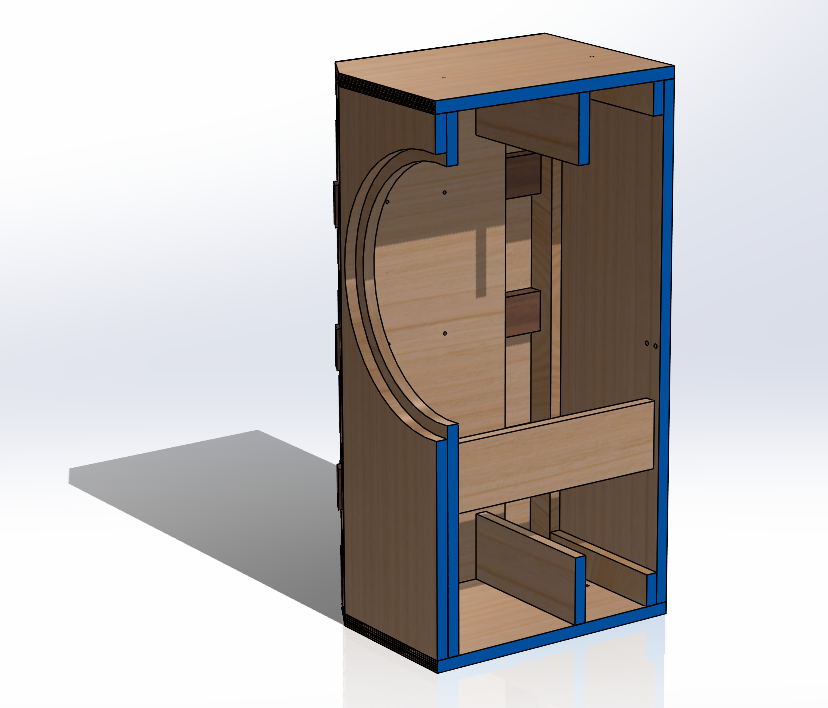

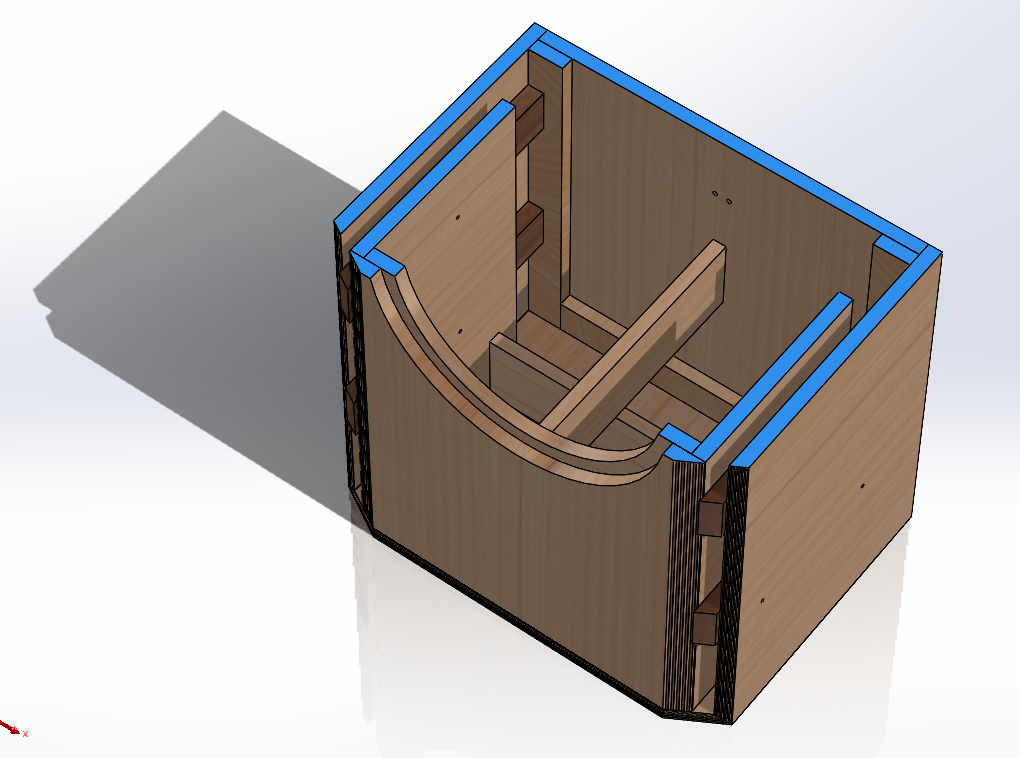

• Internal bracing

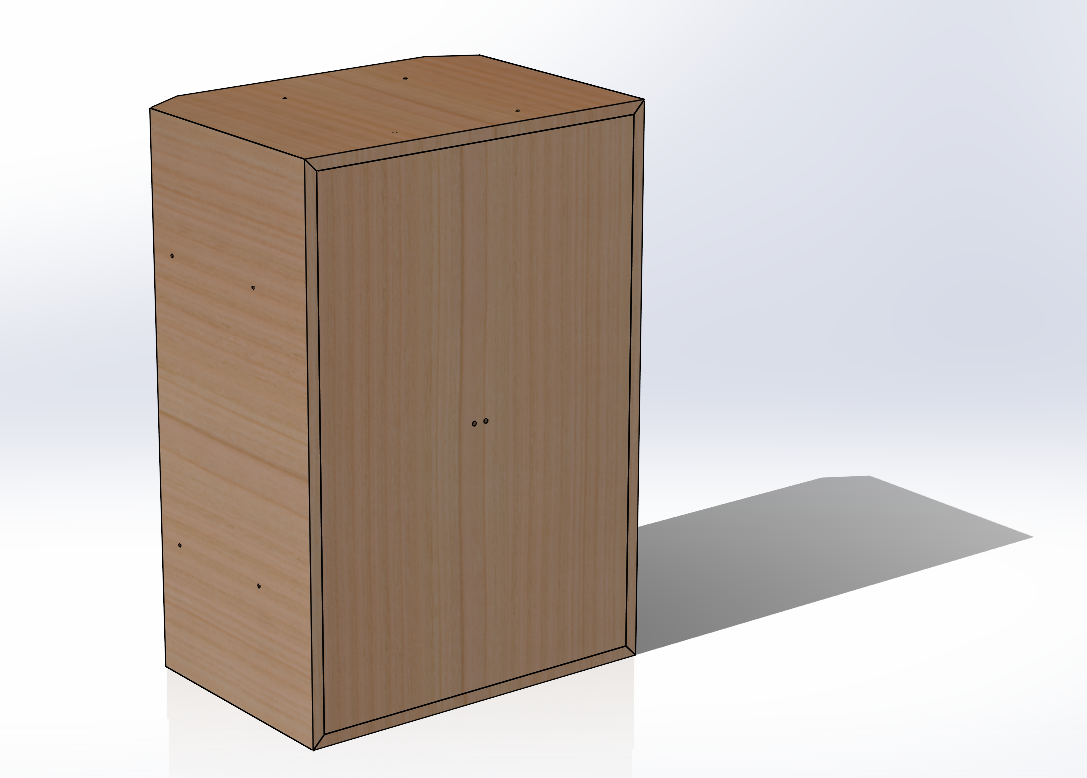

• Physical Dimensions 55cm wide x 40cm deep x 79.6cm high
• Includes nested layout on standard sheet of 4' x 8' plywood
• Uses Faital 15PR400 15" woofer (please contact for custom designs using other woofers)
