Joseph Crowe

Bass Cabinet Plans No.1168

Regular price $30.00 USD
Regular price Sale price $30.00 USD
Sale Sold out
PDF drawing plans will be automatically emailed after purchase.
Includes
  • Price is in CAD Currency

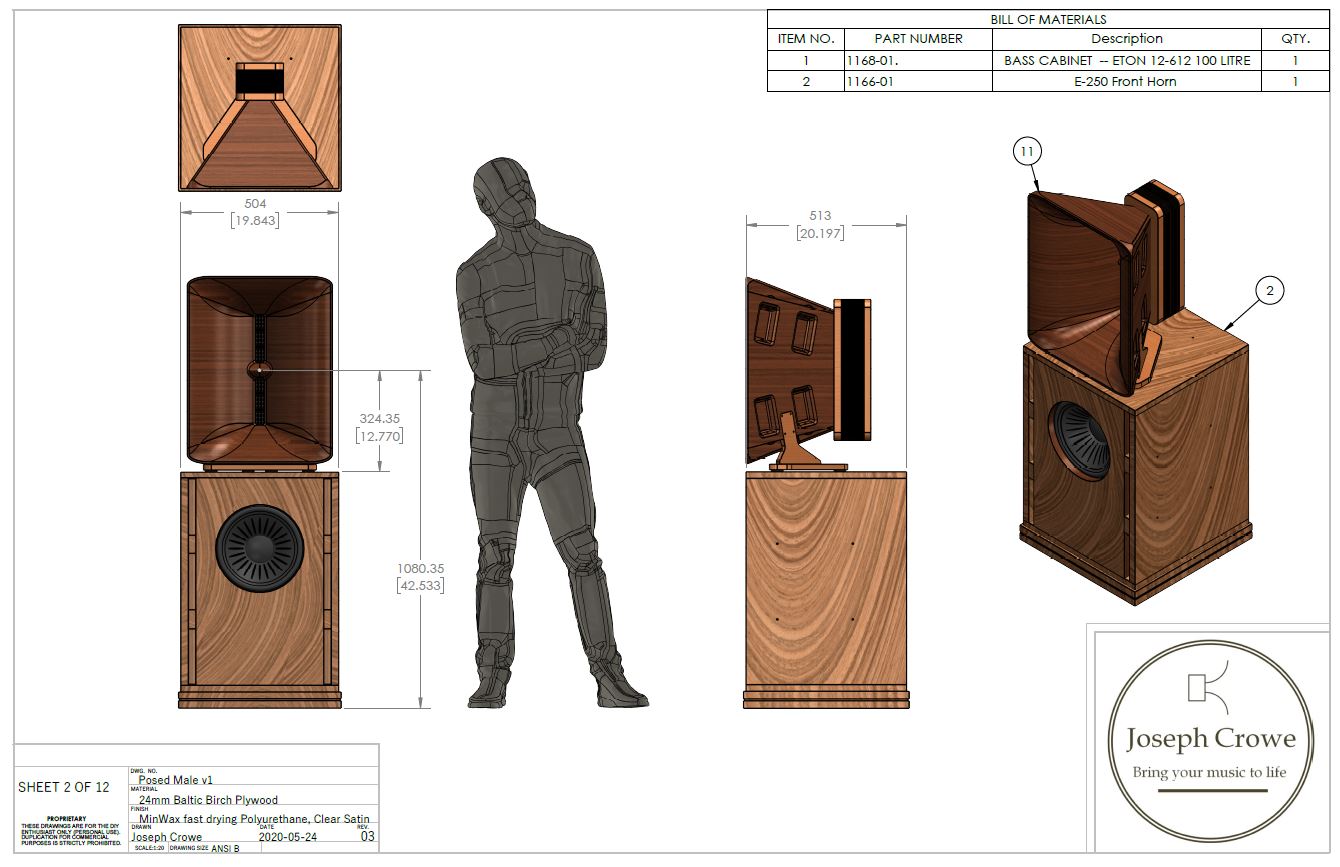

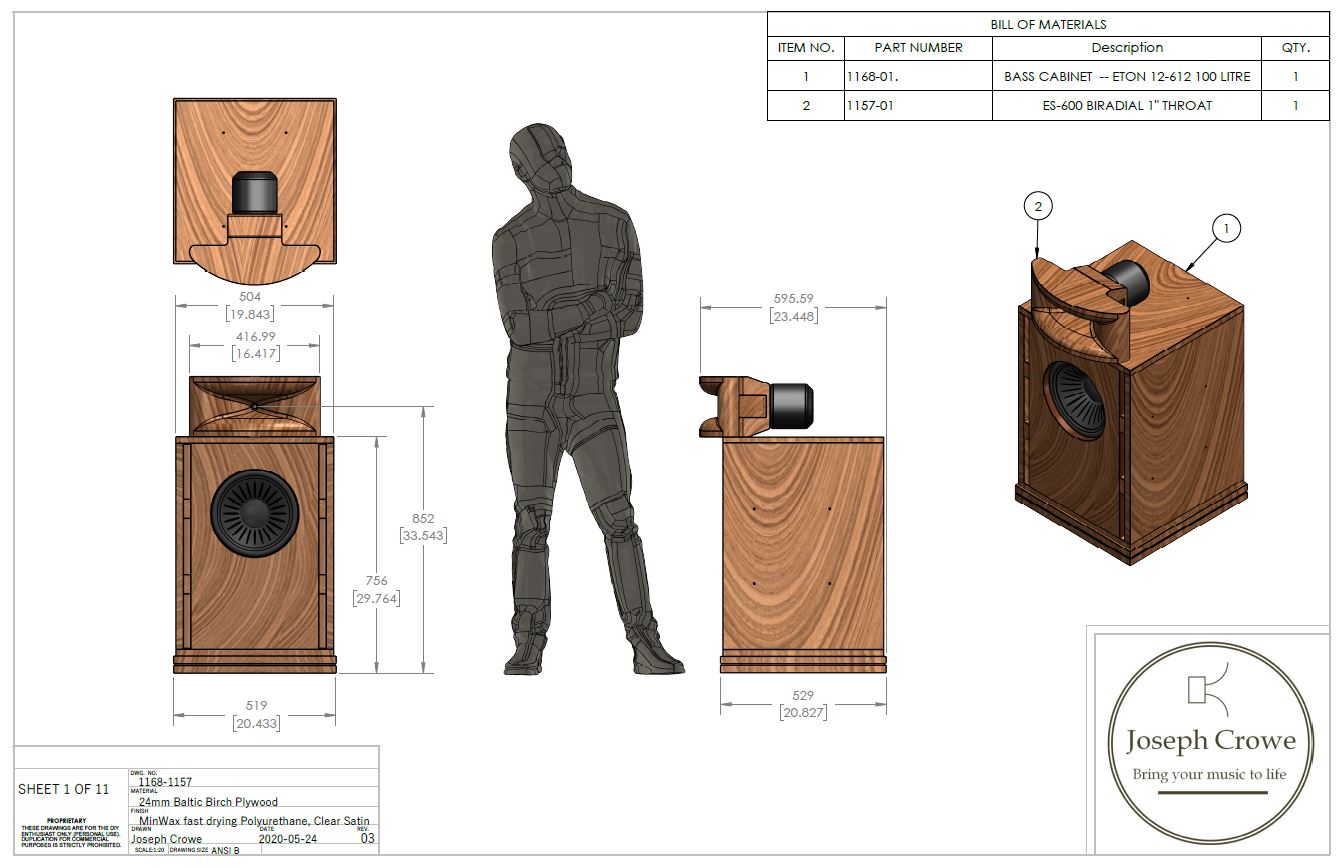

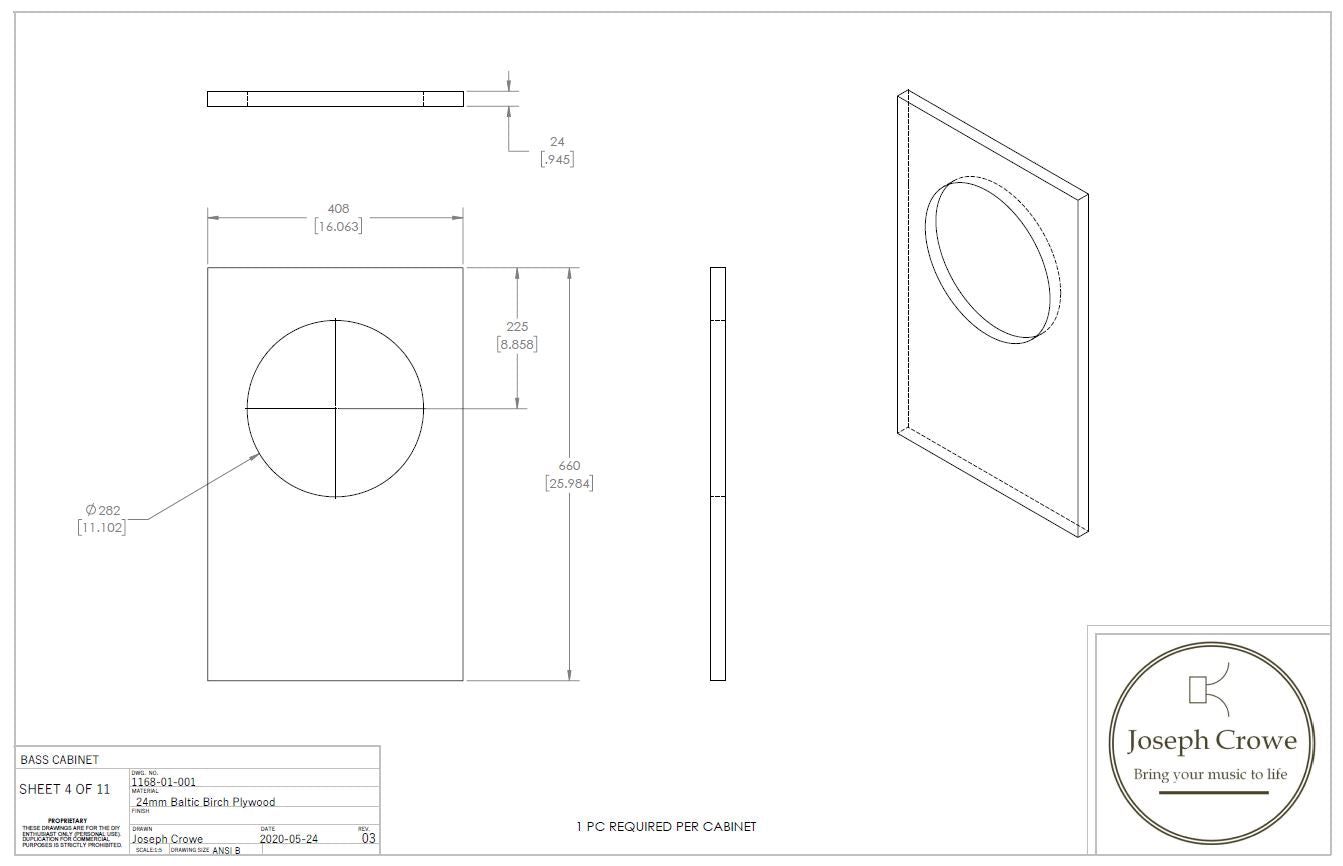

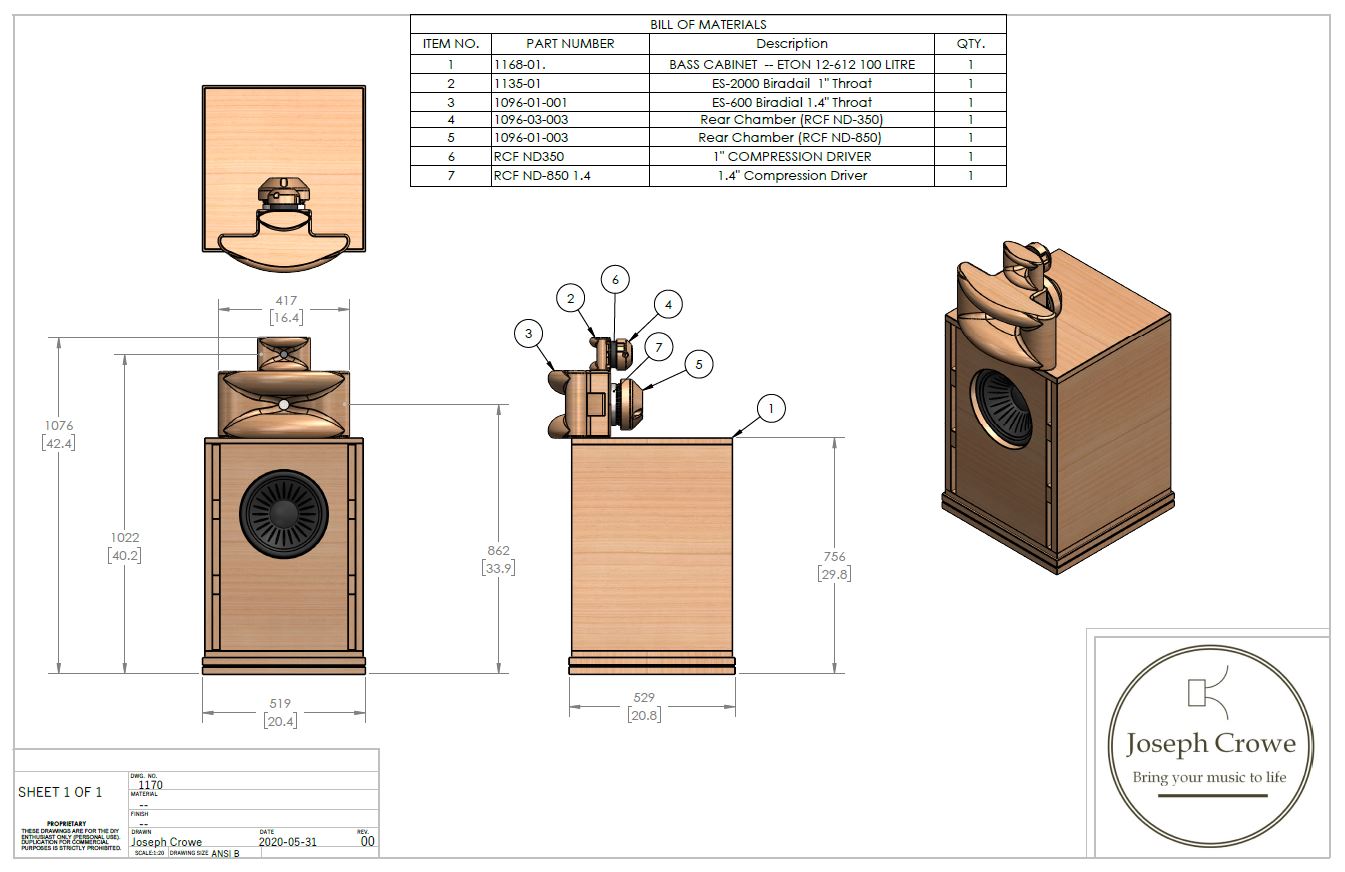

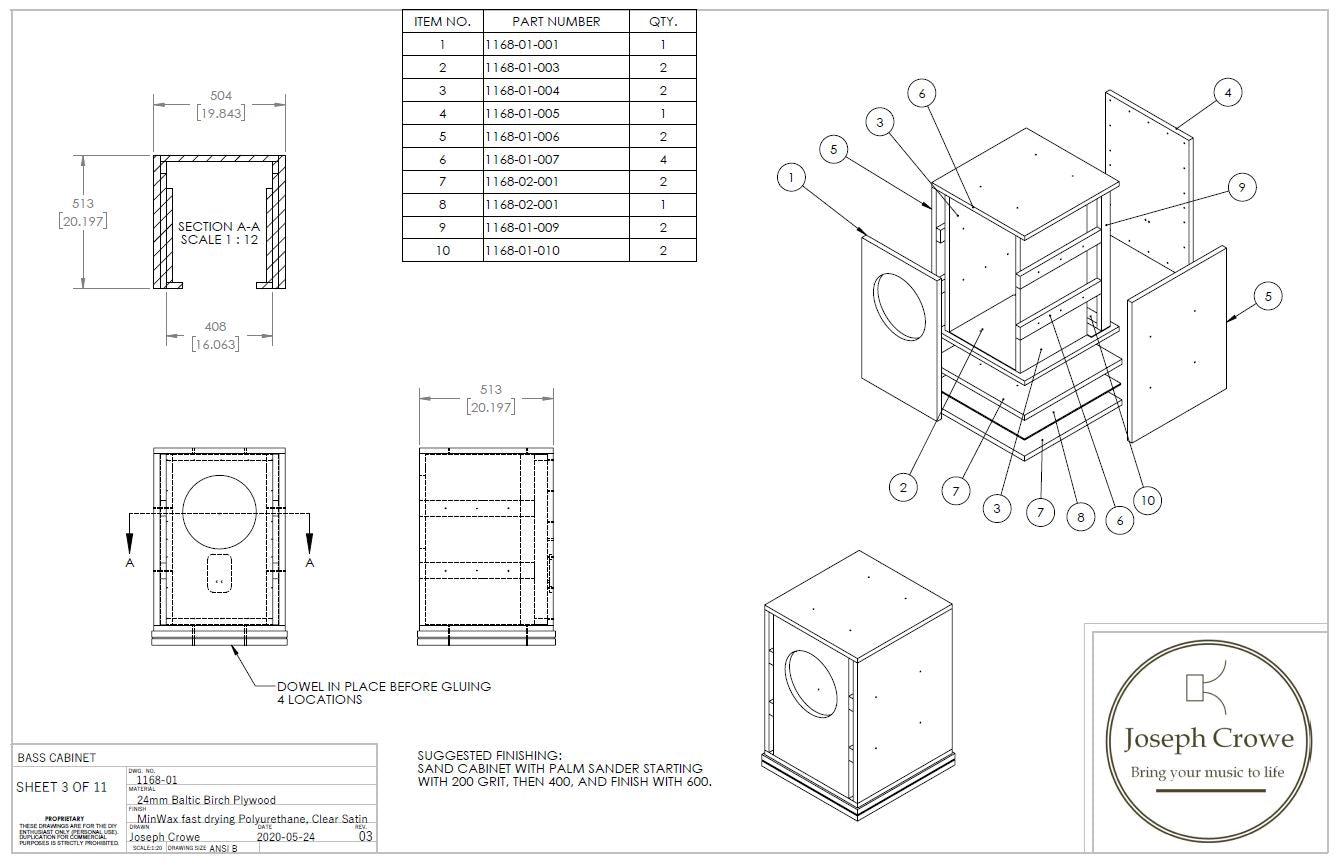

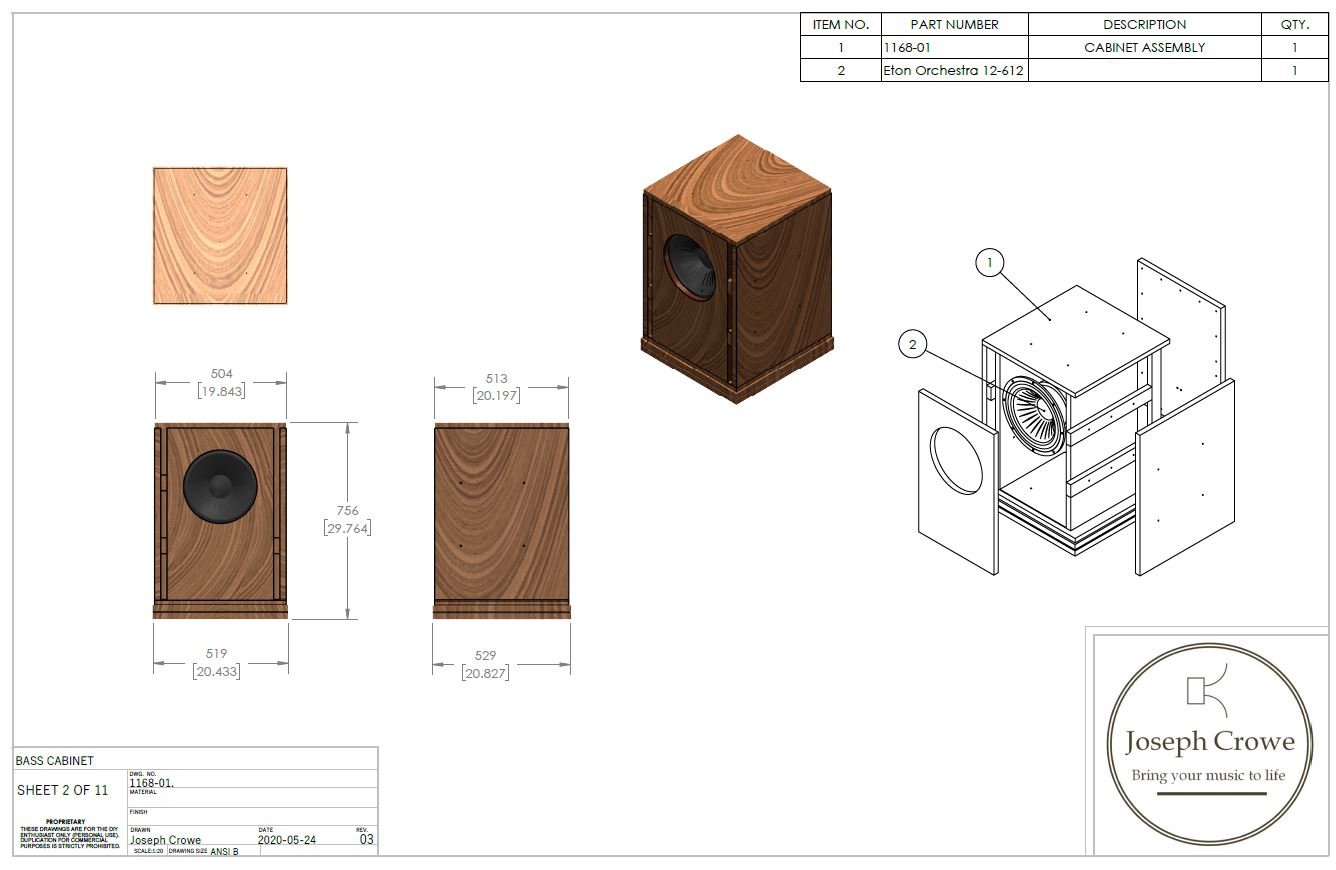

  • PDF assembly and detail drawings
  • 3D CAD data (.iges format)

Specification

  • 12" Woofer (Eton 12-612)  Parts Express Video click HERE
  • 12" Eton Orchestra Woofer Specification Sheet Click HERE.
  • 100 liter internal volume
  • 32Hz F3 low frequency extension
  • 93dB Sensivity (1watt/1meter)
  • 112dB maxiumum SPL (1 cabinet @ 1 meter)
  • Dimensions: 504mm wide x 513mm deep x 756mm high
  • 24mm Baltic Birch Plywood
  • The enclosure sits on a base plinth constructed of two layers of 24mm baltic birch plywood

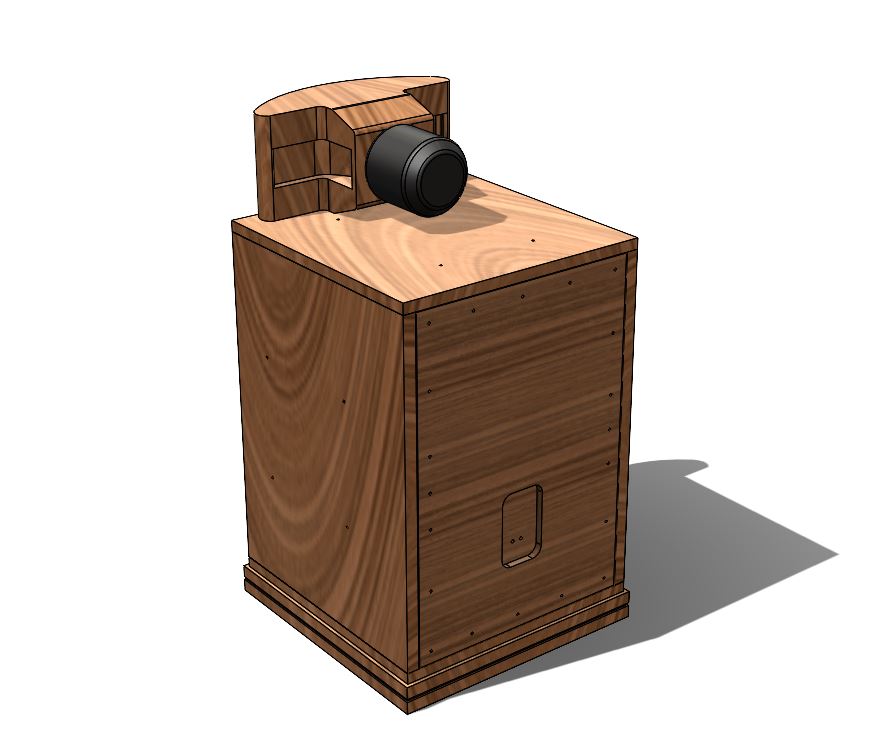

  • Removable rear cover
  • Requires CNC cutting for dado features

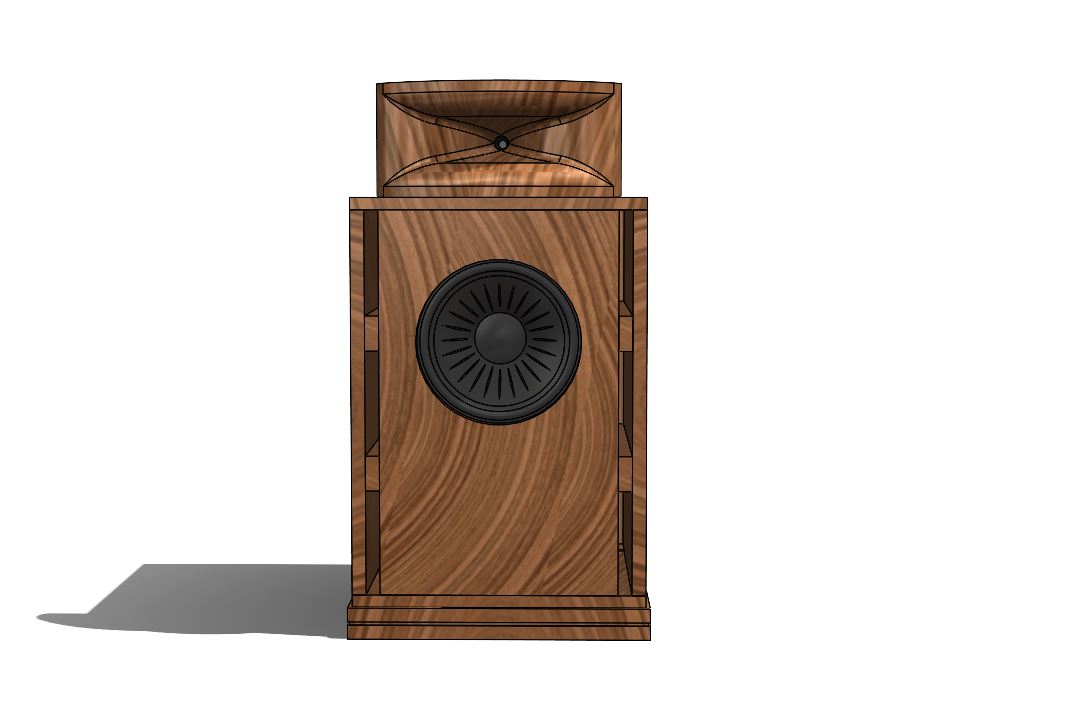

  • Driver mounts from inside the cabinet for a clean appearance
