Joseph Crowe

Bass Cabinet Plan No.1947

Regular price $30.00 USD
Regular price Sale price $30.00 USD
Sale Sold out
By purchasing these plans you will automatically receive the PDF and DWG files required to build the bass cabinet.
  • Designed for Dayton Audio PA380-8 15" Bass Driver

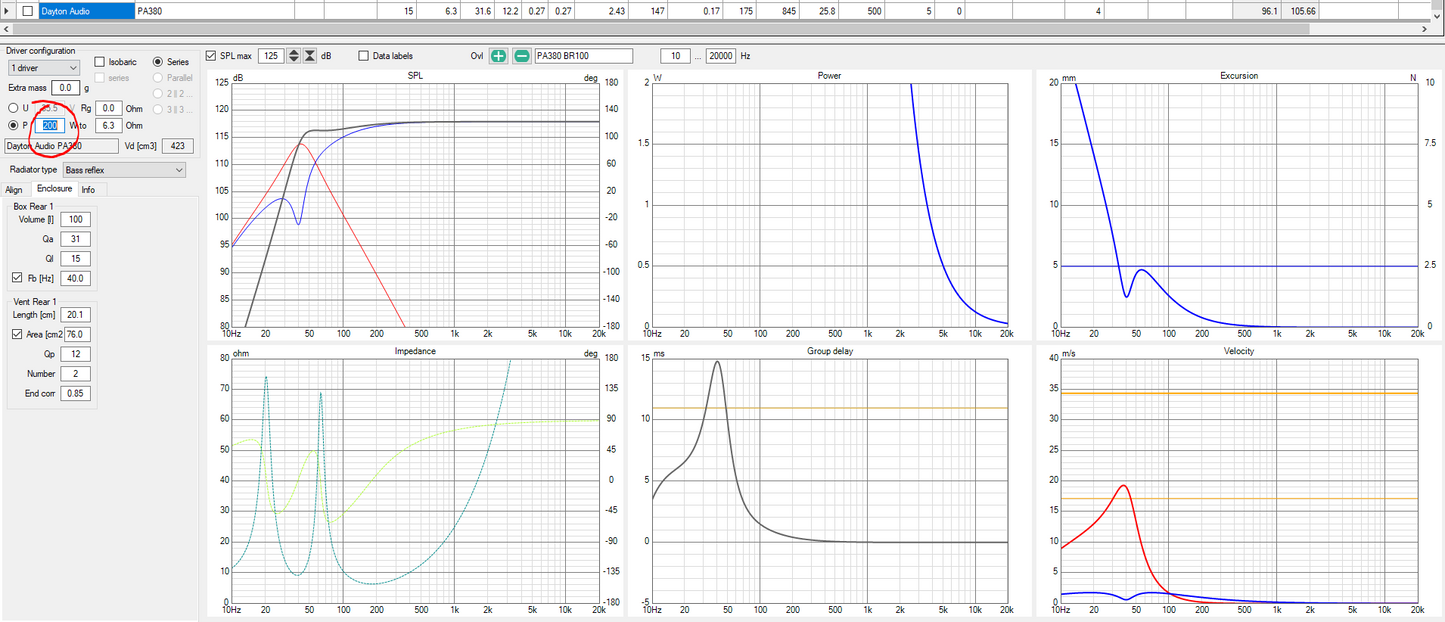

  • Sensitivity (Anechoic): 94.4dB@1w (around 98dB in-room)
  • Tuning Frequency: 40Hz (F3 39Hz)
  • Internal Volume: 100L
  • Maximum power handling: 200w (xmax limited)
  • Maximum SPL: 116dB SPL @1m (50Hz)
  • Flare ports
  • Assumes 18mm birch plywood

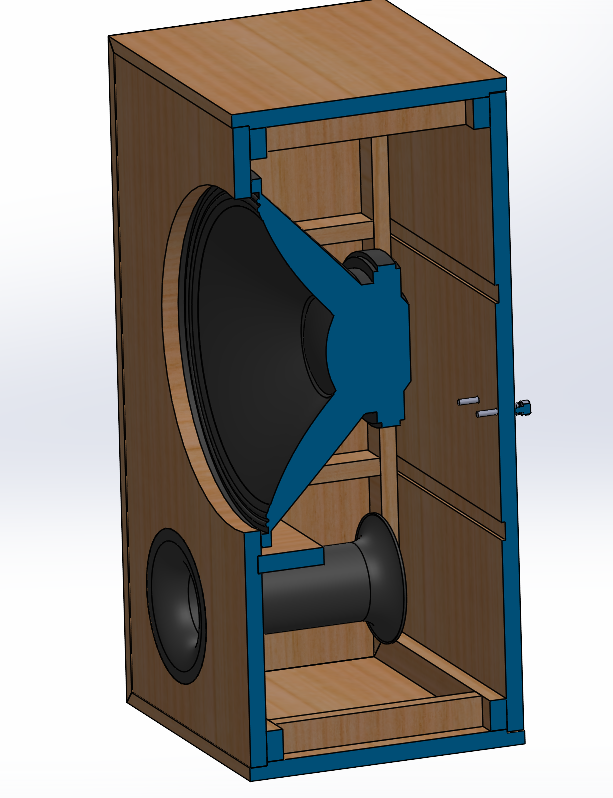

  • Heavily braced

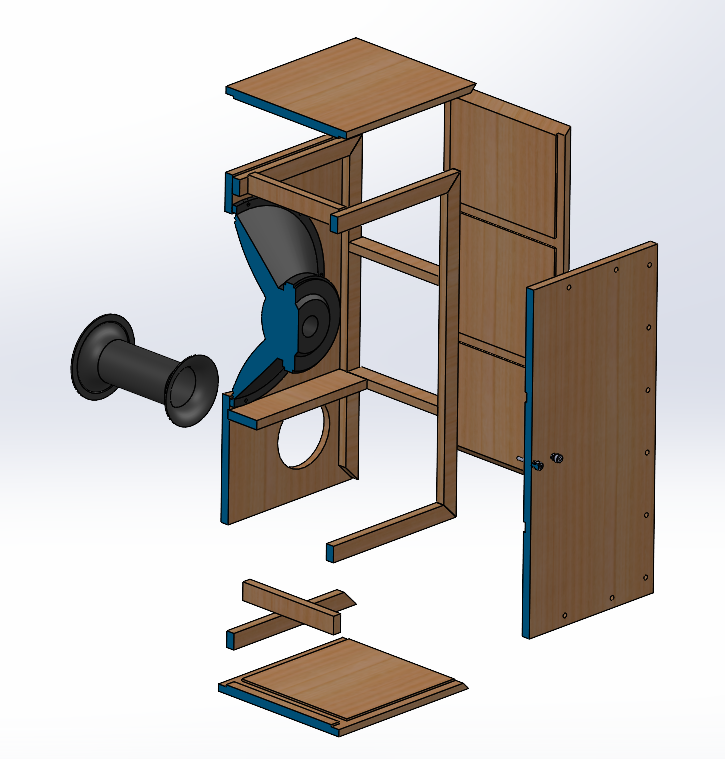

  • Dado features for easy assembly

Includes

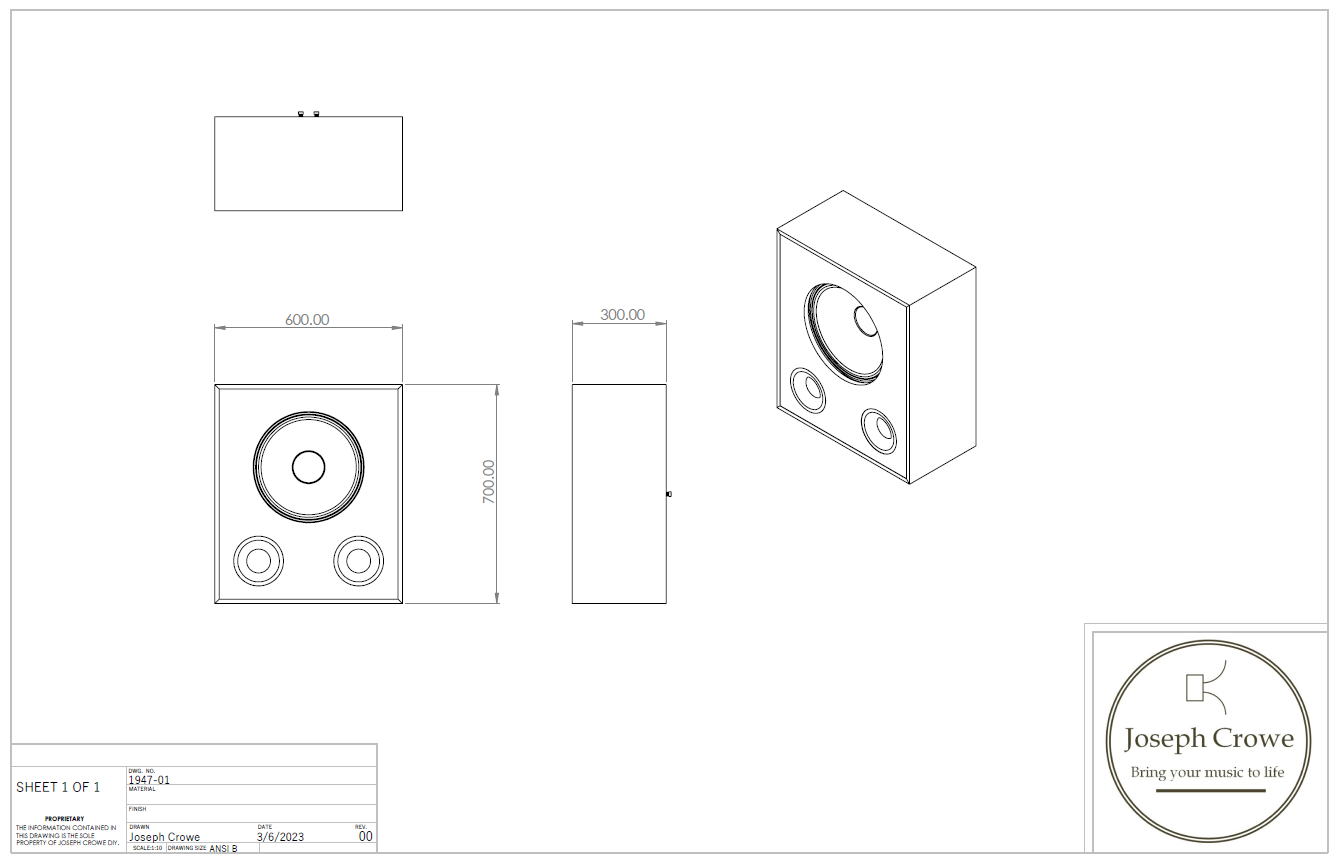

  • Assembly and detail drawings (.PDF format)
  • AutoCAD Files for all drawings (.DWG format)
  • Nested layout of all pieces on a sheet of plywood (.PDF, .DWG & .DXF formats)
