Bass Cabinet No.2971 for Dual JBL 2226H/J

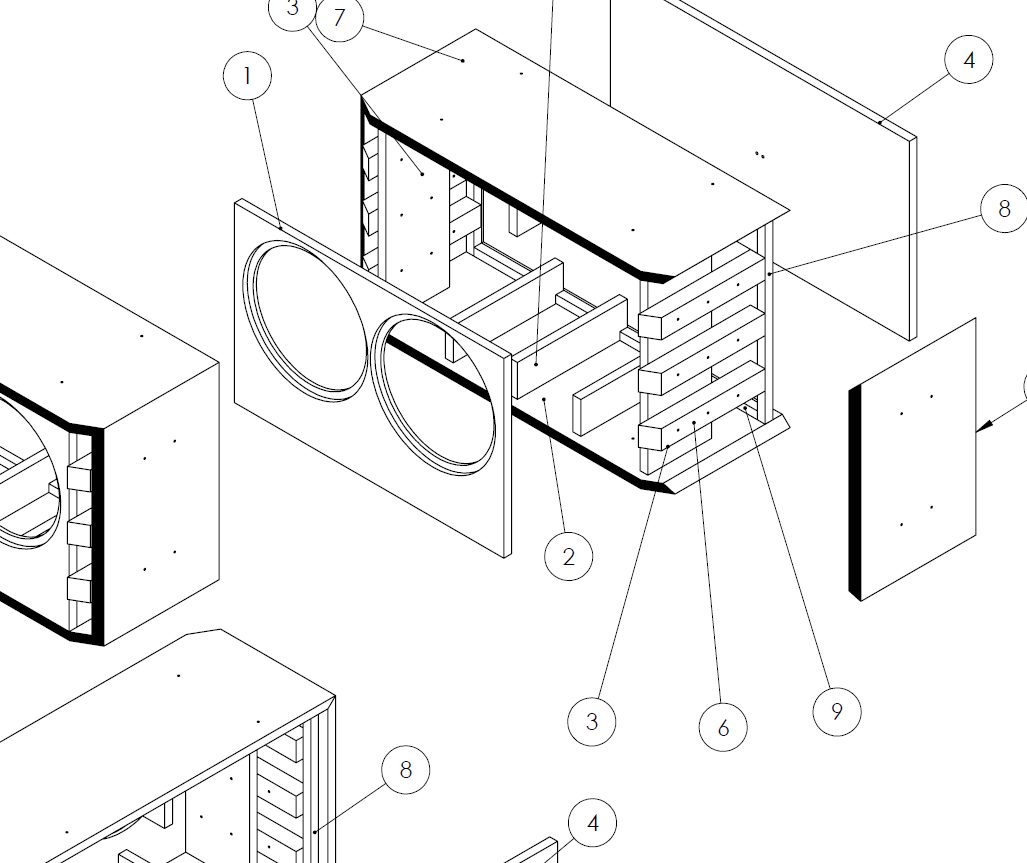

These plans include the assembly and detail drawings to construct bass cabinet No.2971

Details

• Automatically emailed after transaction on this product page

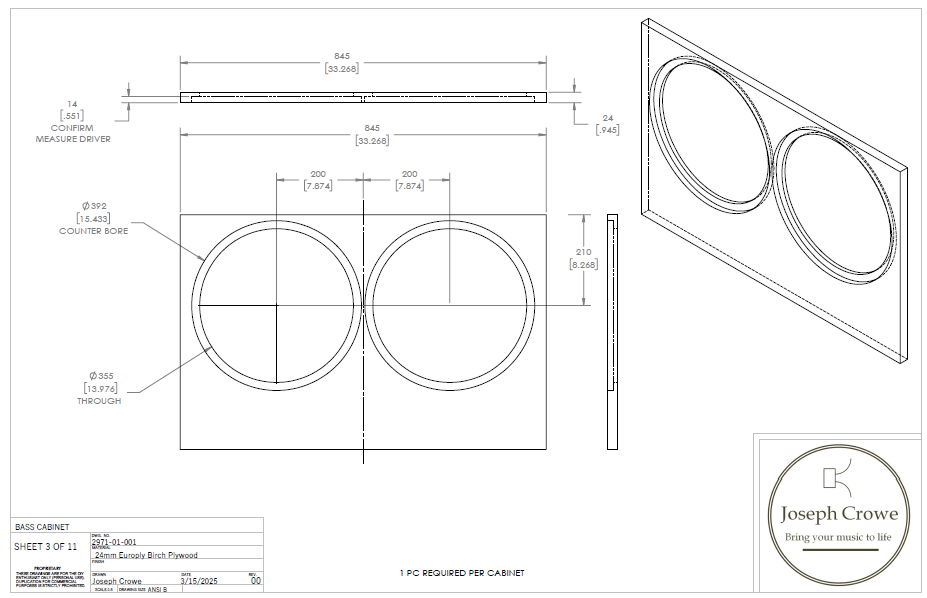

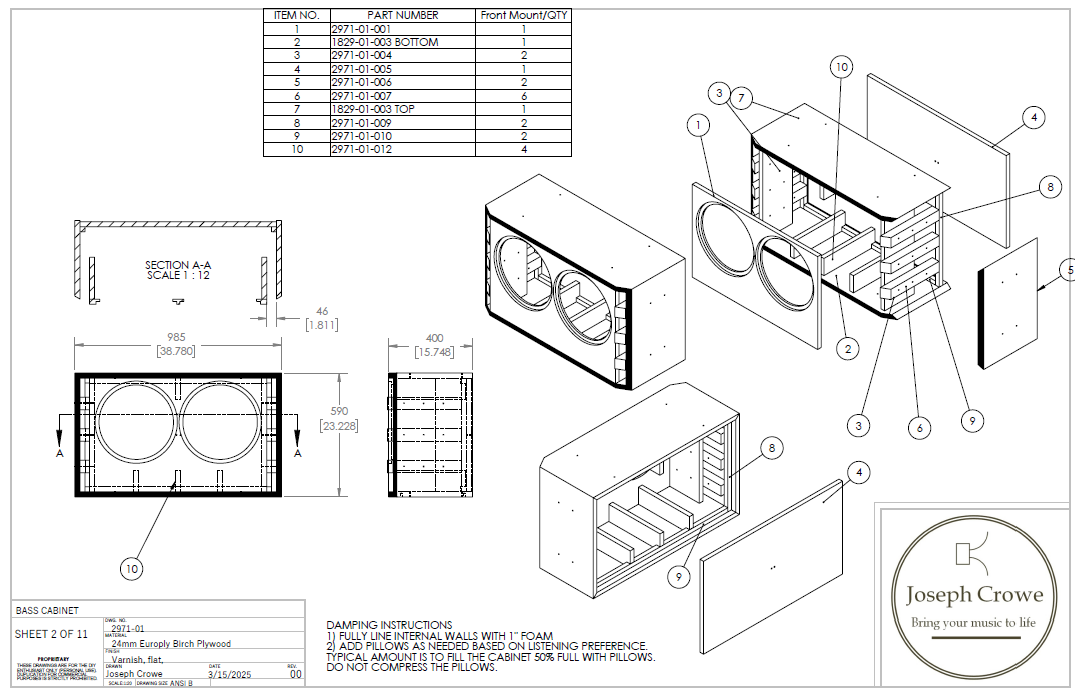

• Assembly and details drawings (.PDF format)
•

• 160 Liter internal volume
• 48Hz tuning frequency
  • Blocking 25% of the ports reduces tuning to 42Hz.
• 101dB sensitivity (70Hz) 102.3dB (300Hz)

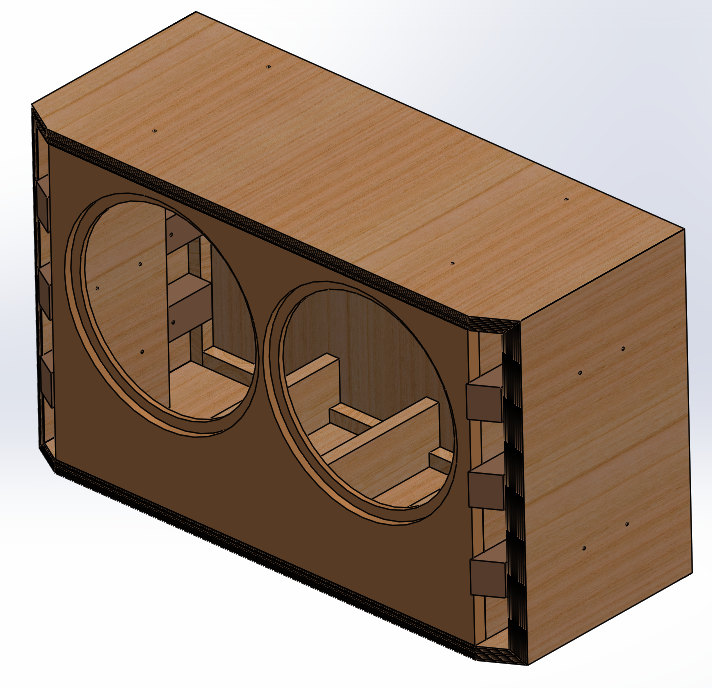

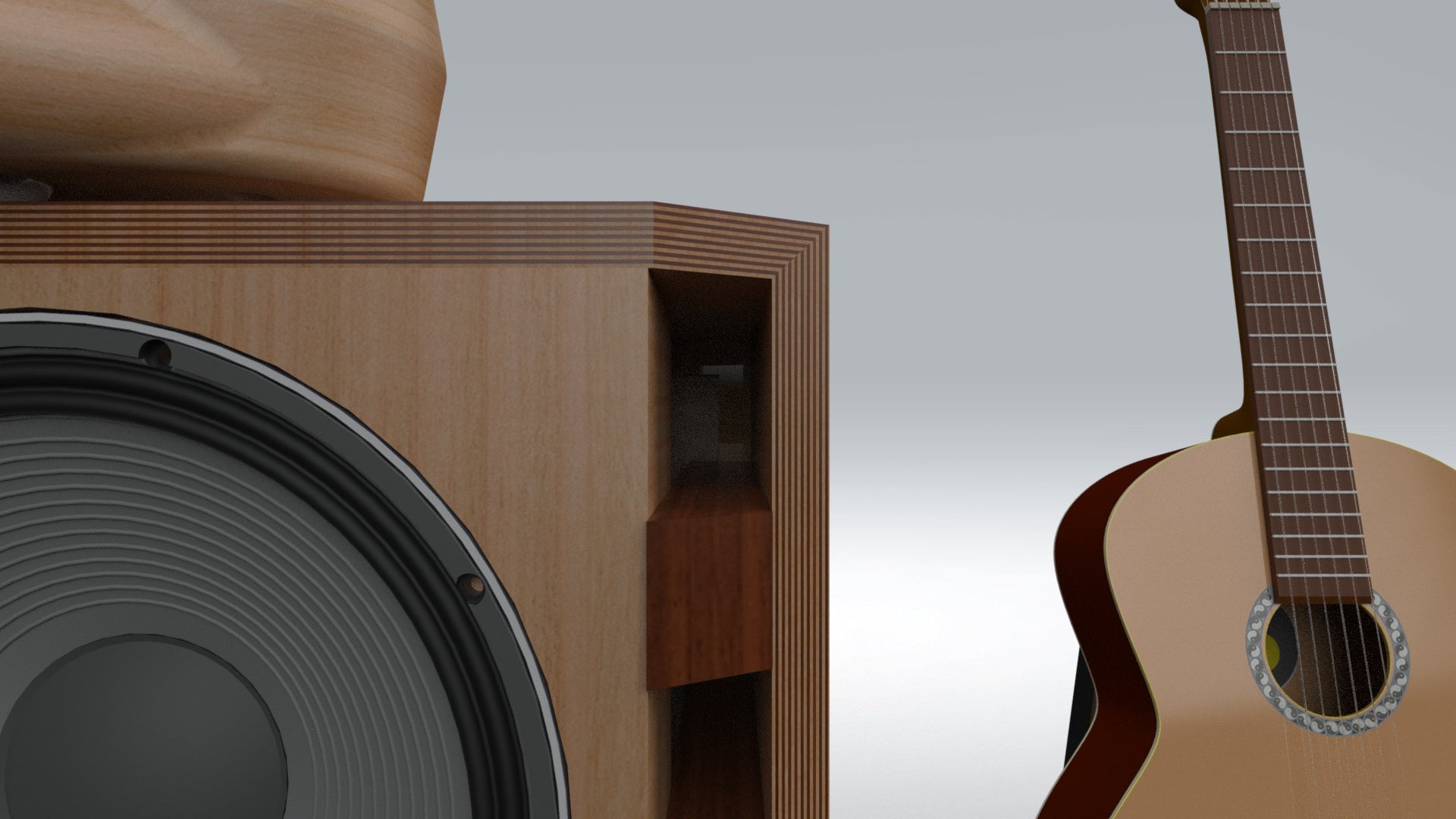

• 0.94" (24mm) thick europly plywood construction with solid hardwood on vents (see photo)

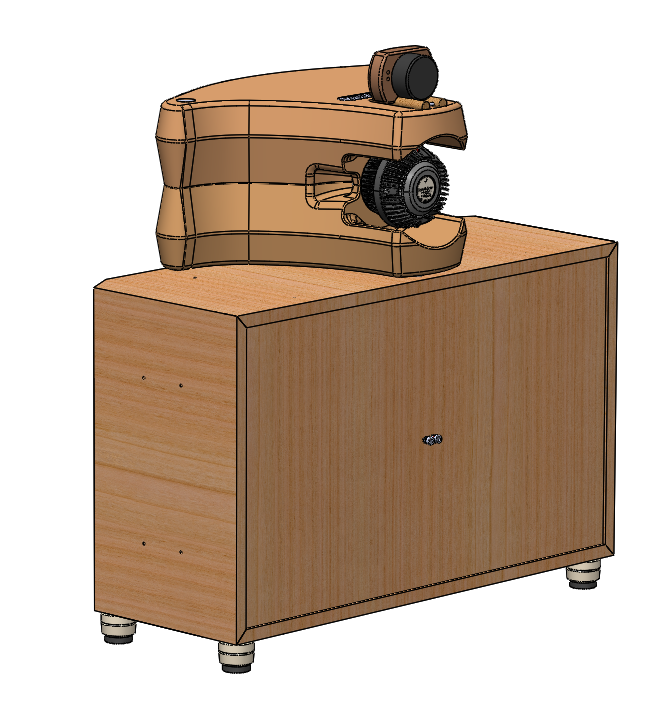

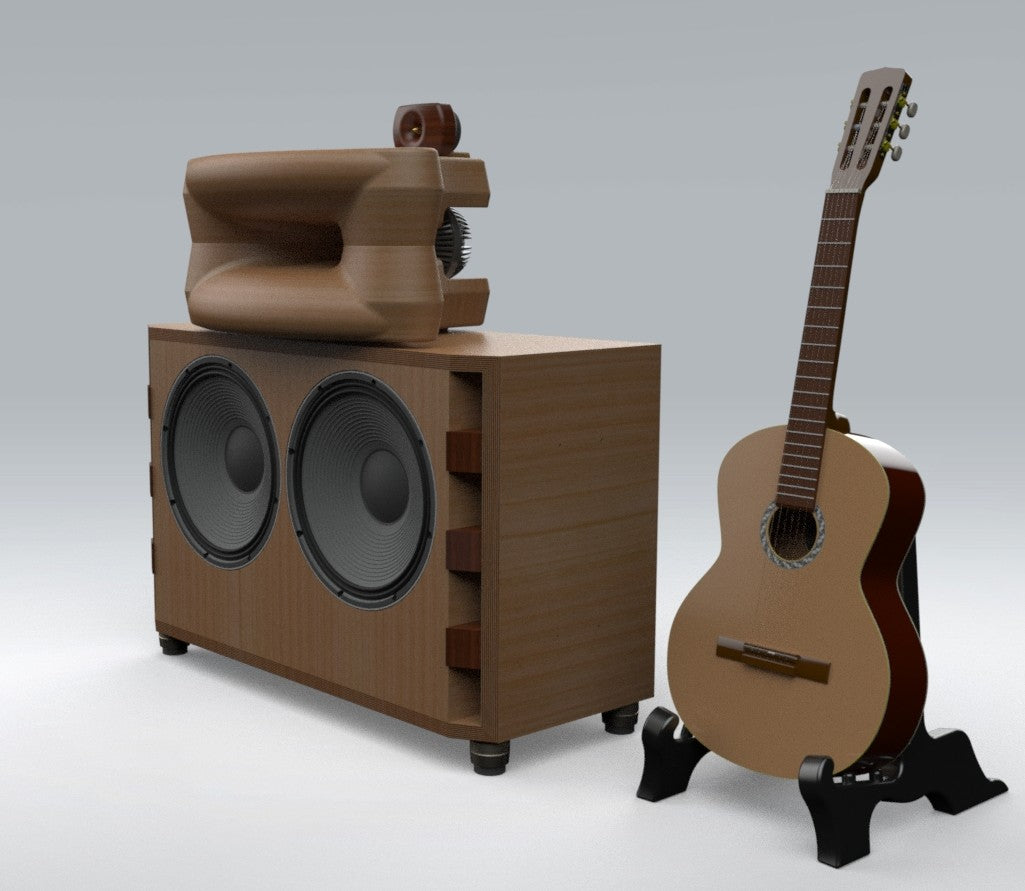

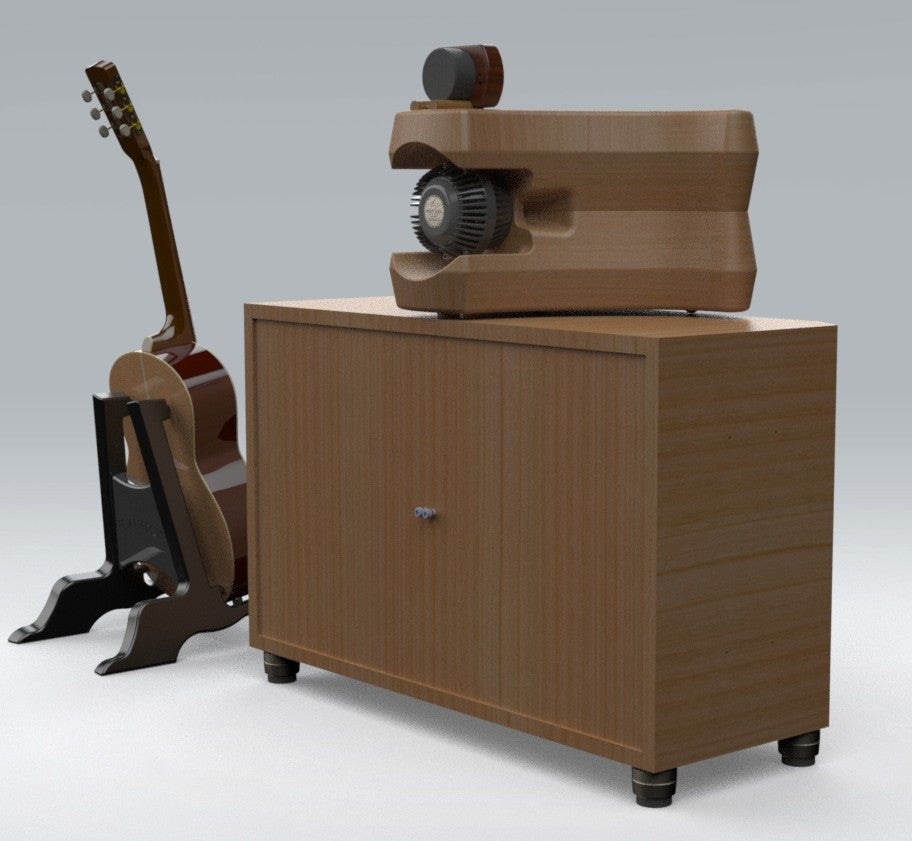

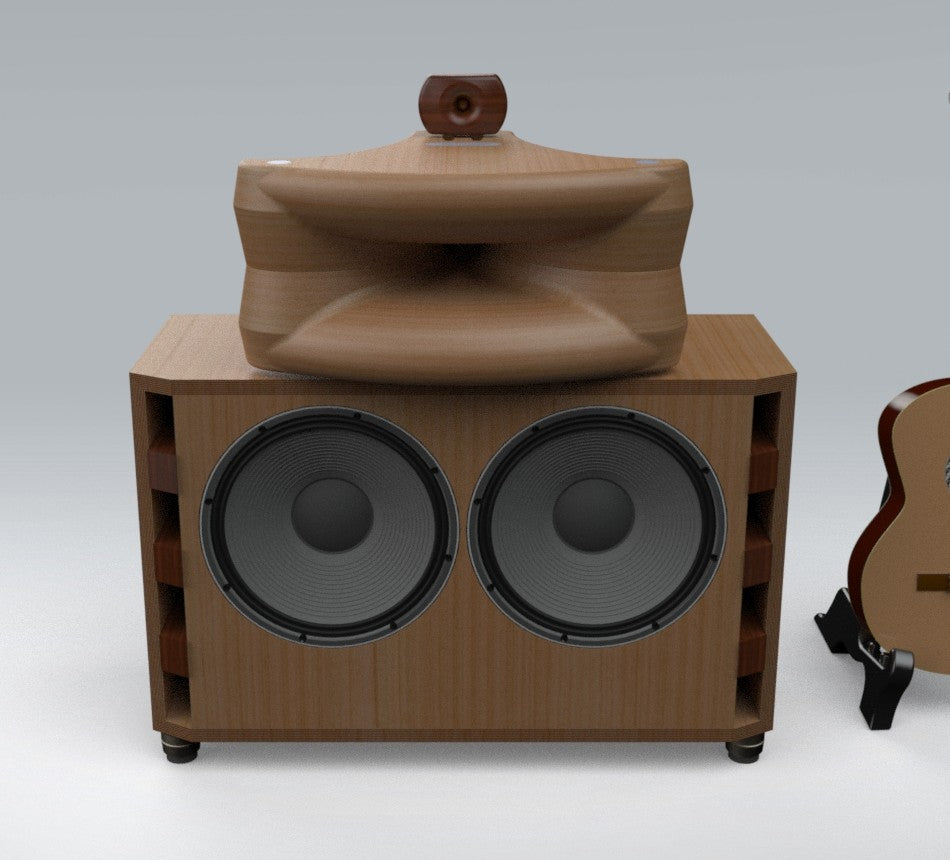

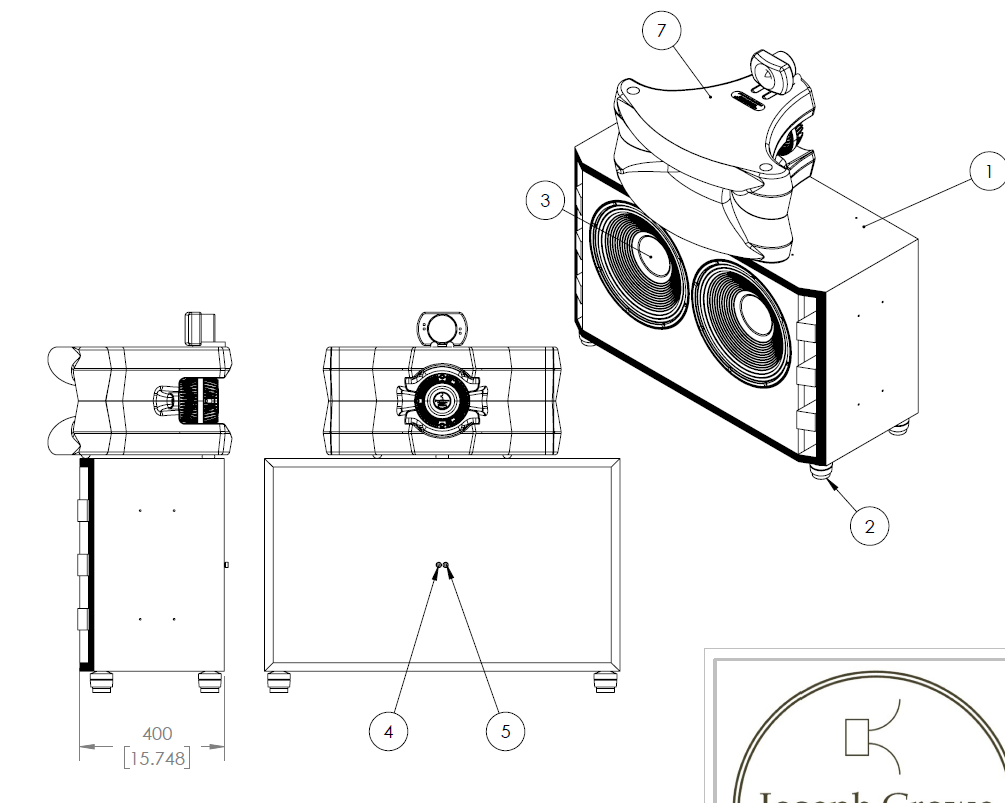

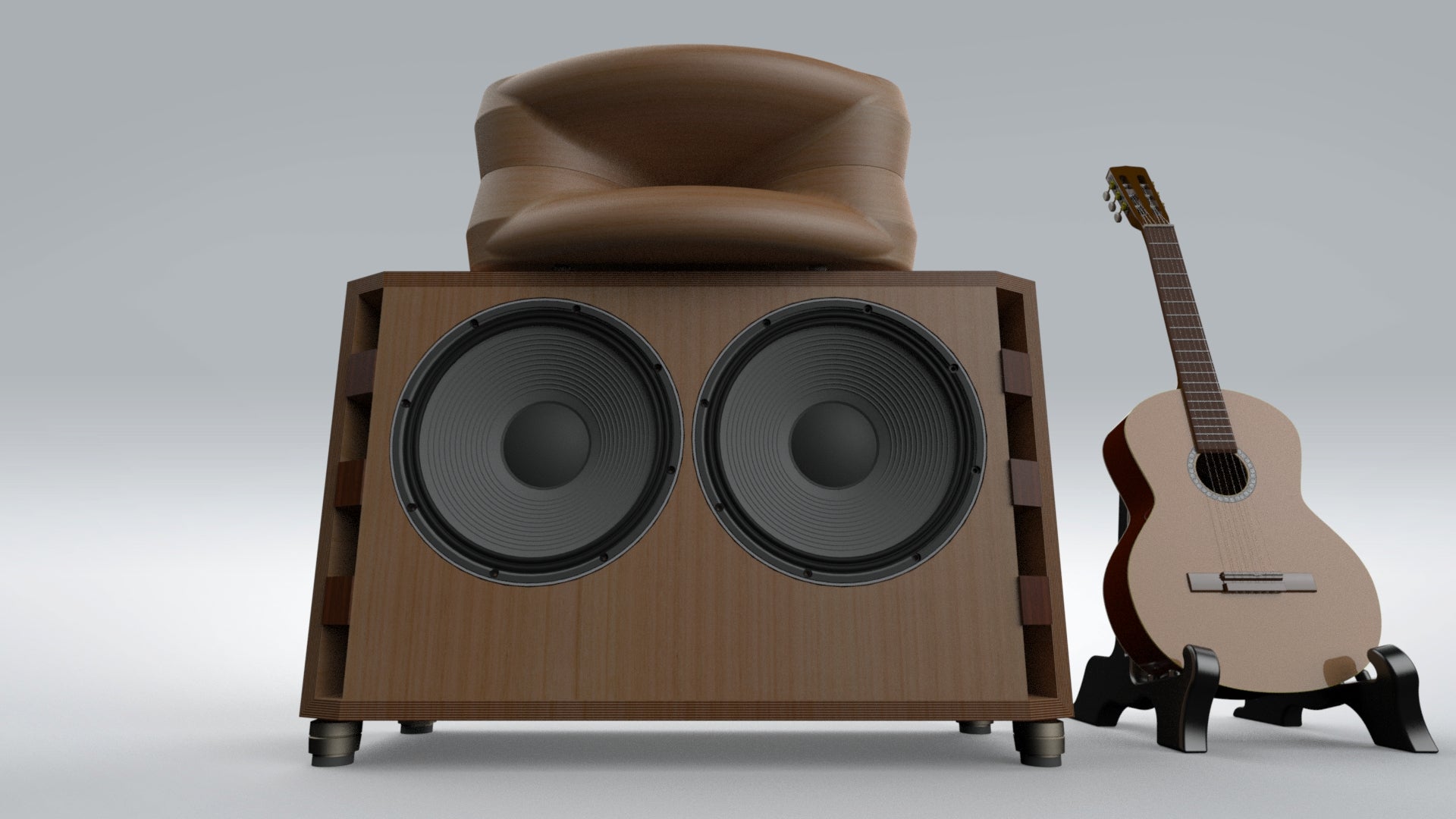

• Suggest pairing with our ES-290 Biradial (See photos).

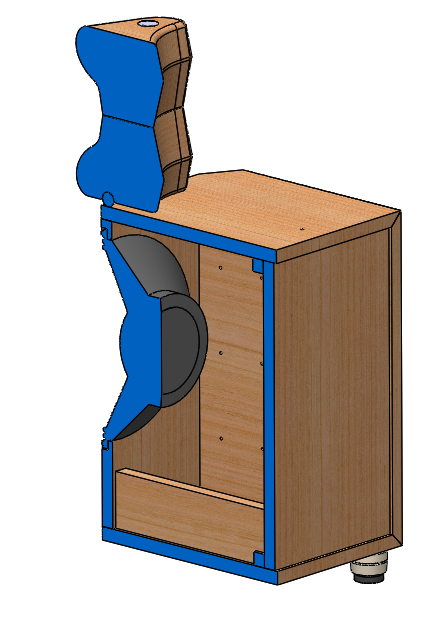

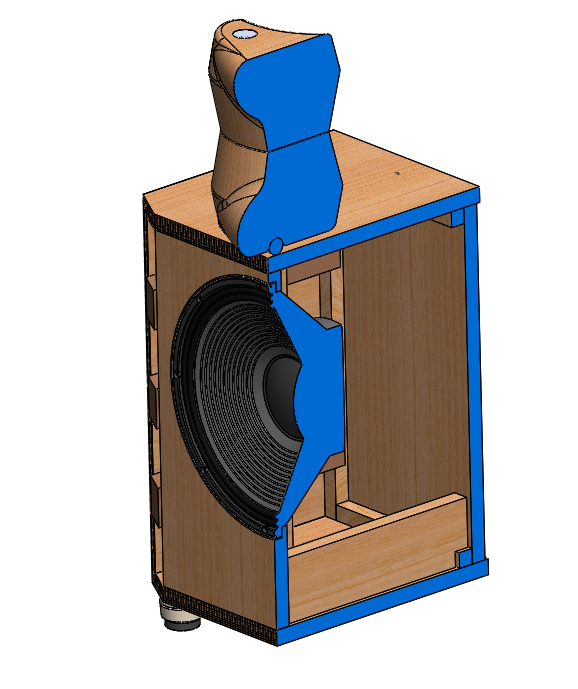

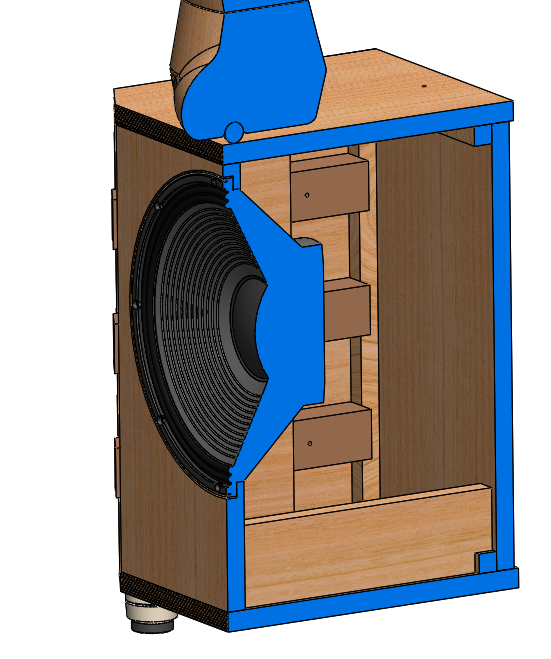

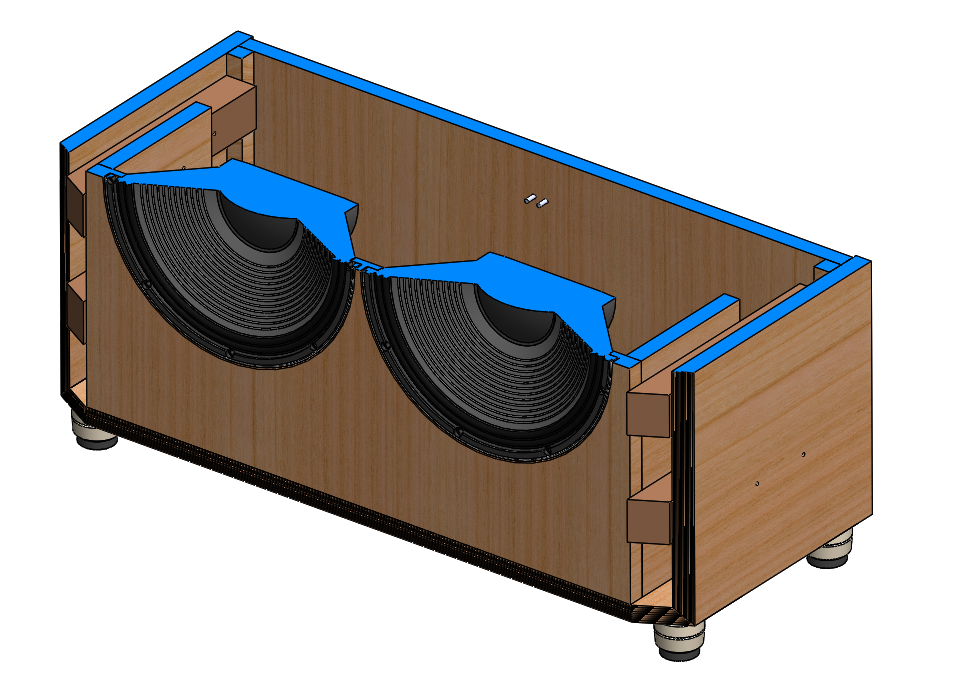

• Internal bracing

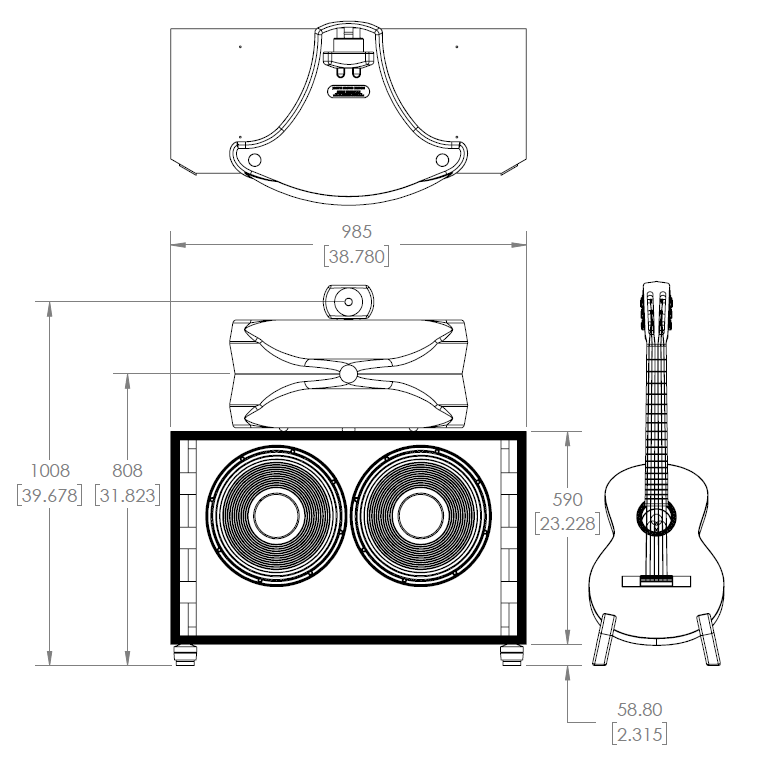

• Physical Dimensions 98.5cm wide x 40cm deep x 59cm high (excluding feet)
• Includes nested layout on standard sheet of 4' x 8' plywood
• AutoCAD DXF File for nested layout (see pictures)

• Uses JBL 2226 15" woofer (please contact for custom designs using other woofers)

The JBL 2226 woofer is one of the lowest distortion 15" woofers we've measured!
