Bass Cabinet No.2880 for JBL 2226H/J

These plans include the assembly and detail drawings to construct bass cabinet No.2880

Details

• Automatically emailed after transaction on this product page

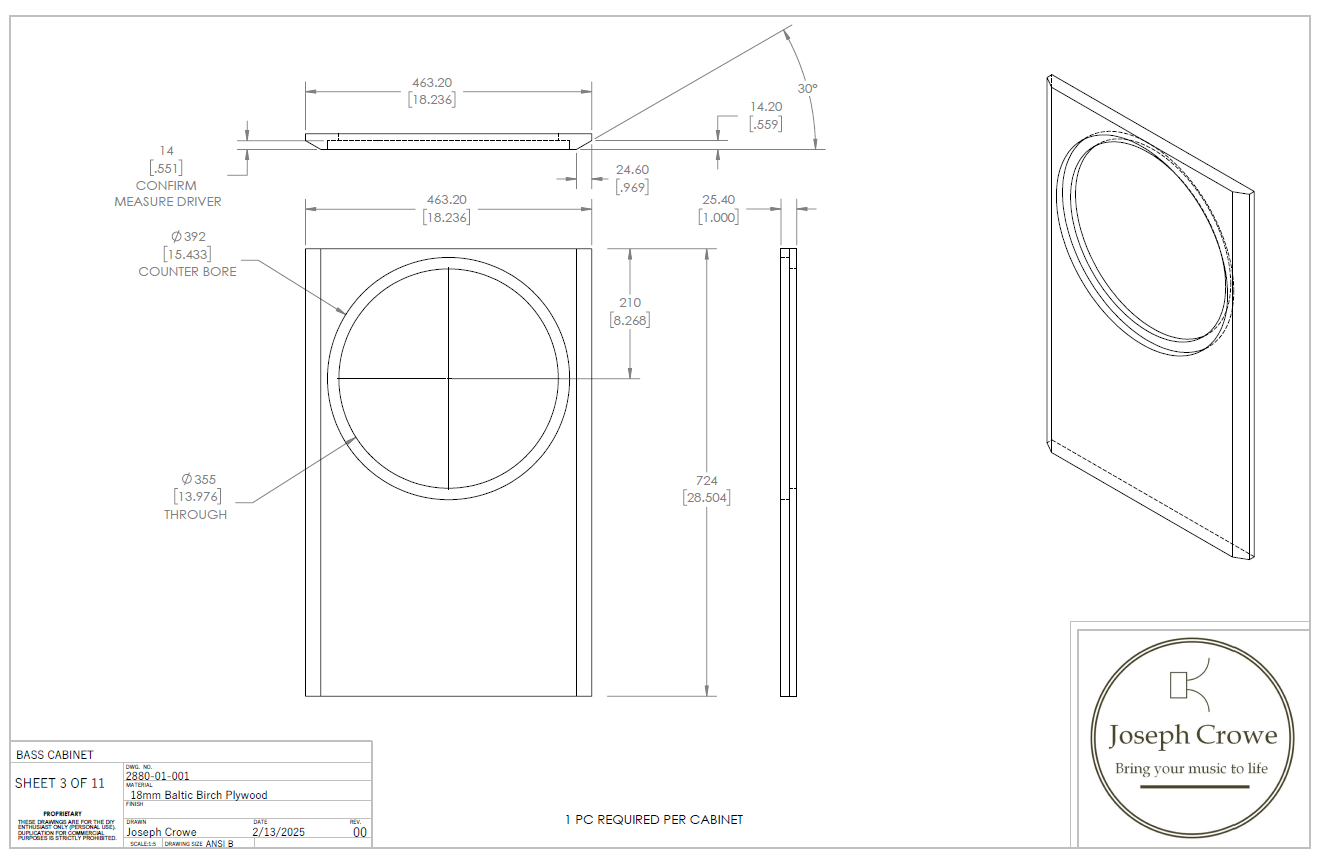

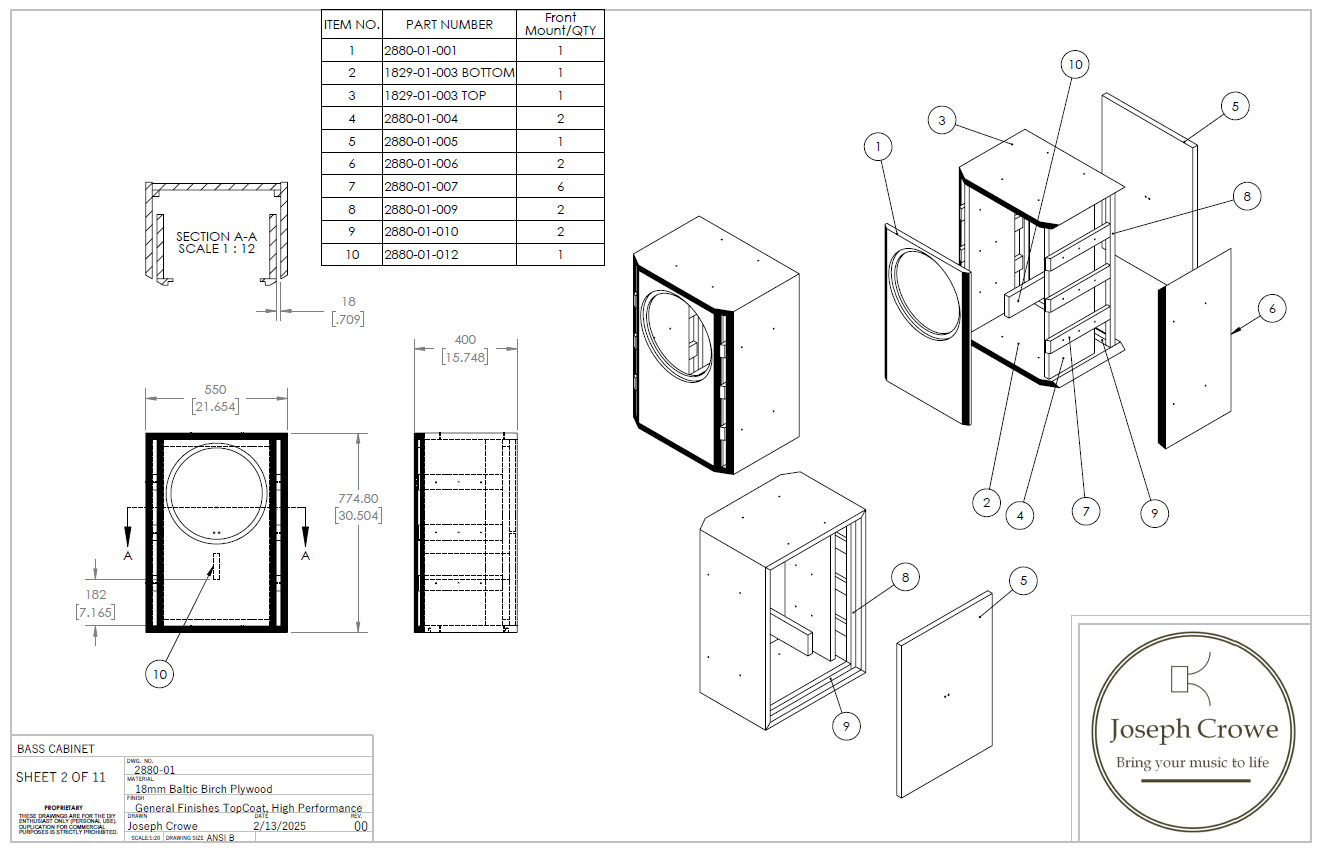

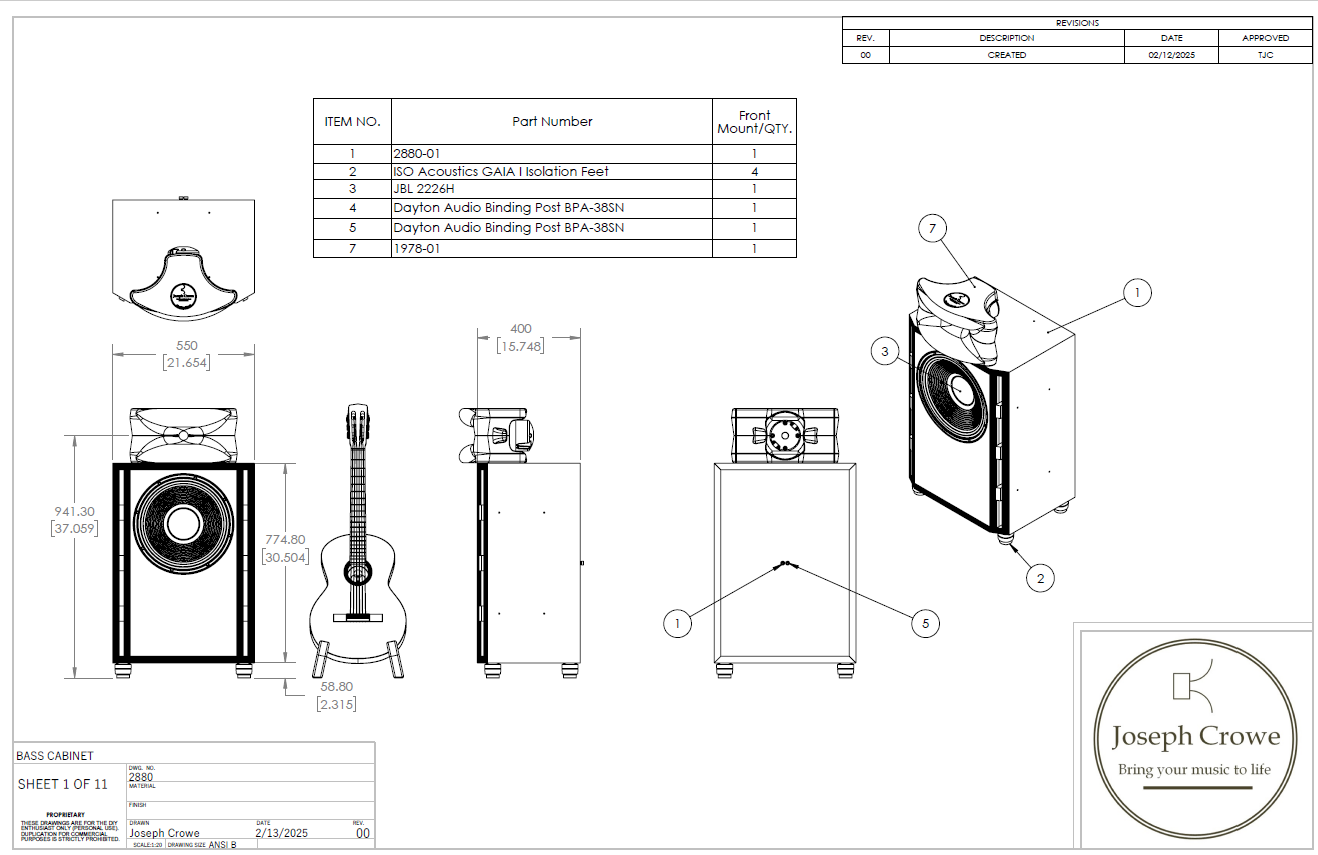

• Assembly and details drawings (.PDF format)
• AutoCAD DXF File for nested layout (see pictures)

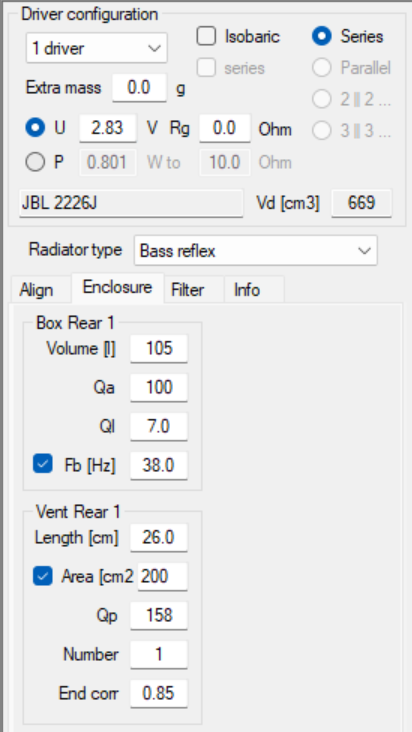

• 105 Liter internal volume
• 38Hz tuning frequency

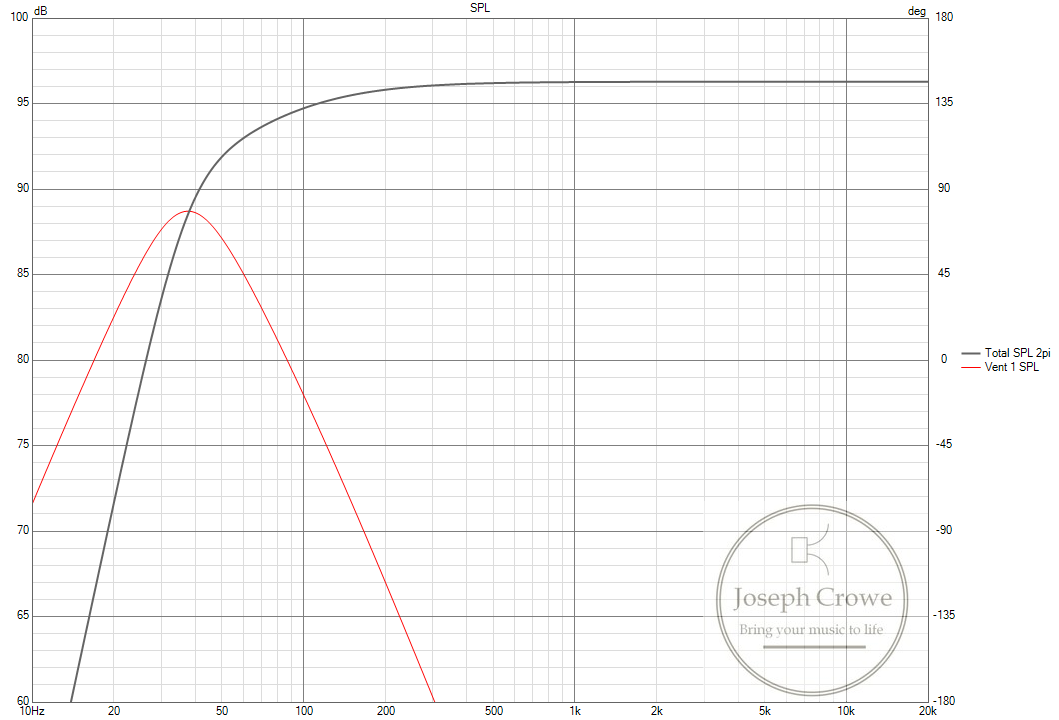

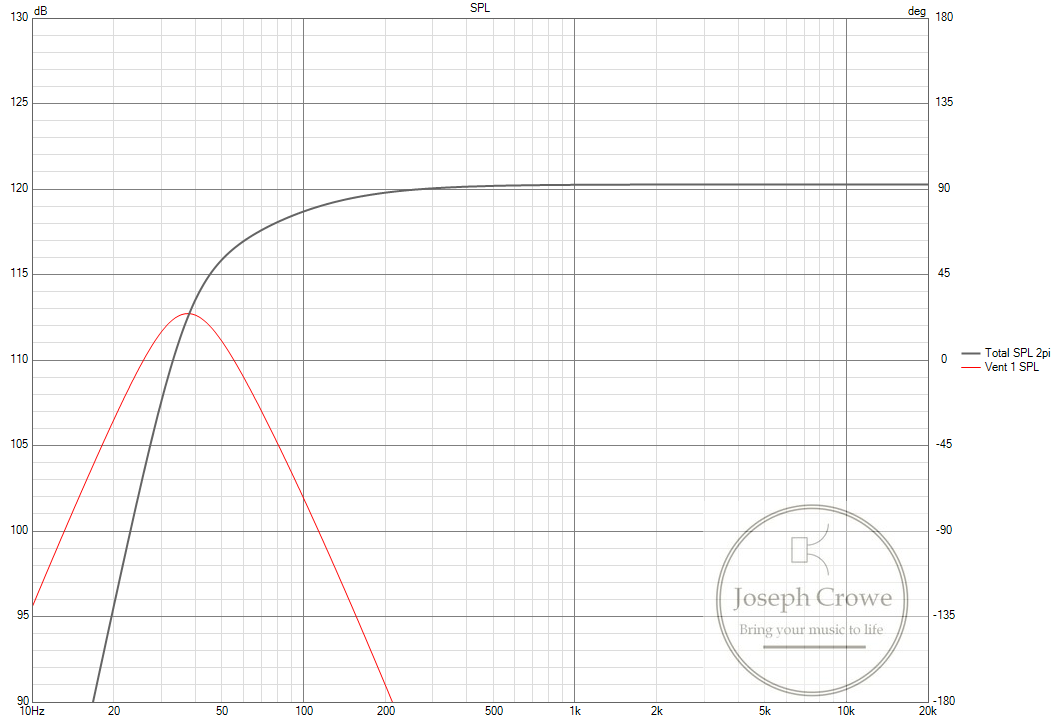

• 96.3dB sensitivity (70Hz) 99.2dB (300Hz)

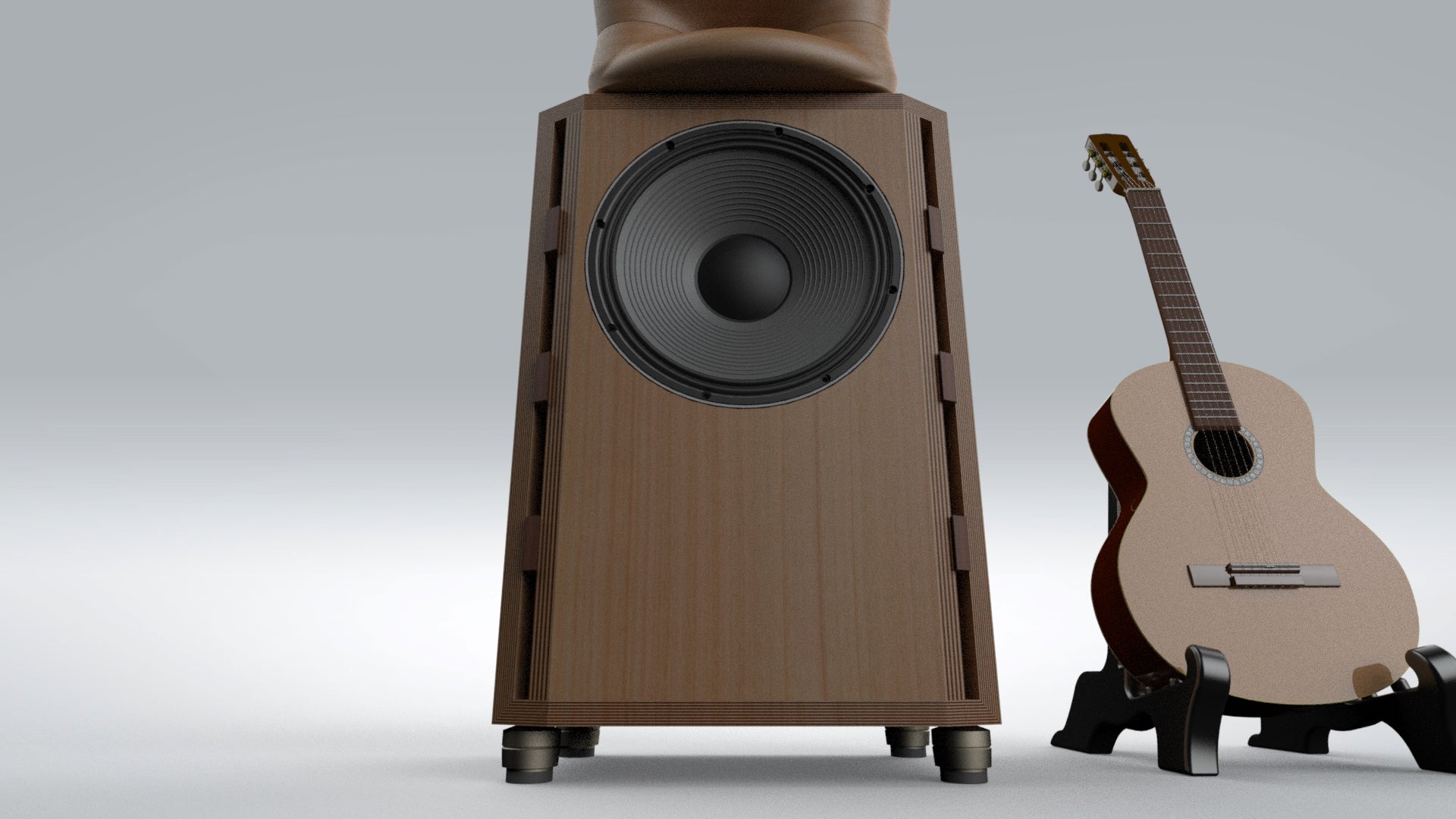

• 1.00" (25.4mm) thick plywood construction with solid hardwood on vents (see photo)
• Internal bracing

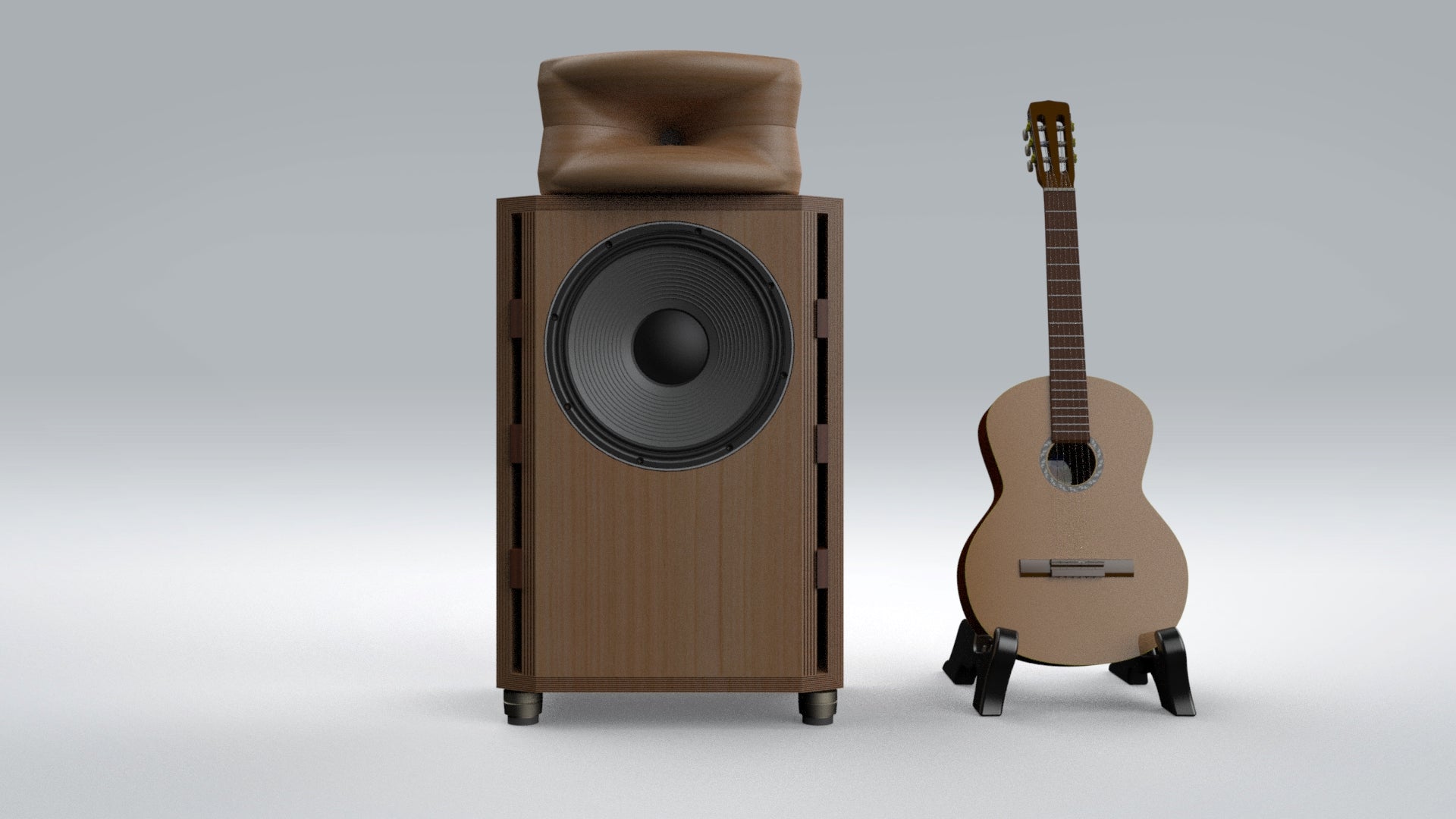

• Physical Dimensions 55cm wide x 40cm deep x 79.6cm high
• Includes nested layout on standard sheet of 4' x 8' plywood

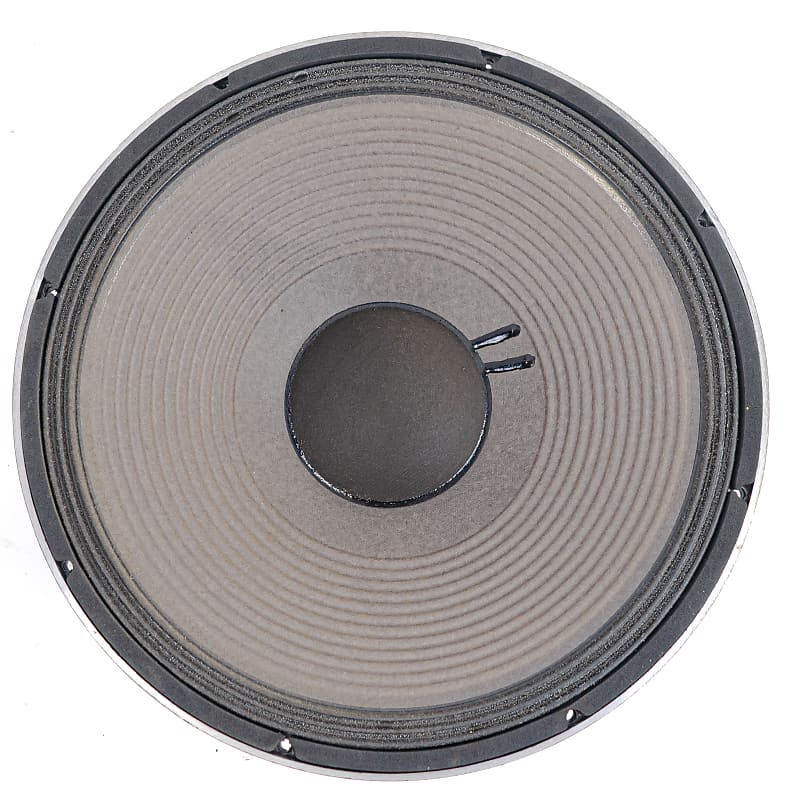

• Uses JBL 2226 15" woofer (please contact for custom designs using other woofers)

The JBL 2226 woofer is one of the lowest distortion 15" woofers we've measured!
