Joseph Crowe

3D Printed Rear Covers No.3075 for SB Audience 75CDN-T

Does it have a hole or not
Regular price $200.00 USD
Regular price Sale price $200.00 USD
Sale Sold out

This is a physical product. By ordering we will print and ship the rear covers to your address. The 3D CAD files can be purchased and downloaded at the following product page here

Rear Cover No.3075 is designed to improve the overall sound quality of the SB Audience 75CDN-T compression driver.

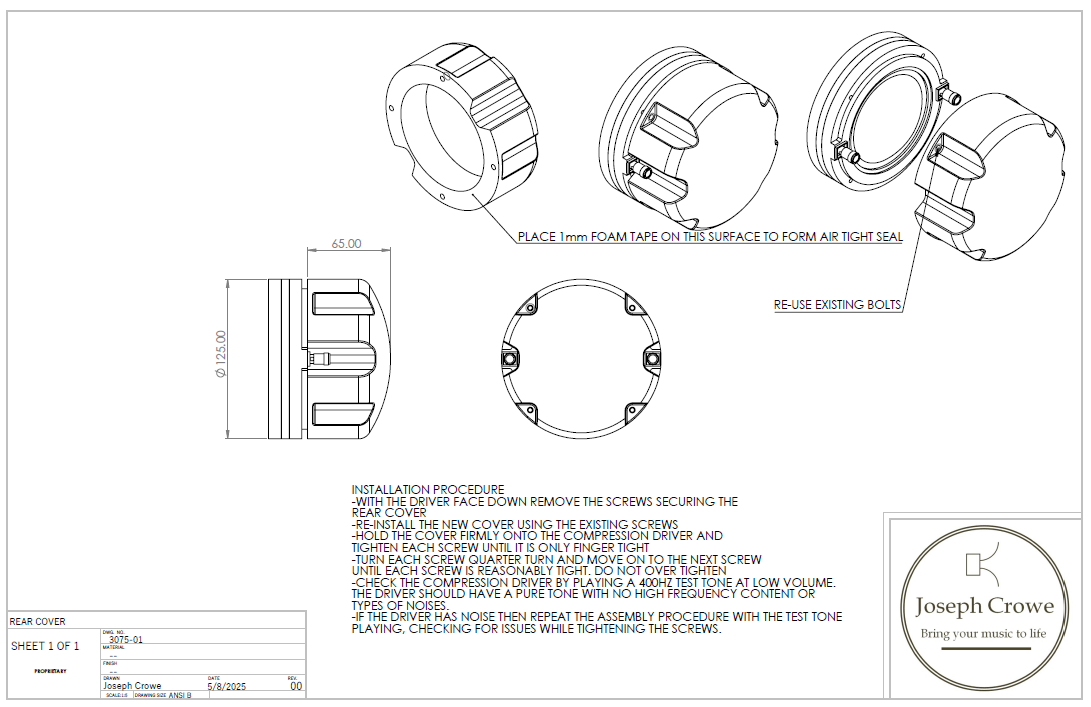

For technical drawing click here

For a comparison blog click here

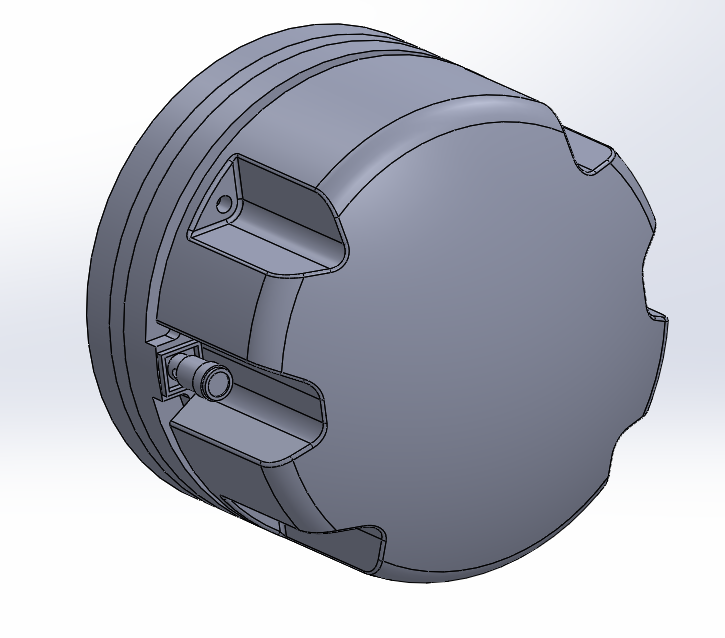

Pictured with 25mm hole (selected at checkout)

Shown without the hole (Selected at checkout)

Features

  • Price is for one pair of covers (please select qty x1 at checkout)
  • Rear cover No.3075 improves certain performance aspects
    • Upper treble is linearized
    • FS lowers from 490Hz to 430Hz
    • Burst decay and CSD plots improve (upper treble)
    • 3rd and 4th harmonic distortion is reduced
  • The rear cover slightly increases 2nd order harmonic distortion
  • IMD is unchanged

Test data shown is with the sealed rear cover.
