3D Printed Rear Cover No.2376 for SB Audience 65CDN-T

05/07/2025: We've updated the design to allow easier printing. We've eliminated the need for supports. This creates a better surface to seal against the compression driver.

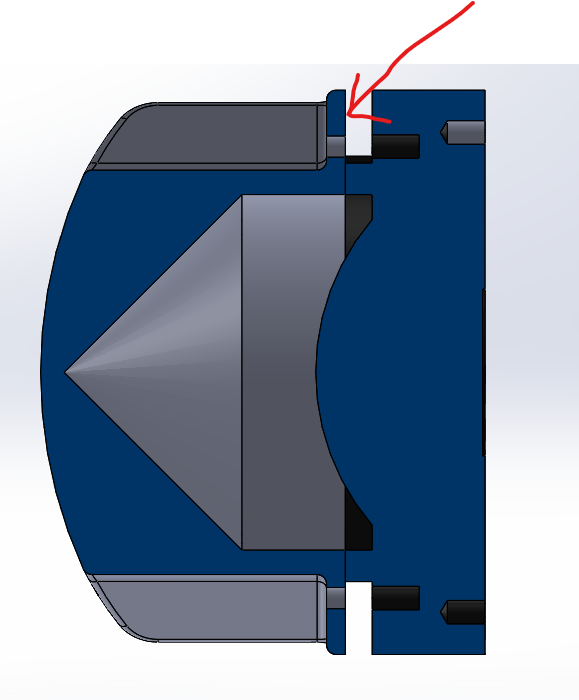

Old Design (REV00)

This product is the 3D printed part that I designed specifically for the SB Audience 65CDN-T compression driver.  This cover will also work for the ceramic version (65CD-T).

Features

• Price is per pair (select x1 at checkout)
• Enlarges rear chamber volume compared to stock
• Lowers FS from 460Hz to 270Hz
• Cleans up subjective sound quality in the 500Hz-1kHz region
• Optimized for home audio use where high SPL levels are not required
• Uses existing mounting screws
• Simply remove existing cover and install new cover
• No insulation or stuffing material required or suggested
• Available in vented and non-vented version of the file (see selection during checkout)

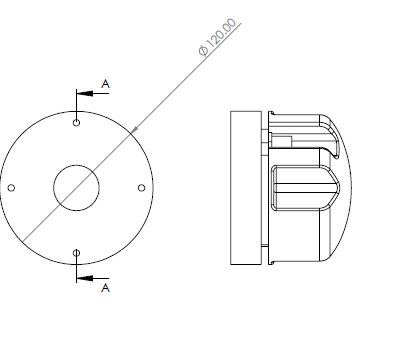

• Physically measures 120mm diameter x 70mm deep

• Printed in PLA plastic (black color)
