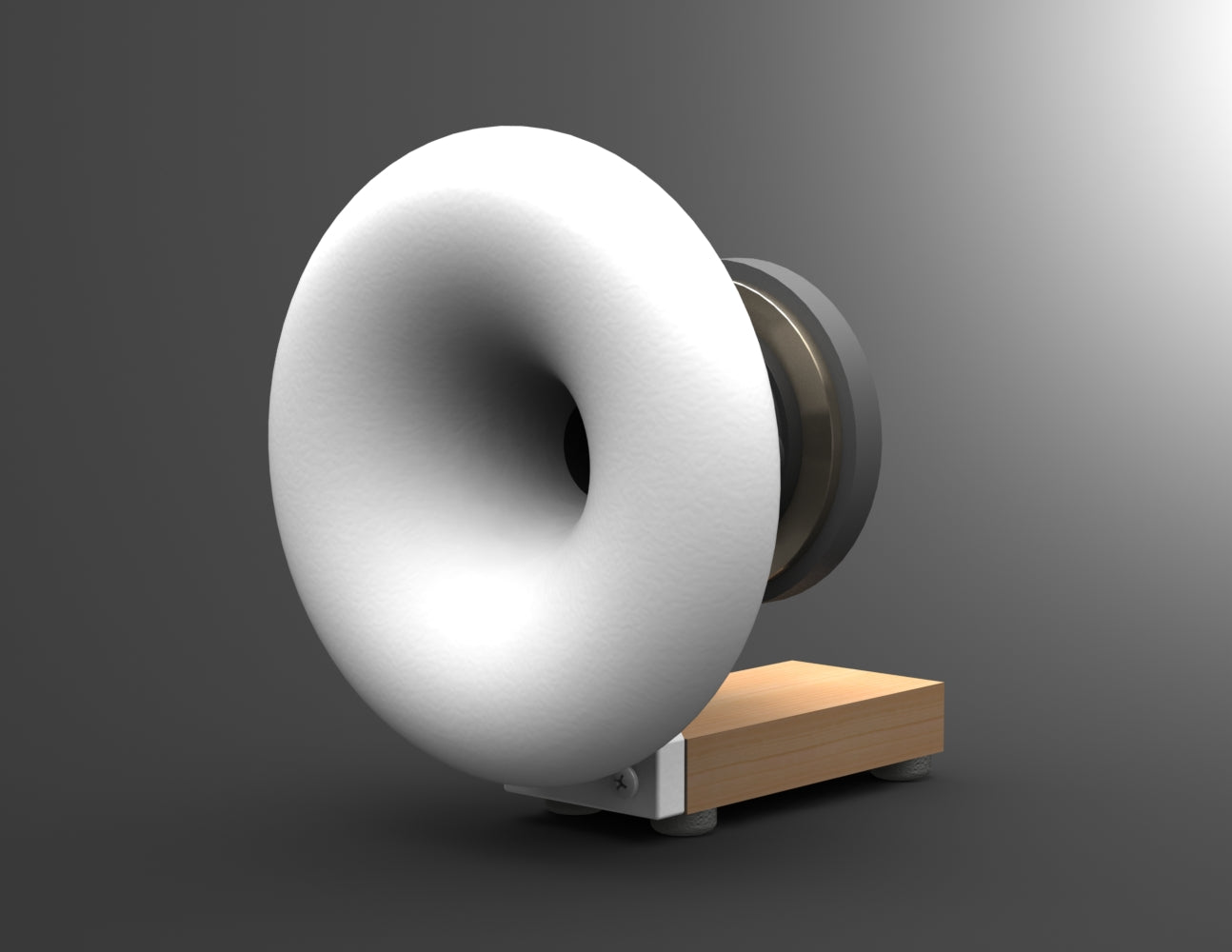

3D Print Your Own ES-1700 Circular Horn
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Unit price
per
Couldn't load pickup availability
By purchasing these plans you will automatically receive by email the STL file to 3D print the ES-1700 Circular Horn. Assembly drawings are included to make your own support bracket.
Provide 3D CAD file in .STL format for 15.2cm (6 inch) diameter x 2.54cm (1 inch) throat Circular ES Horn
- ES Flare Geometry

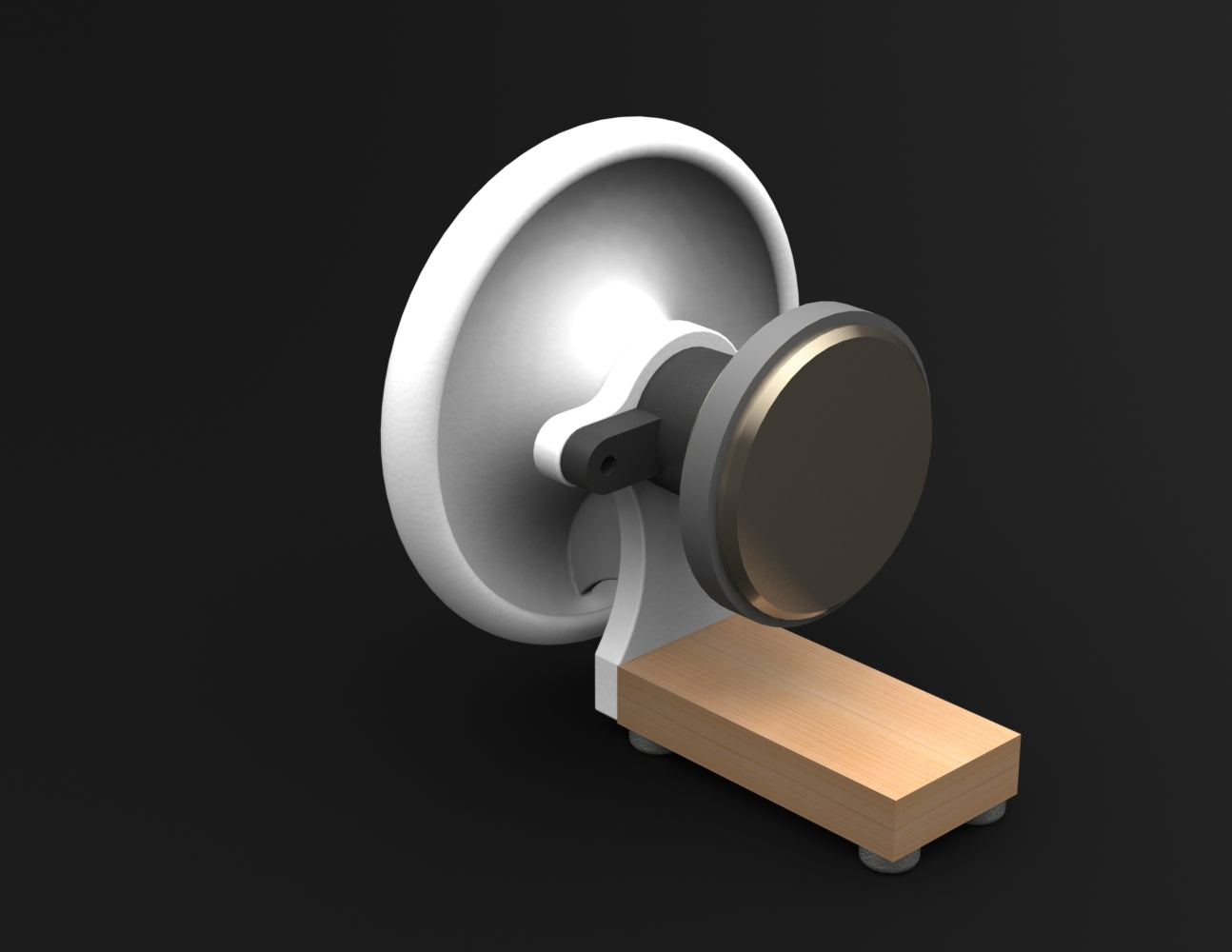

- Mounting feature on horn for support bracket (see pictures)

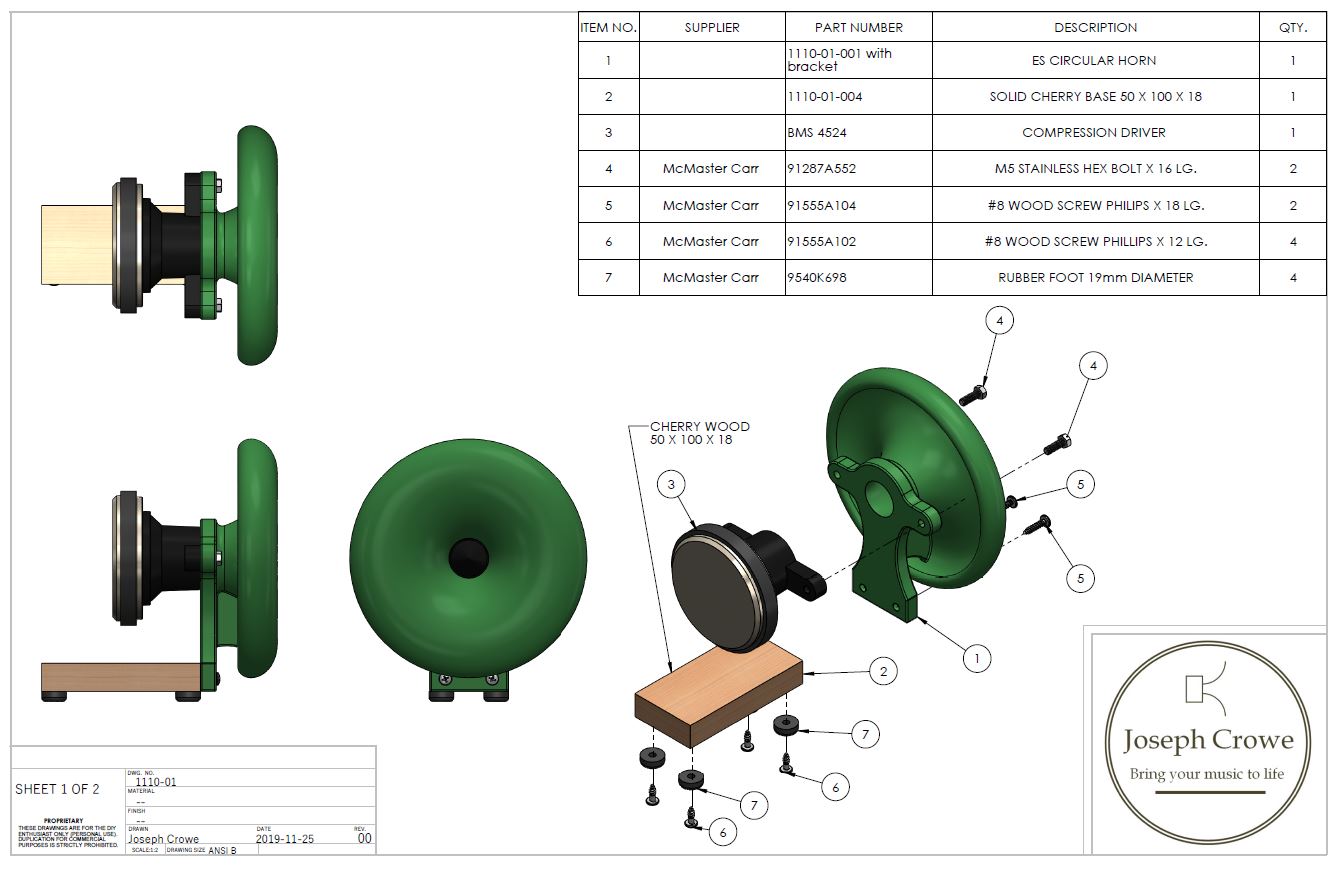

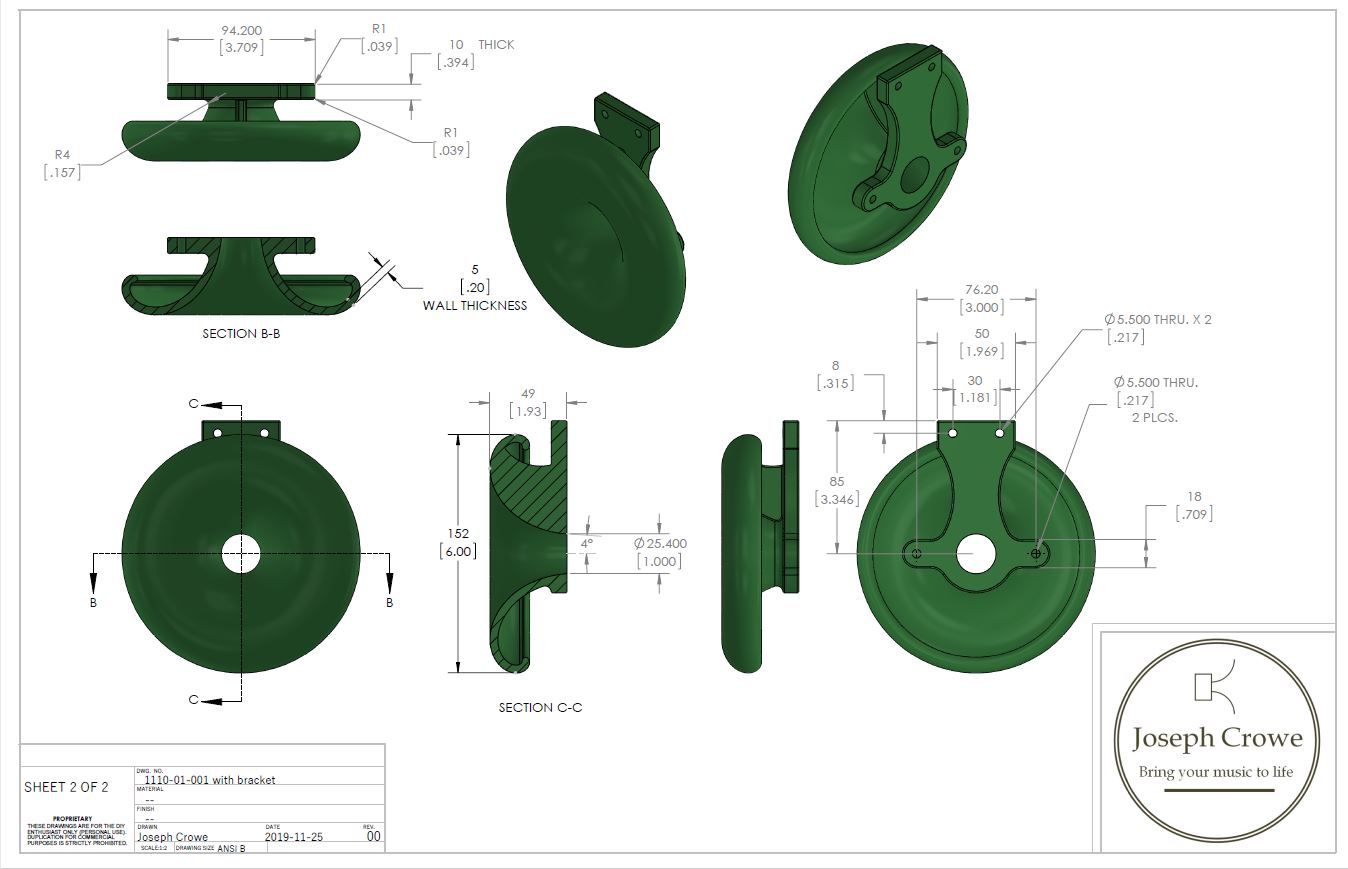

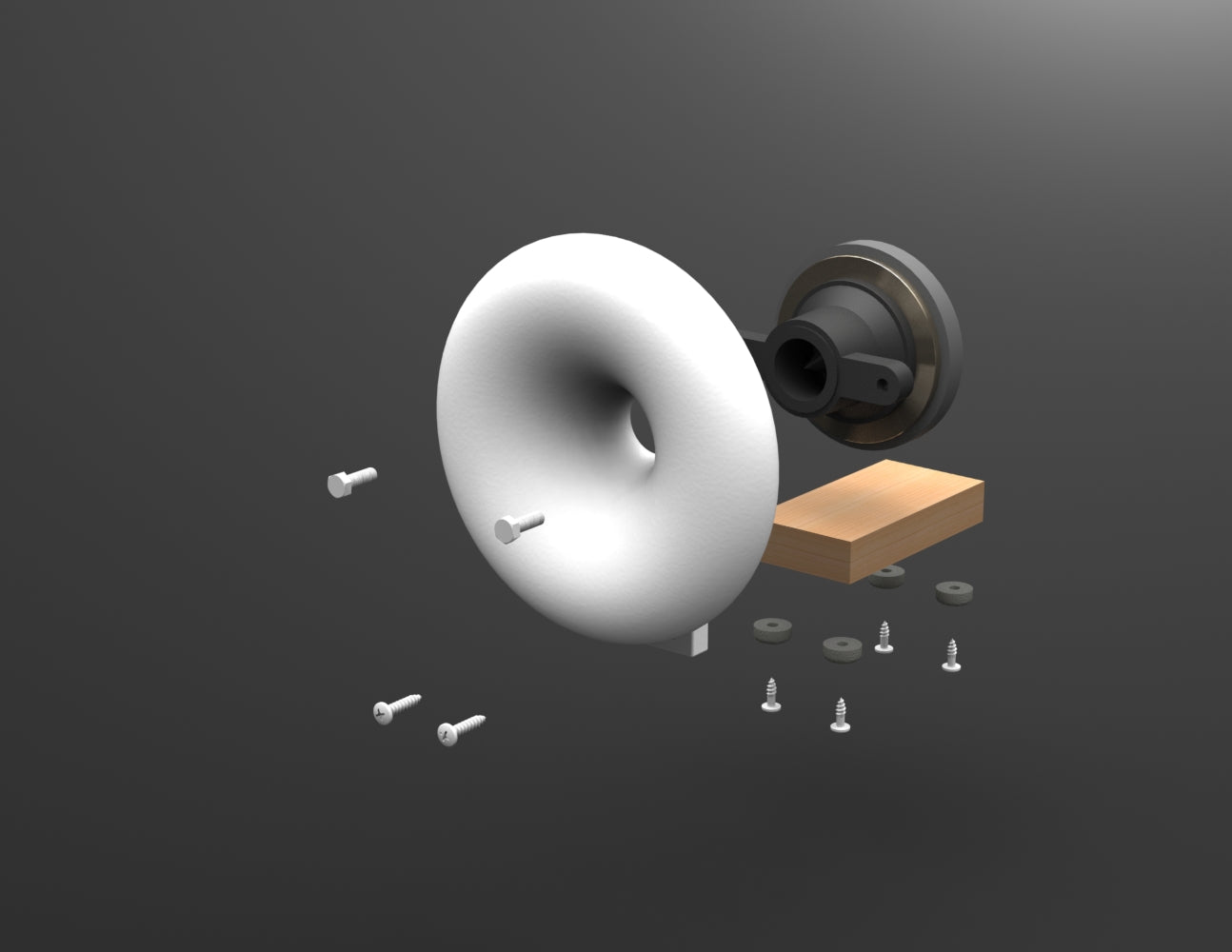

- Assembly drawing for support base
- Uses standard 3" hole compression driver mounting
- For 1" Compression Drivers
- 1700Hz Cutoff (Fc)
- Horn Dimensions: 15cm Diameter x 5cm thick
- Suitable drivers: BMS 4524, Celestion CDX1-1425
- Please contact for other driver suitability
