3D CAD Files --- Horn No.2009

By purchasing these plans you will automatically receive the 3D CAD files via email which allows for either 3D printing (.STL files) or CNC machining (.step files).

Features

• x2 piece assembly for easy printing
• .step files can be modified in another CAD program to accommodate other tweeter models
• Designed for SEAS Prestige 27TBFCG Aluminum Dome Tweeter
• Designed for 2kHz crossover point or higher
• Loads down to 1kHz
• Pattern control down to 1kHz.

Includes

•  STL files (throat and mouth parts) for 3D printing
• .Step files for CNC machining

Assembly

• The throat piece gets screwed and/or glued to the mouth piece
• The tweeter is self aligning but requires small wood screws to secure
• Please select appropriate screw size and length during assembly (not called out in drawings)

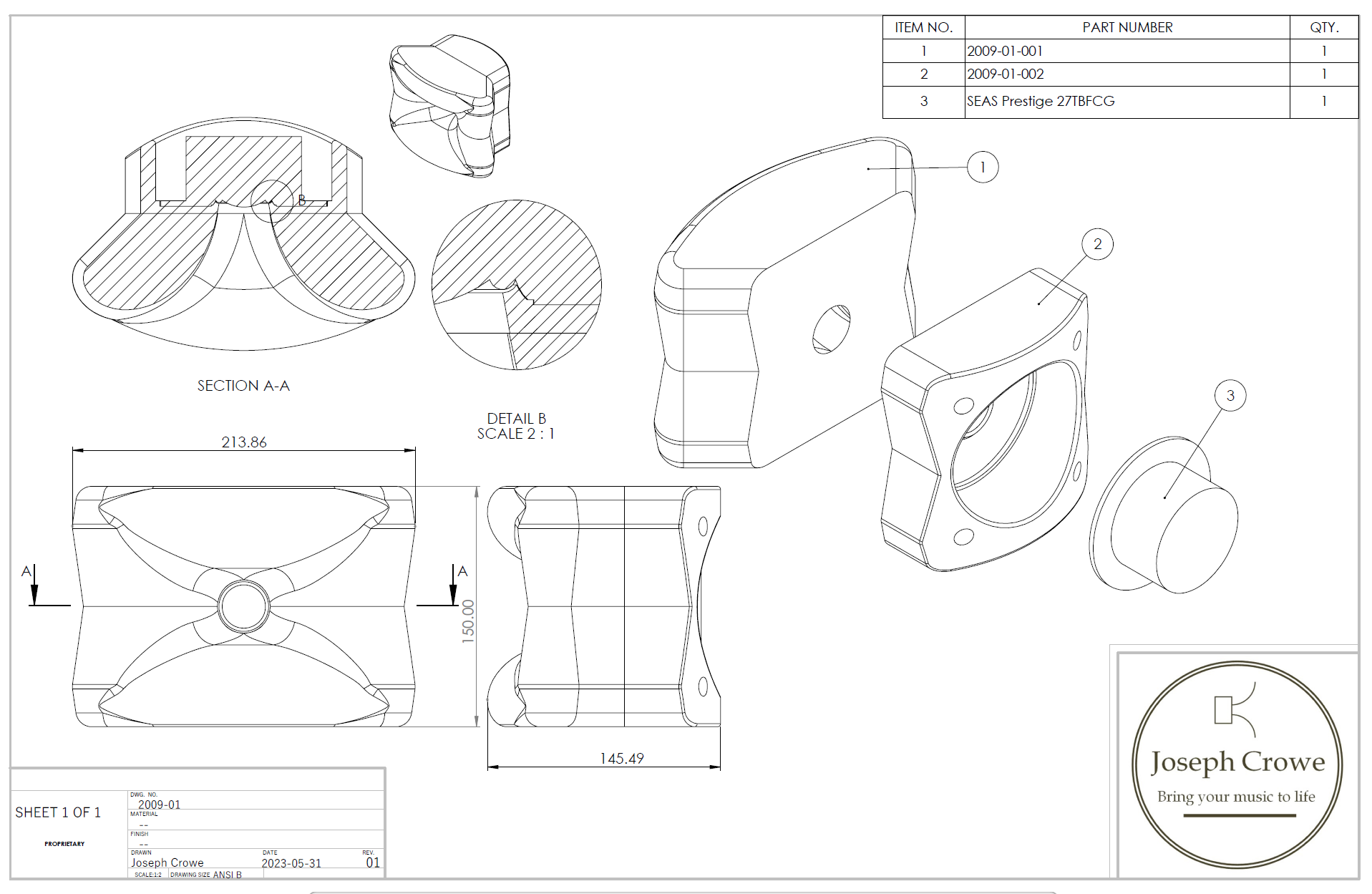

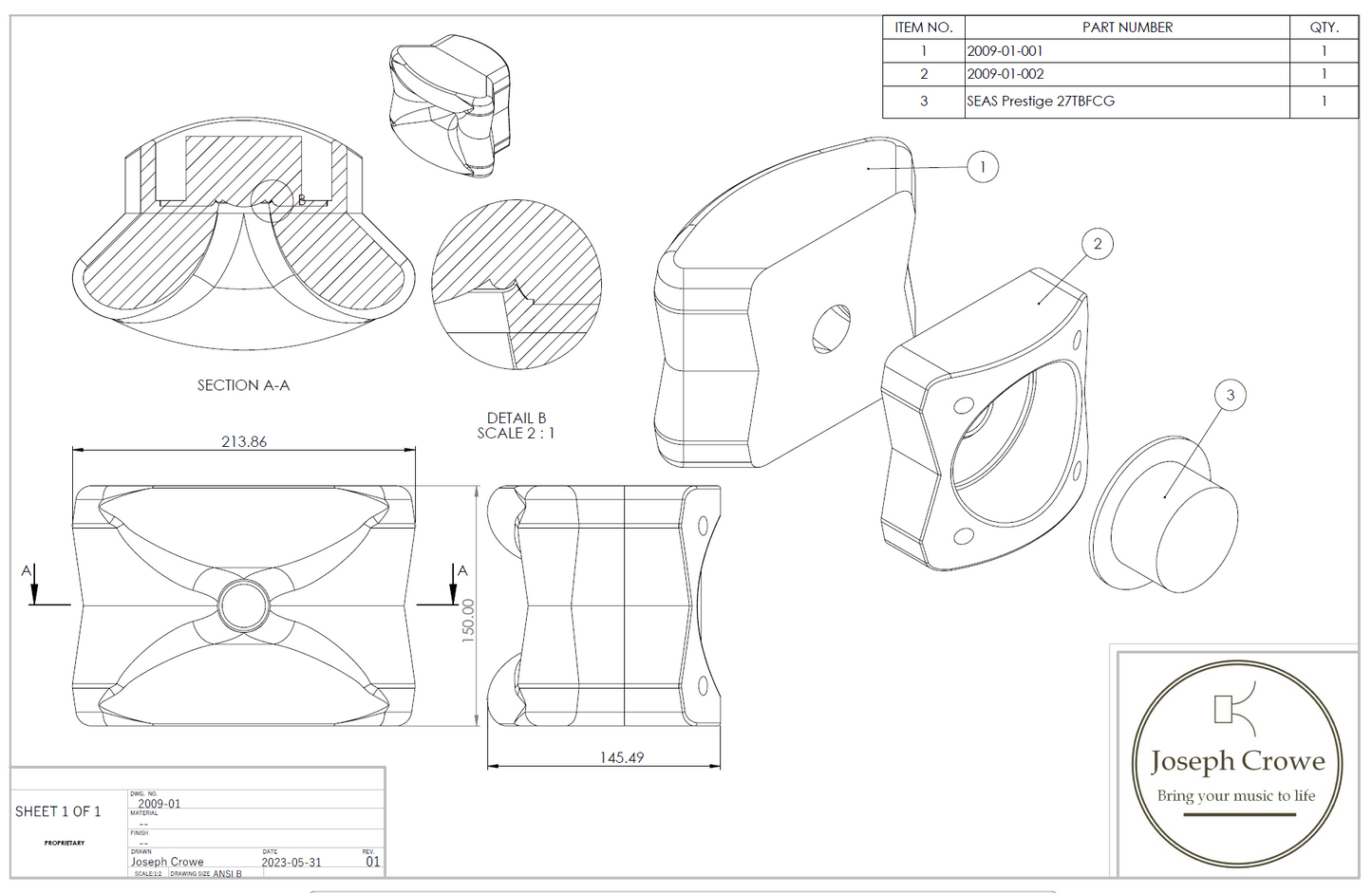

Click on the image below to enlarge

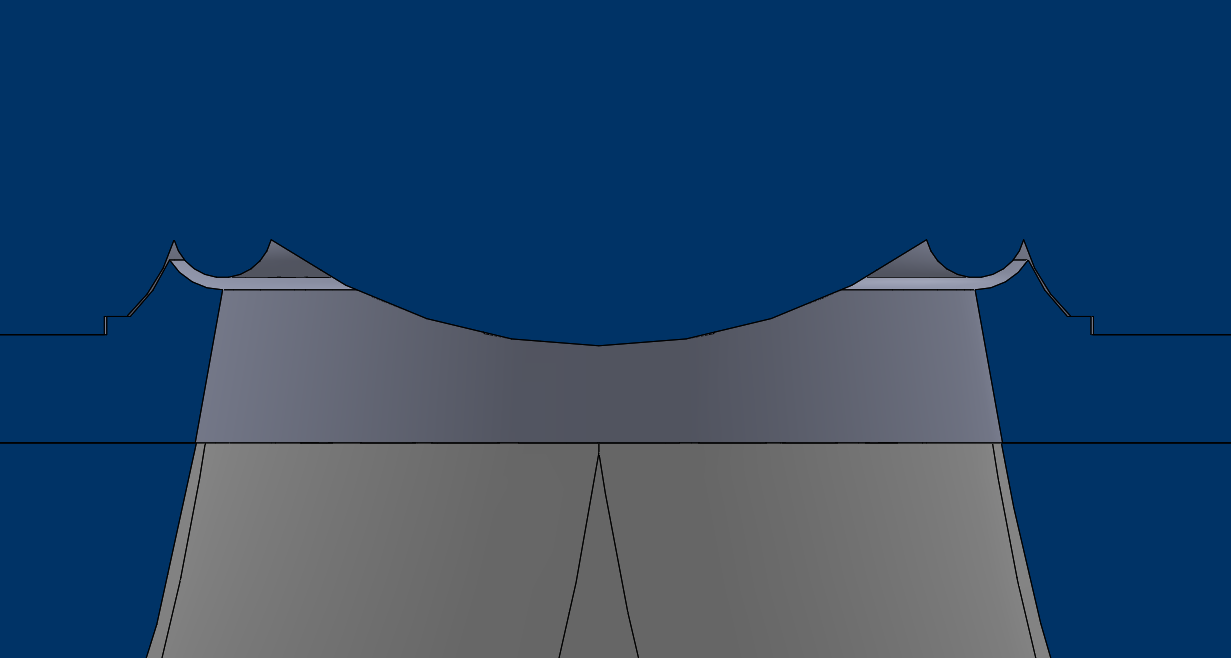

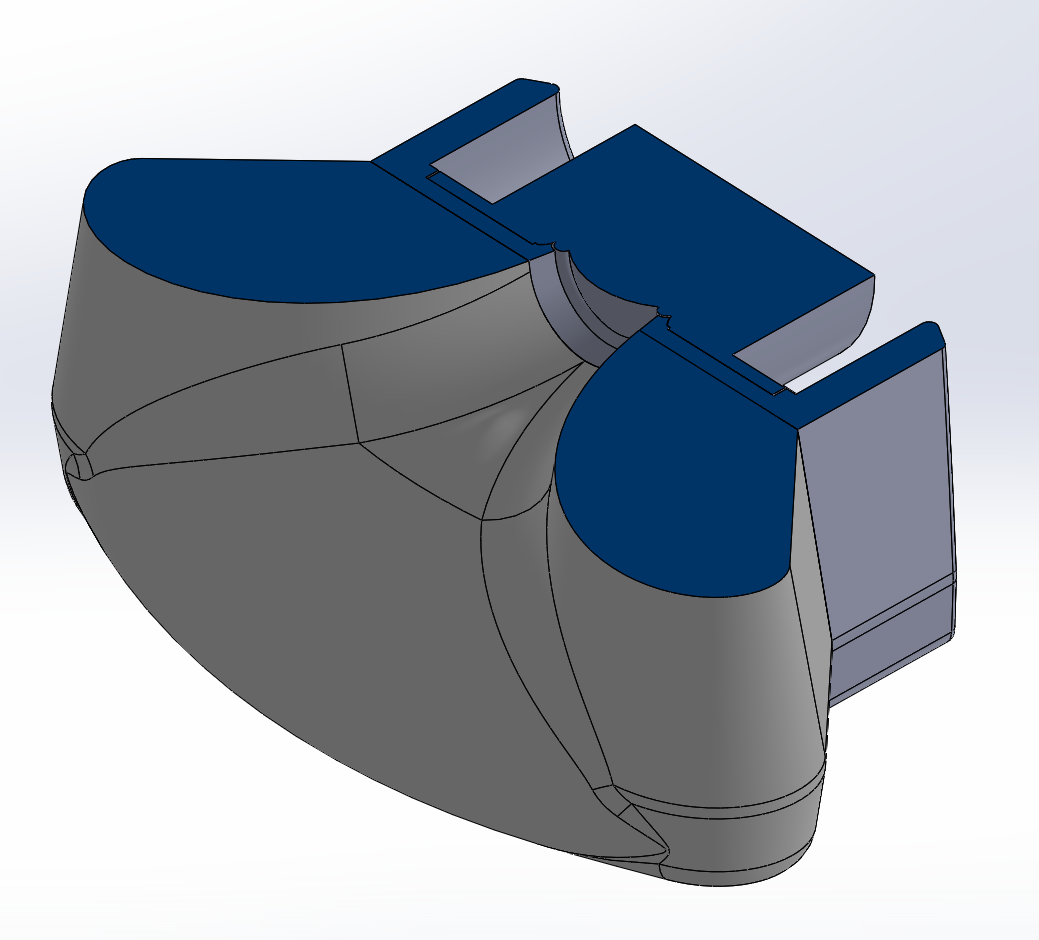

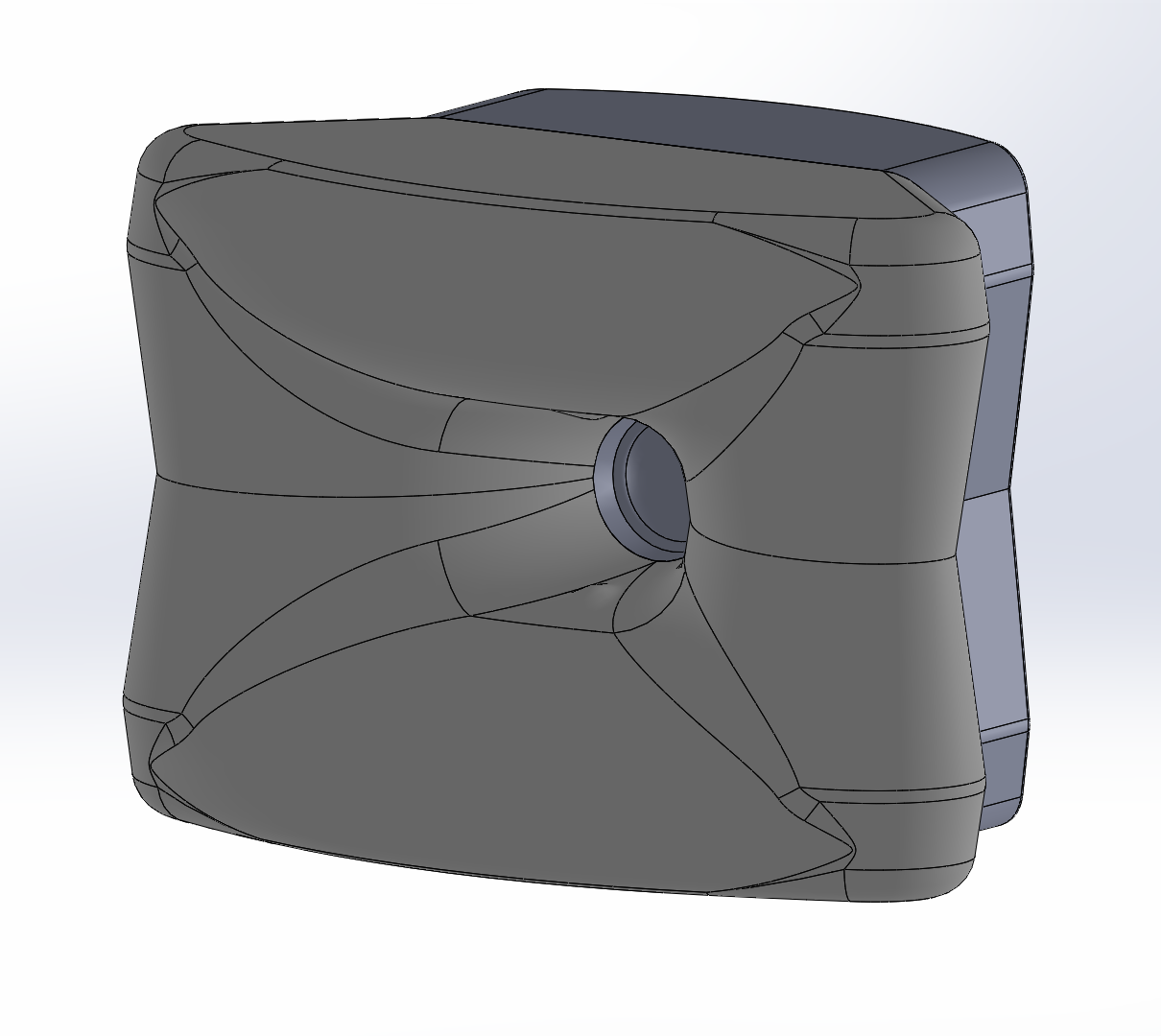

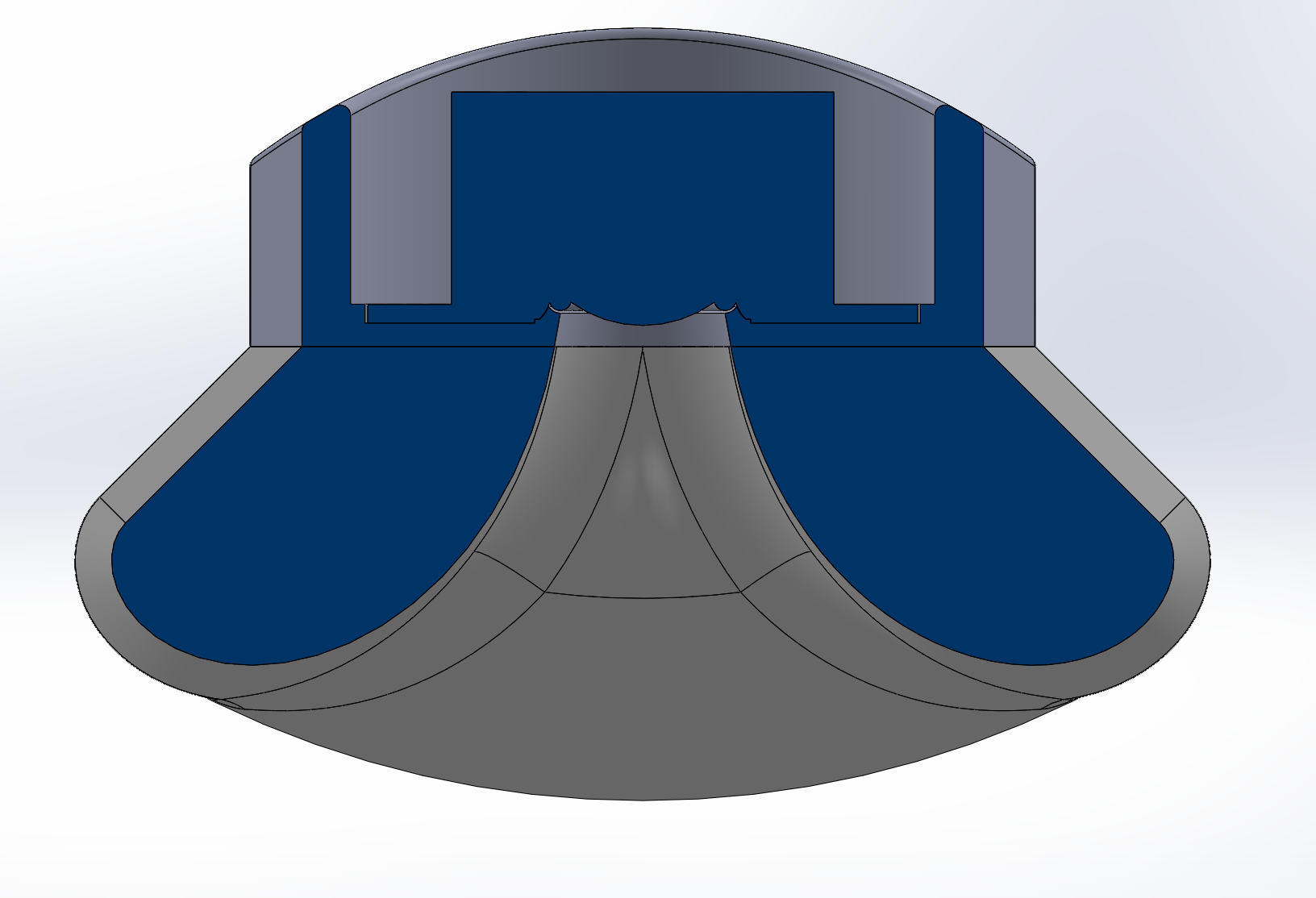

Design Features
