15cm Diameter ES Horn 3D CAD Model

Sale price Price $30.00 Regular price

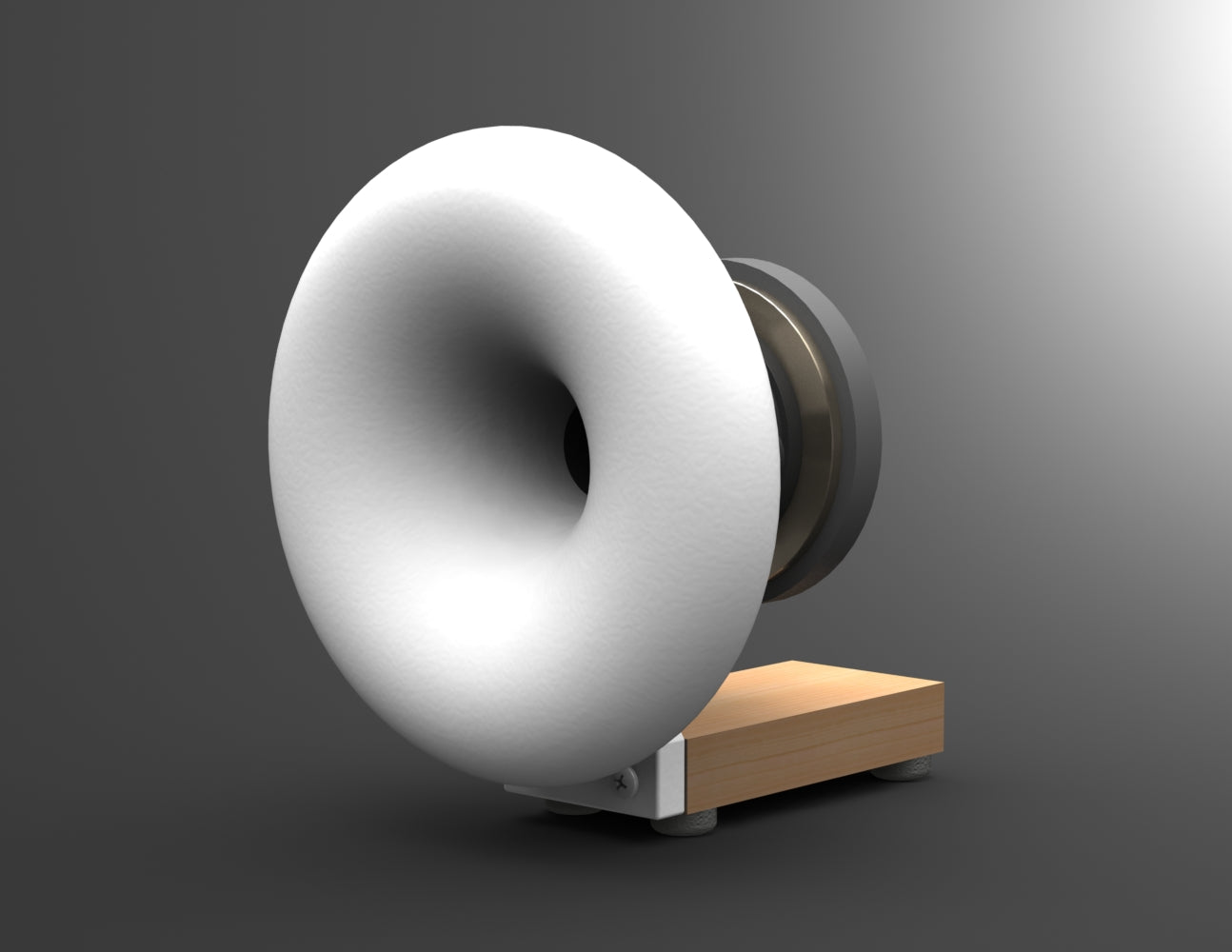

3D print your own ES Horn!

By purchasing these plans you will automatically receive by email the STL file to 3D print the ES-1700 Circular Horn.  Assembly drawings are included to make your own support bracket.

Provide 3D CAD file in .STL format for 15.2cm (6 inch) diameter x 2.54cm (1 inch)  throat Circular ES Horn

  • ES Flare Geometry

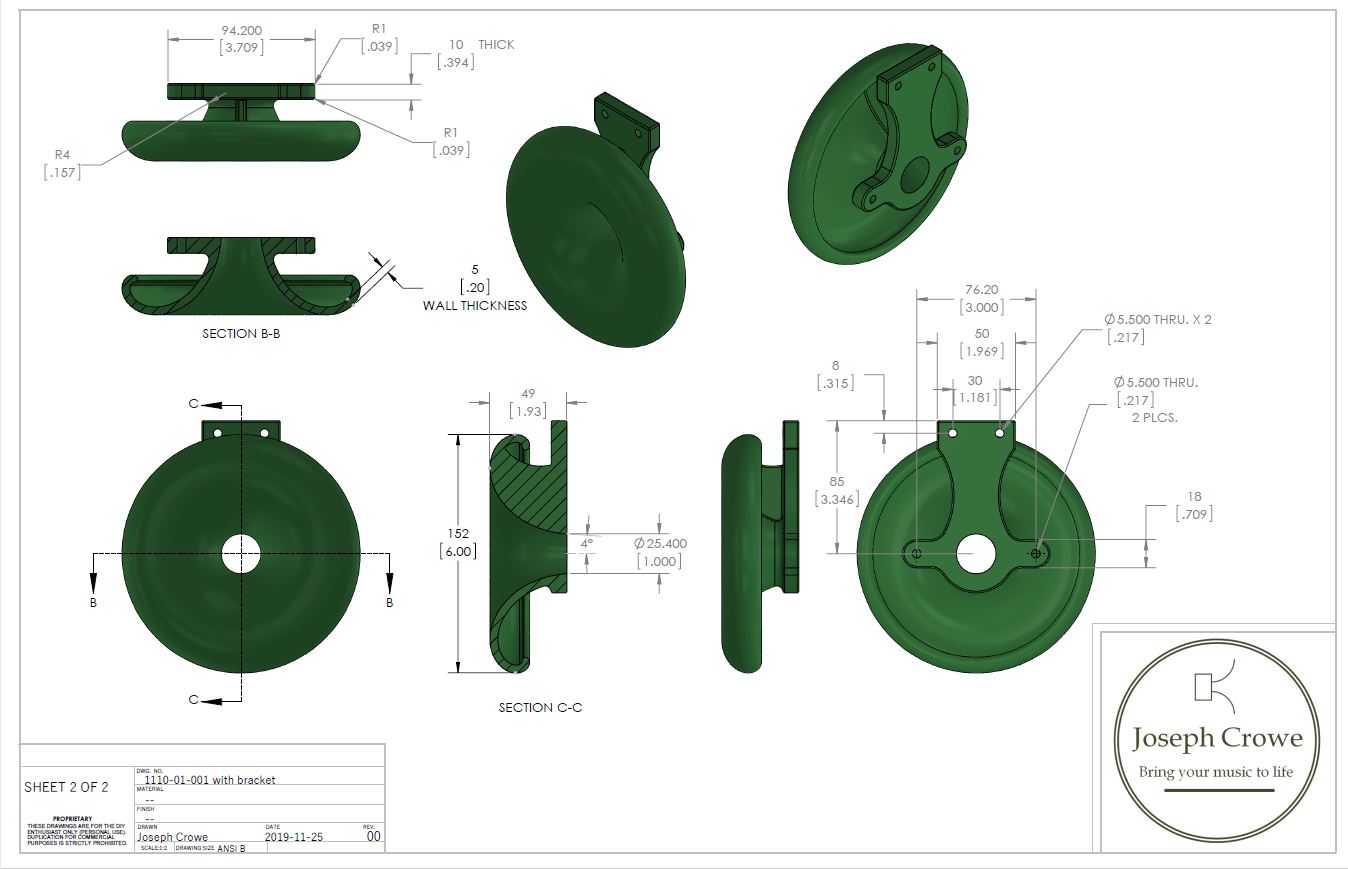

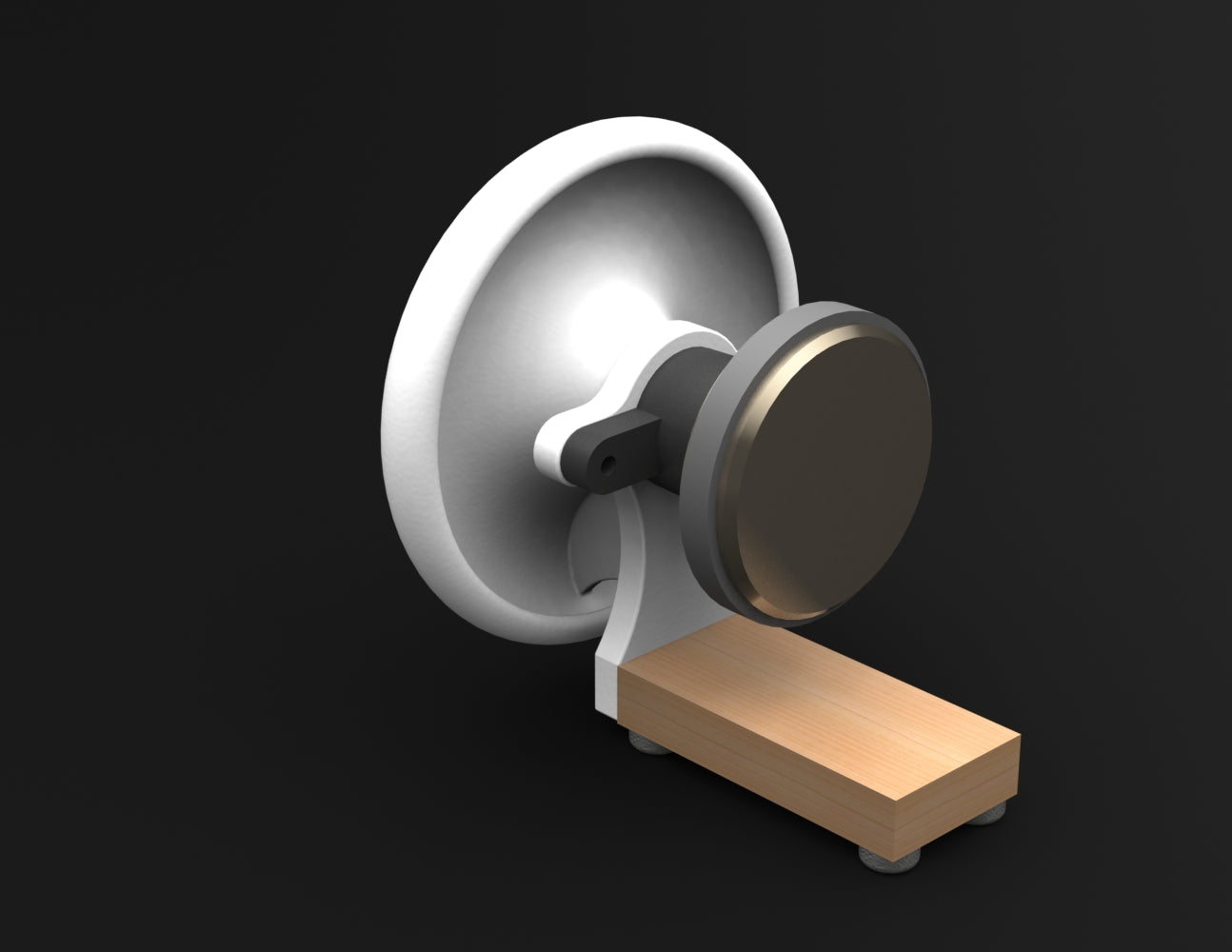

  • Mounting feature on horn for support bracket (see pictures)

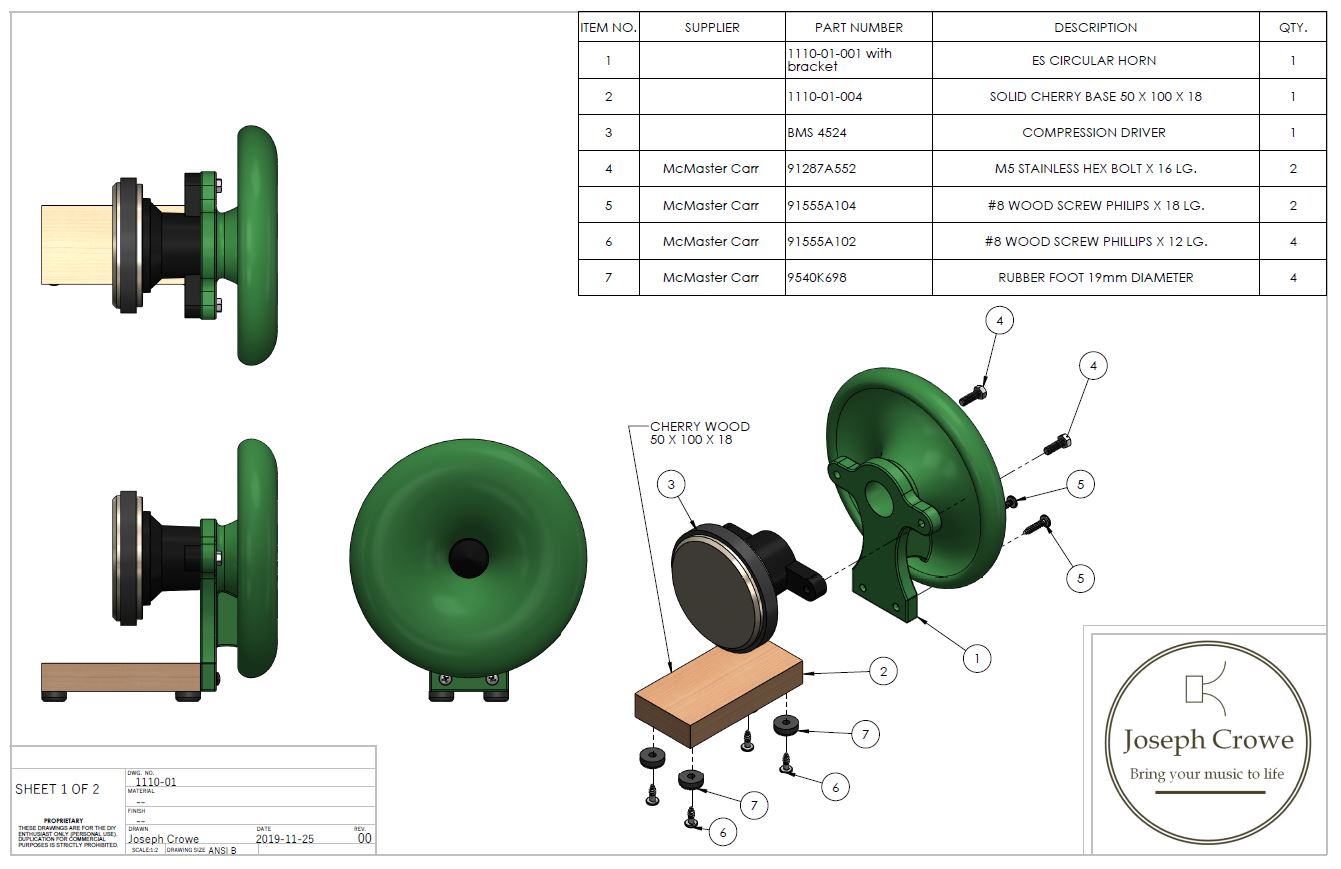

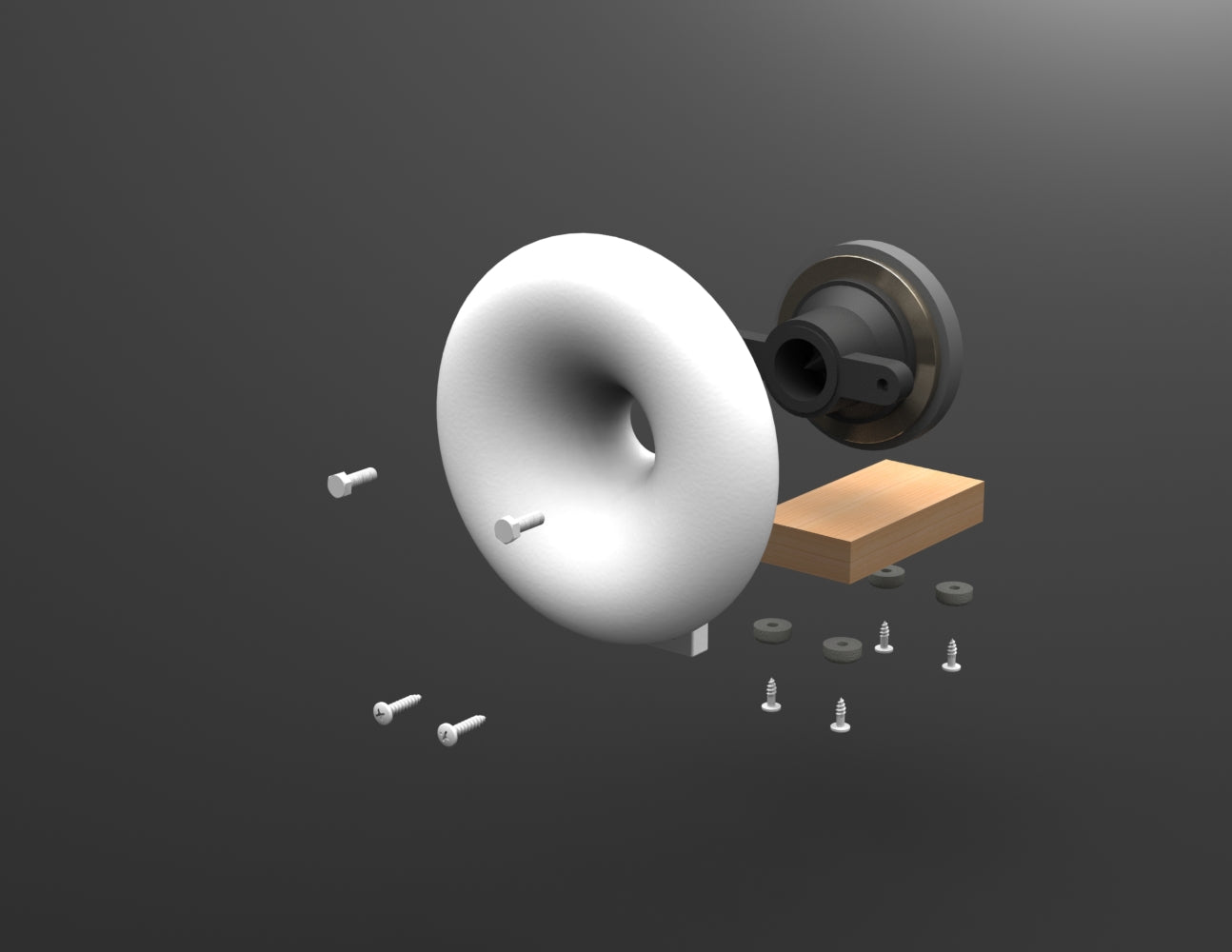

  • Assembly drawing for support base
  • Uses standard 3" hole compression driver mounting
  • For 1" Compression Drivers
  • 1700Hz Cutoff (Fc)
  • Horn Dimensions: 15cm Diameter x 5cm thick
  • Suitable drivers: BMS 4524, Celestion CDX1-1425
  • Please contact for other driver suitability


Customer Reviews
5.0 Based on 1 Reviews
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
John L.
United Kingdom United Kingdom
Really Great!!

A nice little project to make. I 3D printed the horns, (HP Fusion 580), and used two pieces of white oak for the bases. I printed the Joseph Crowe logo on the fronts of the horns so there was no mistaking whos work this is. I would like to share a photo of them but I dont know if this would be possible via this review.
