Joseph Crowe

1323 Dome Tweeter Waveguide

Regular price $600.00 CAD
Regular price Sale price $600.00 CAD
Sale Sold out

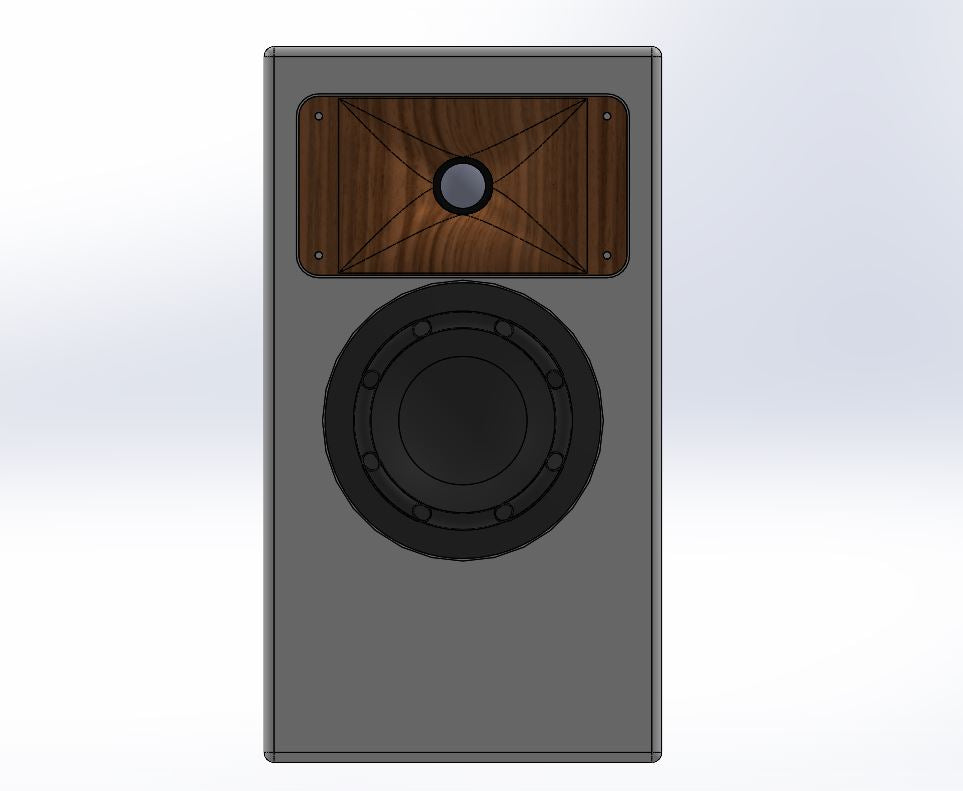

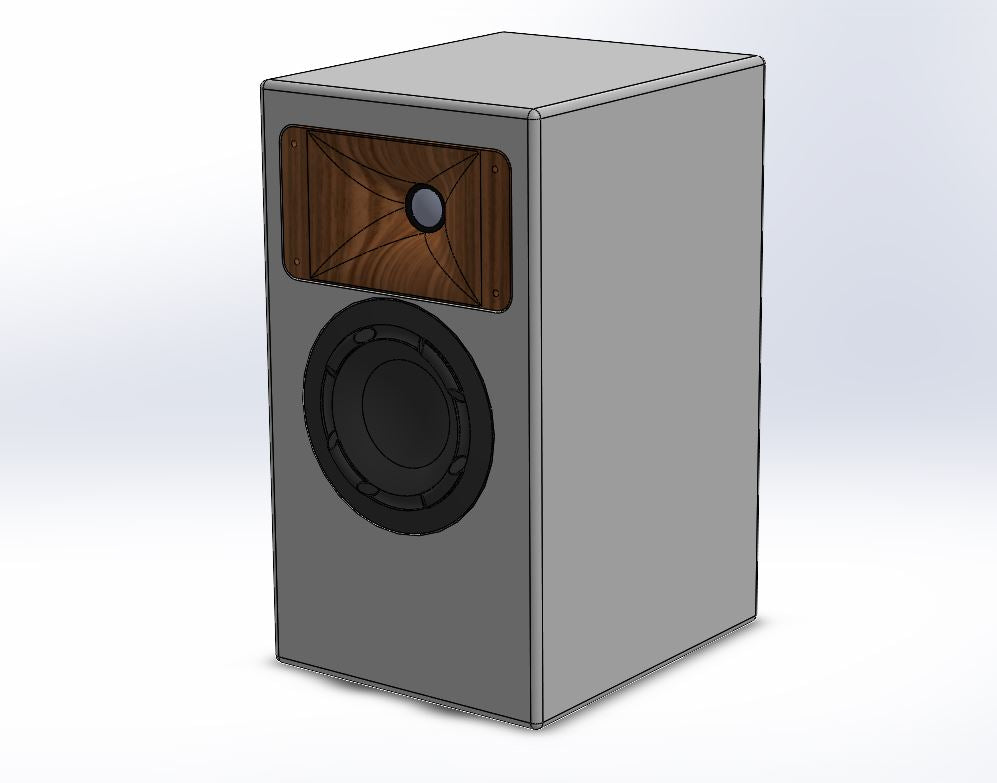

Tweeter Waveguide 1323 is custom made to order for use with the SB Acoustics TW29BN-B tweeter.  For other tweeters please inquire at
  • Funds in CAD currency
  • Sold as a Pair

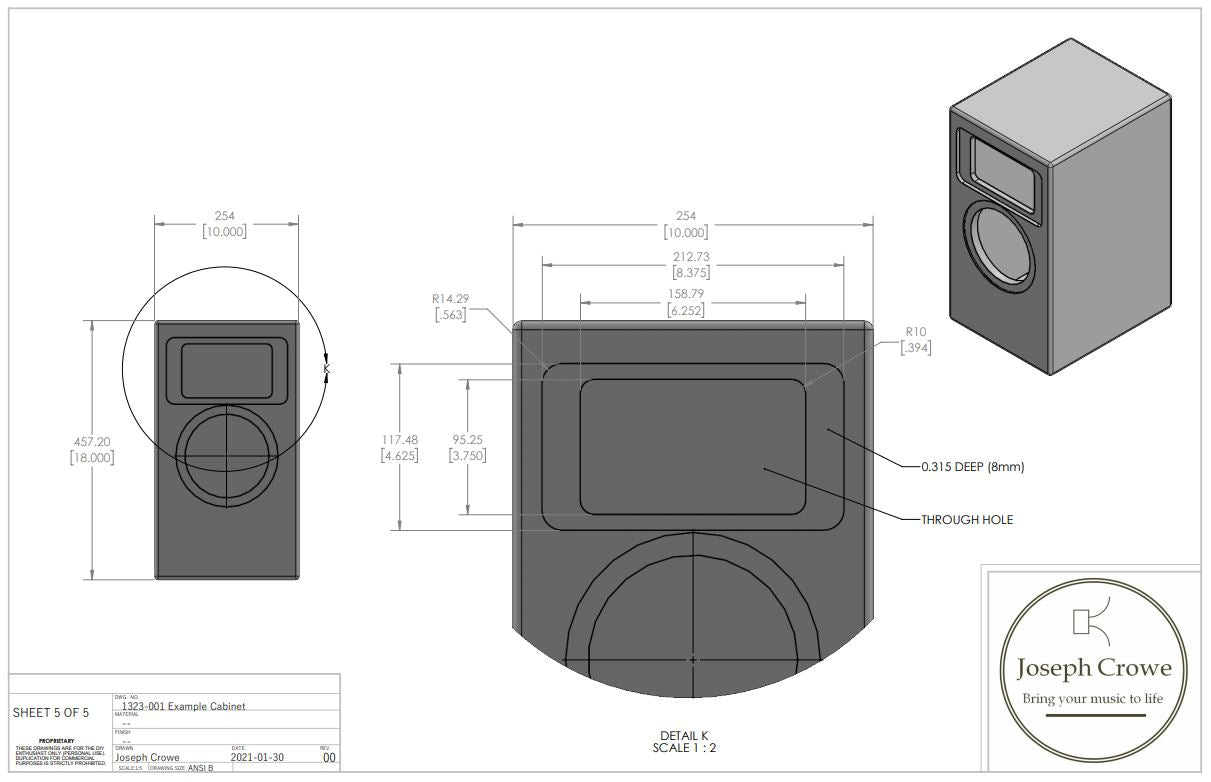

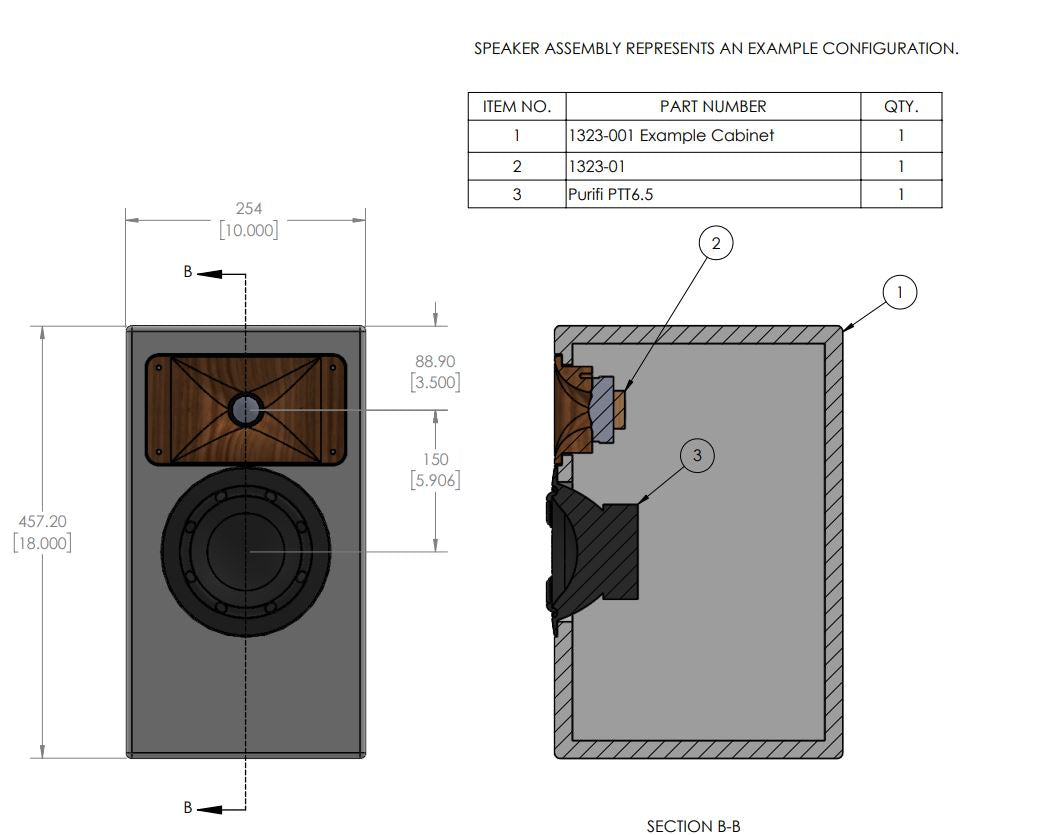

Technical Drawing Click Here.

  • Precision CNC machined from solid hardwood (walnut unless otherwise specified)
  • Sanded and stained with Watco Danish Oil  (See Example Video HERE
  • ES curvature for optimum sound quality (minus wrap-around at horn mouth)
  • Clearance for tweeter surround (assumes use of SB Acoustics TW29BN-B

  • Locating pins for tweeter (keeps tweeter centered)

  • 2kHz Low Frequency Cutoff (Fc)
  • Allows for 1.5kHz crossover Point by reducing distortion at crossover region

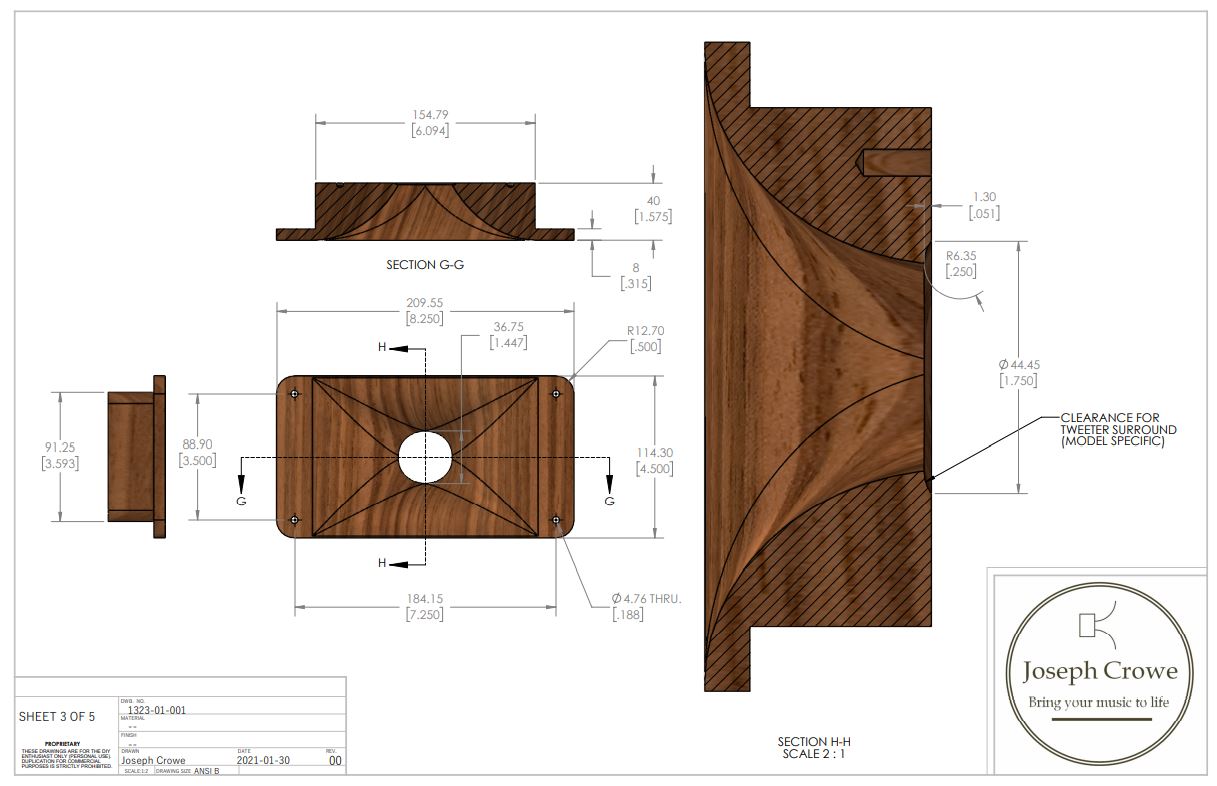

  • 8.25" W x 4.50" H x 1.58" D
  • 209.5mm W x 114.3mm H x 40mm D
  • Made to order: Please allow 4 weeks for lead time

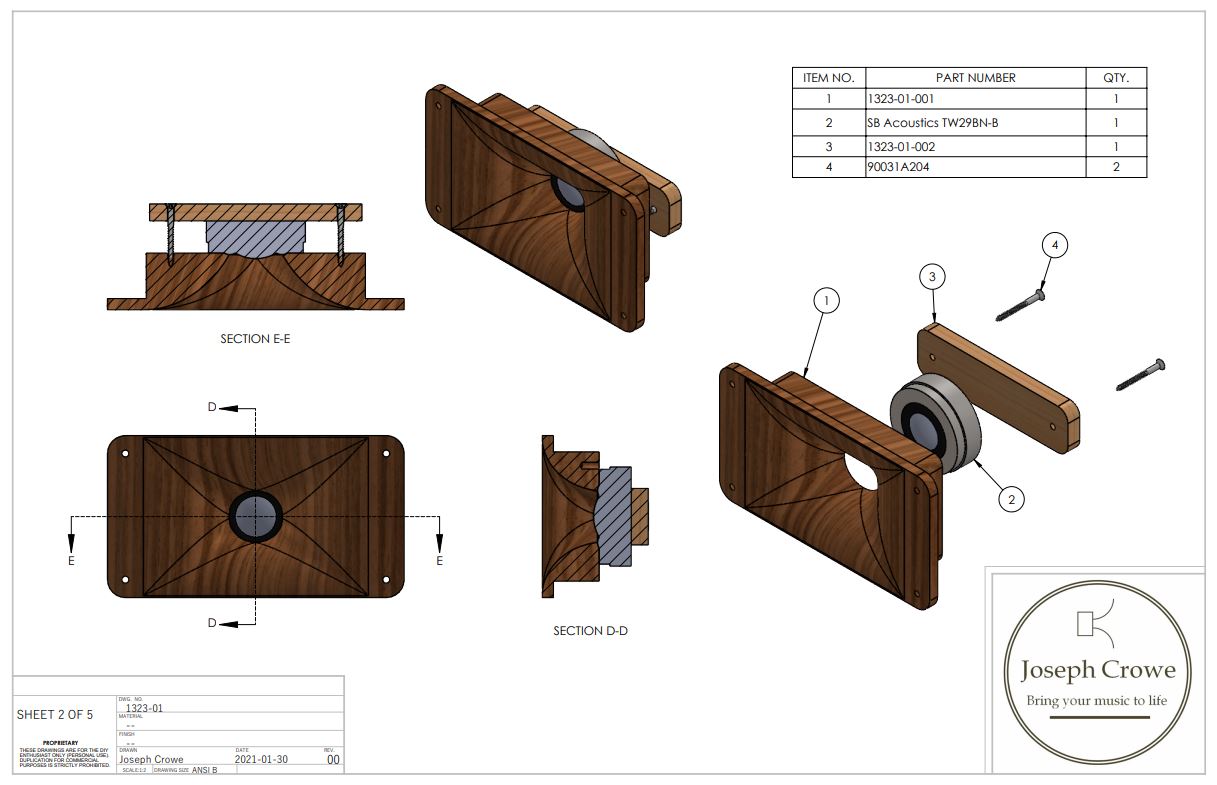

  • Waveguides (one pair, Part 1323-01-001) with tweeter locating dowels.

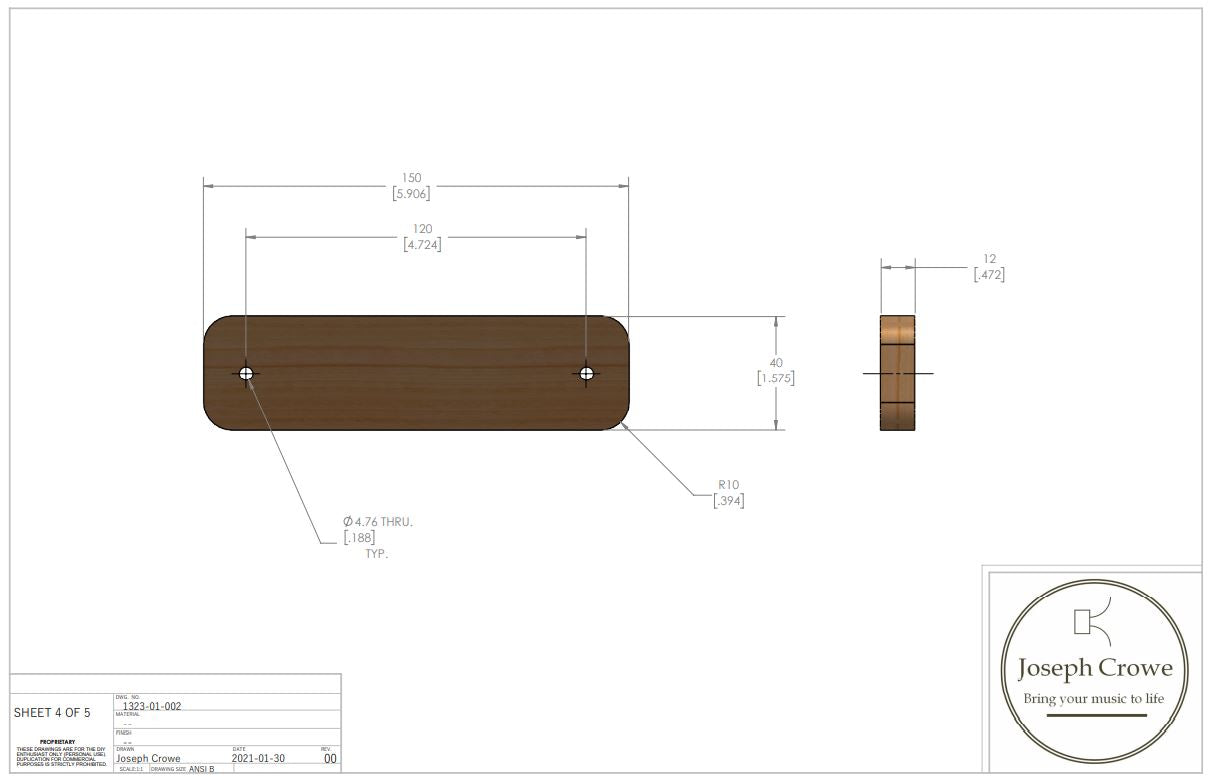

  • Clamp Bracket (Part 1323-01-002)
  • Screws for clamp bracket (#8 Robertson Wood Screws 1.75" long)


  • Tweeter
  • Mounting Screws into cabinet
