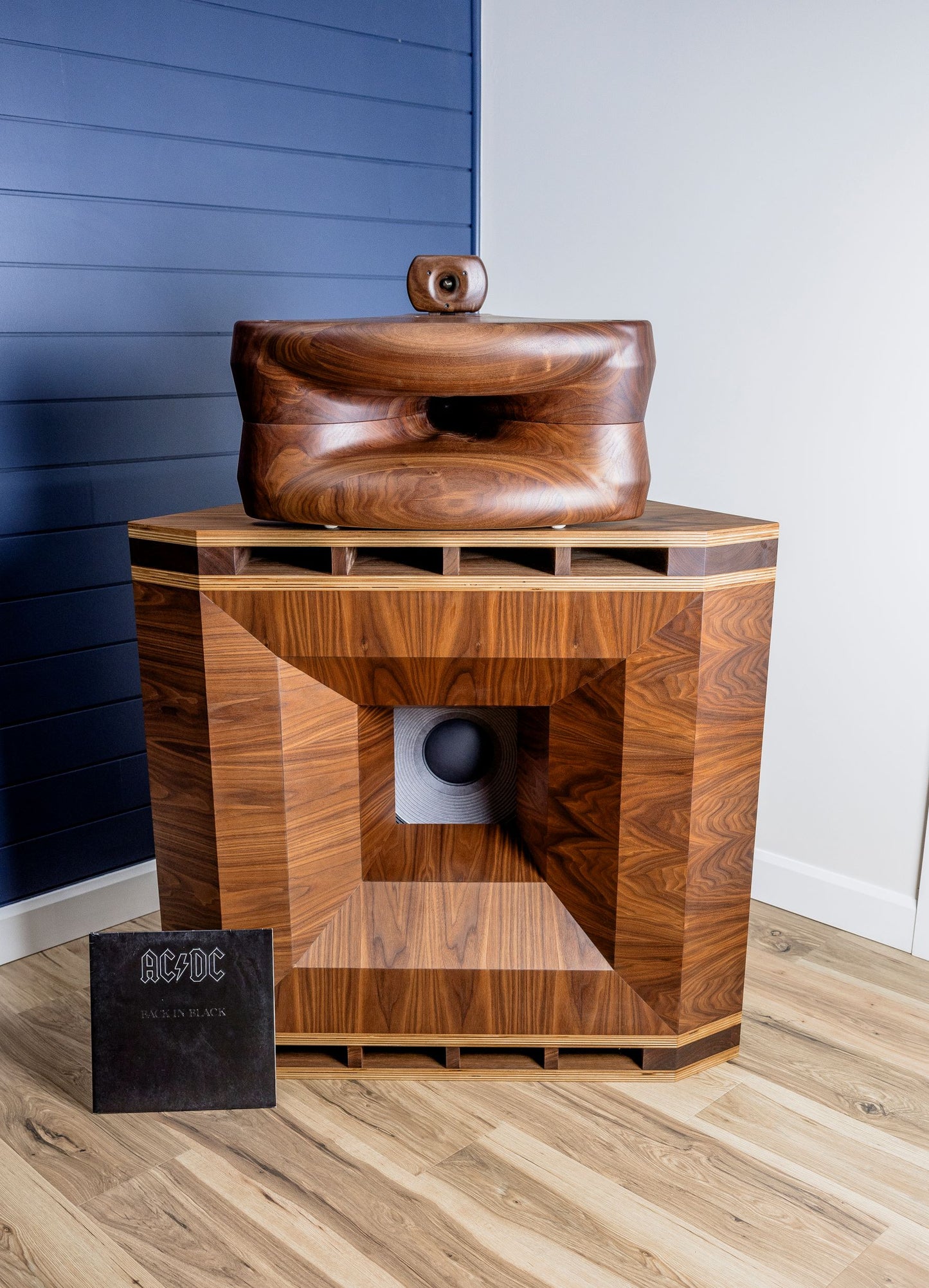

Joseph Crowe

Speaker System No. 2087

$41,860.00 USD
$41,860.00 USD
Sale Sold out
Introduction

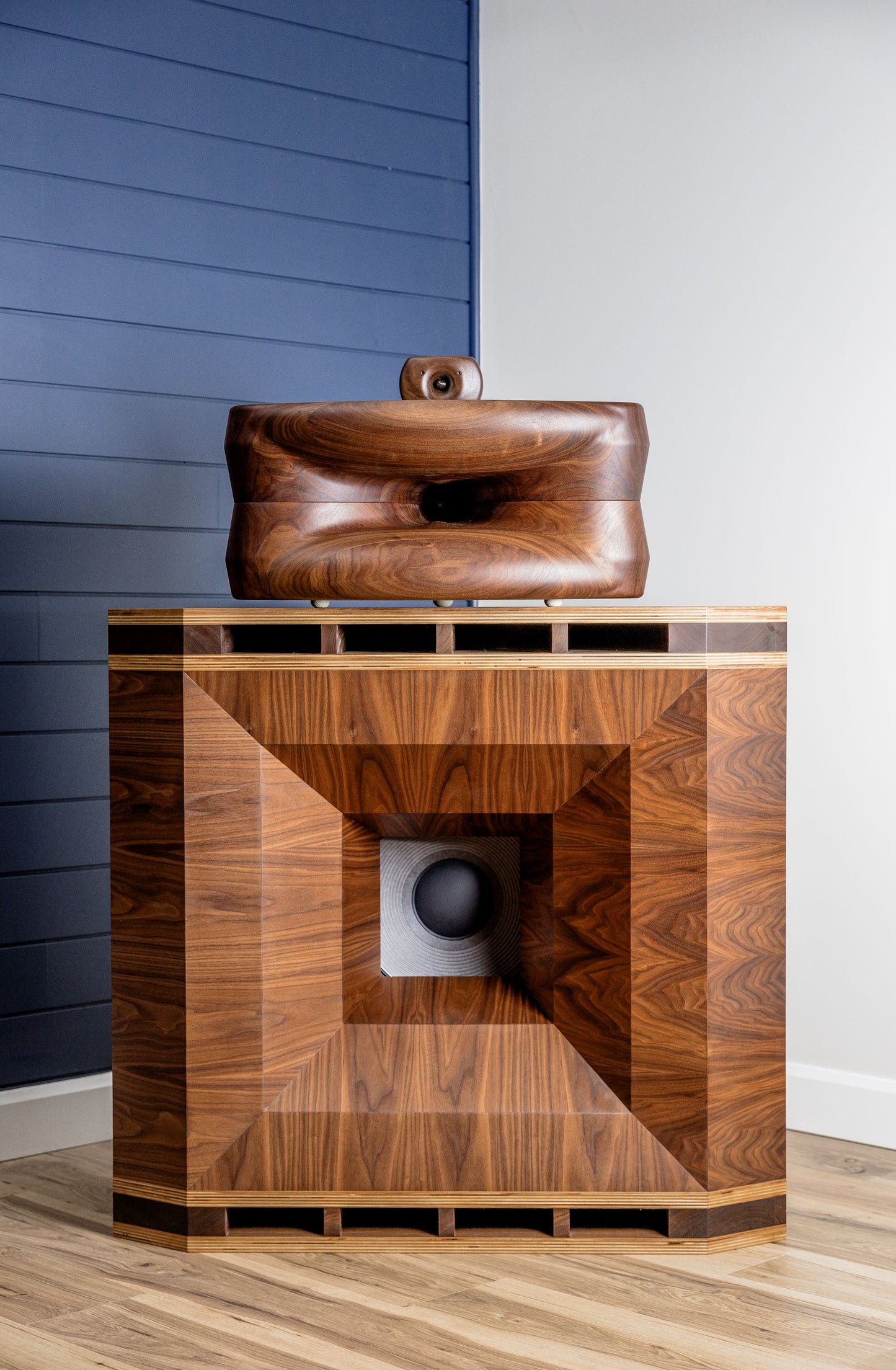

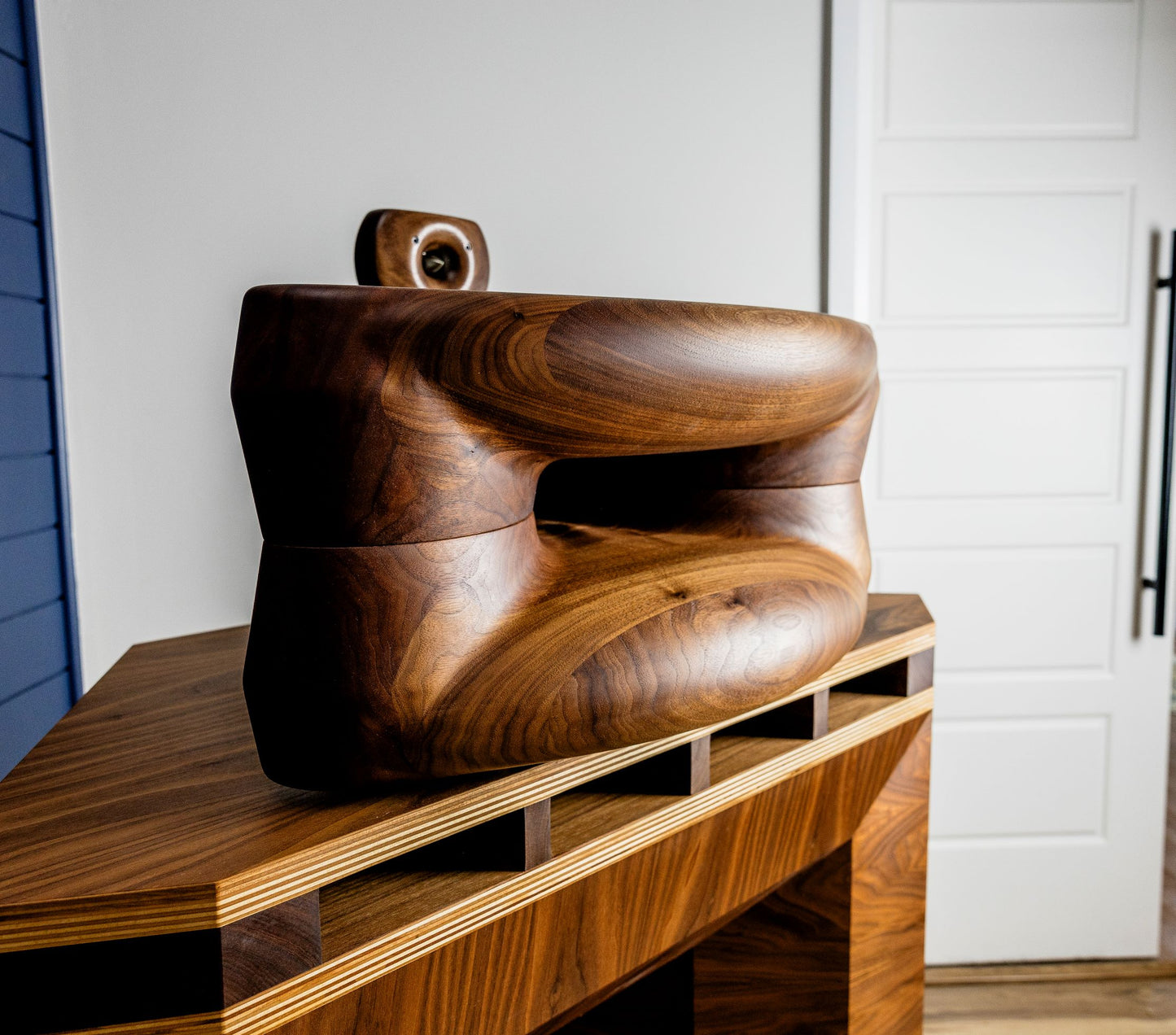

Speaker System No. 2087 represents my latest achievement in the large scale horn speaker category. The system provides the feeling of being at the live event without compromising overall smoothness and clarity.
  •  $41,860 USD/pair plus shipping

We have a special arrangement with our commercial shipping courier which allows us to offer deep shipping discounts. Please contact for a shipping quote to your specific address.

Please contact for a quote with lead time.
joseph_crowe@josephcrowe.com or call 613-920-5934
Sound Characteristics
  • Excellent coherency throughout frequency range
  • Palpable mid-bass and midrange
  • Convincing realism for live recordings
System Configuration

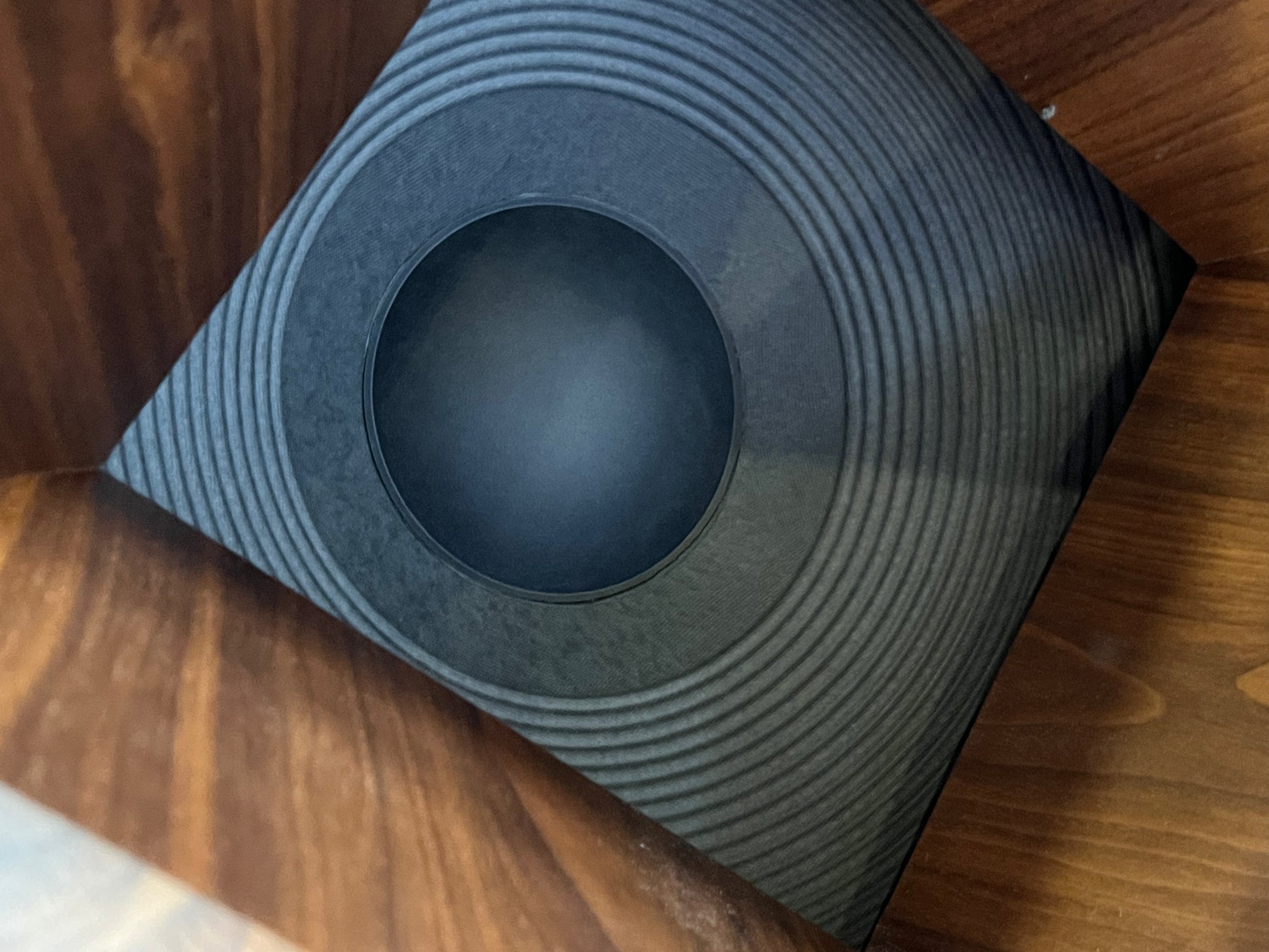

  • 18" bass cabinet (uses Beyma 18LX60V2)
  • 33Hz bass response
  • 98dB sensitivity (anechoic)
  • 300Hz & 2.5kHz crossover points

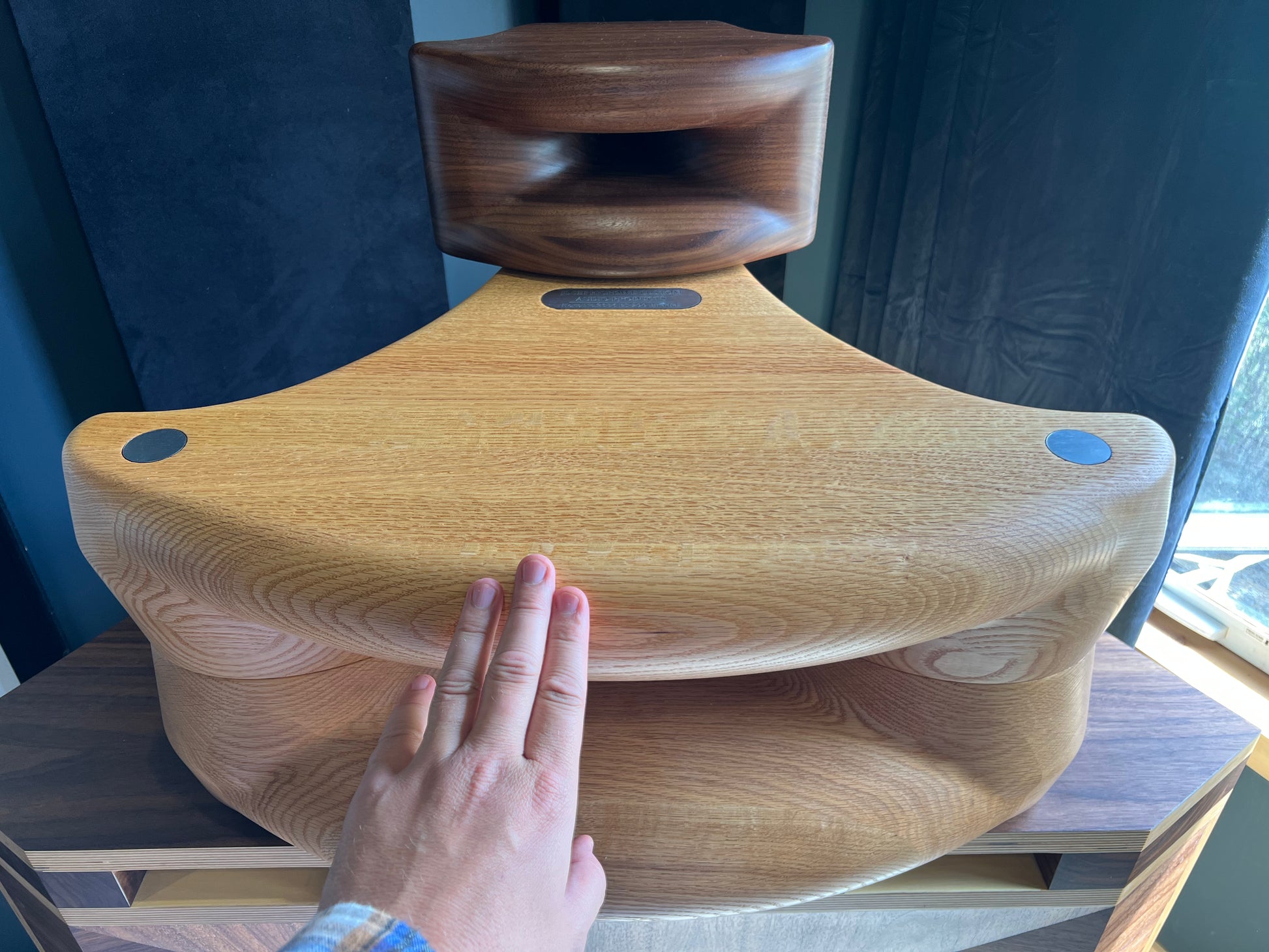

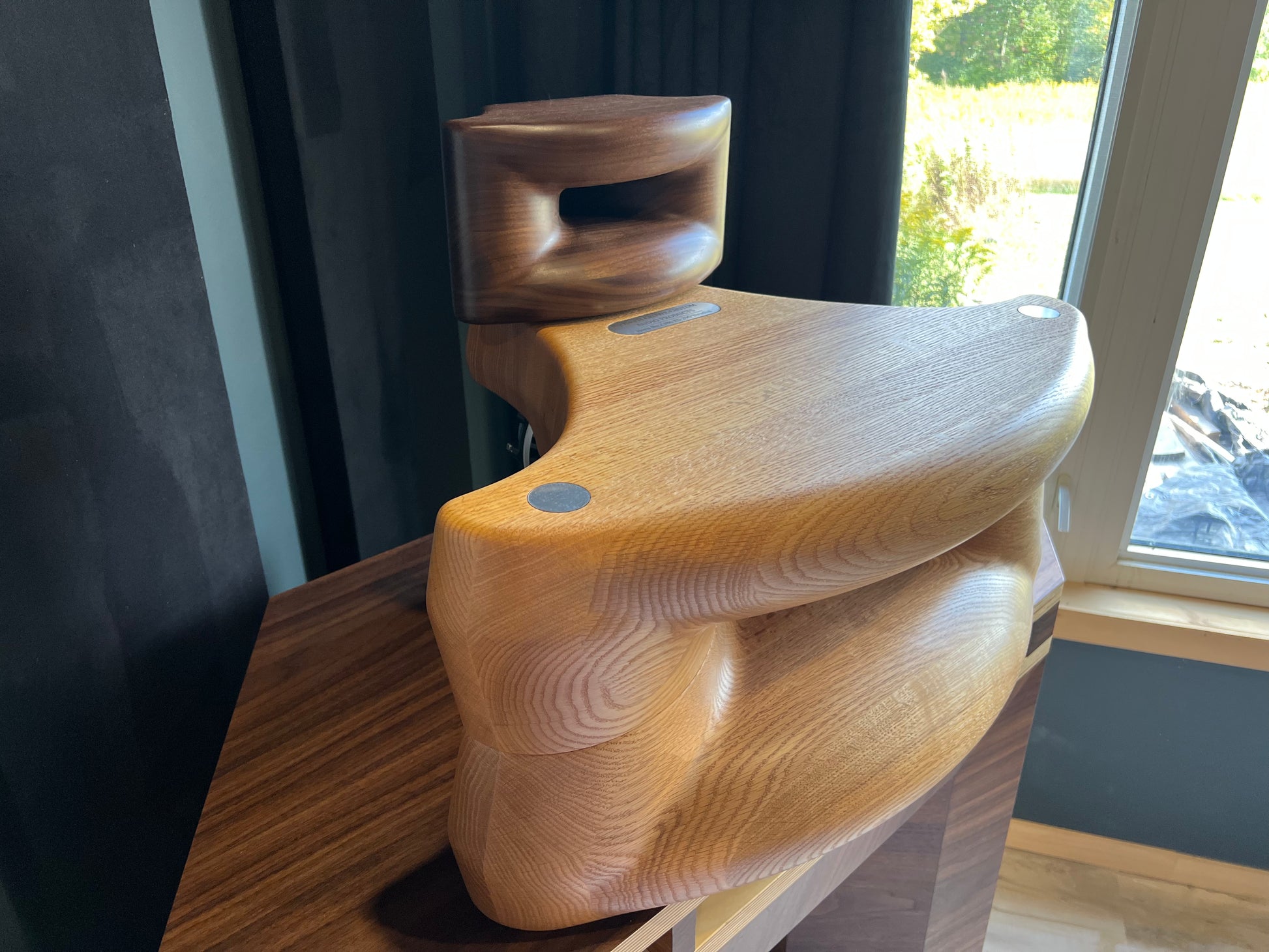

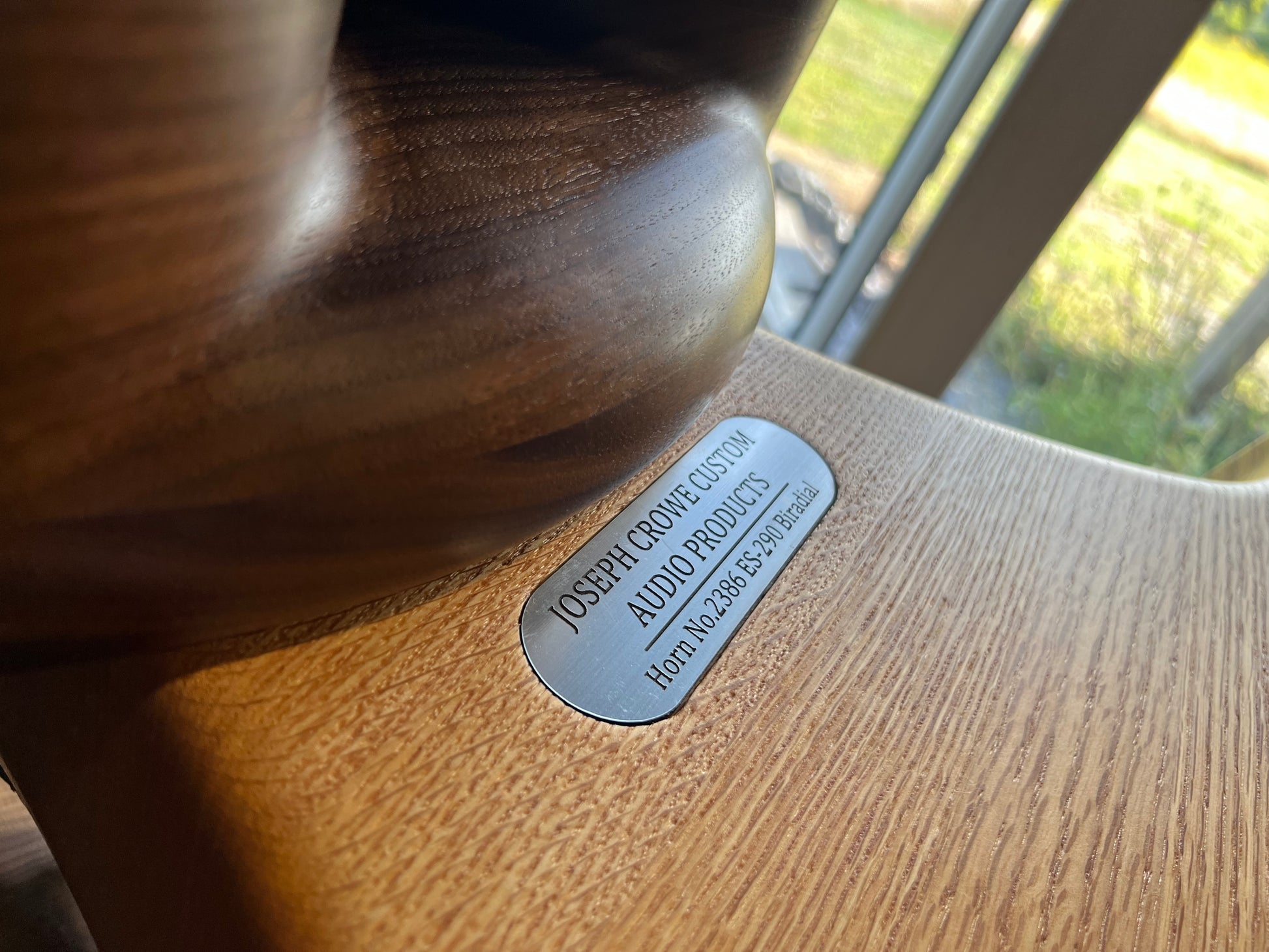

  • Large format midrange horn (ES290 Biradial No.2386)

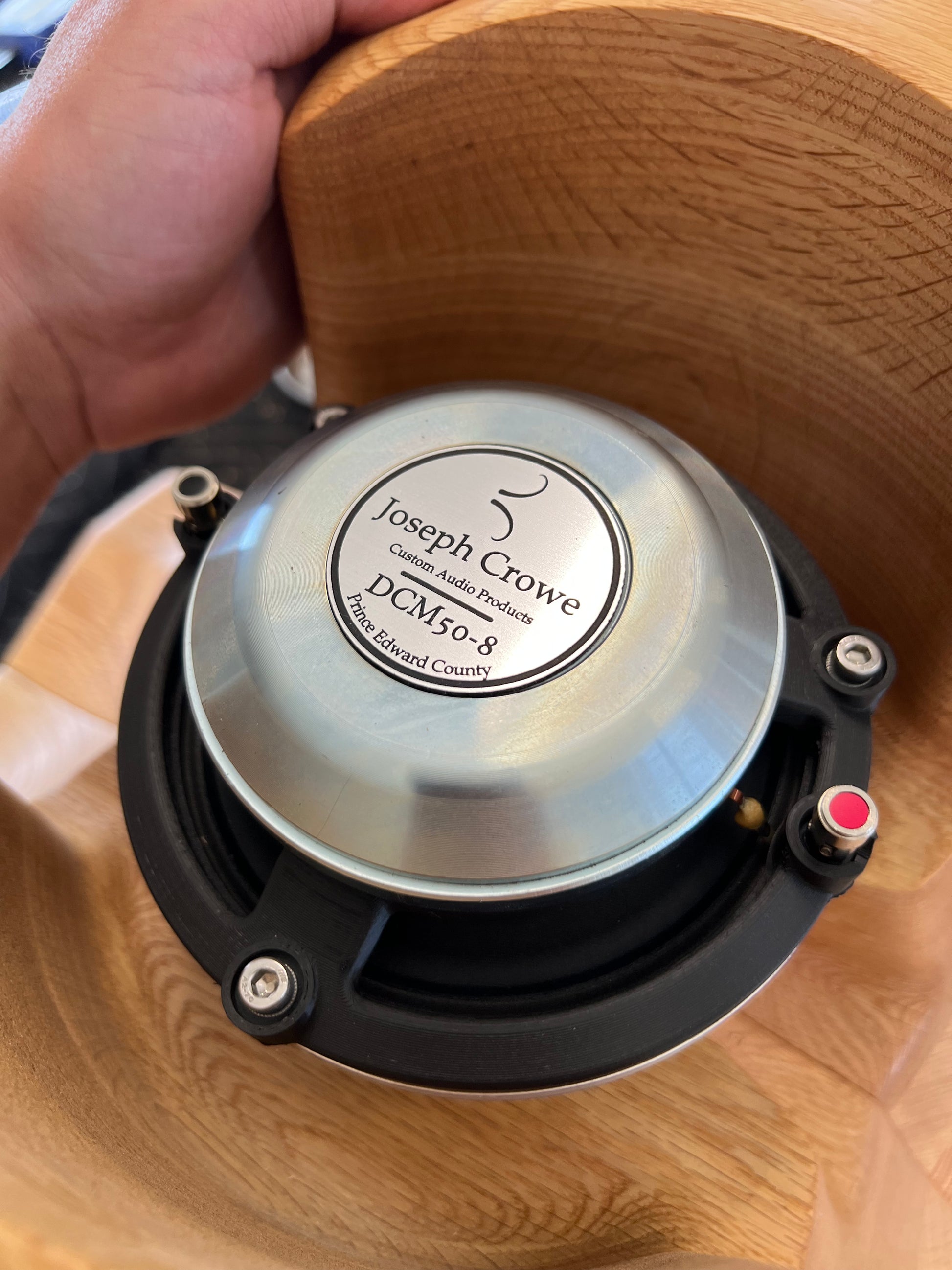

  • 5" Paper cone midrange compression drivers (Modified in-house, open-back)
  • ES-800 Biradial with custom 1" compression driver (open-back)

Custom Decal Options

Options:

  • Hand signed by Troy J. Crowe
  • Additional text "Custom Made For (Your Name Here)"
  • Brushed Copper or Nickle finish

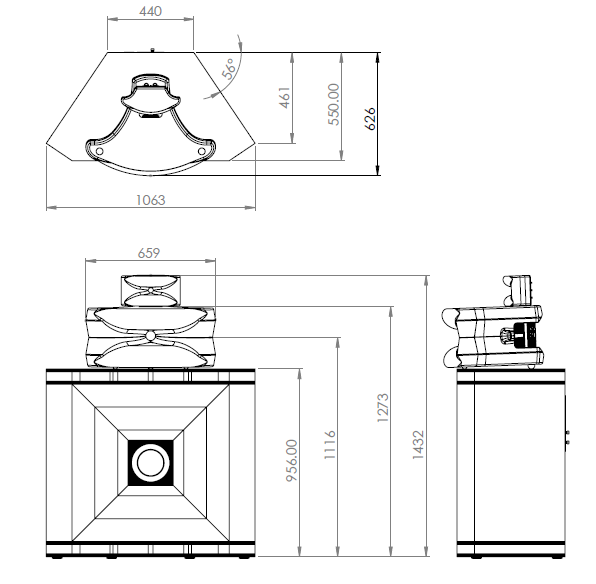

Dimensional drawing click HERE.

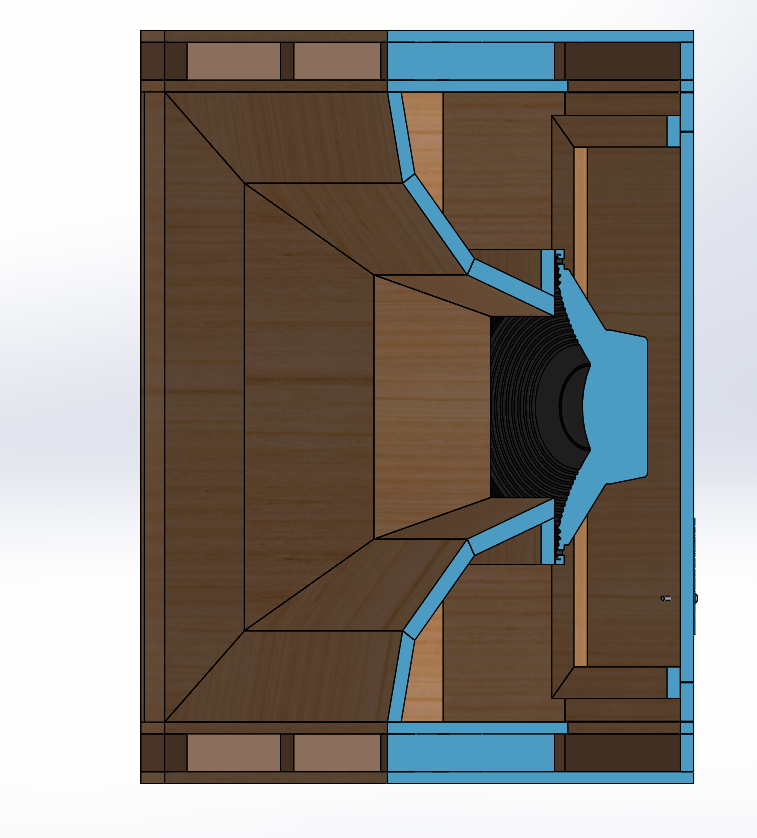

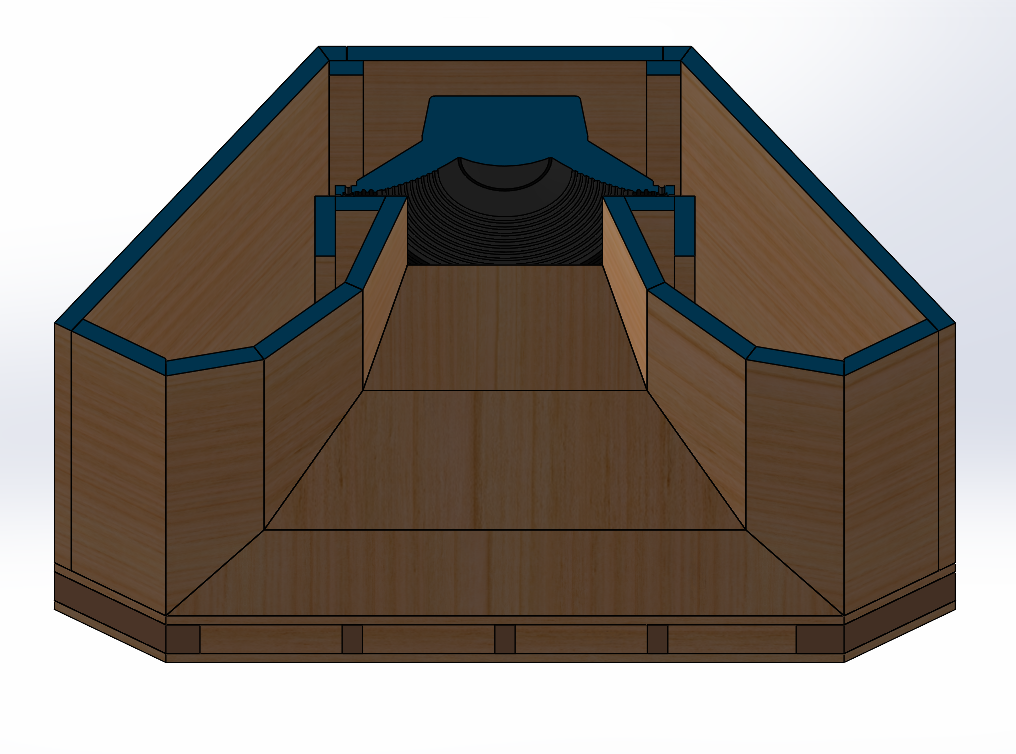

Bass Section

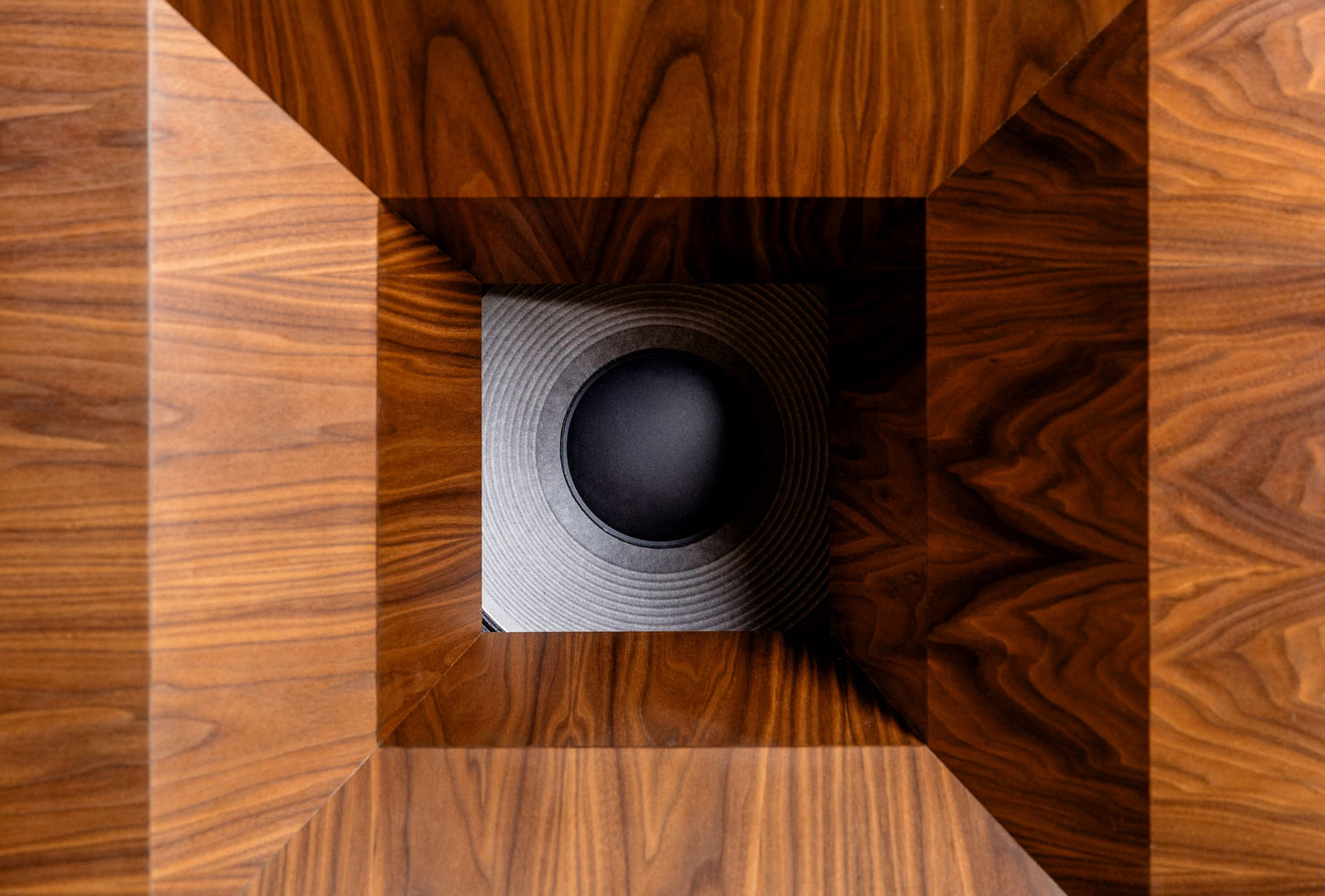

  • Beyma 18LX60V2 woofer
  • As per 1798 drawings

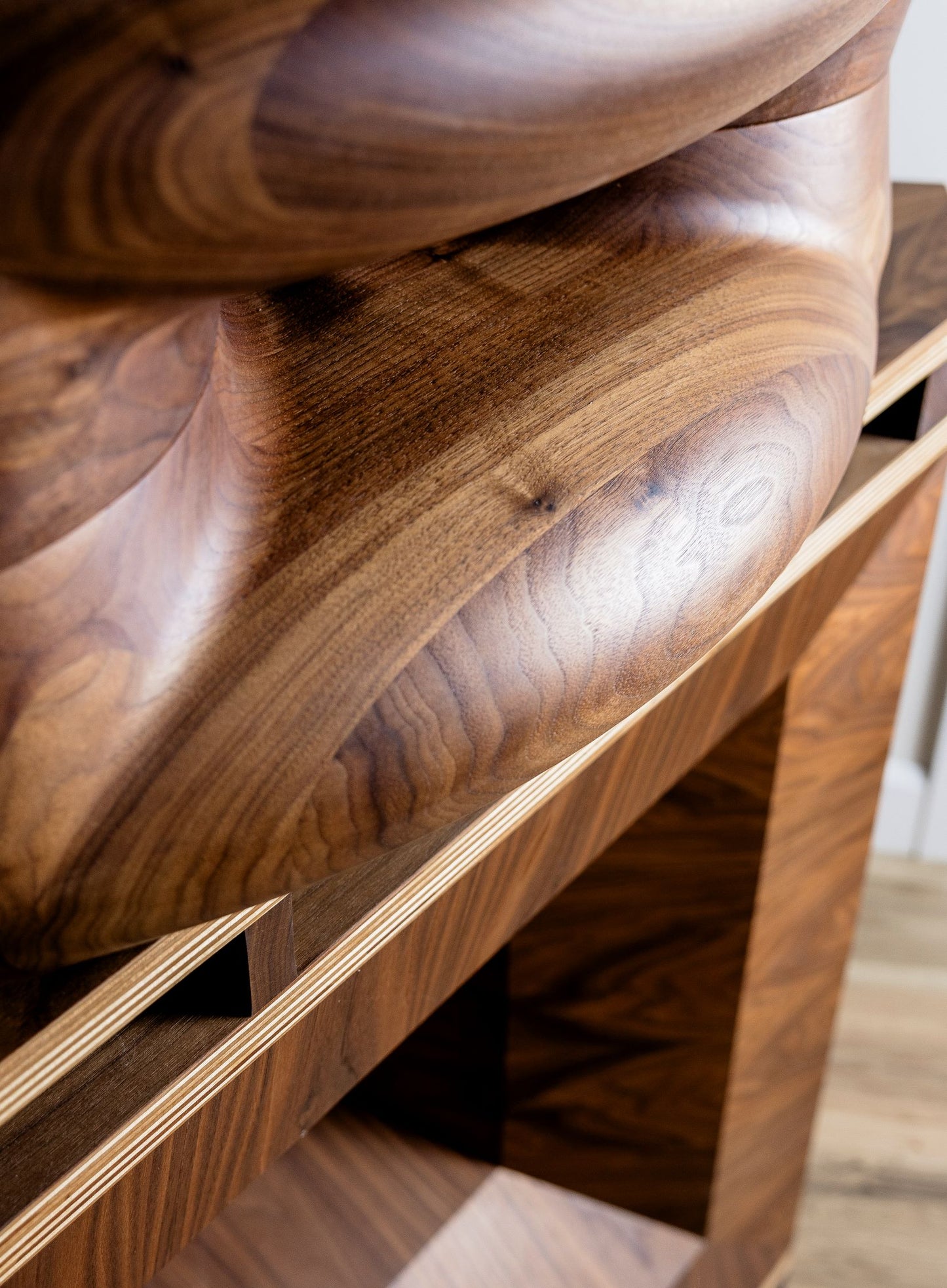

  • 24mm thick baltic birch plywood construction, walnut veneer
  • Solid walnut for the slot vent layers
  • Bass extension to 33Hz (F3)
  • 98dB sensitivity @2.83V (anechoic) 101dB (in-room)
  • Rear terminal plate (brushed nickel, laser engraved)
  • Plywood Commercial shipping crate with 1” protective foam on all sides

Midrange Section

High Frequency Section

    Passive Crossover

    • Developed using extensive listening and testing
    • Mounted inside the bass cabinet
    • Physically separated between low, mid, and high frequency sections (ie low pass filter for bass drivers resides in bottom of bass cabinet, midrange filter resides in upper portion of bass cabinet)
    • Mundorf EVO oil capacitors
    • OFC silver coated wire, PTFE jacket wire
    • Air core inductors
    • Point to point wiring (no circuit boards used)

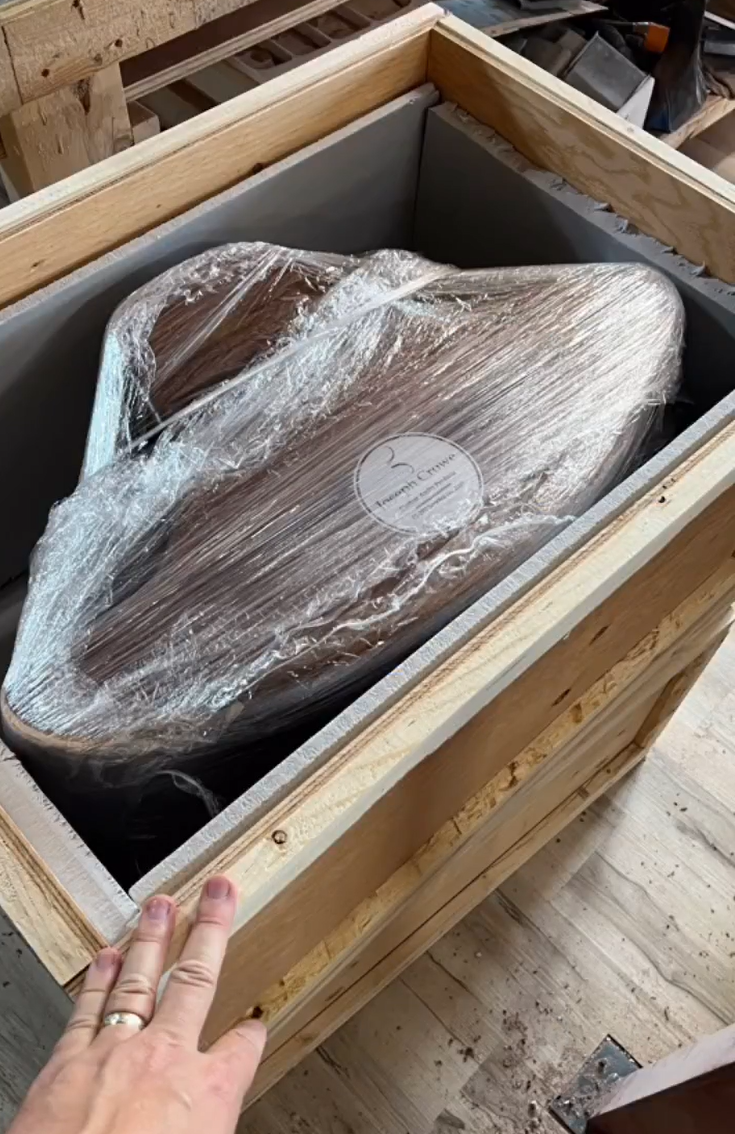

    Packing List
    Weight & dimensions are as follows:

    Crate 1 44” x 48” x 28” contains x1 single loudspeaker mounted in cabinet 225lbs
    Crate 2 44” x 48” x 28” (Same as above)
    Crate 3 36” x 32” x 48” contains x2 solid hardwood horns 180lbs
