Speaker System No.2037 - 6.5" 2-way

Speaker System No.2037 is a complete plan set for a 6.5" 2-way using the following drivers.

• 6.5" SB Acoustics  SB17NRX2C35-4 woofer
• Peerless OC25SC65-04 25mm Dome Tweeter 15cm circular ES Horn

By purchasing these plans you will automatically receive the required files and plans to build the speakers.

Includes:

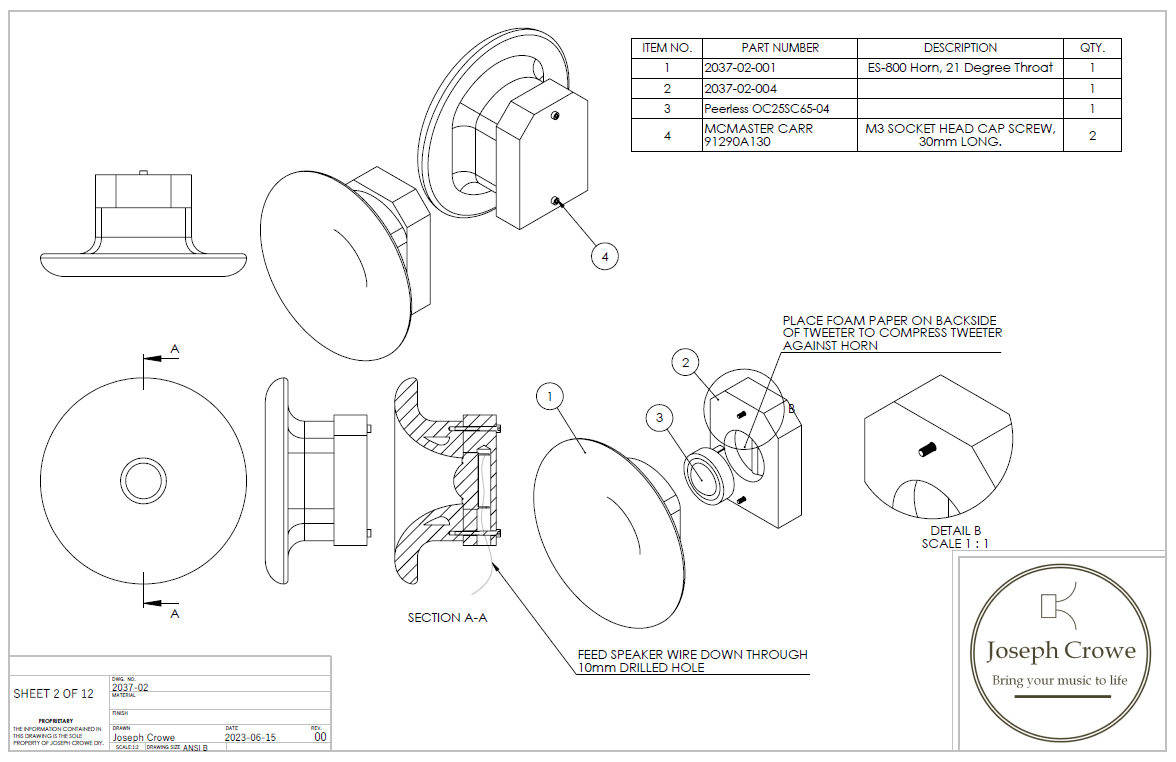

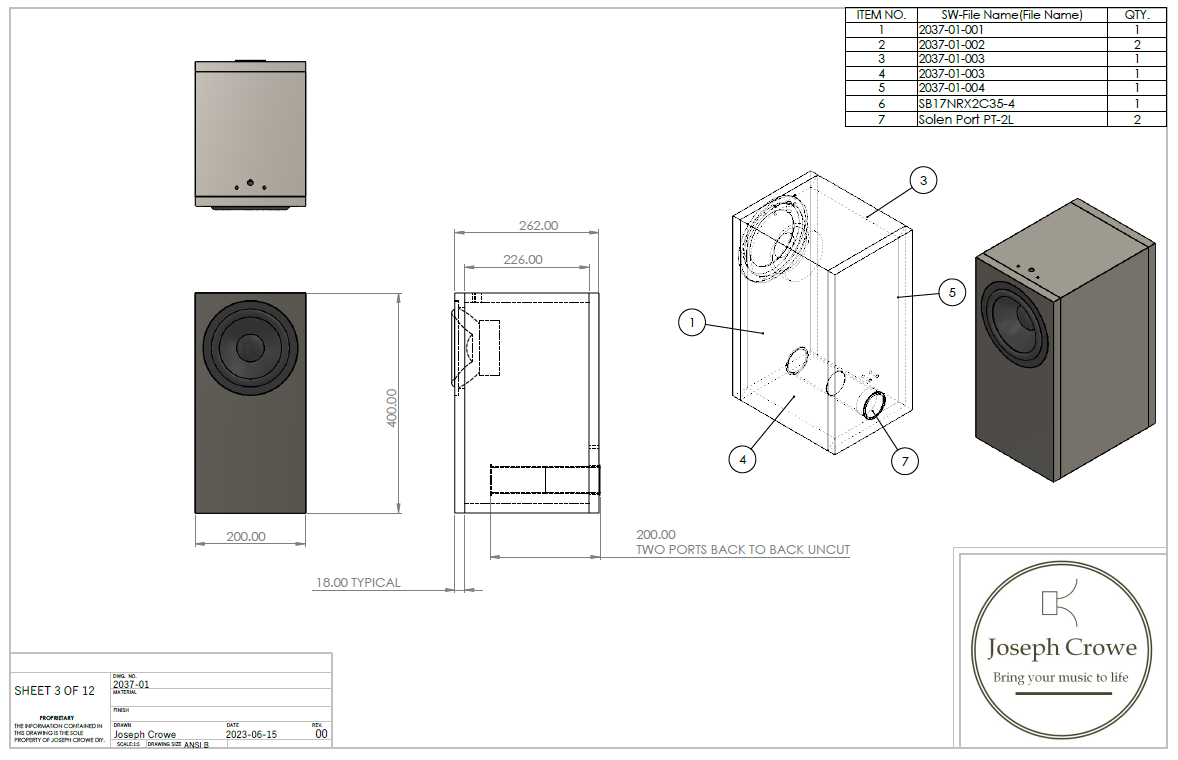

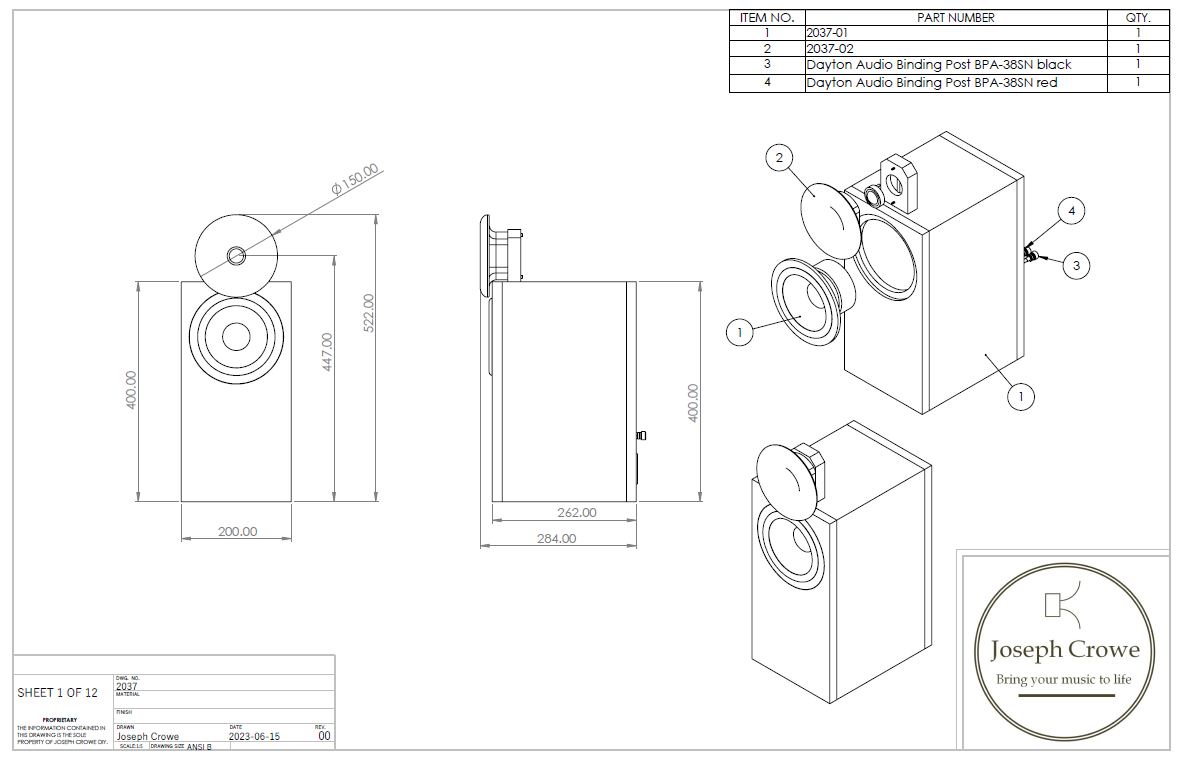

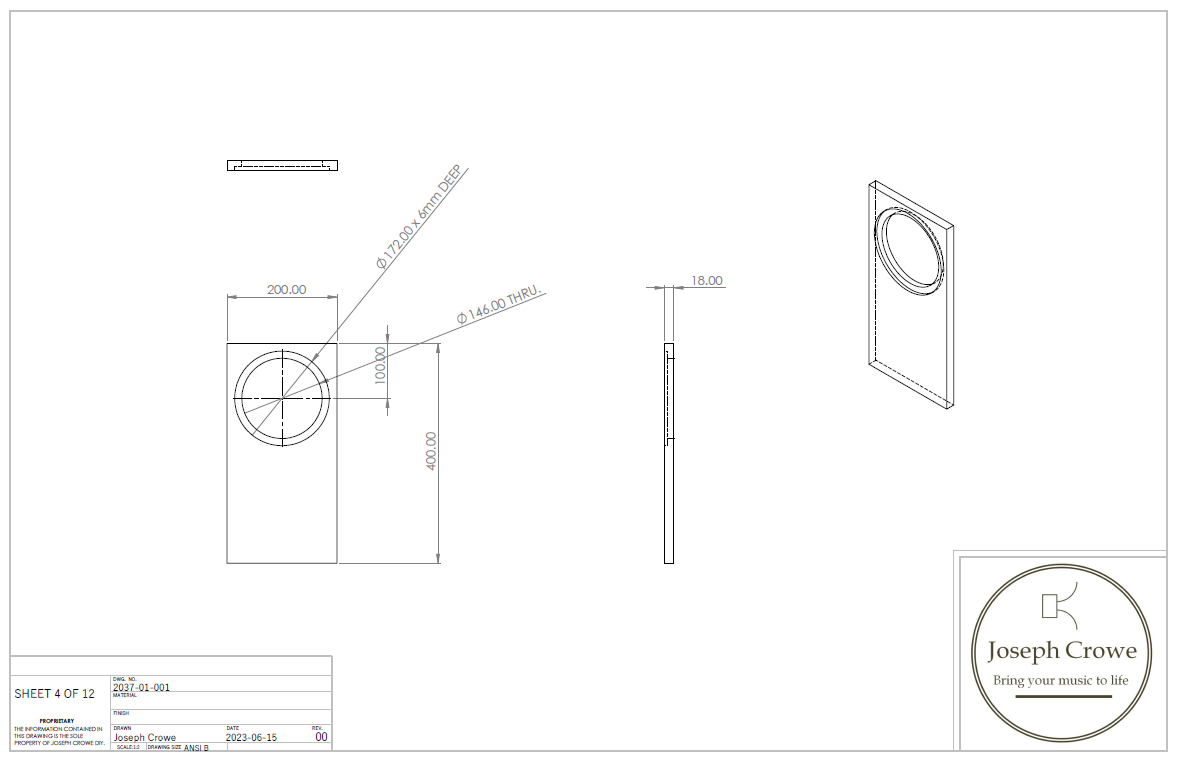

• Assembly and detail drawings (.PDF format)

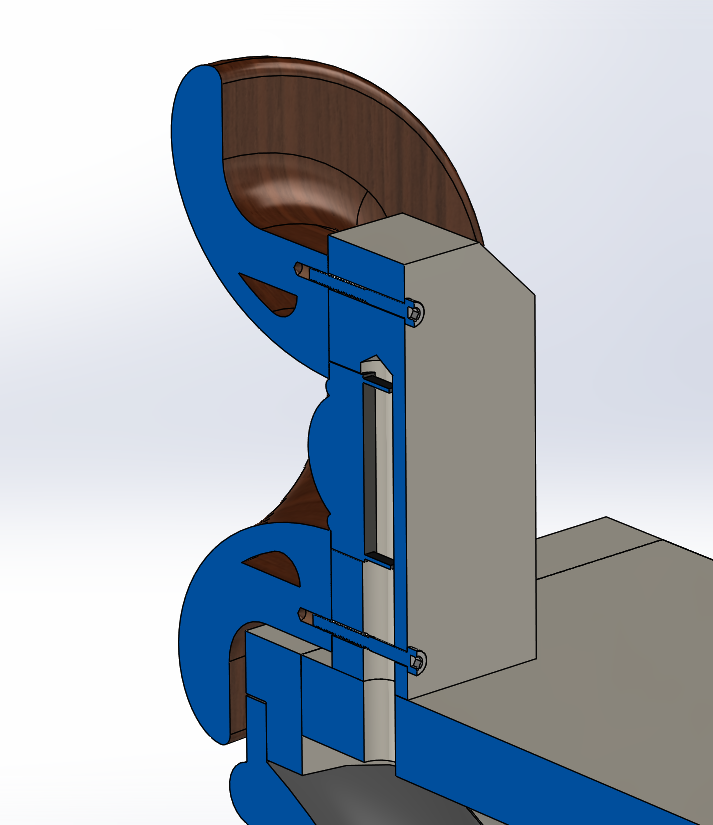

• 3D CAD file for 15cm circular ES horn (.STL & .iges format)

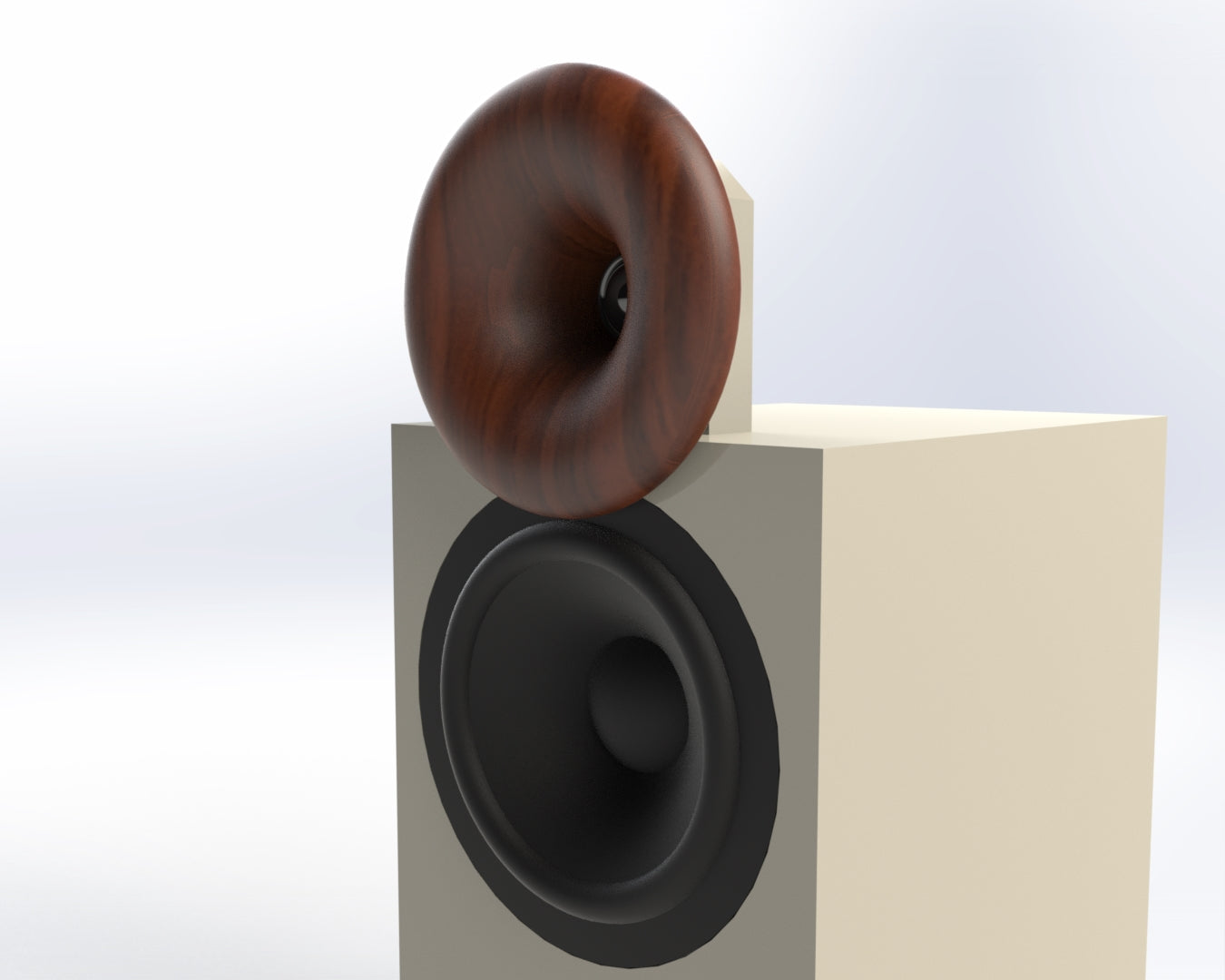

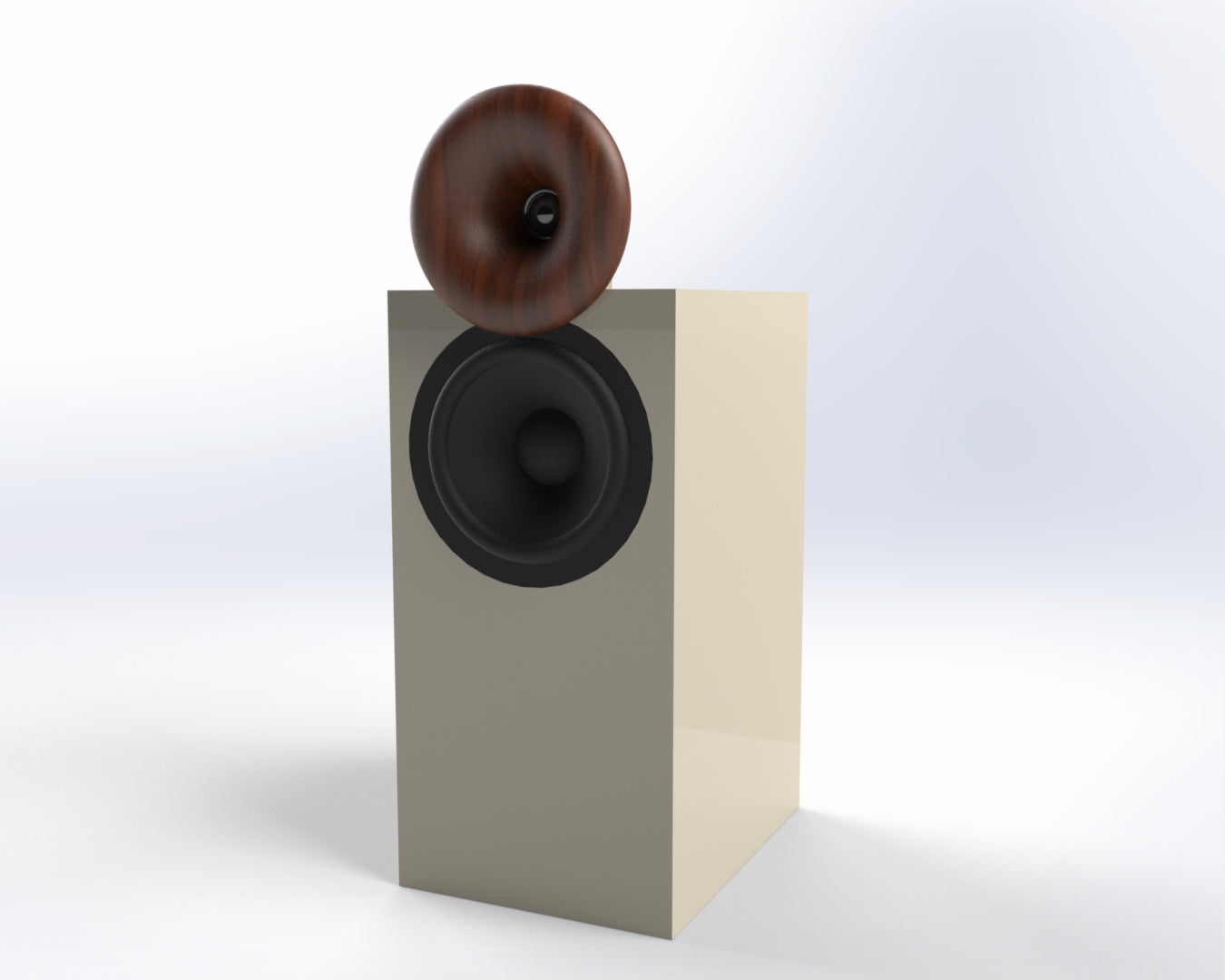

• 3D CAD file for entire speaker assembly (.iges format)
• Passive crossover schematic

Features:

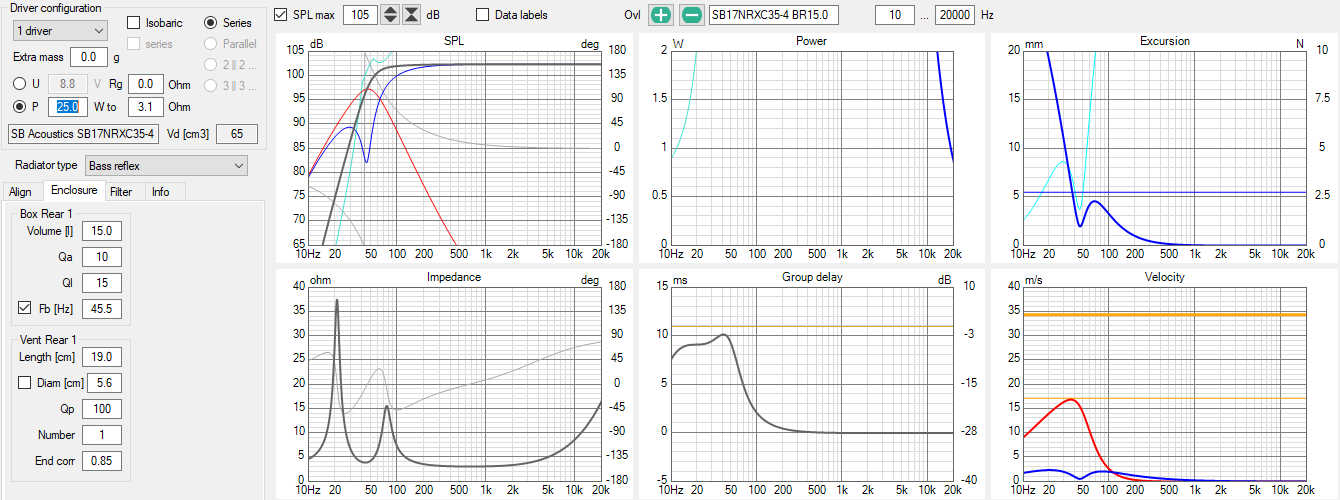

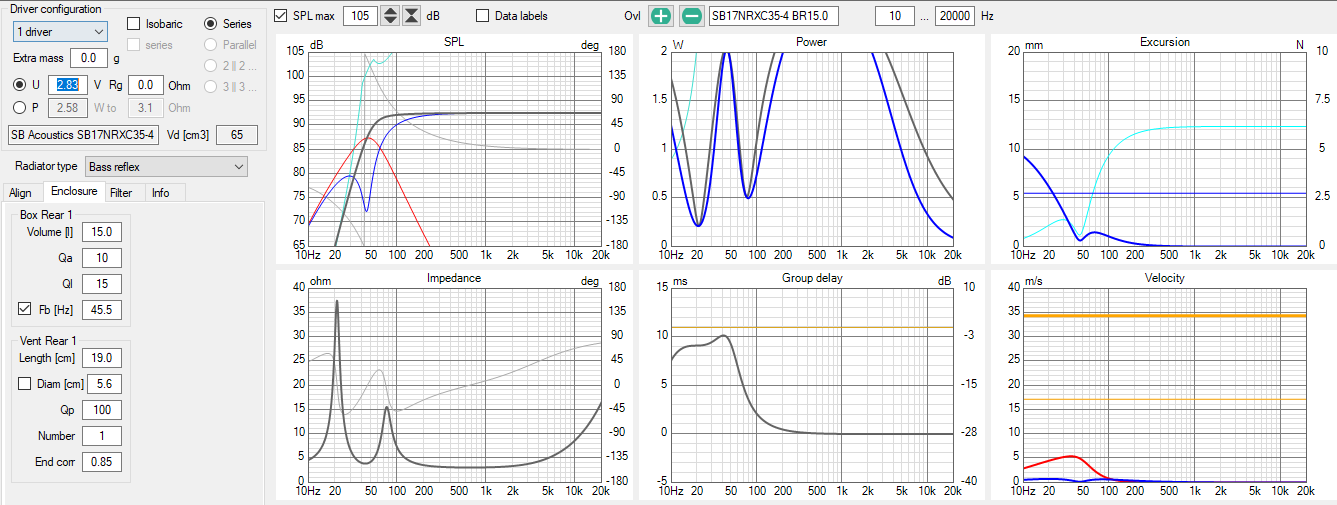

• 15L tuned to 45Hz
• 45Hz - 20kHz
• 90dB Sensitivity (2.83v)
• 4ohm nominal impedance
• Intermodulation distortion -82dB (0.008%) through midrange
• Incredible soundstage depth and imaging
• Very low diffraction design

Construction

• 18mm plywood for cabinet
• Plastic port, rear

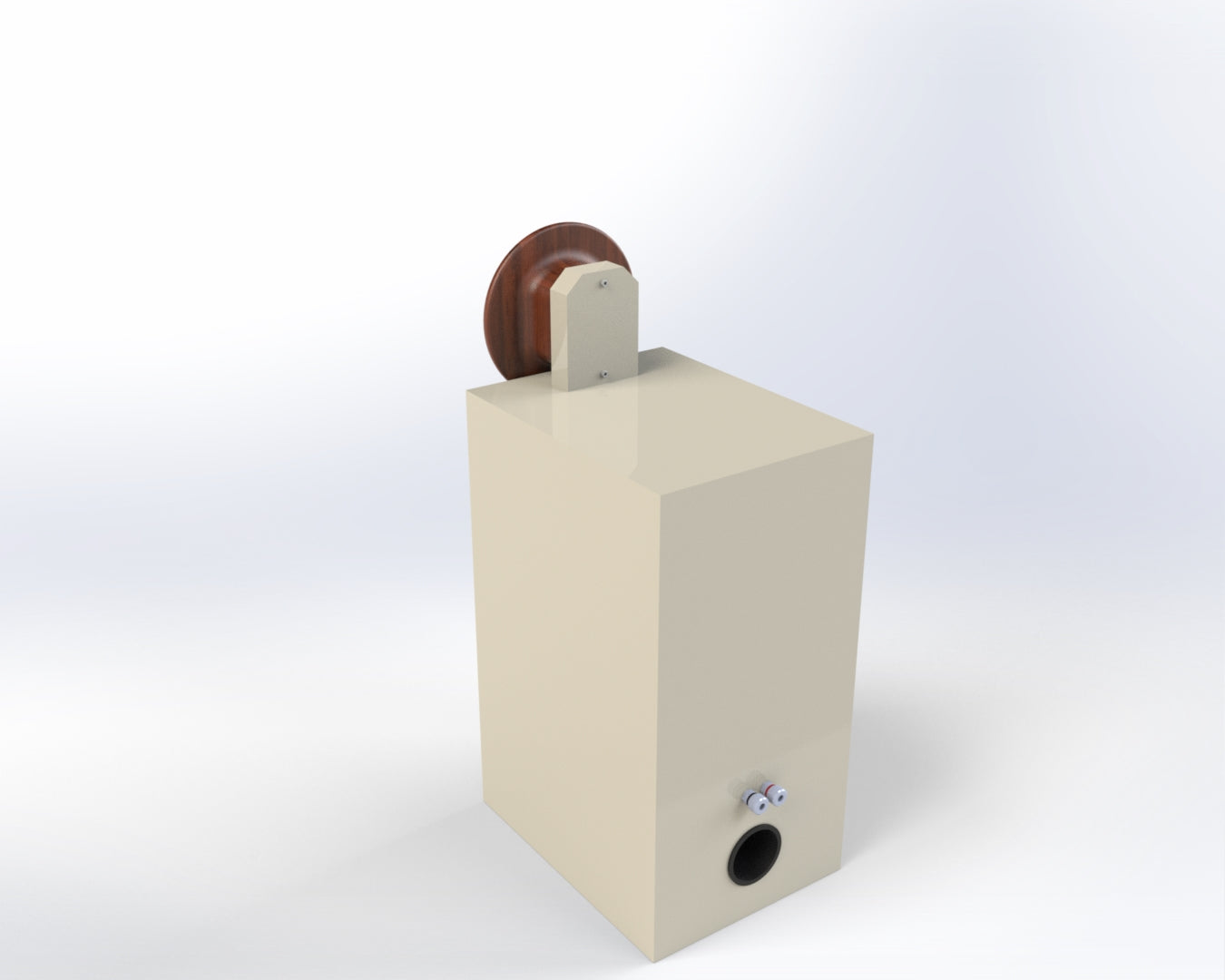

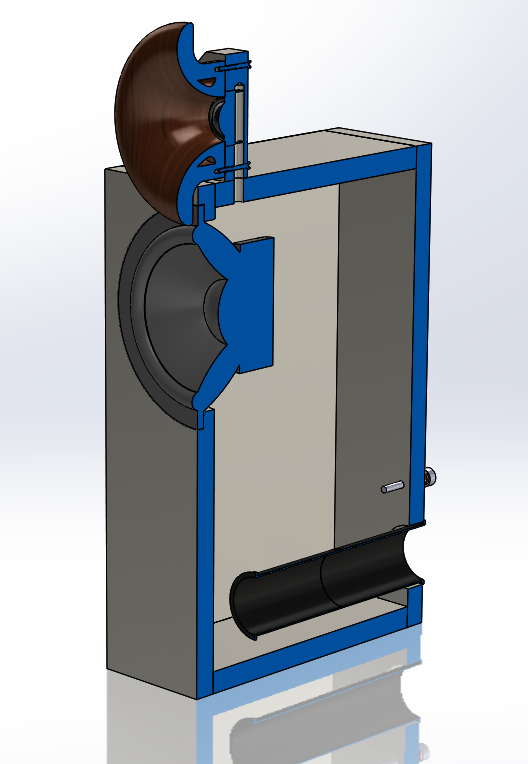

Click on the image below to enlarge.
