Speaker Plan No.2155 --- 15" 2-way

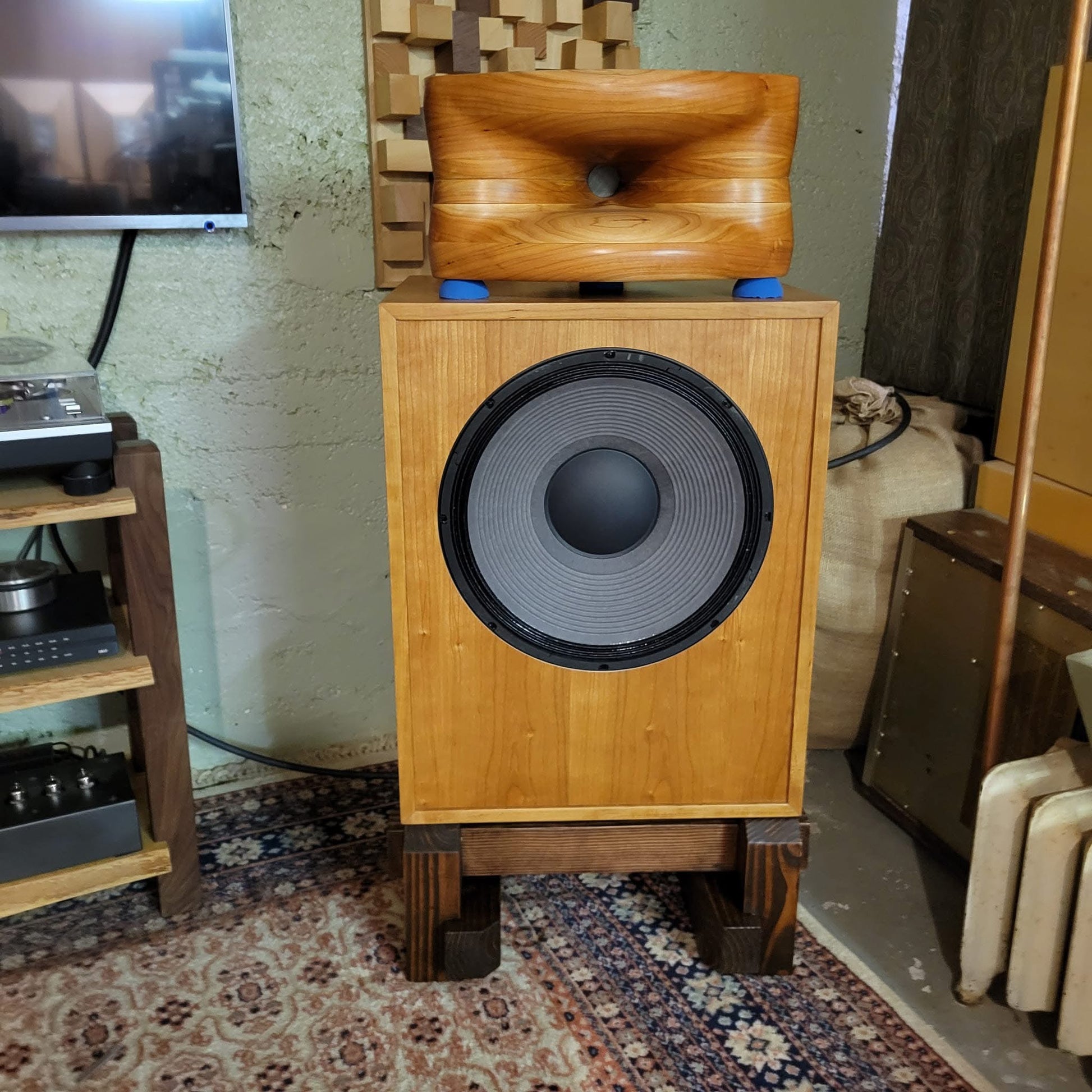

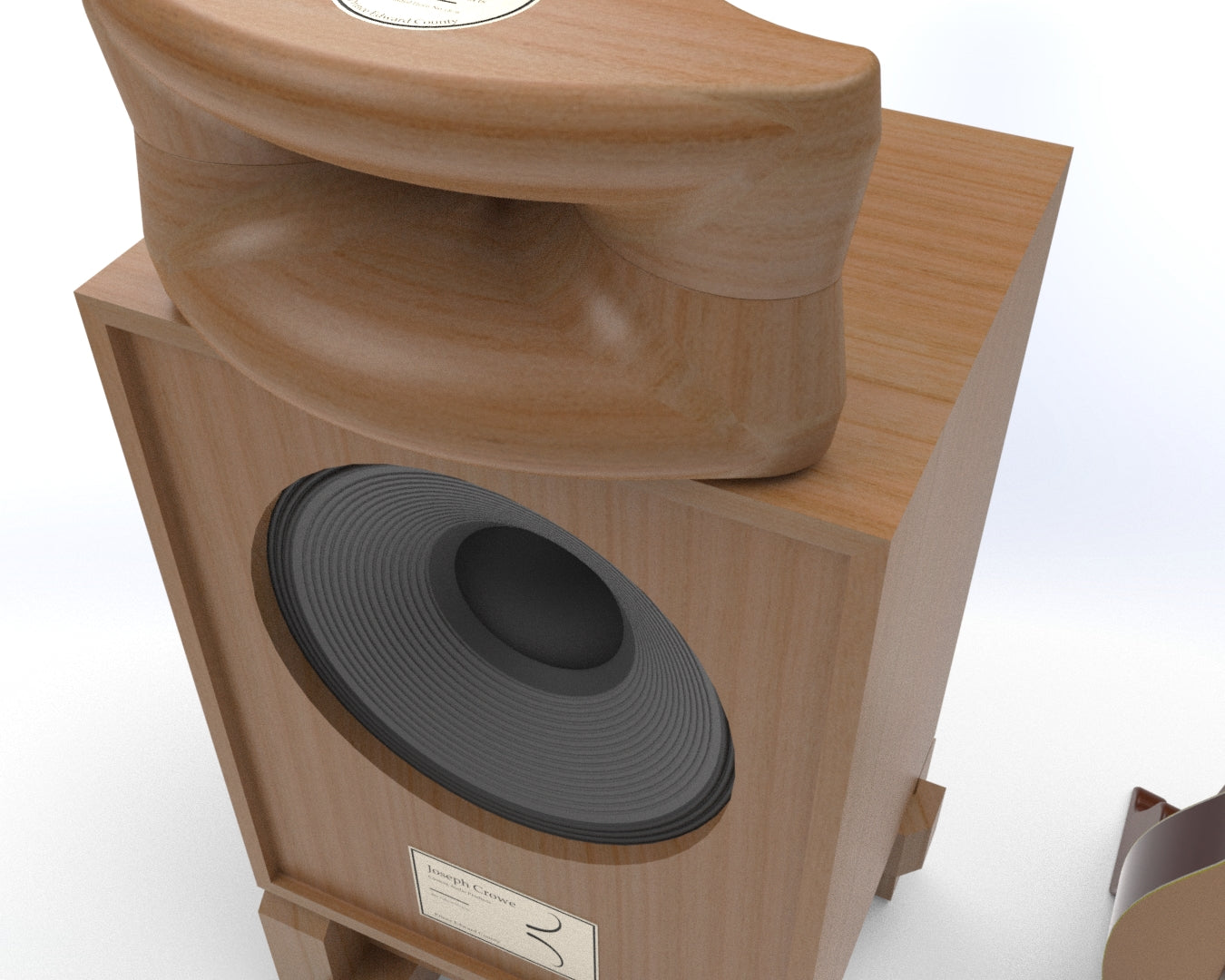

15" 2-way Plan Set (Complete)

By purchasing these plans you will automatically receive the required drawings and 3D CAD files required to construct the complete speaker.

• Complete plan set (emailed after ordering)

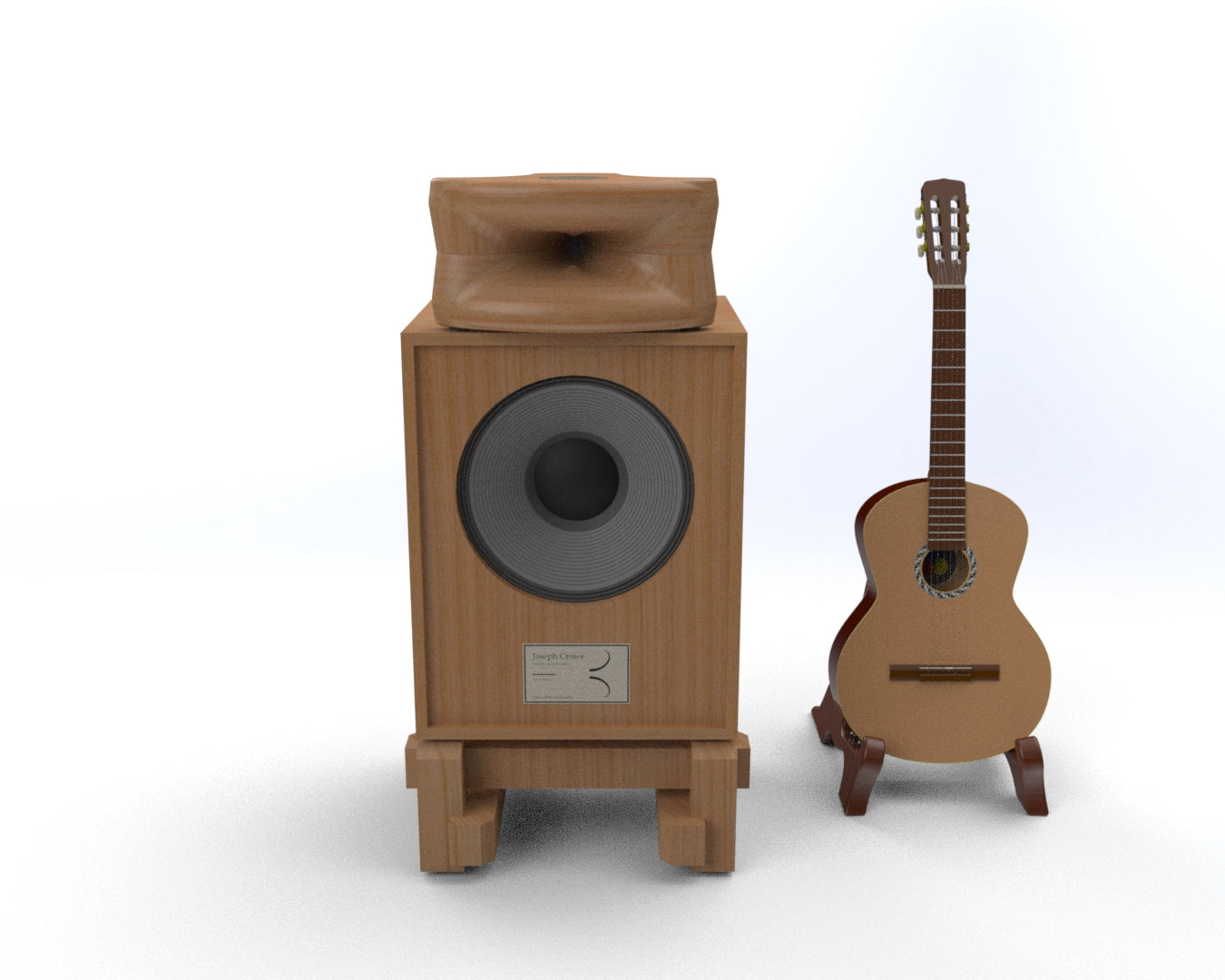

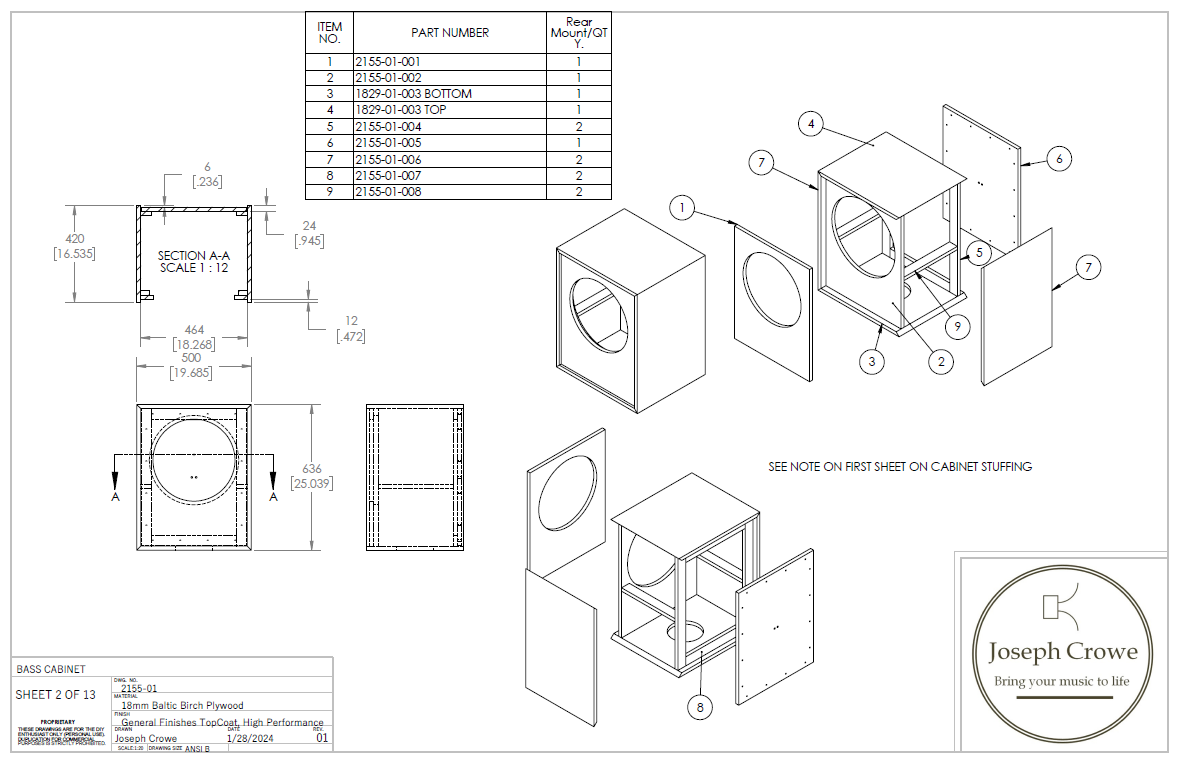

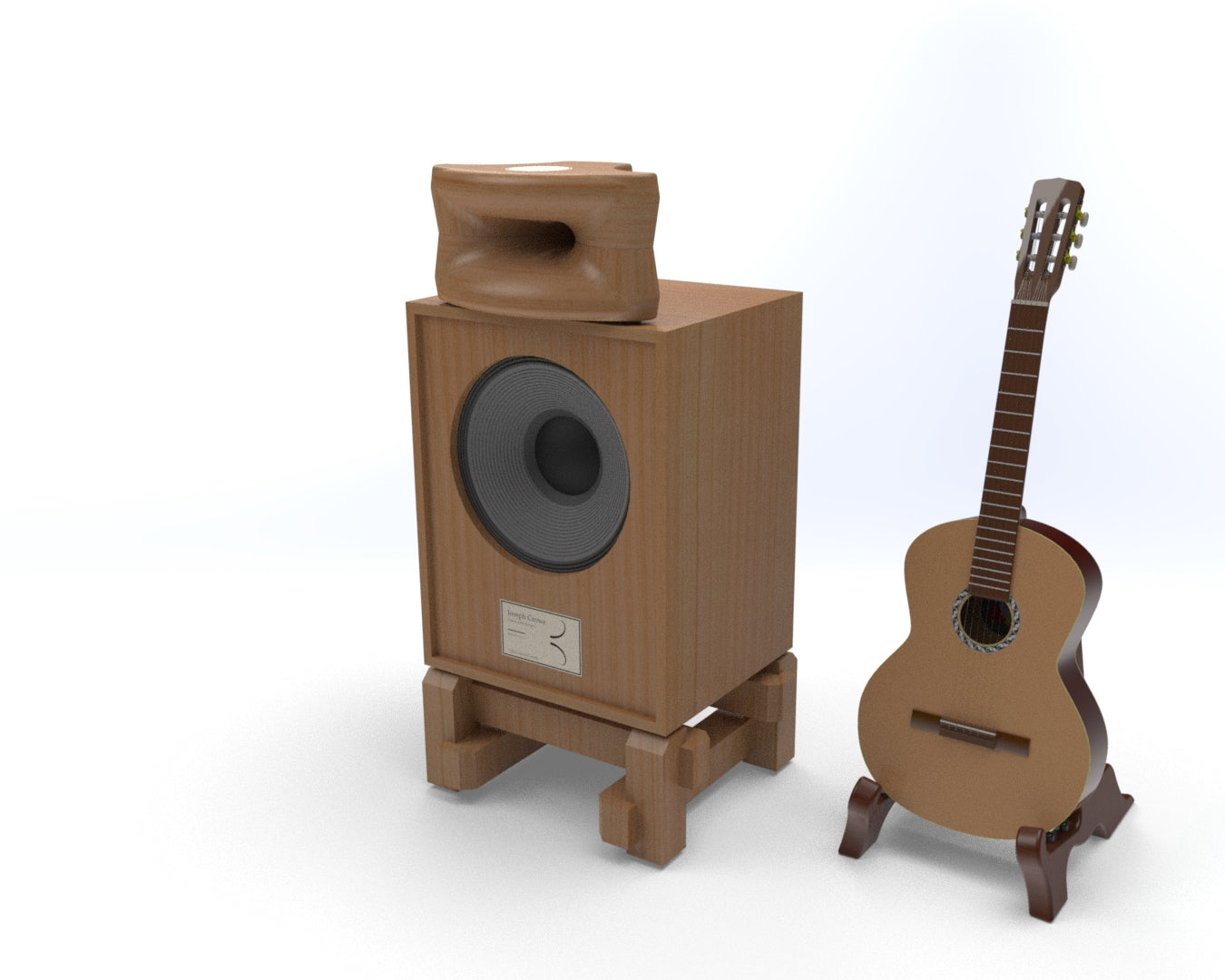

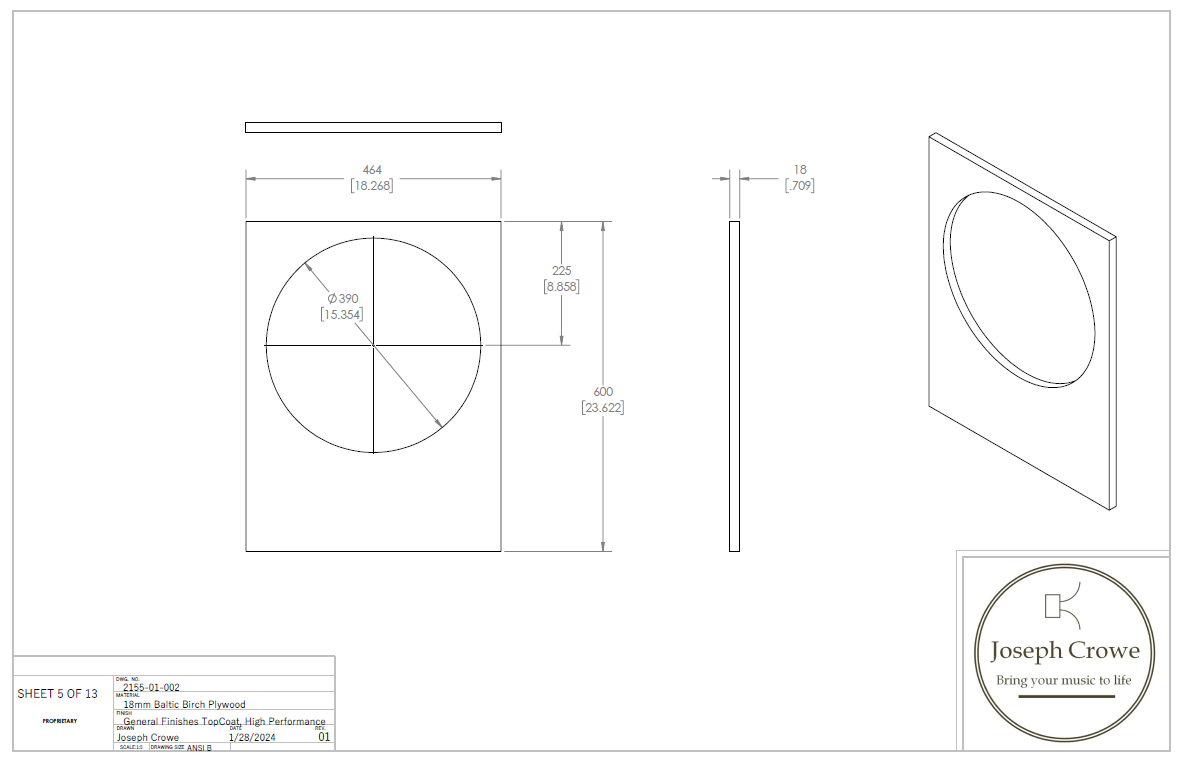

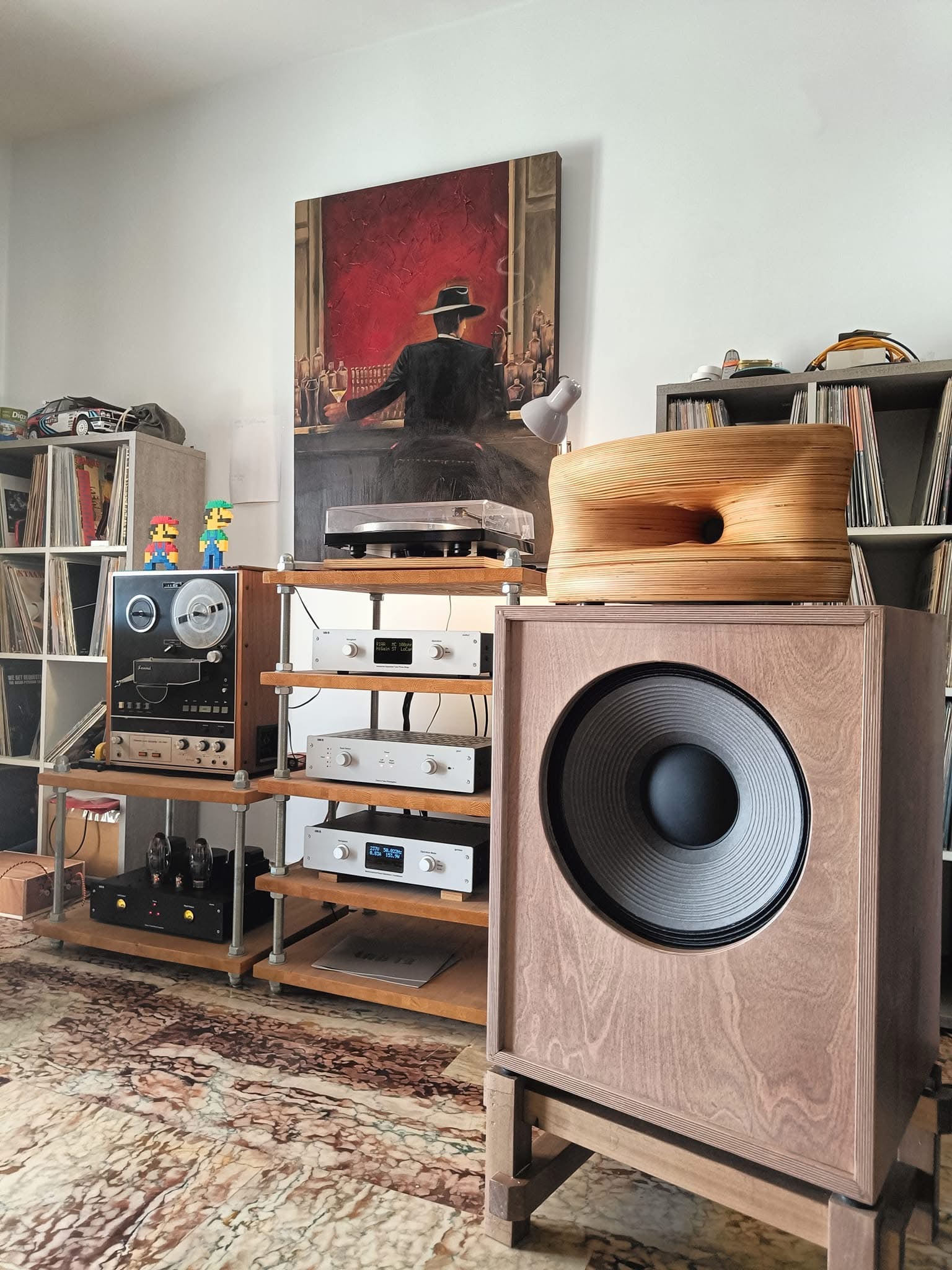

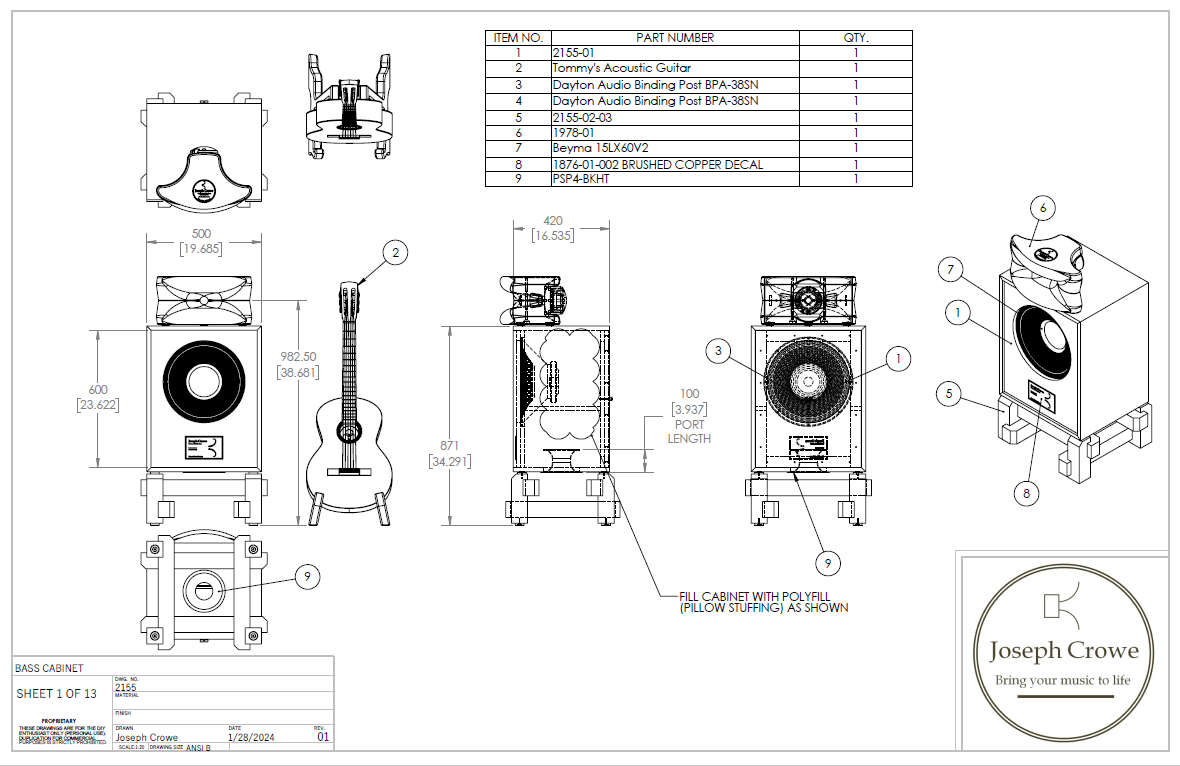

• .PDF drawings for bass cabinet

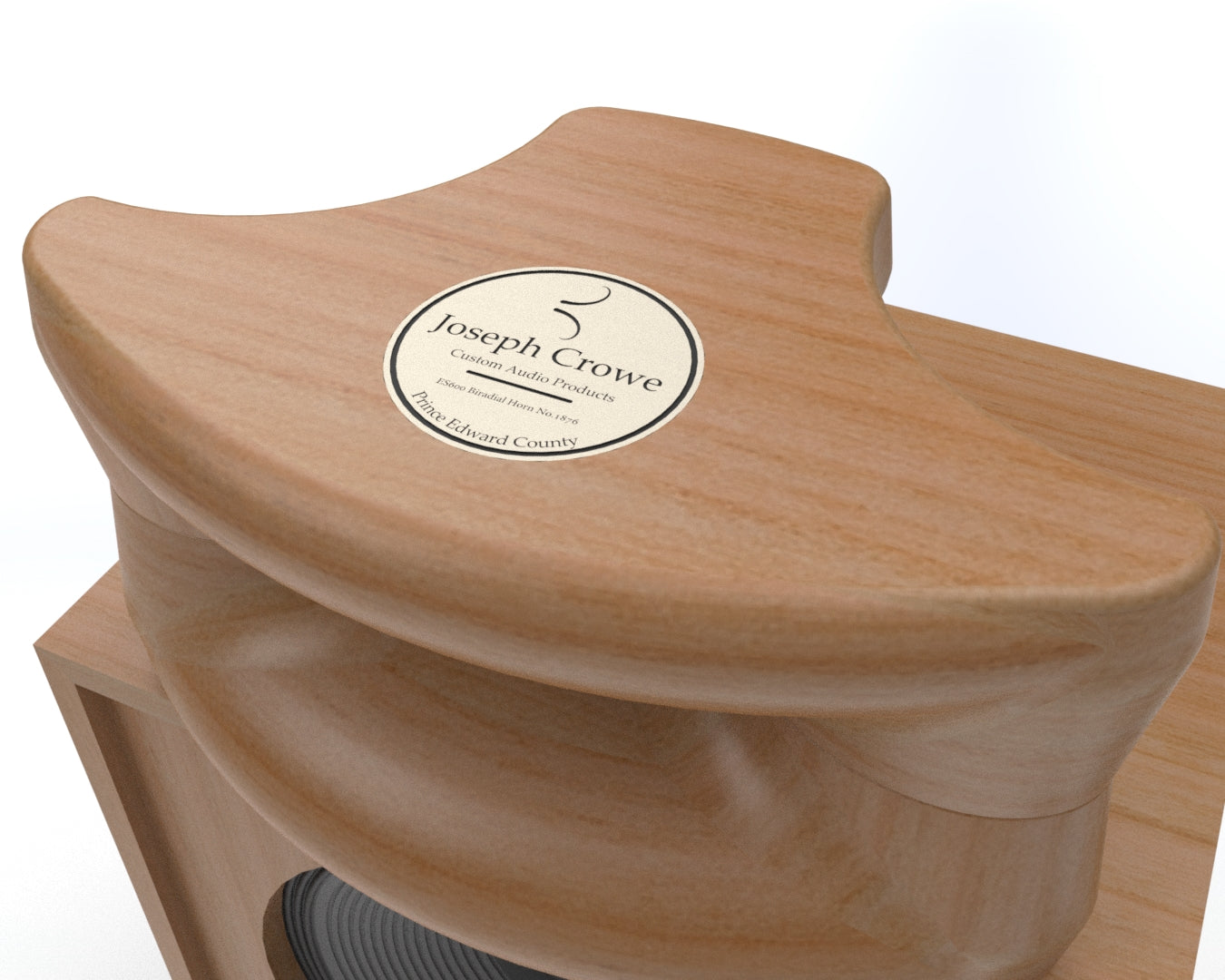

• 3D CAD files for ES-600 Biradial Horn No.1798
• .step format
• .STL format
• 3D CAD file for compression driver rear chamber
• Special rear chamber that replaces existing aluminum rear cover on stock compression driver
• Crossover schematic
• PDF format
• Suggested part numbers/brands
• Drawing for support stand
• PDF format
• Utilizes Beyma 15LX60V2
• Powerful and deep bass
• High sensitivity (98dB@1w anechoic)
• add +6dB for in-room sensitivity
• 35Hz bass extension
• Utilizes SB Audience 65CDN-T 1.40" compression driver
• 2.50" diaphragm (titanium)
• Very wide bandwith with first breakup at 17kHz
• Copper shorting rings for lower distortion
• Chosen for it's excellent clarity and smoothness
• No need for a super tweeter
• Bass cabinet
• Uses port kit PSP 4FLARE 4" Flared Port Tube Kit (PSP4-BKHT)
• 18mm thick birch plywood
• Double wall front baffle (36mm thick total)
• Braced

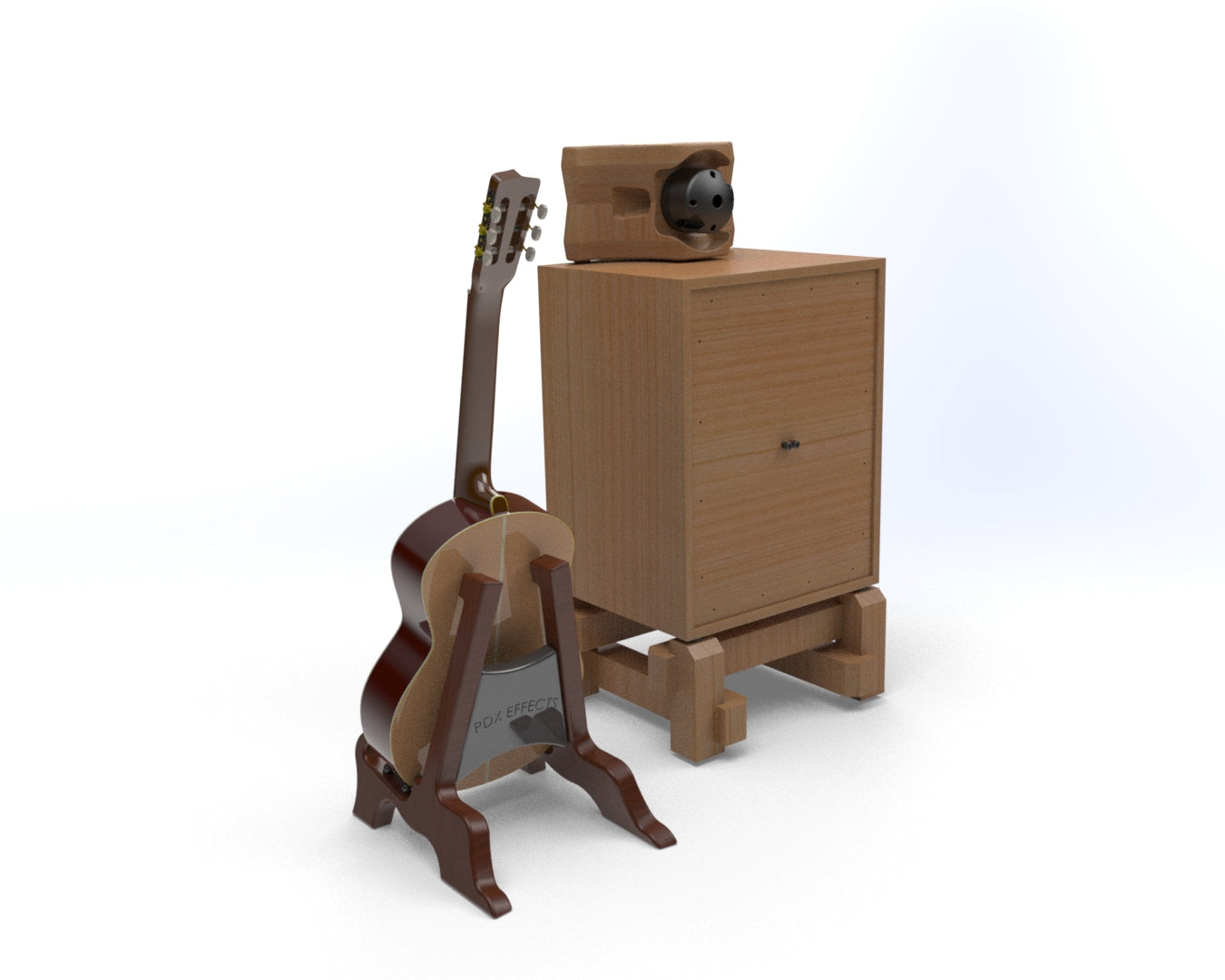

• Removable rear cover
• Rear mount woofer

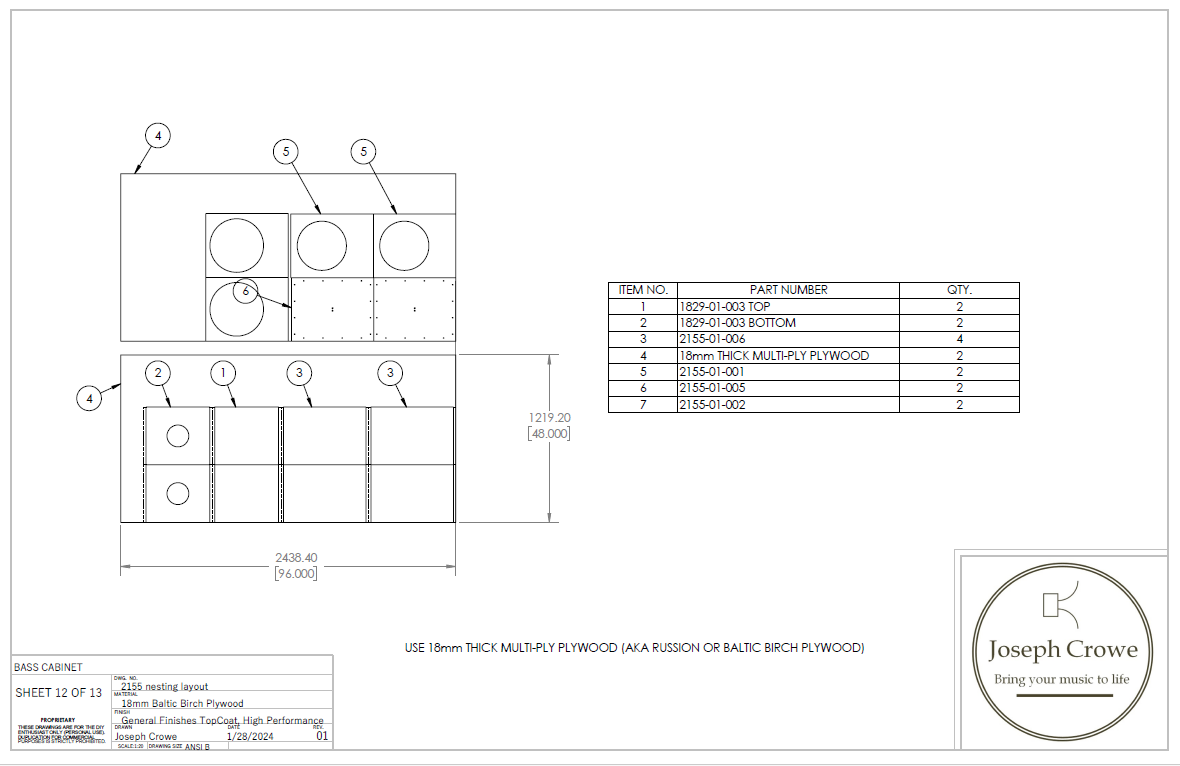

• Nested layout on standard 48" x 96" sheet of plywood
• Requires x4 sheets for one pair of cabinets
• Passive Crossover
• Fourth order low pass on low frequency driver
• Second order high pass on high frequency driver
• 600Hz crossover point

Available Options (contact for quote)

• Brushed nickel or copper decals
• Drivers and crossover components shipped within the USA
• Turn-key build
• ES-600 Biradial Horns
