Joseph Crowe

3D CAD Model for Rear Cover No.2021 for Faital HF1460 Compression Driver

Regular price $30.00 USD
Regular price Sale price $30.00 USD
Sale Sold out

1 total reviews

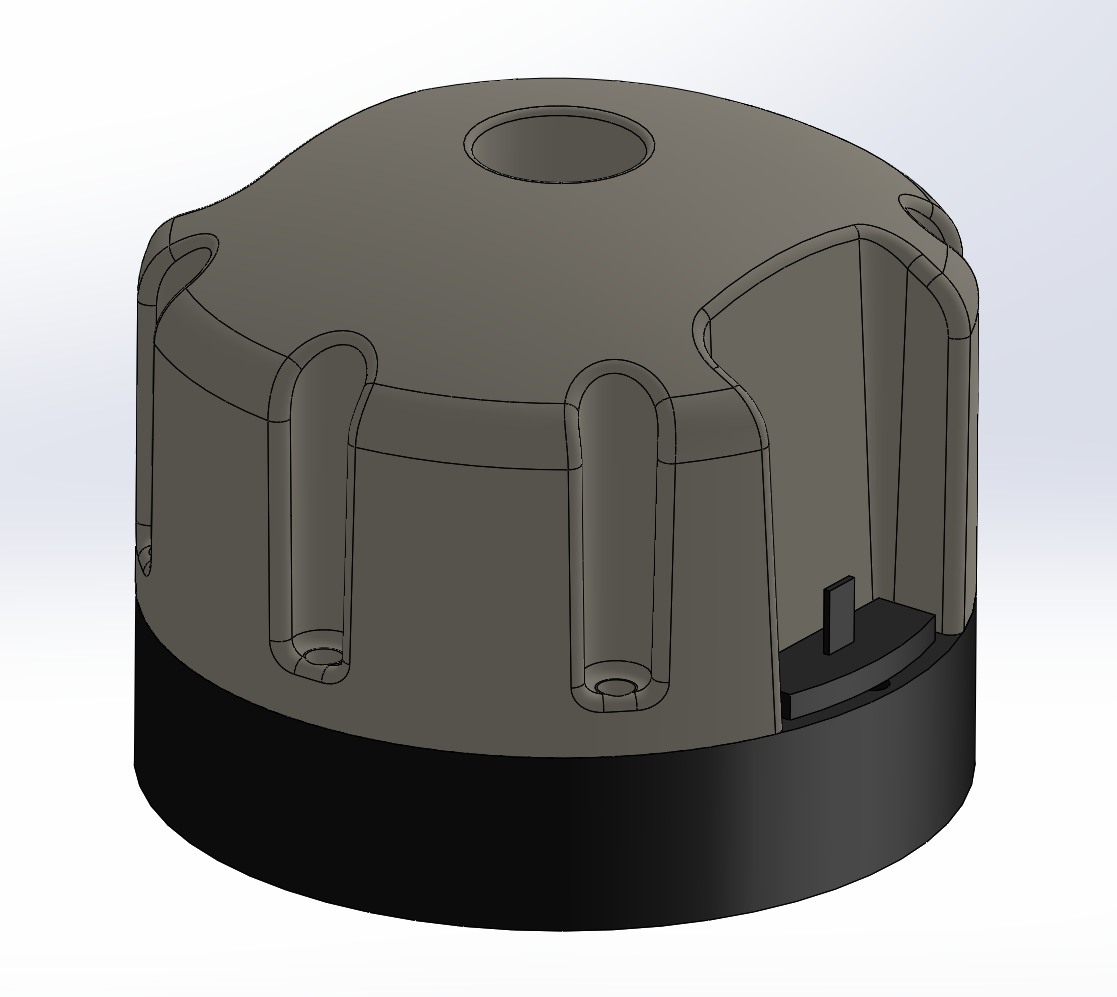

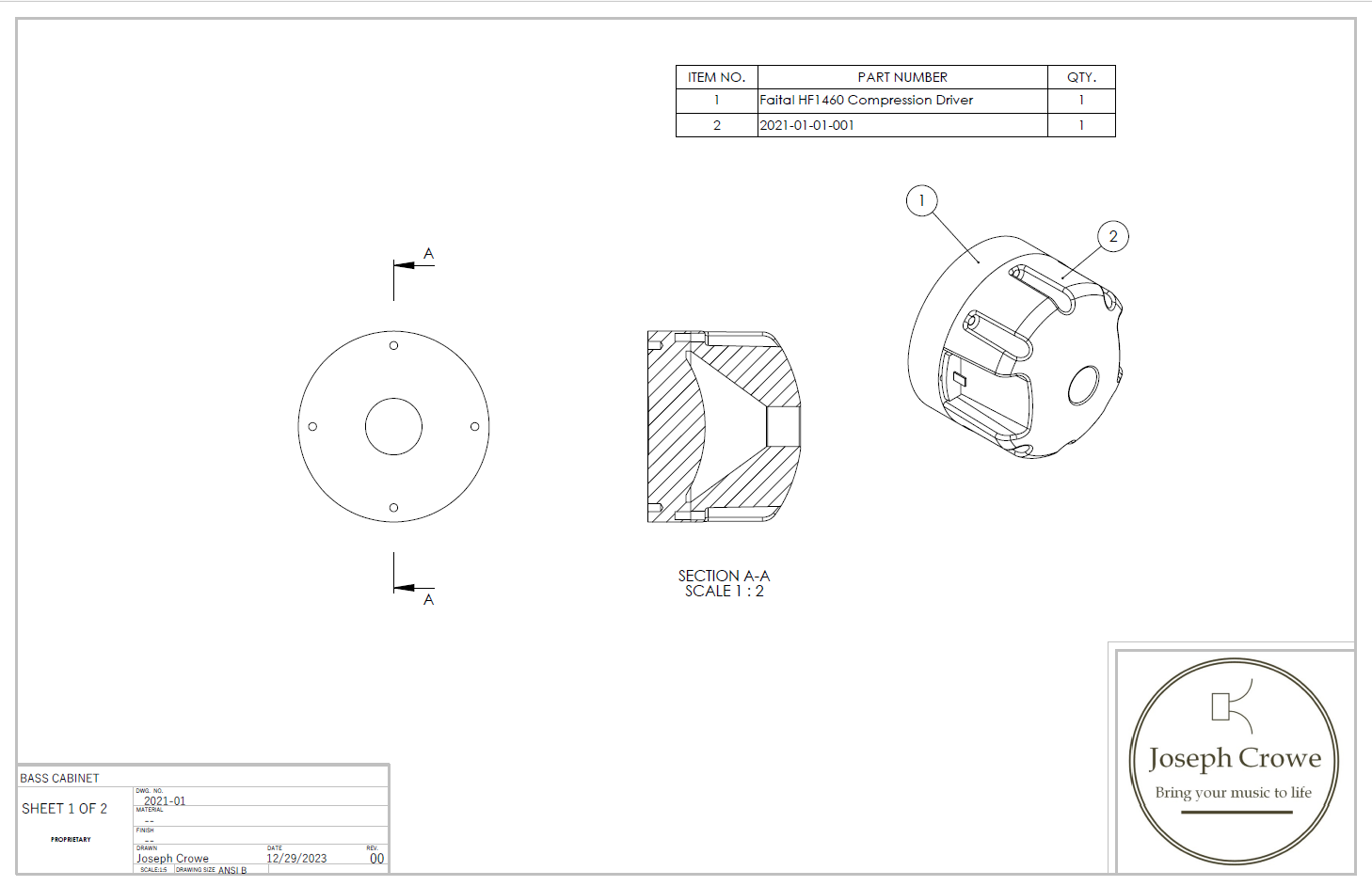

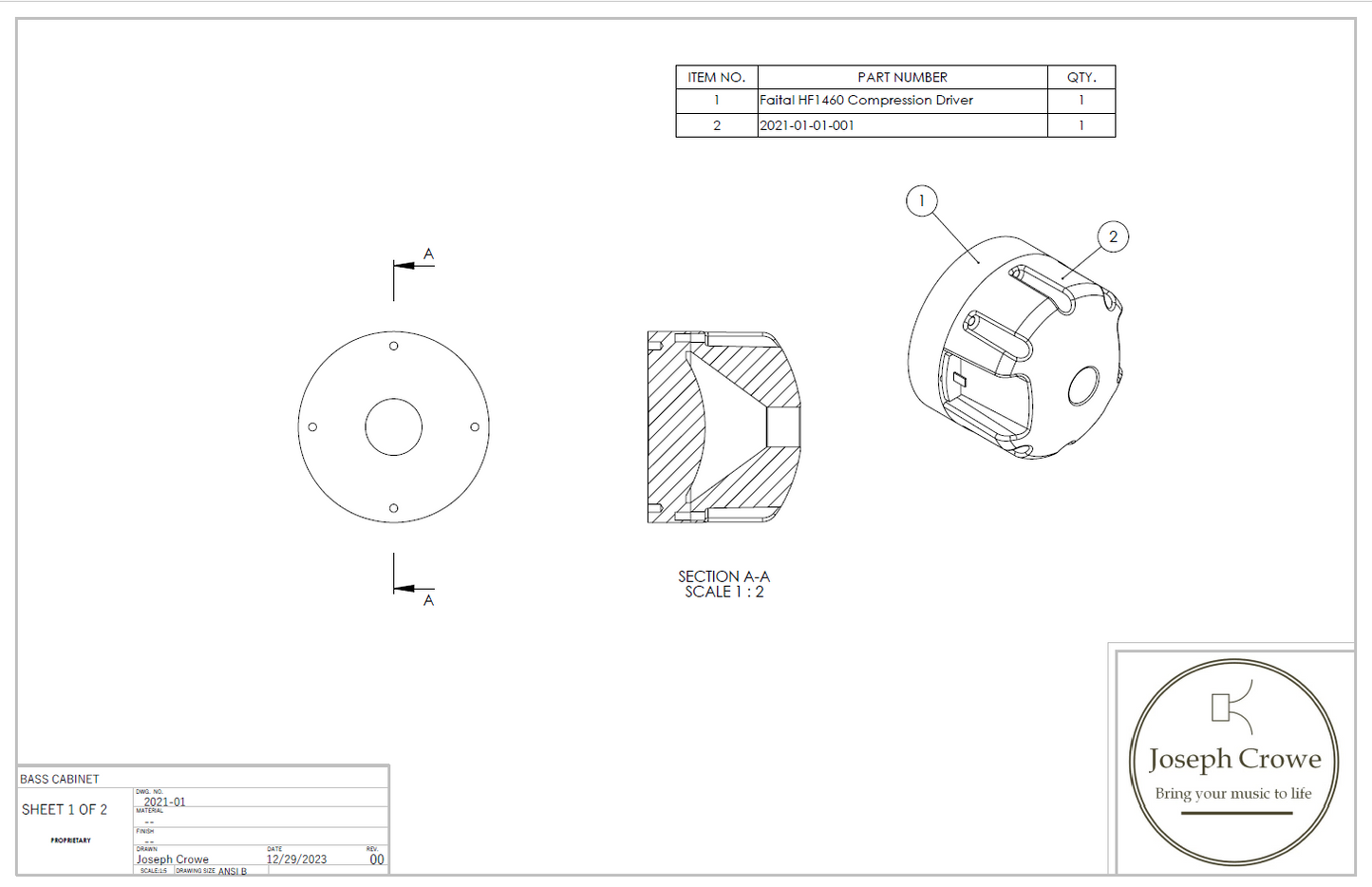

This is the 3D CAD File that I specifically designed for the Faital HF1460 compression driver.

By purchasing this file you will automatically receive via email the .STL file which allows you to 3D print the rear cover.


  • Enlarges rear chamber volume compared to stock
    • Lowers FS from 490Hz to 300Hz
    • Cleans up subjective sound quality in the 500Hz-1kHz region
    • Optimized for home audio use where high SPL levels are not required
  • Uses existing mounting screws

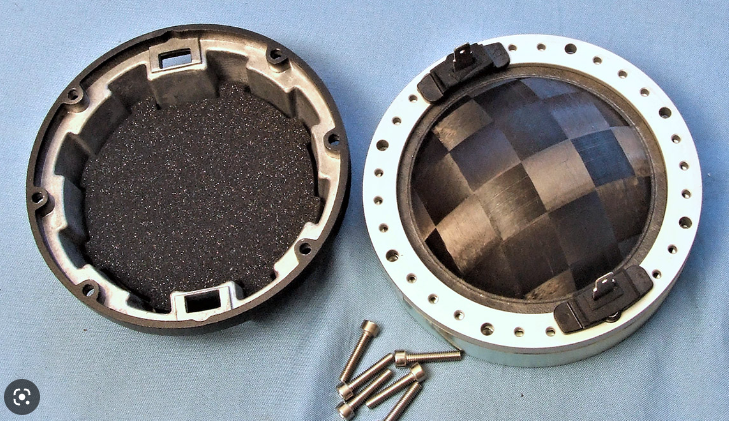

  • Simply remove existing cover and install new cover
  • No insulation or stuffing material required or suggested

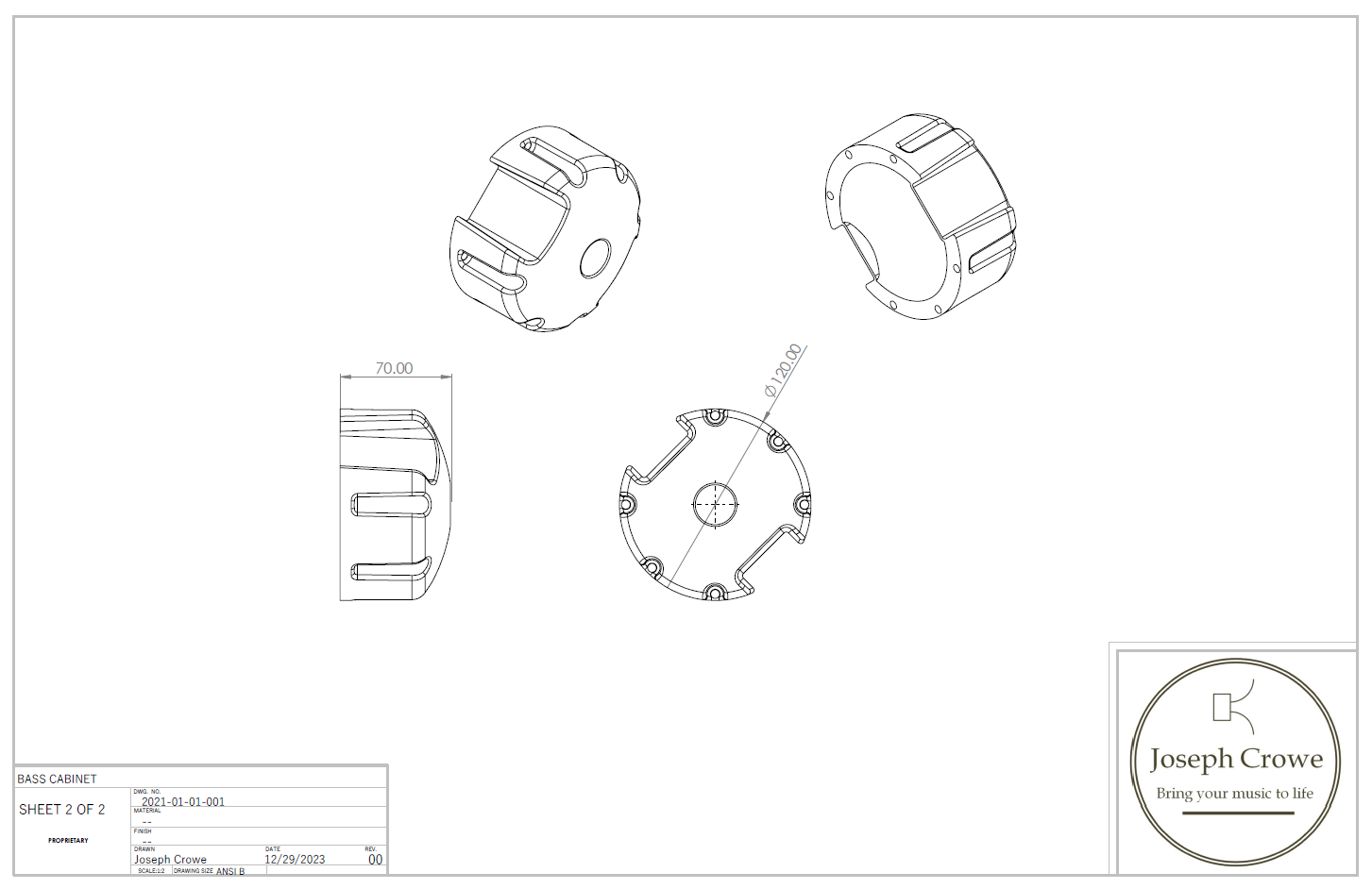

  • Physically measures 120mm diameter x 70mm deep
  • Suggest at least 50% infill for print settings
  • Custom design for rear covers available for other drivers (please contact
  • Zipped file is automatically emailed to you after ordering. Check your junk/spam folder if you don't see it right away.
