3D CAD File --- Rear Cover No.2376 for SB Audience 65CDN-T
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Unit price
per
Couldn't load pickup availability

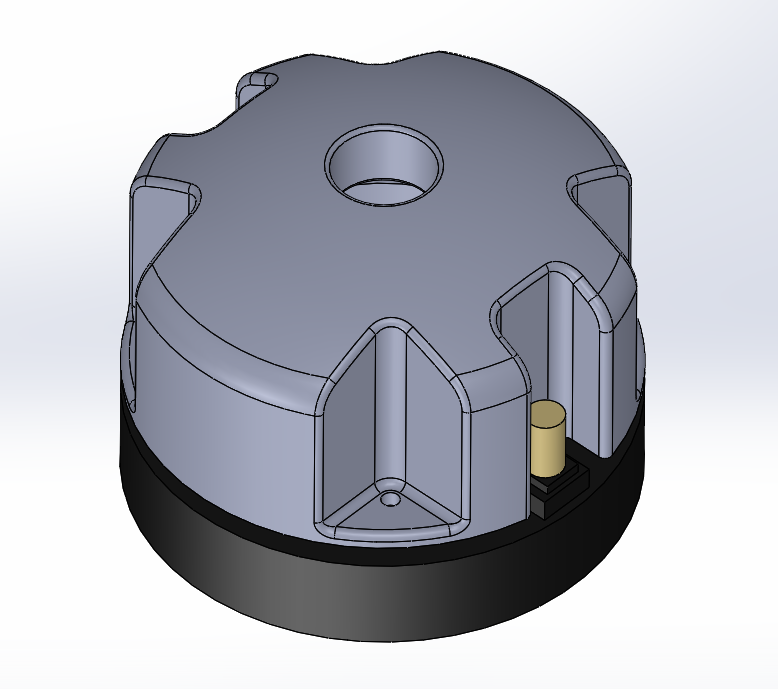

This product is the 3D CAD file that I designed specifically for the SB Audience 65CDN-T compression driver. This cover will also work for the ceramic version (65CD-T).
Features

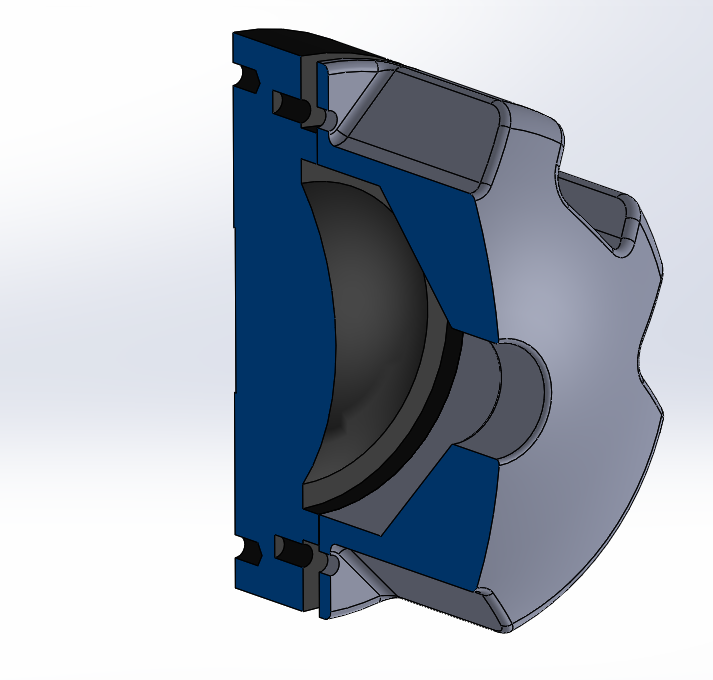

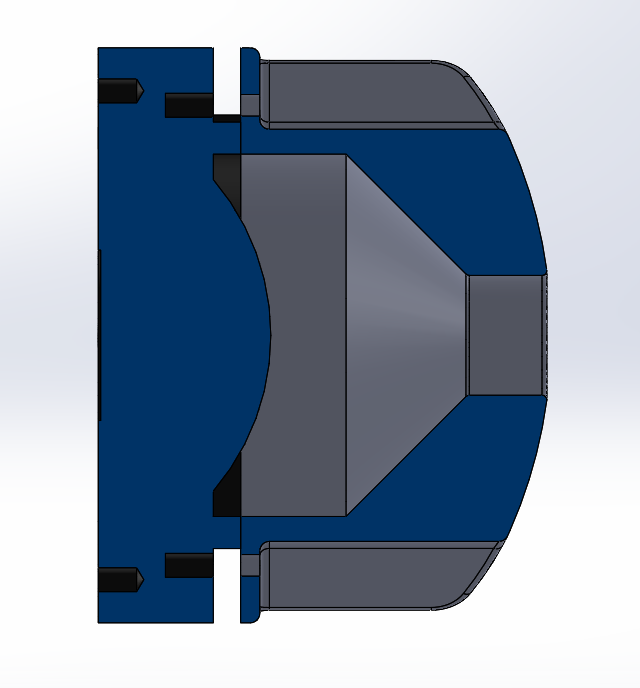

- Enlarges rear chamber volume compared to stock
- Lowers FS from 460Hz to 270Hz
- Cleans up subjective sound quality in the 500Hz-1kHz region
- Optimized for home audio use where high SPL levels are not required
- Uses existing mounting screws
- Simply remove existing cover and install new cover
- No insulation or stuffing material required or suggested
- Includes vented and non-vented version of the file (see below)
- File format is .STL for 3D printing

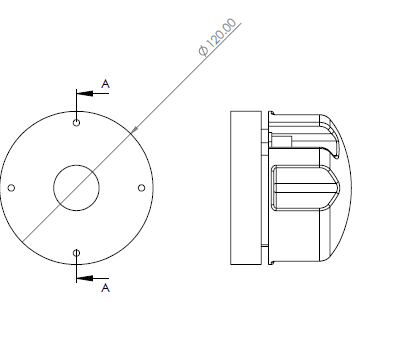

- Physically measures 120mm diameter x 70mm deep
- Suggest at least 50% infill for print settings
- Custom design for rear covers available for other drivers (please contact joseph_crowe@josephcrowe.com)
- Zipped file is automatically emailed to you after ordering. Check your junk/spam folder if you don't see it right away.
