Subwoofer No.1097 -- Inventory

Note: One cabinet has been sold and we have x1 cabinet left. Cost is $2,000 USD plus shipping for the cabinet. Delivery can be arranged if you are in the Toronto or Ottawa (Canada) region. The cabinet does not have the plate amplifier. The cabinet is equipped with a rear terminal plate that covers the area where the plate amplifier would go. We can purchase and install the plate amplifier new for additional cost.

Subwoofer No.1097 is a Joseph Crowe exclusive design with the following design targets.

• Ultra low distortion (<0.25% THD)
• High SPL 122dB @ 1 meter
• F3 of 25Hz (Tuning 22Hz)

Cost

• $2,000 USD each + shipping
• x1 available
• shipping available via FedeX Air Economy (commercial)

Other Details

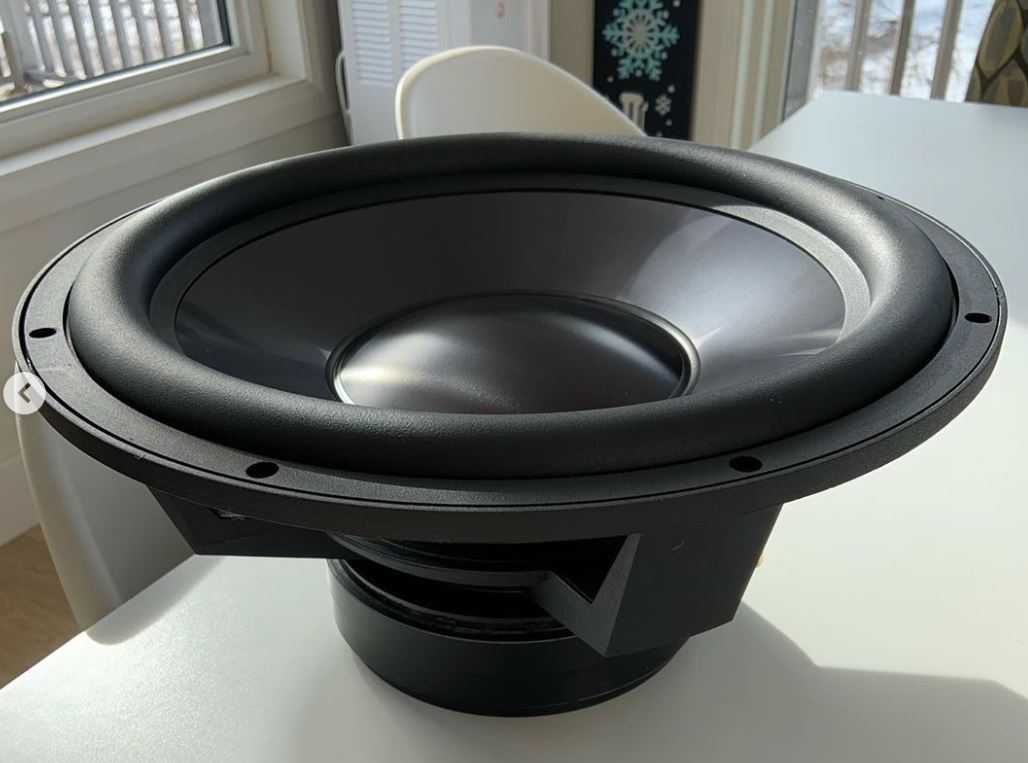

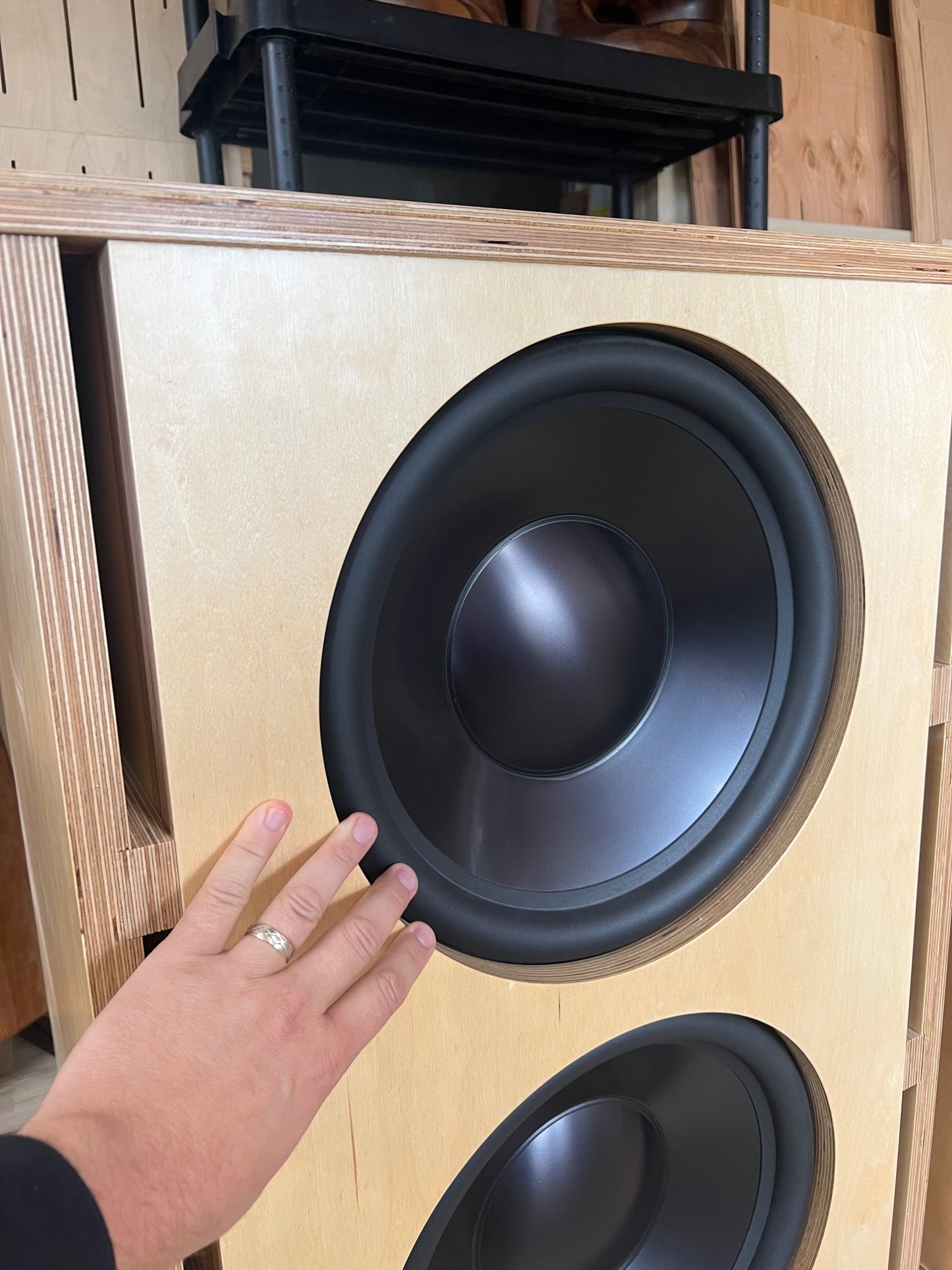

• Dual 15" Subwoofers (Dayton RSS390HF­4)

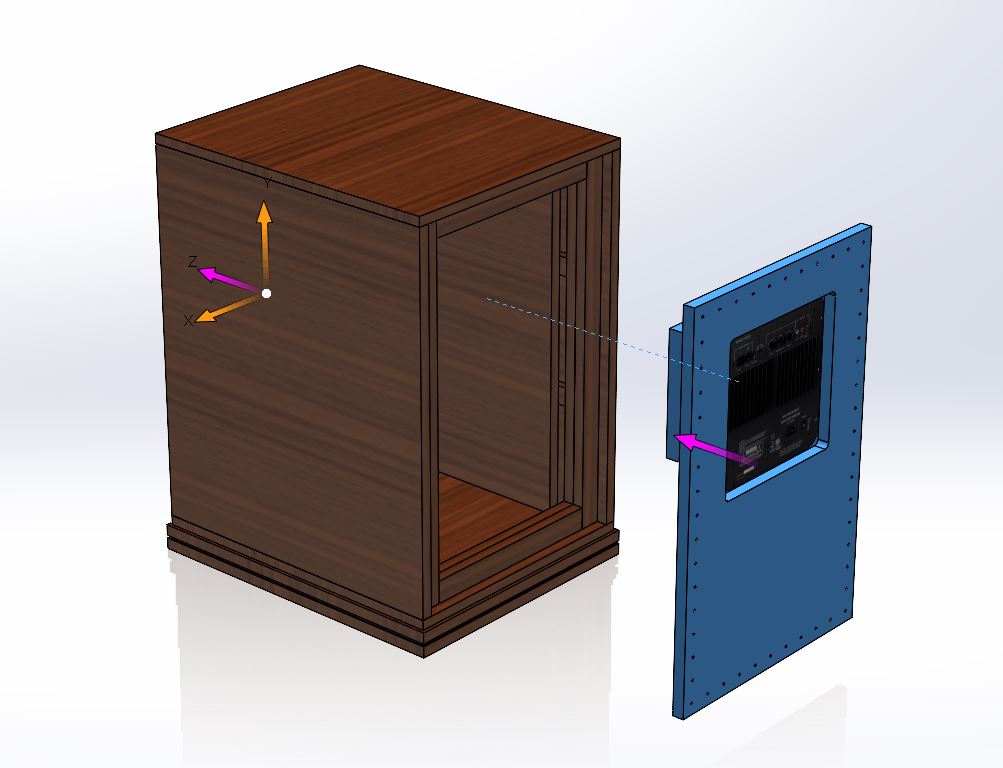

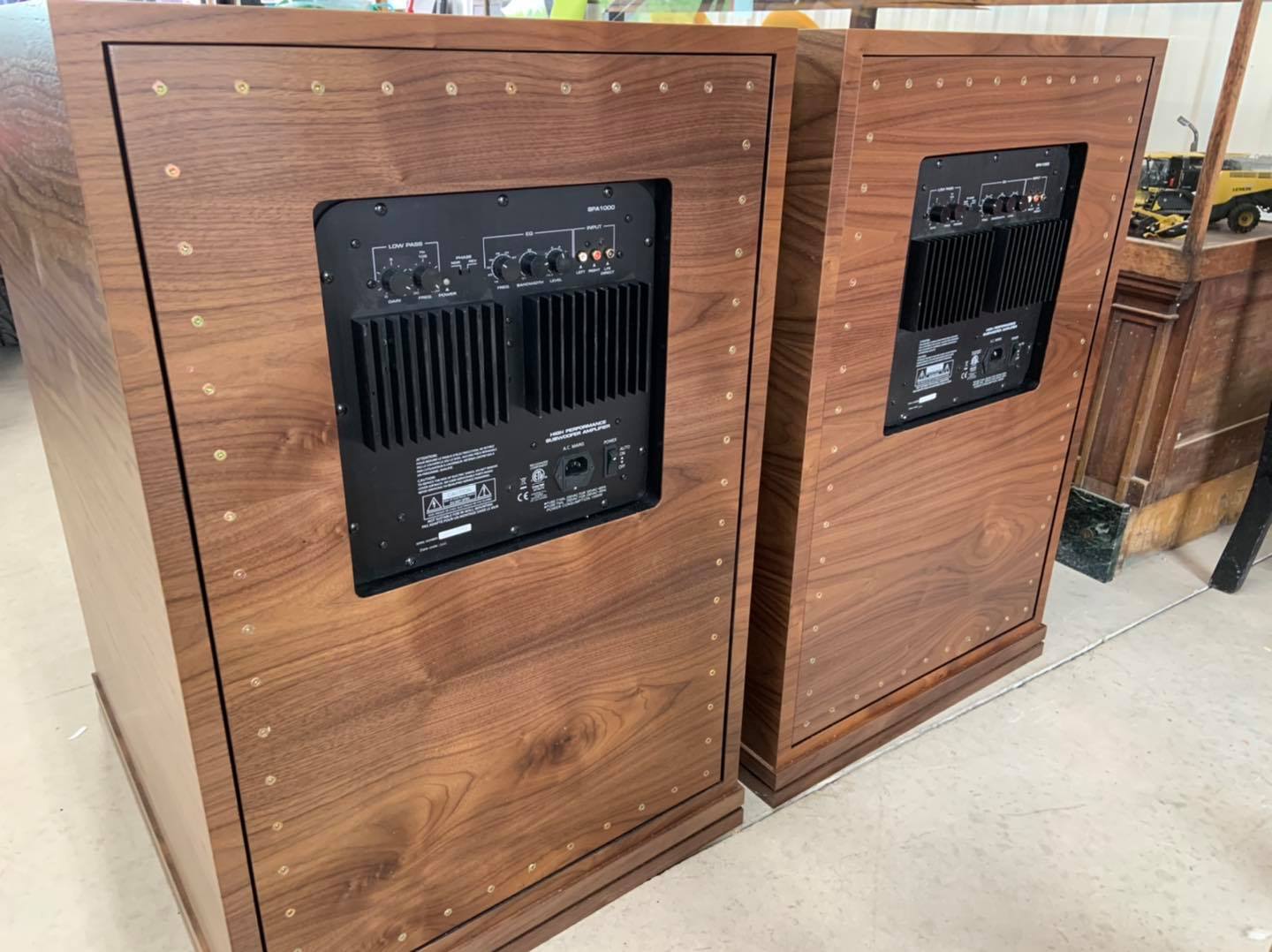

• Mounting pocket for 1000w Plate Amp  (Dayton SPA1000) (not included)
  • Comes with 24mm thick plywood covering the amplifer opening
  • Includes binding post (drivers wired in parallel)
• 24mm thick baltic birch plywood construction

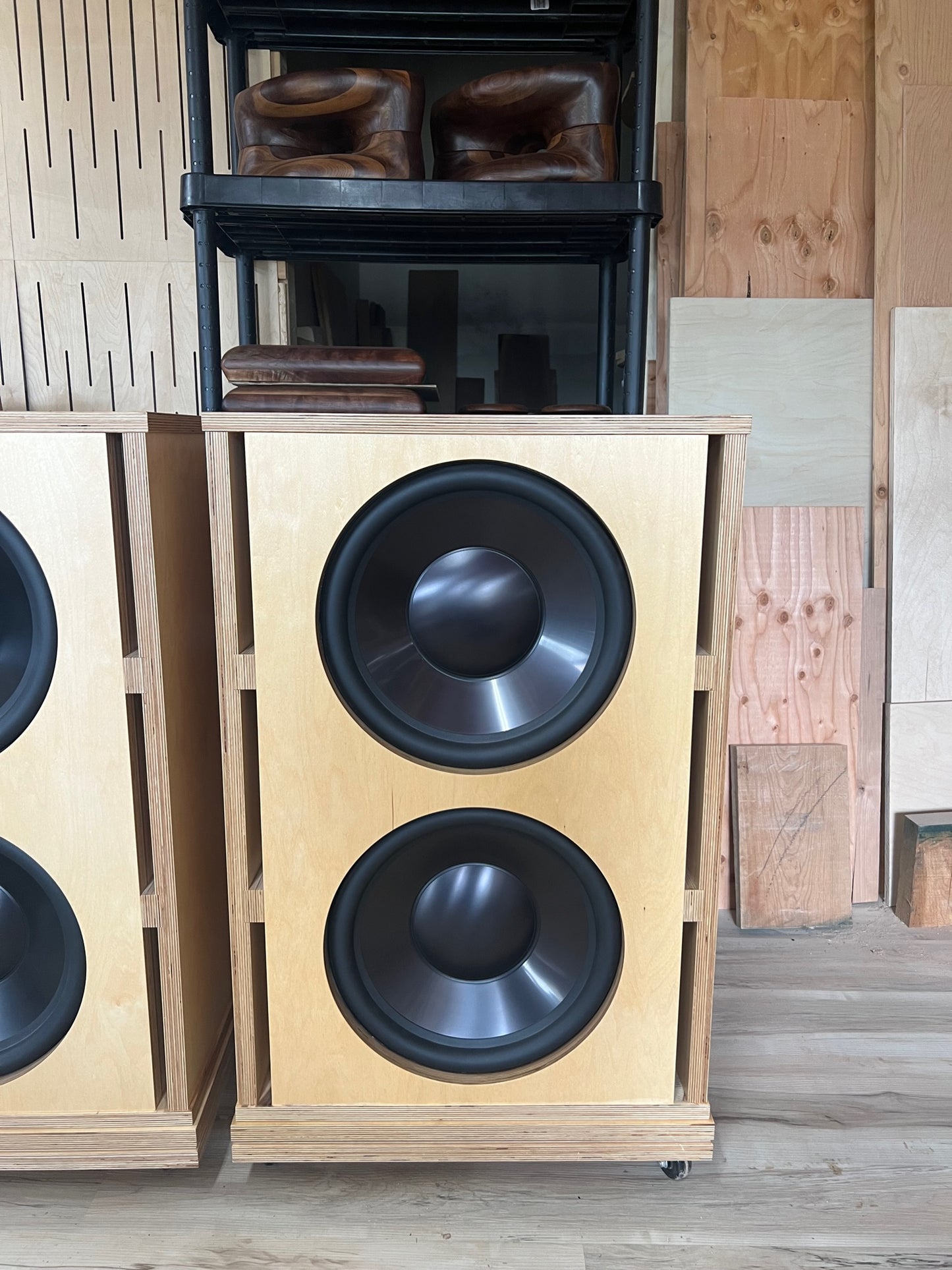

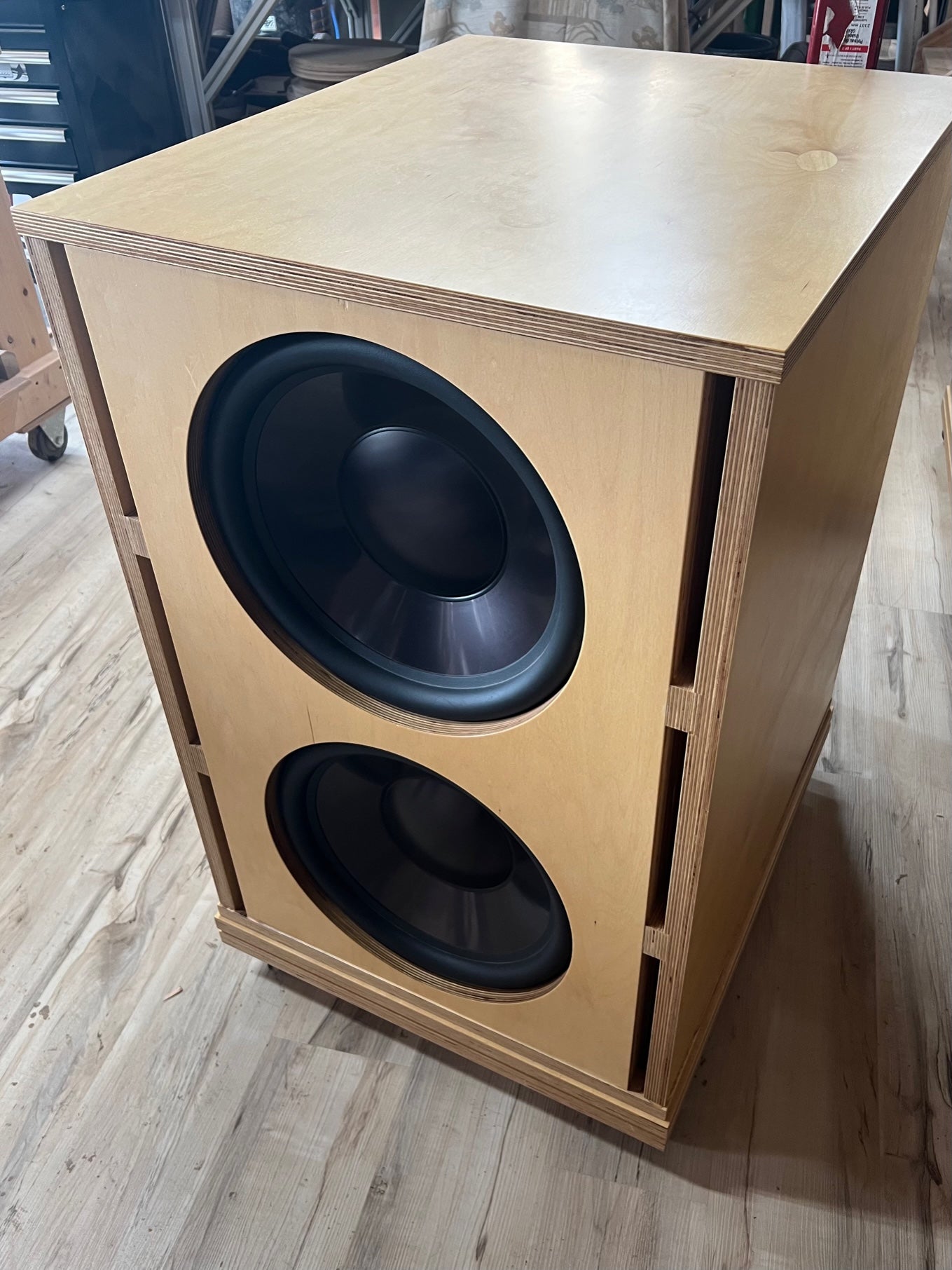

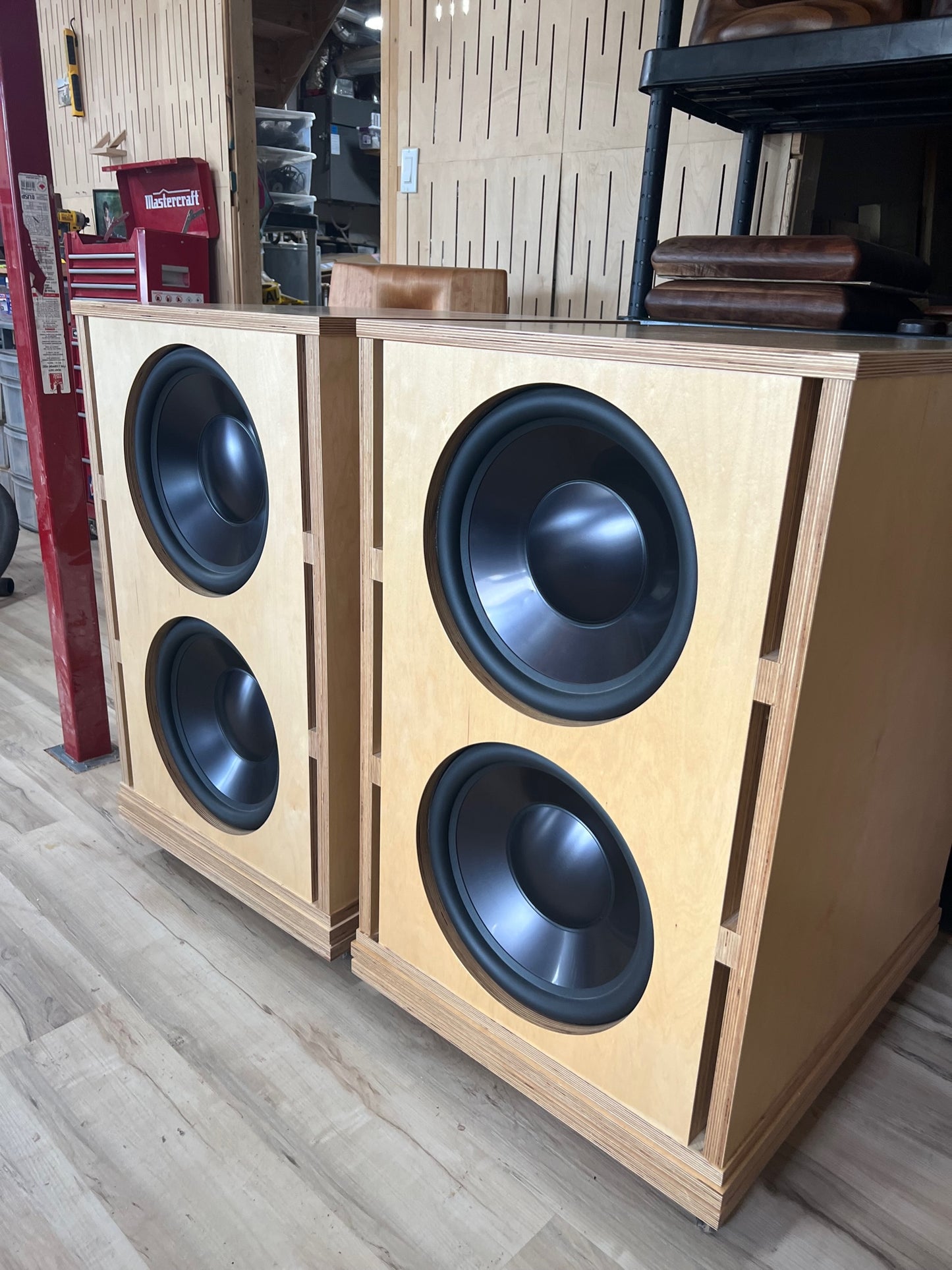

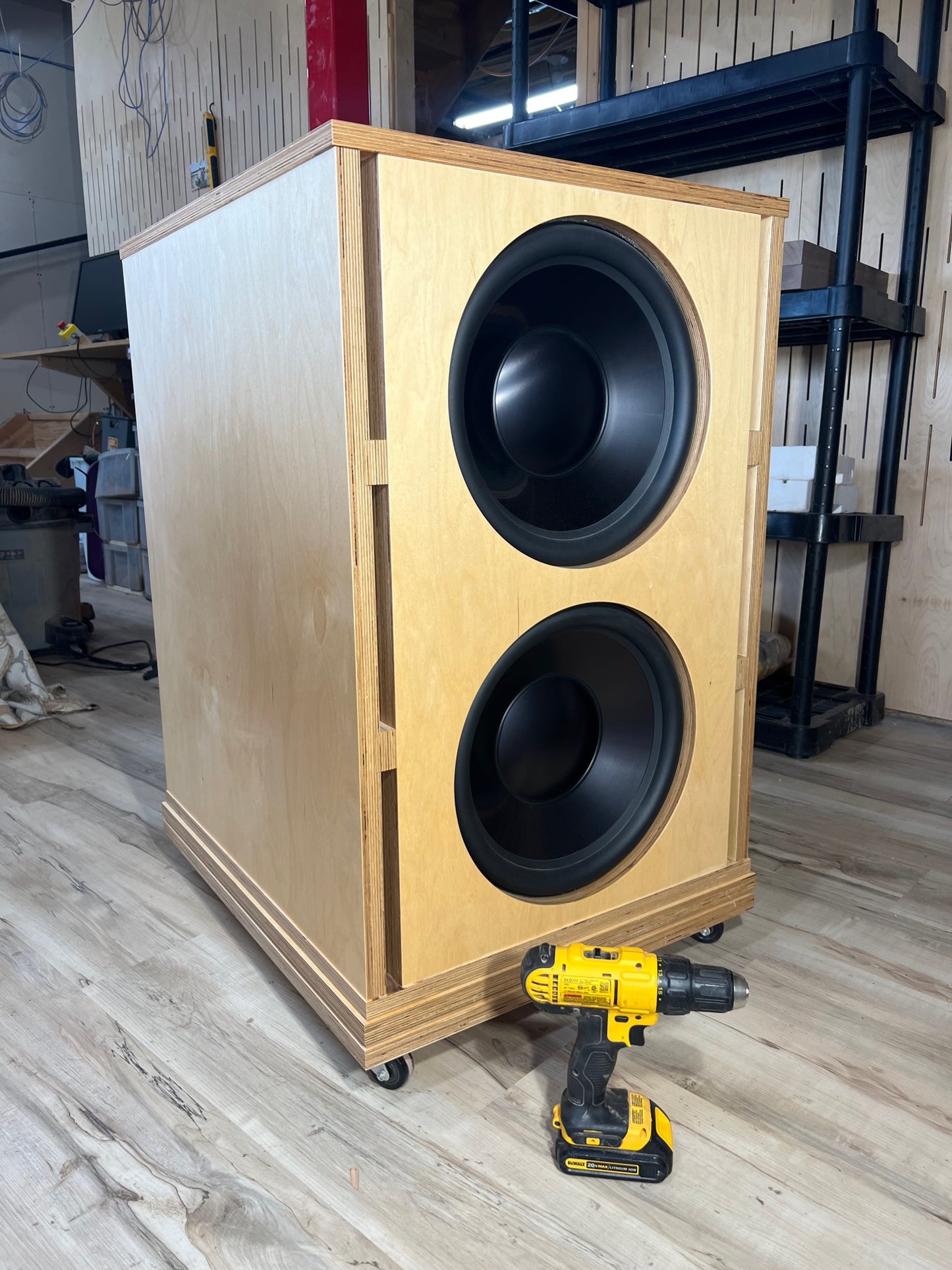

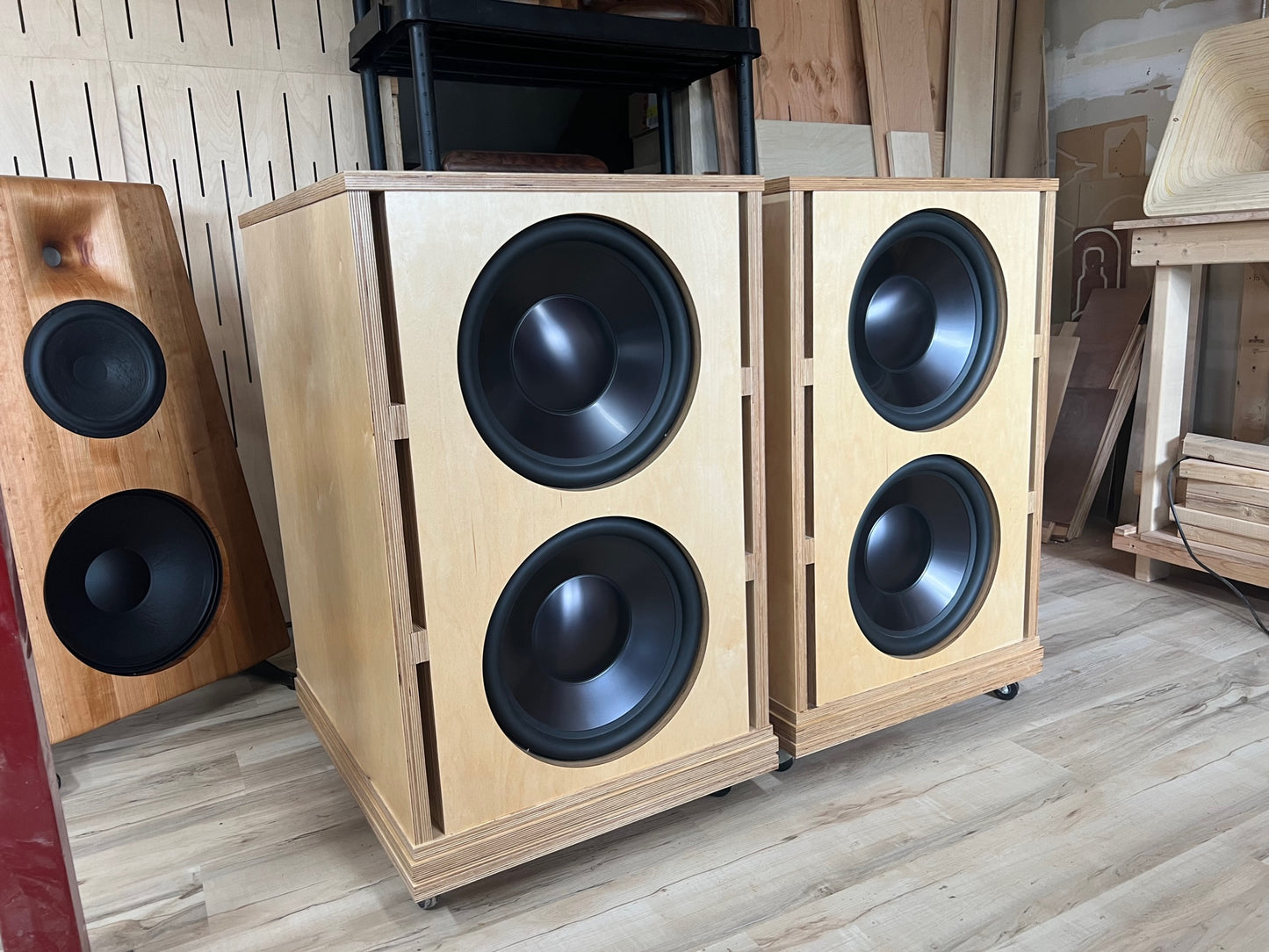

• Real wood veneer (Birch) (see photos)
• Durable varnish finish

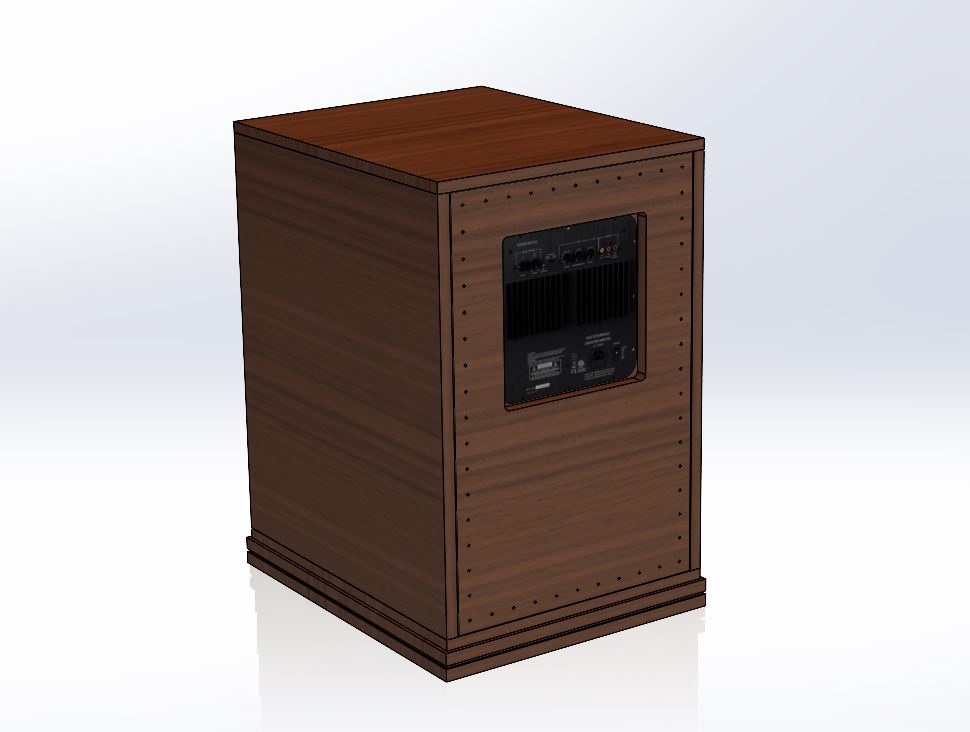

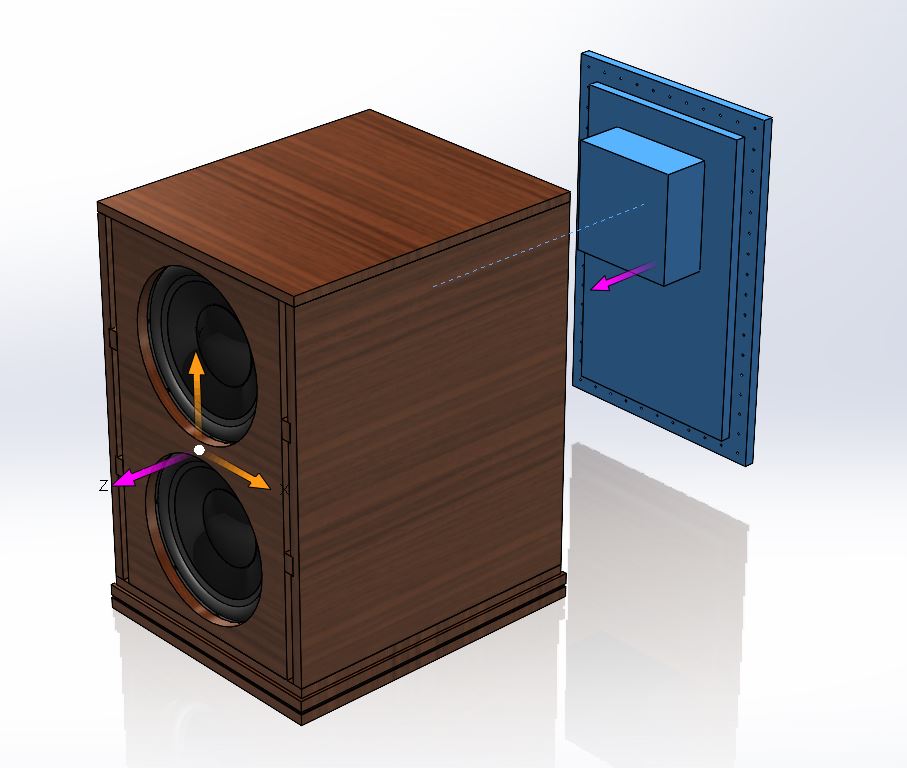

• Removable rear cover
• 78mm thick base
• Global shipping available


Dimensions

Ultra Low Distortion

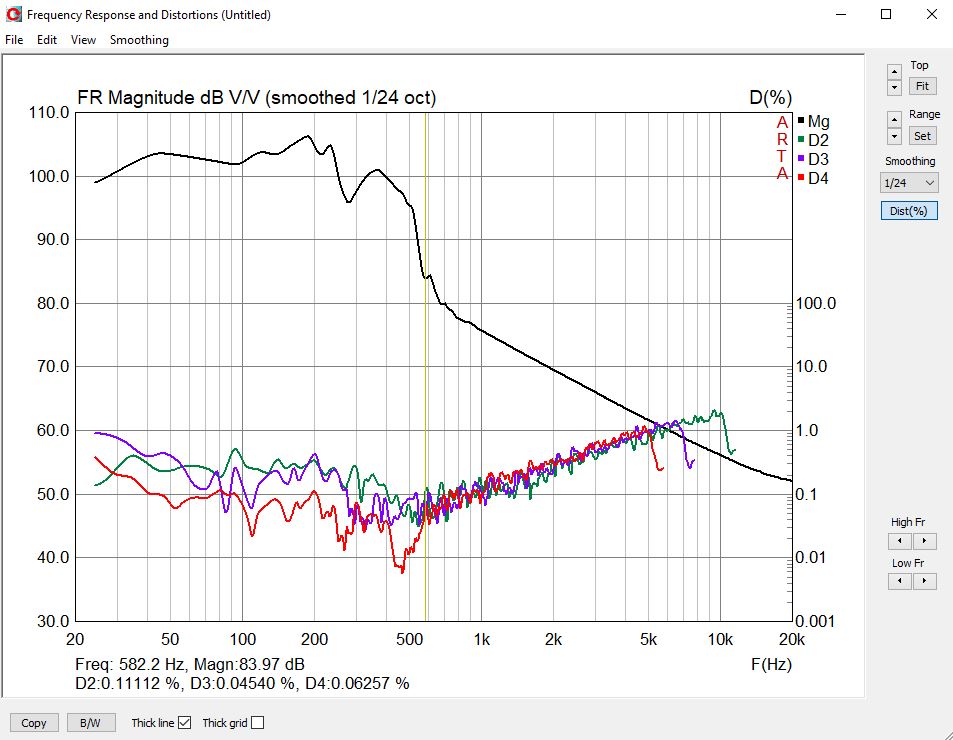

Below is the %THD for one bass cabinet.  1097 achieves only %0.25 THD at 110dB SPL.

Construction

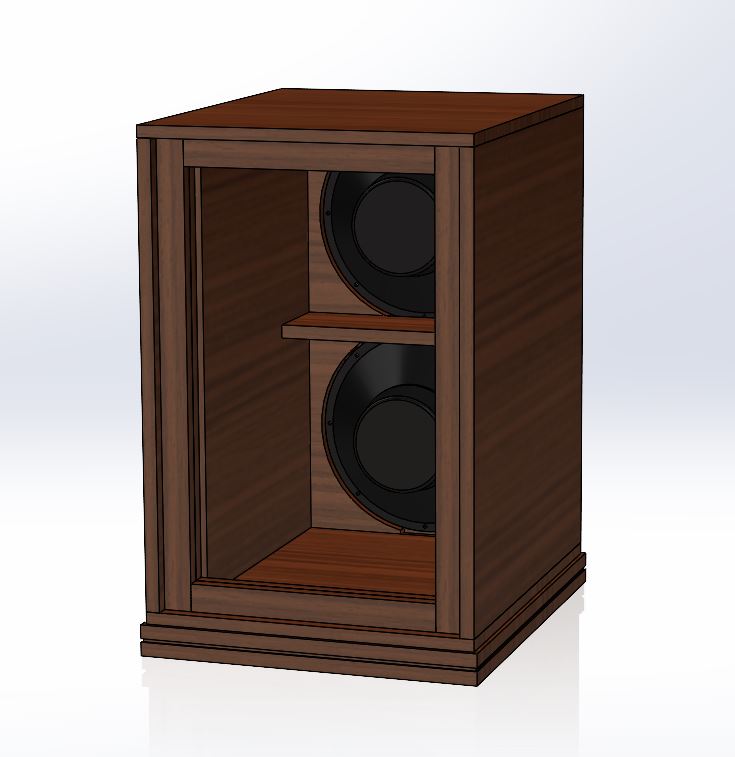

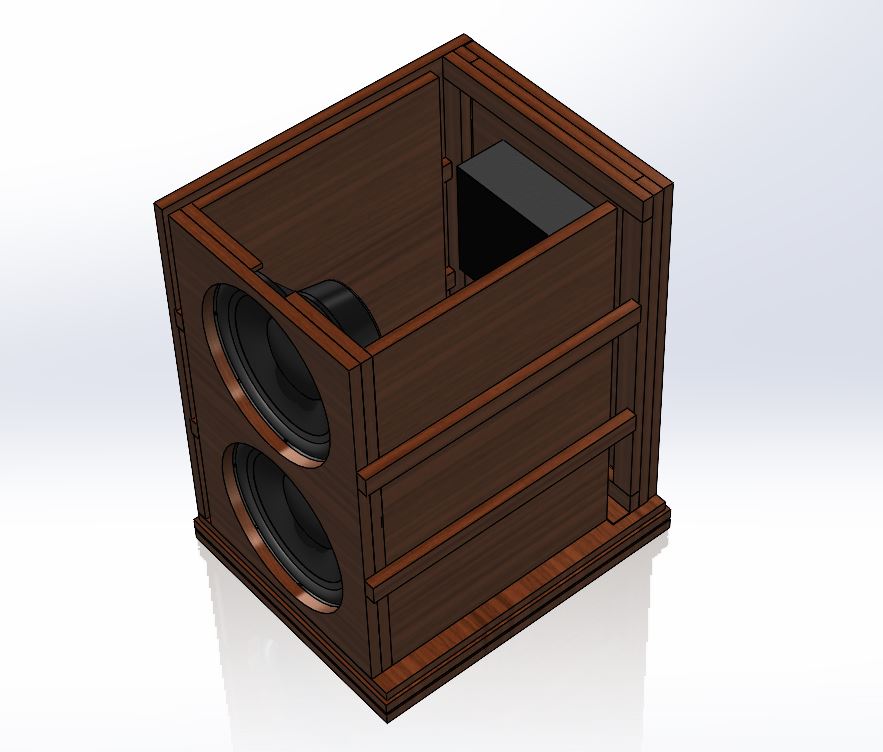

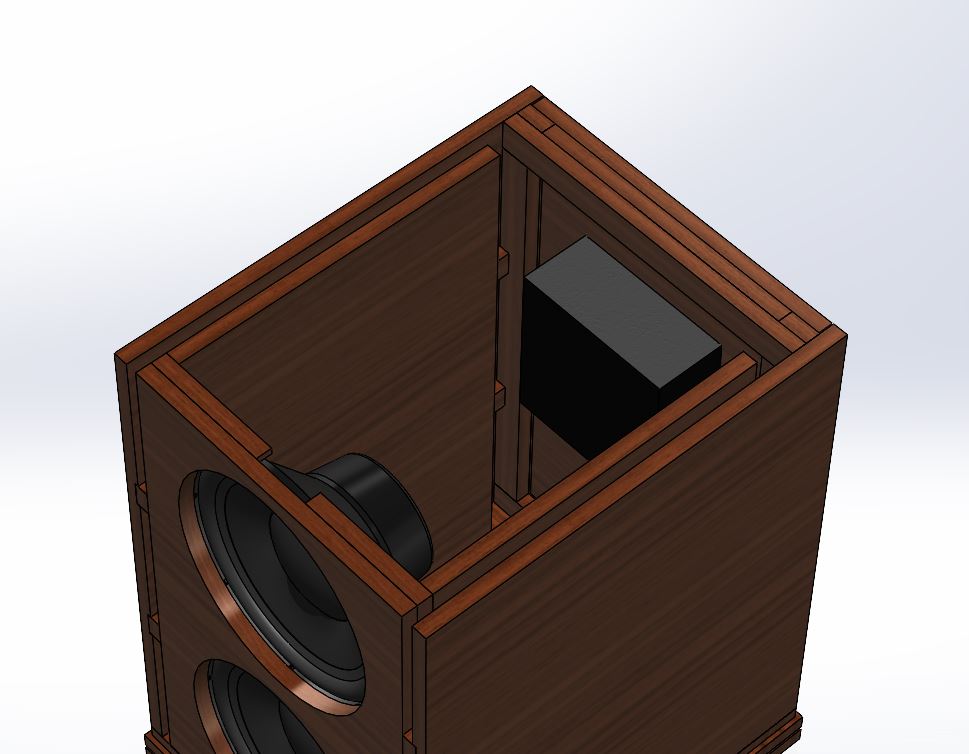

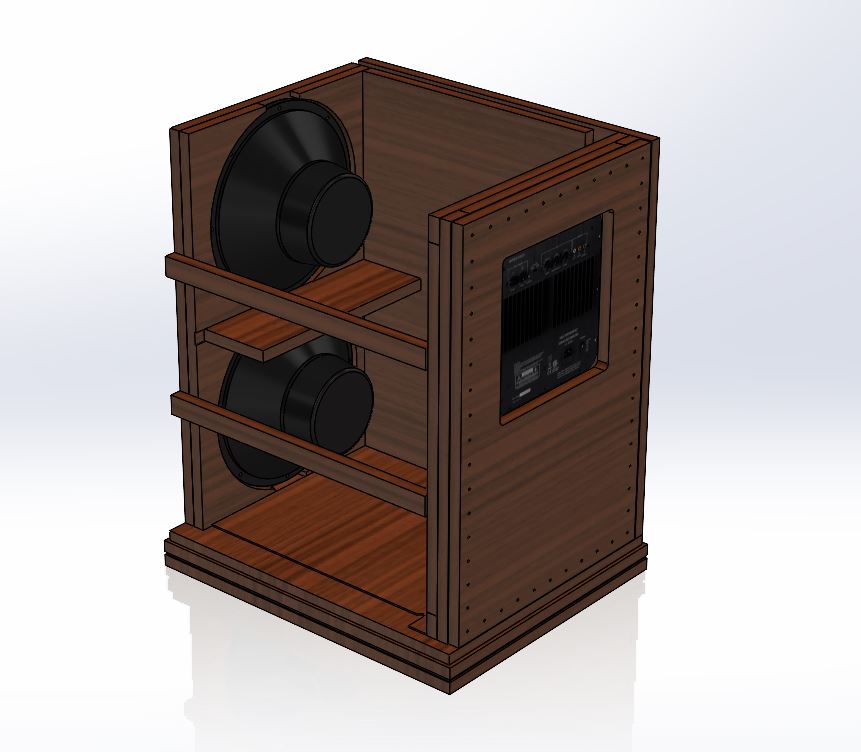

1097 is a no compromise construction to virtually eliminate cabinet vibration.  Constructed of 24mm thick baltic birch plywood using double layer in most locations.

Technical Drawing Click HERE.

Dayton 15" Subwoofer Specication Click Here.

Dayton 1000w Plate Amp Specification Click Here.

Natural Grade BB Birch Plywood
