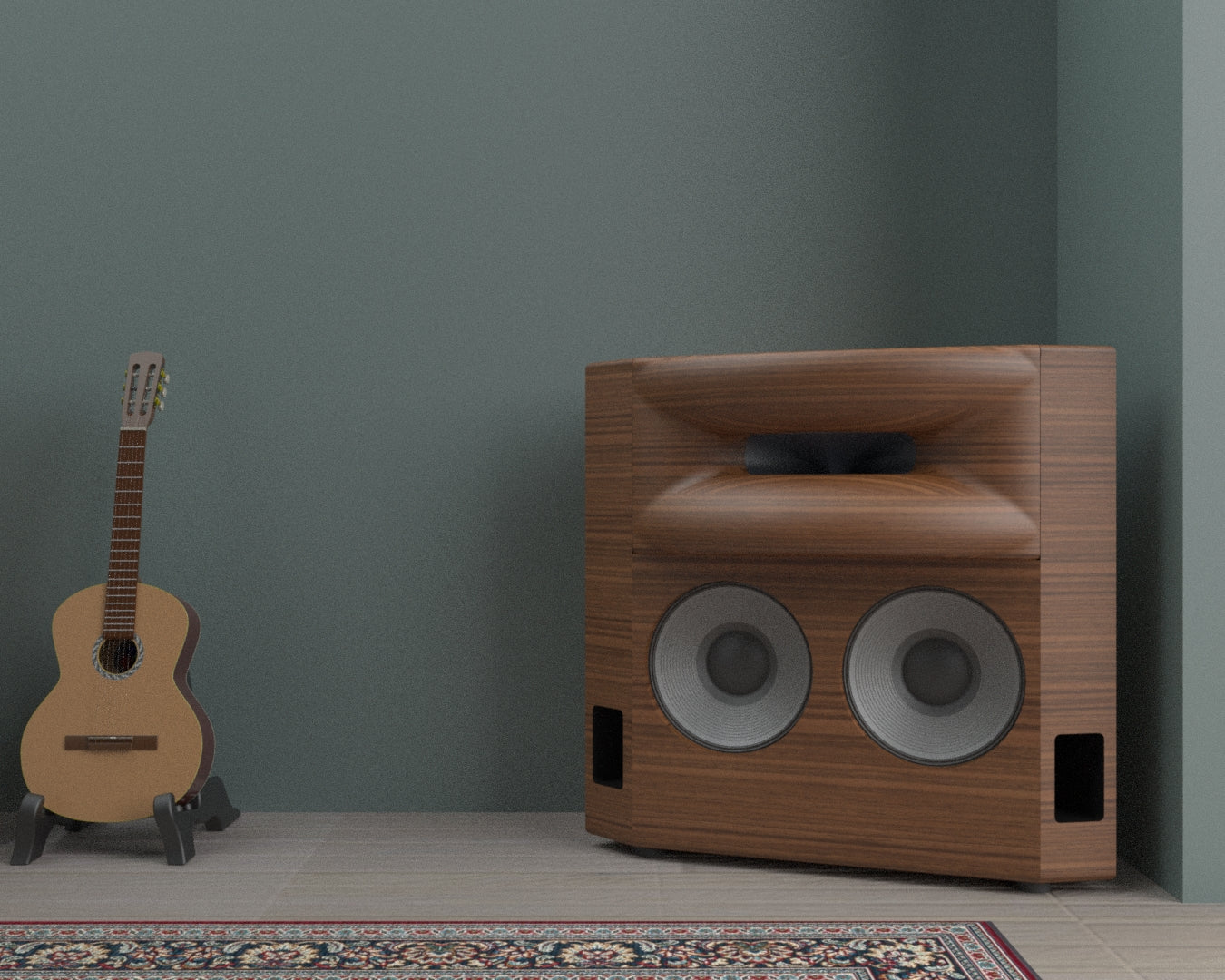

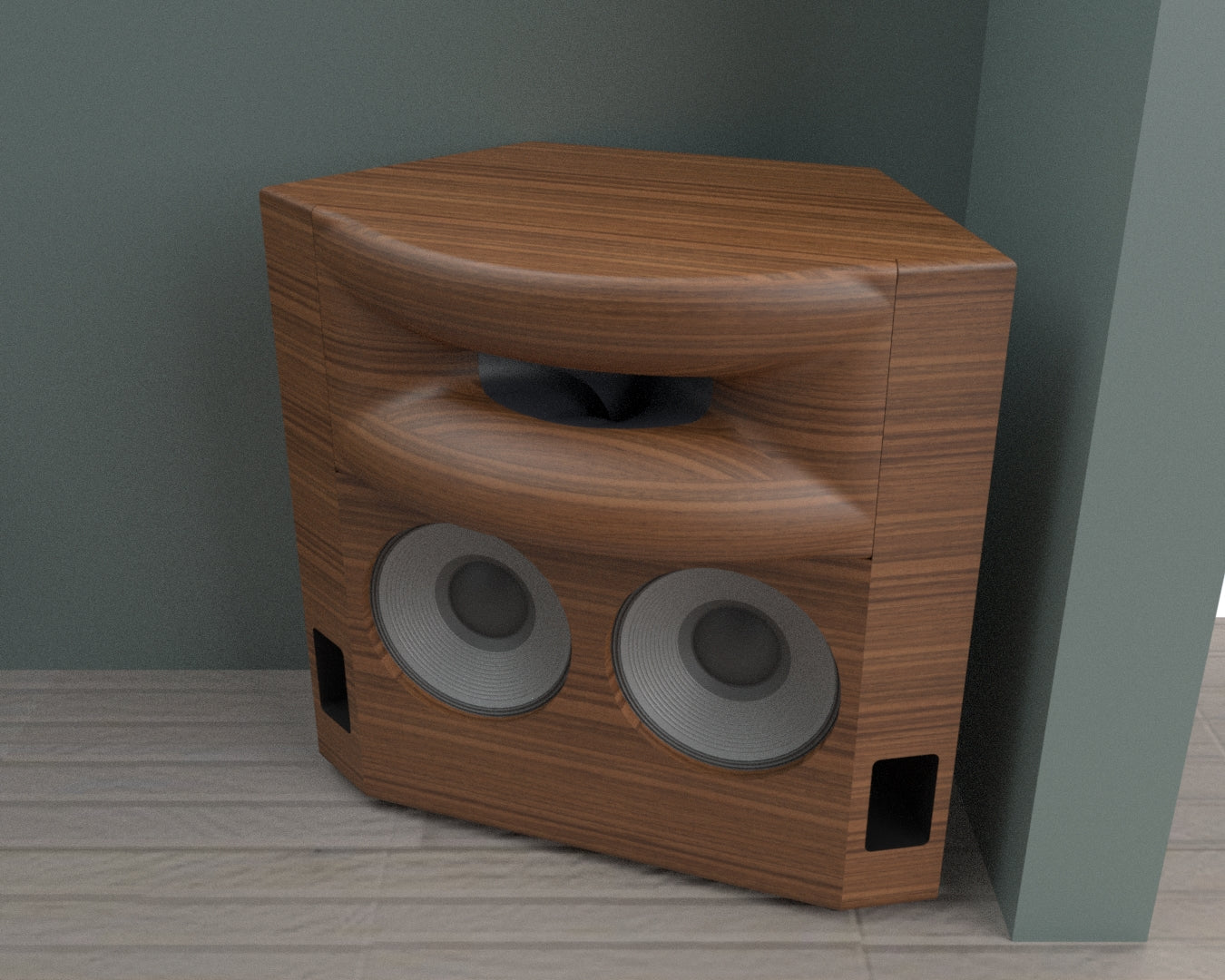

Speaker System No.2545 --- Dual 15" 2-way

Preliminary --- Some aspects of this design is still under development:

• Test ultra-wide horn (May '24)  Some test data can be found here.
• Test JBL 2226J (Late April '24)
• We have not tested the Altec 416-16B but the 8ohm tested well here.

Speaker System No.2545 can be custom ordered as a finished build. Please contact for a quote including shipping.

Dual Woofers

Speaker system No.2545 can be ordered with a choice of woofer models.

• JBL 2226J (16ohm in parallel)
• Beyma 15LX60V2 (8ohm in paralell)
• Altec 416-16B (16ohm in parallel)

Compression Driver & Horn

Speaker system No.2545 can be selected with a choice of compression driver models and configurations.

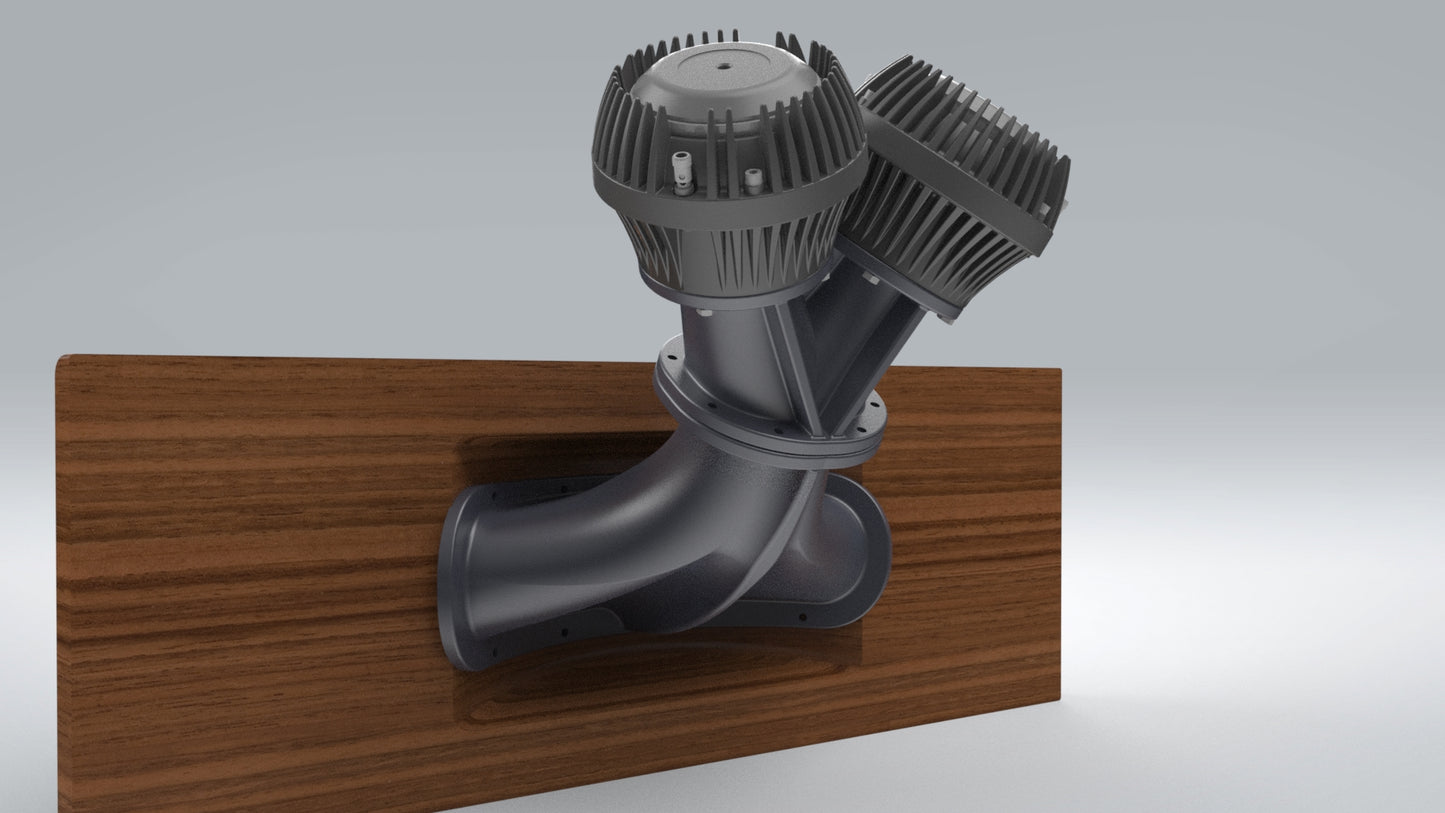

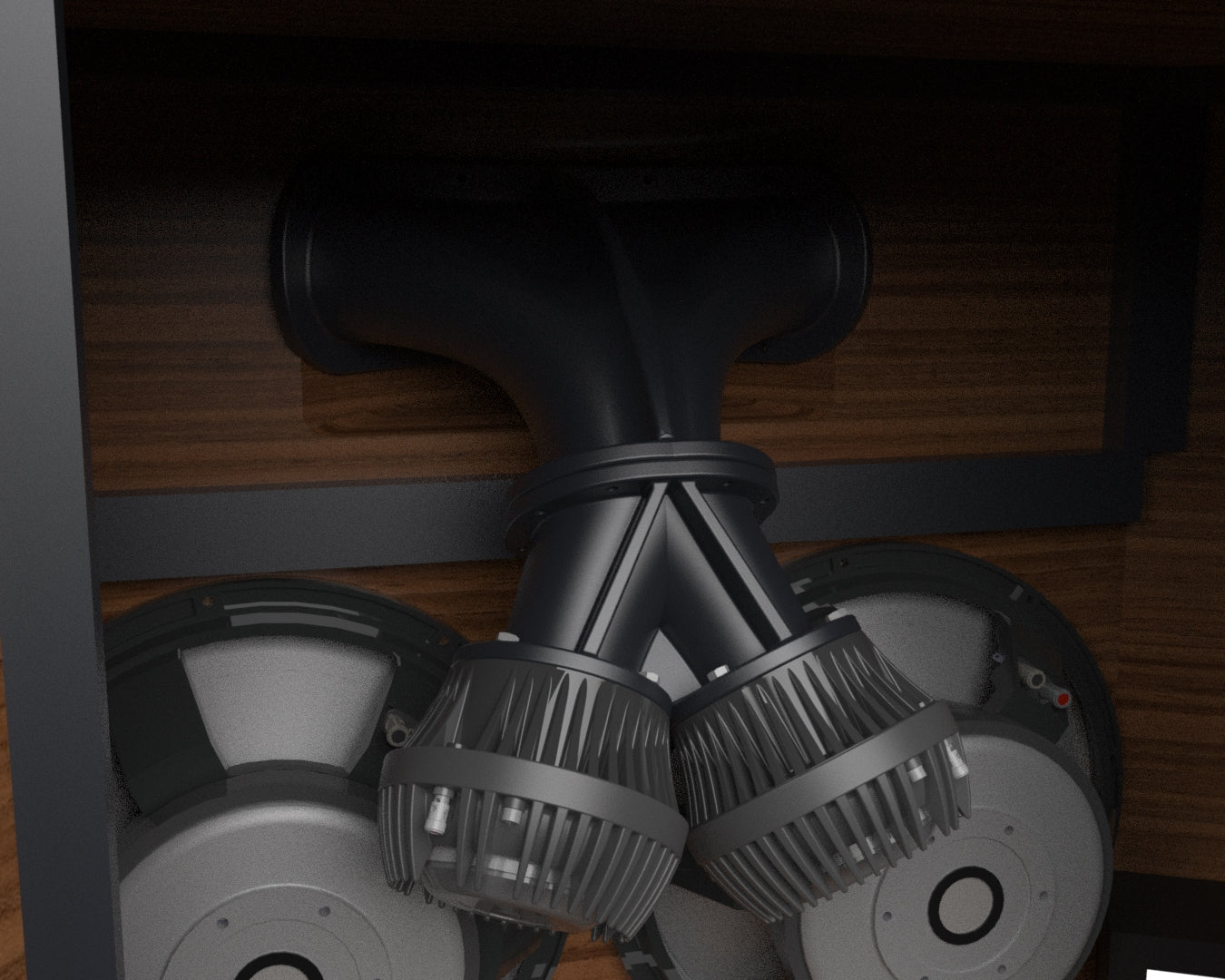

• Dual or single compression driver configuration
• 90 or 120 degree coverage window
• Choice of compression driver model
• B&C DCM50 (8 or 16ohm), RCF ND940 (8 or 16ohm)

Features

• 2-way design
• Dual 15" woofers
• 300Hz crossover point
•  102.6dB Sensitivity (2.83V) (Anechoic) (dual 15LX60 wired in parallel)
• 110dB Sensitivity (in-room) (Approximate)
• 300L bass reflex cabinet tuned to 42Hz
