Speaker Plan No.1866 --- Markaudio CHR120

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out

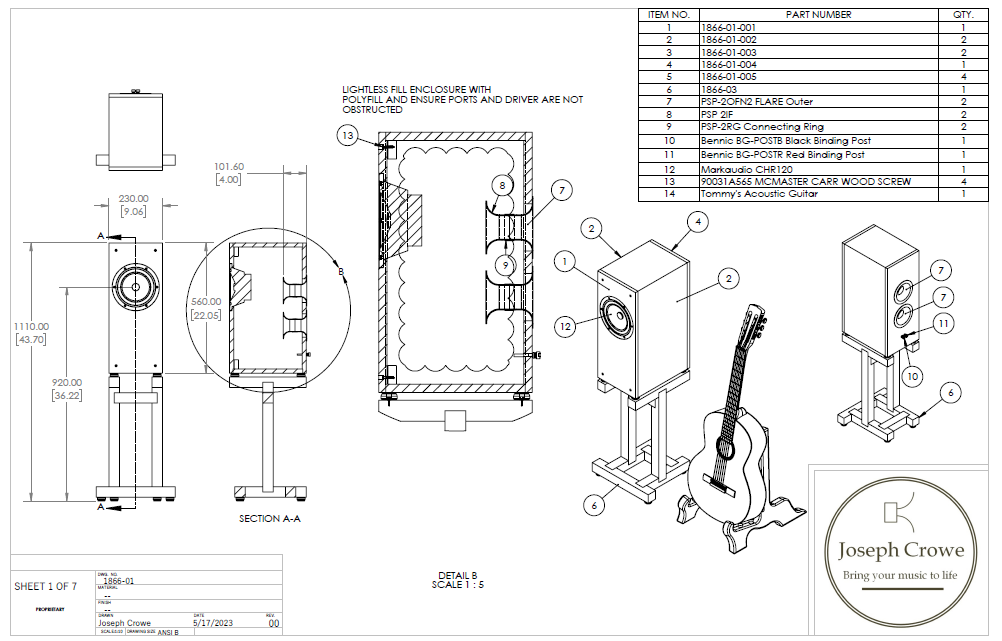

By purchasing these plans you will automatically receive the required drawings to construct Speaker System No.1866.

Features
  • 6.5" Markaudio CHR120 fullrange driver
  • 40Hz tuning frequency
  • 28L cabinet
  • 85dB Sensitivity @1w (anechoic) expect 88dB in-room (aprox.)
  • 18mm plywood construction (can easily be adjusted for other thicknesses)
  • Solid walnut or other hardwood front baffle suggested (optional)
  • Removable front baffle design with four wood screws
  • x2 flared 50mm rear ports
  • Fully tested with critical listening in stereo pair
  • Full test data found at my blog here
  • Elegant support stand drawings using traditional joinery
    • Detail drawings for each piece
    • Easy to follow instructions
  • Electrical schematic for passive contour circuit and baffle step compensation
    • Consists of two inductors and two resistors

Sound Characteristics

  • Coherent sound source
  • Great bass quality, tuneful and not bloated
  • Strong vocal presence
  • Great soundstage depth
  • Great upper treble clarity
  • Narrower listening window in upper treble requires dedicated listening position
