Ripole Subwoofer 1636 for Dan

• Funds in CAD currency

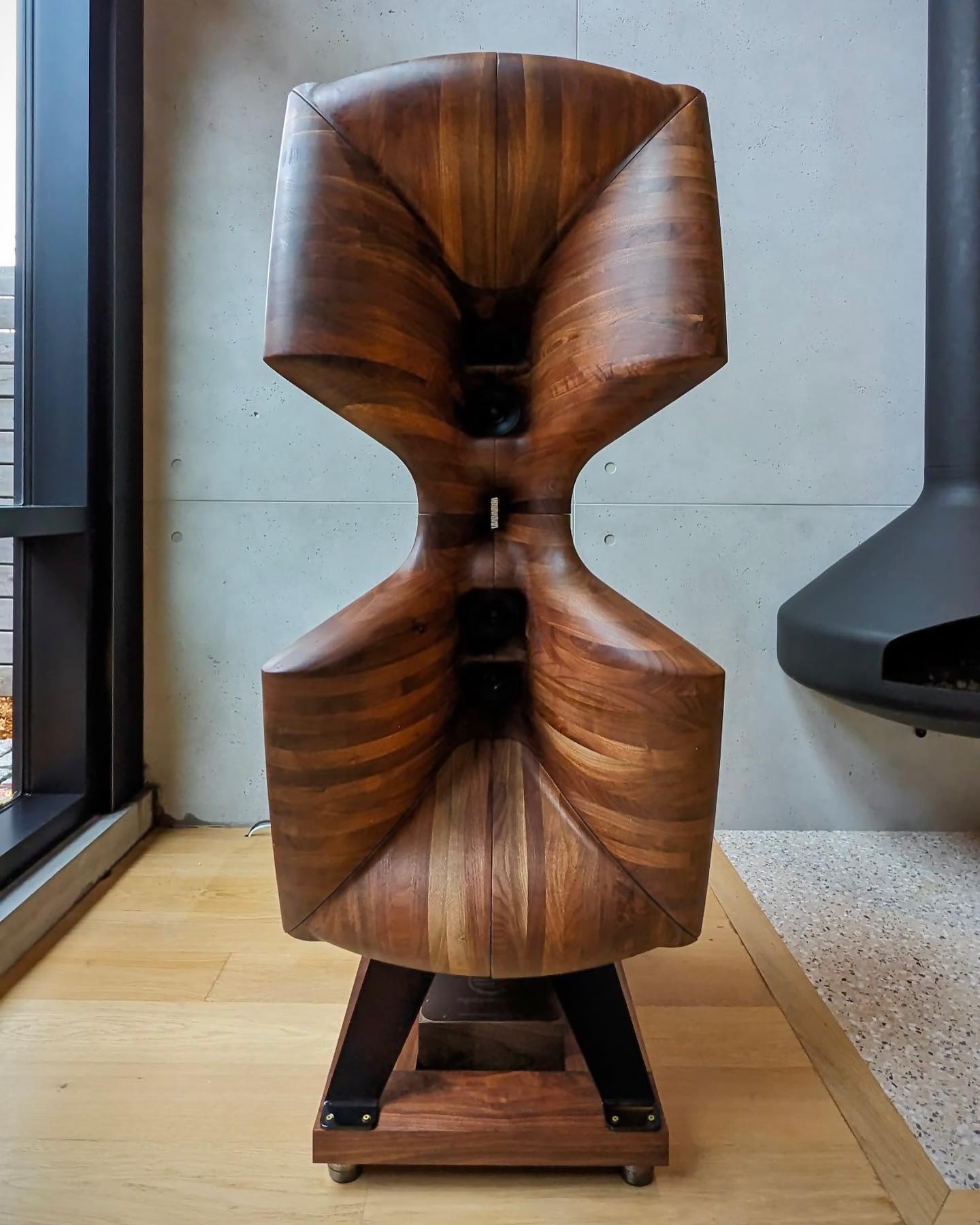

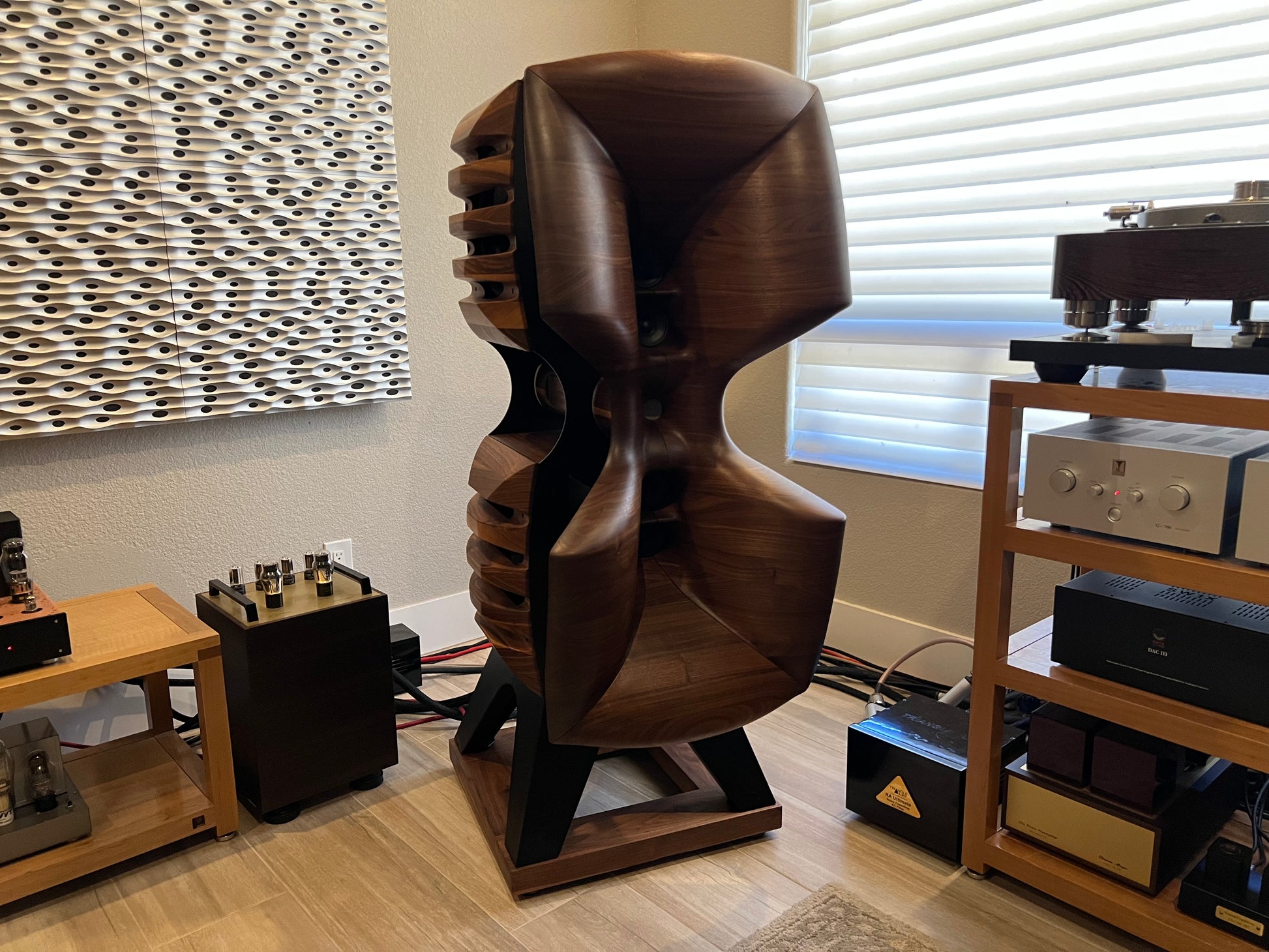

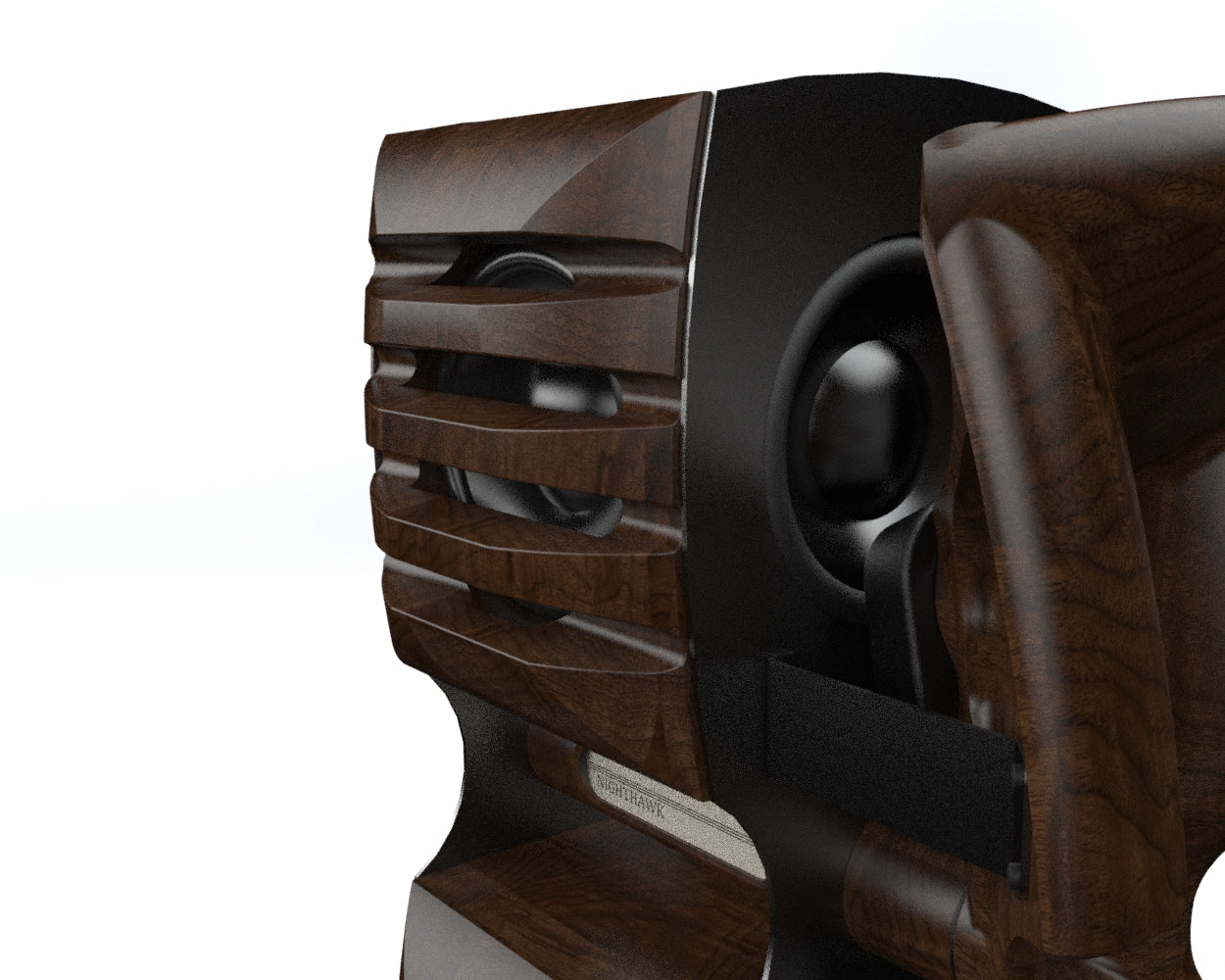

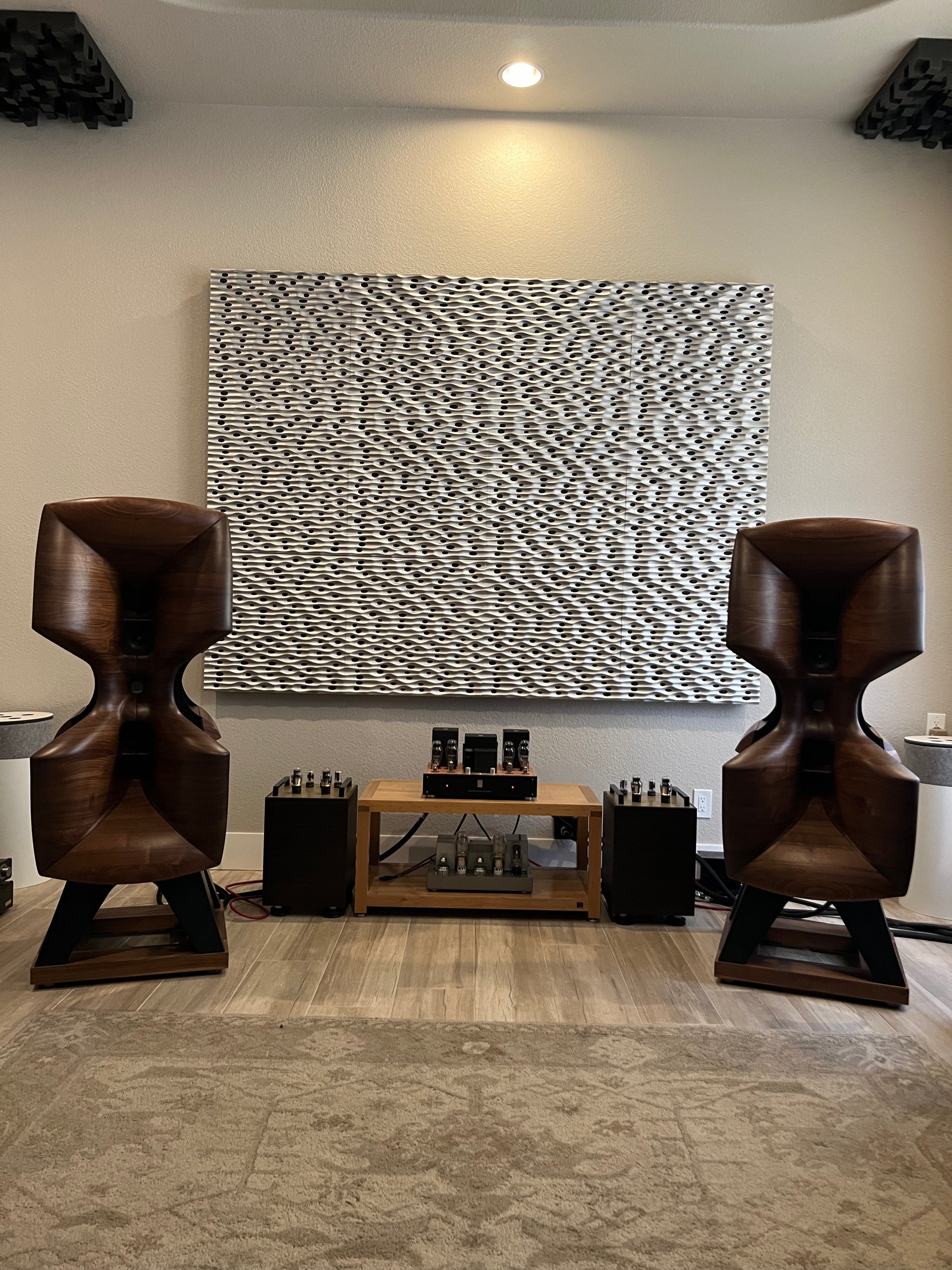

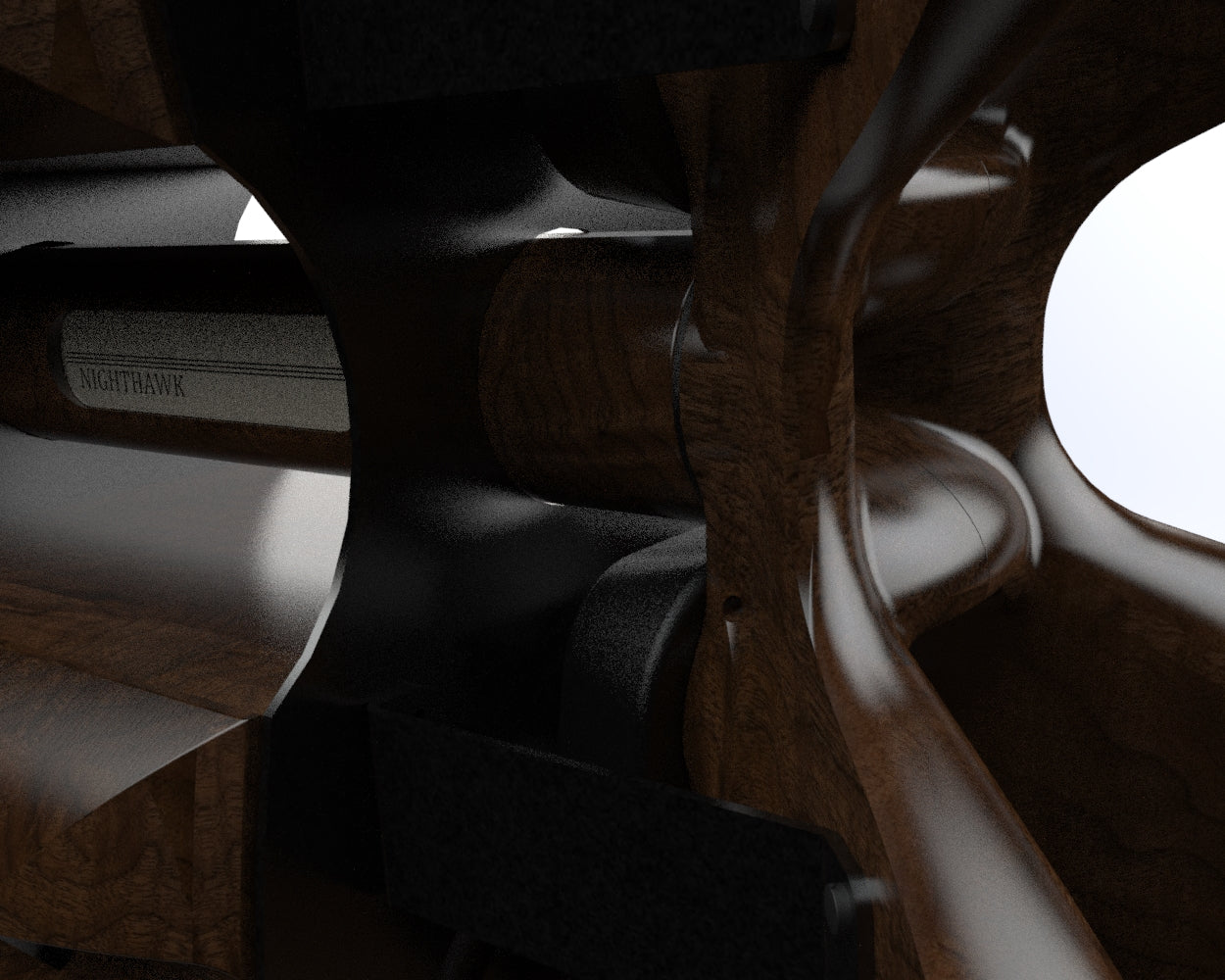

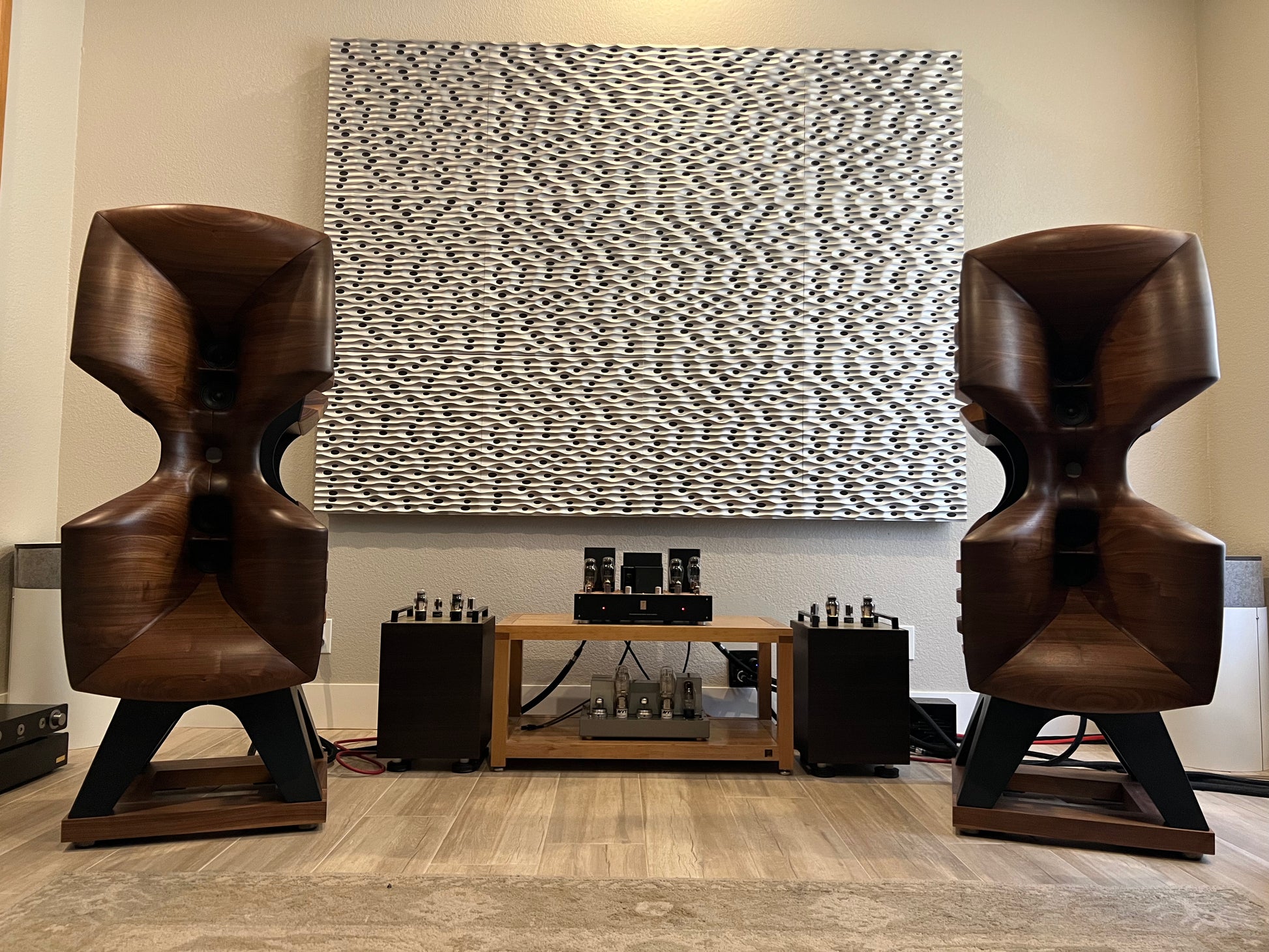

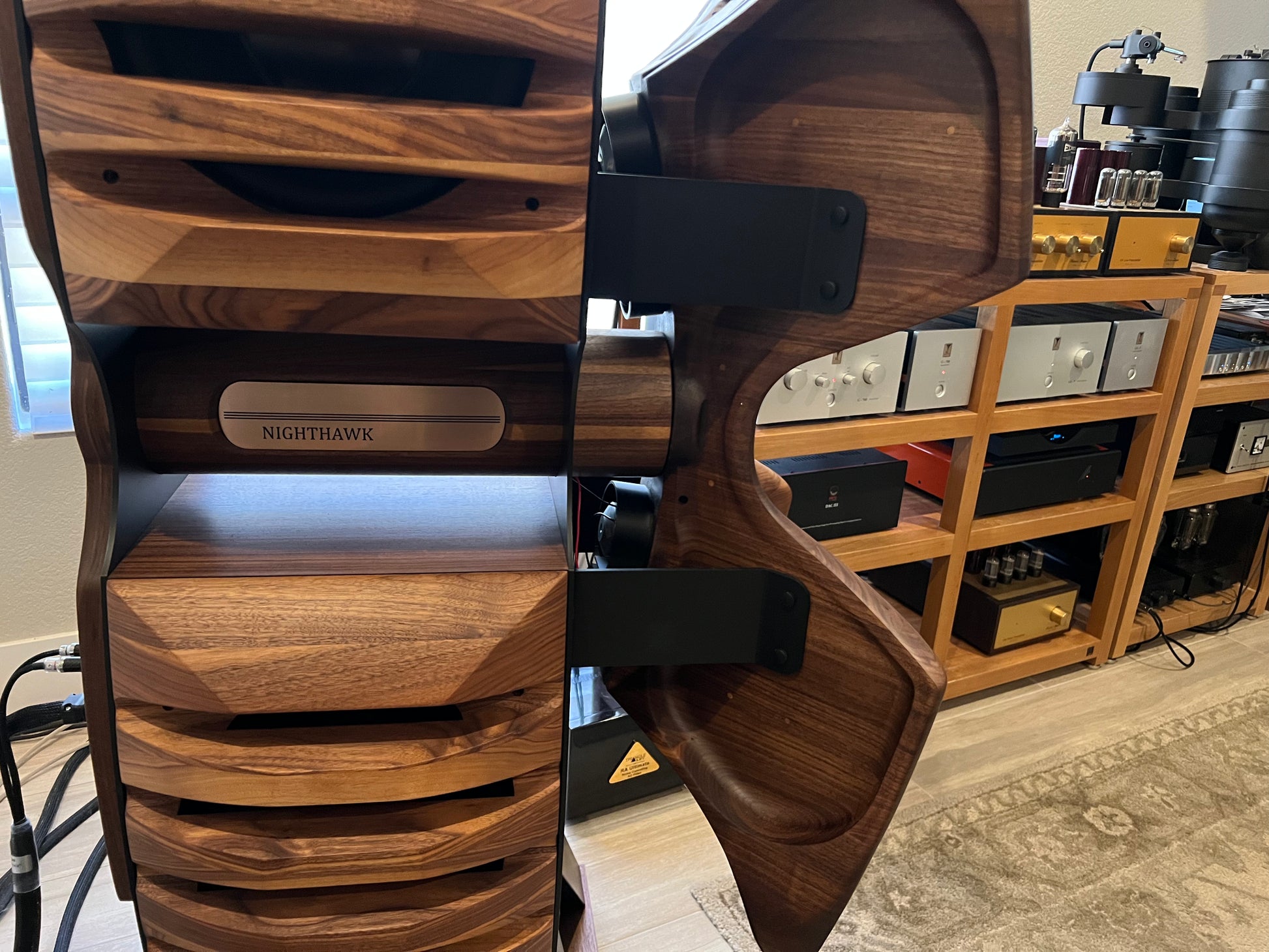

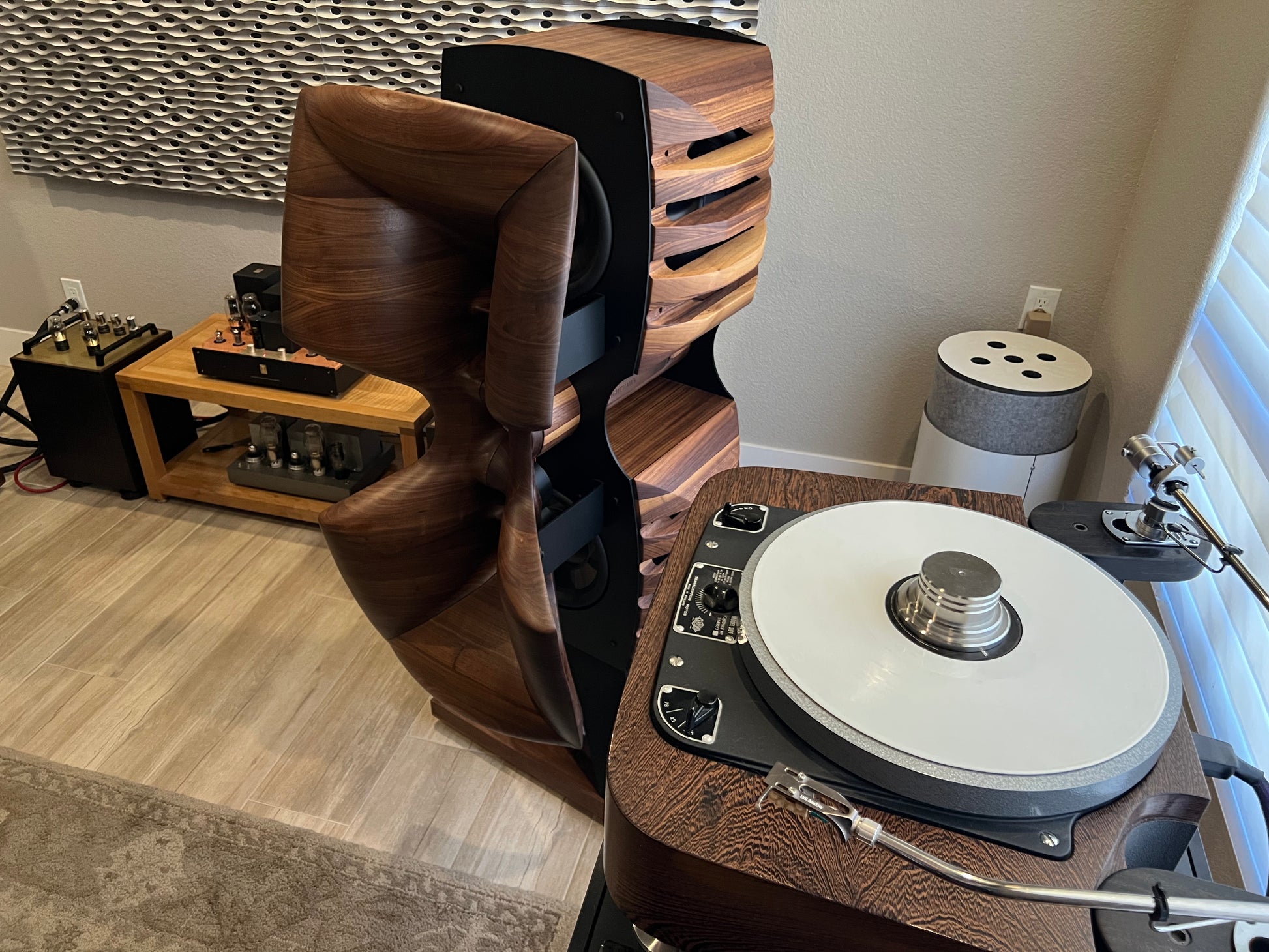

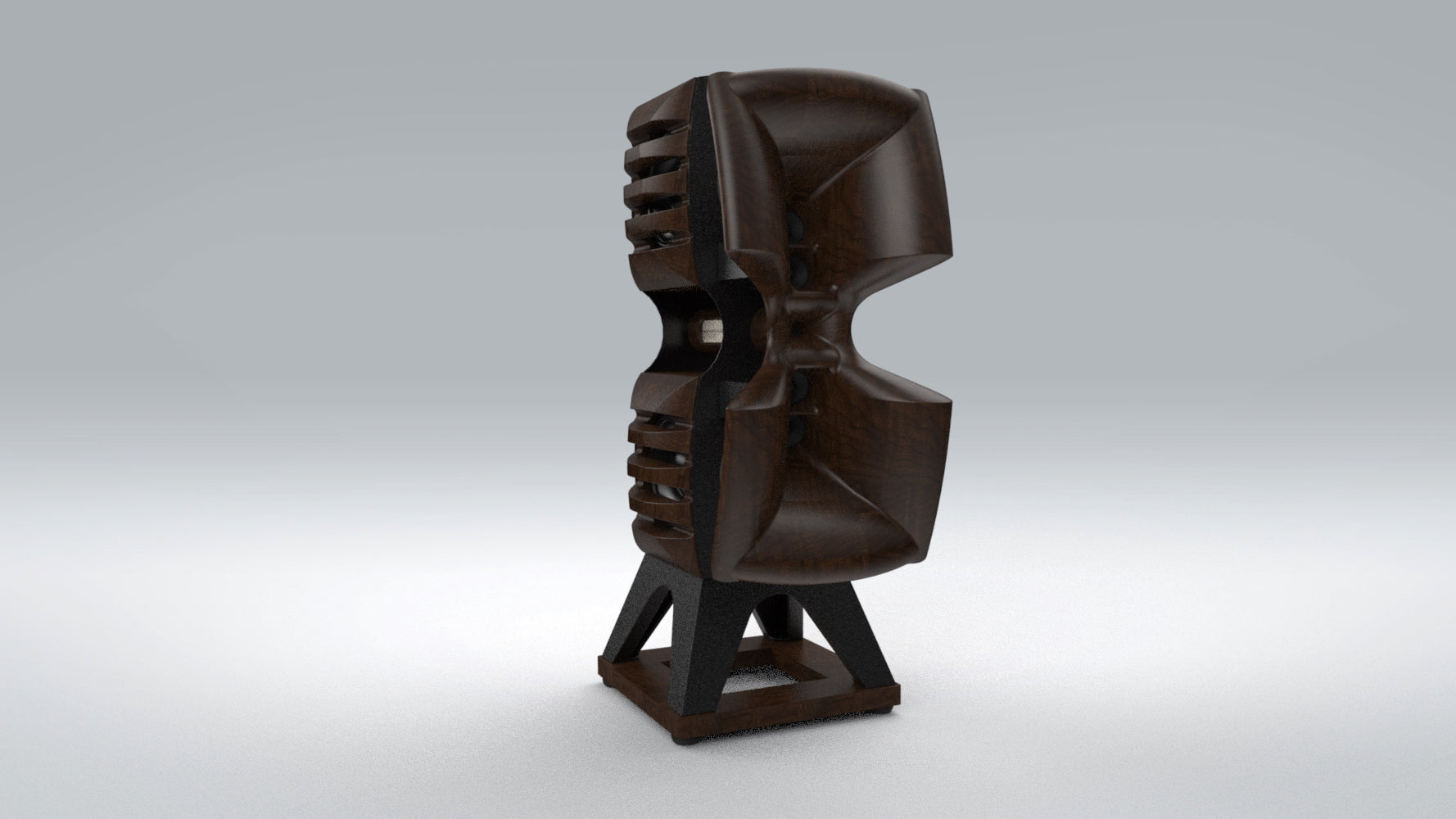

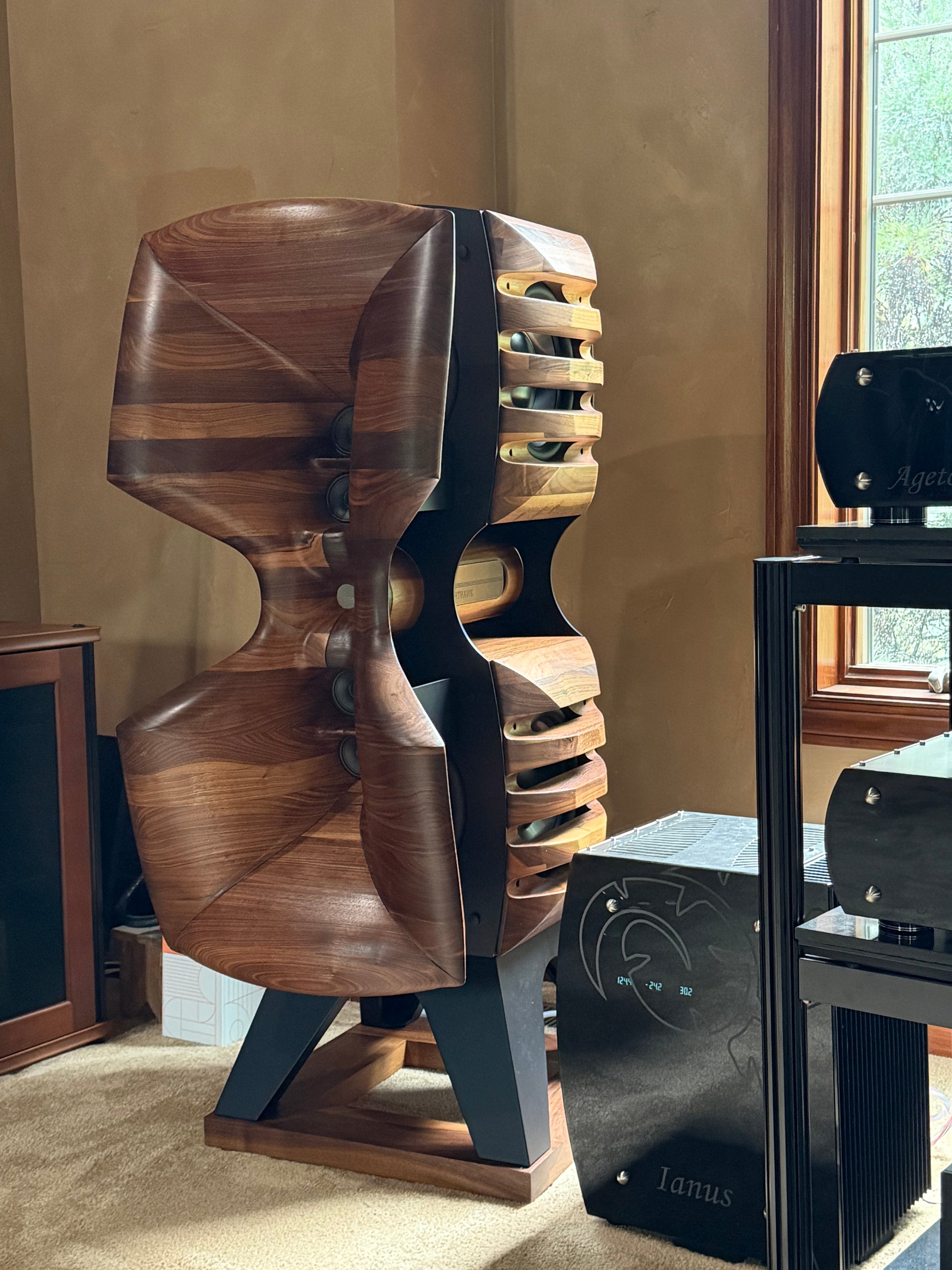

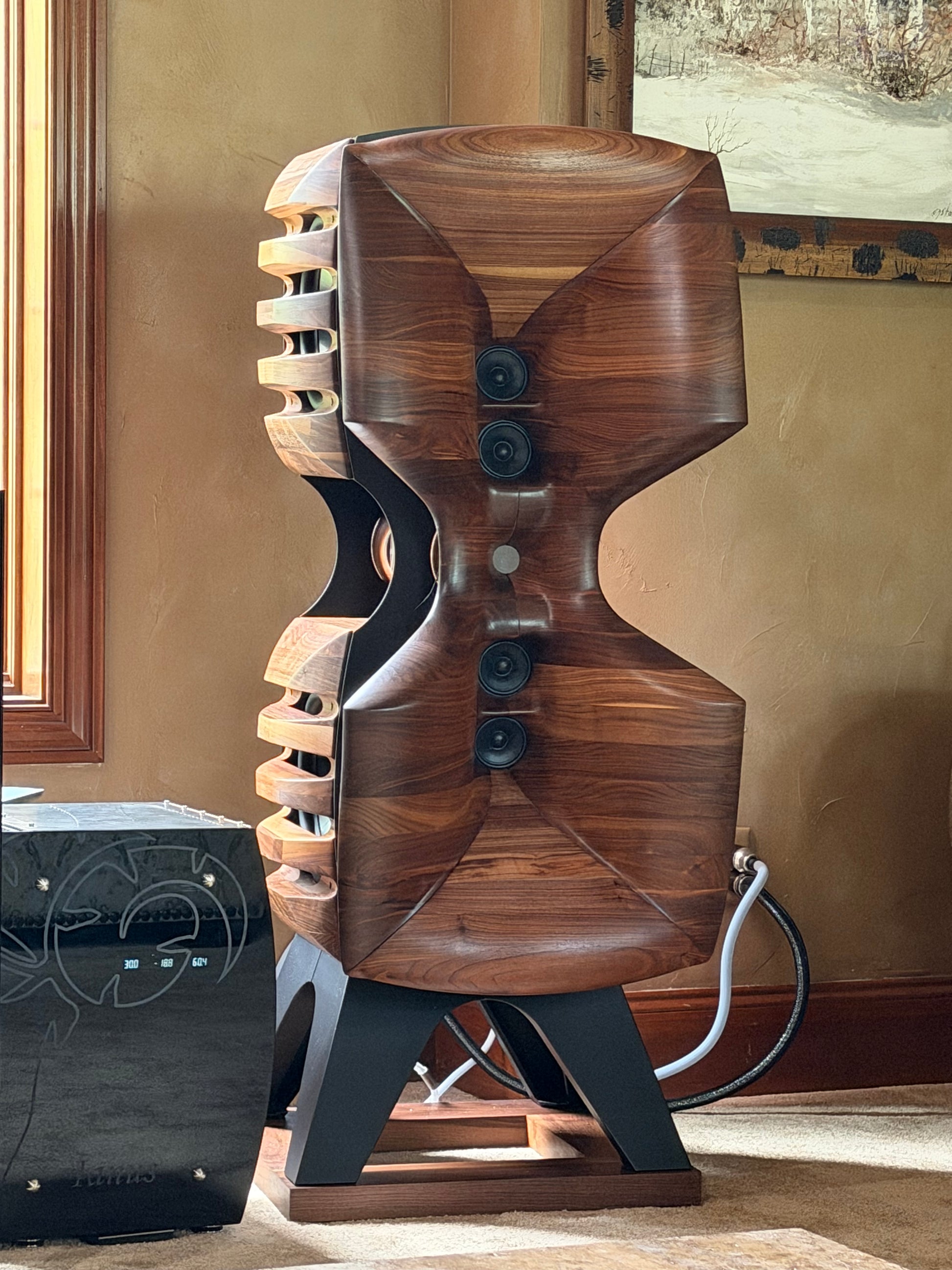

Nighthawk Horn Speaker (Ref. No.1138) (Part of original scope)

• Nighthawk 1138 front horn
• Scanspeak 10F/8424G Drivers
• Viawave Ribbon Tweeter
• Support bracket (to be designed)
• Hardwood (Customer Specified)
• Clear varnish finish (Satin)
• Mid-Bass Horn No.1276 removed from scope (July 2022)

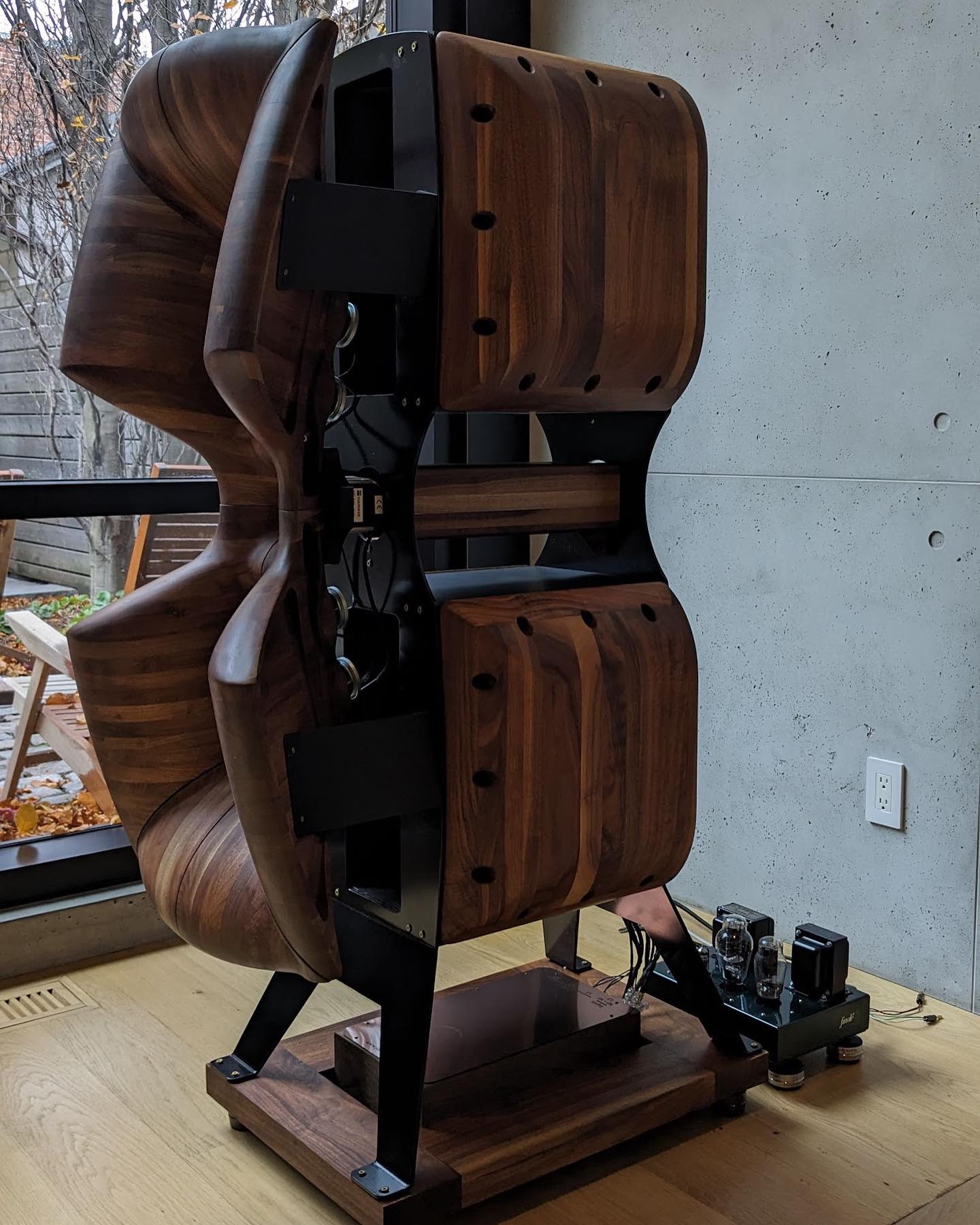

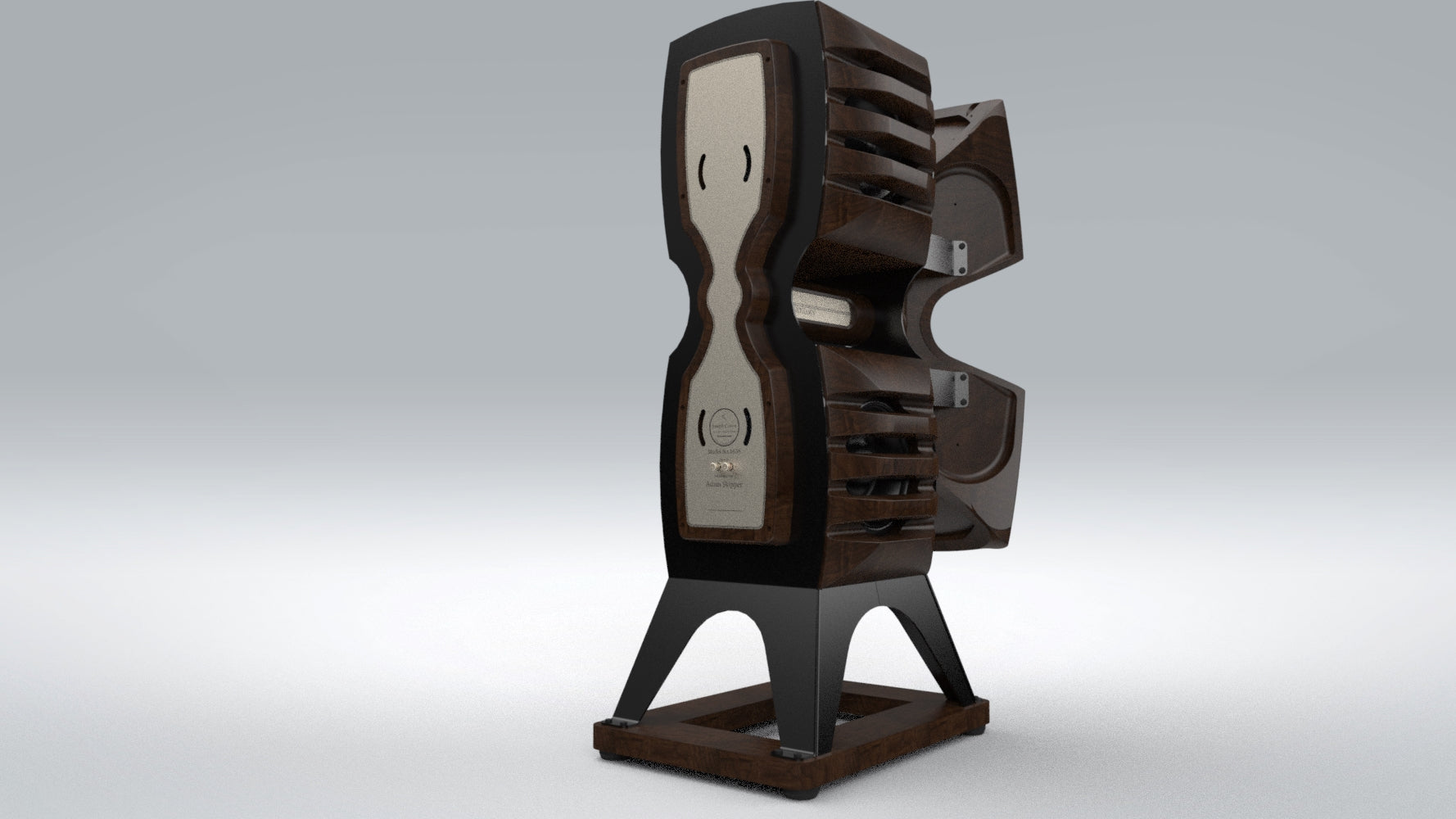

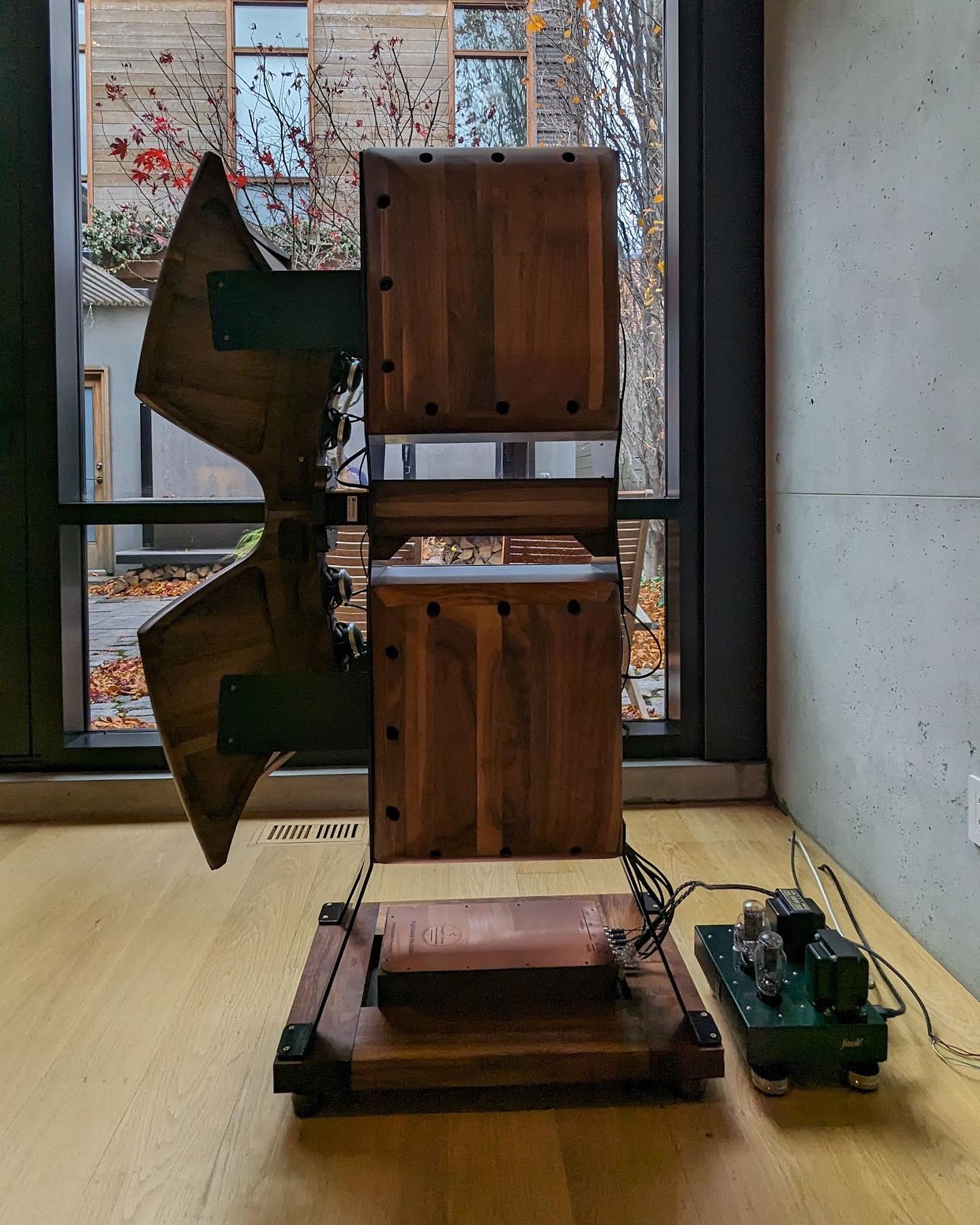

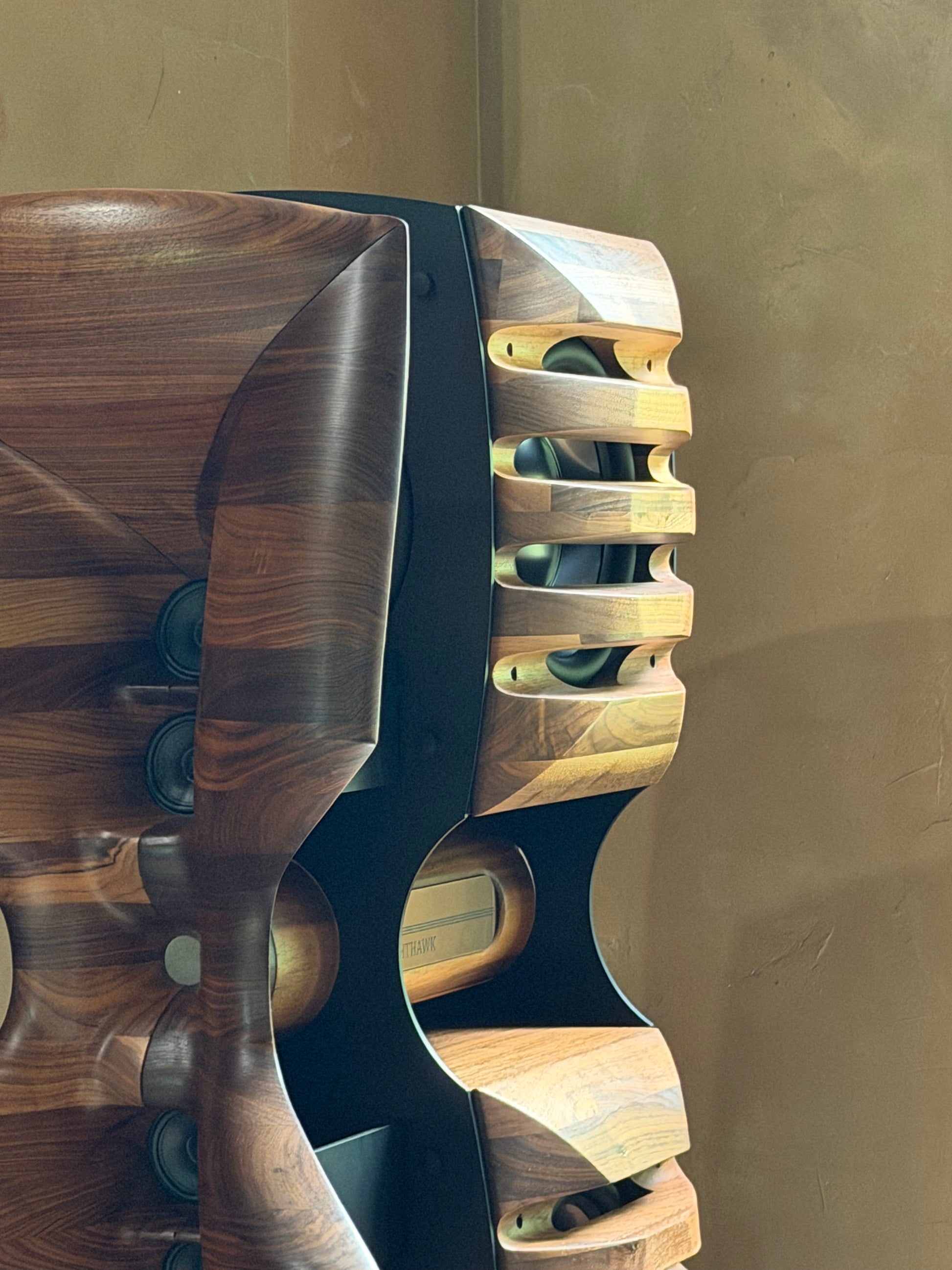

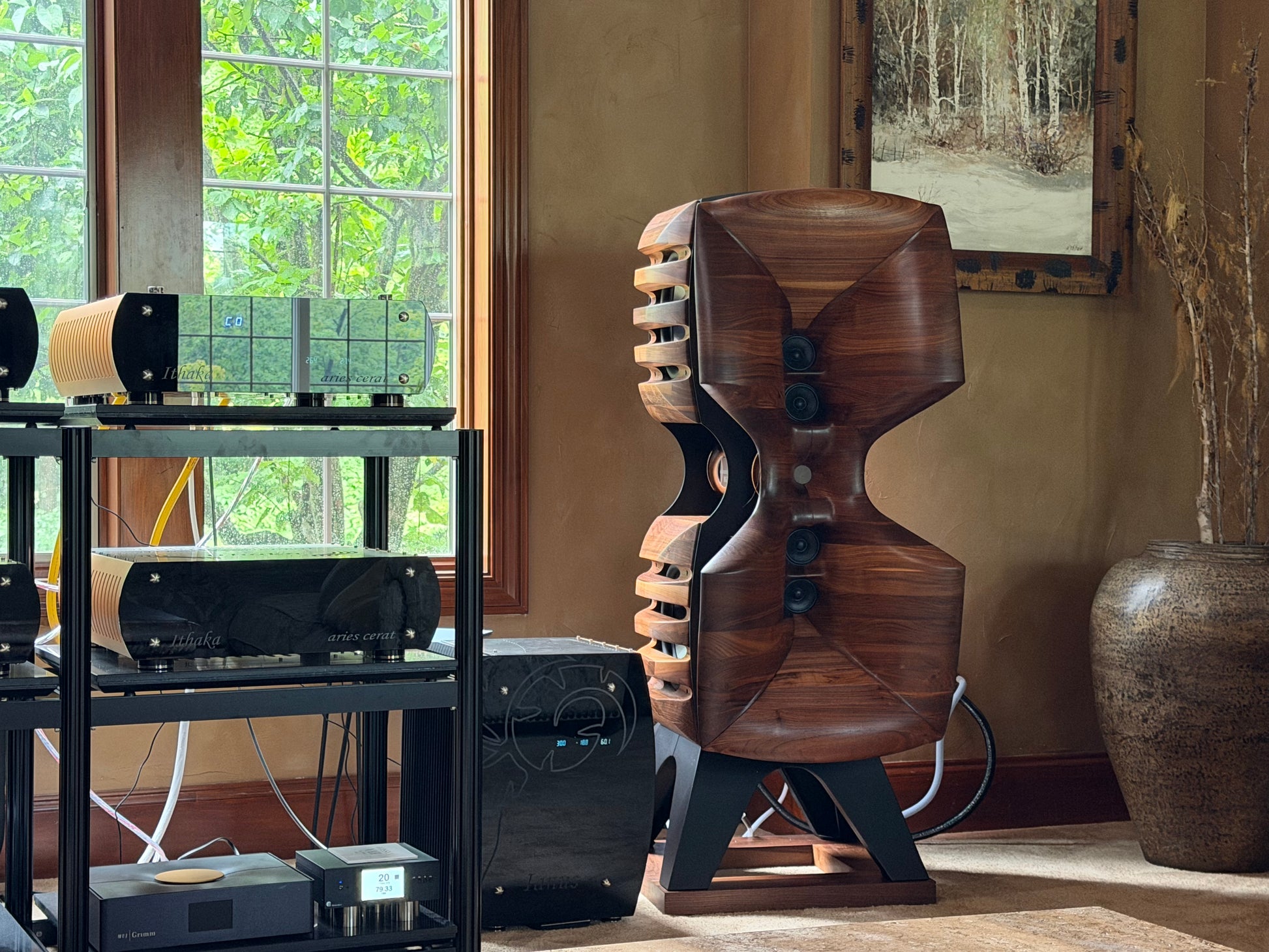

Bass Cabinet (Ref No.1636-01)

• Ripole bass cabinet sold as a pair
• x8 total 15" woofers (SB Audience Bianco-15OB350 15" Open Baffle Woofer)
• 24mm Baltic birch plywood construction for cabinets
• 100mm thick solid walnut side cheeks for each cabinet
• Constrained layer damped driver mounting baffle

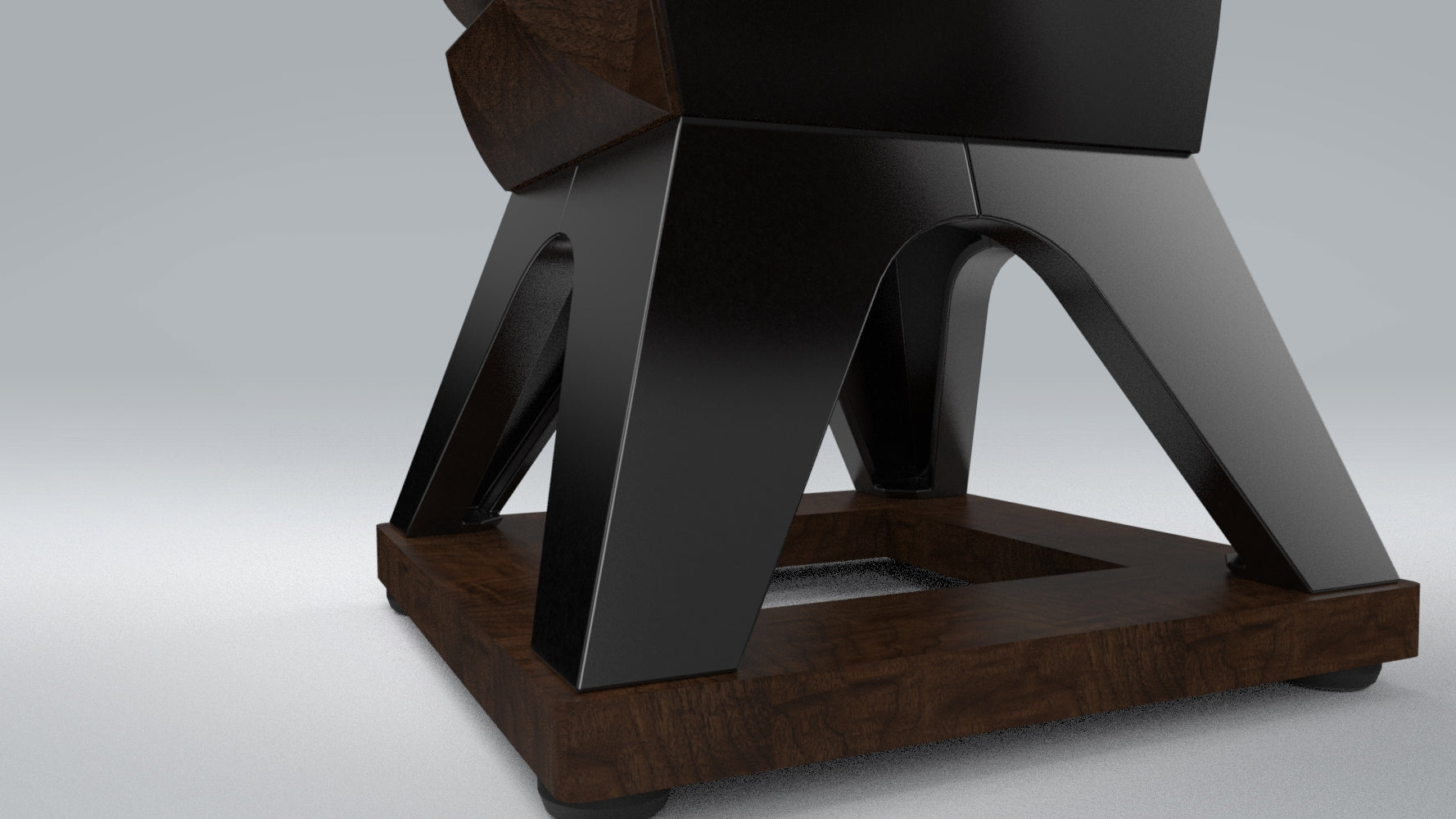

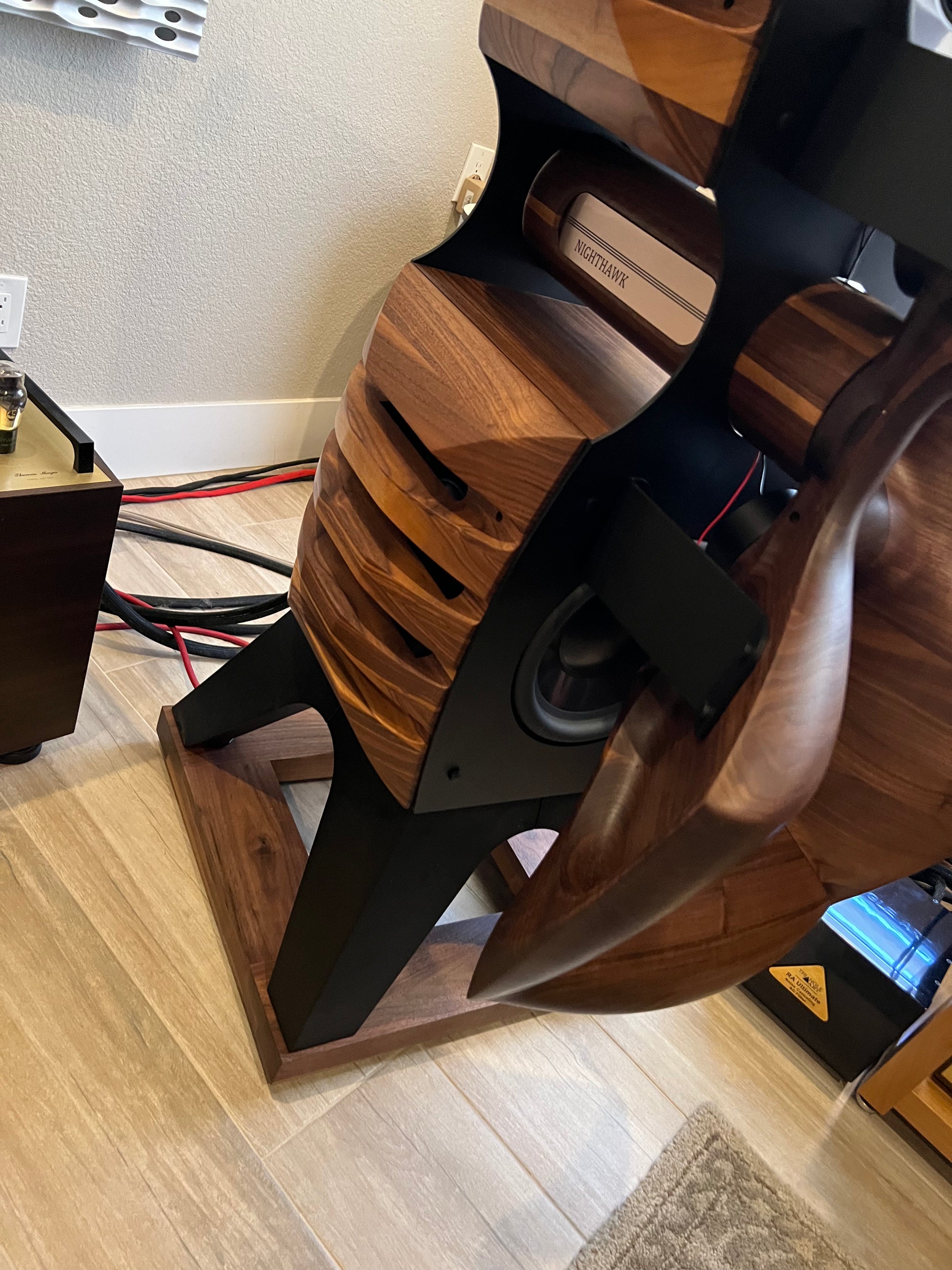

Support Structure (Ref No.1636-02)

• Metal support structure (12 ga. mild steel)
• High definition CNC plasma cut sheet steel
• Powder coated black
• ISO Acoustics Gaia l isolation feet pocketed out into walnut base
• 45mm thick solid walnut base plinth

Crossover (Ref No.1636-03)

• Housed in hardwood tube behind tweeter
• Passive crossover for LF, MF, and HF
• May require some DSP room correction using customer's Trinnov Amethyst preamplifier
• Bi-amp and Bi-wire capable between LF and MF
• High grade components used throughout
• Dayton satin/nickel finish binding posts

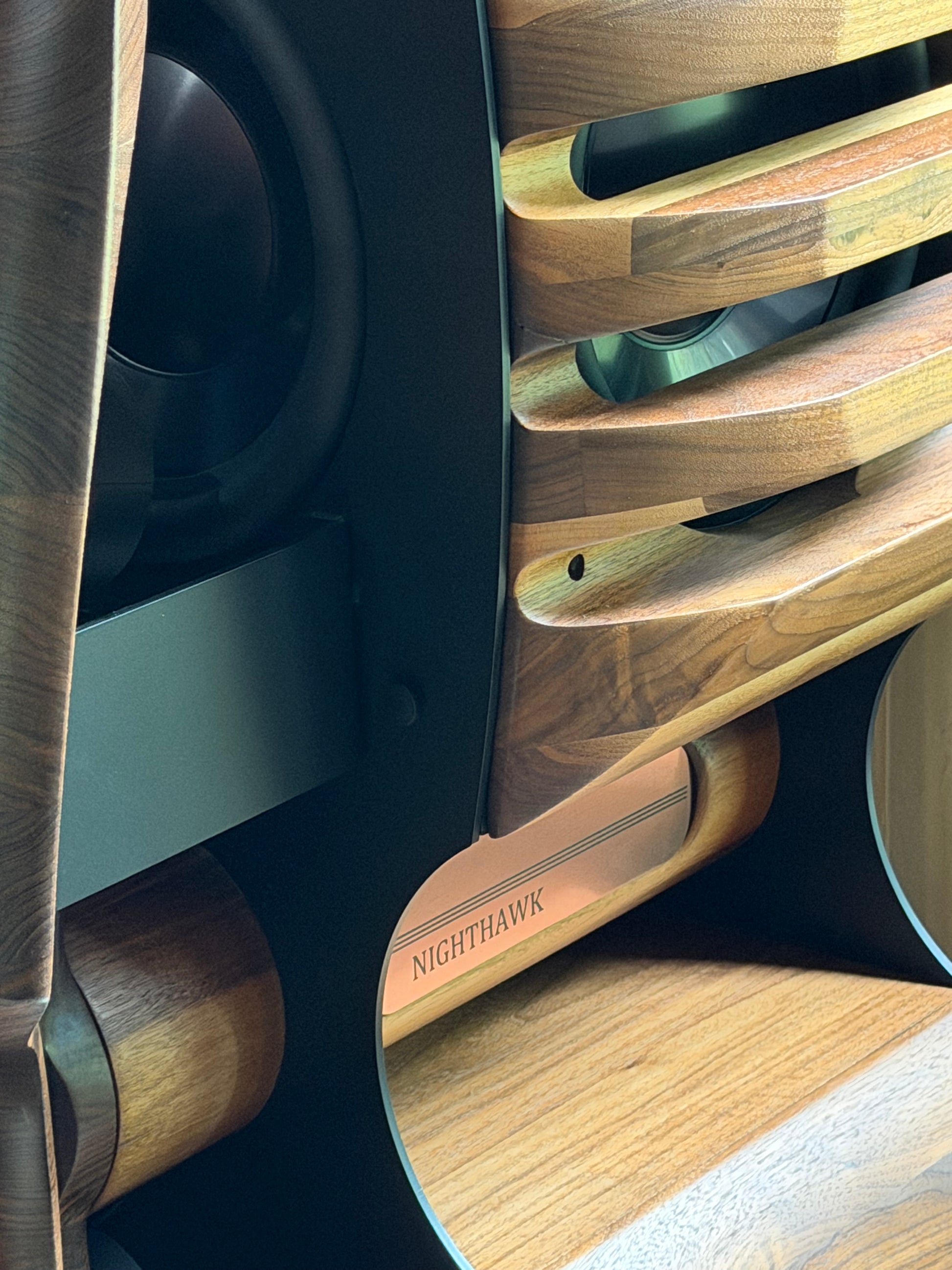

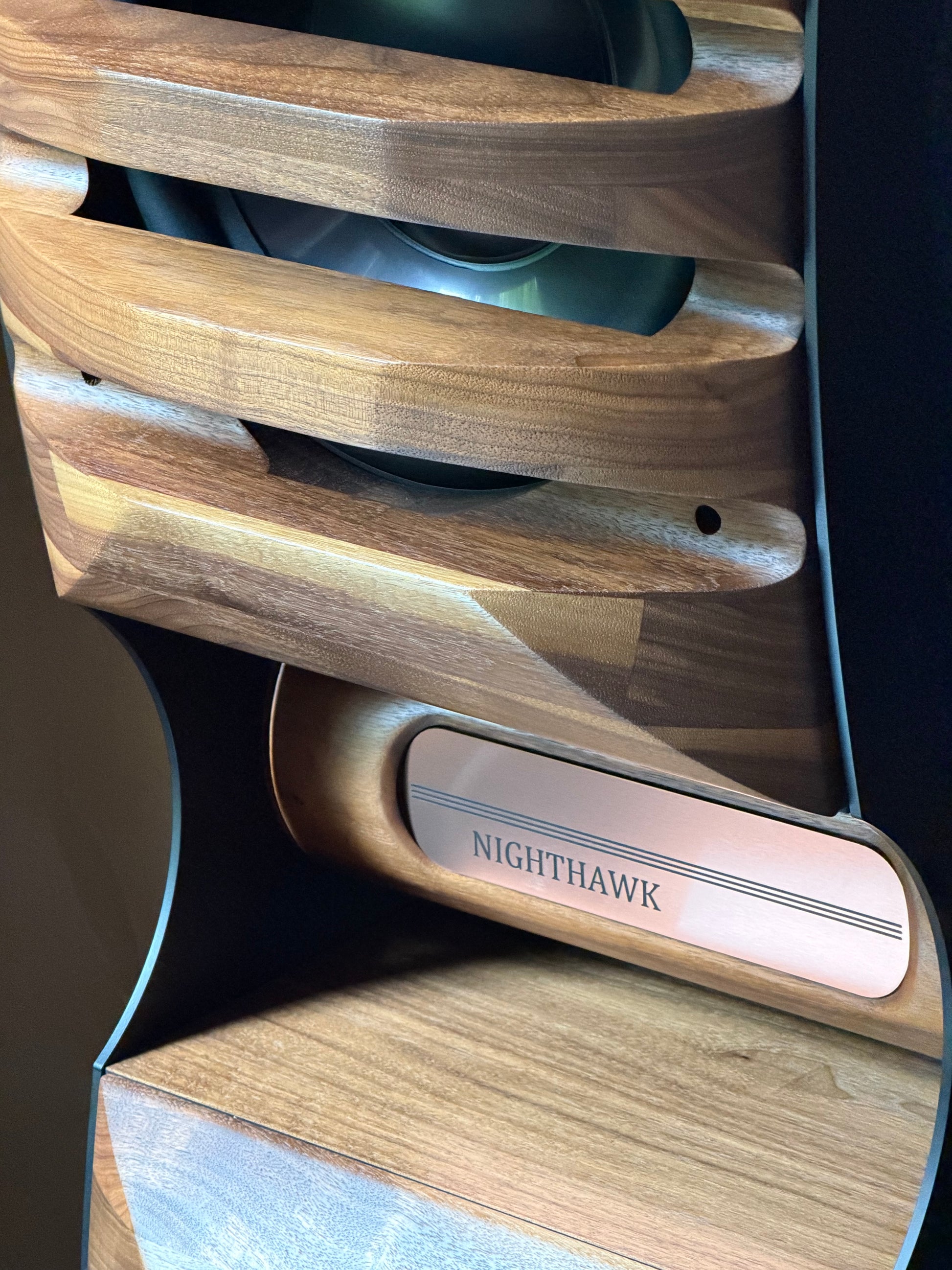

• Joseph Crowe custom decal and labelling (laser engraved brushed nickel plated emblems)

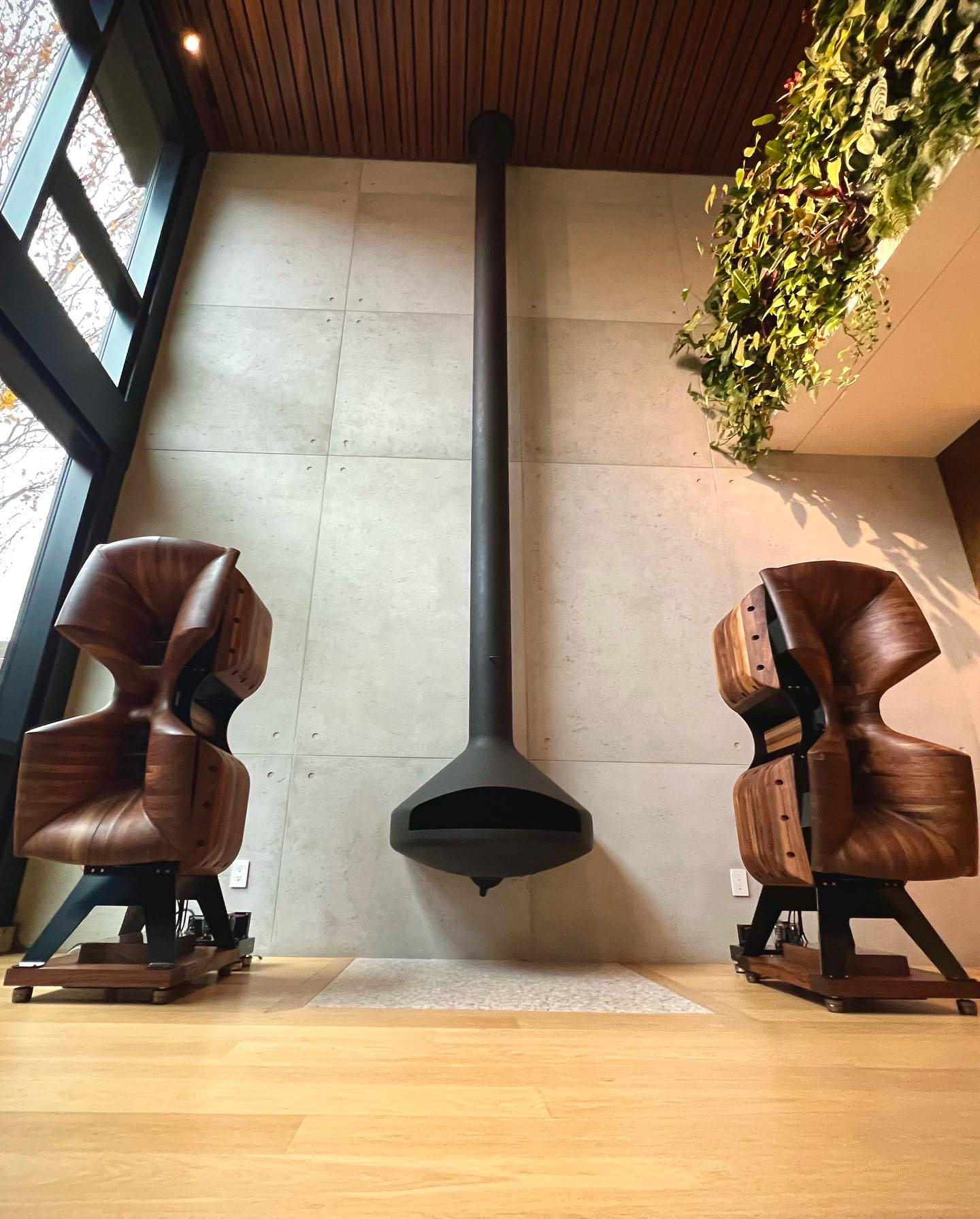

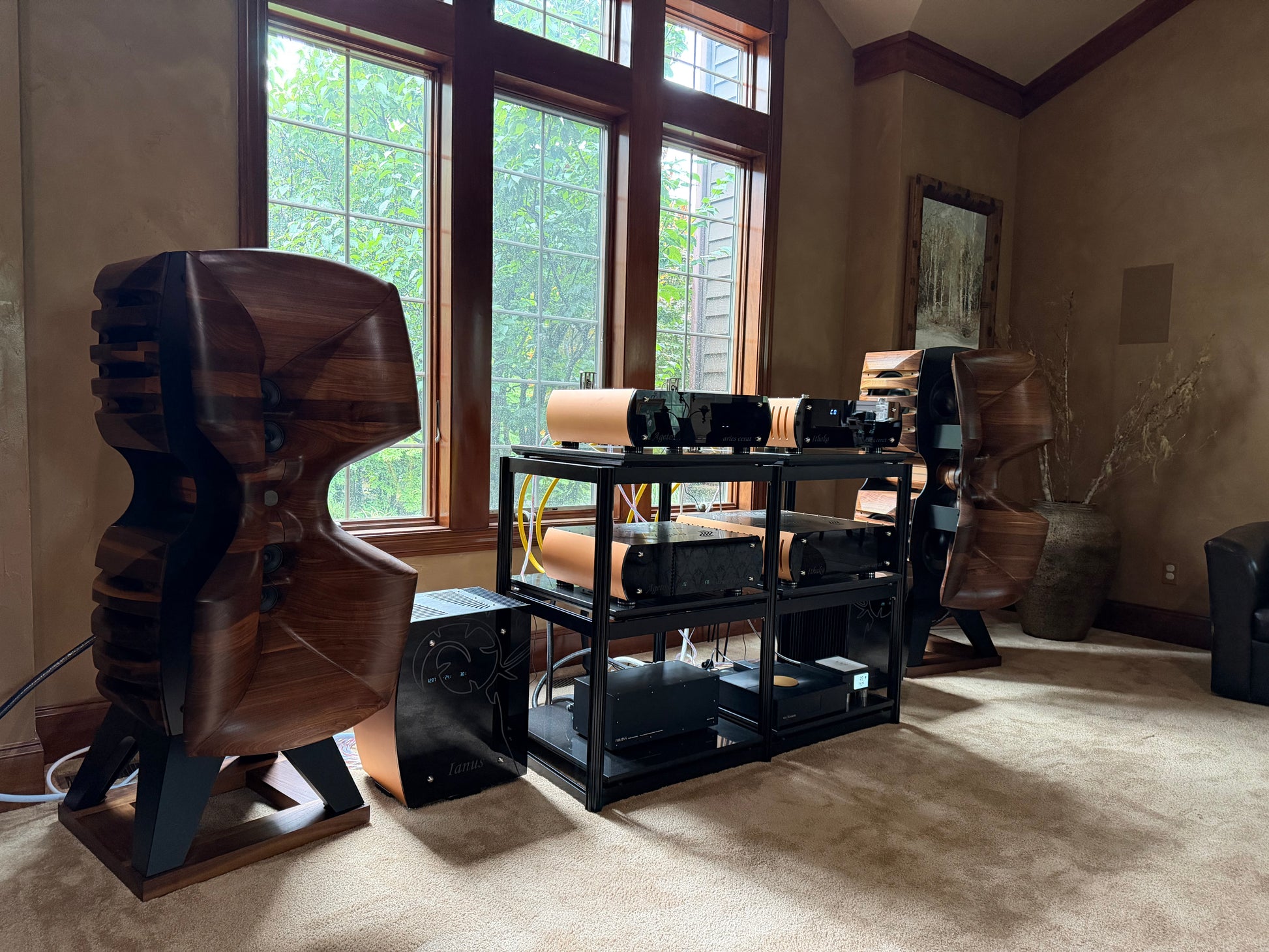

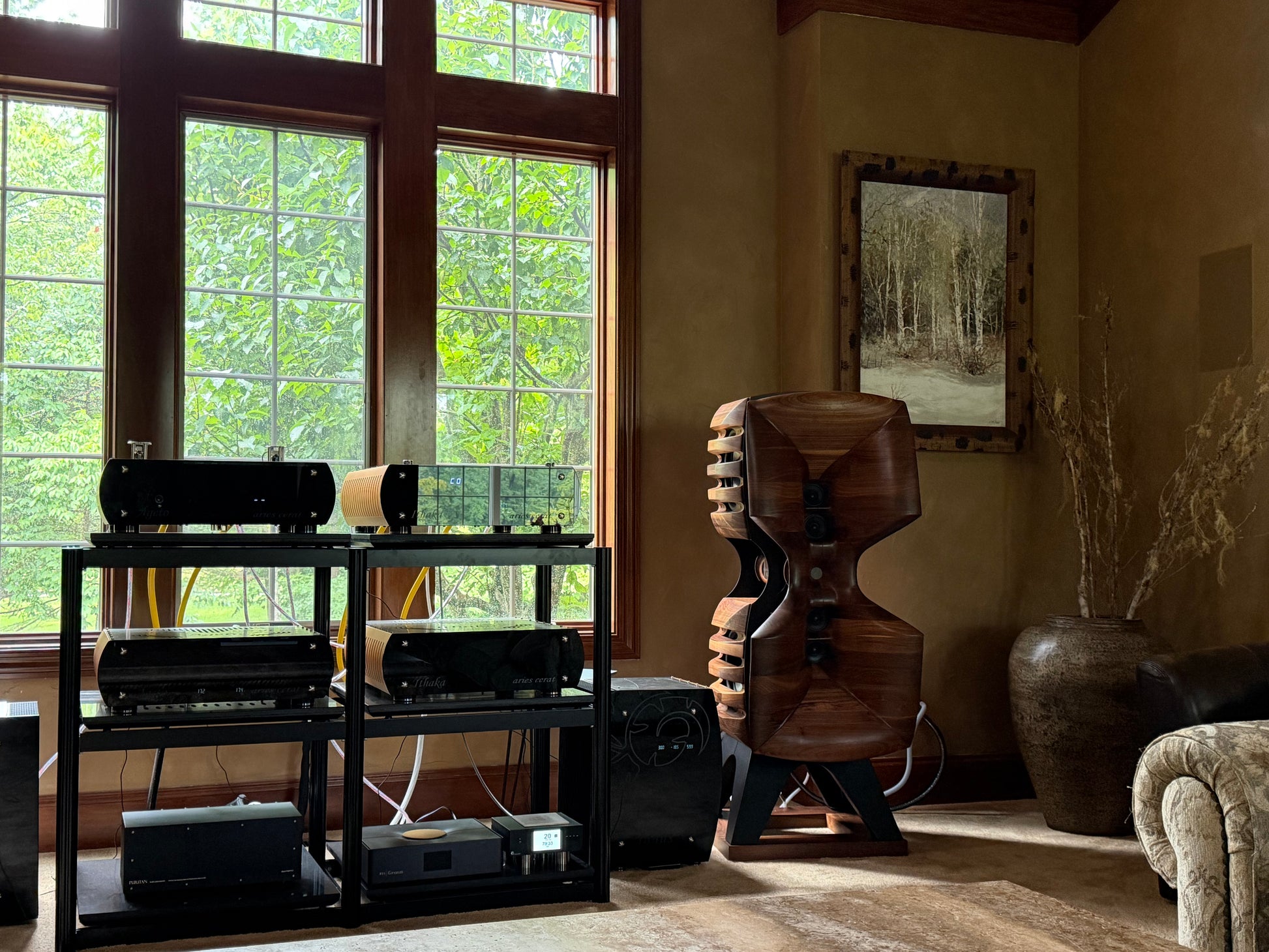

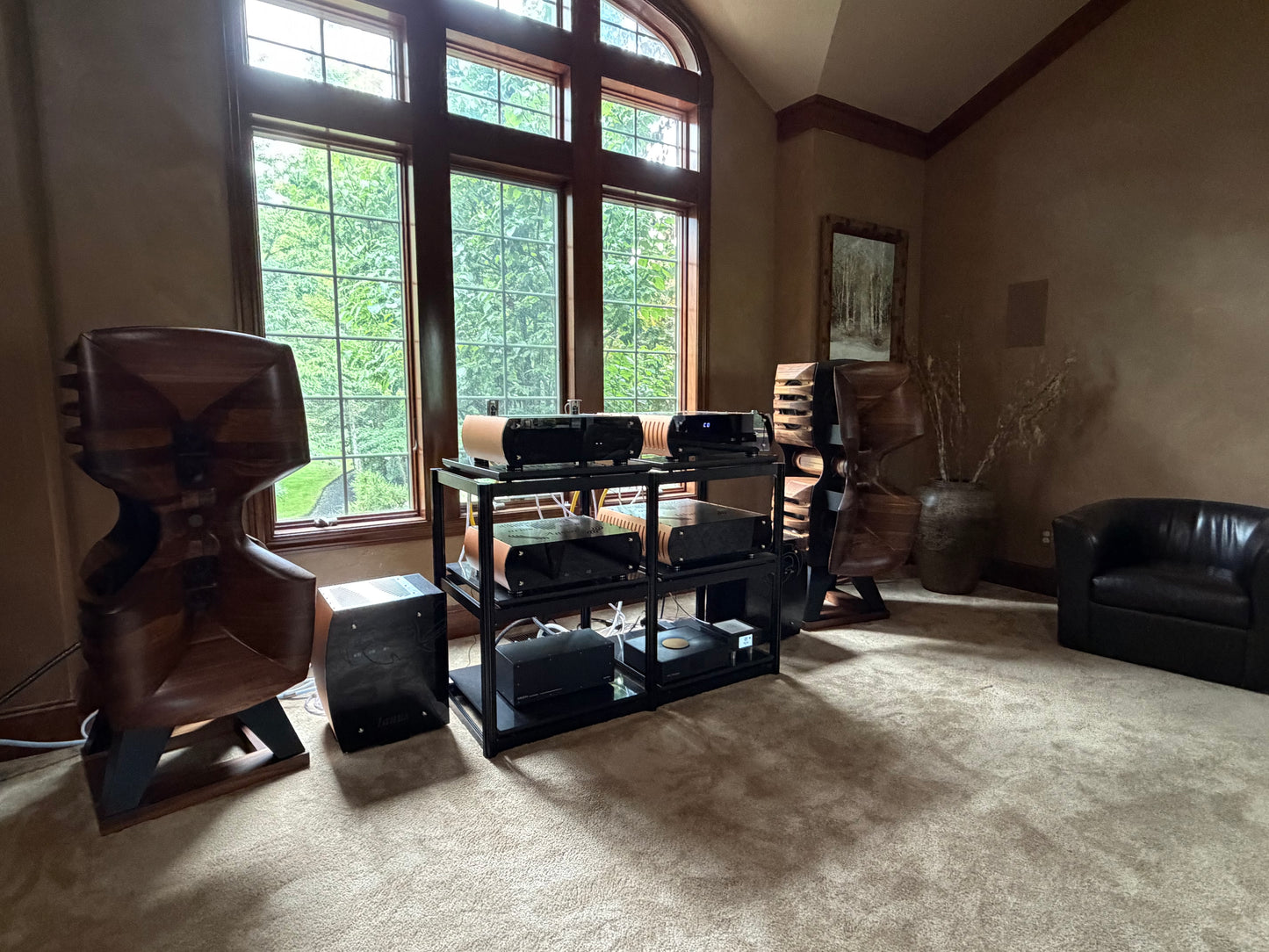

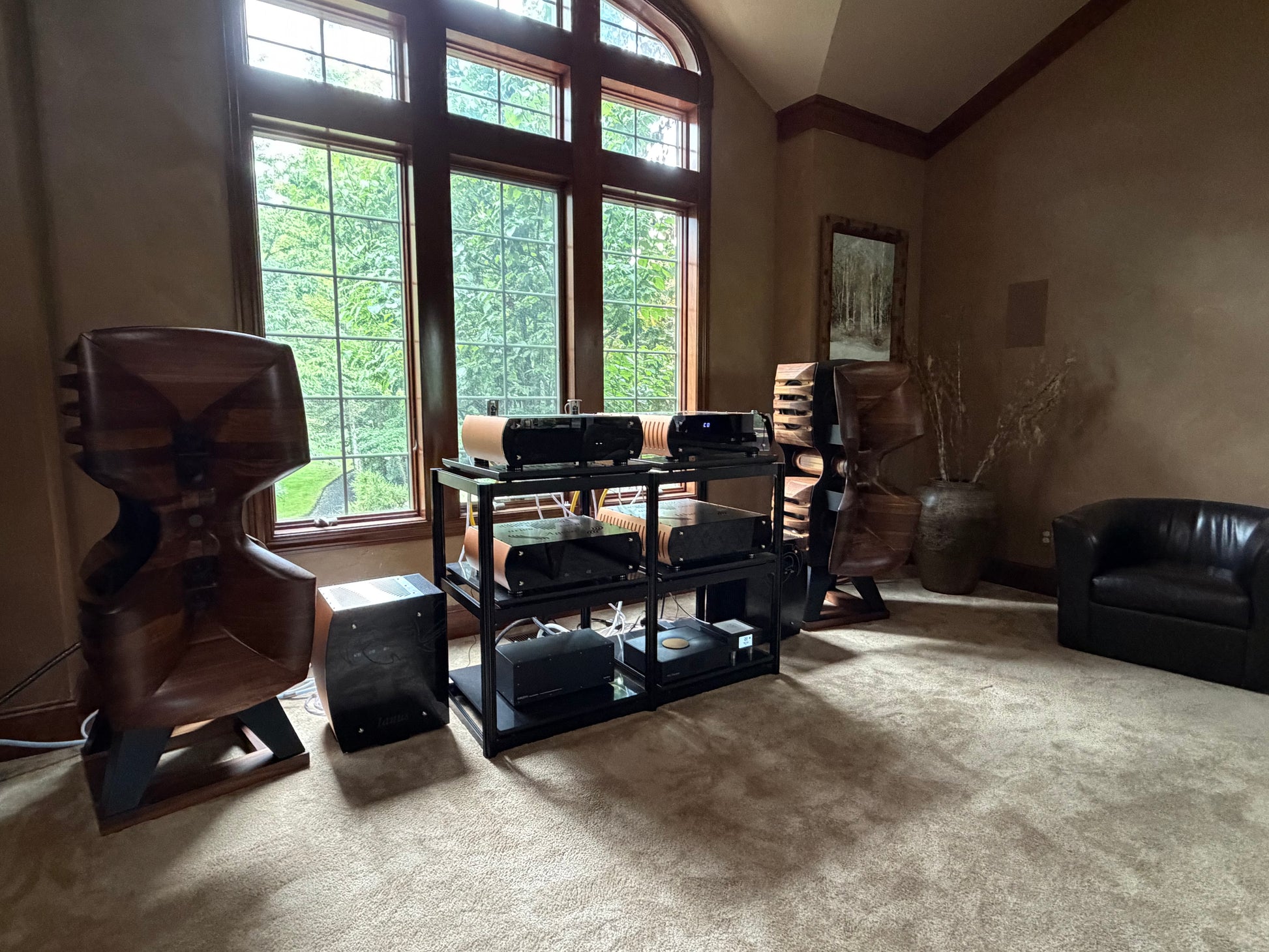

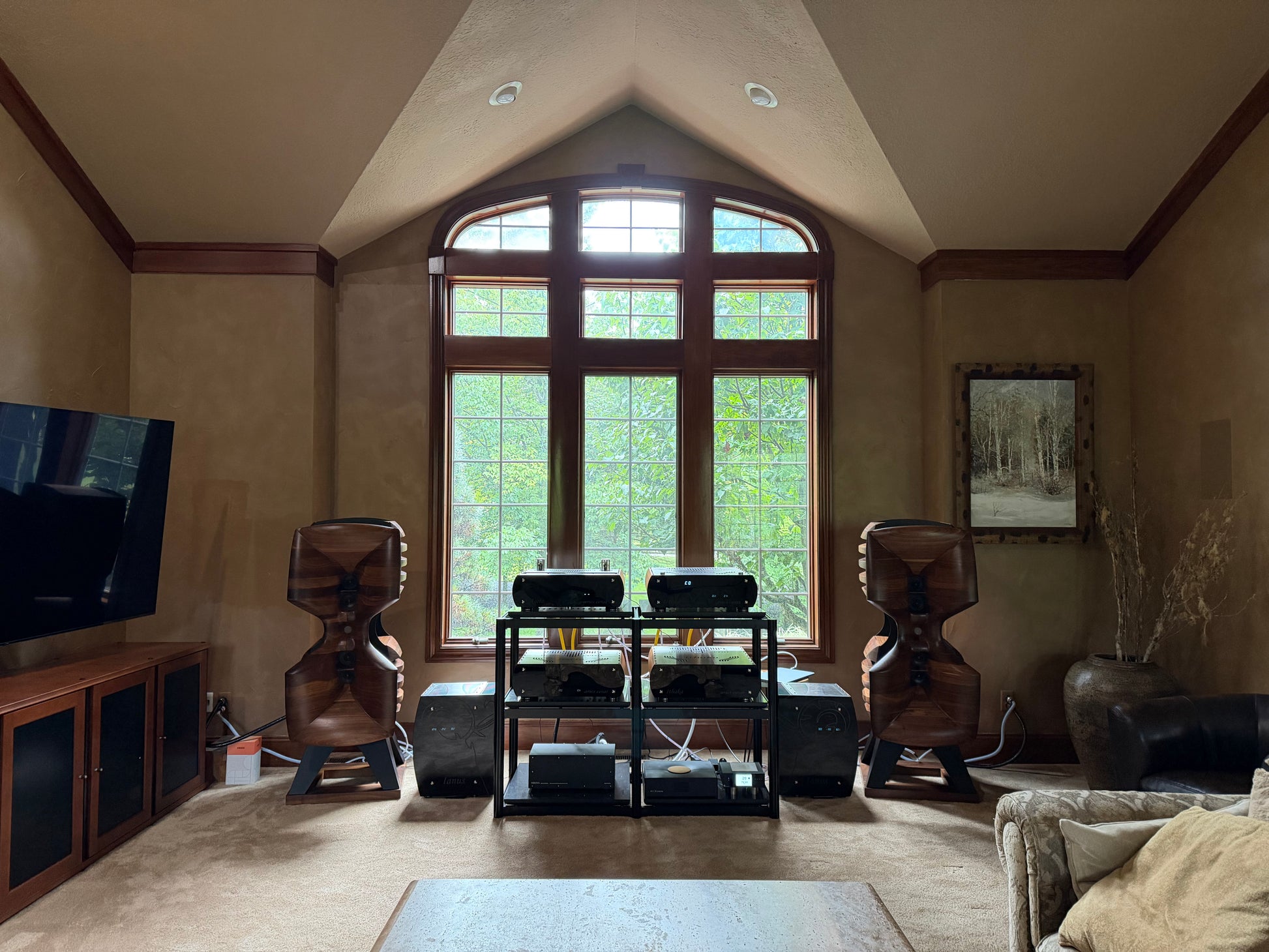

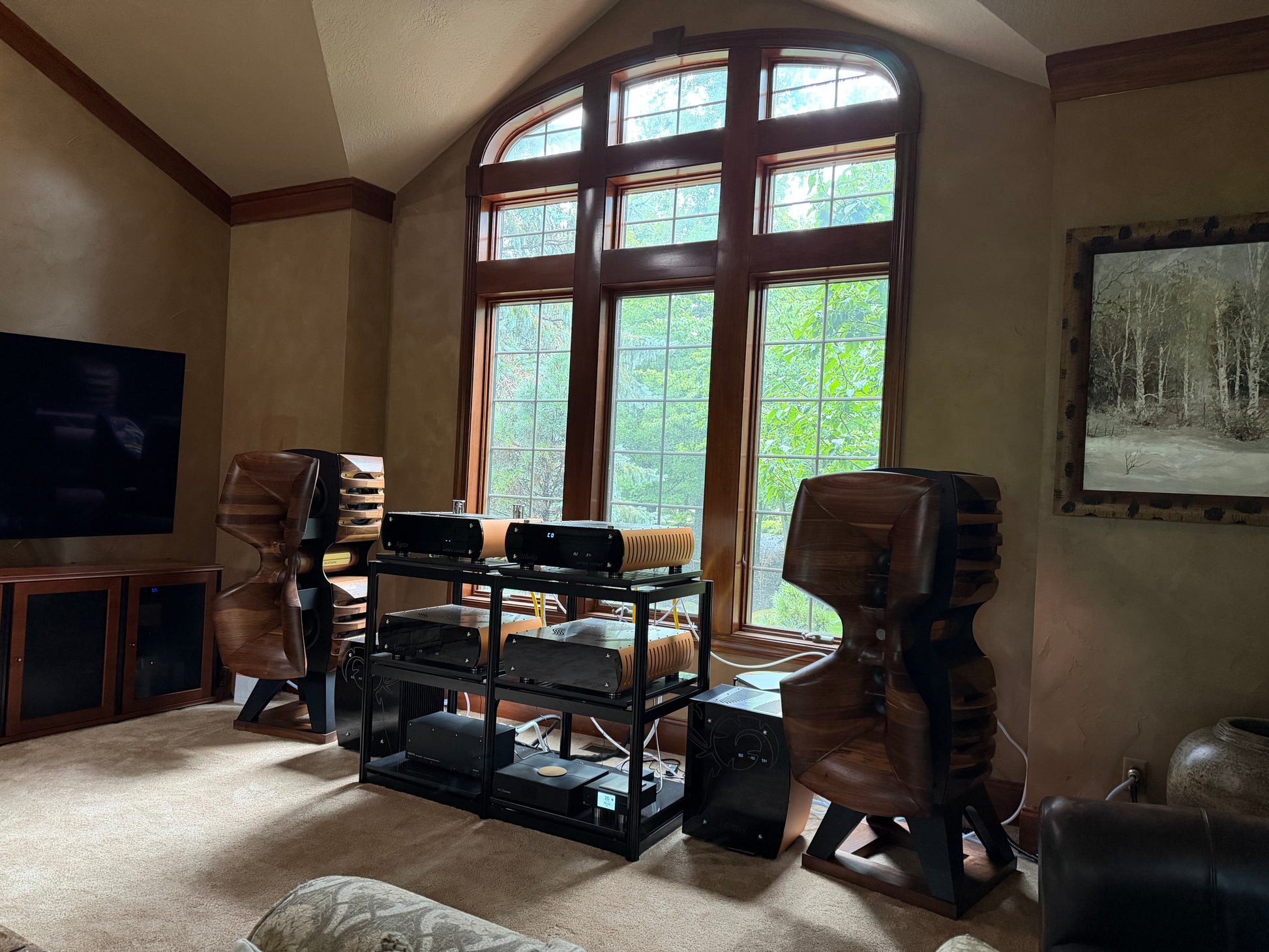

Final System Setup

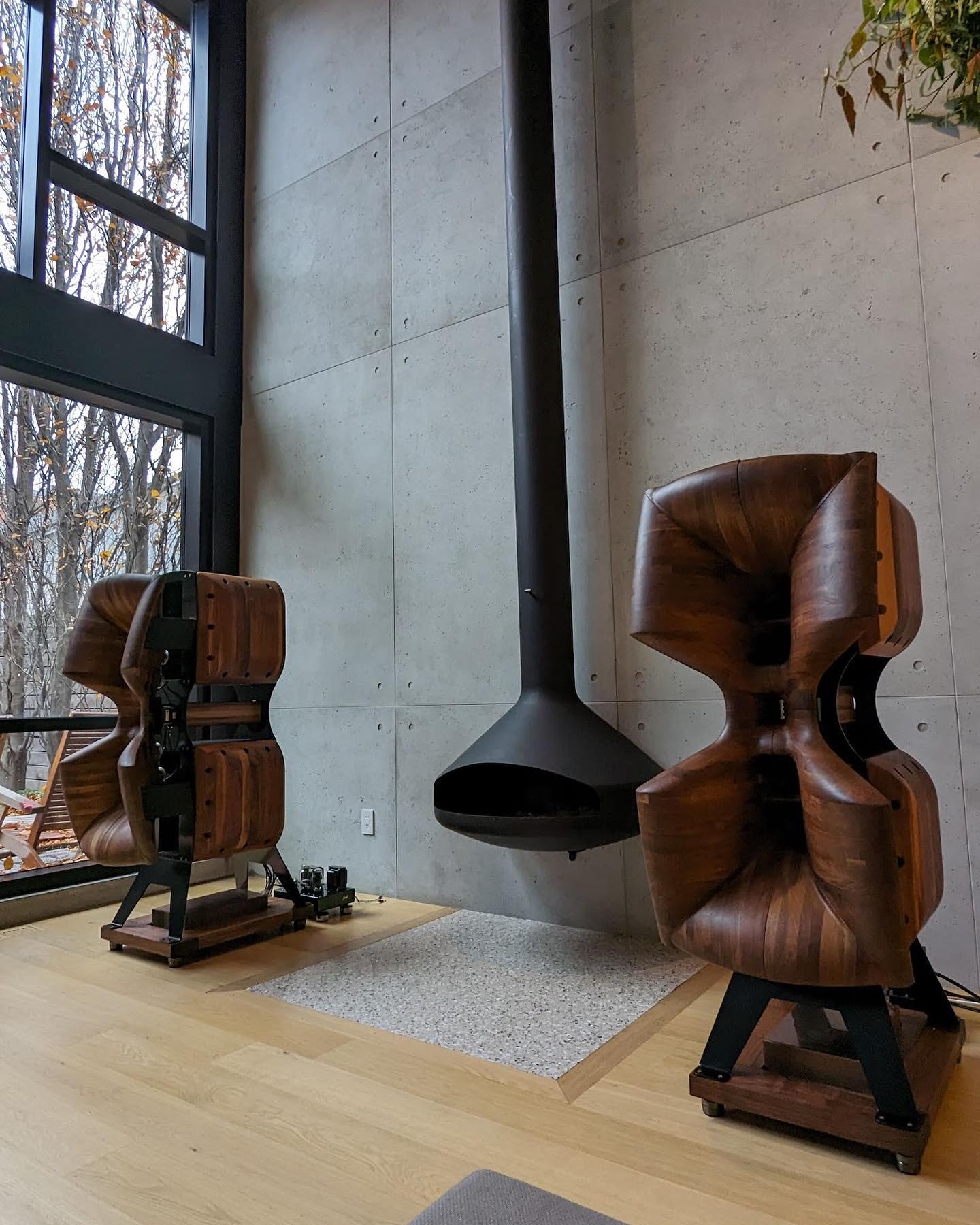

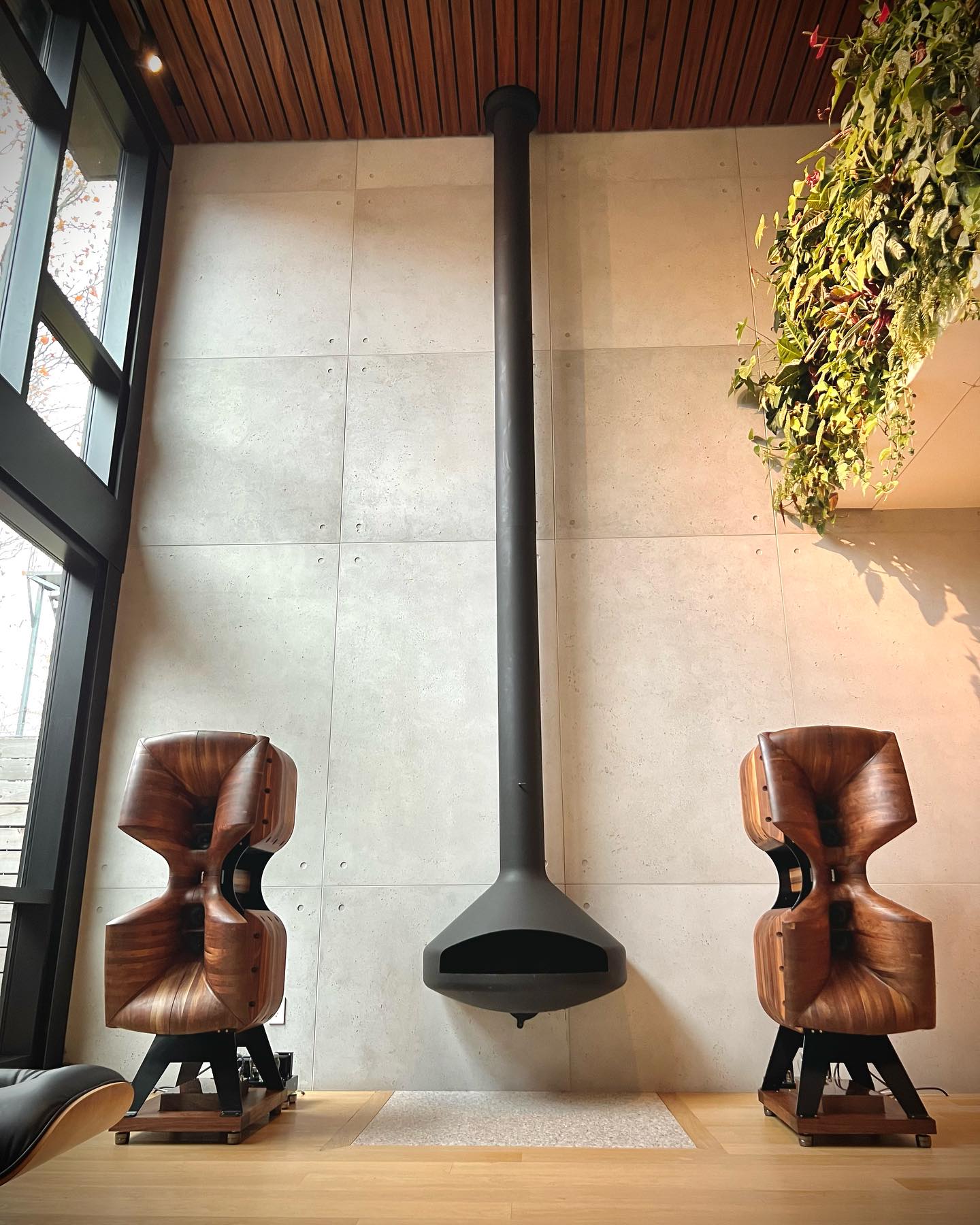

• Delivery and setup at customer's address in Toronto
• DSP room correction using reference microphone
• Fine tuning of system using variety of customer's music

Current project costing (July 26, 2022) below:

Currently left in the job: $4,200 (available credit to customer)

Cost required to complete project based on above: $21,700.00

Subtract current credit: $21,700.00 - $4,200.00 = $17,500.00 + HST

Terms: 60/40 ($10,500/$7,000)
