Cabinet Plans for Lii Audio Fast-8 Fullrange Driver

Sale price Price $15.00 Regular price

These plans are for the Lii-Audio FAST-8 Fullrange Driver.  Details on this driver can be found here
  • All funds in CAD currency

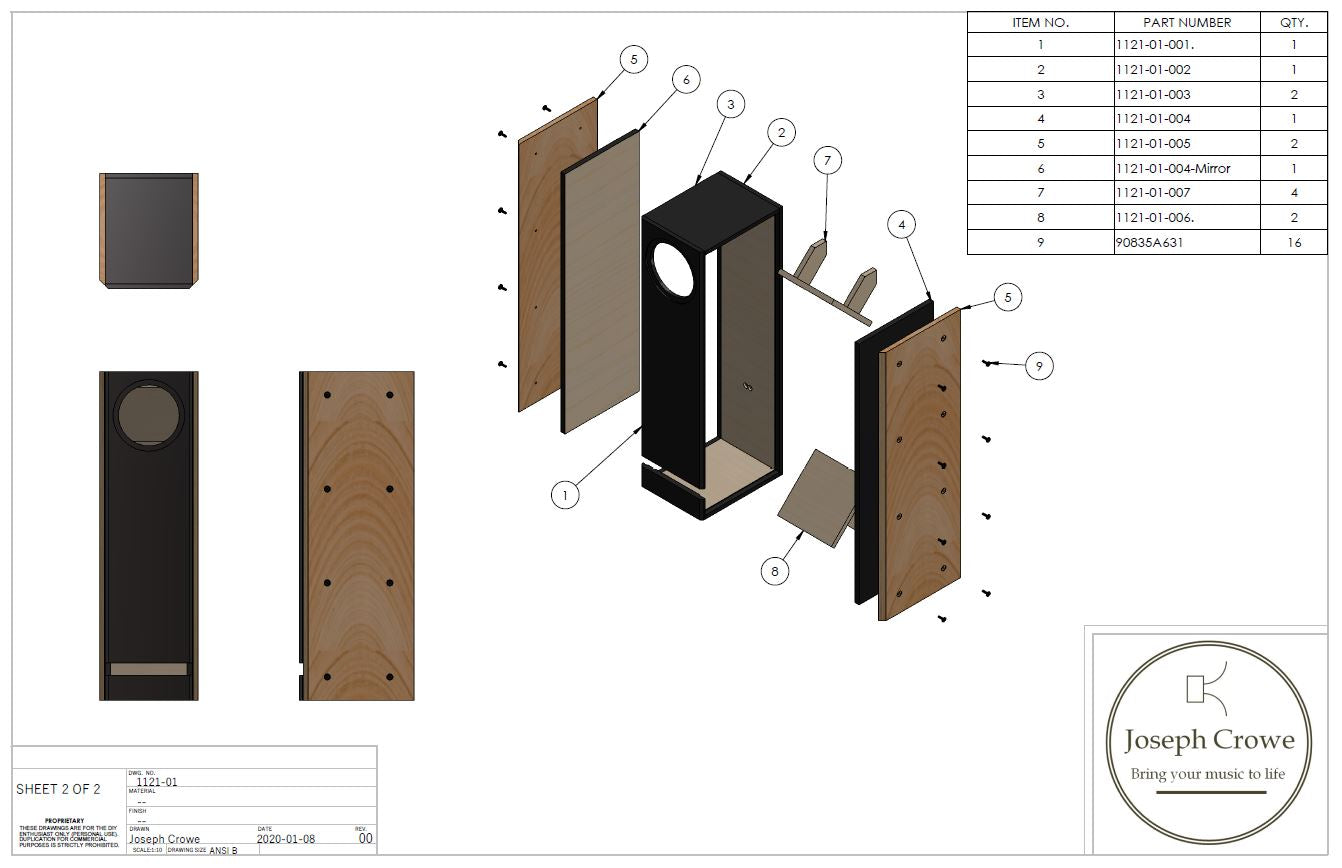

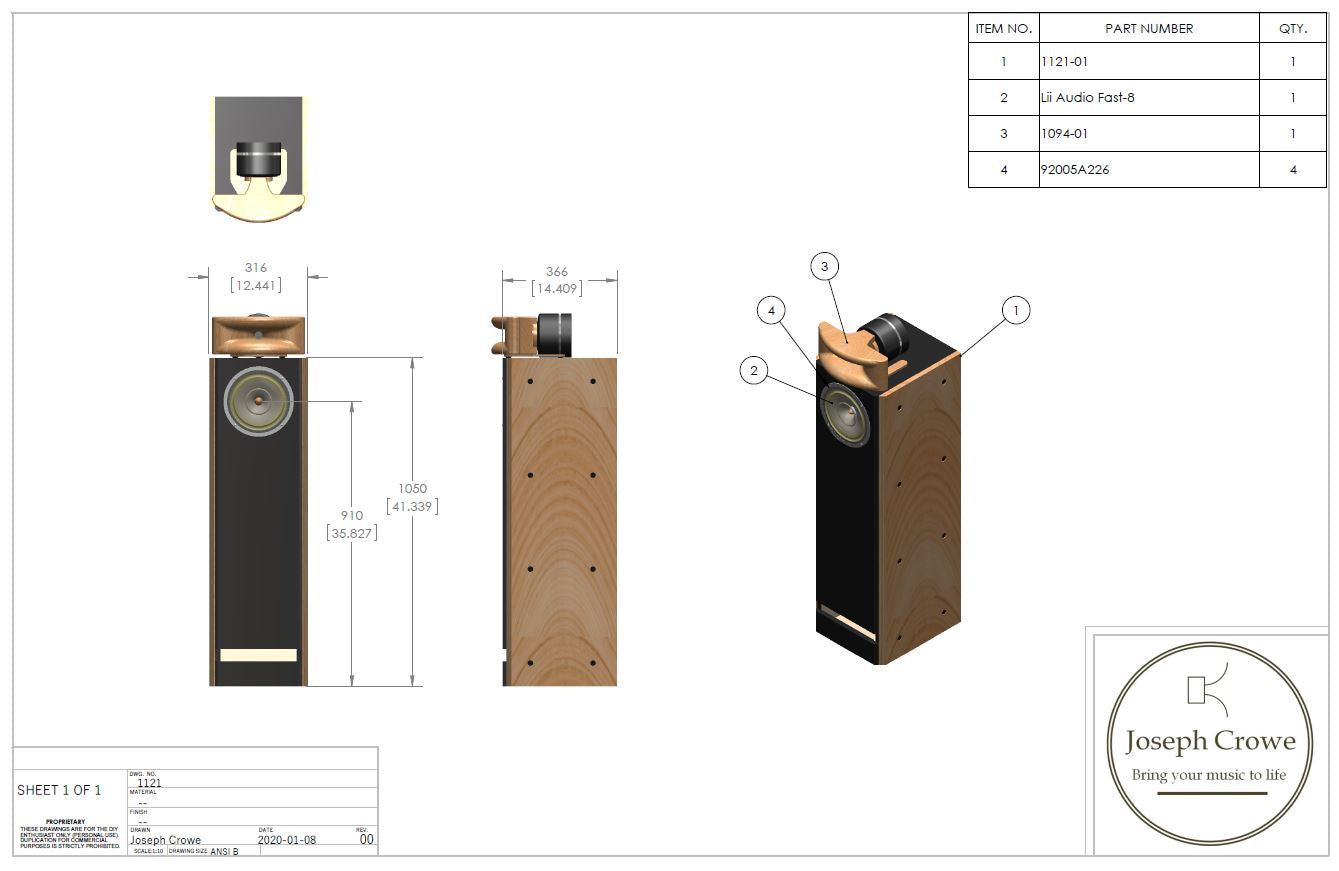

  • Assembly and detail drawings (PDF Format)

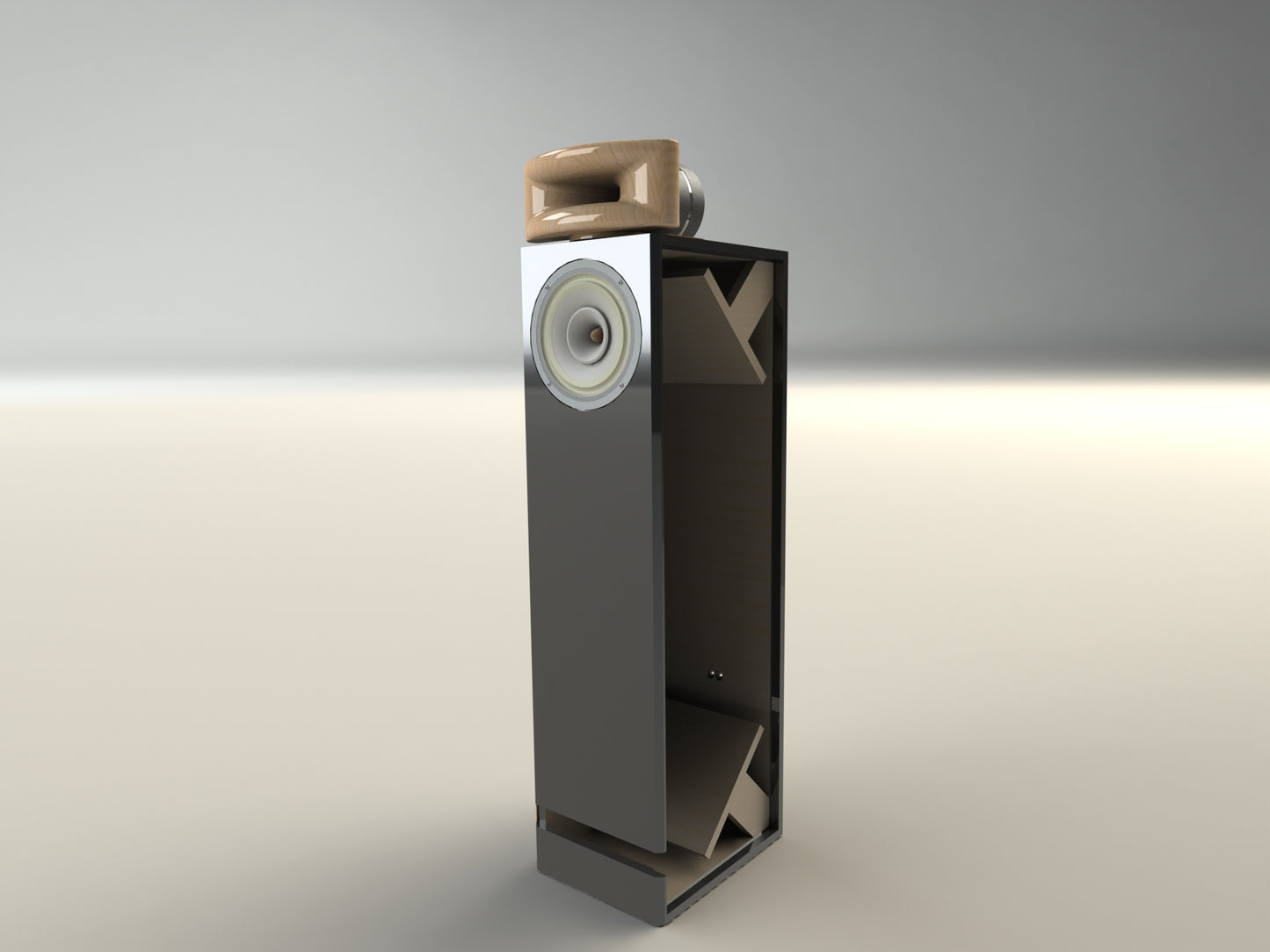

  • Internal deflectors to direct rear wave into a column of acoustical damping material (Mass Loaded)
  • Avoid 'boxy' sound by elimination of rear acoustical wave
  • Retains midrange clarity similar to open baffle
  • F3 low cutoff of 42Hz

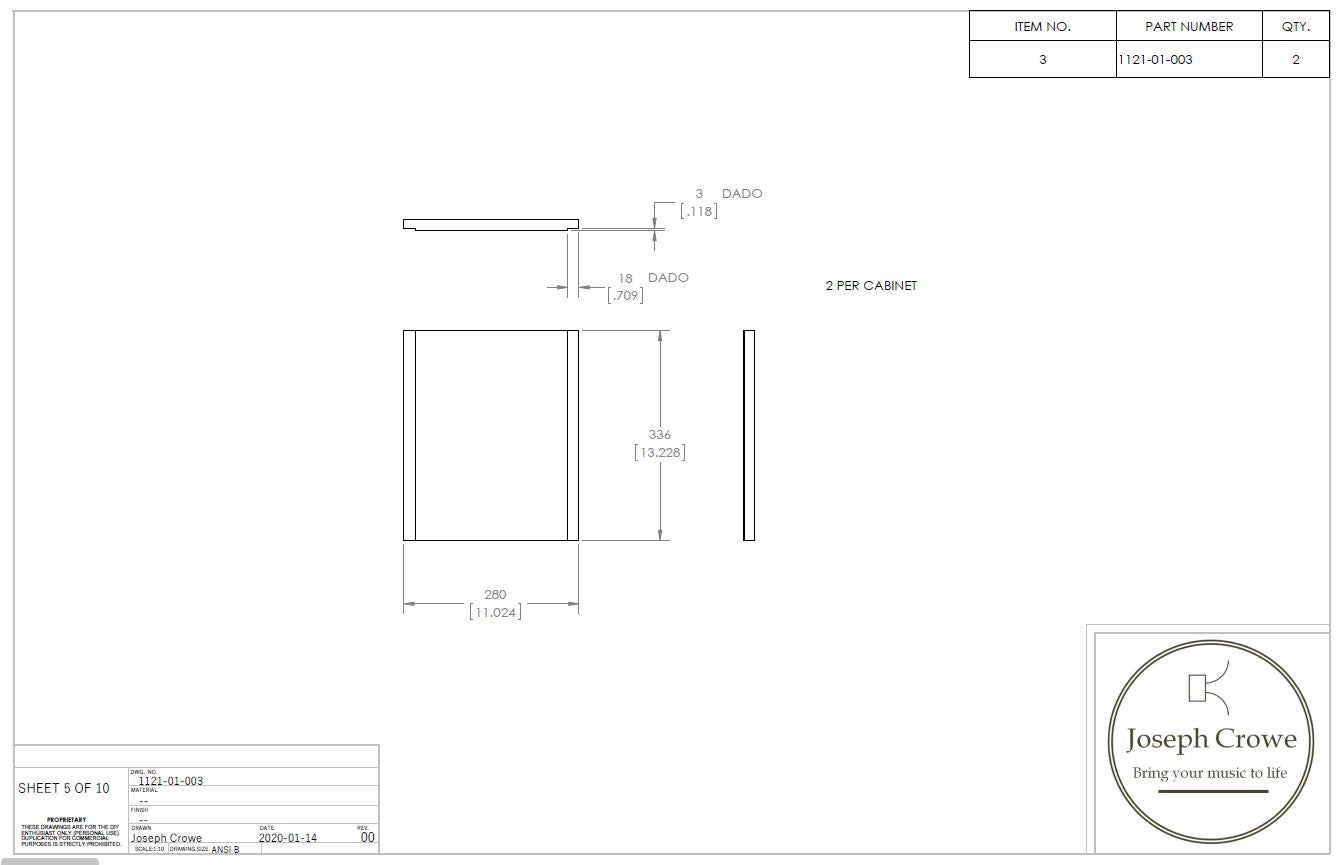

  • Dado corner joints for strength and ease of assembly/glue-up
  • Mounting features for electrical terminal connections
  • Fasteners detailed out in drawings
  • Designed to accommodate CNC manufacture or manual methods

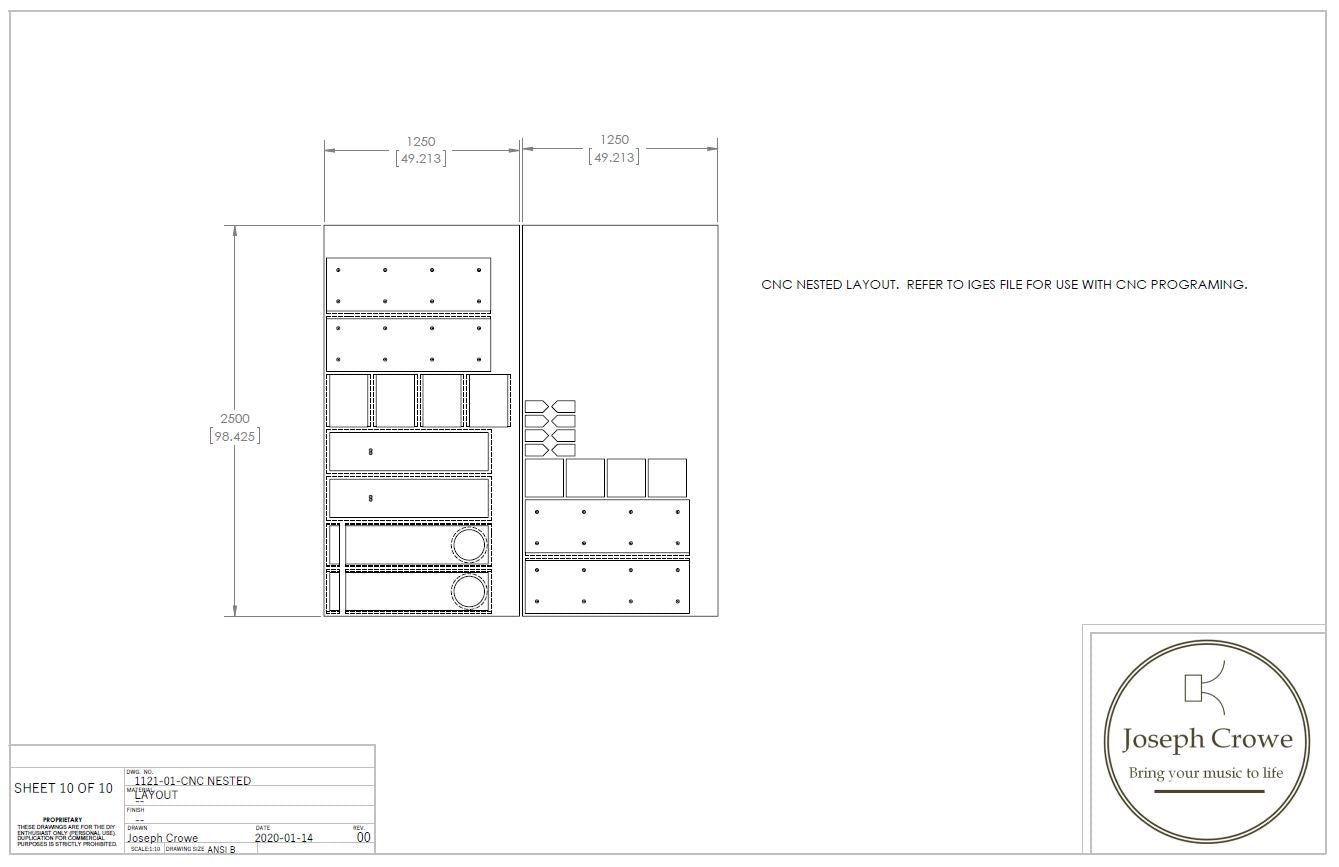

  • Nested layout of all panels on plywood sheet for ease of CNC programming and to ensure good use of material on standard plywood sheet (customer to specify plywood sheet size)

Exclusions

  • Baffle Step Compensation Circuit Design (can be quoted as separately)
  • CAM Programming and G-code creation (can be quoted separately)
  • ES-800 Biradial Horn (can be quoted separately)
