ES-2000 Biradial with Various Compression Drivers

Introduction

This blog post features acoustical measurement of the ES-2000 Biradial Wood Horn with the new B&C DE360 compression driver.  This horn was discussed in detail in my previous post which can be found here


A full set of measurements will be conducted on the following configurations



  • B&C DE360
  • Compare with B&C DE120
  • Compare with RCF ND-350
  • Integration suggestion with ES-600 Biradial



Technical Design Highlight

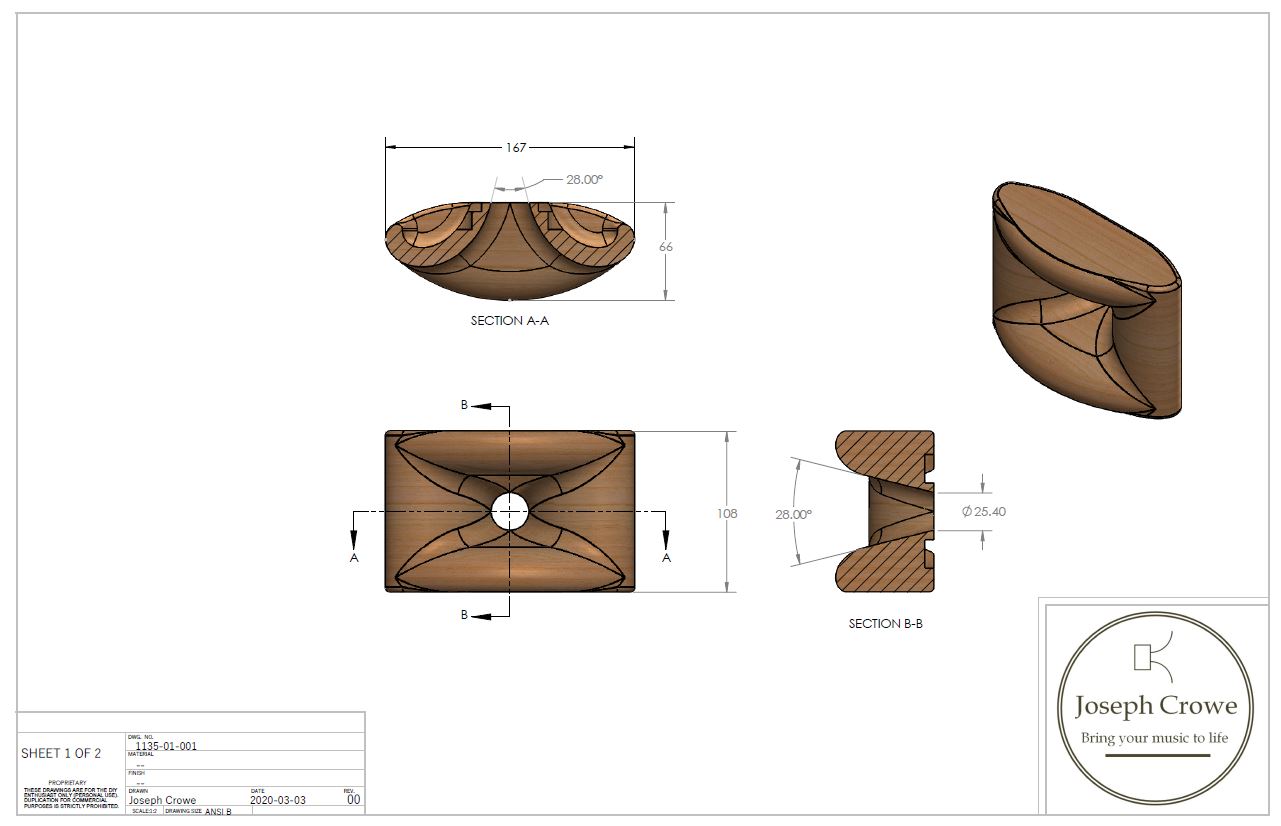

Dimensional Drawing for ES-2000 Biradial Wood Horn (Part No. 1135)

Front Isometric View of ES-2000 Biradial (Part No. 1135)

Section view of ES-2000 Biradial Horn Showing latest curvature (Part No. 1135)

Measurements

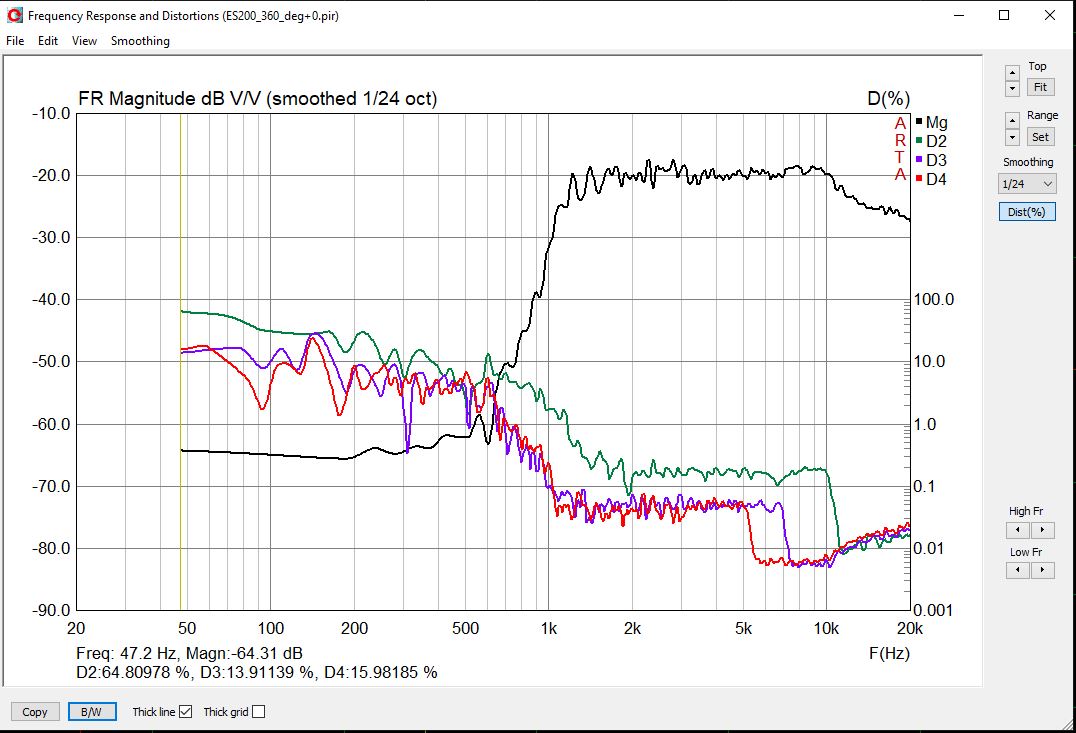

I setup the ES-2000 on a tripod which sat on my rotary table.  I place the mic at 1 meter distance and performed an on-axis frequency response with distortion sweep.  Distortion jumps quickly below 2kHz.  With distortion set to Db scale instead of percent you can see the

that H2 is -55dB below fundamental @5kHz.  H3 + H4 are -65dB below fundamental.  This are respectable results.





ES-2000 Biradial with B&C DE360 Compresion Driver



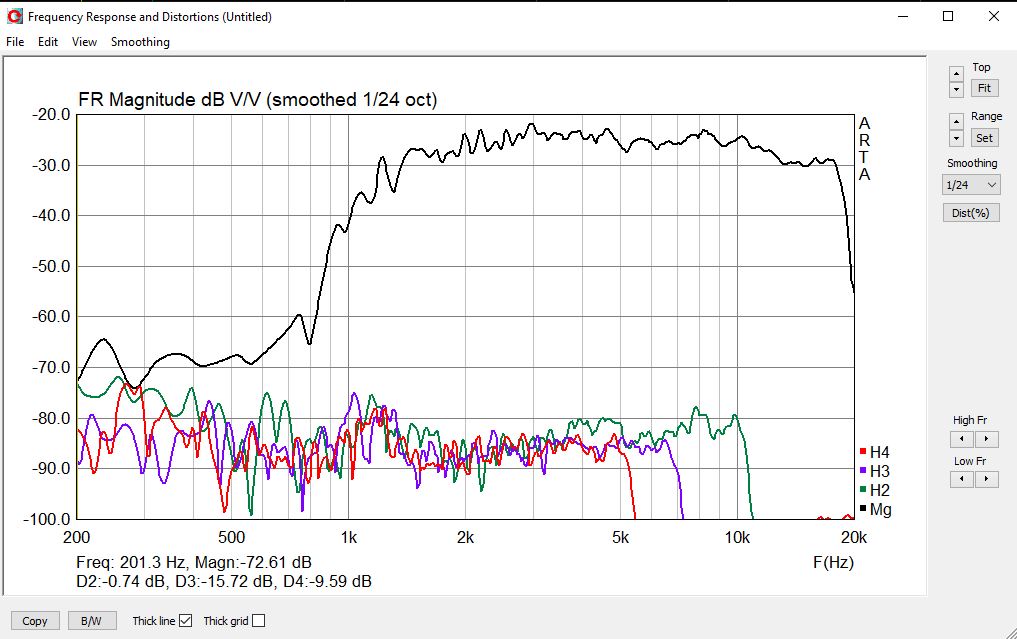

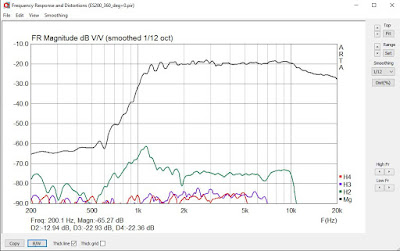

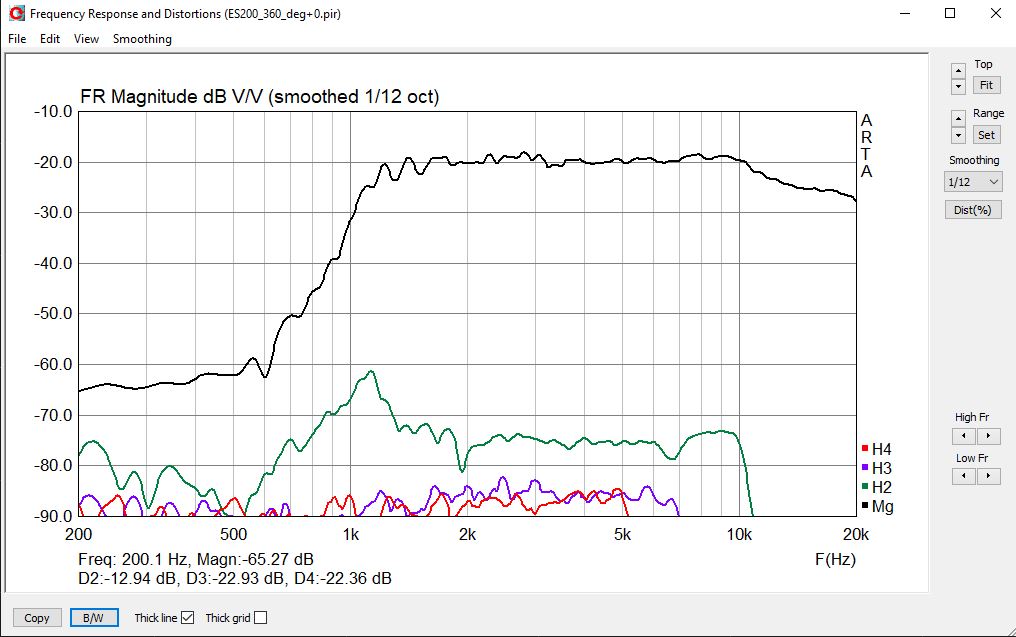

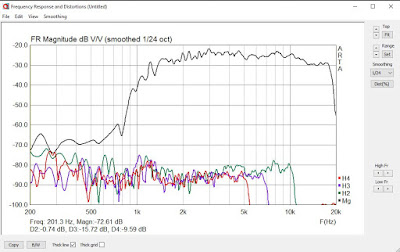

Distortion Sweep for ES-2000 Biradial + B&C DE360 Compression Driver (dB) scale.

Frequency Response

Here are the on-axis frequency response measurements (1 meter) for the ES-2000 Biradial.  There was a surprising falling response above 10kHz which I will discuss later.  But otherwise the horn/driver combination produces a very flat response from 1.2kHz-10kHz.  This is +/- 1.0dB!

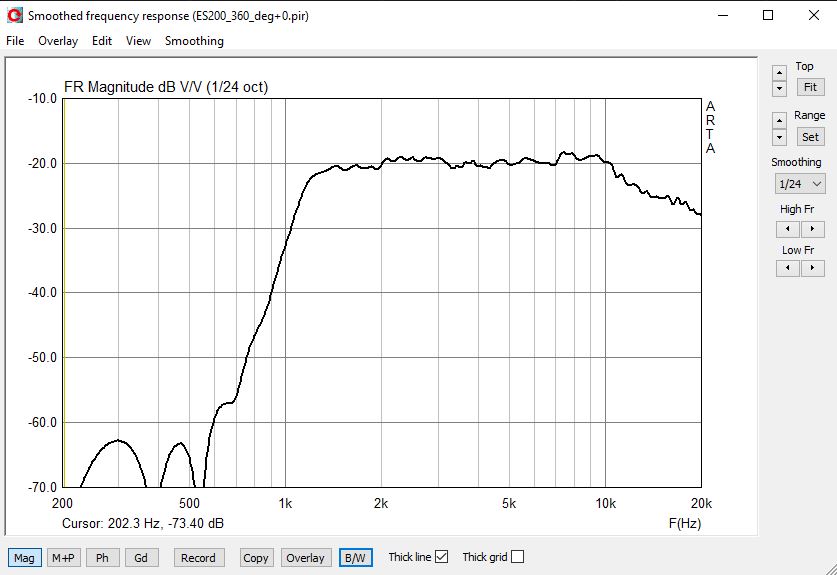

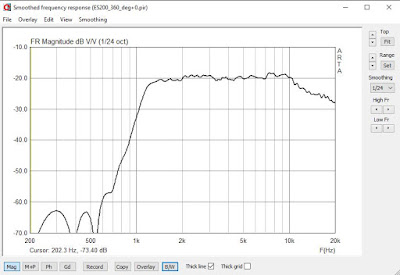

On-Axis Frequency Response for ES-2000 Biradial + B&C DE360

Spectral Burst Decay

Below is the spectral burst decay. The burs decay results show exemplary results with no resonances in the upper treble (+10kHz).  This is a good result for a compression driver.

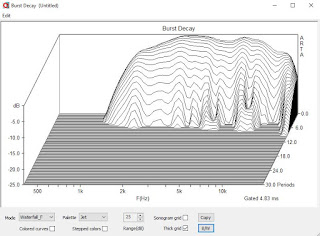

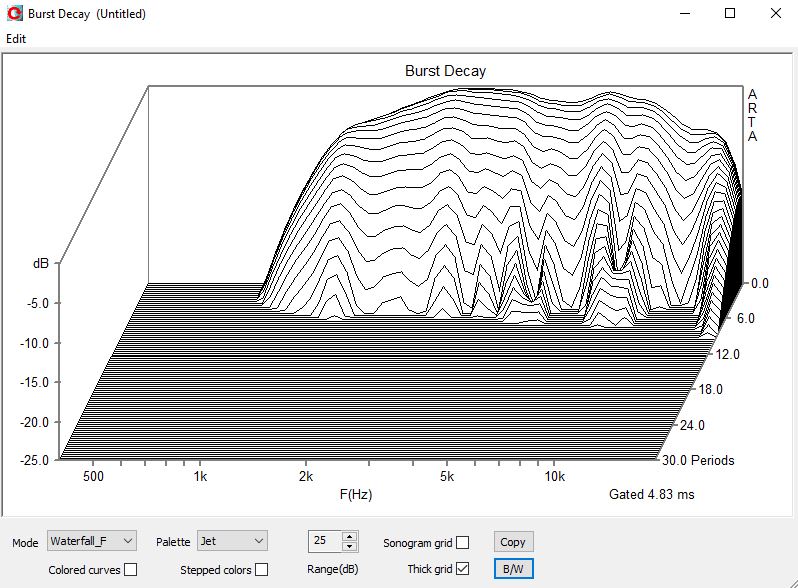

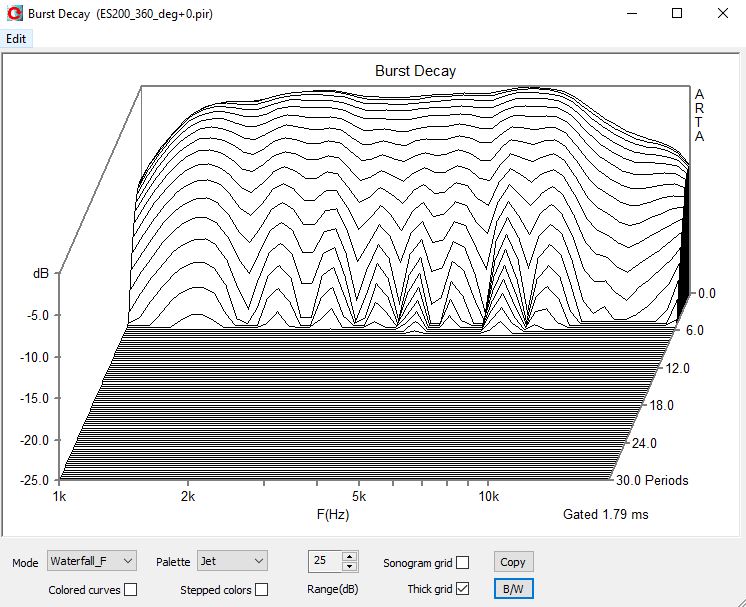

Burst Decay for B&C DE360 + ES-2000 Biradial Horn

Step Response

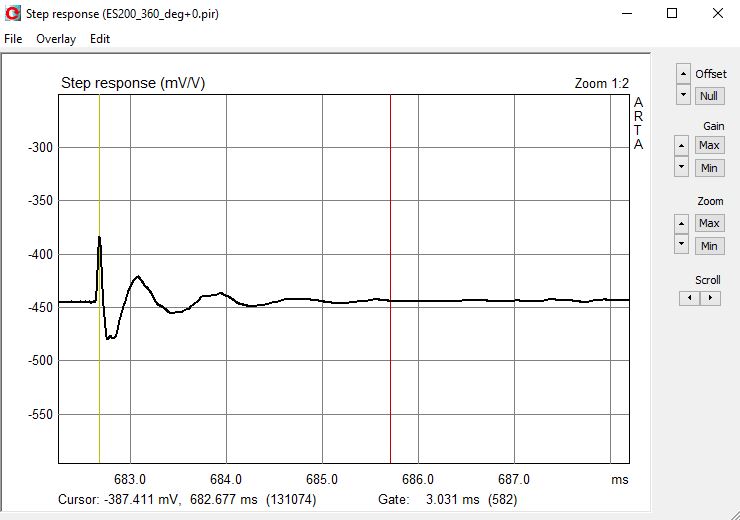

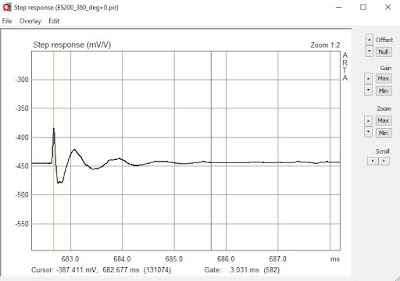

I then measured the step response.  The step response shows 3ms to come to rest which is about twice as long as the B&C DE120 which I will show later on in this blog post.



Step Response for B&C DE360 + ES-2000 Biradial.

Off-Axis Polar Response

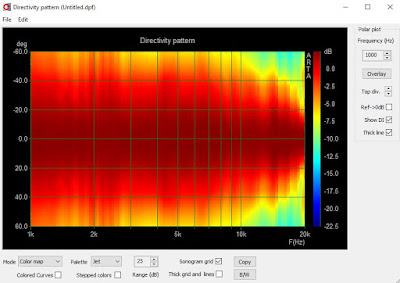

Below is the off-axis polar response.  The ES-2000 exhibit very uniform response off-axis and very wide coverage even up to 20kHz.   Coverage is 120 degrees at 10kHz and 90 degrees at 20kHz which is very good.

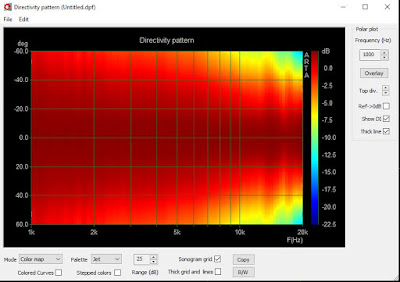

Off-axis polar response for B&C DE360 + ES-2000 Biradial (Up to 60 degrees)

Extending my measurements out to a full 90 degrees off-axis shows the a little more of the pattern control into the room.  No smoothing was applied

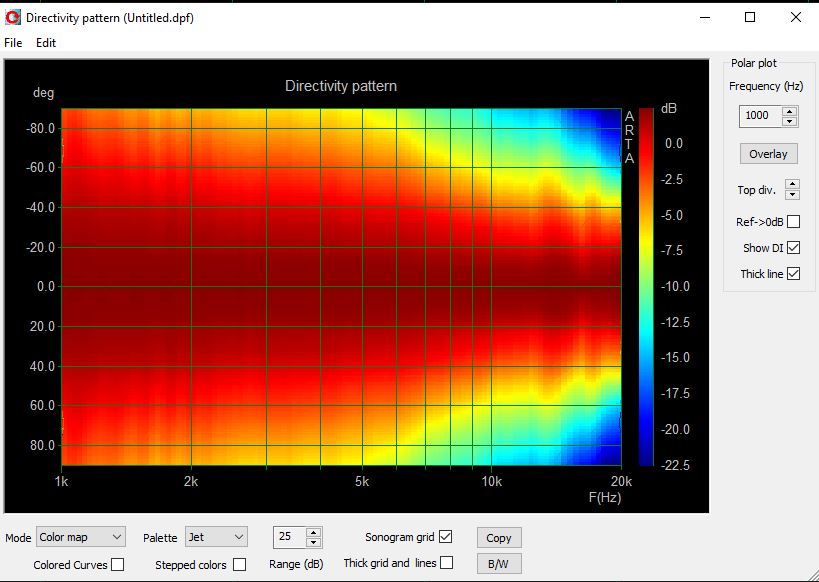

Off-axis polar response for B&C DE360 + ES-2000 Biradial (Up to 90 degrees)

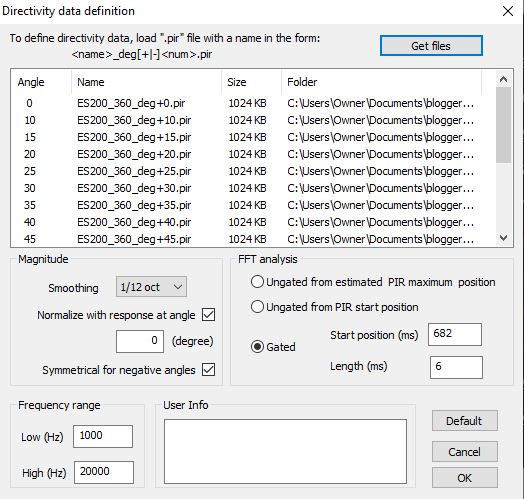

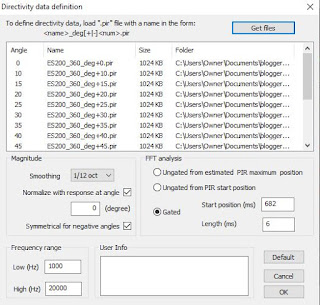

For reference I've shown my polar map settings.  Please note I've used a 6ms gate since these measurements were taken indoors.

Polar map settings in ARTA for reference



Subjective Impressions


I listened to this driver before conducting any of the acoustical tests.  I was a little disappointed with the clarity and so I decided to measure the response.  When I saw the falling response past 10kHz I attempted to apply some EQ to raise the response above 10kHz.  This helped a little bit but I found the overall sound quality to be lacking for audiophile applications.  I continued to listen with different crossover points and I settled on a 9kHz crossover point which allowed the falling response above 10kHz to integrate with my midrange horn.  Despite my efforts the results we not satisfactory.

I wondered as well if the horn was the contributor to the sound I was hearing.  I then mounted two other compression drivers for comparison.  I used the B&C DE120 which is a discontinued model now replaced by the DE110 or the DE111.  The DE120 is a regular dome style compression driver where the DE360 is a ring radiator style.  The third driver that I tested was the RCF ND350.



Testing with B&C DE120

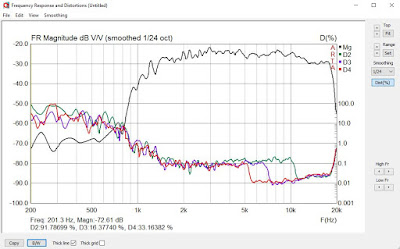

Below is the full set of measurements for the DE120 + ES-2000 combination.  The DE-120 exhibits similar distortion results as the DE360.

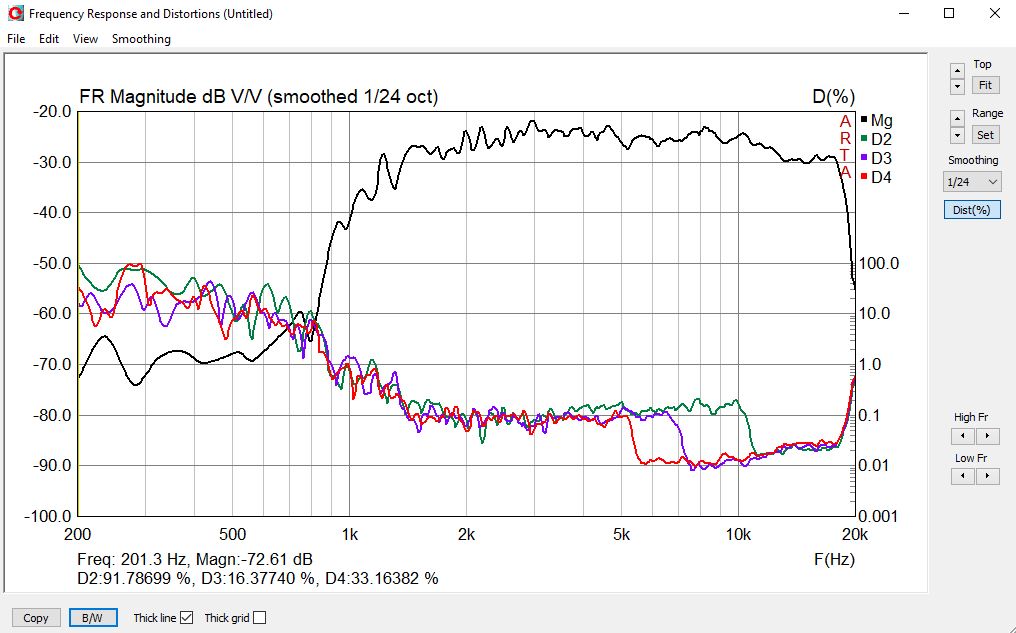

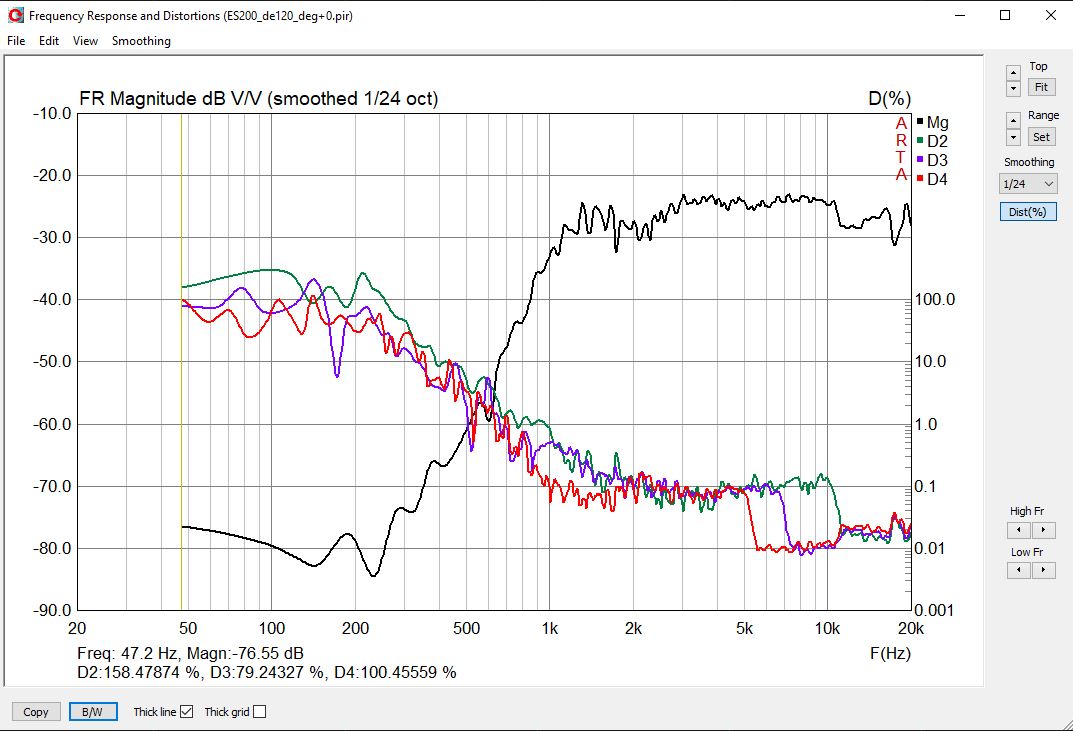

Distortion Sweep (%THD) for B&C DE120 + ES-2000 Biradial

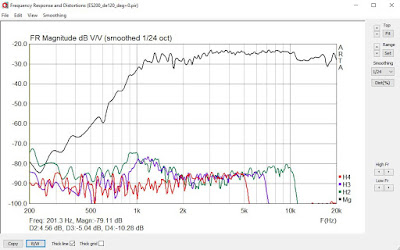

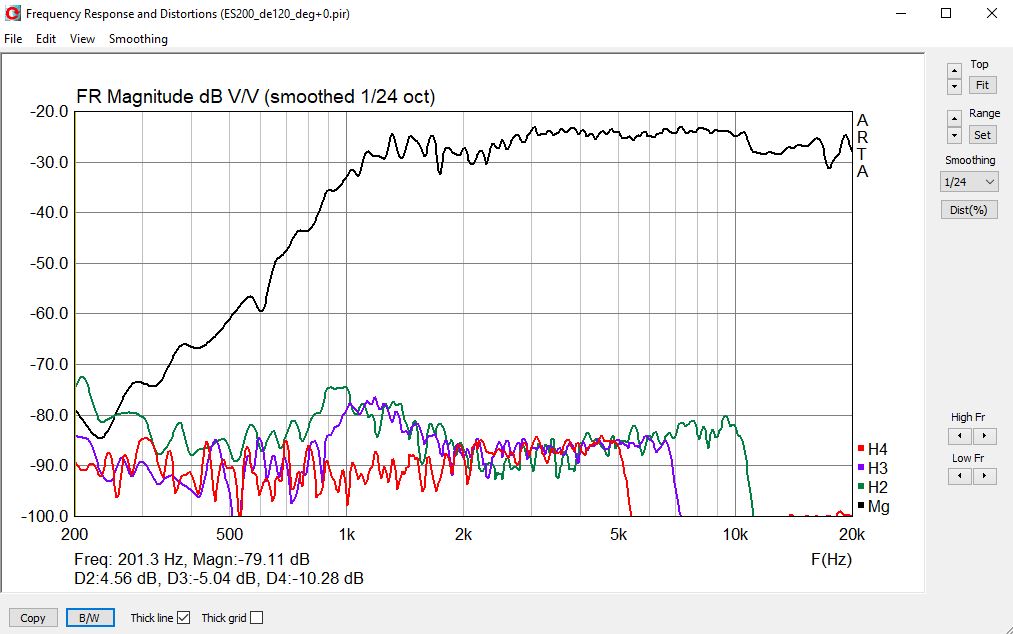

Distortion Sweep (-dB) for B&C DE120 + ES-2000 Biradial

Frequency Response

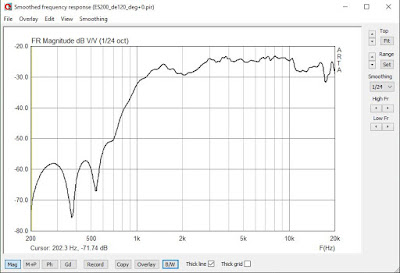

Below is the frequency response results.  The DE120 shows good extension out to 20kHz without the falling response of the DE360.  Although the frequency response is +/- 2dB from 3kHz-16kHz which is still respectable.

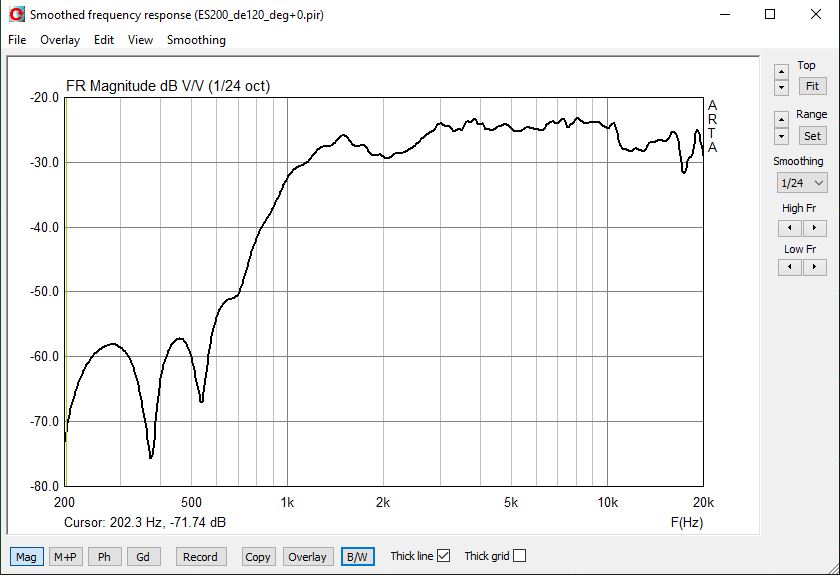

Frequency Response for B&C DE120 + ES-2000 Biradial

Spectral Burst Decay

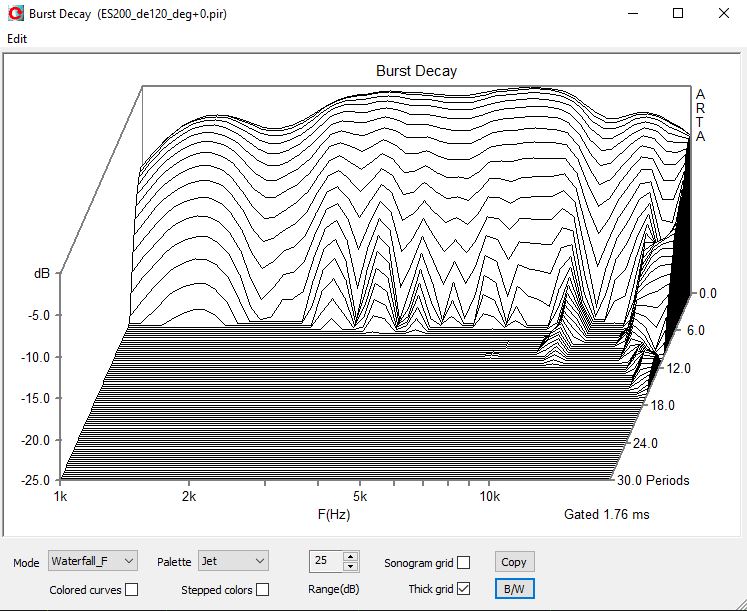

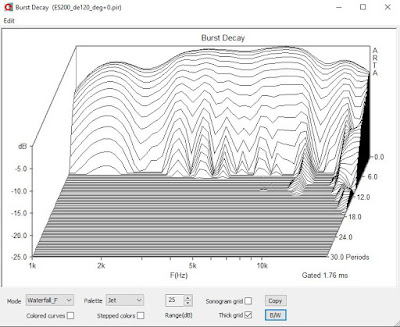

Below are the burst decay results. Because of the dome style diaphragm there is some breakup mode occurring starting at around 16kHz.



Step Response

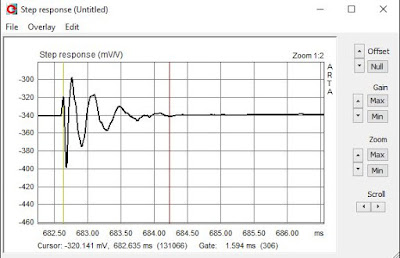

The step response shows a 1.5ms recovery time which is twice as short as the DE360's result (3ms).  This is the only objective test result that may indicated why I prefer the sound of this driver over the DE360. Otherwise the DE360 "Should" sound better than the DE120.

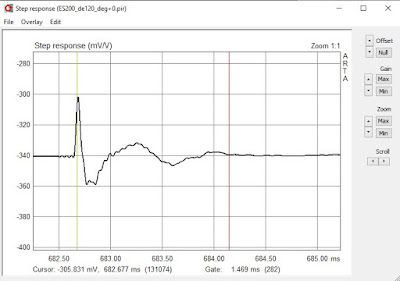

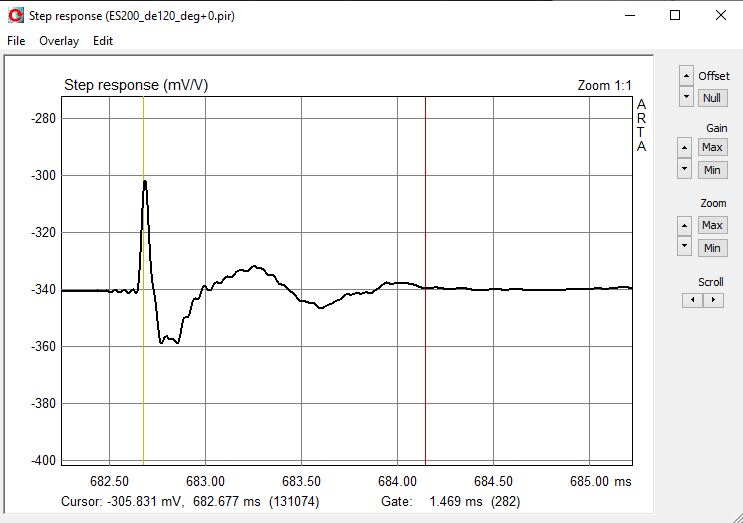

Step Response for B&C DE120 + ES-2000 Biradial

Off-axis Polar Map

Because of the different throat angles on the DE120 I decided it was important to measure the off-axis on this driver/horn combination as well.  I will note that I had assumed that the DE360 had the same throat angle as the DE120 however once I received the DE360's I quickly realized that the throat is narrower than the DE120.  I could not physically measure the DE360's throat angle without removing the bug screen.  The ES-2000 Biradial was made to match the DE120's throat angle of 28 degrees.  The DE120 + ES-2000 produce nearly identical off-axis results to the DE360.   It could be argued that the DE120 is even better behaved off-axis above 10kHz.

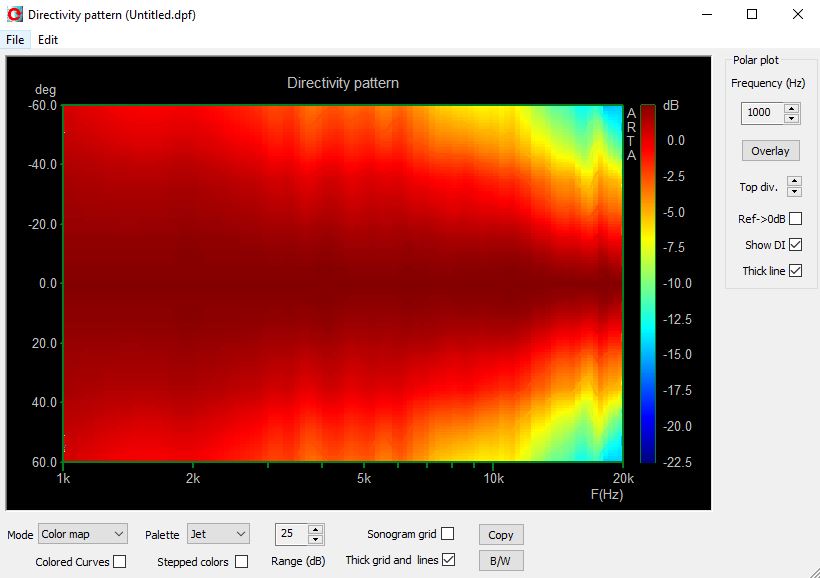

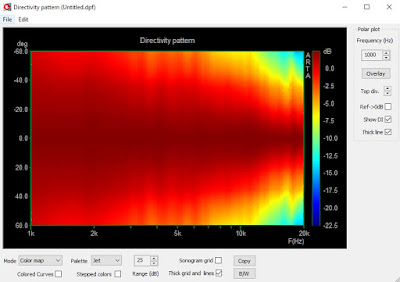

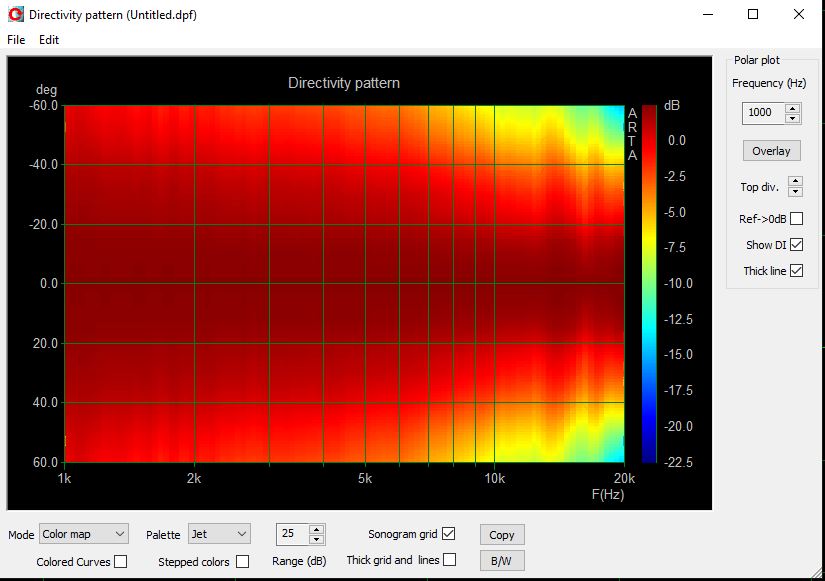

Off-axis polar pattern for B&C DE120 + ES-2000 Biradial (60 degrees)

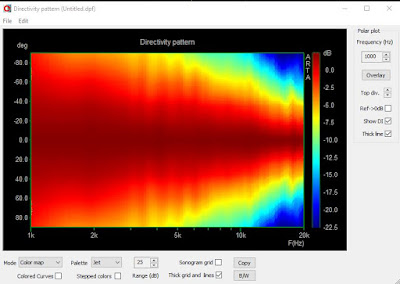

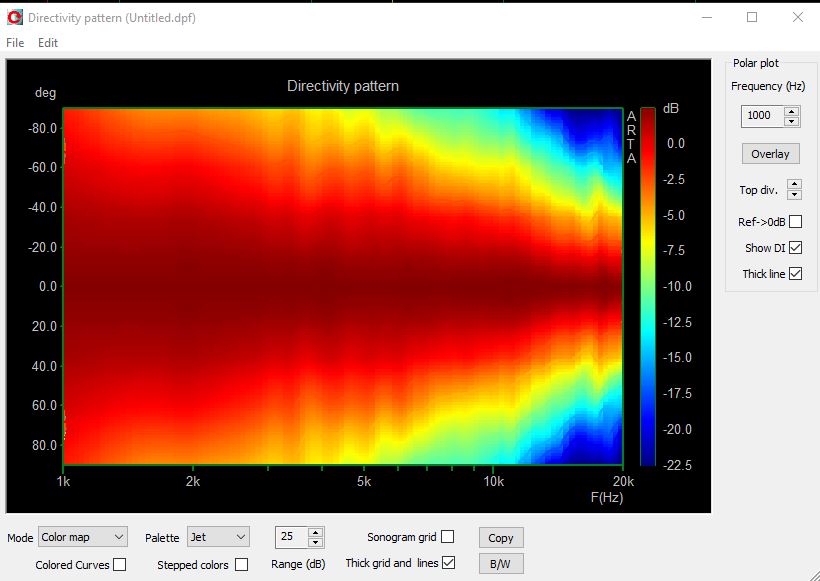

Off-axis polar pattern for B&C DE120 + ES-2000 Biradial (90 degrees)

Subjective Impressions

I found the DE120 to sound more enjoyable than the DE360.  The DE120 has a more immediate sound to the leading edge of transients.  Overall the driver sound smoother.  I would be curious to test the latest version of the DE120 from B&C which is the DE111.  I then tested the RCF ND-350 compression driver.



RCF ND-350 Compression Driver Results



Distortion Sweep



RCF ND350 + ES-2000 Distortion (%THD Scale)

RCF ND350 + ES-2000 Distortion (dB Scale)

Frequency Response

The frequency response shows +/- 2.7dB from 1kHz - 18kHz.

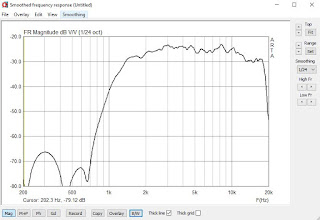

Frequency Response RCF ND350 on ES-2000

Burst Decay

Worth noting on the burst decay results is that the breakup occurs even higher up in the frequency band than the DE120 despite the ND350 having a larger diaphragm (1.7" vs 1.4"). Breakup starts at 18kHz versus the 16kHz of the DE120.  The magnitude of the breakup is also less.

Burst Decay for RCF ND-350 + ES-2000

Step Response

The step response is 1.6ms which is comparable to the B&C DE120

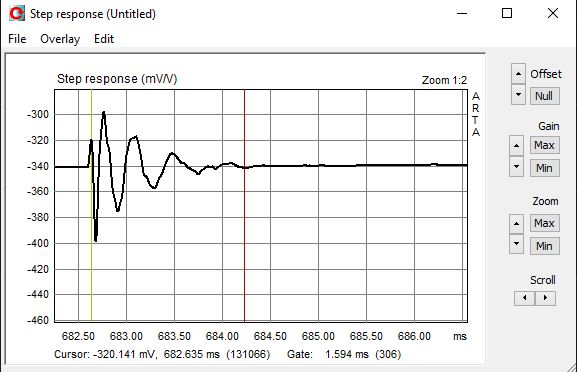

Step Response for RCF ND-350 + ES-2000 Biradial

RCF ND-350 Listening Impressions

The RCF ND-350 exhibited the best sound quality of the group.  There was a noticeable increase in smoothness.  This combination certainly met my performance target for audiophile applications.







Integration into Autumn Series Speaker

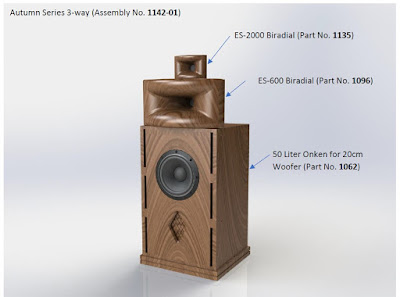

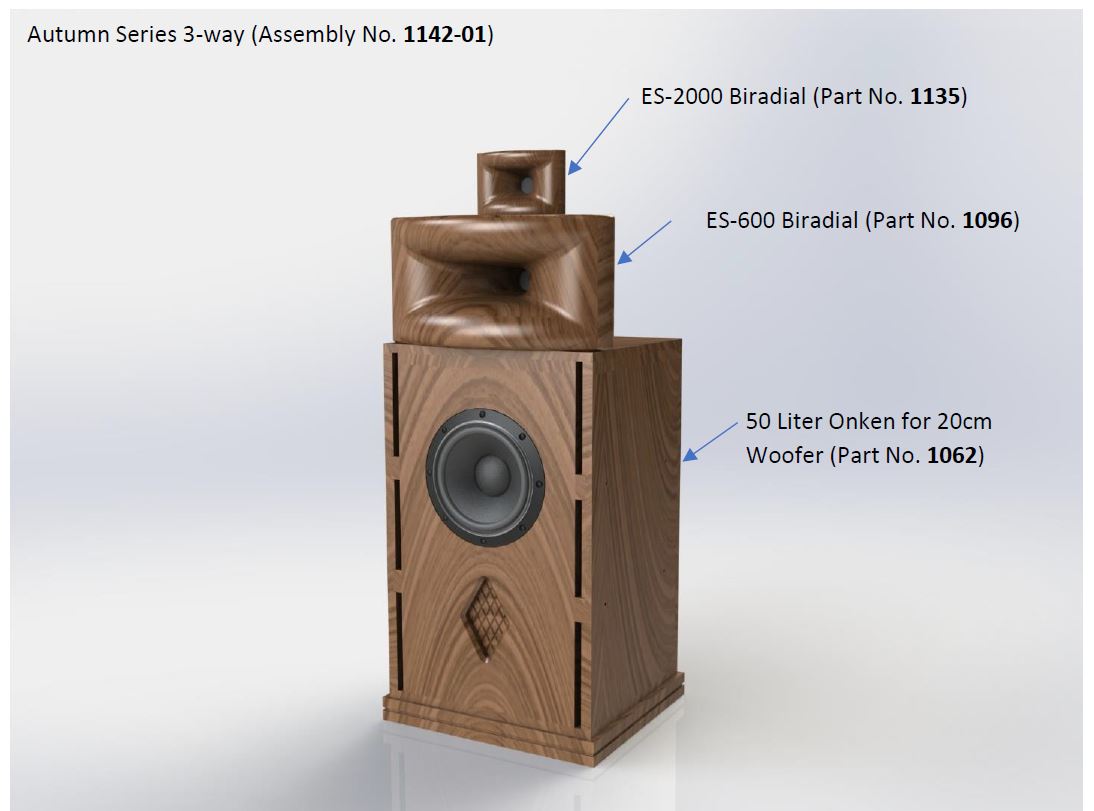

Diagram for Autumn Speaker Series Configuration No. 1142-01



My listening tests were conducted with the Autumn Series speaker configuration No. 1142-01.  The midrange horn is the ES-600 Biradial which uses the RCF ND-840 compression driver which uses a 3" voice coil.  For convenience I used an active DSP unit for full adjustment of crossover points and EQ.  My goal here is to see how the ES-2000 can integrate into the ES-600 and investigate what the objective and subjective performance characteristics for this configuration.



Frequency Response

Below is the frequency response that I was able to quite easily get with a simple 24dB/LR filter at 5kHz.

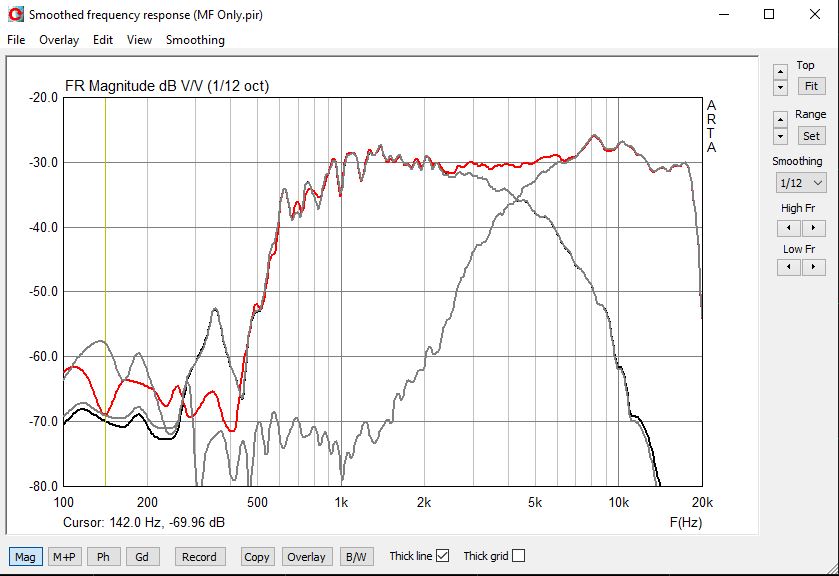

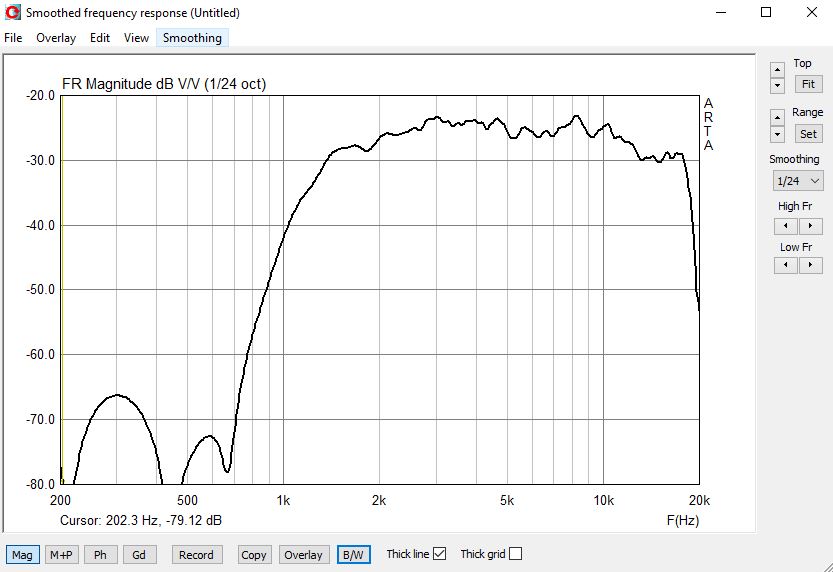

Mid Horn + HF Horn combined at 5kHz crossover point

Mid Horn + HF Horn combined at 5kHz crossover point

Burst Decay Results

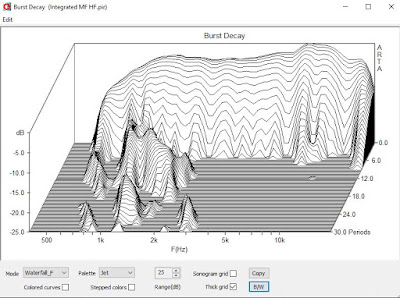

Burst Decay results for Mid Horn + HF Horn with 5kHz crossover point

Off-Axis Polars

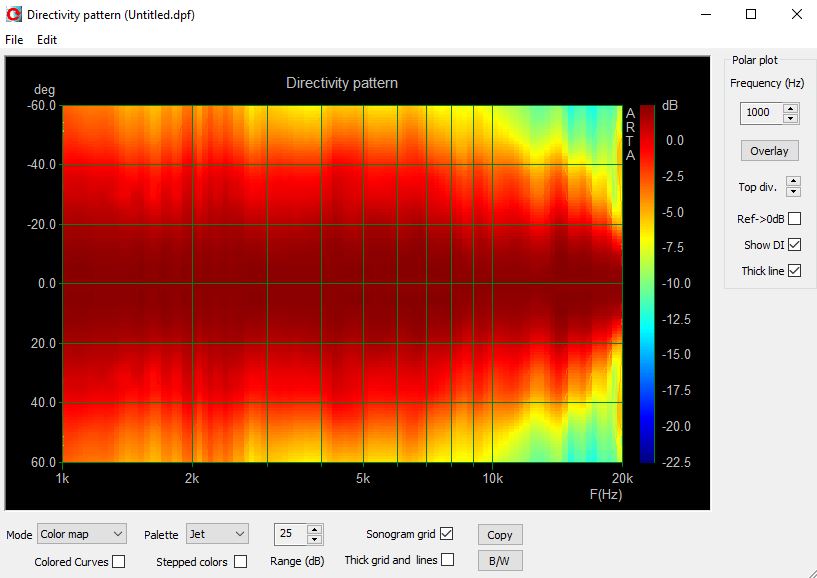

Off-axis polar map for ES-600 + ES-2000 with 5kHz 24dB/LR crossover

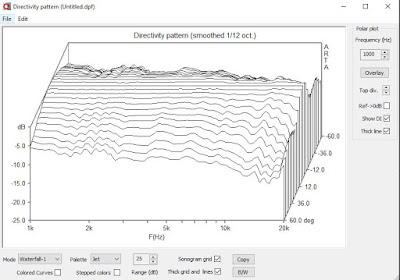

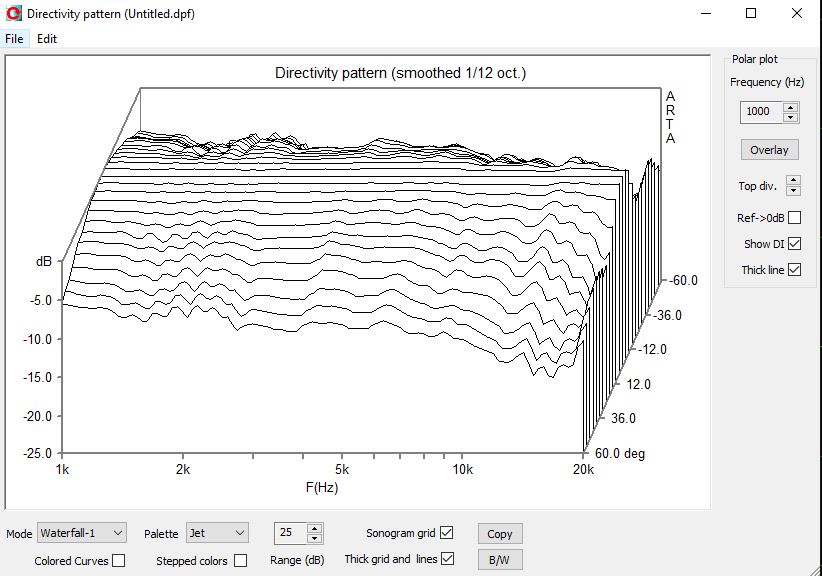

Waterfall Type 1 off-axis response (5 degree increments)

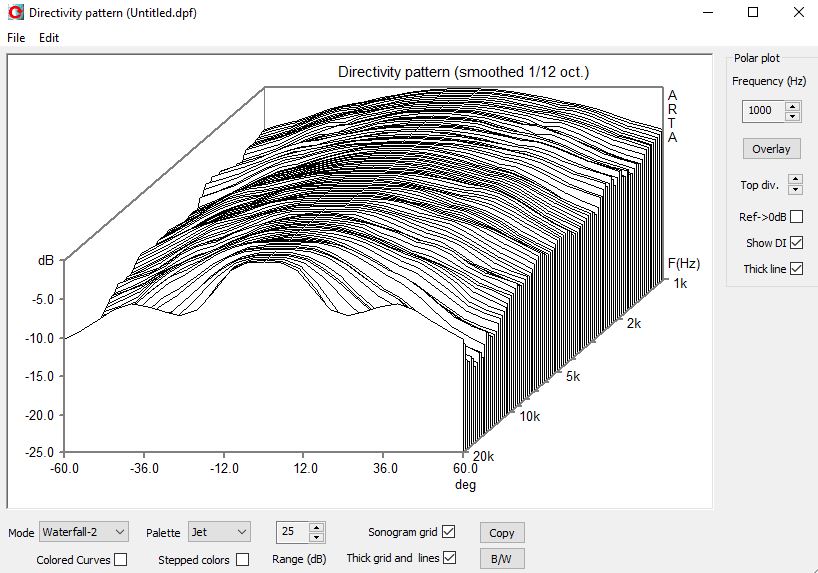

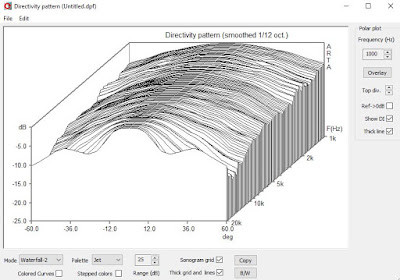

Waterfall Type 2 off-axis response (5 degree increments)

 Listening Impressions

I found this setup to sound extremely good.  There is a lifelike presence to the sound that has excellent coherence and intelligibility.  I thought to myself that this a very 'mature' sound that simply sounds 'correct'.   The fact that I was using both RCF compression drivers for the midrange and treble likely helped with the balanced sound.  Even with one speaker playing the soundstage was actually quite wide and deep.



Conclusion



The B&C DE360 did not live up to my hope.  The B&C DE120 excelled over the DE360 in terms of smoothness and detail.  The RCF ND350 is a few notches ahead of either of the B&C drivers for dynamics and smoothness.  It has become one of my favouirite compression drivers.  The RCF ND-840 is a recent acquisition for me and has impressed me as well.  It has a very open midrange sound that digs deep into the lower midrange (550Hz) without any resonance.
