Mid-Bass Front Horn Cabinet No.1274

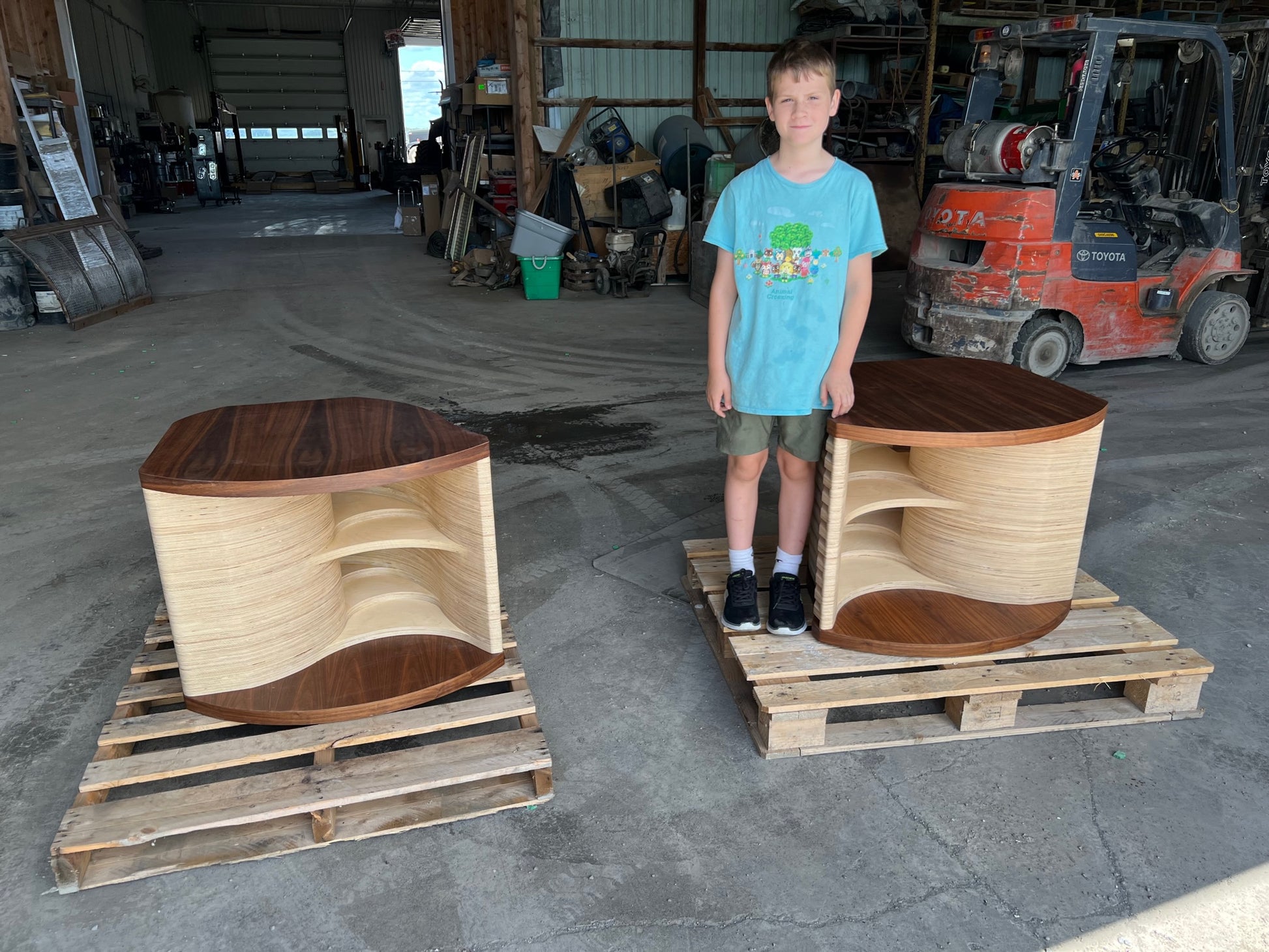

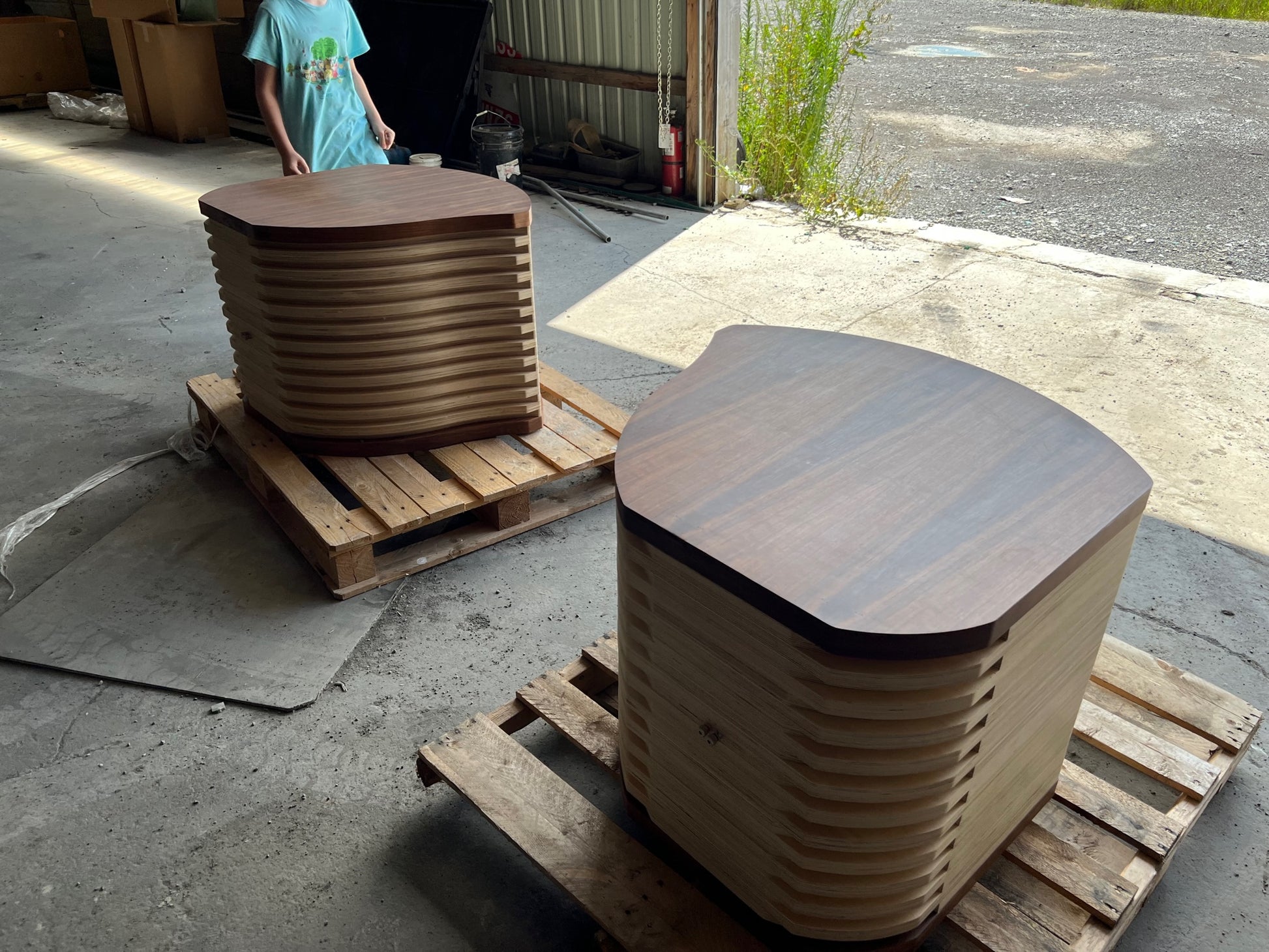

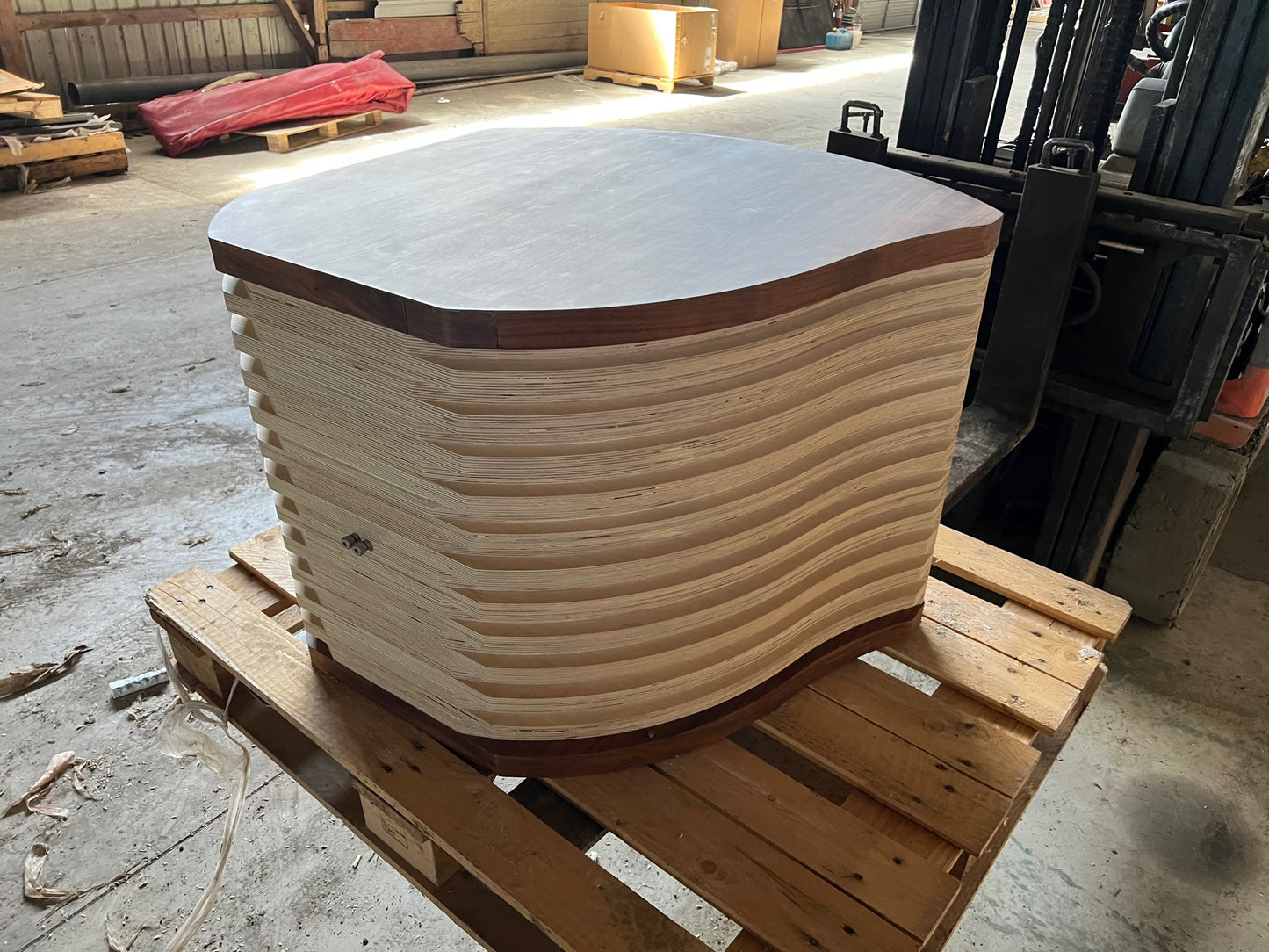

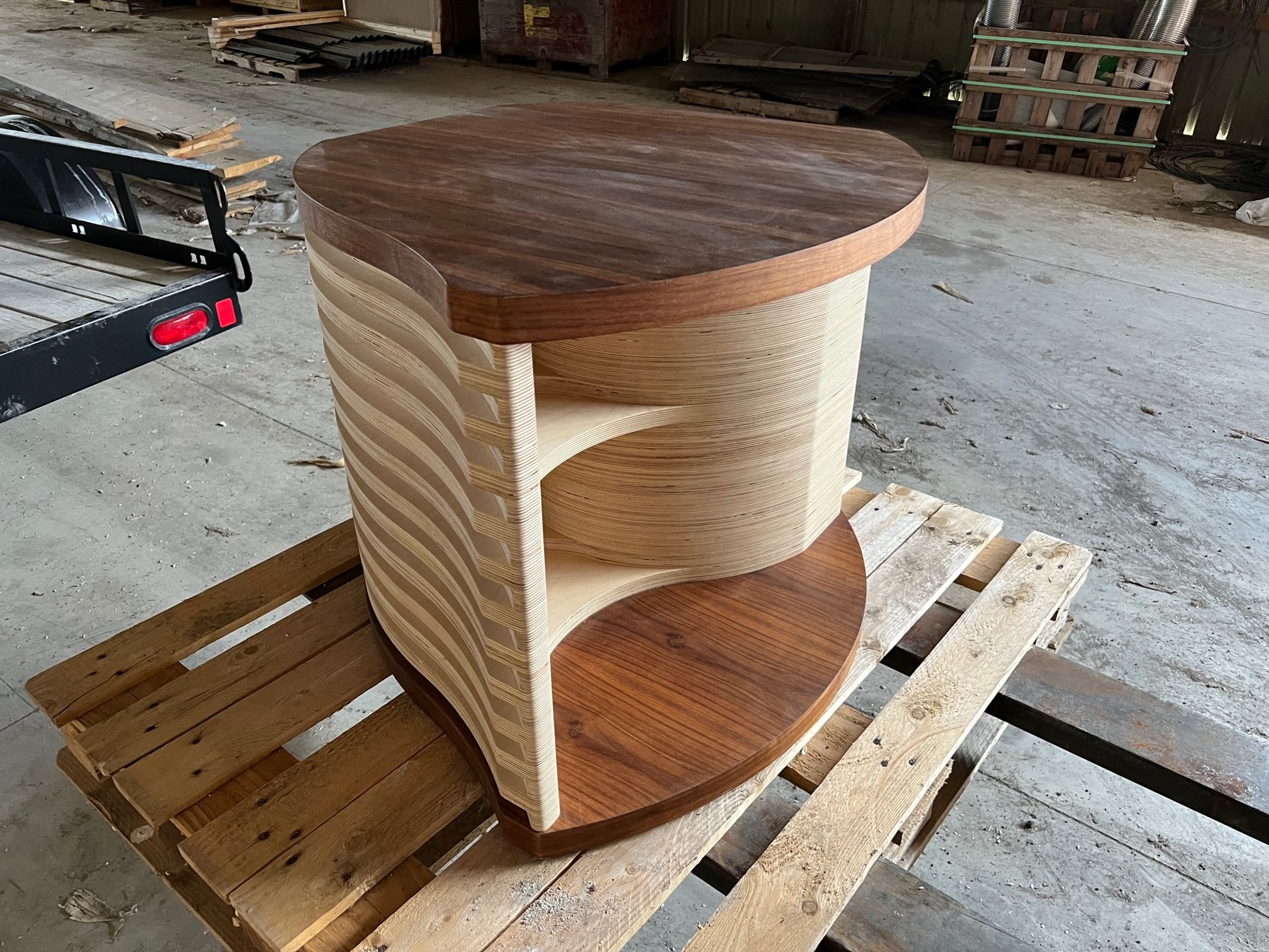

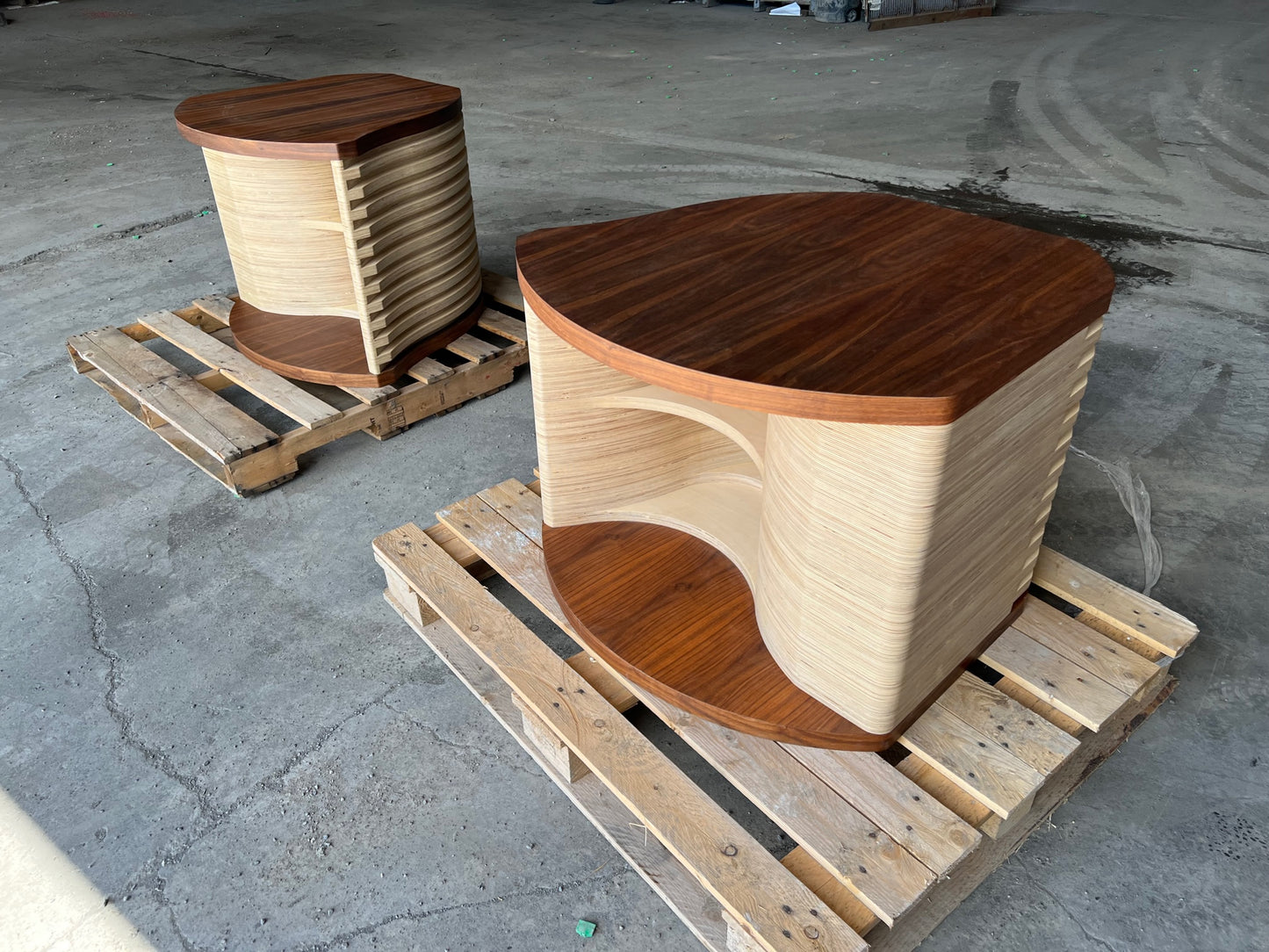

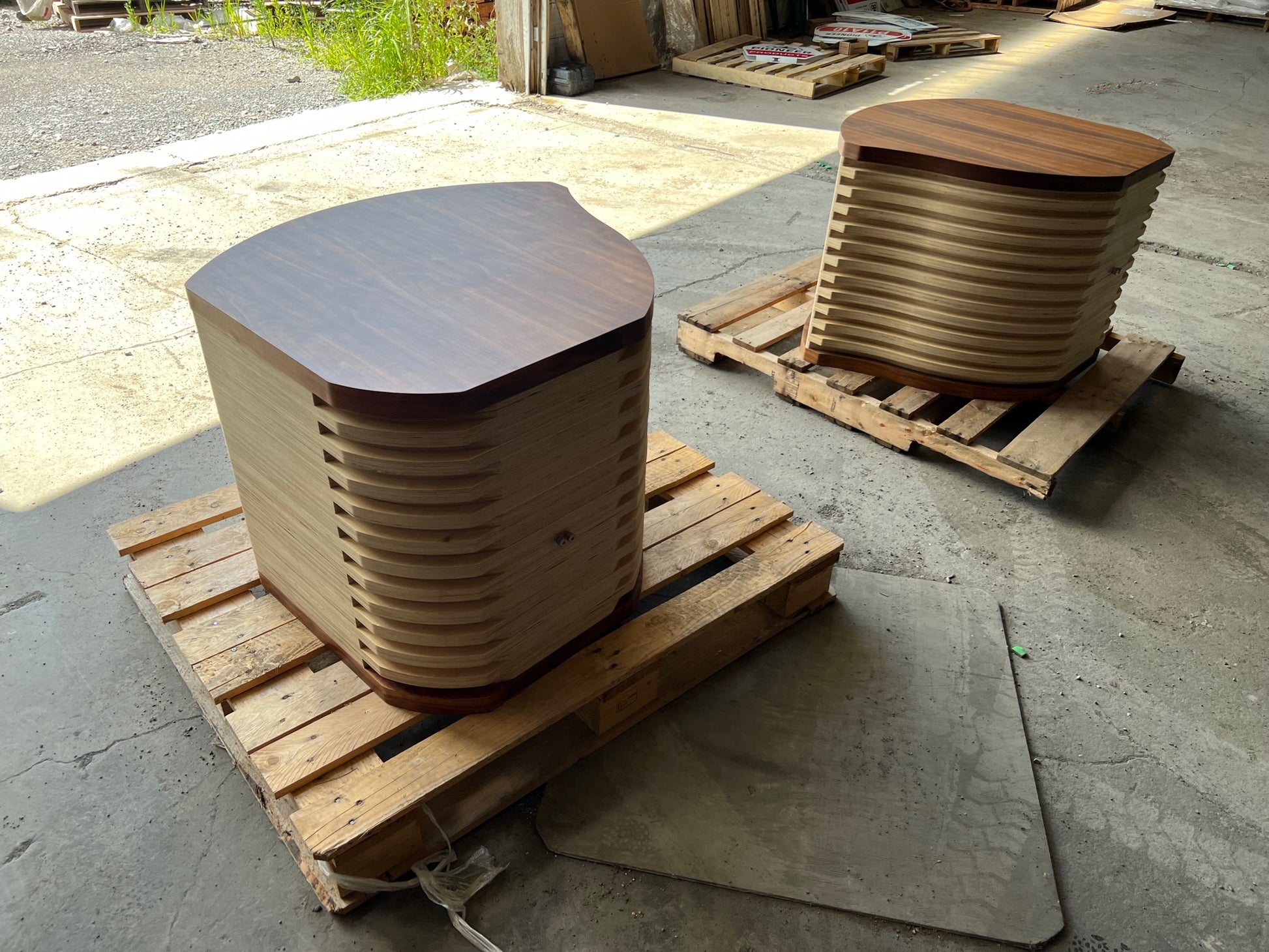

These early production cabinets have a few blemishes and are priced accordingly (60% off our normal price). Please contact for pictures of blemish areas.

Mid-Bass Cabinet No. 1274 is a Joseph Crowe exclusive design providing exceptional sound quality in a relatively compact size factor.

For the featured YouTube video click Here.

• $2,000 USD Each
• Available for immediate delivery
• Please contact for a shipping quote
• Other design services available
• Can be integrated with other horns (please email for inquires).

Specification

• 109dB sensitivity @ 1watt (4v)
• 16ohm nominal impedance
• 110Hz-600Hz
• Compact folded design
• 814mm wide x 766mm deep x 472mm tall
• Dual B&C 10NW76 bass drivers per cabinet

Construction

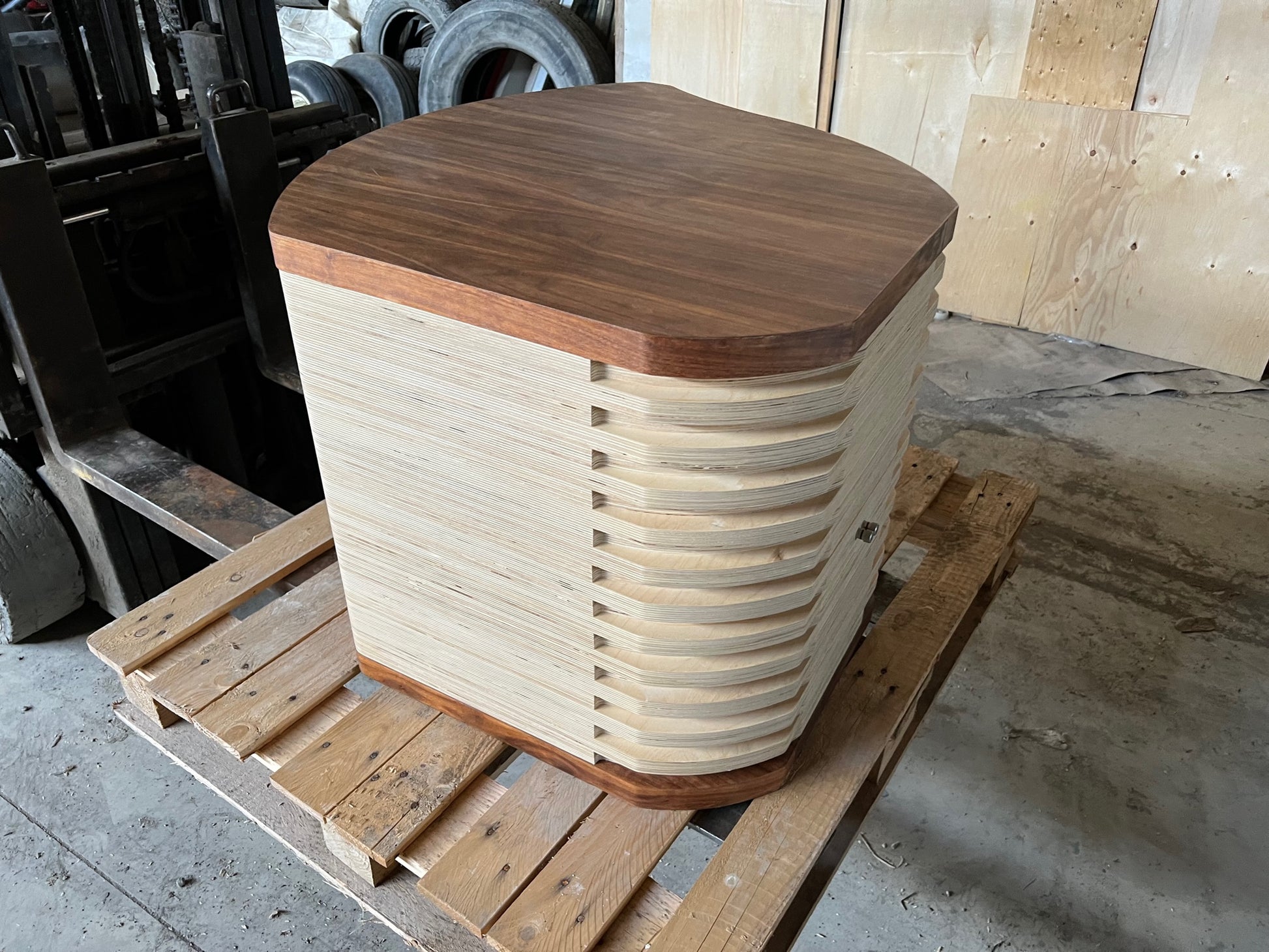

The 1274 mid-bass is constructed from 25 layers of 24mm thick baltic birch plywood.  Each layer is CNC machined and glued and assembled.  The top and bottom layers are constructed from 38mm thick MDF with real walnut veneer.  Each of the two drivers are housed in a 25 liter sealed chamber.  Each driver faces directly down the horn throat.   The horn profile is designed carefully in using hornresp horn simulation software.

Physical Dimensions

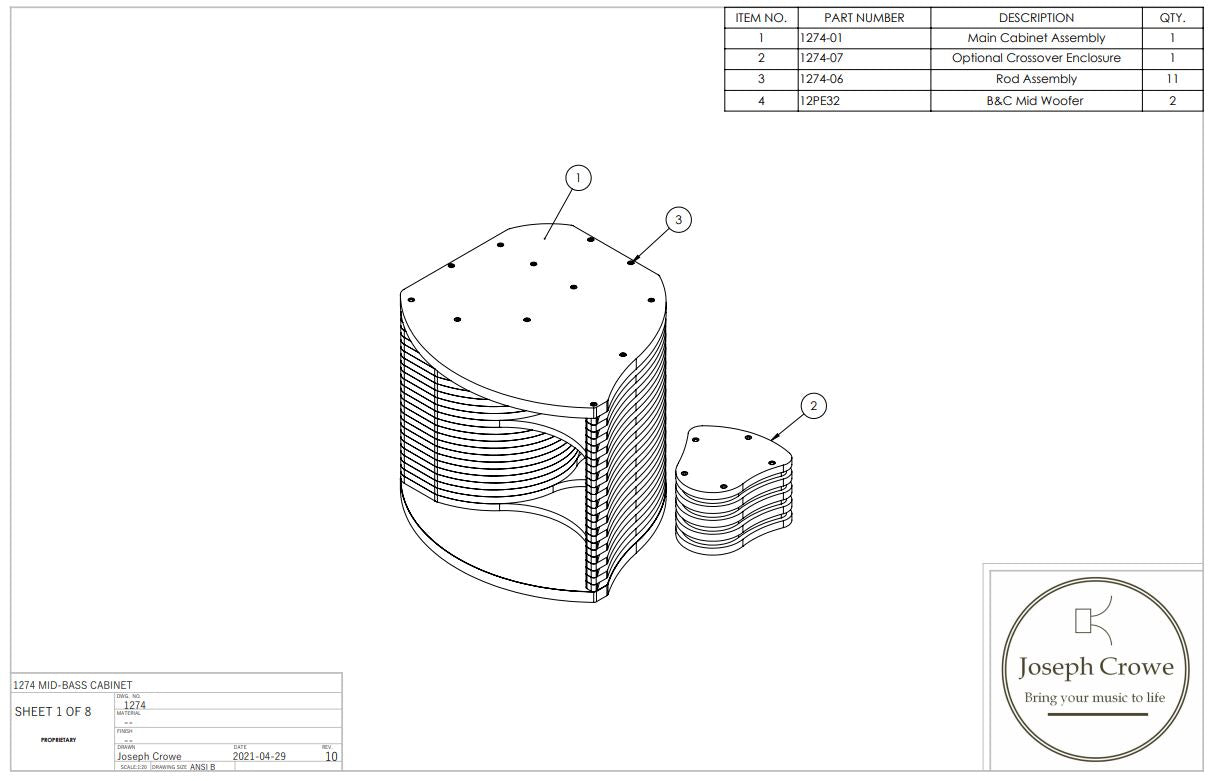

Below is a general assembly drawing of the 1274 mid-bass cabinet.  The ES-290 Biradial is positioned at an 840mm (33") listening height while the ES-1200 Biradial is positioned at a 1030mm (40.50") listening height.  (crossover boxes not included)

Below are some render images:

Objective Test Data

Frequency Response

Below is the frequency response.  I'm getting ±2dB from 110Hz - 450Hz.  Above 450Hz we see a gentle 12dB/octave falling response.  Below 110Hz we also see a 12dB/octave slope although is falls a little steep just below 110Hz.  Please note that these measurements were taken in my studio with the mic placed at 30cm from the horn mouth.  I did not gate the frequency response so I am likely getting some room interaction causing some peaks and dips in the response.

Step Response

The step response is generally well behaved.

Burst Decay

The burst decay shows nothing significant in terms of resonances.  The vertical scale has been increased to -35dB to highlight performance.

Impedance Sweep

Below is the impedance sweep.  The fundamental system resonance is 56Hz. The rear chamber is 25 liters for each driver.  This keeps the FS an octave below the Fc (Horn cutoff frequency) for a flat phase response across the horn's frequency bandwidth (110Hz-450Hz).

Harmonic Distortion

Below is a harmonic distortion sweep at various SPL levels.  Generally the mid-bass horn achieves HD levels well below 0.1%.  I placed my mic right at the horn mouth which caused a slight falling response past 200Hz.

Harmonic Distortion 90dB SPL @ 1 meter shown below:

Harmonic Distortion 95dB SPL @ 1 meter shown below:

 Harmonic Distortion 100dB SPL @ 1 meter shown below:

Intermodulation Distortion

Below is the intermodulation distortion sweep.  I conducted the sweep at 100dB SPL at 1 meter. For the sake of comparison I've directly tested against a well regarded 15" mid-bass (RCF L15-554K).  My mid-bass cabinet has about 50% less IM distortion than the RCF Mid-bass driver. It should be noted as well that the RCF uses copper shorting rings to reduce IM distortion while the 1274's  B&C 12PE32 drivers do not. It stands to reason that the 1274 mid-bass could see even better IMD figures if using drivers with copper shorting rings.

As a side note, low intermodulation distortion is strongly correlated to perceived clarity (1, 2).

References

(1) Newell, P. (2017) Recording Studio Design (4th Ed) Routledge

(2) Voishvillo, Alexander, ‘Assessment of Loudspeaker Large Signal Performance – Comparison of Different Testing Methods and Signals’, presented at the 111th Convention of the Audio Engineering Society, Contribution to the Task Group SC-04-03-C, New York, USA (December 2001)
